Description

SPECIFICATIONS

Brand Name: Roarkit

Choice: yes

Condition: New

Dissipation Power: W

High-concerned chemical: none

Operating Temperature: -40-80

Origin: Mainland China

Supply Voltage: V

Type: Module

semi_Choice: yes

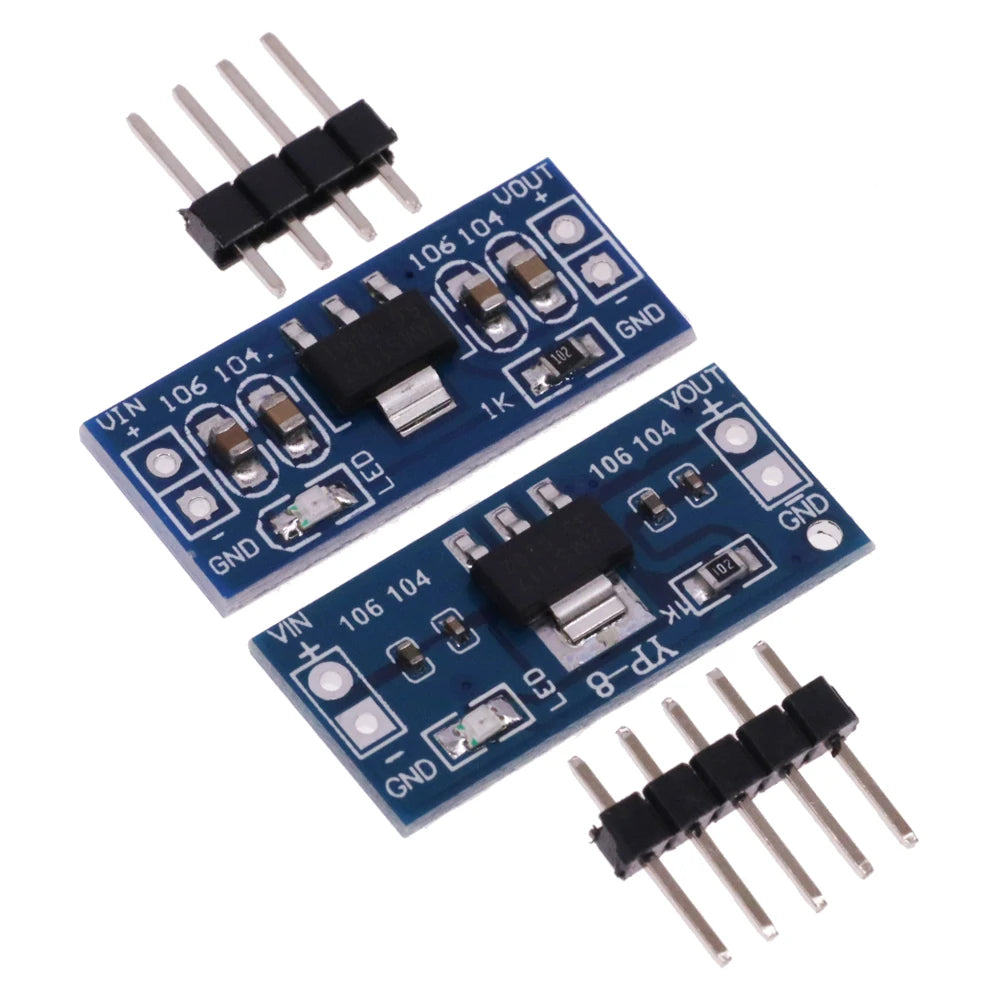

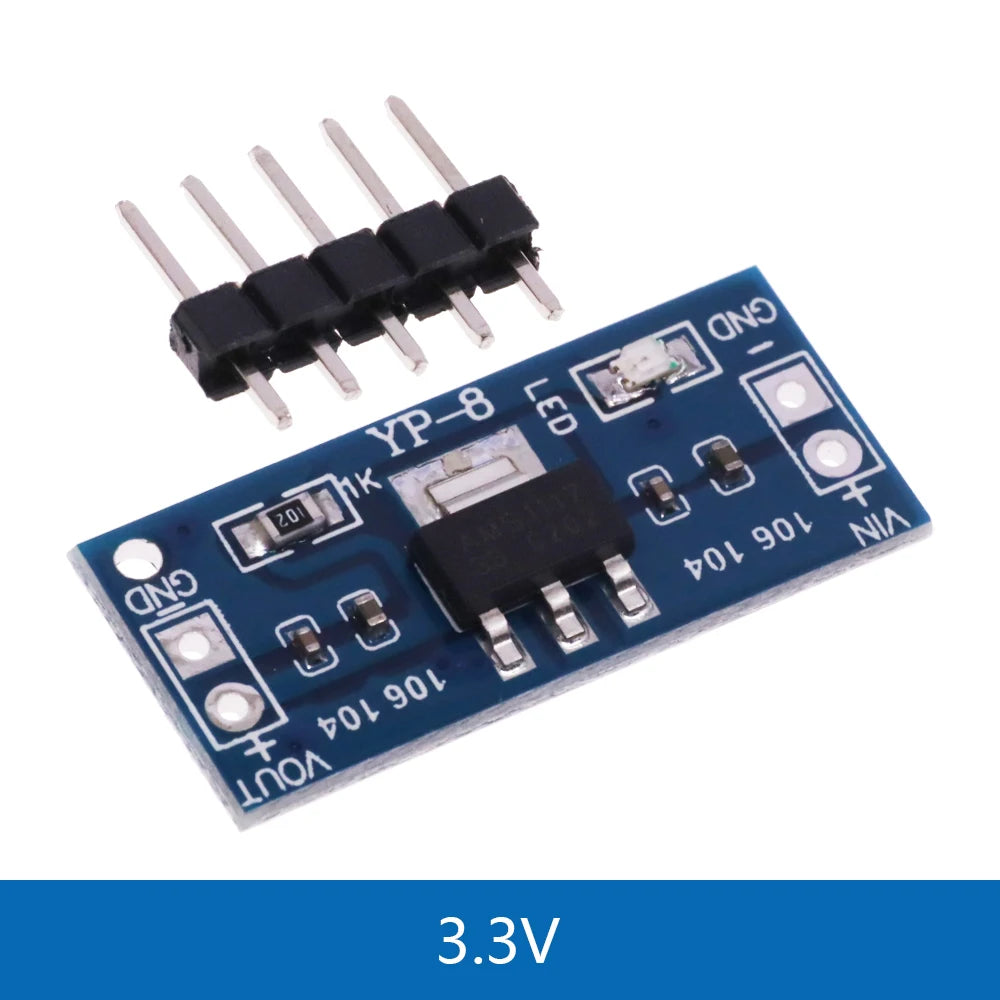

3.3V Design Background:

As electronics enthusiasts , you are not 'll find a 3.3V power supply and tangled, is not the will to power is not enough to expand the number of interfaces and distress ? Such experience , I believe that people will engage in electronic design often encountered . To facilitate that we can find a safe high performance , ease of use , power regulator rich expansion interface module , shop designed in such a transfer 3.3v 5v power regulator module, which applies to single-chip design project requires 3.3V power supply electronic equipment. Meanwhile , some of the electrons can be designed to facilitate the expansion of power .

A description of the baby

1 Input : DC 4.5V--7V ( input voltage must be higher than the output voltage to 1V or more. )

2 Output : 3.3V, 800mA ( load current must not exceed 800ma)

3 pairs of panel design, layout nice ;

4 specially designed two pin mounting holes , can be directly fixed on hole board for extended experiments ;

5 input and output using 2P single row pin for easy connection ;

6 PCB board size : 2.5cm * 1.1cm

7 with power indicator light ( red )

8 tablet weight about : 1.6g

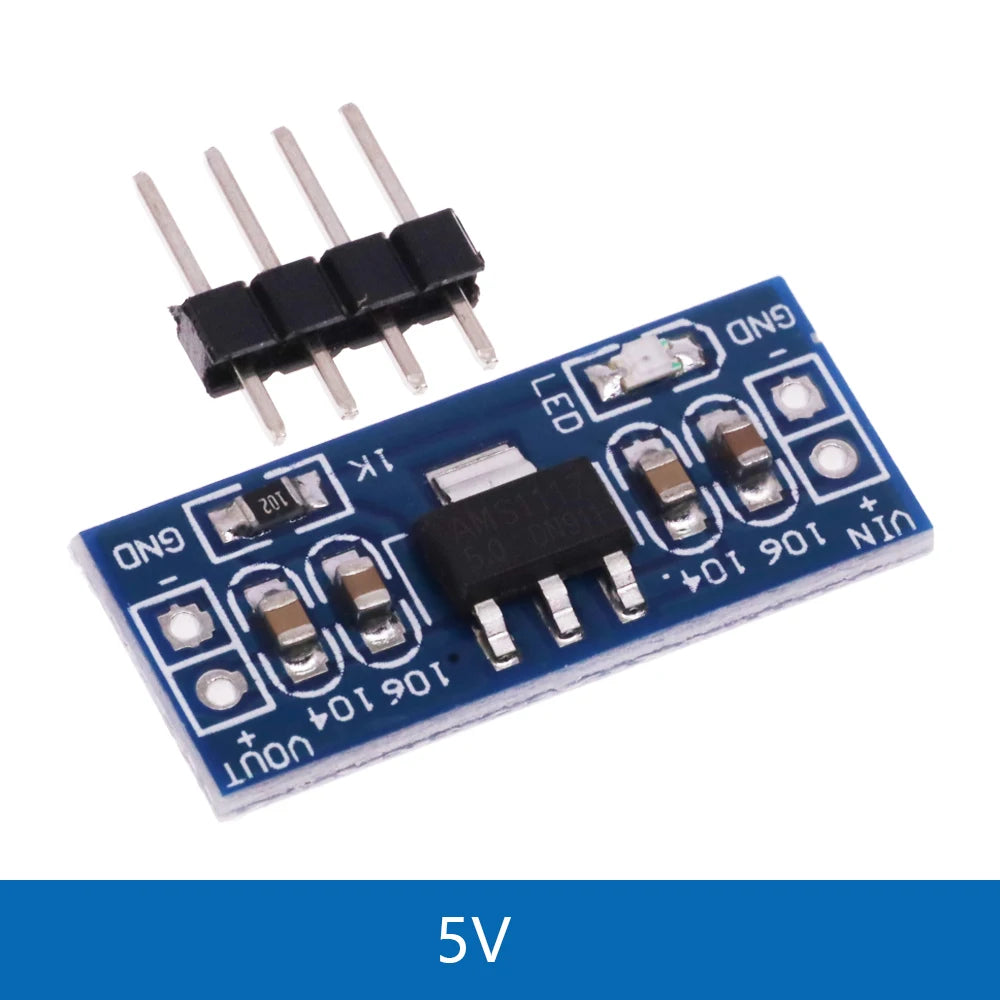

5V Design Background:

As electronics enthusiasts , you are not 'll find a 5.0V power supply and tangled, is not the will to power is not enough to expand the number of interfaces and distress ? Such experience , I believe that people will engage in electronic design often encountered . To facilitate that we can find a safe high performance , ease of use , power regulator rich expansion interface module , shop designed in such a 5v power regulator module, which applies to single-chip design projects that require electronic equipment 5V supply . Meanwhile , some of the electrons can be designed to facilitate the expansion of power .

A description of the baby

1 Input : DC 6V - 12V ( input voltage must be higher than the output voltage to 1V or more. )

2 Output : 5.0V (+-0.05v error ), 800mA ( load current must not exceed 800ma)

Three pairs of panel design, layout nice ;

4 specially designed two pin mounting holes , can be directly fixed on hole board for extended experiments ;

5 input and output using 2P single row pin for easy connection ;

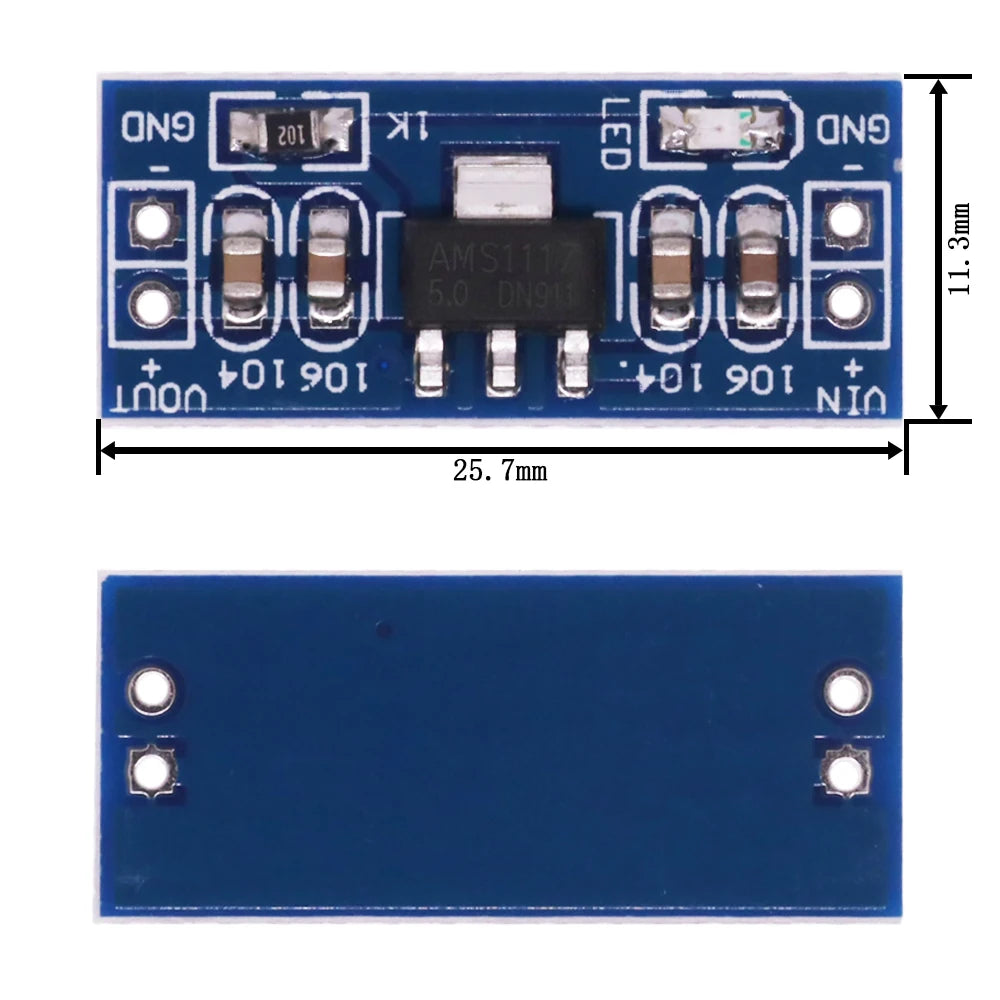

6 PCB board size : 2.5cm * 1.1cm

7 with power indicator light ( red )

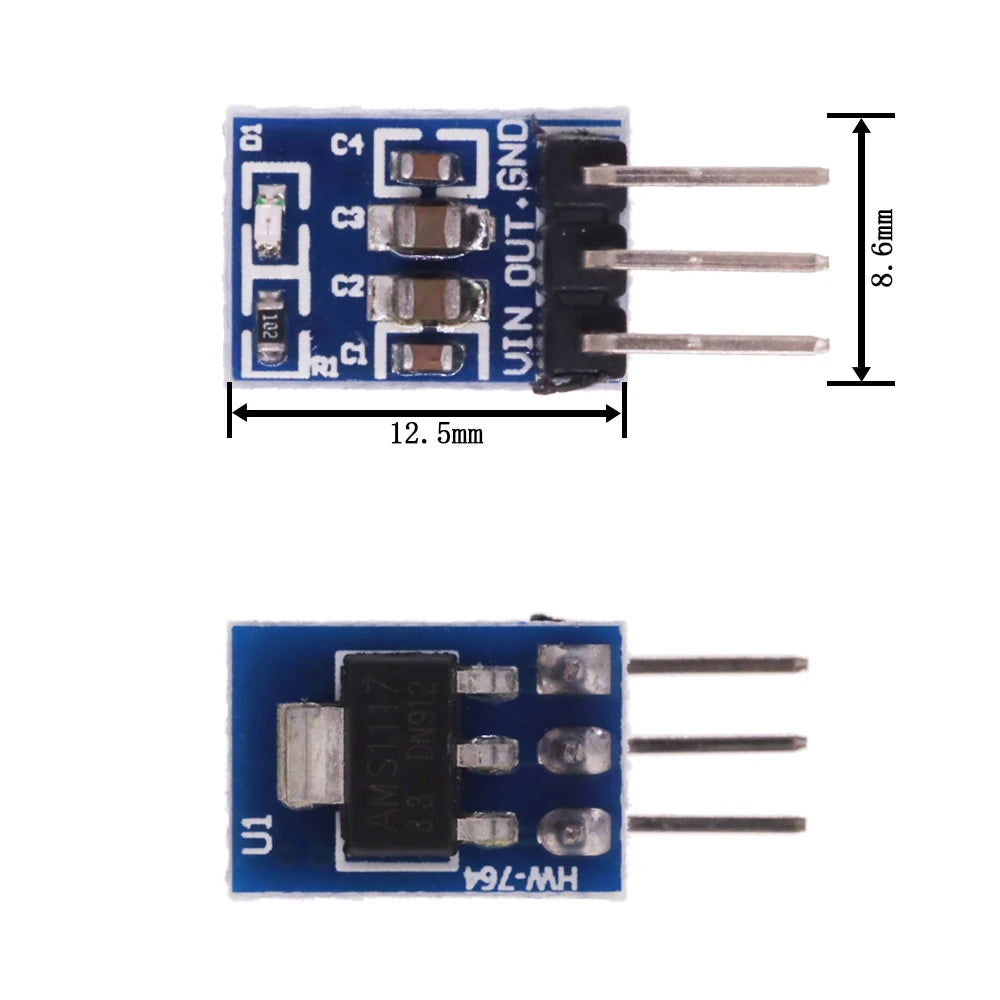

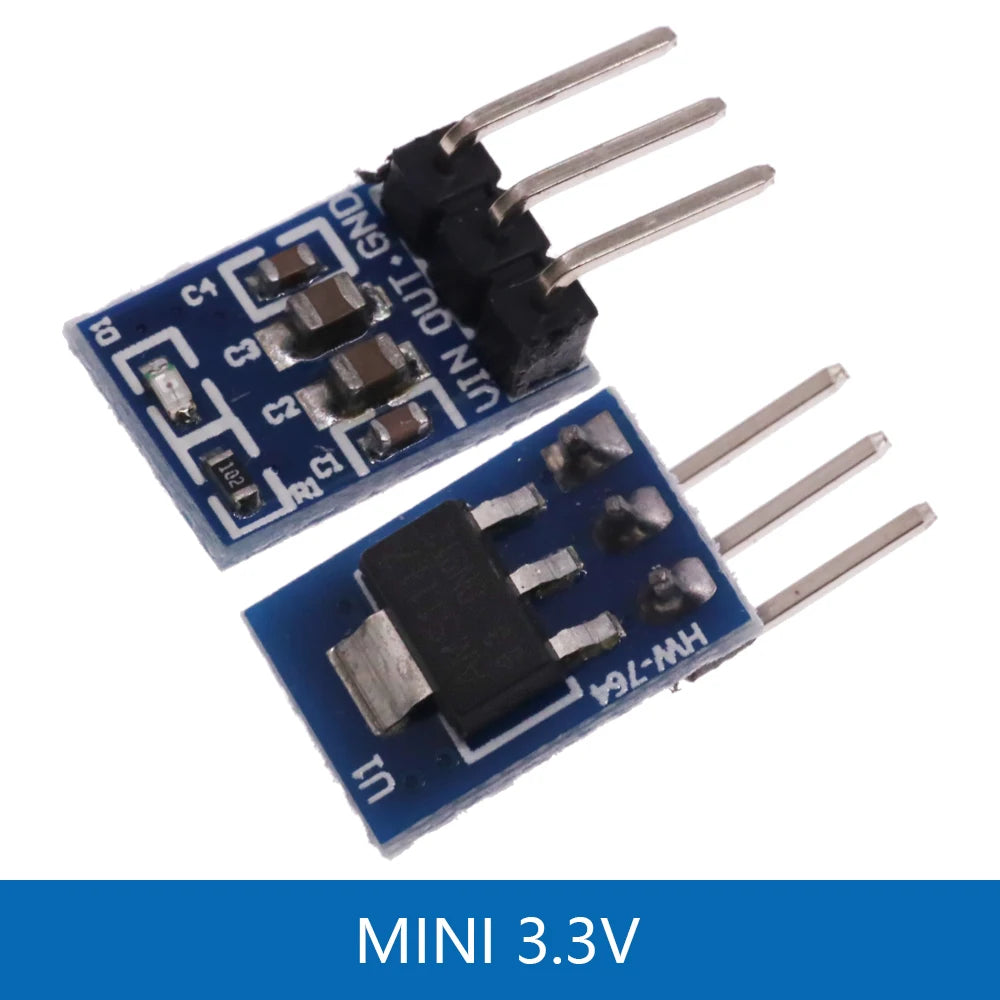

MINI 3.3V Features:

Size:8.6mm x 12.33mm

Input voltage: For DC 4.2 V-10 V

Output: 3.3 V, 800 mA
