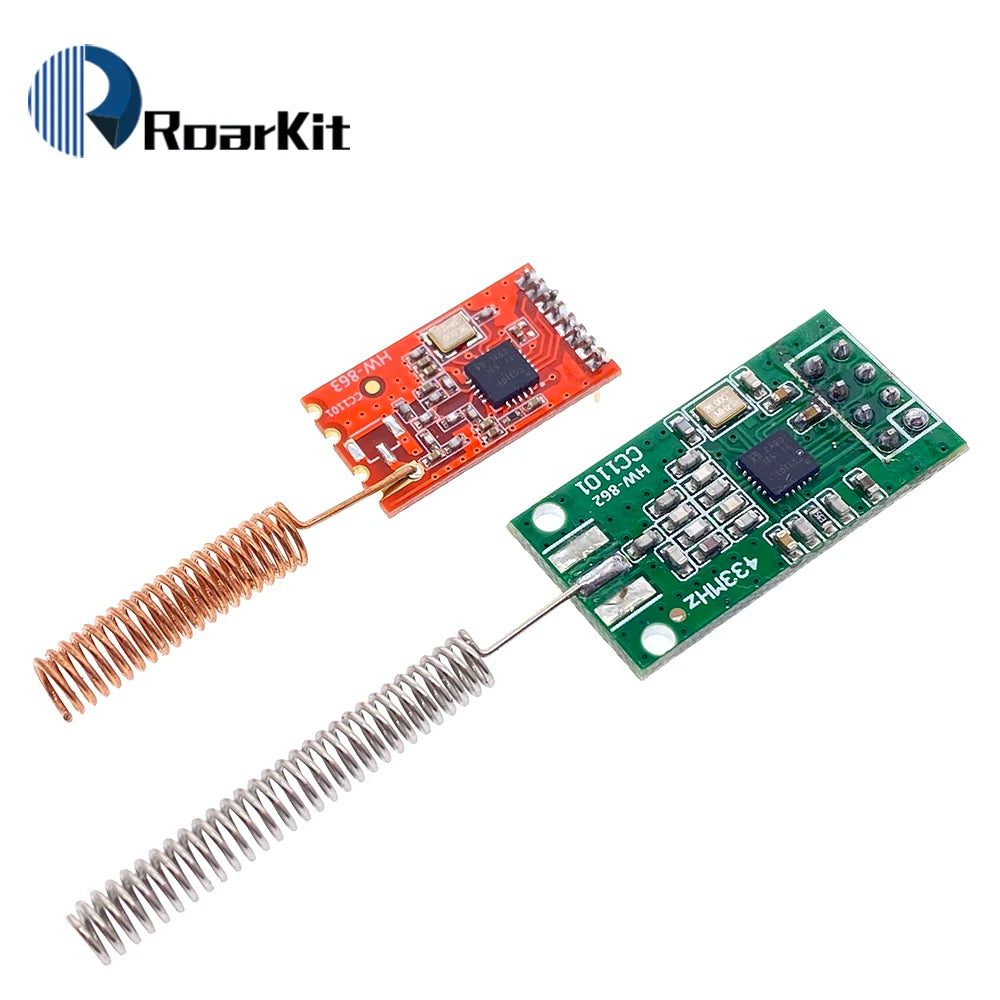

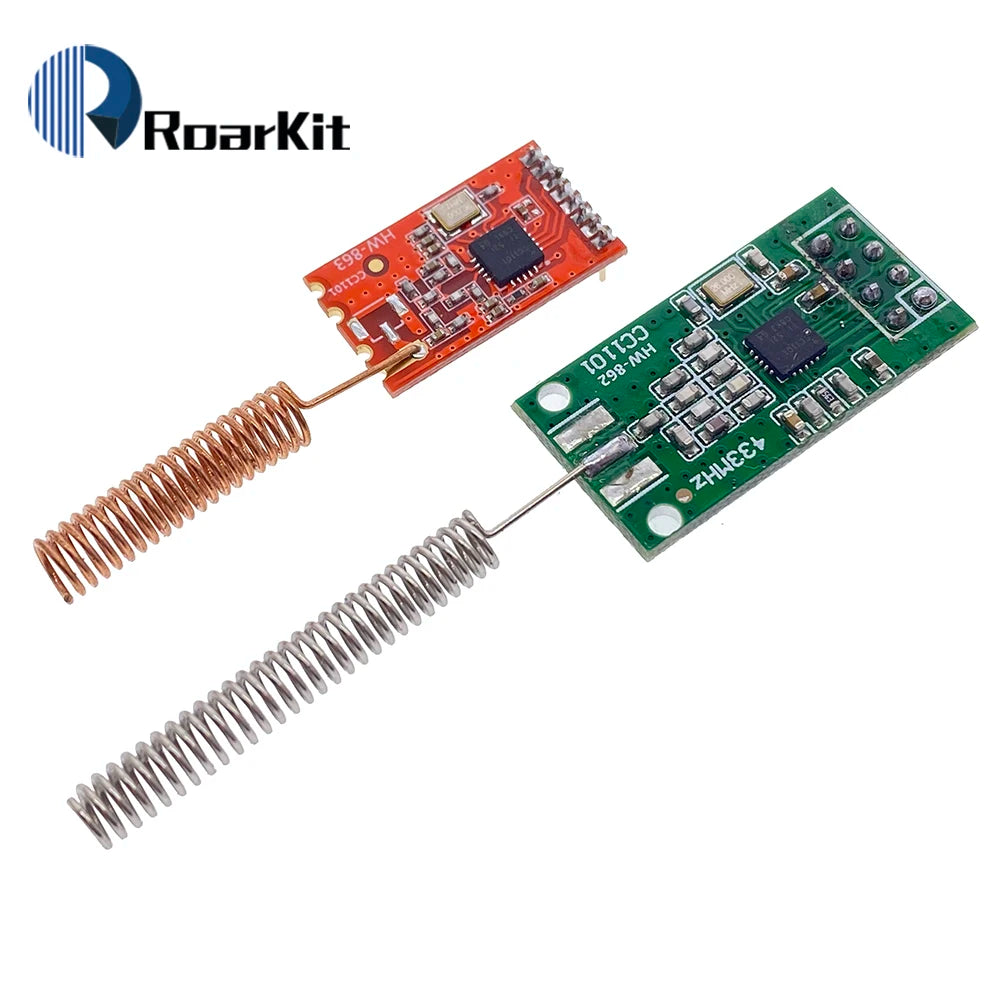

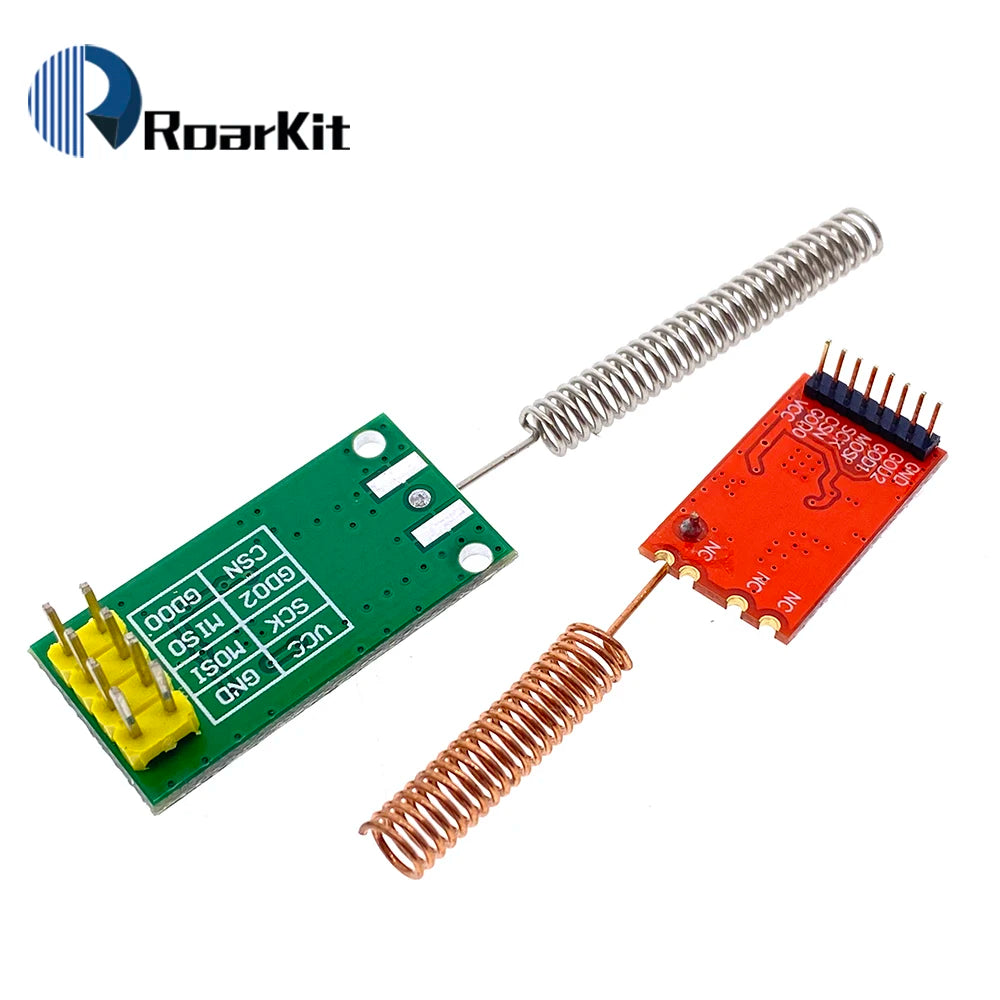

1/5/10PCS CC1101 433M 10mW Wireless Sender Transceiver Receiver Module NRF905/SX1212/SI4432 data transmission/transceiver
Red
$11.93
Sale price
$11.93
Regular price
$0.00
Skip to product information
1/5/10PCS CC1101 433M 10mW Wireless Sender Transceiver Receiver Module NRF905/SX1212/SI4432 data transmission/transceiver
$11.93
Sale price
$11.93
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: Roarkit
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Supply Voltage: 1.8V-3.6V
Type: Voltage Regulator
semi_Choice: yes

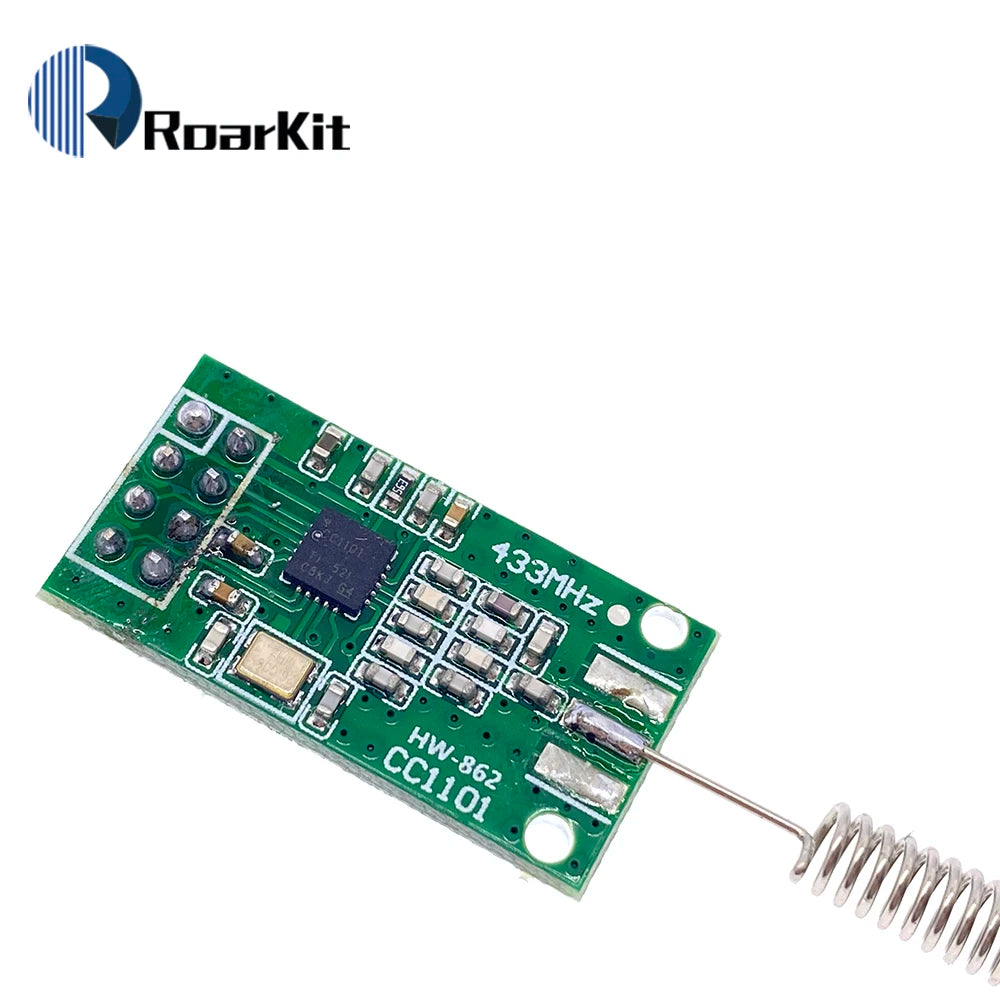

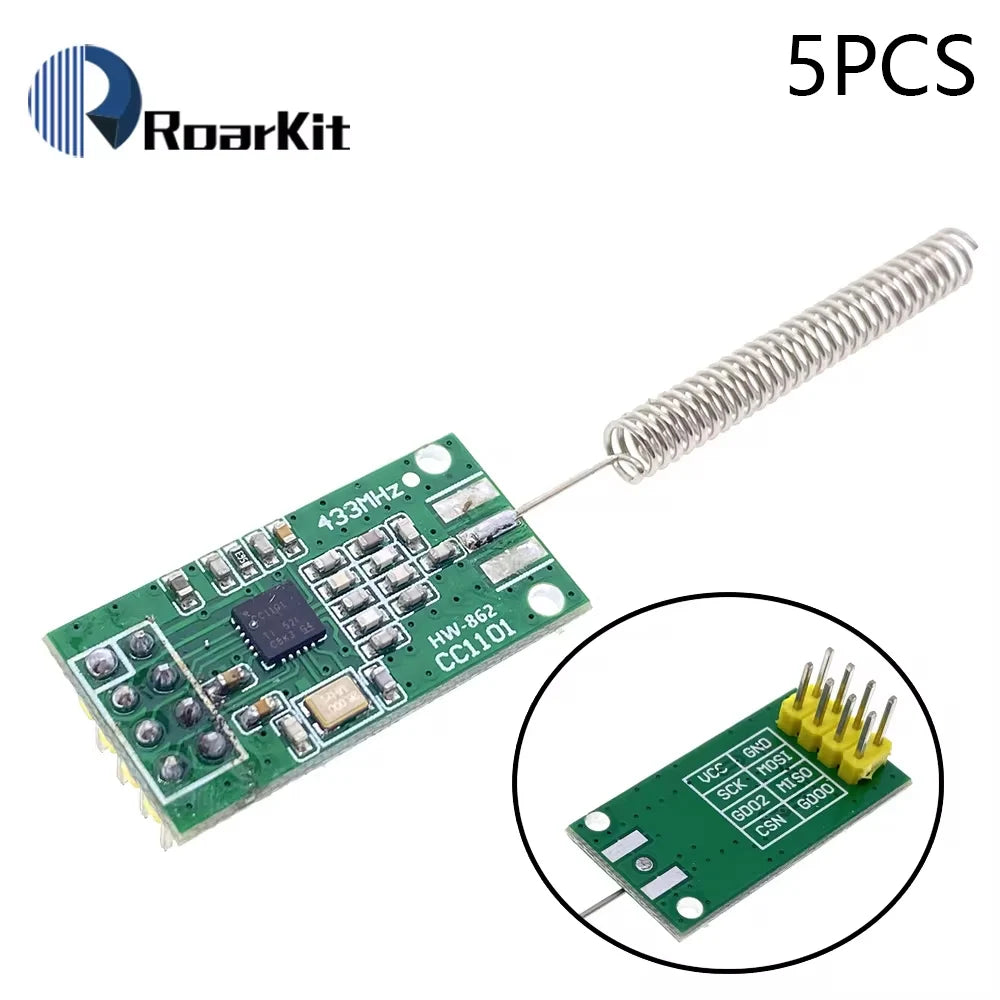

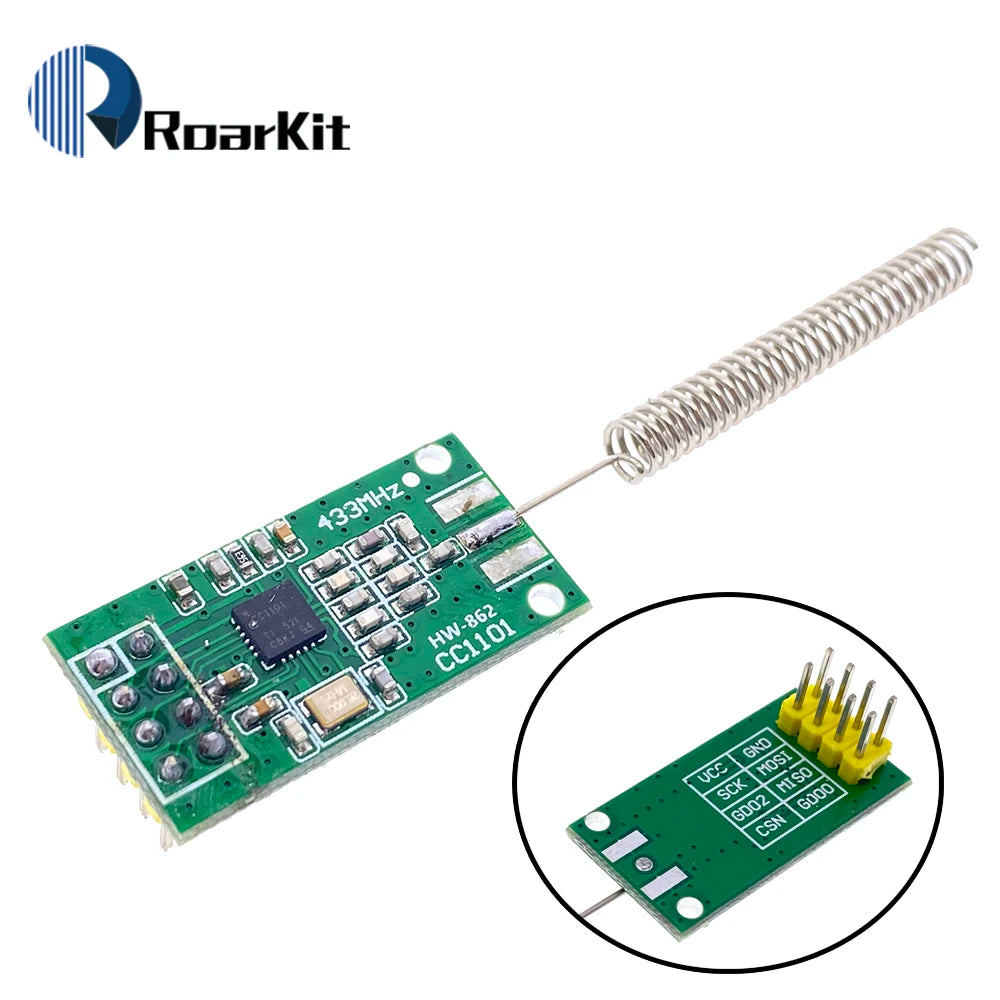

CC1101 Green Product Introduction:
The product uses the chip CC1101, which can be widely used in IoT, industrial control, medical treatment, security alarm, data acquisition, smart home, water and electricity meter reading and other occasions.
Product parameters:
(1) Receiving sensitivity: -116dBm/0.6kbps
(2) Working temperature: -30℃～85℃.
(3) Working voltage: DC1.9～3.6V.
(4) Communication distance: 380 meters.
(5) Maximum power: 10mW.
(6) Center frequency: 433MHZ.
(7) The open transmission distance is 300 meters to 500 meters.
(8) Color: green.
(9) Total product length: 68.00mm (including antenna)
Features:
(1) Using SPI interface.
(2) Wireless wake-up function; support low-power electric carbon wave activation function, wirelessly wake up devices in low-power sleep states.
(3) Low current consumption: 15.6mA in receiving mode, less than 0.5uA in sleep mode.

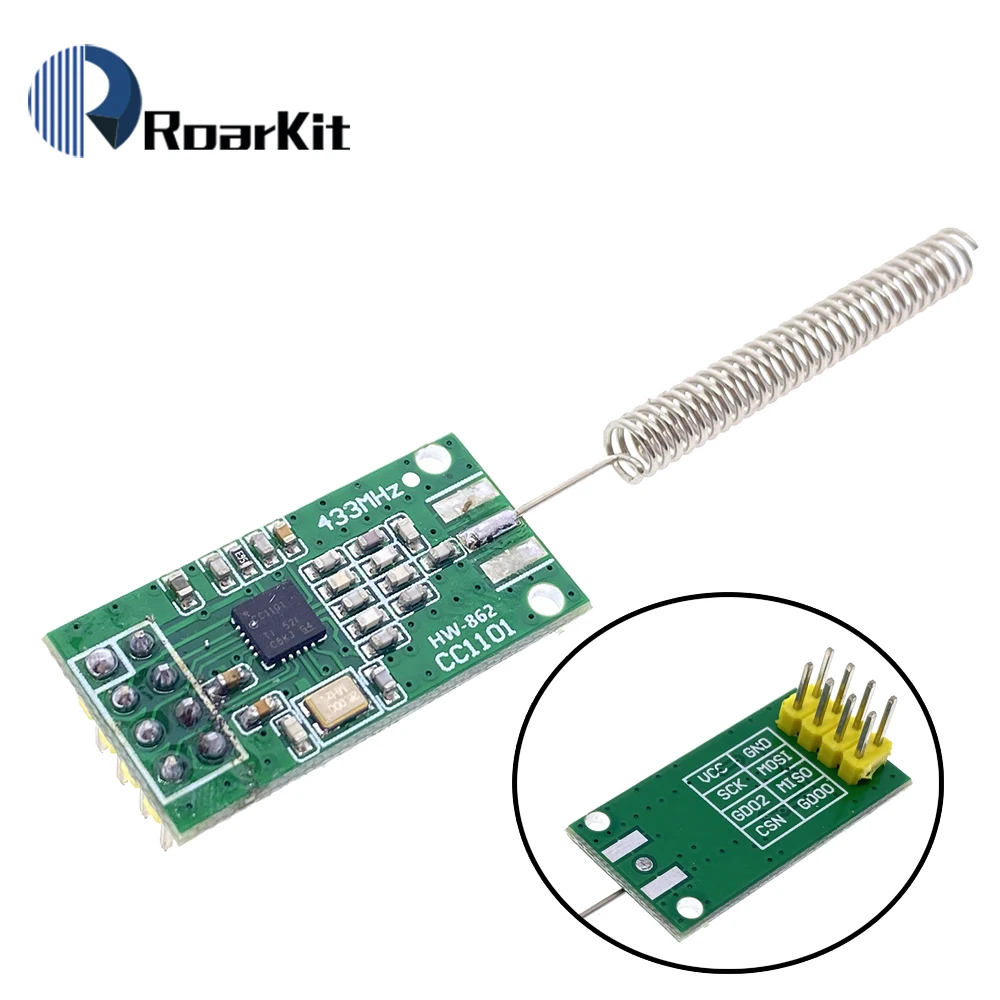

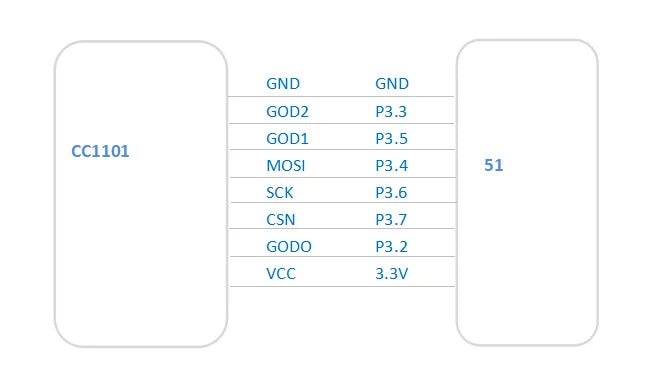

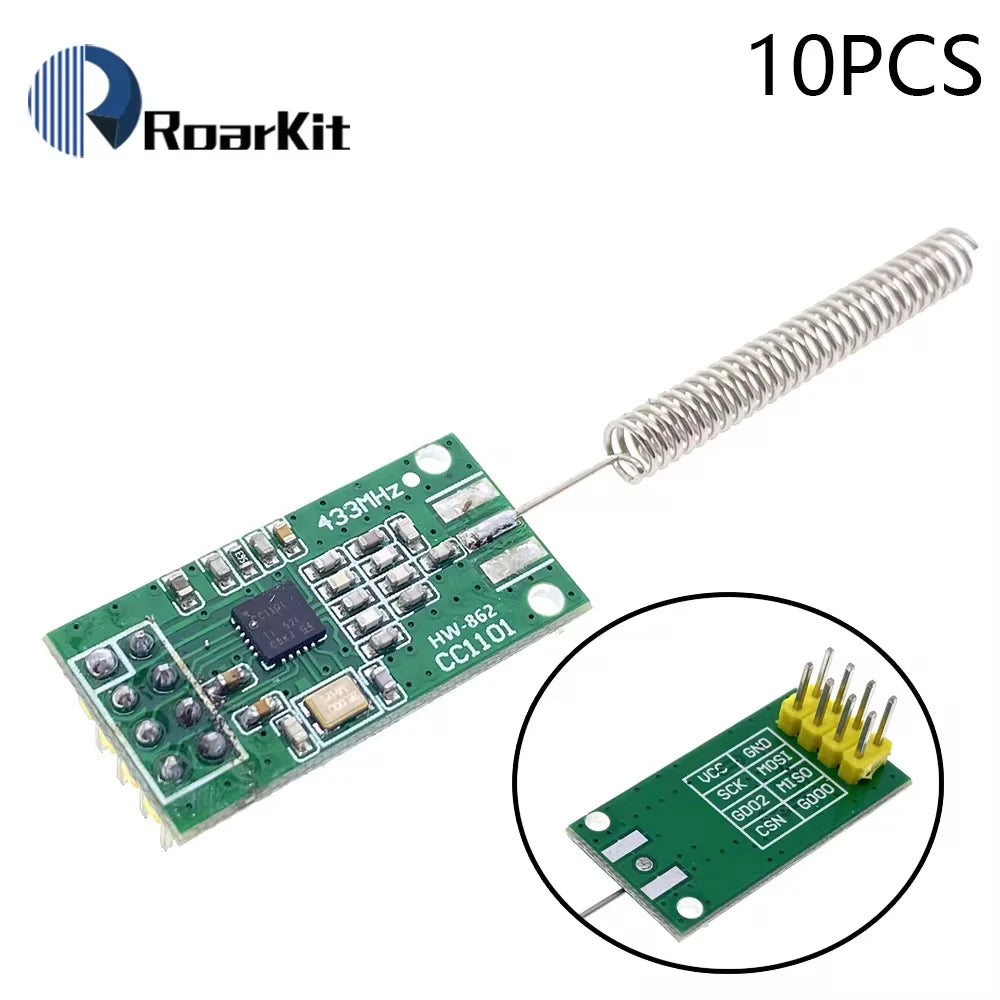

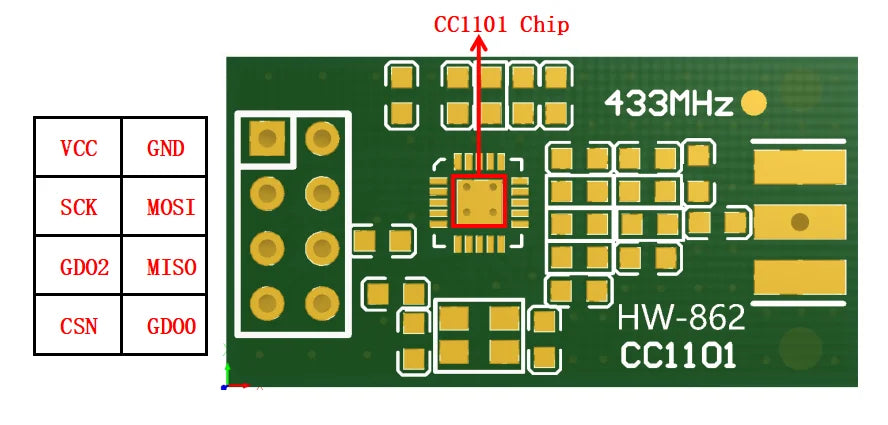

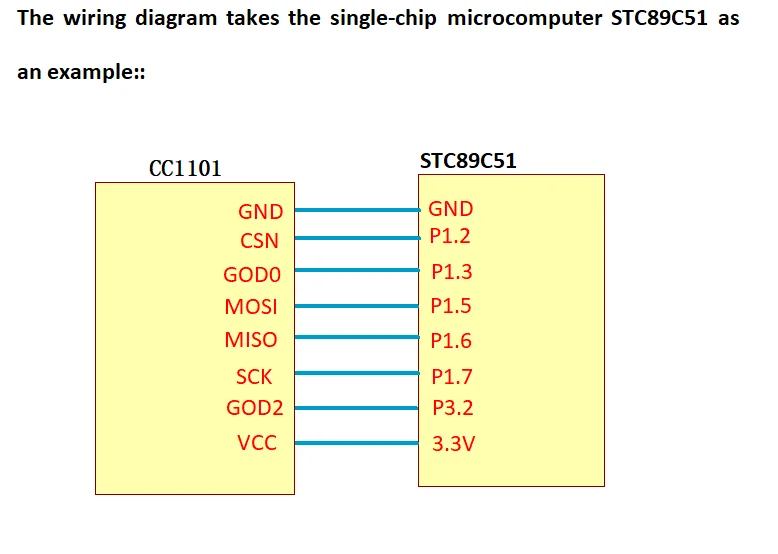

Pin function:
(1) GND: The negative pole of the power supply.
(2) VCC: Positive power supply.
(3) CSN: Module chip select pin, used to start a SPI communication.
(4) SCK: Module SPI bus clock.
(5) MOSI: Module SPI data input pin.
(6) MISO: module SPI data output pin.
(7) GDO0: Module information output pin.
(8) GDO2: Module information output pin.

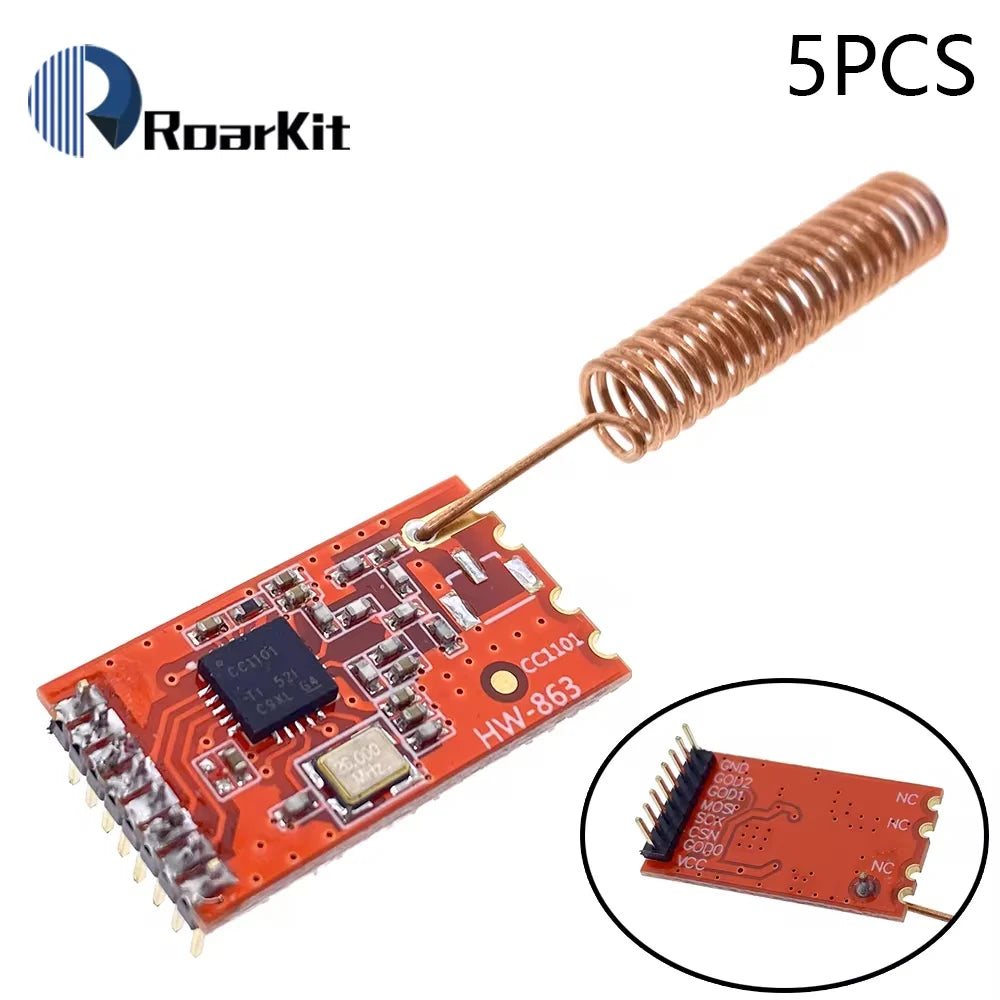

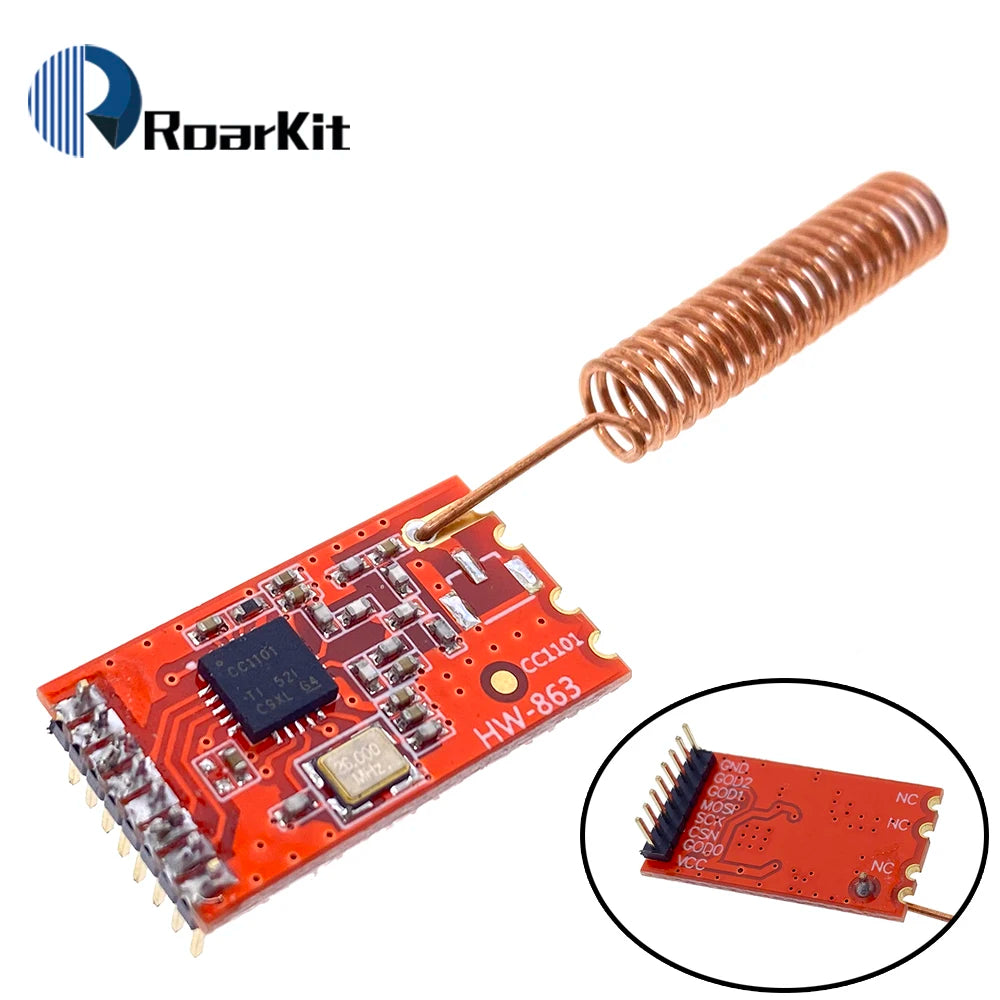

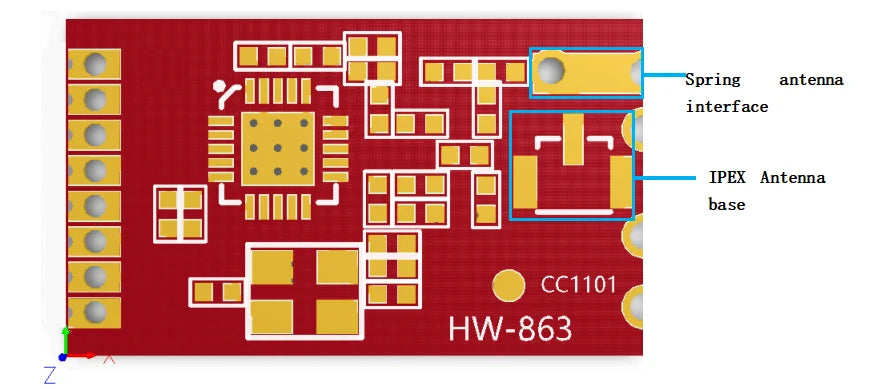

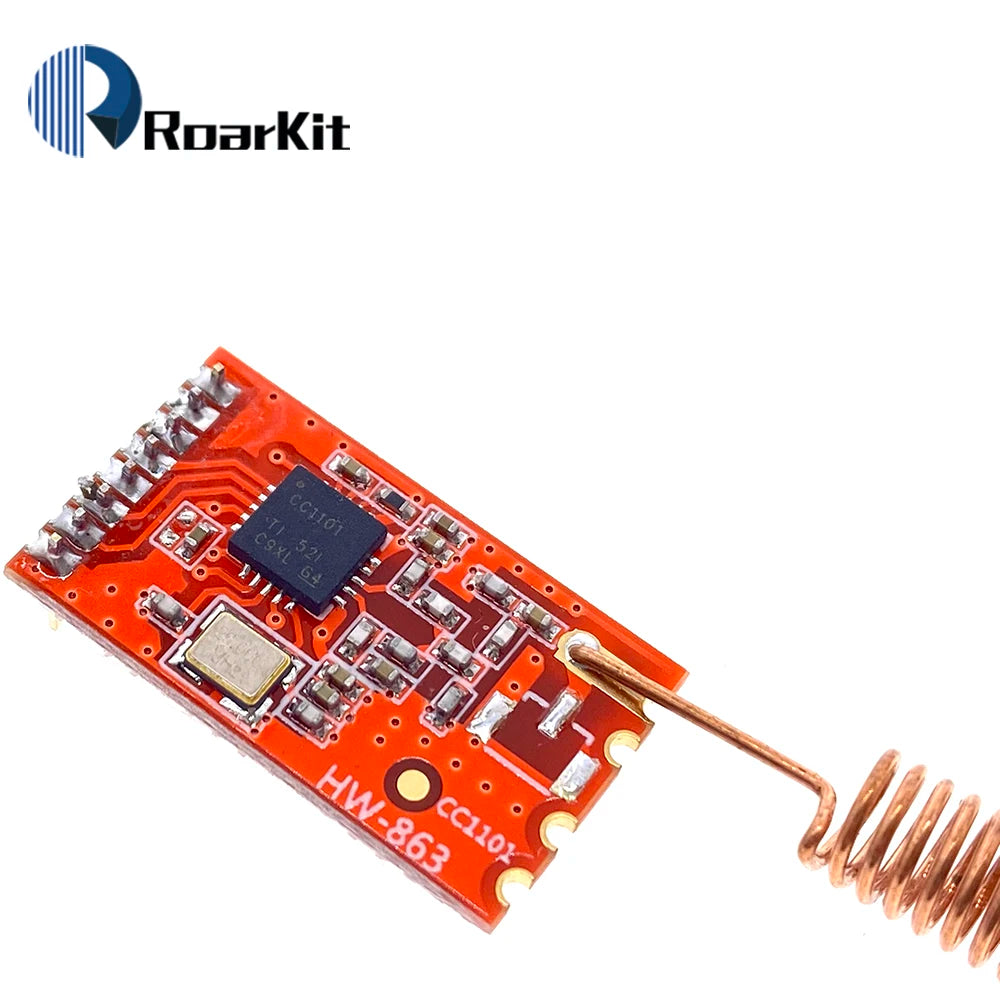

CC1101 Red Product Description:
The product adopts the chip CC1101, which can be widely used in many occasions such as the Internet of Things, industrial control, medical treatment, security alarm, data acquisition, smart home, water and electricity meter reading.
Product features: low power consumption, high sensitivity, simple network structure, small size, and wireless wake-up function.
(1) Product specifications:
Color: red
Chip: CC1101
Center frequency: 433MHz
Maximum power: 10mW
Transmitting power: 10dBm (about 10mW)
Supply voltage: 1.8V-3.6VDC
Emission current: 29.2mA@10ddBm (power supply capacity must be greater than 100mA)
Receiving sensitivity: -116dBm/0.6kbps
Remote control distance: 1000m (theoretical value)

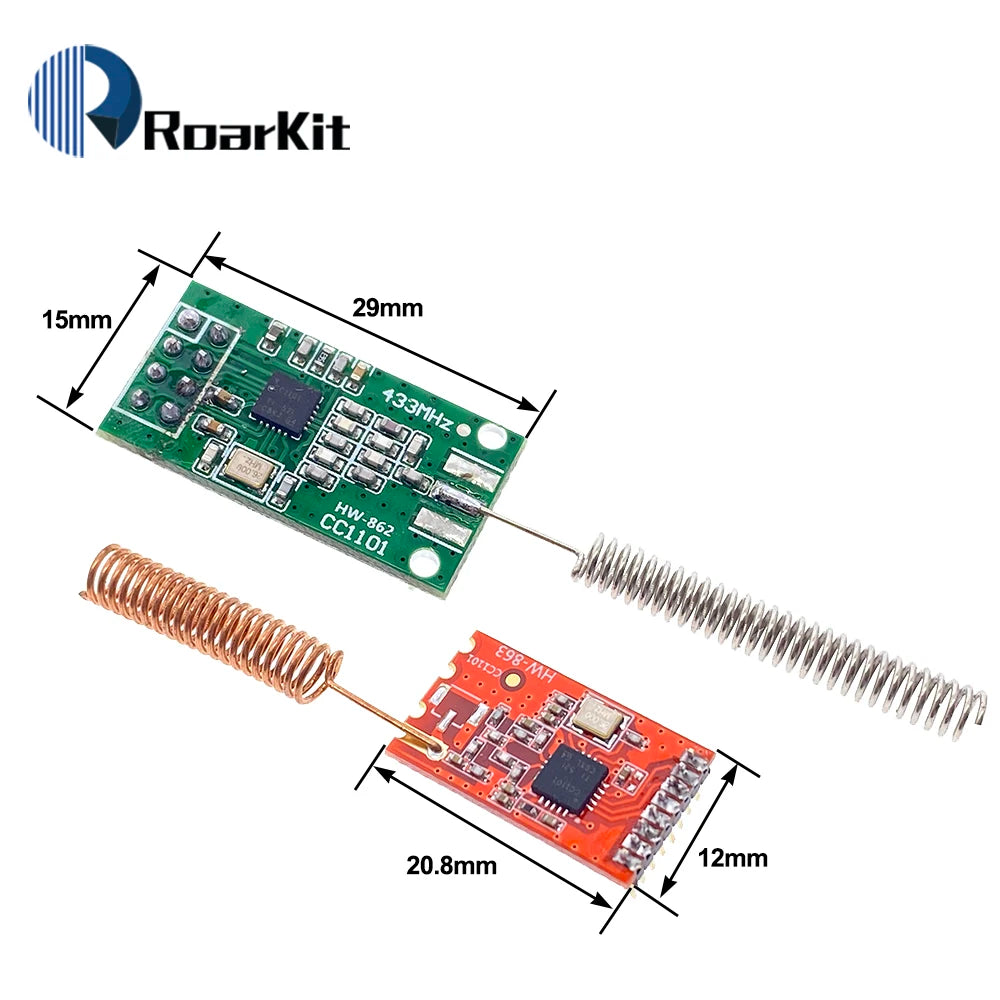

Total product length: 46mm (including antenna)
Pinhole spacing: 1.27mm
(2) Product performance:
1. The open transmission distance is 300 to 500 meters.
2. Support automatic clear channel access (CCA) before transmission, that is, carrier sensing system
3. Efficient SPI serial programming interface, IO port can be used to simulate SPI timing, or it can be used
SPI interface of MCU.
(3)Pin function:
GND: The negative pole of the power supply.
VCC: Positive power supply.
CSN: Module chip select pin, used to start a SPI communication.
SCK: Module SPI bus clock.
MOSI: Module SPI data input pin.
MISO: module SPI data output pin.
GDO0: Module information output pin.
GDO2: Module information output pin.
