SPECIFICATIONS

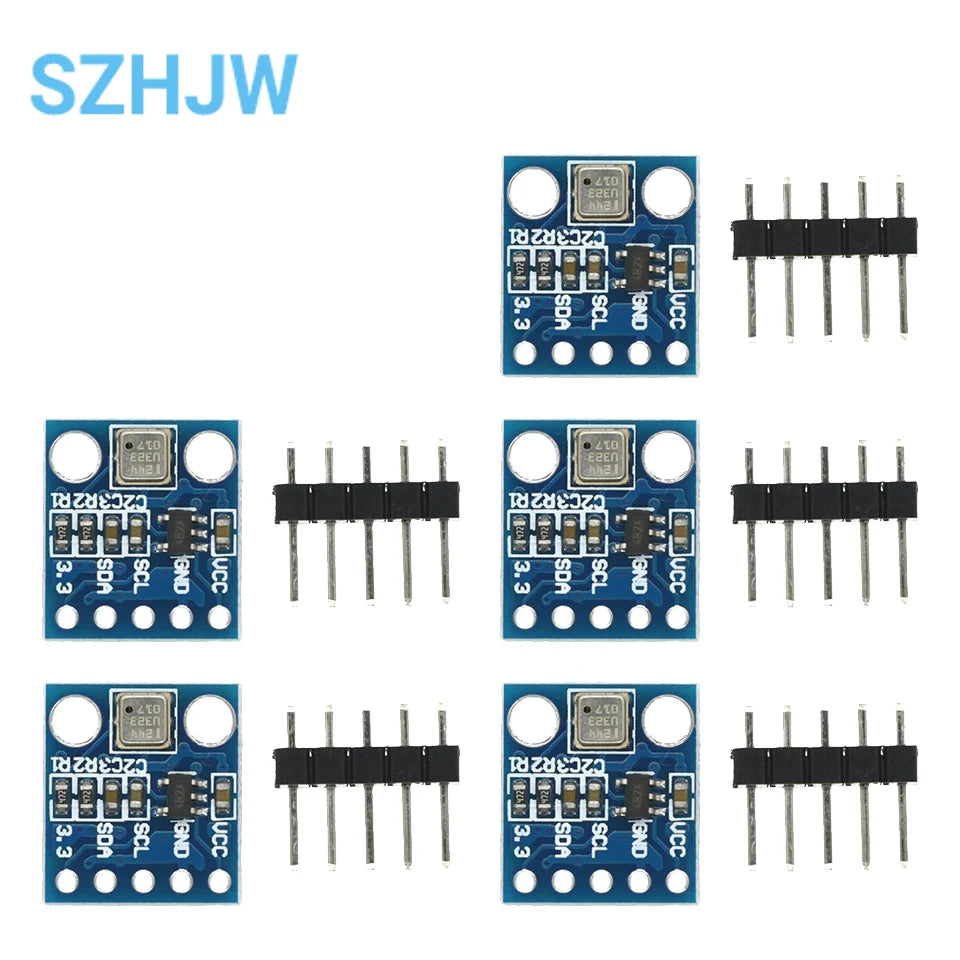

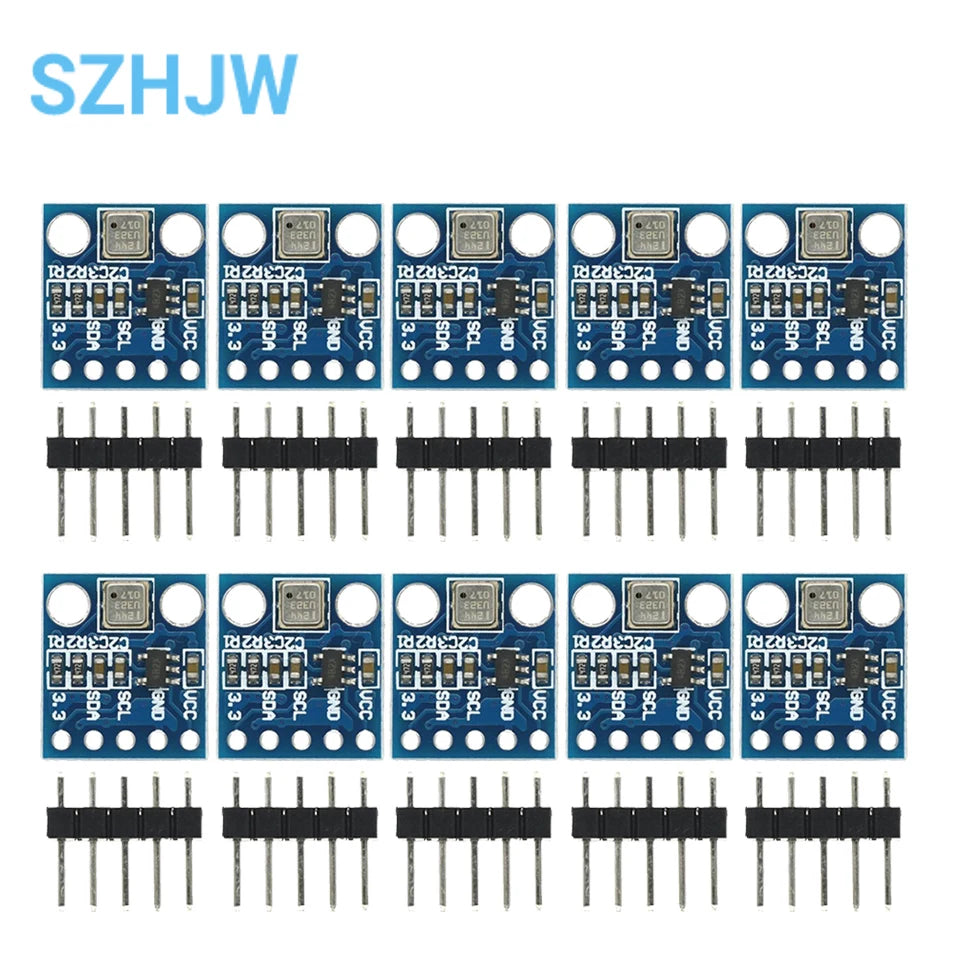

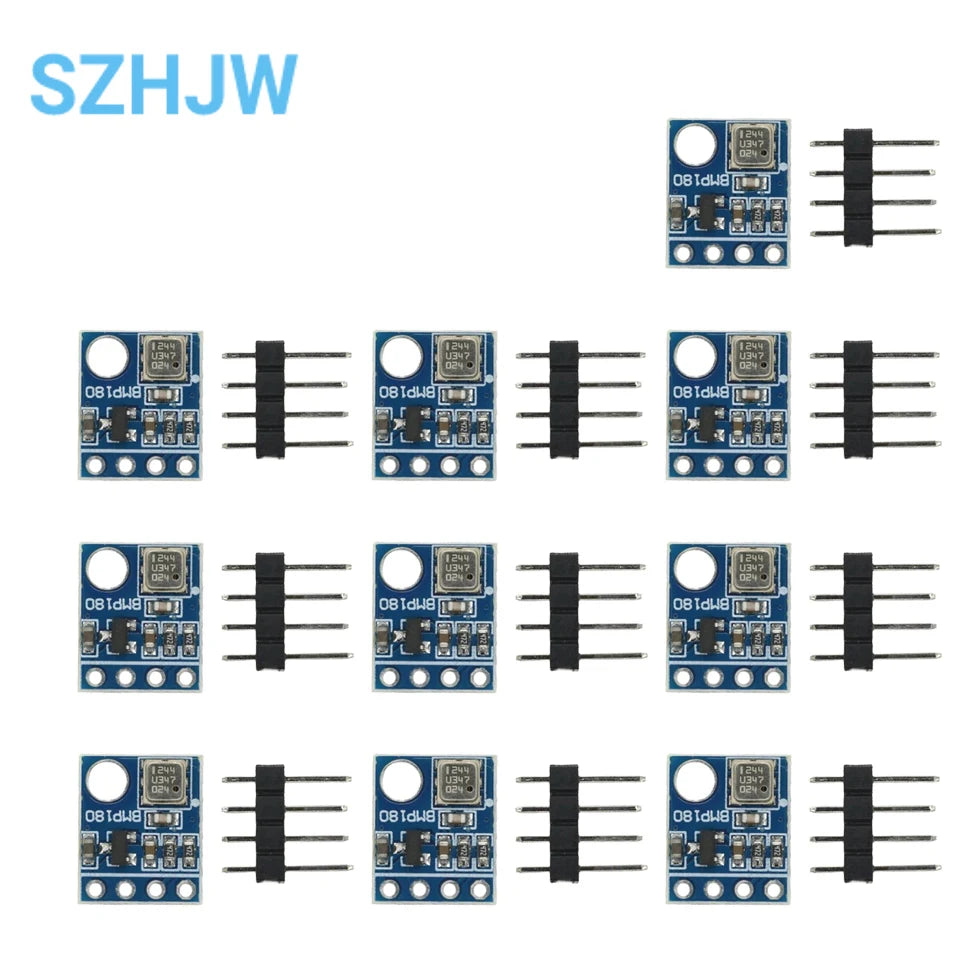

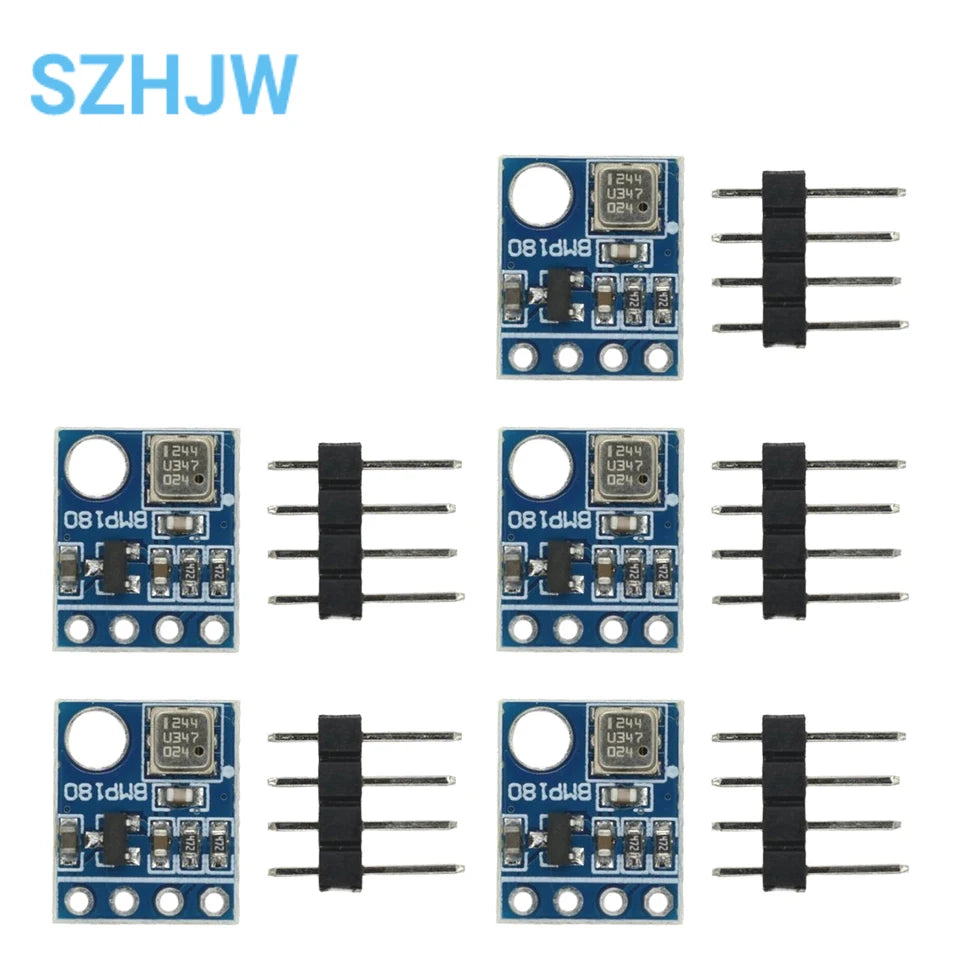

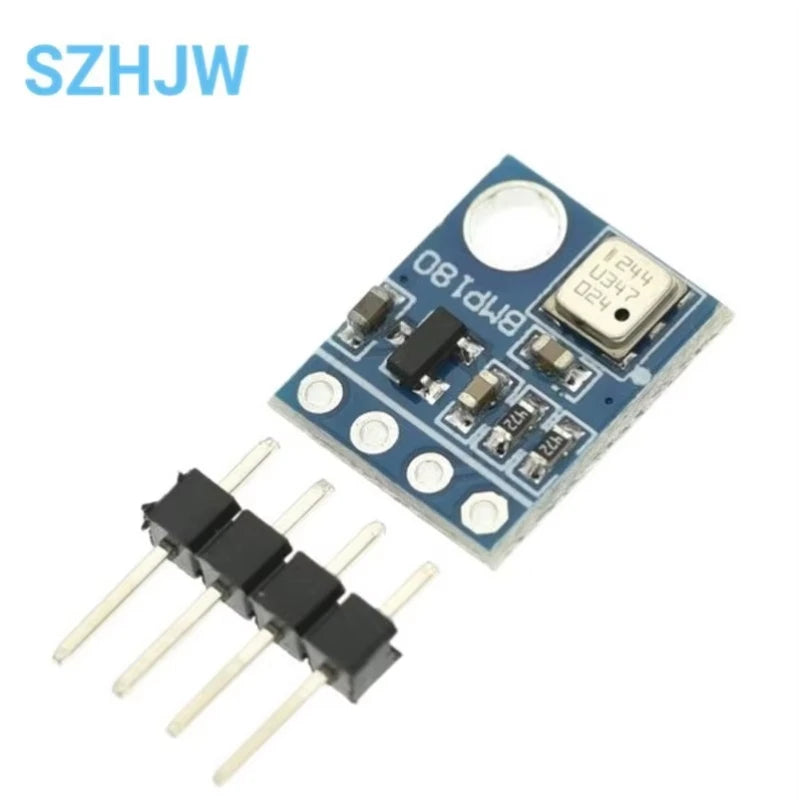

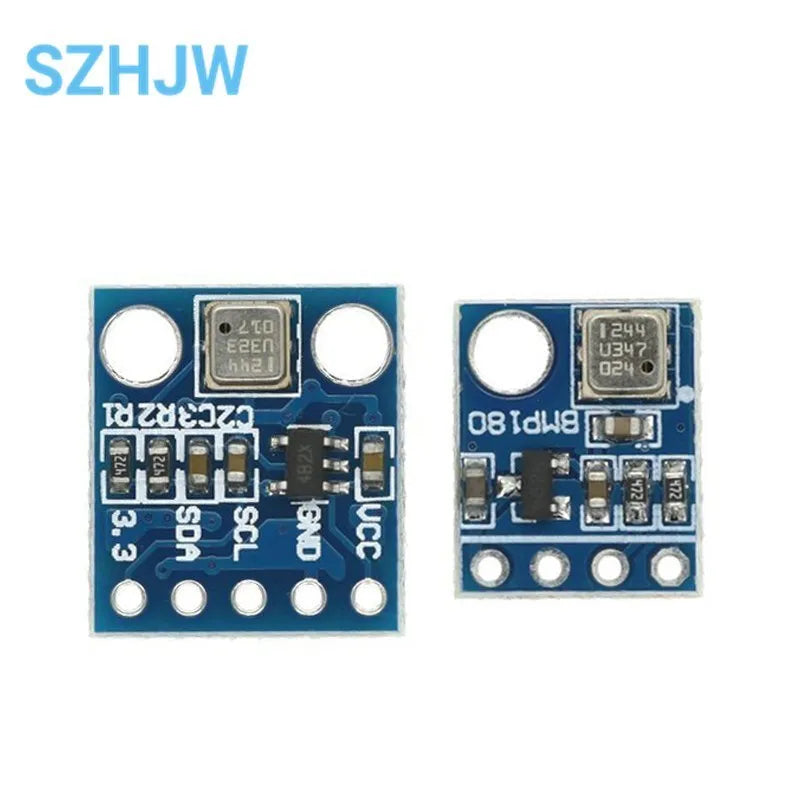

BMP180 is a pressure sensor with high precision, small size and ultra-low energy consumption, which can be used in mobile devices

It has excellent performance, absolute accuracy can reach 0.03hPa, and low power consumption, only 3μA

BMP180 uses a powerful 8-pin ceramic leadless chip carrier (LCC) ultra-thin package, which can be directly connected to various microprocessors through the I2C bus

Main Feature:

Pressure range: 300~1100hPa (9000m~-500m above sea level)

Power supply voltage: 1.8V~3.6V (VDDA), 1.62V~3.6V (VDDD)

LCC8 package: Lead-free ceramic carrier package (LCC)

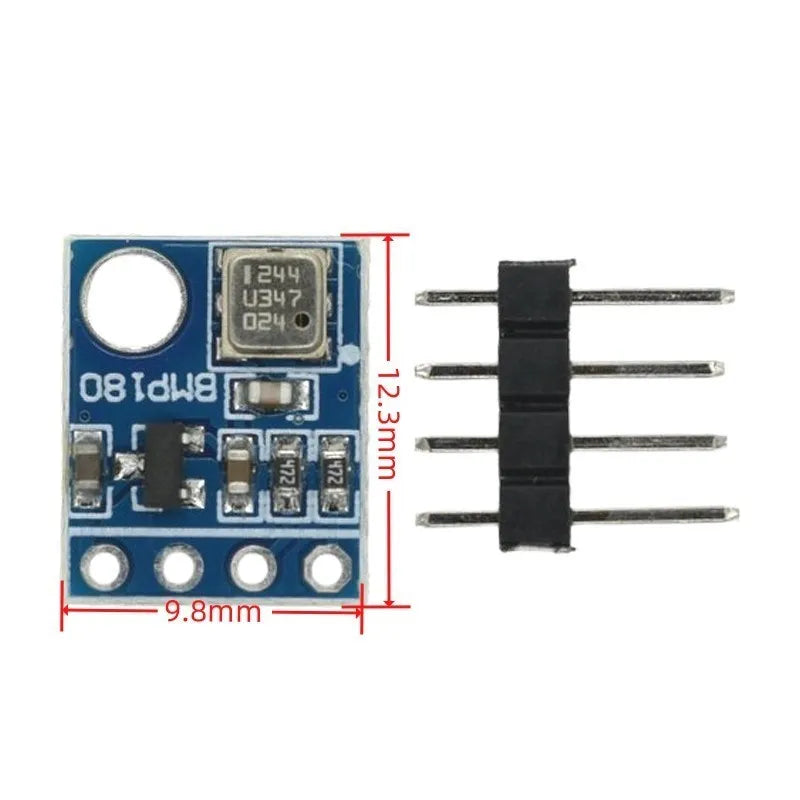

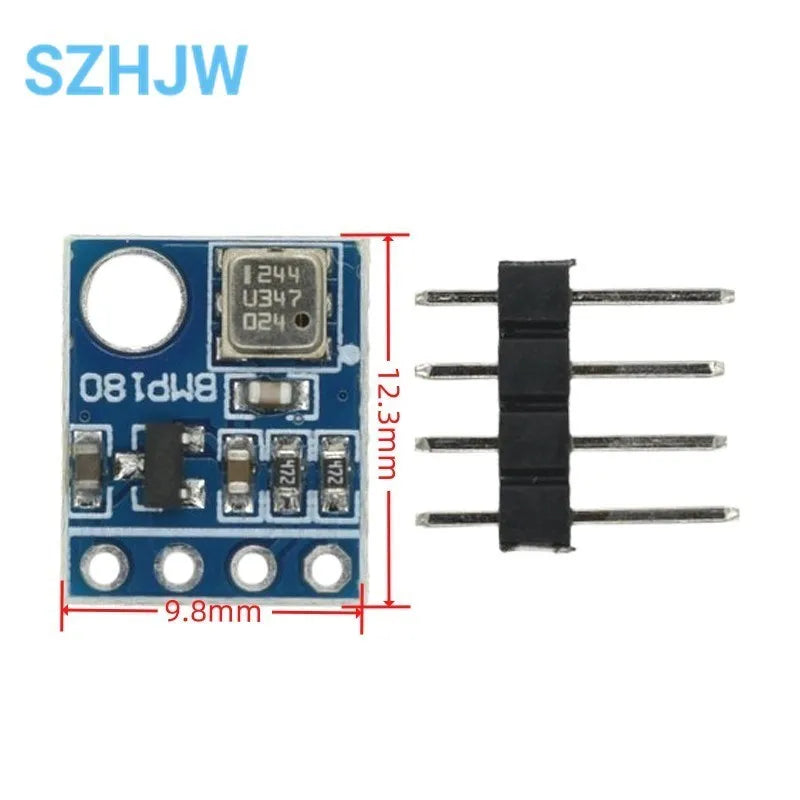

Size: 3.6mmx3.8x0.93mm

Low power consumption: 5μA, in standard mode

High precision: in low power consumption mode, the resolution is 0.06hPa (0.5m)

In high linearity mode, the resolution is 0.03hPa (0.25m)

With temperature output

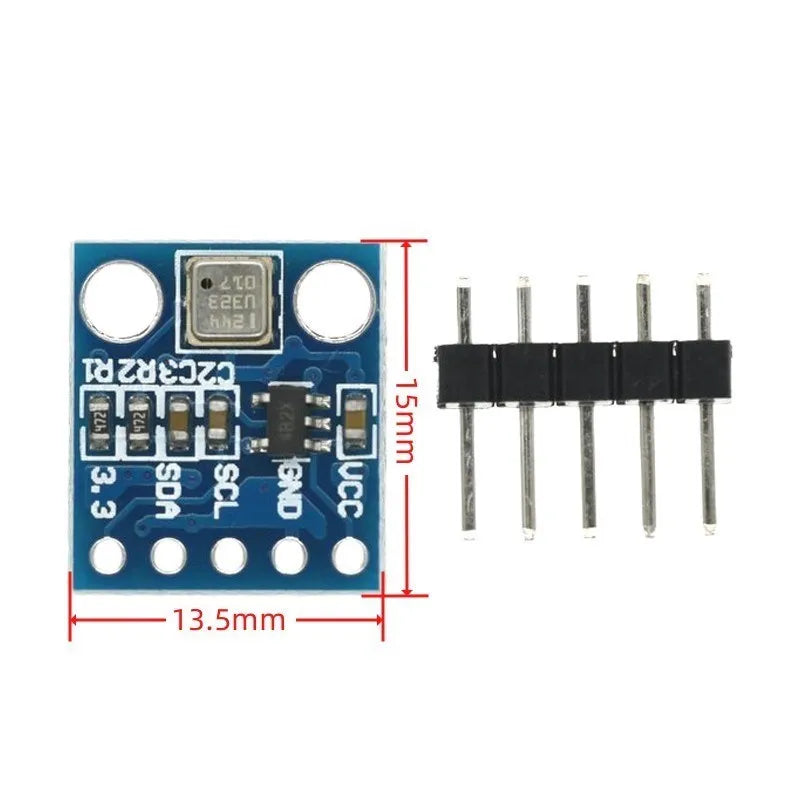

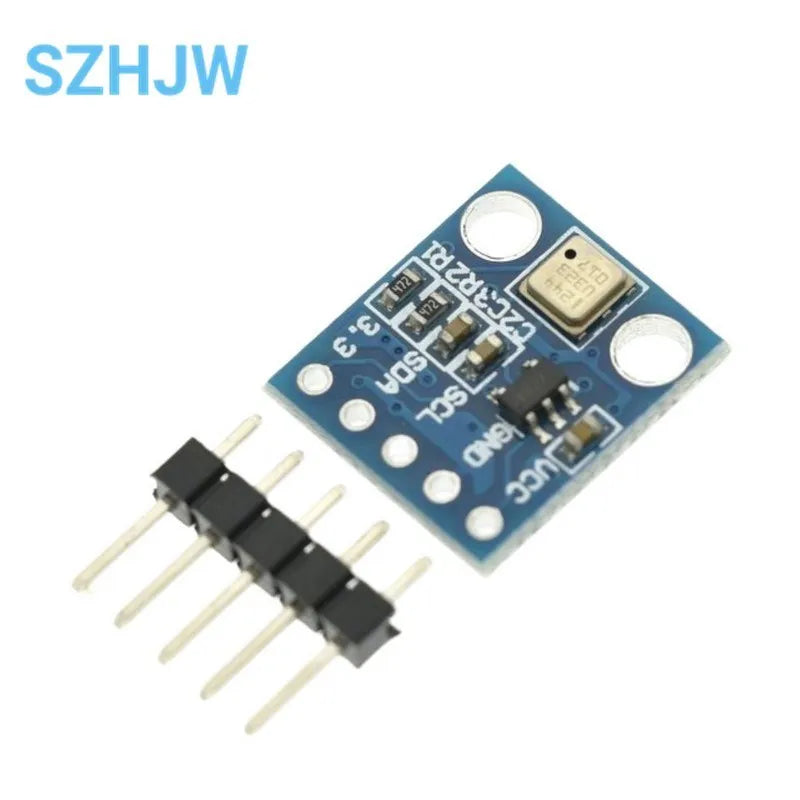

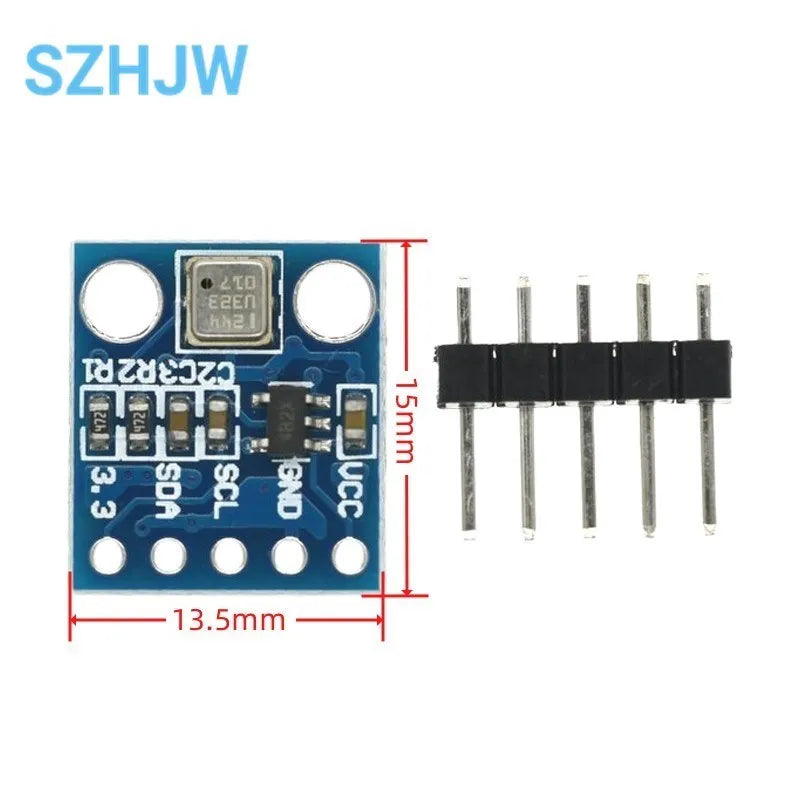

I2C interface

Temperature compensation

Lead-free, RoHS compliant

MSL 1 response time: 7.5ms

Standby current: 0.1μA

No external clock circuit required

Typical Application:

GPS precise navigation (dead reckoning, upper and lower bridge detection, etc.)

Indoor and outdoor navigation

Leisure, sports and medical health monitoring

Weather forecast

Vertical speed indication (rising/sinking speed)
