SPECIFICATIONS

Brand Name: NONE

Choice: yes

Condition: New

Dissipation Power: MT6701

High-concerned chemical: none

Operating Temperature: MT6701

Origin: Mainland China

Package: SOP

Type: Voltage Regulator

is_customized: Yes

semi_Choice: yes

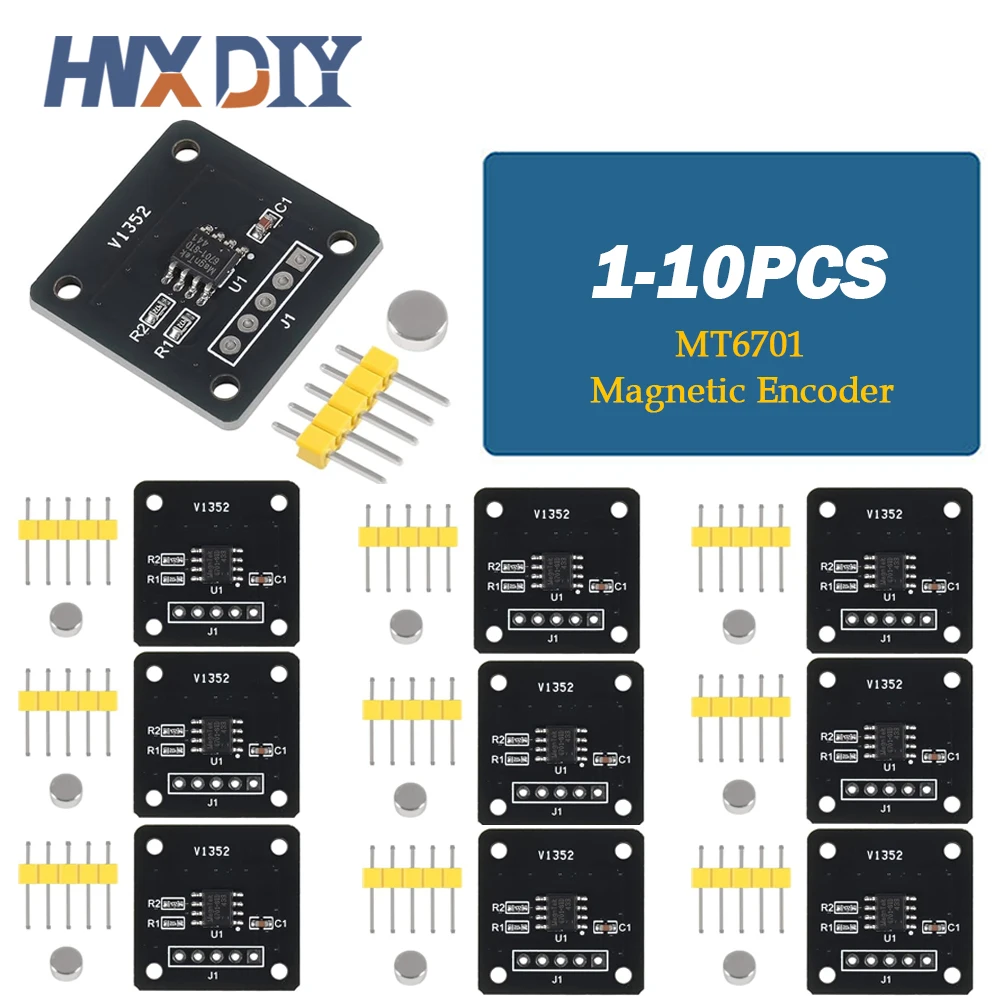

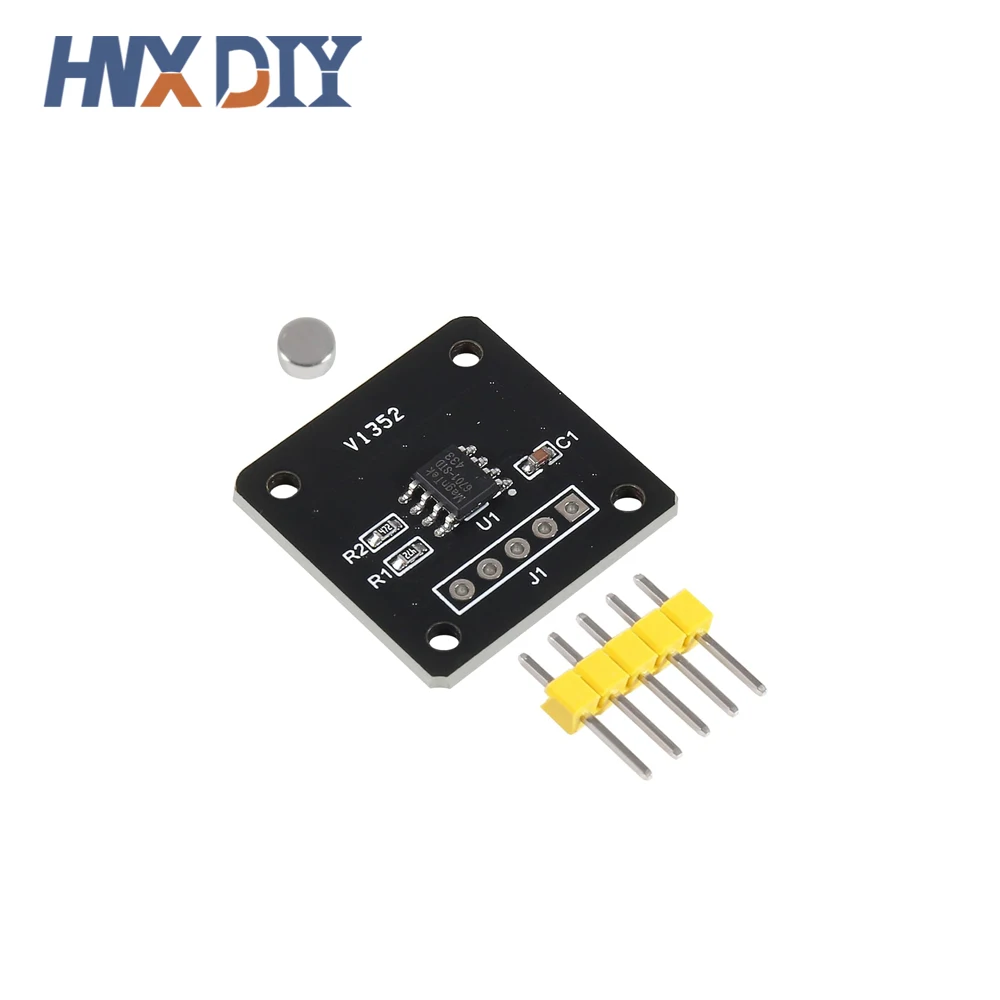

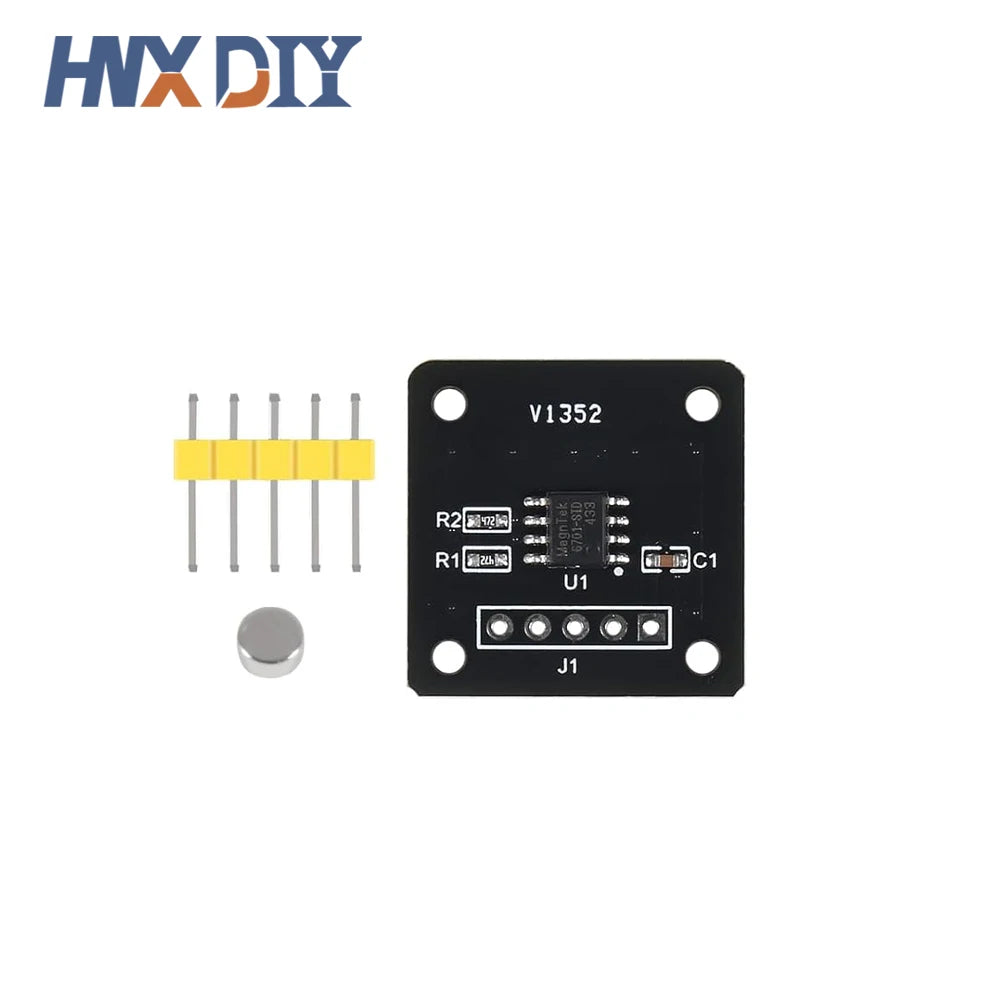

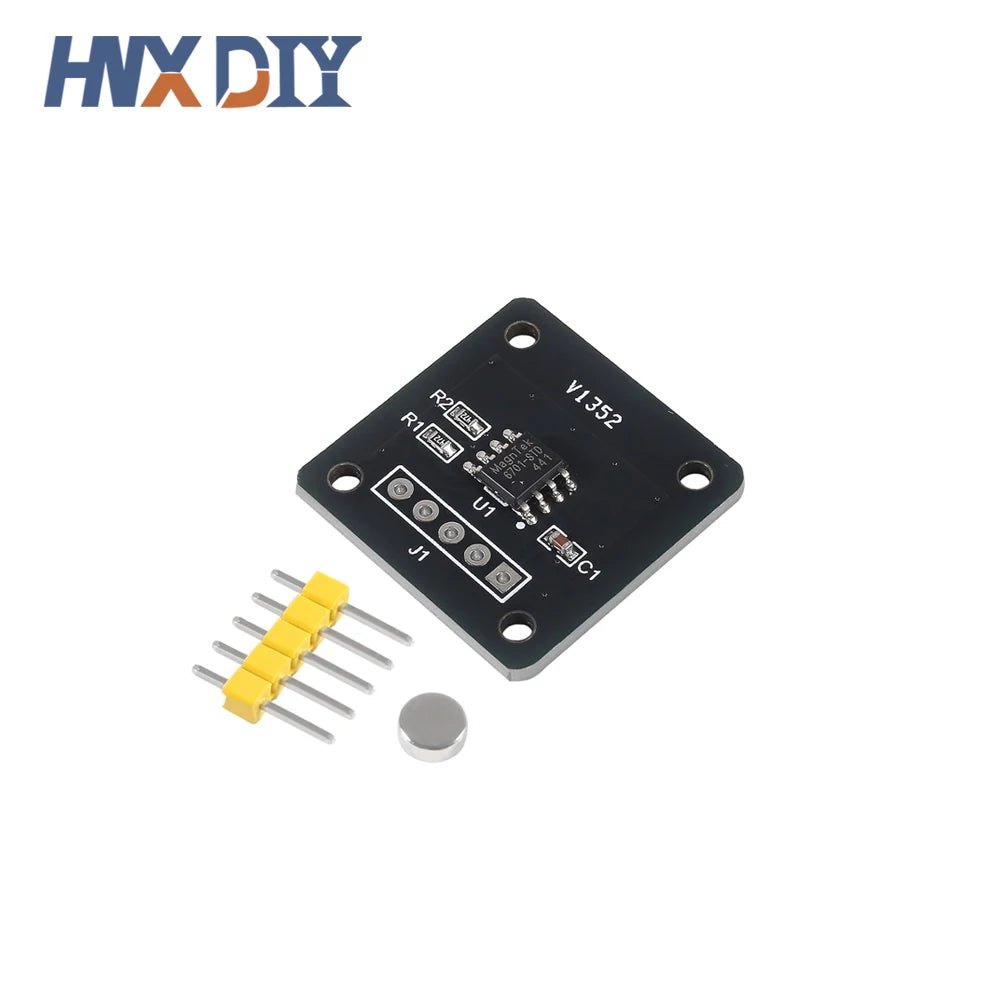

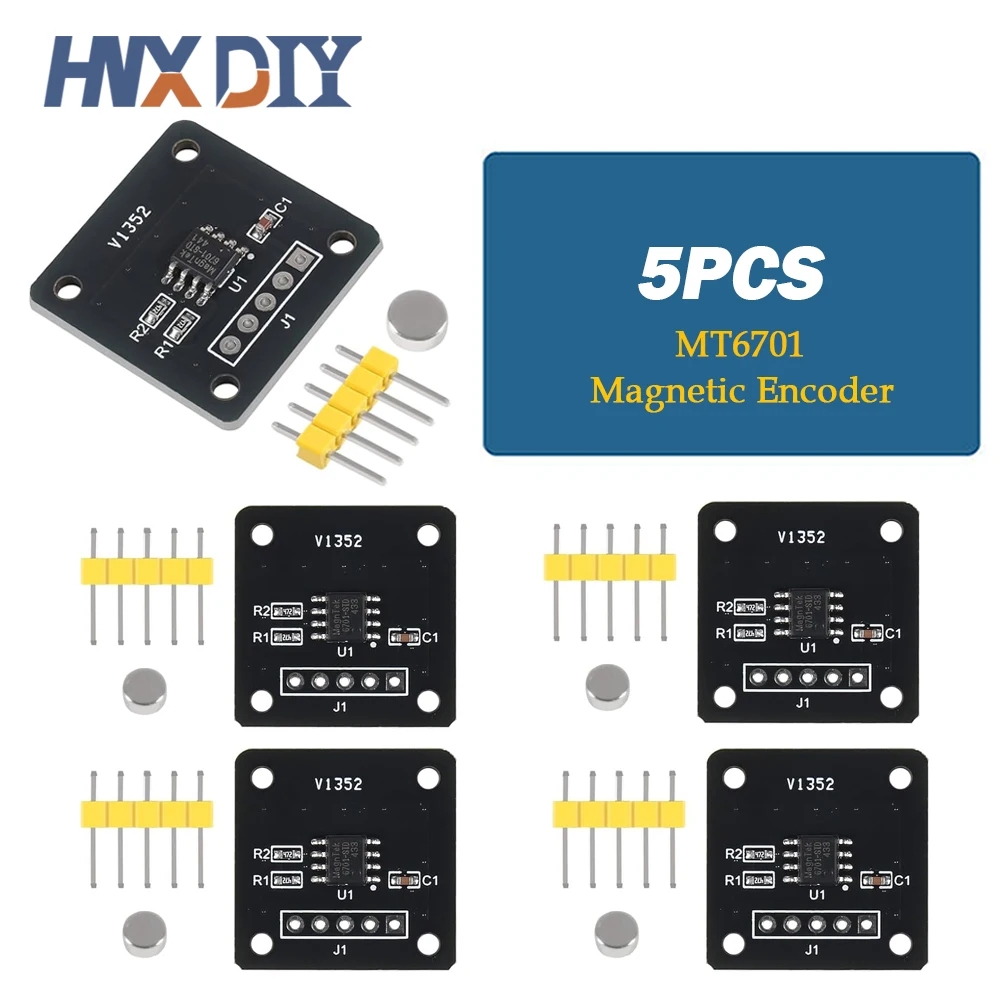

1/5/10pcs MT6701 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 14bit High Precision Replacement AS5600

Product Description:

MT6701 is a new generation of magnetic Angle encoder chip based on differential Hall induction principle. MT6701 senses the component of the magnetic field perpendicular to the chip surface, and with the rotation of a pair of magnetic radial magnets on the chip surface,

The MT6701 corresponding output Angle signal of 0~360°. In addition to providing ABZ/UVW incremental output and Analog/PWM absolute Angle output, the MT6701 provides 14 bit digital Angle output via the I2C/SSI interface. In addition to rotation Angle measurement, the MT6701 also offers a "push" output to enable single-chip button (rotation + press) functionality.

Product features:

- Based on differential Hall technology, absolute Angle measurement from 0° to 360° is provided

- Operating voltage 3.3~5.0V, operating temperature -40℃~125℃

- Typical linearity deviation <±1°, <±1.5° over the whole temperature range

- System delay is as low as 5us and can support speeds up to 55,000 RPM

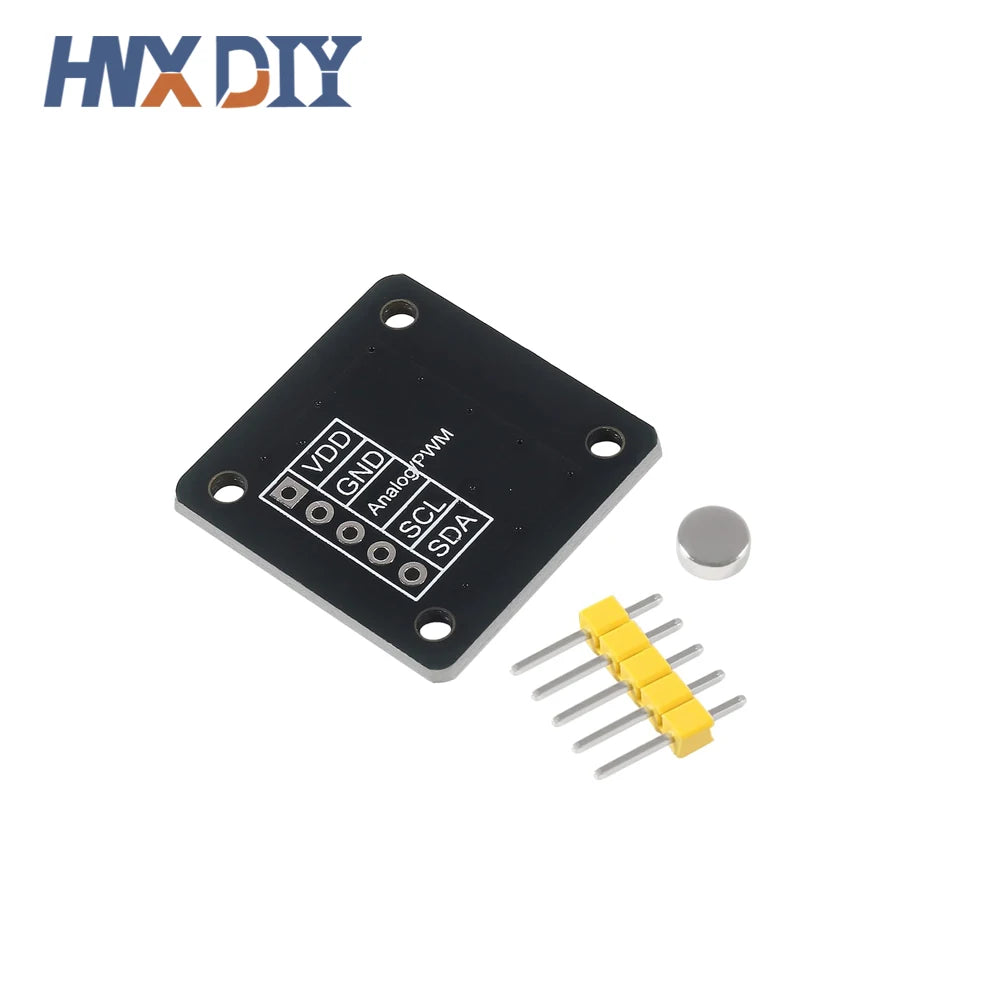

- Provides I²C/SSI interface to read 14-bit Angle data inside the chip

- Incremental output ABZ supports any resolution of 1 to 1024 lines

- Incremental output The UVW supports any polarity from 1 to 16

- Provides 12-bit PWM output or analog output (12-bit DAC)

- Dedicated press detection output (sensing changes in magnet and chip spacing) for single-chip button applications

- Built-in EEPROM, >1000 iterations of programming
