SPECIFICATIONS

Brand Name: Stlxy

Choice: yes

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

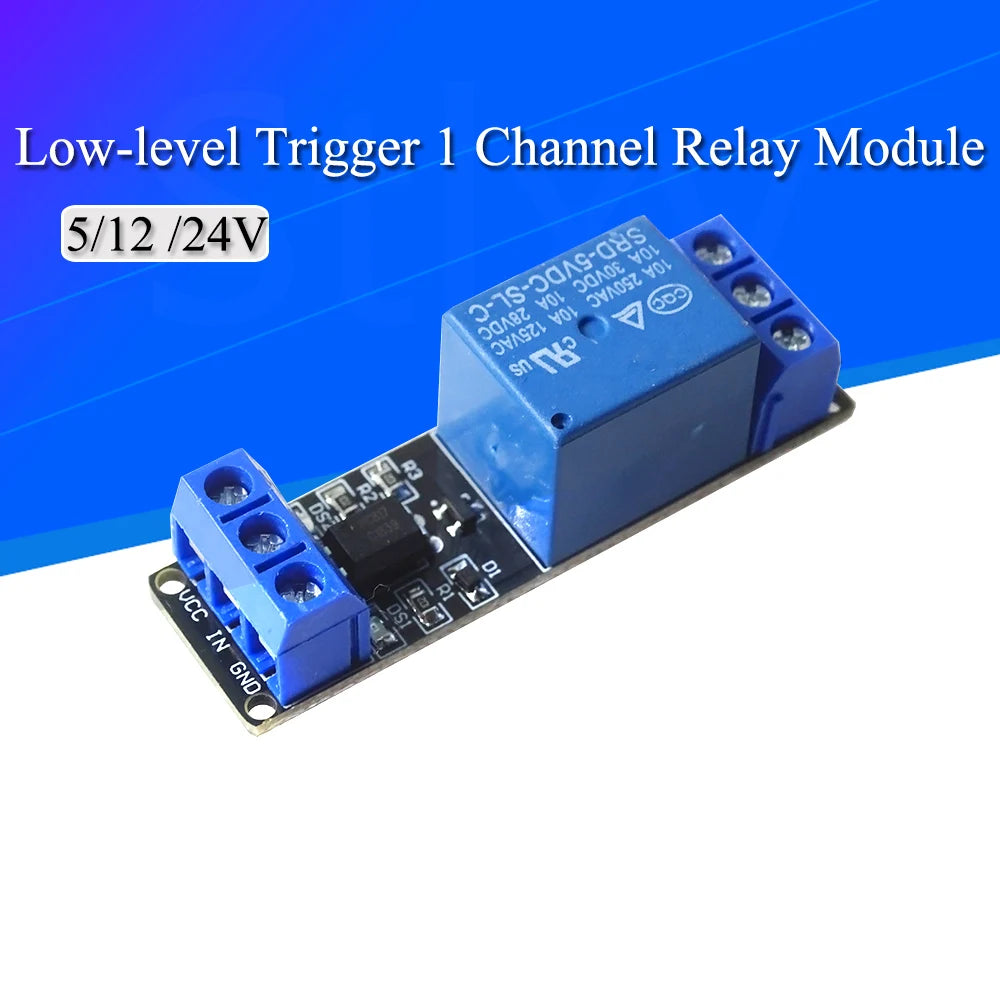

Model Number: Low-level Trigger 1 Channel Relay Module

Origin: Mainland China

Power Source: DC

Protect Feature: Sealed

Theory: Electromagnetic Relay

Use: General Purpose

Voltage: 5V

is_customized: Yes

semi_Choice: yes

Feature:
1: Wide range of applications
2: Simple to use
3: Small size
4: stable performance
5: Three voltage specifications are optional

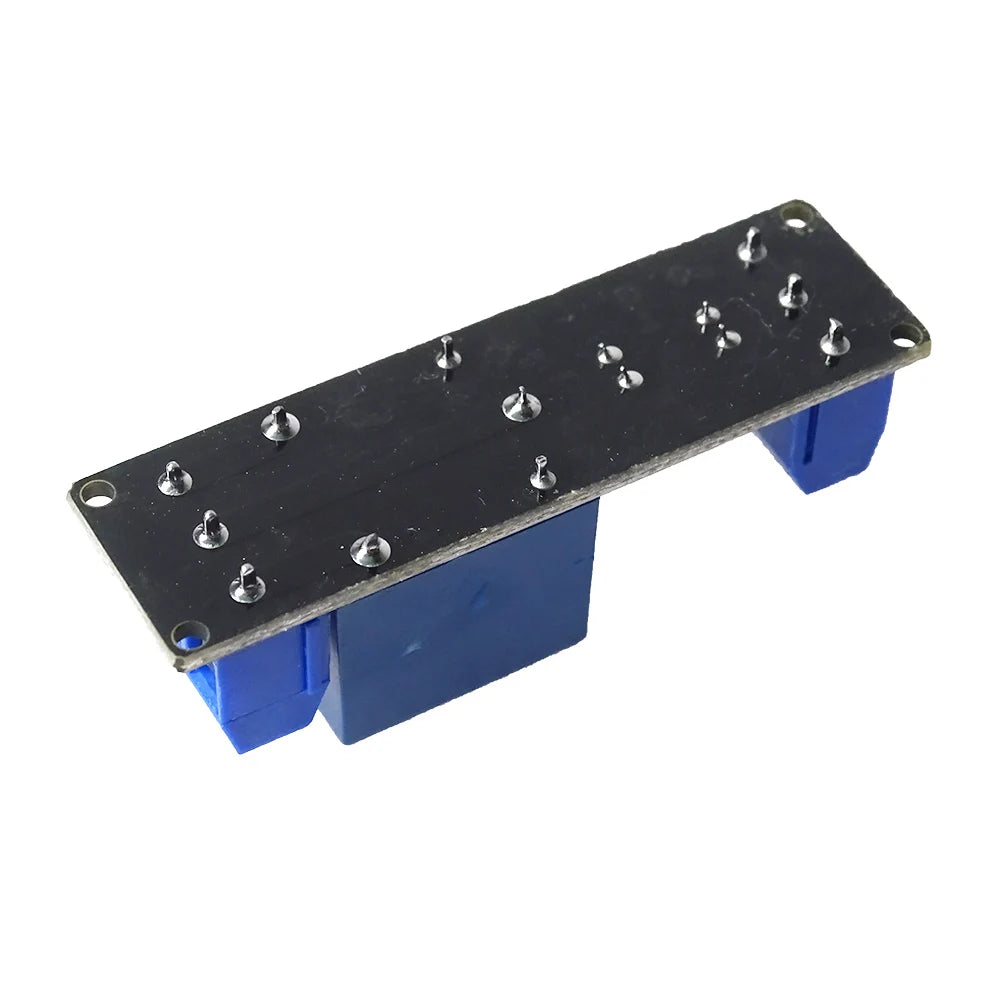

Module Description:

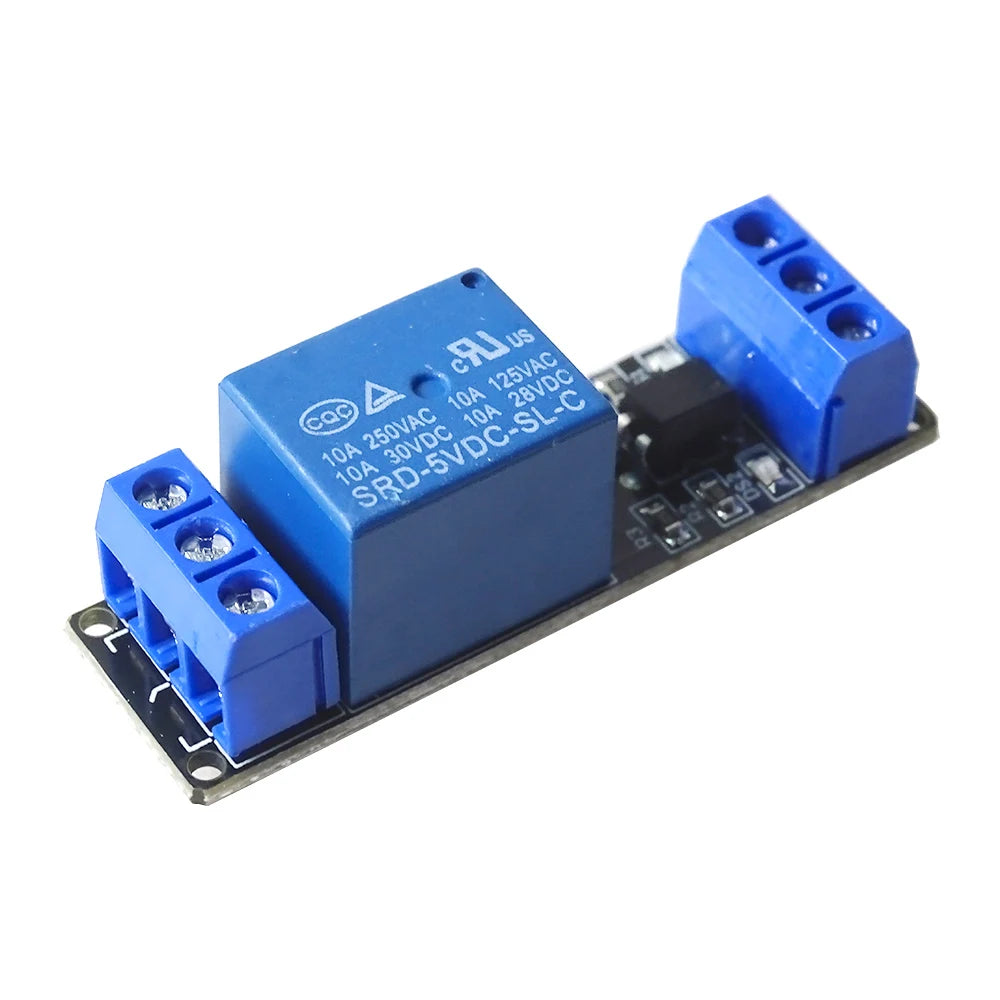

The module adopts genuine high-quality relay,the maximum load of normally open interface: AC 250V/10A,direct 30V/10A;
SMD optocoupler isolation,strong driving ability,stable performance; trigger current 5mA;
Fault-tolerant design,even if the control line is broken,the relay will not act;
Power indicator (green),relay status indicator (red)
The interface design is user-friendly,and all interfaces can be directly connected through the terminal block,which is very convenient

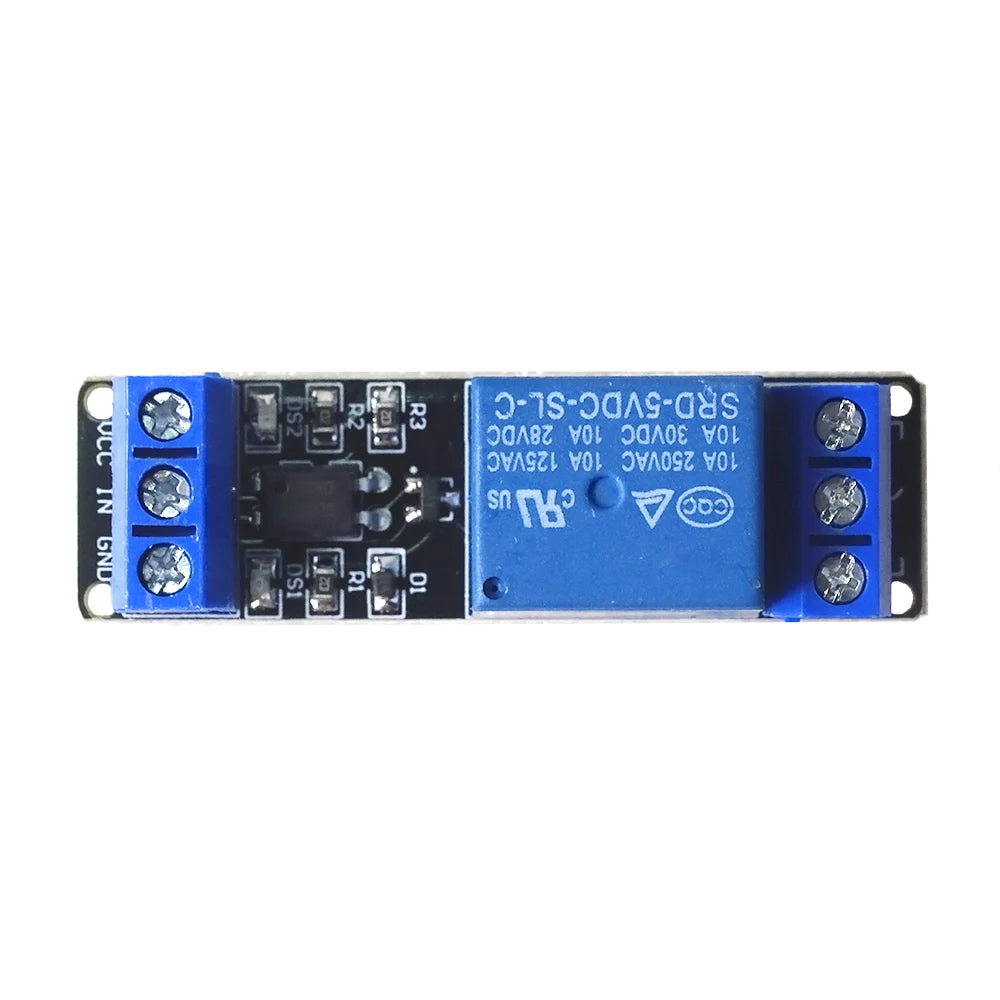

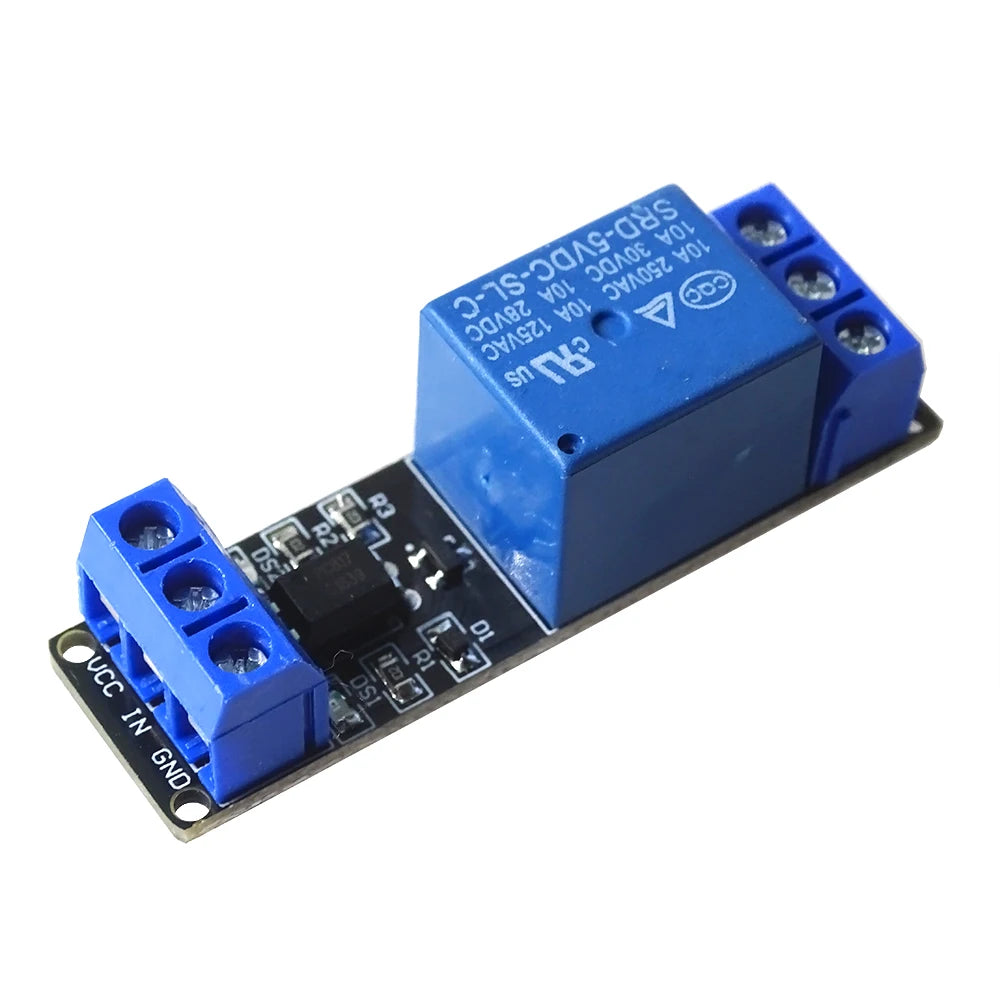

Two Module Interface:
1. DC+: connect to the positive pole of the power supply (3.3V)
2. DC-: connect to the negative pole of the power supply
3. IN: low level control relay pull-in

Relay Output:
1. NO: relay normally open interface,the relay is suspended before closing,and short-circuited with COM after closing
2. COM: relay common interface
3. NC: relay normally closed interface,short-circuit with COM before the relay pulls in,and hangs after pull-in
