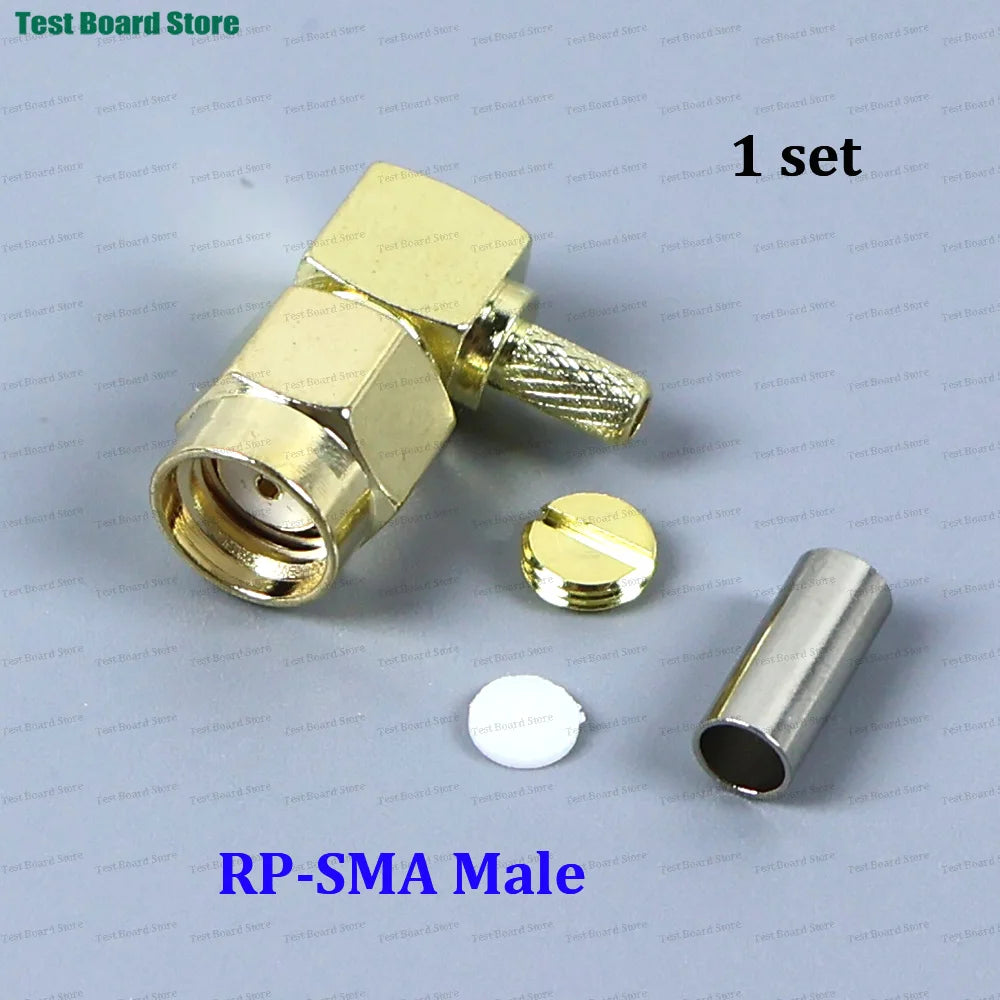

1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector

1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector

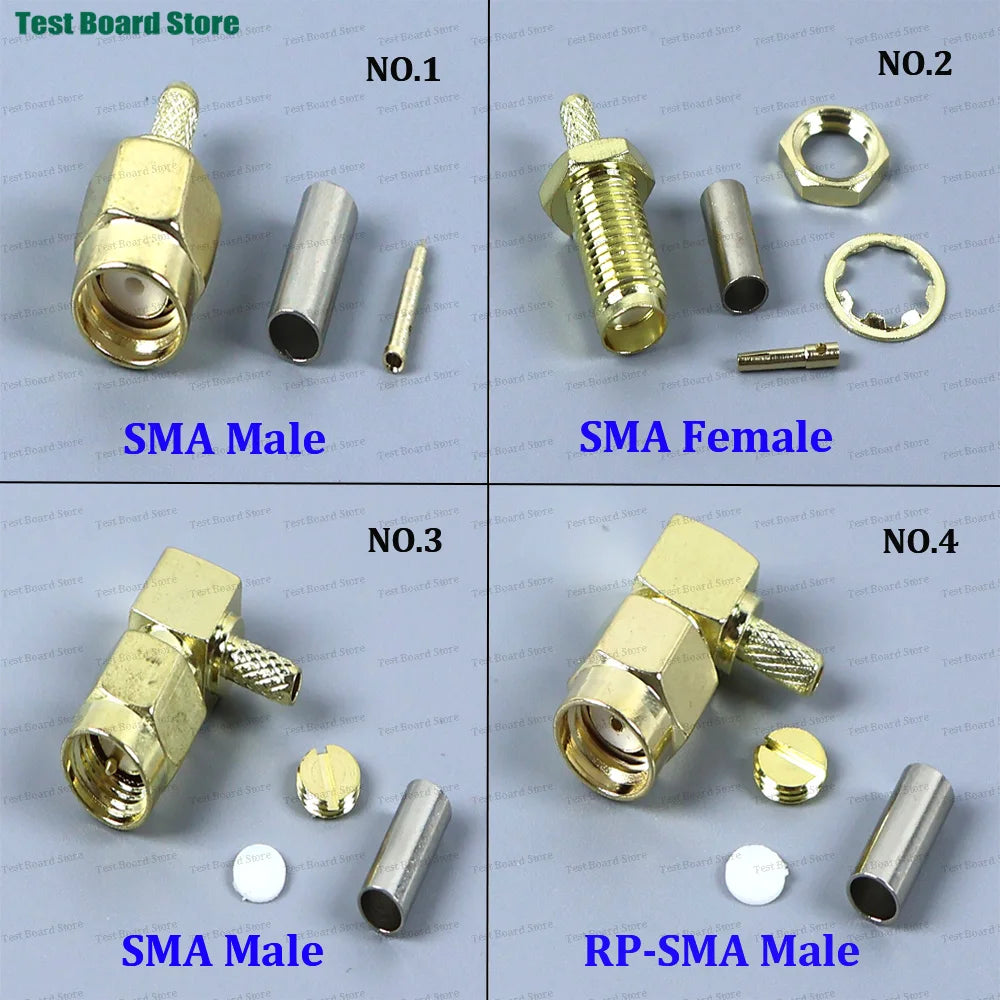

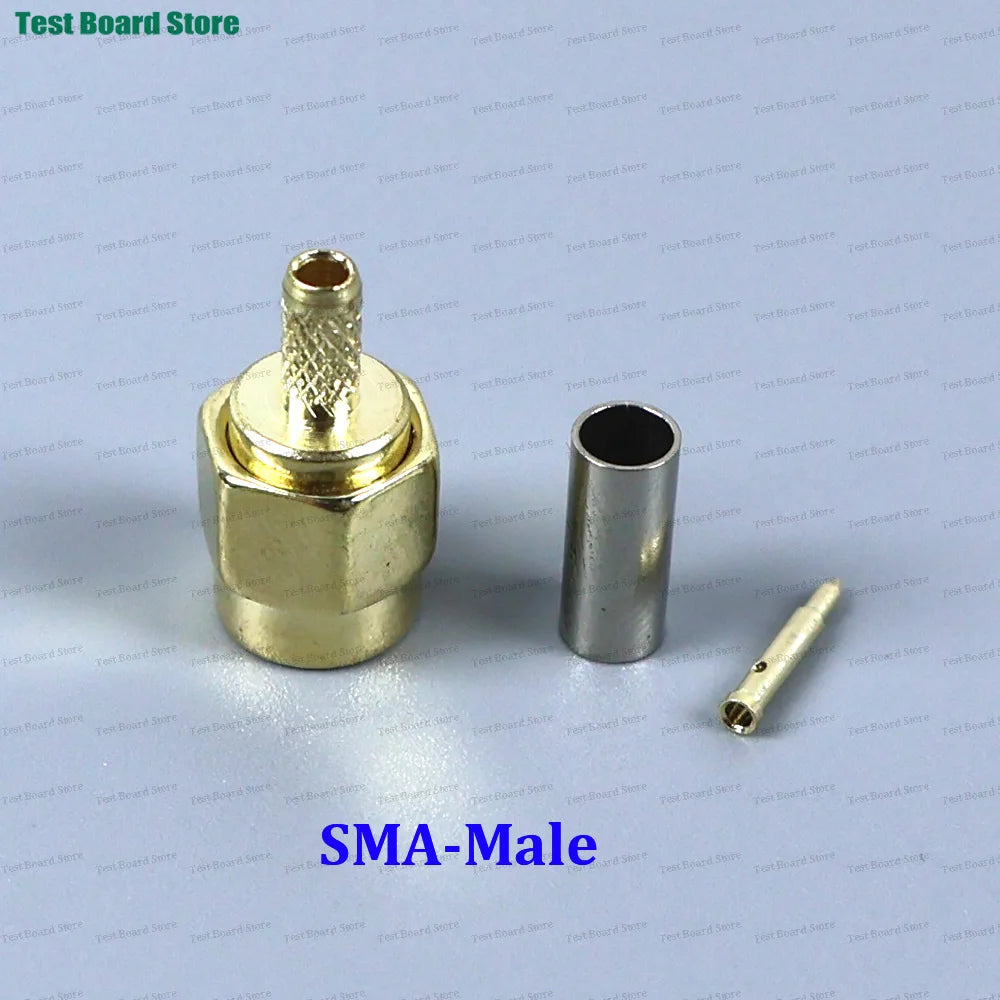

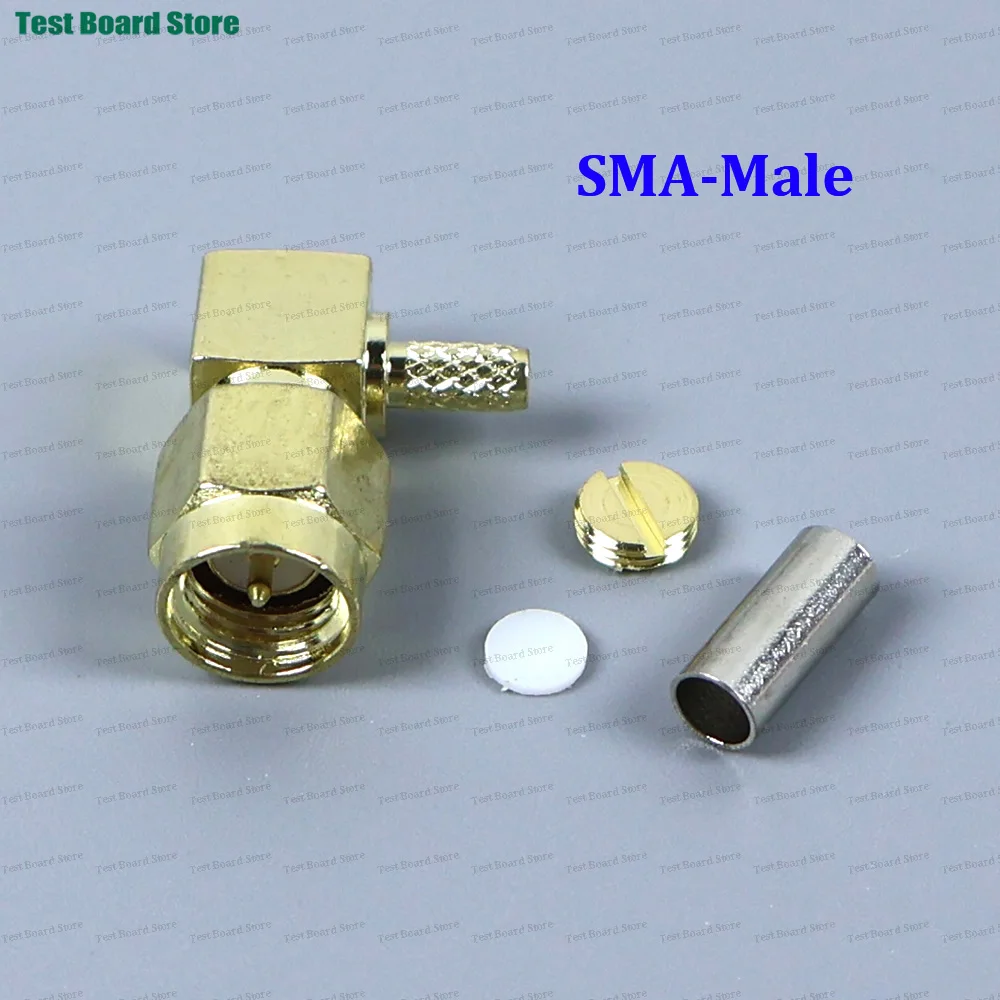

NO.1 SMA-Male / 5PCS
$16.64
$16.64 $0.00
Skip to product information
1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
  • 1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
1/5/10Pcs SMA Male Plug SMA Female RP SMA Male Female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector
$16.64
$16.64 $0.00
Color
Package Quantity
Description

SPECIFICATIONS

Brand Name: NONE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: SMA Male/ PR-SMA Female

Origin: Mainland China

Voltage: none

semi_Choice: yes

1/5/10Pcs SMA Male Plug SMA Female RP SMA Male female RF Connector Crimp For RG174 RG316 LMR100 Cable Connector

Temperature range: -65 ~ + 165 ° C (PE Cable -40 ~ +85 ° C)
Shock: MIL-STD-202 Method 213
Characteristic impedance: 50Ω
Frequency range: DC ~ 6GHz (semi-steel cable 0 ~ 18GHz)
Operating voltage: 335V max (rms)
Withstand voltage: 1000V rms (sea level minimum)
Contact resistance:
Center Contact ≤ 3 mΩ between inner conductors
Outer Contact ≤ 2 mΩ between outer conductors
Insulation resistance ≥ 5000 MΩ
Voltage standing wave ratio
Straight Straight ≤ 1.1
Right angle ≤ 1.2
Durability ≥ 500 times (cycles)
Material:
Shell: Brass, gold-plated
Elastic contact: Beryllium, gold-plated
Inner conductor: Brass, gold-plated
Insulator: PTFE
Crimp ferrule: brass, nickel-plated
O-ring sealing: 6146 silastic
