1/5/10Pcs YX850 Power Failure Automatic Switching Standby Battery Lithium Battery Module 5V-48V Universal Emergency Converte
$11.20
Sale price
$11.20
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: Javino
Choice: yes
Contact Load: Low Power
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: Power Failure Automatic Switching Standby Battery Lithium Battery Modu
Origin: Mainland China
Power Source: DC
Protect Feature: Sealed
Theory: Voltage relay
Use: General Purpose
Voltage: 5V
is_customized: Yes
semi_Choice: yes
Product Parameters
Product Name: power failure automatic switching module
Product model: YX850
Scope of application: DC5V-48V
Product load: 10A
Product size: 61*30*18mm (length * width * height)
Mounting hole size: 3mm
Installation hole spacing: 23mm
Product weight: about 22g
Connect the DC terminal to the battery for charging when there is power
The charging parameters have nothing to do with this module,but depend on your DC terminal,battery and load.

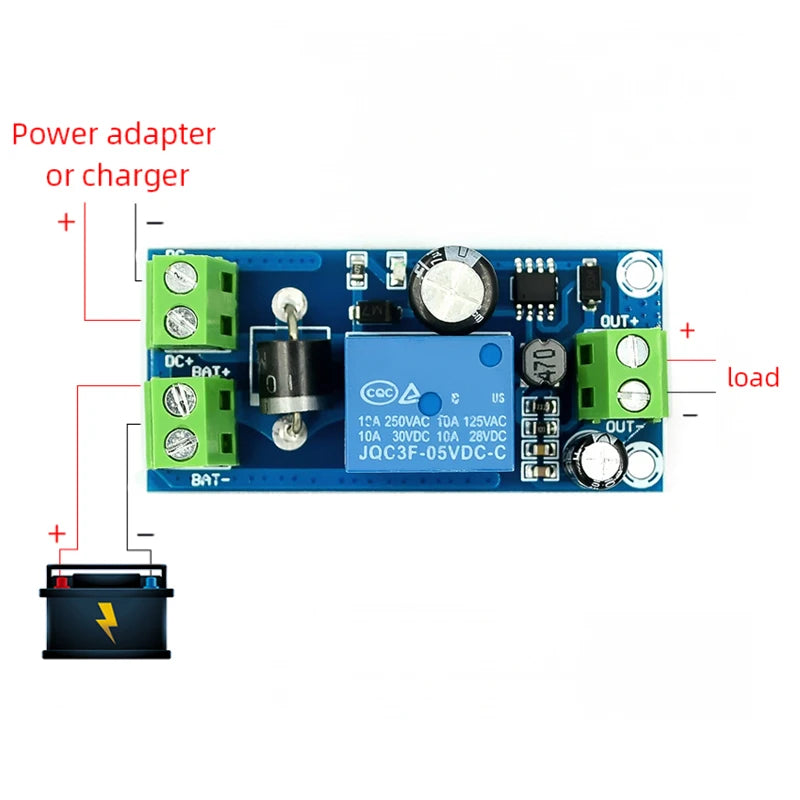

Product Wiring Example
Be Careful
1. power off for a few tenths of a second during switching.
2. the power supply,battery and load shall have the same voltage.
3. when there is power at the DC end,it is preferred to supply power to the load.
When the DC terminal is powered on,connect the battery for charging (the specific parameters confirmed by yourself have nothing to do with this module)
4. when there is no power at the DC end,the automatic battery will supply power to the load.
