SPECIFICATIONS

ADC: 10BITS

Brand Name: NoEnName_Null

CPU core: AVR

Condition: New

EEPROM capacity: 32KB

High-concerned chemical: none

Maximum CPU frequency: 20MHZ

Number of GPIO ports: 27

Operating Temperature: -40+85

Origin: Mainland China

Package: TQFP

Program memory type: FLASH

Program storage capacity: 32KB

Supply Voltage: 1.8V-5.5V

Total RAM capacity: 2KB

Type: Voltage Regulator

catalogue: MCU/MPU/SOC

modname=ckeditor

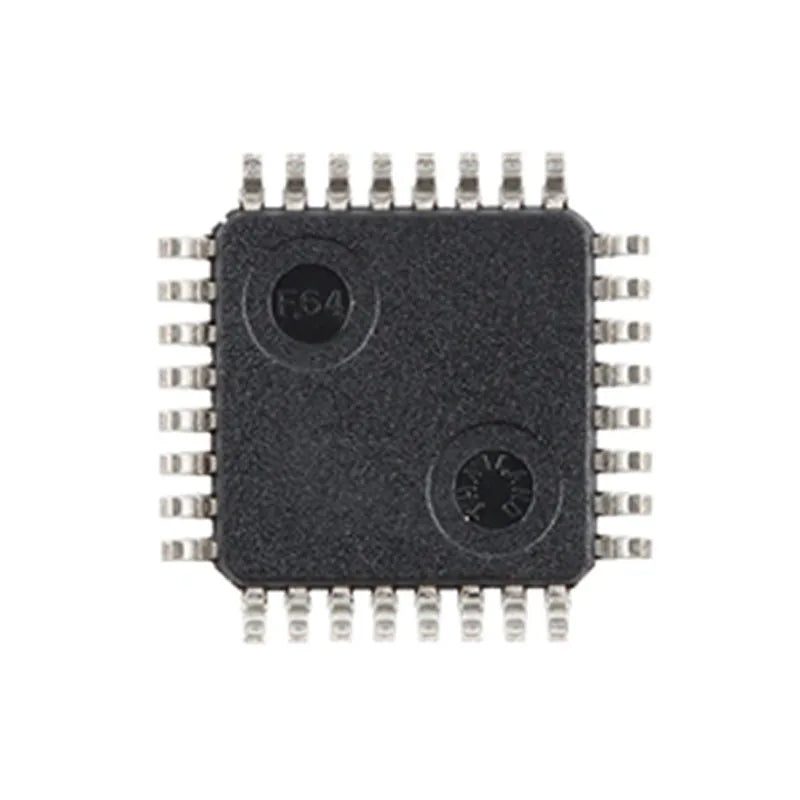

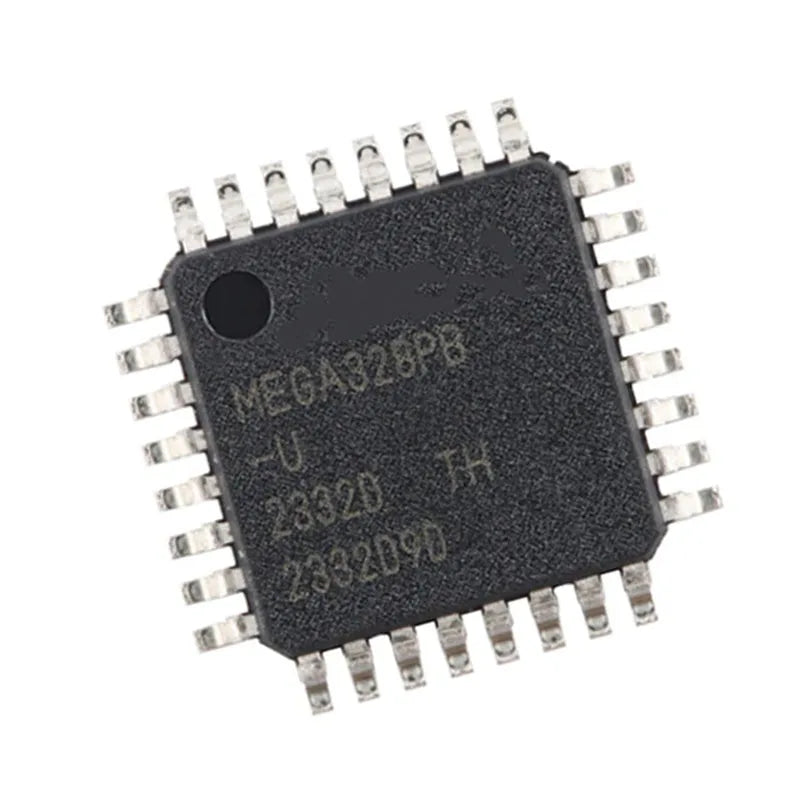

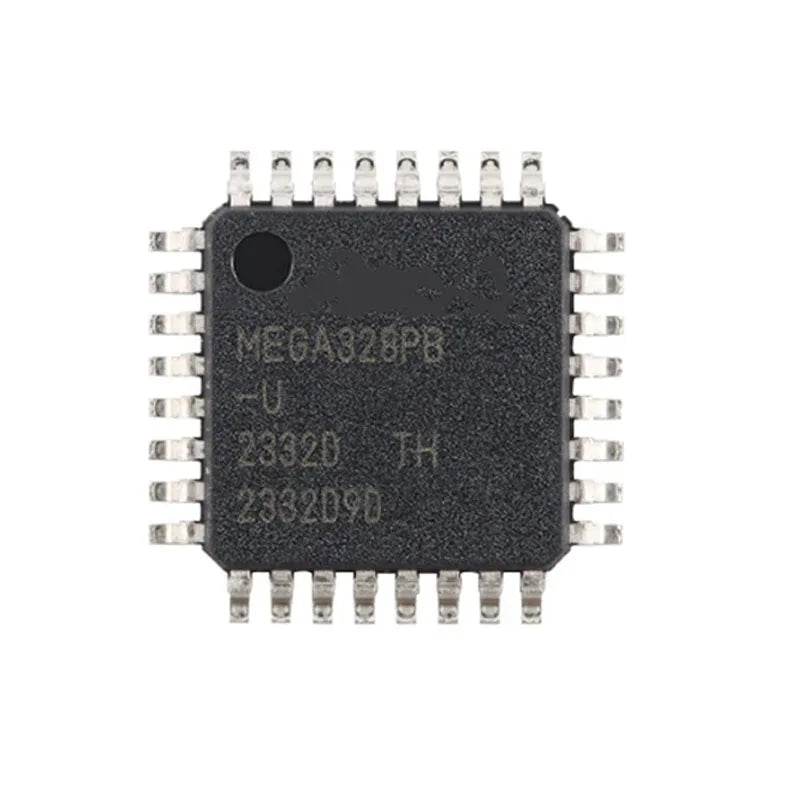

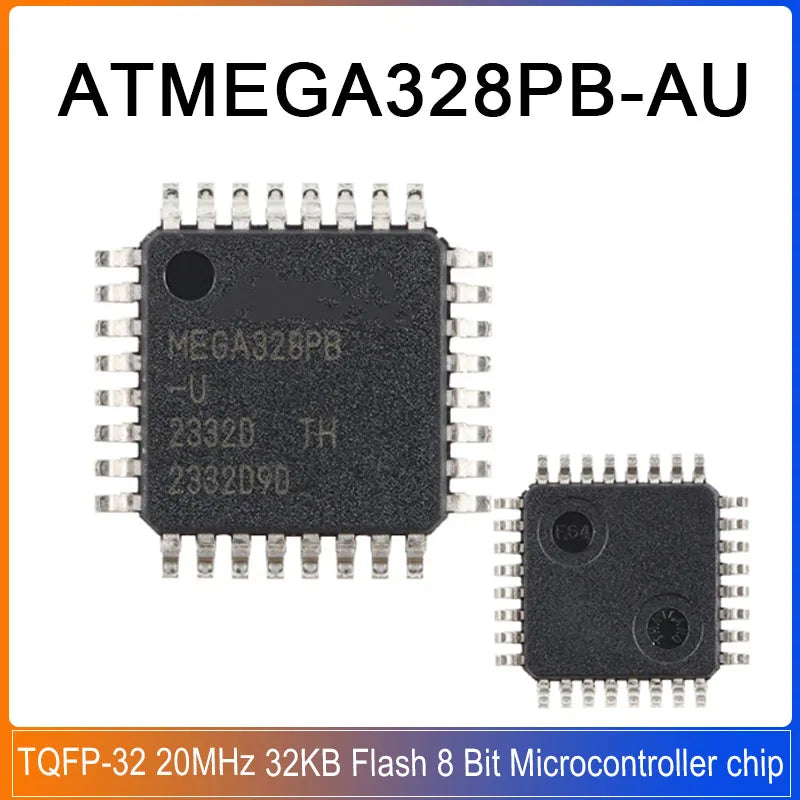

1-20PCS ATMEGA328PB-AU TQFP-32 ATMEGA328PB ATMEGA328 328PB 20MHz 32KB Flash low-power CMOS 8 Bit AVR Microcontroller chip

Introduction
The picoPower® ATmega328PB is a low-power CMOS 8-bit microcontroller based on the AVR® enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega328PB achieves throughputs close to 1 MIPS per MHz. This empowers system designers to optimize the device for power consumption versus processing speed.

Features
High Performance, Low-Power AVR® 8-bit Microcontroller Family
• Advanced RISC Architecture
– 131 Powerful Instructions
– Most Single Clock Cycle Execution
– 32 x 8 General Purpose Working Registers
– Fully Static Operation
– Up to 20 MIPS Throughput at 20 MHz
– On-Chip 2-Cycle Multiplier
• High Endurance Nonvolatile Memory Segments
– 32 KB of In-System Self-Programmable Flash program memory
– 1 KB EEPROM
– 2 KB Internal SRAM
– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
– Optional Boot Code Section with Independent Lock Bits
• In-System Programming by On-chip Boot Program
• True Read-While-Write Operation
– Programming Lock for Software Security
• Peripheral Features
– Peripheral Touch Controller (PTC)
• Capacitive Touch Buttons, Sliders, and Wheels
• 24 Self-Cap Channels and 144 Mutual Cap Channels
– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
– Three 16-bit Timer/Counters with Separate Prescaler, Compare Mode, and Capture Mode
– Real-Time Counter with Separate Oscillator
– Ten PWM Channels
– 8-channel 10-bit ADC

– Two Programmable Serial USARTs
– Two Master/Slave SPI Serial Interfaces
– Two Byte-Oriented Two-Wire Serial Interfaces (Philips I2C Compatible)
– Programmable Watchdog Timer with Separate On-chip Oscillator
– On-Chip Analog Comparator
– Interrupt and Wake-Up on Pin Change
• Special Microcontroller Features
– Power-On Reset and Programmable Brown-Out Detection
– Internal 8 MHz Calibrated Oscillator
– External and Internal Interrupt Sources
– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended
Standby
– Clock Failure Detection Mechanism and Switch to Internal 8 MHz RC Oscillator in case of Failure
– Individual Serial Number to Represent a Unique ID
• I/O and Packages
– 27 Programmable I/O Lines
– 32-pin TQFP and 32-pin QFN /MLF
• Operating Voltage:
– 1.8 - 5.5V
• Temperature Range:
– -40°C to 105°C
• Speed Grade:
– 0 - 4 MHz @ 1.8 - 5.5V
– 0 - 10 MHz @ 2.7 - 5.5V
– 0 - 20 MHz @ 4.5 - 5.5V
• Power Consumption at 1 MHz, 1.8V, 25°C
– Active Mode: 0.24 mA
– Power-Down Mode: 0.2 μA
– Power-Save Mode: 1.3 μA (Including 32 kHz RTC)
