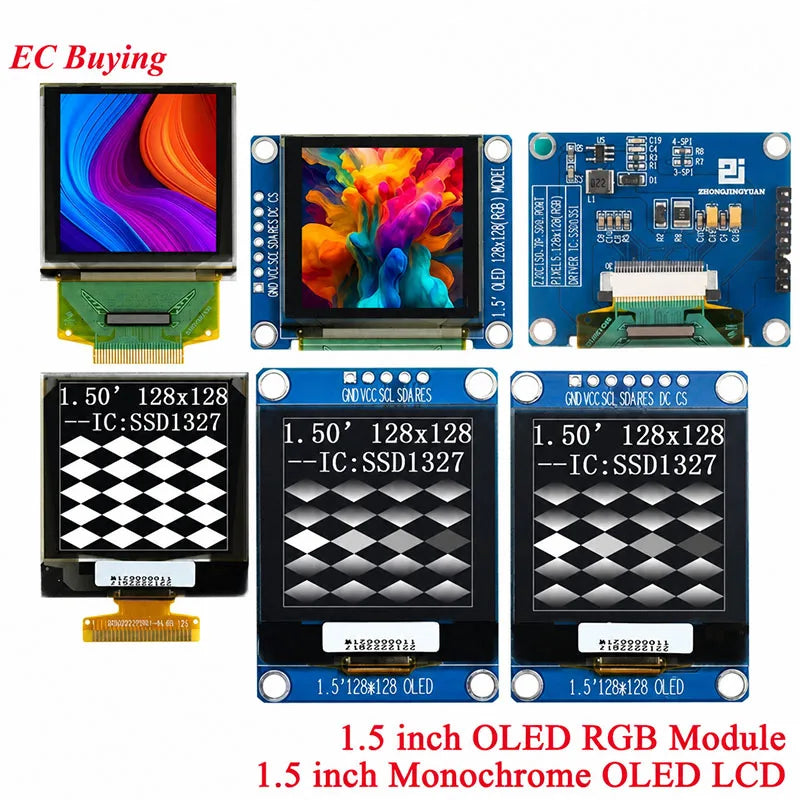

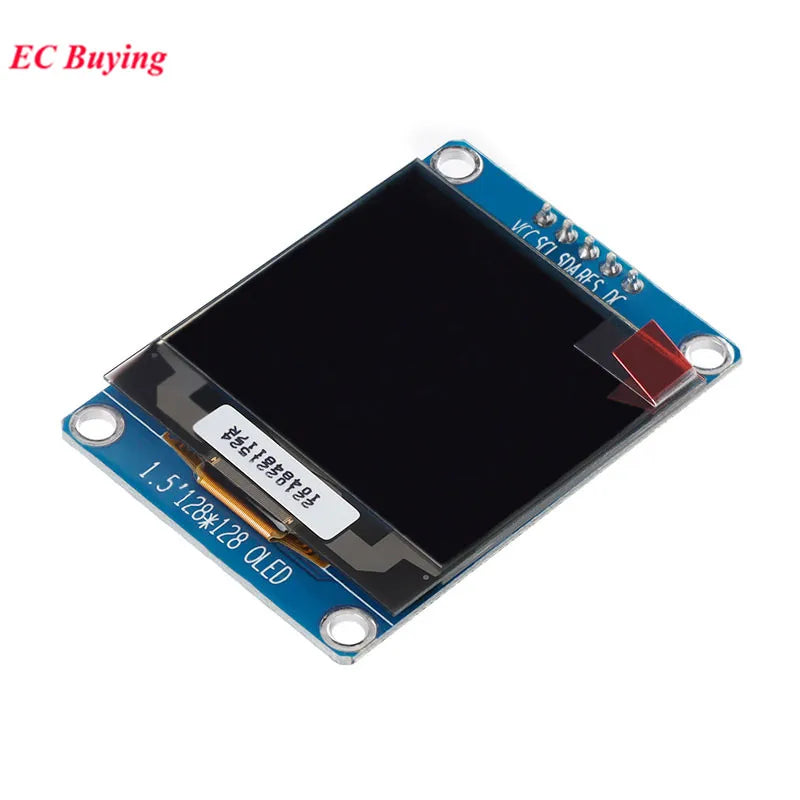

1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin

1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin

Bare Screen
$34.88
$34.88 $0.00
Skip to product information
1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
  • 1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
1.5 inch OLED Module 1.5" RGB Color 128x128 LCD LED Display Screen 128*128 SSD1327 SSD1351 SPI/IIC I2C for Arduino 4Pin 7Pin
$34.88
$34.88 $0.00
Color
Description

SPECIFICATIONS

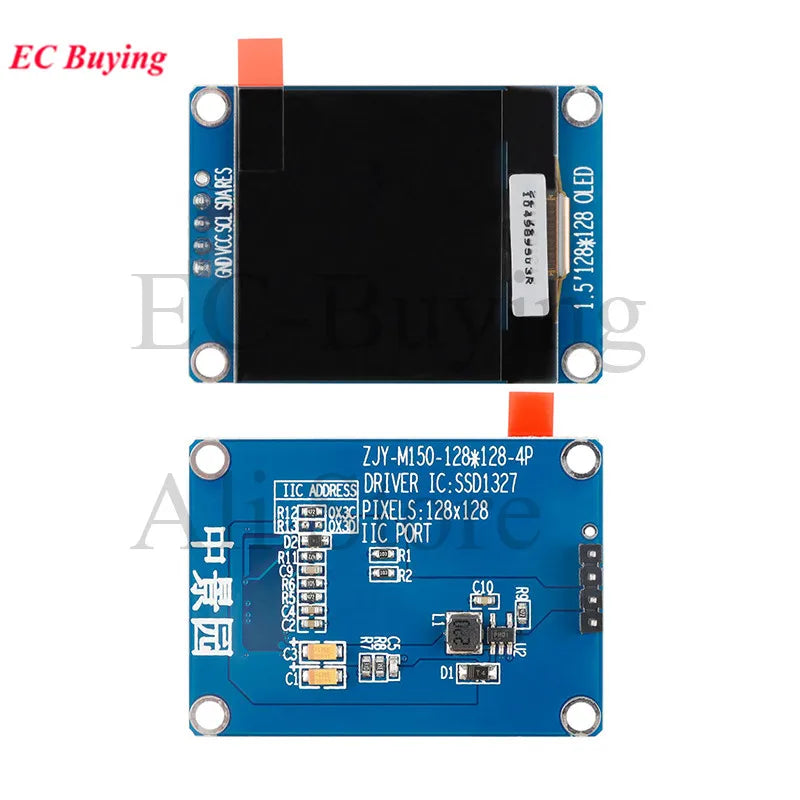

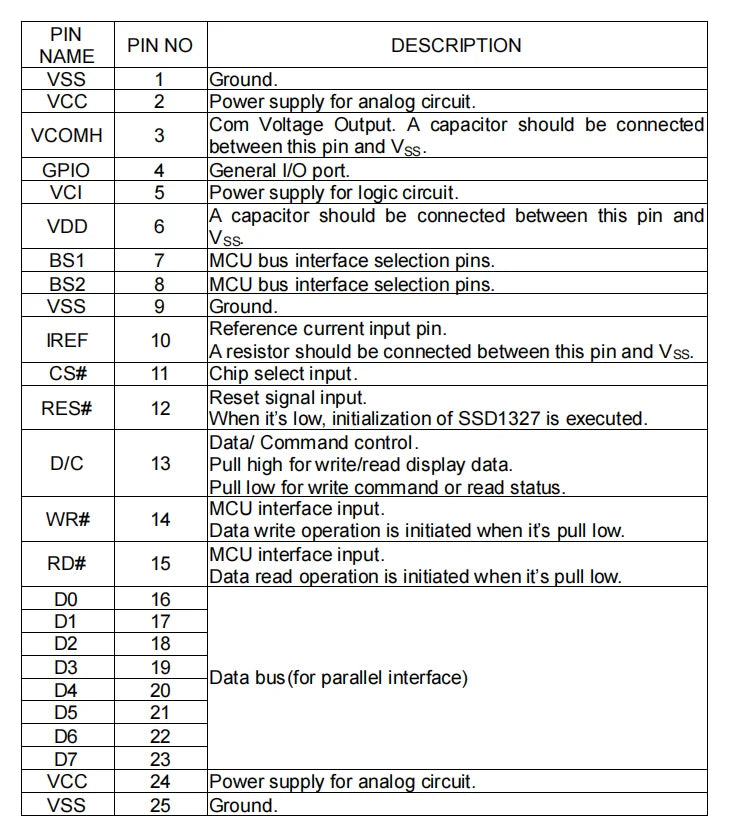

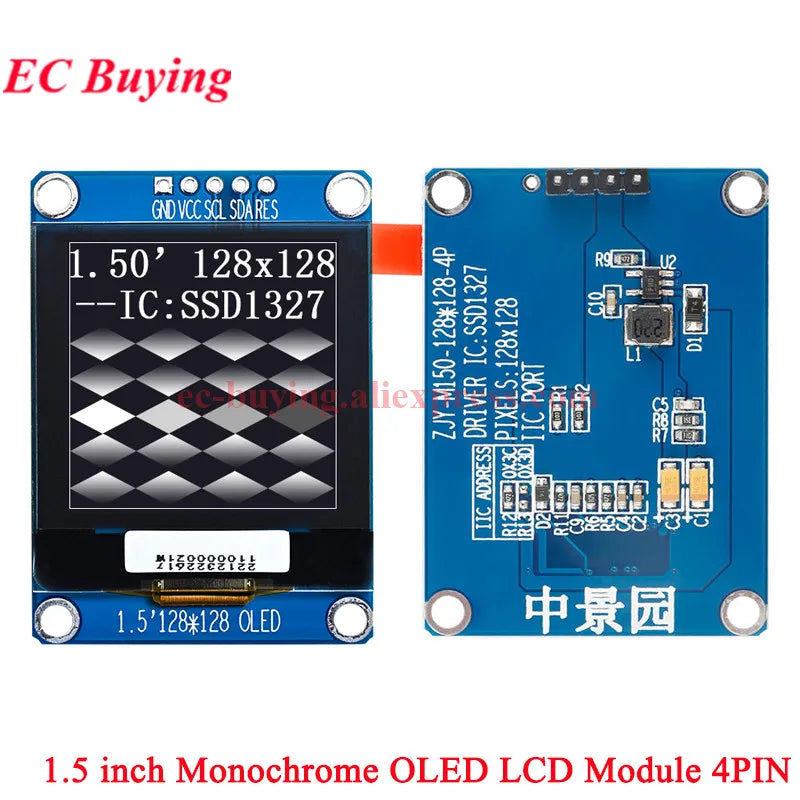

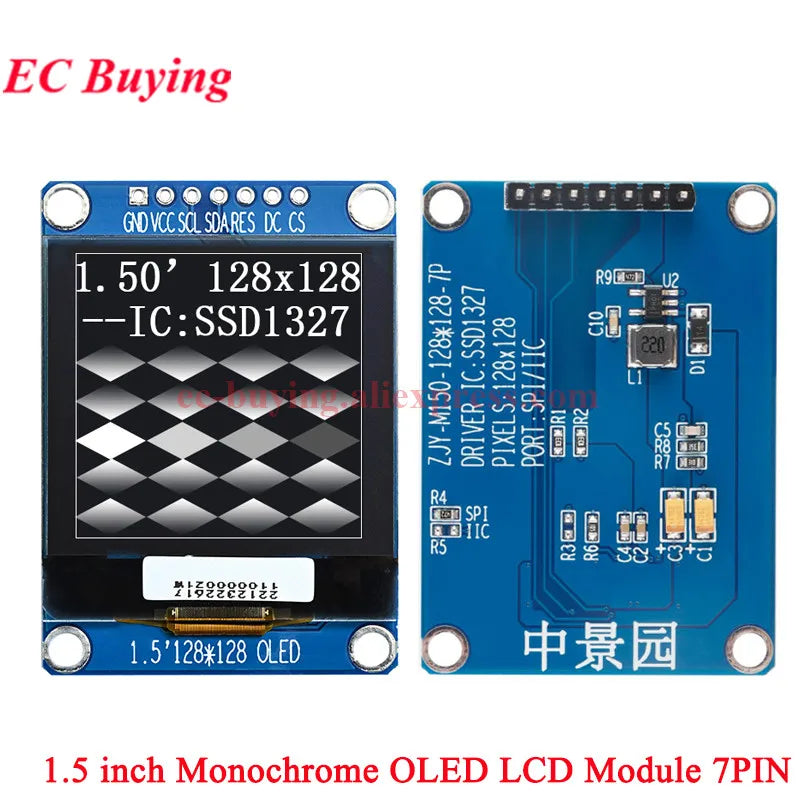

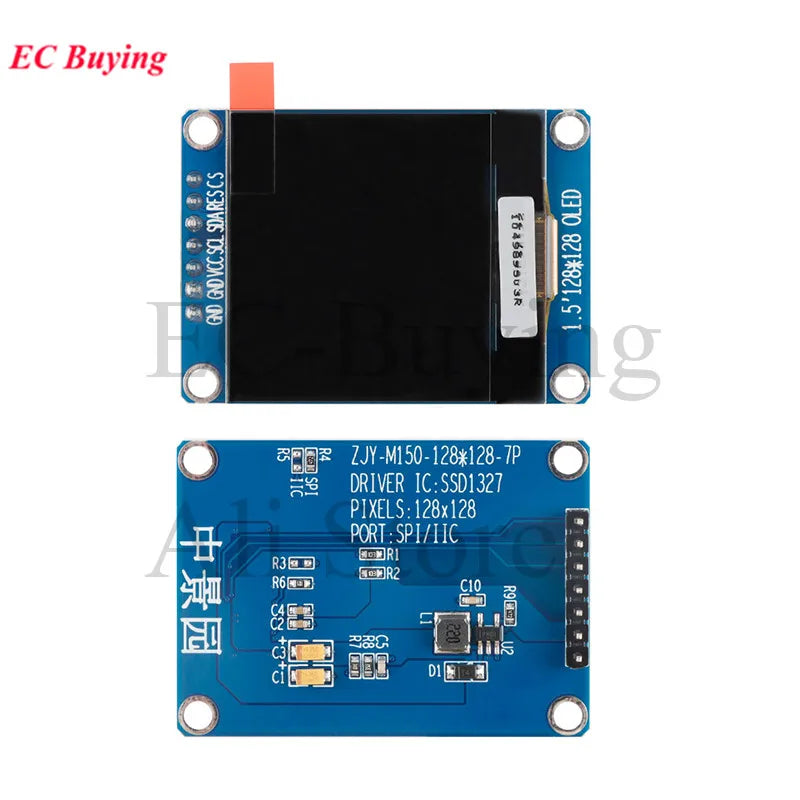

1.5 inch OLED Display White LCD Screen Module: full view 1.5" SPI/IIC SSD1327 Resolution 128*128 128x128

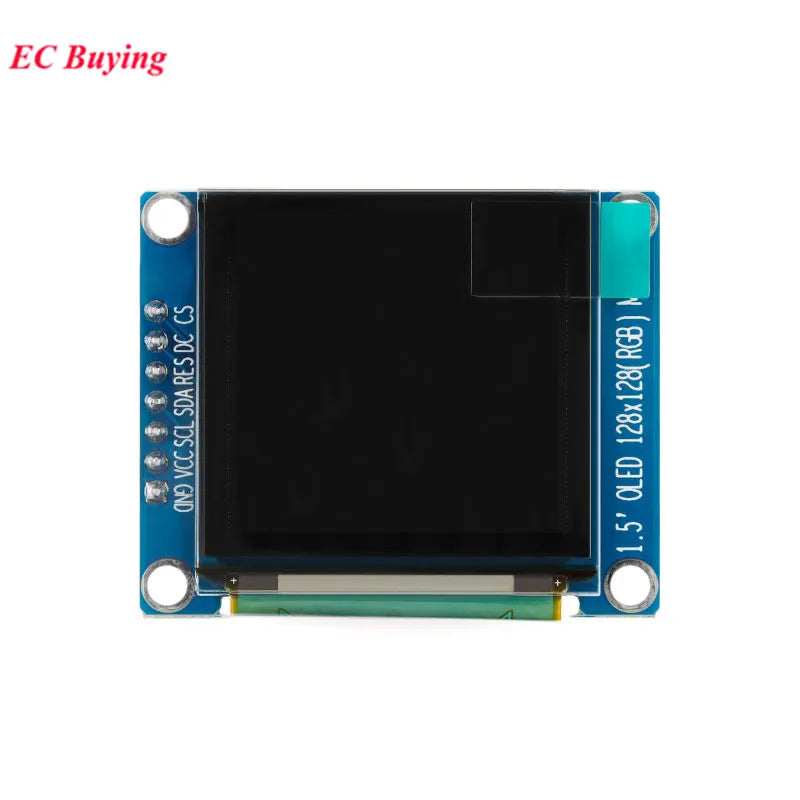

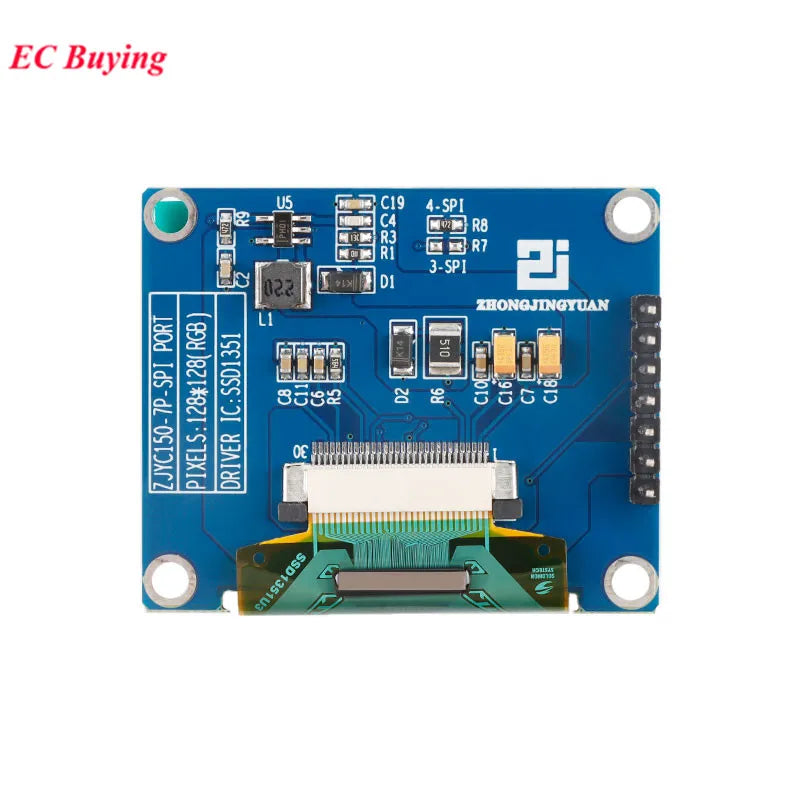

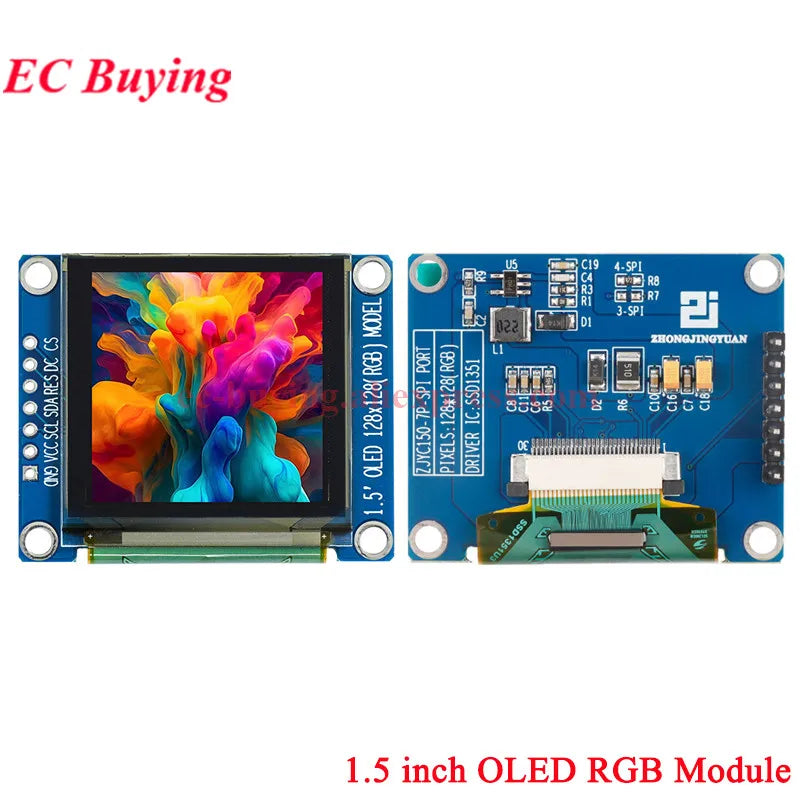

1.5" 1.5 inch OLED Display Module: Color LCD Screen 128x128 Resolution 128*128 SSD1351 driver

Brand Name: EC Buying

Color: white RGB color

Display Mode: normal

Grayscale type support: 16-level grayscale adjustment

High-concerned chemical: none

Interface: I2C IIC SPI Serial Port Parallel

Model Number: 1.5 inch OLED Module

Origin: Mainland China

Resolution: 128*128

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Type: OLED

Viewing direction: full view full viewing angle

Voltage: 3.3V

driver Control chip Controller: SSD1327 SSD1351 driver

is_customized: Yes

resolution: 128x128 128*128 DIY KIT

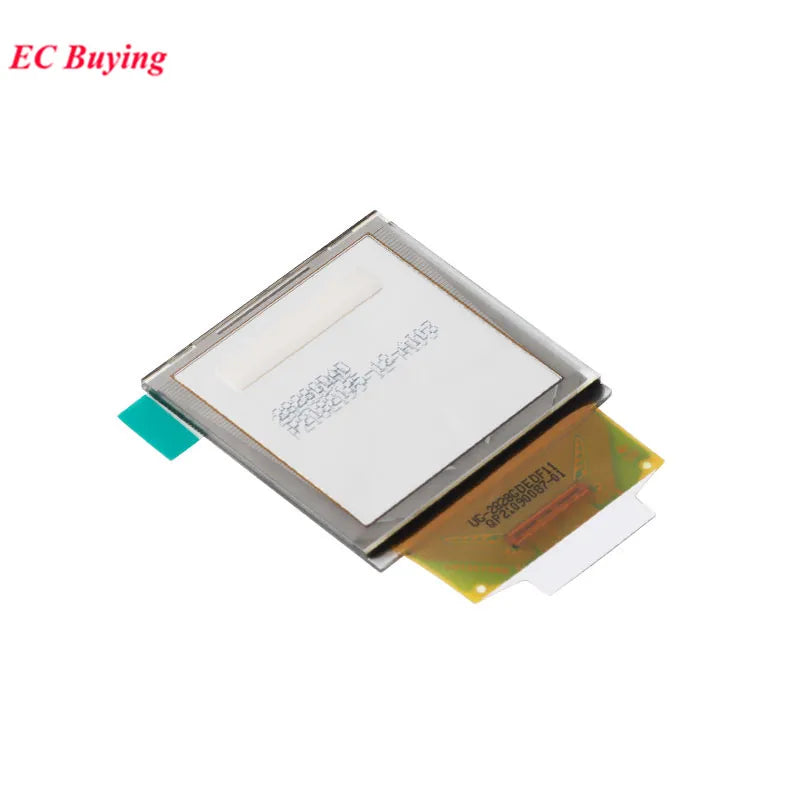

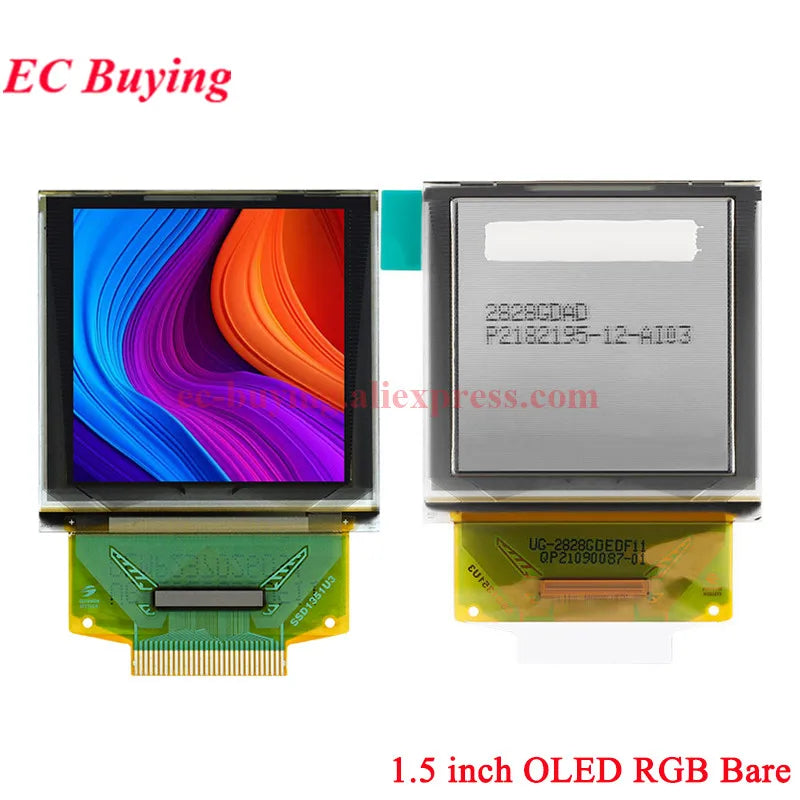

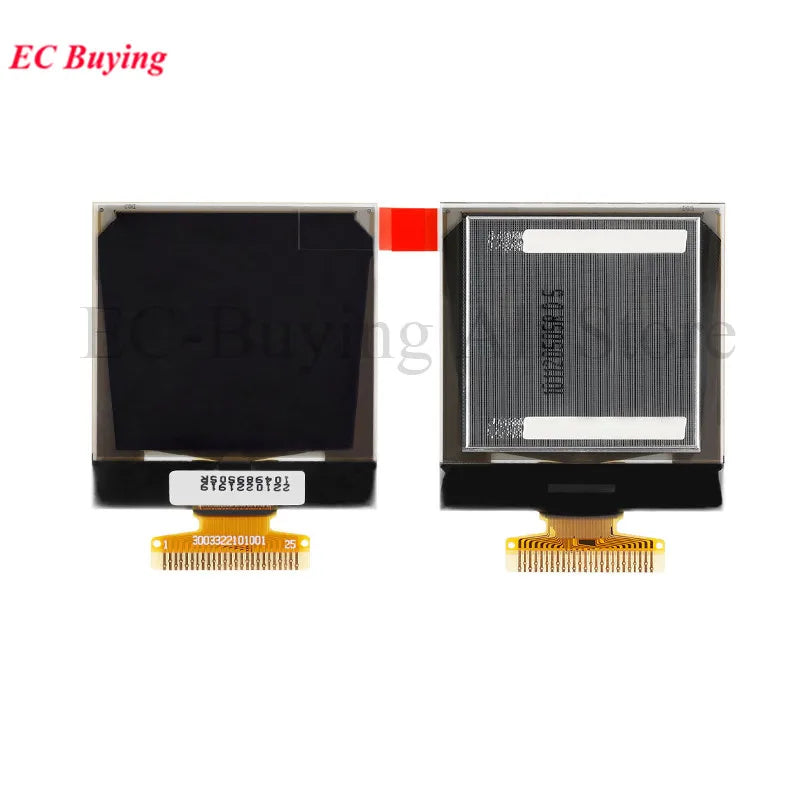

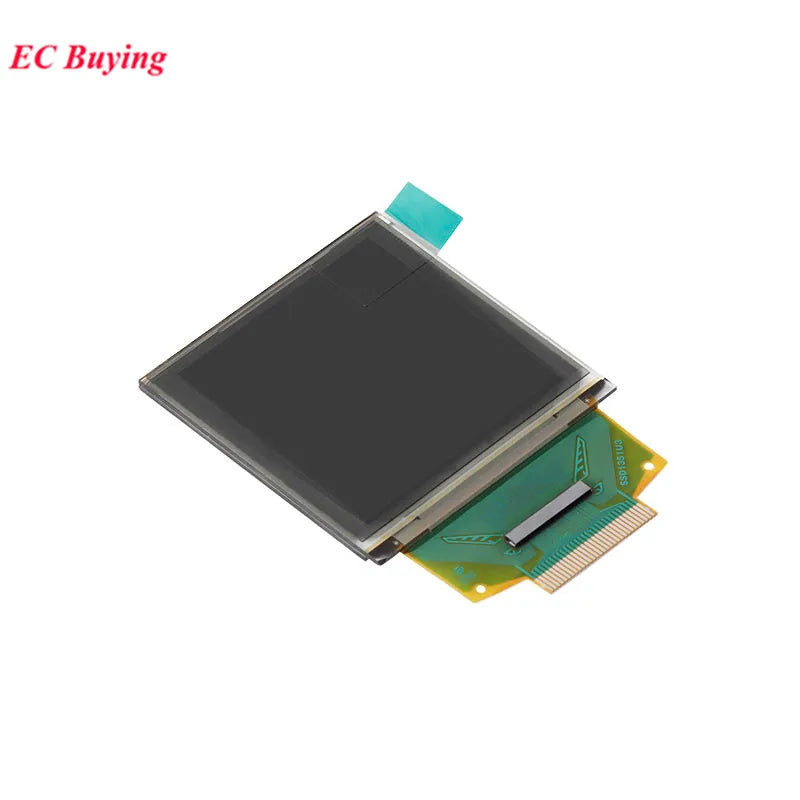

1.5 inch Bare Screen

Size: 1.5 inches

Color: color

Resolution: 128x128 (dot matrix)

Viewing angle: full view

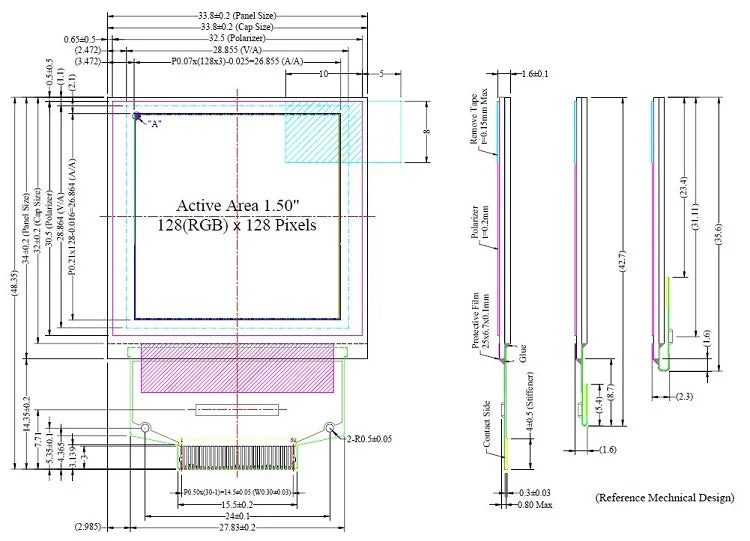

Display area size: 26.86x26.86 mm

Glass size: 33.80x34.00x1.60 mm

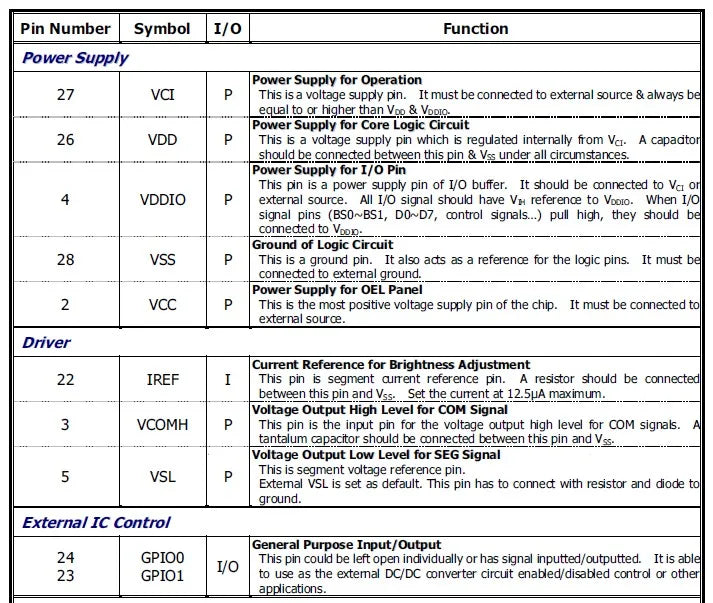

Driver IC model: SSD1351 (external boost required)

VDD IO voltage: 1.65V-3.5V

VDD voltage: 2.4V-2.6V

VCI voltage: 2.4V-3.5V

VCC voltage: 12.5V-13.5V

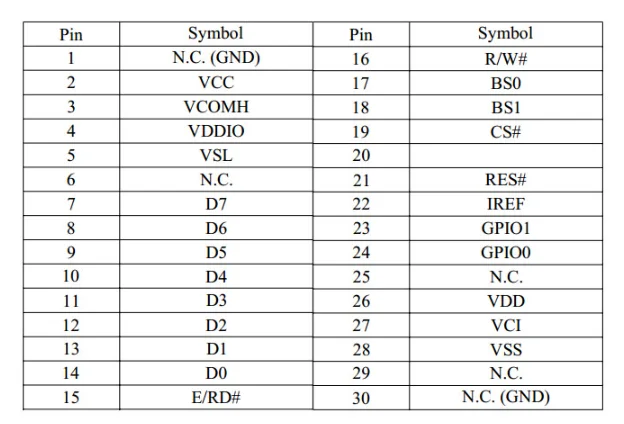

FPC cable and pin: cable 30pin plug

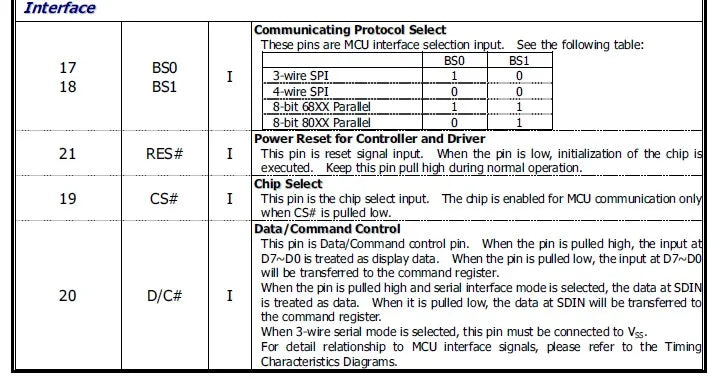

Data communication interface: 3-wire SPI, 4-wire SPI, parallel port

Working temperature: -40 to 70 degrees Celsius

Storage temperature: -40 to 85 degrees Celsius


1.5 inch LCD Module
