SPECIFICATIONS

Brand Name: NONE

CPU core: PIC

Condition: New

EEPROM capacity: 128Byte

High-concerned chemical: none

Maximum CPU frequency: 20MHz

Number of GPIO ports: 5

Operating Temperature: -40℃~+85℃

Origin: Mainland China

Package: DIP

Program memory type: FLASH

Program storage capacity: 1KB

Supply Voltage: 2V~5.5V

Total RAM capacity: 64Byte

Type: Voltage Regulator

catalogue: MCU/MPU/S

modname=ckeditor

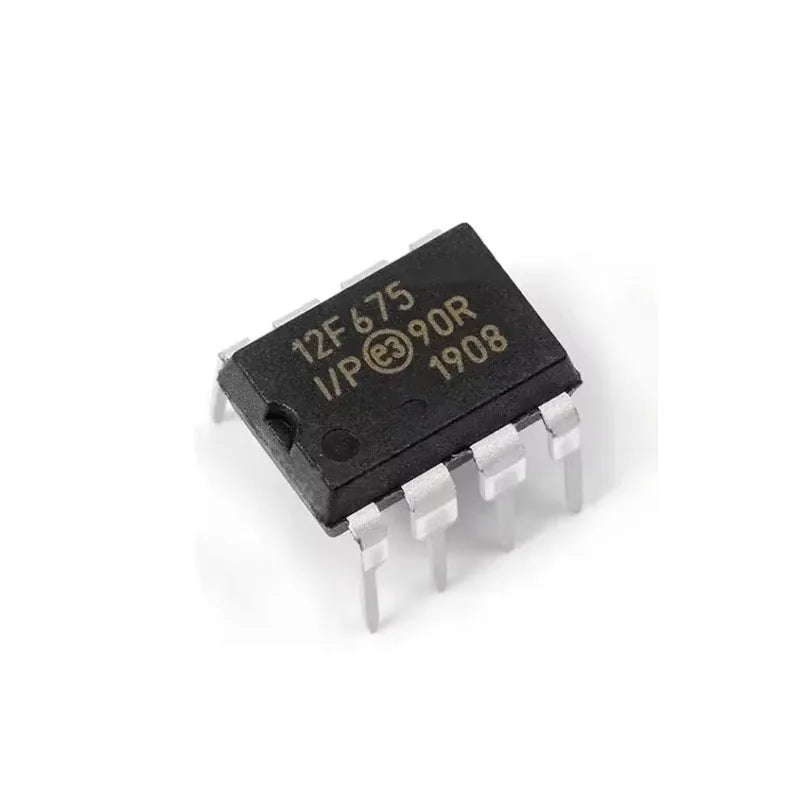

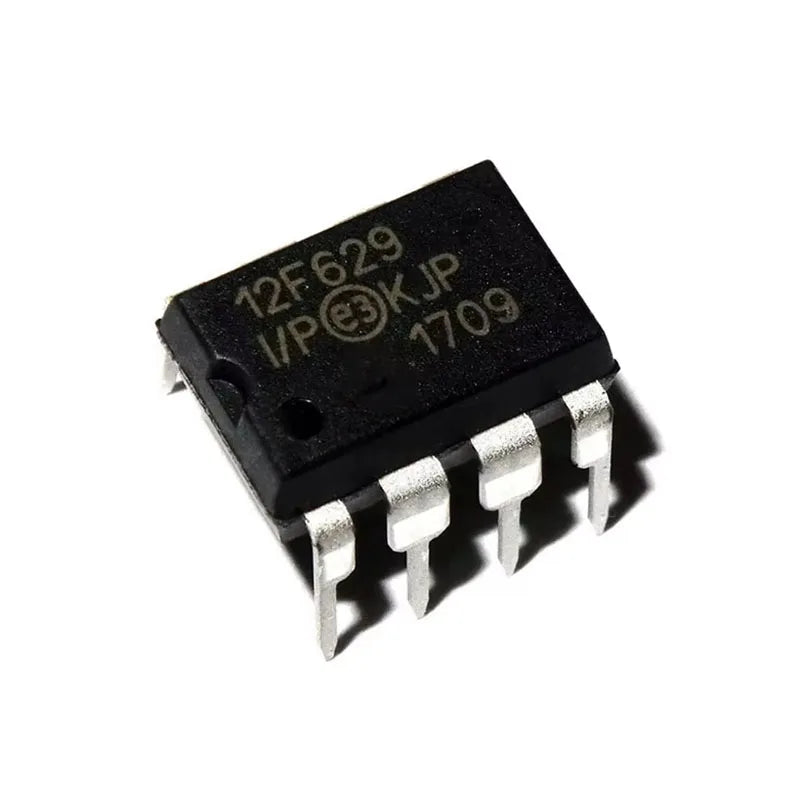

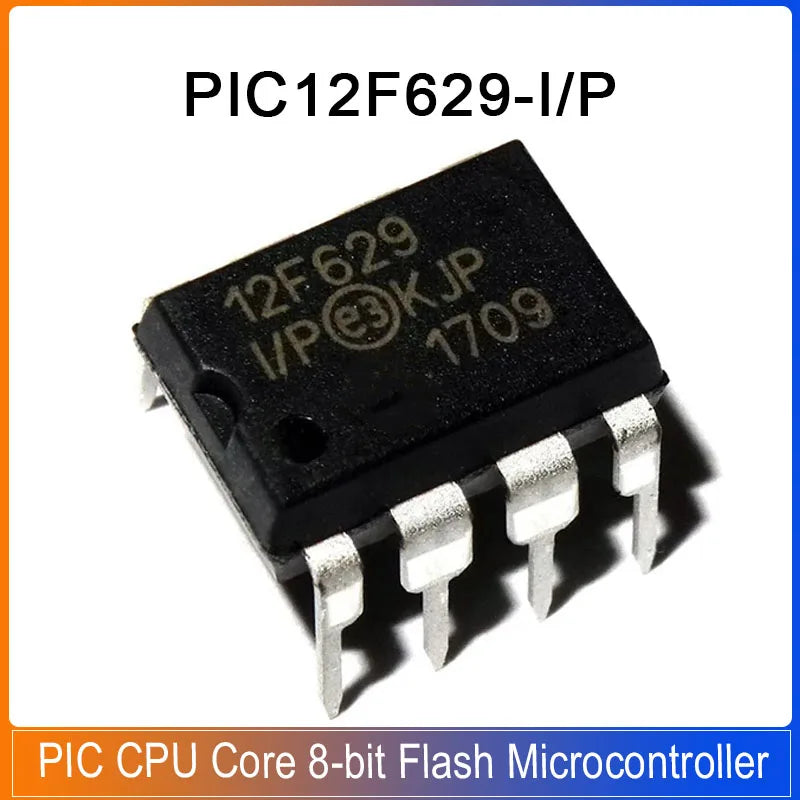

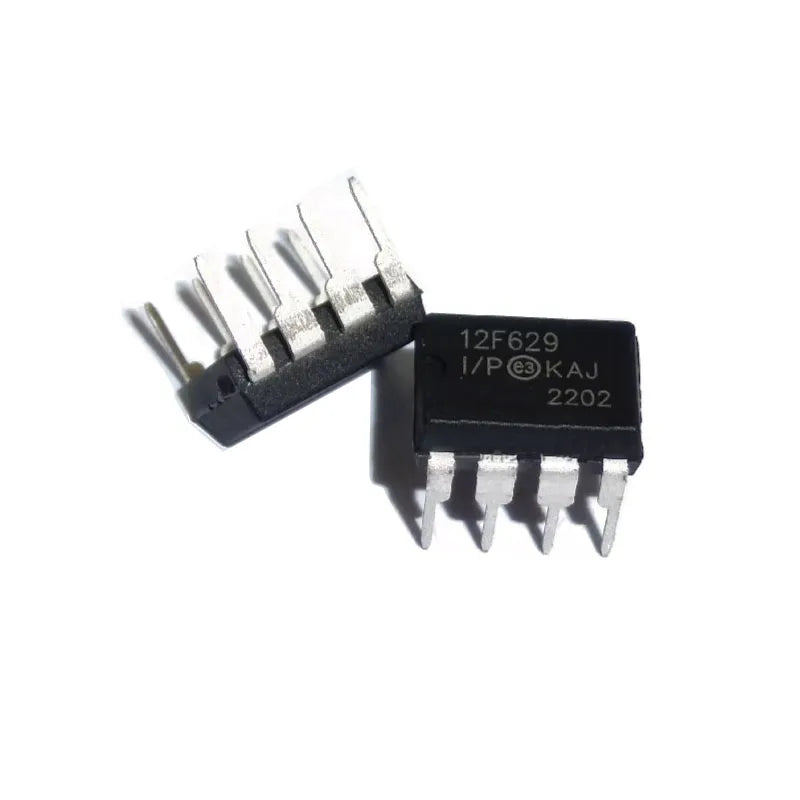

1-50PCS PIC12F629-I/P PIC12F629 DIP8 Direct Insert PIC12F675-I/P PIC12F675 DIP-8 2F675 PIC 8-bit Flash Microcontroller DIP-8 12F629

High-Performance RISC CPU:

• Only 35 Instructions to Learn

- All single-cycle instructions except branches

• Operating Speed:

- DC – 20 MHz oscillator/clock input

- DC – 200 ns instruction cycle

• Interrupt Capability

• 8-Level Deep Hardware Stack

• Direct, Indirect, and Relative Addressing modes

Special Microcontroller Features:

• Internal and External Oscillator Options

- Precision Internal 4 MHz oscillator factory calibrated to ±1%

- External Oscillator support for crystals and resonators

- 5 s wake-up from Sleep, 3.0V, typical

• Power-Saving Sleep mode

• Wide Operating Voltage Range

– 2.0V to 5.5V

• Industrial and Extended Temperature Range

• Low-Power Power-on Reset (POR)

• Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)

• Brown-out Detect (BOD)

• Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation

• Multiplexed MCLR/Input Pin

• Interrupt-on-Pin Change

• Individual Programmable Weak Pull-ups

• Programmable Code Protection

• High Endurance Flash/EEPROM Cell

- 100,000 write Flash endurance

- 1,000,000 write EEPROM endurance

- Flash/Data EEPROM Retention: > 40 years

Low-Power Features:

• Standby Current:

- 1 nA @ 2.0V, typical

• Operating Current:

- 8.5 A @ 32 kHz, 2.0V, typical

- 100 A @ 1 MHz, 2.0V, typical

• Watchdog Timer Current

- 300 nA @ 2.0V, typical

• Timer1 Oscillator Current:

- 4 A @ 32 kHz, 2.0V, typical

Peripheral Features:

• 6 I/O Pins with Individual Direction Control

• High Current Sink/Source for Direct LED Drive

• Analog Comparator module with:

- One analog comparator

- Programmable on-chip comparator voltage reference (CVREF) module

- Programmable input multiplexing from device inputs

- Comparator output is externally accessible

• Analog-to-Digital Converter module (PIC12F675):

- 10-bit resolution

- Programmable 4-channel input

- Voltage reference input

• Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler

• Enhanced Timer1:

- 16-bit timer/counter with prescaler

- External Gate Input mode

- Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator, if INTOSC mode selected

• In-Circuit Serial ProgrammingTM (ICSPTM) via two pins
