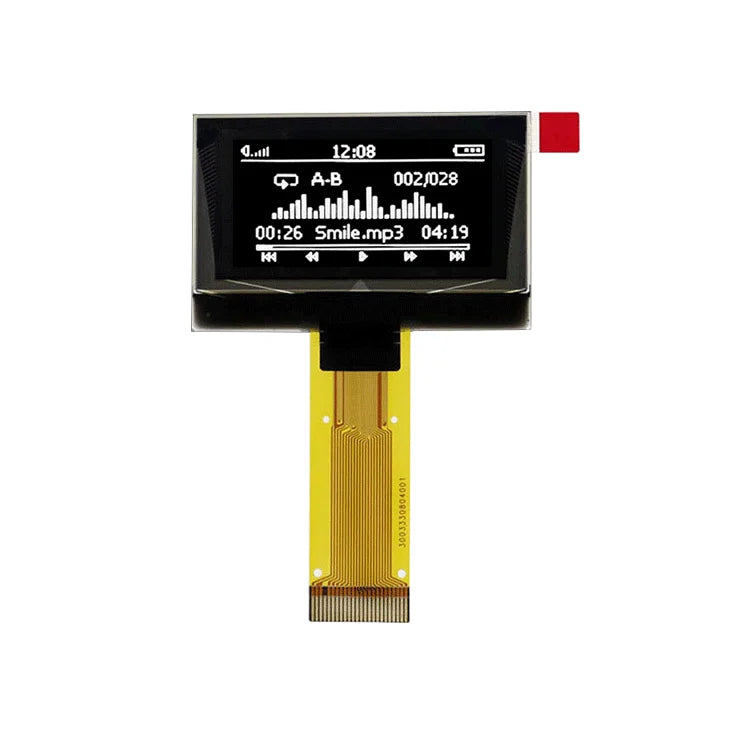

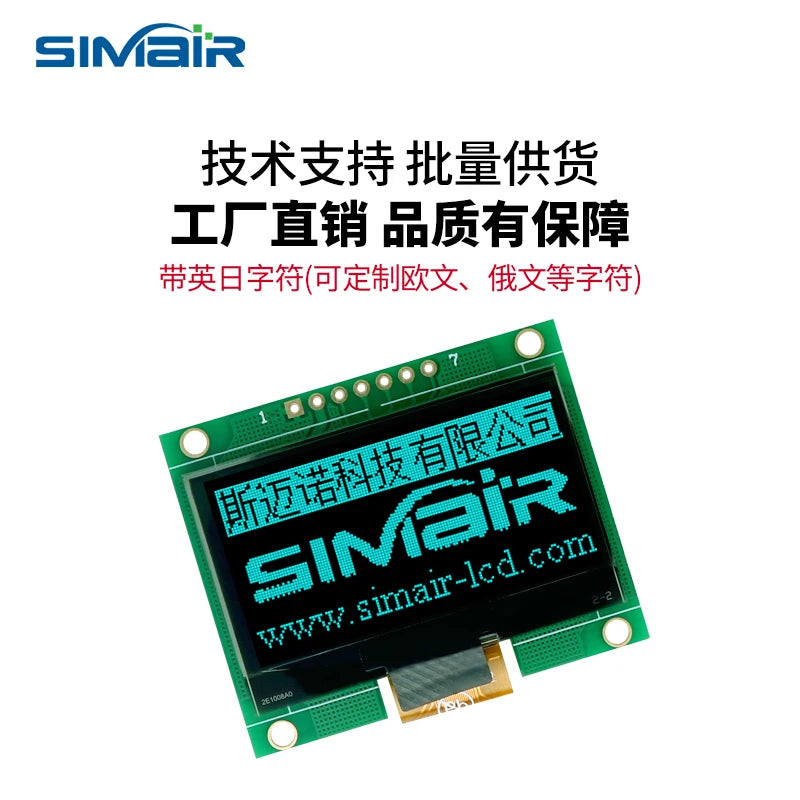

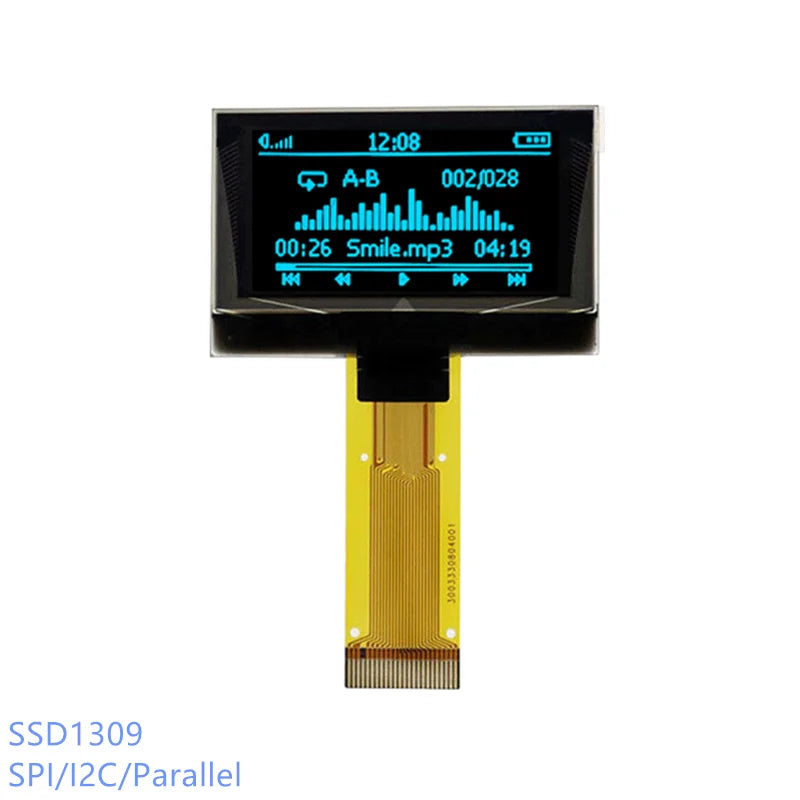

1.51 1.54 Inch 24PIN SPI/IIC/6800 COG 3.3V Blue PMOLED Screen SSD1309 Graphic 128x56 Display Transparent OLED 128x64
1.54B White Module / China Mainland
$43.83
Sale price
$43.83
Regular price
$0.00
Skip to product information
A: Some products are in stock, Small batch production for 1-2 weeks,Mass production for 3-4 weeks.
Q: How long is the product warranty and service?
A: The product is valid for 1 year and is a lifetime technical support service.
Q: Can you customize the product? How can I get the samples?
A: We can customize as needed, and the quantity has a minimum order quantity requirement.
Q: How do you manage product quality?
A: The products are baked, aging, electrical measurement and other procedures for testing.
1.51 1.54 Inch 24PIN SPI/IIC/6800 COG 3.3V Blue PMOLED Screen SSD1309 Graphic 128x56 Display Transparent OLED 128x64
$43.83
Sale price
$43.83
Regular price
$0.00
Description
SPECIFICATIONS
Application: High-end smart home
Brand Name: simair
Controller: SSD1309
Display Color: Blue
Display Mode: 10000:1
Dot Pitch: 0.274*0.274mm
Dot Size: 0.254*0.254mm
Drive method: 1/56
High-concerned chemical: none
Interface: 8-bit 6800/8080 Parallel,SPI,I2C
Model Number: SLR1.51-A
Origin: Mainland China
Outline Size: 42.04x63.22x1.25mm
Panel Size: 42.04x27.22x1.25mm
Pins: 24PIN (0.5mm ZIF)
Power Supply: 3.3V
Resolution: 128*64,128x56 Dot Matrix
Size: 1.51 inch
Structure: COG
Type: Graphic,PMOLED
View Angel: Full View
is_customized: Yes
1.Specification parameters
OLED
OLED (Organic Light-Emitting Diode), also known as organic electric laser display, organic light emitting semiconductor (Organic Electroluminesence Display, OLED).
Reminder:

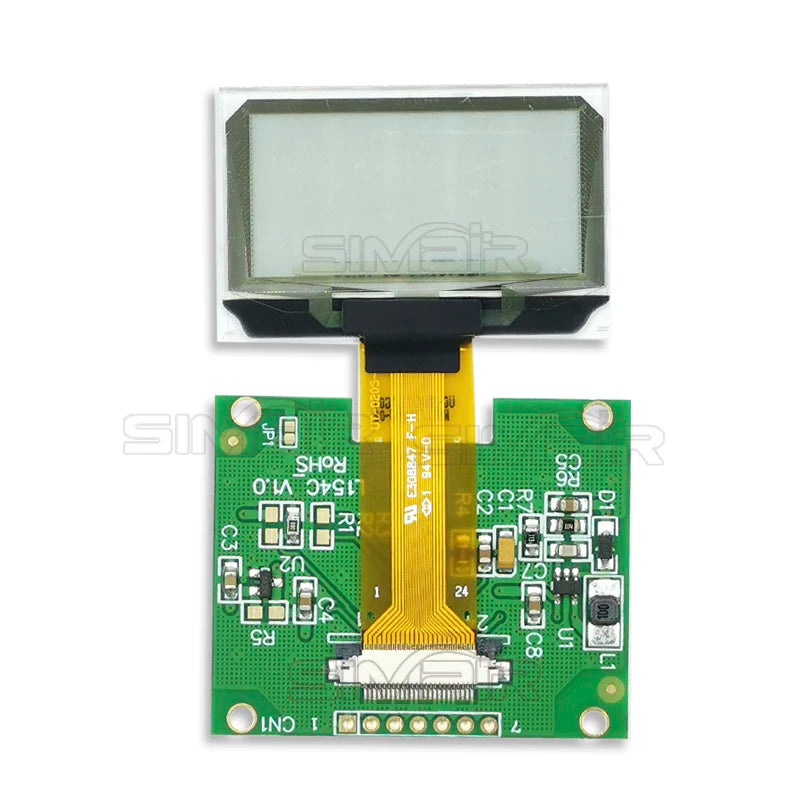

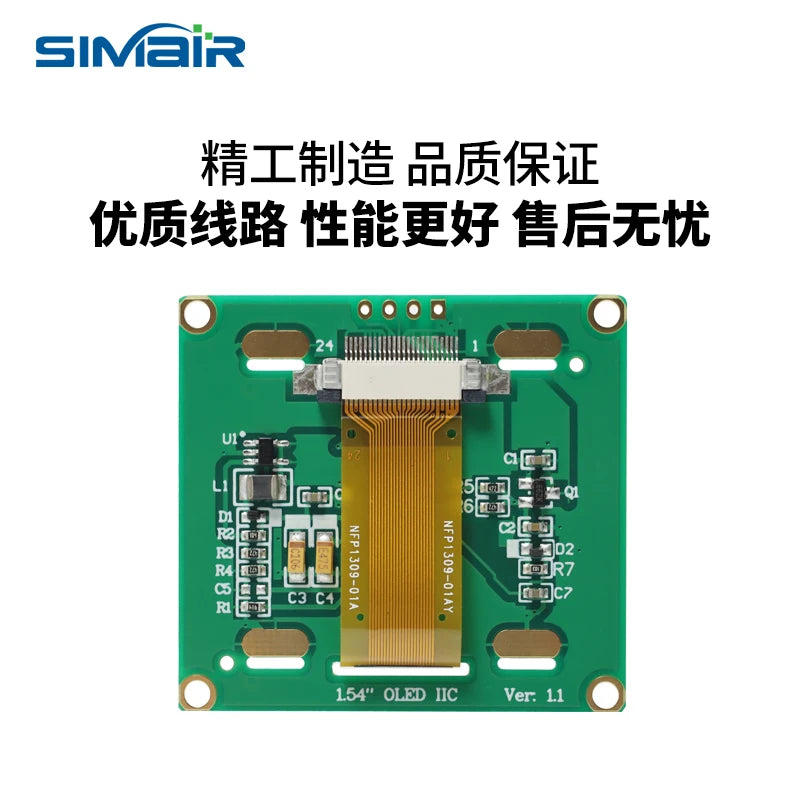

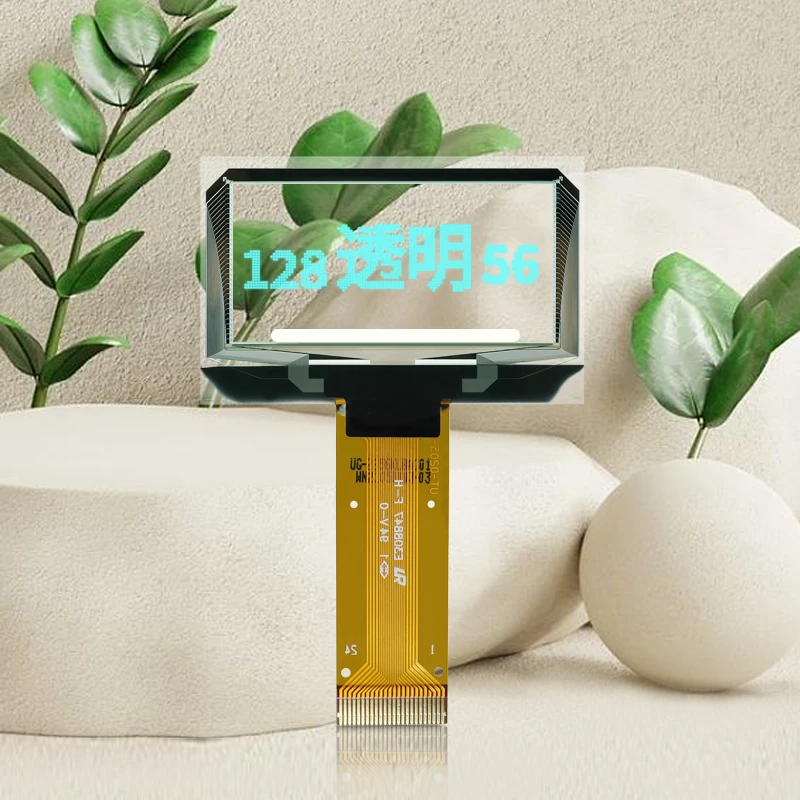

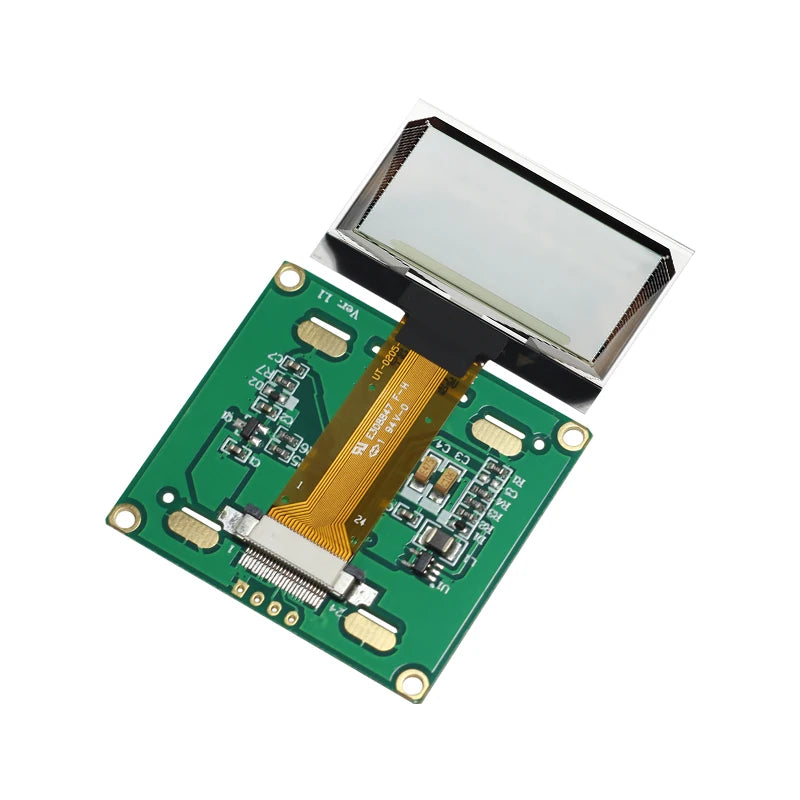

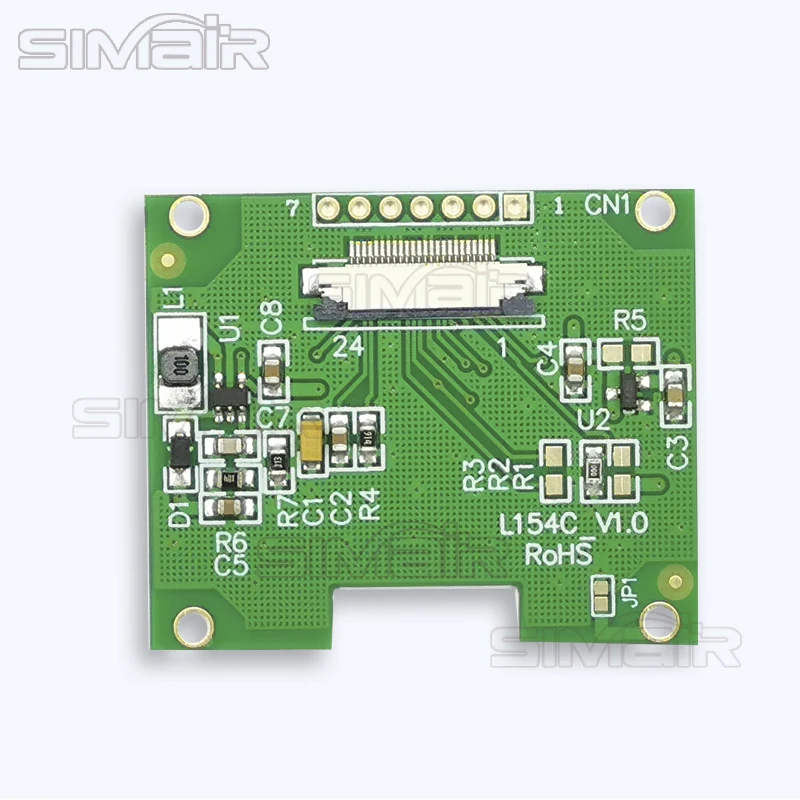

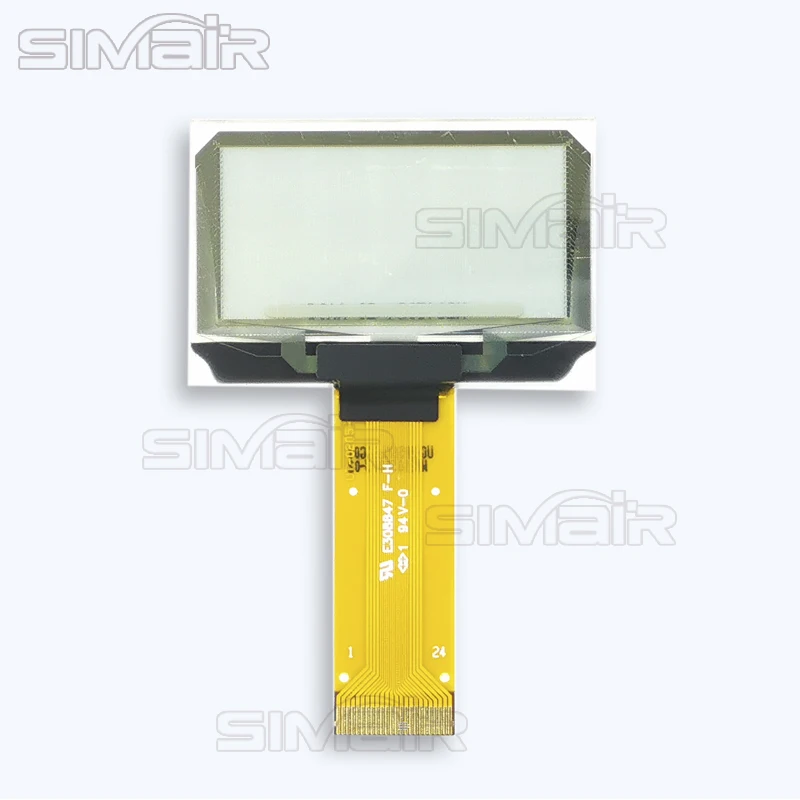

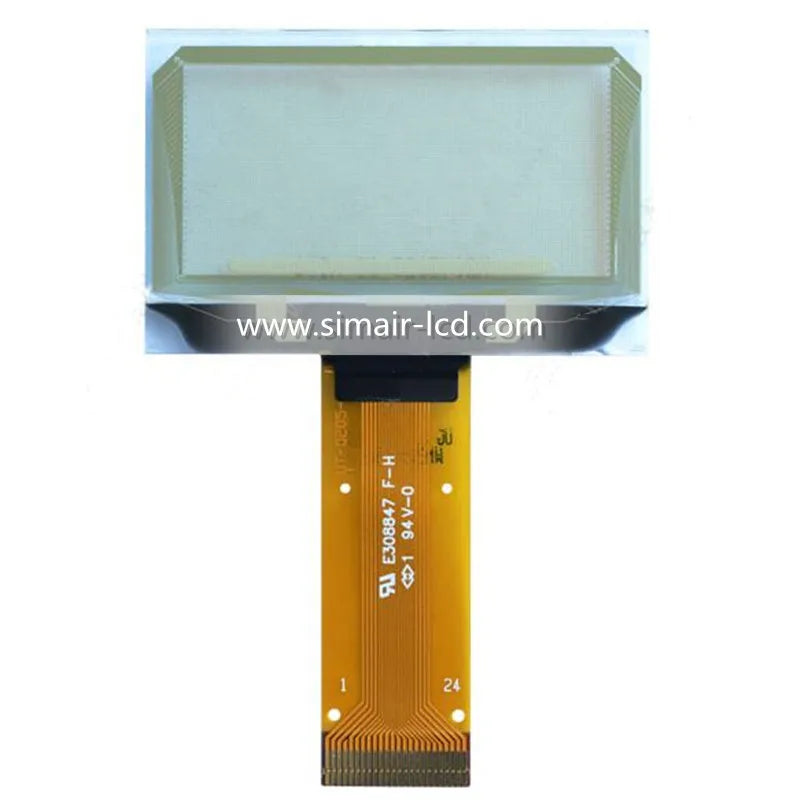

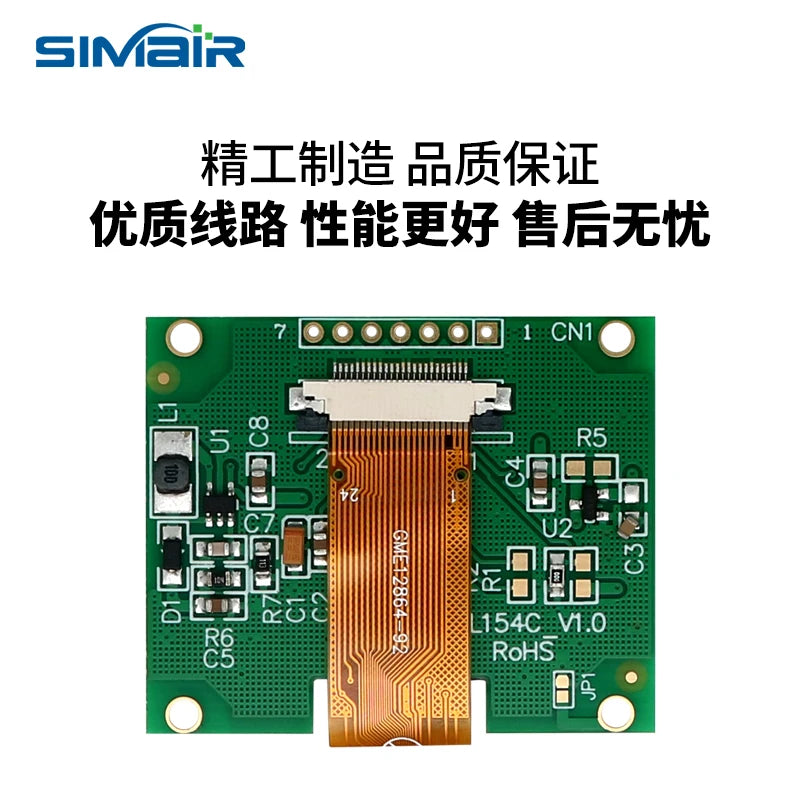

SMR1.51A-OLED is a transparent OLED, widely used in high-end smart home products.It Can be directly replaced with non-transparent 1.54-inch OLED.Dear customers,if you want to light it up quickly,you can use it with the adapter board of 1.54 OLED.
Model |
SLR1.51-A |
||||
Model size(WxHxT) |
42.04x63.22x1.25mm |
||||
View Area(WxH) |
35.05X15.32mm |
||||
Backlight |
No backlight required, self-luminous |
||||
Display Colour |
Blue |
||||
Operating voltage |
3.3V |
||||
Driver IC |
SSD1306 |
||||
Net weight（g） |
20 |
||||
Driving Method |
1/56 DUTY |
||||
Number of chracter |
128x56 Dot Matrix |
||||
Operating Temperature |
-20℃ ~ +70℃ |
||||
Storage Temperature |
-30℃ ~ +80℃ |
||||
Product features |
Light and thin, Low power consumption, Ultra-wide temperature, High brightness, Fast response, Wide viewing angle |
||||
2.Extenal Dimensions

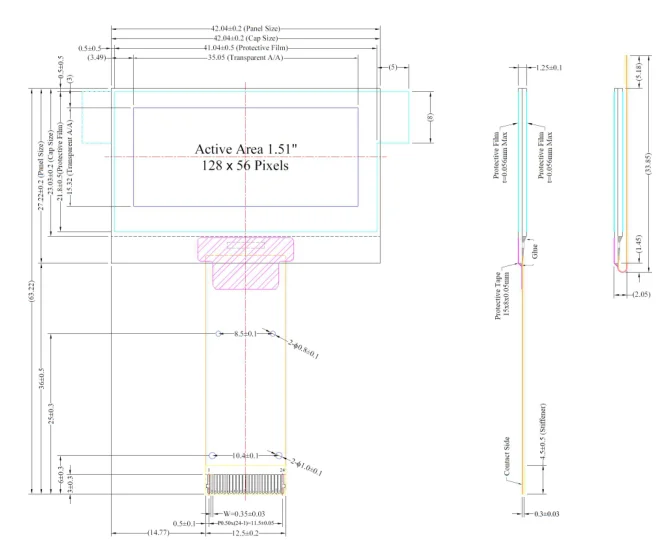

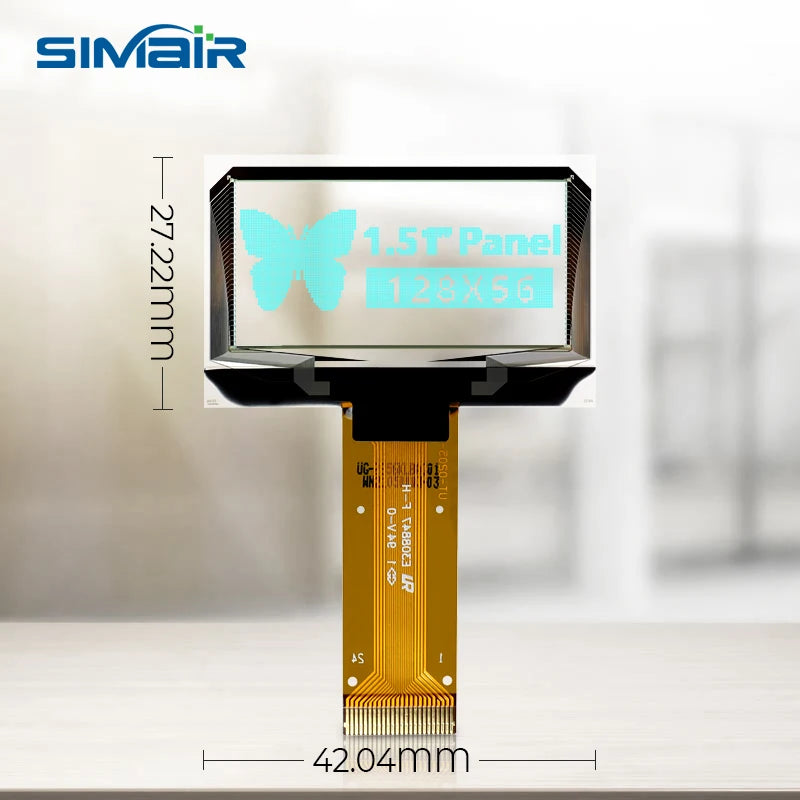

1.51 OLED Panel size:

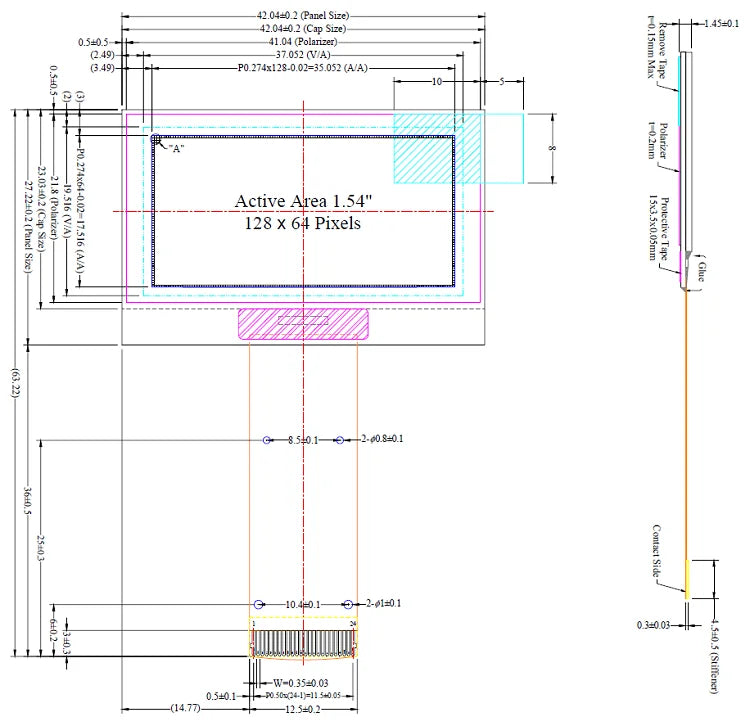

1.54 OLED Panle Size

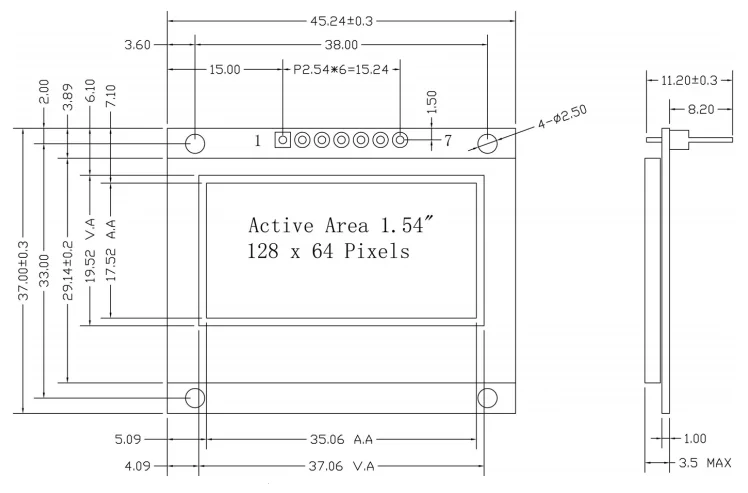

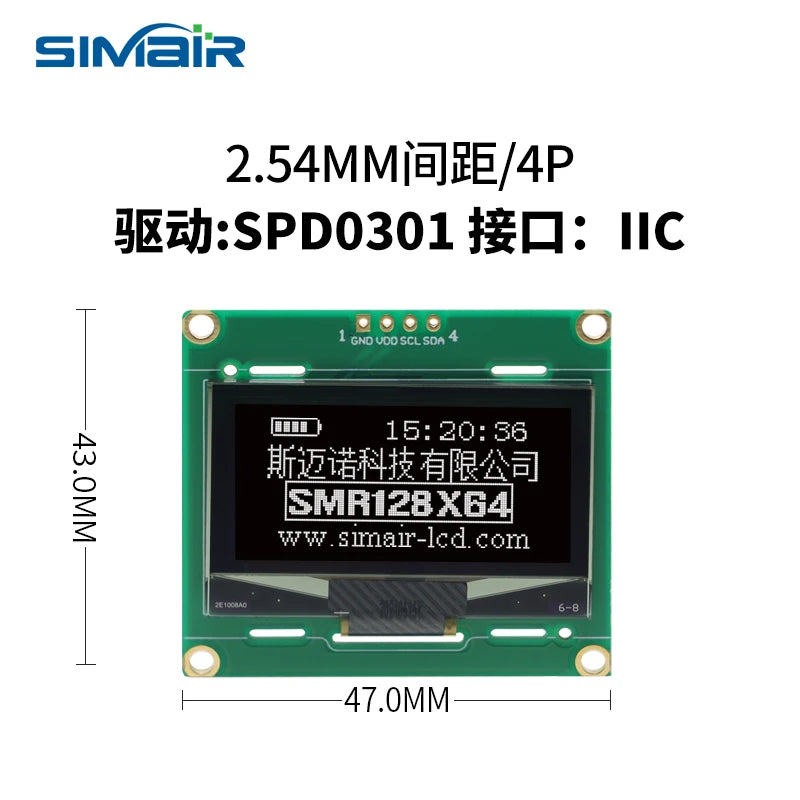

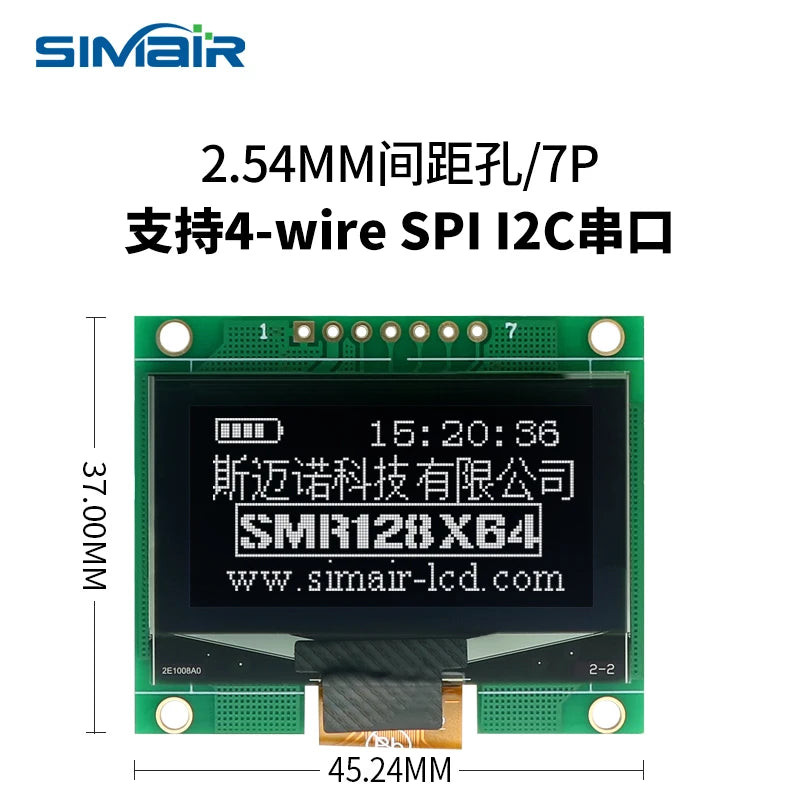

Model Size:
3.Pin Descriptions

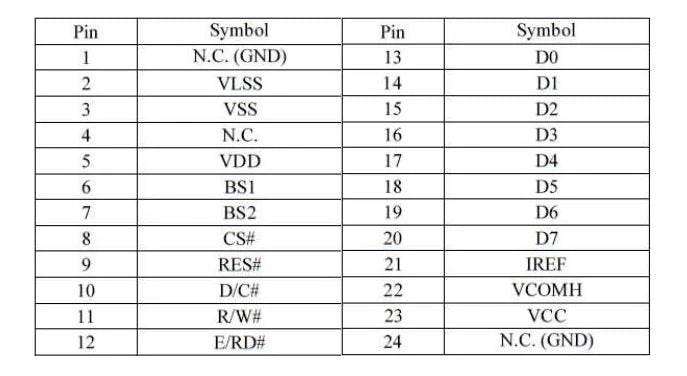

1.51 OLED Panel Pins:

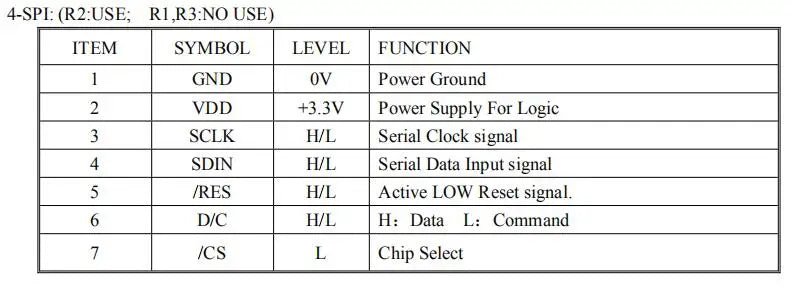

1.51 OLED Module 4-SPI Pins:

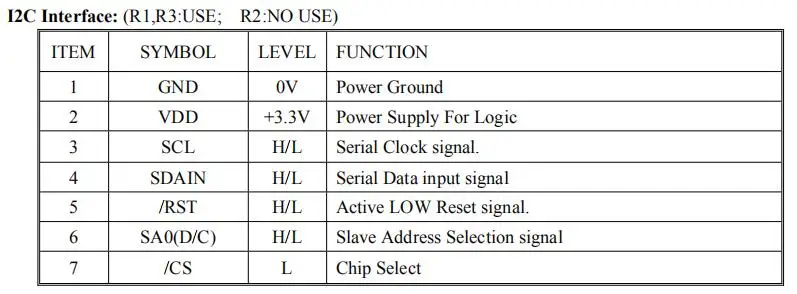

1.51OLED Module I2C Pins:

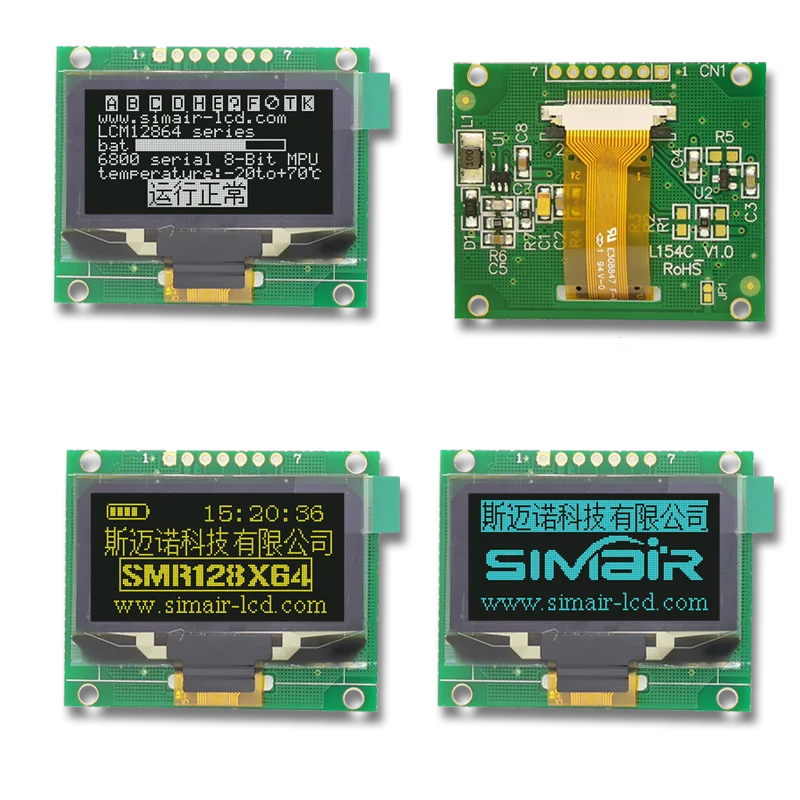

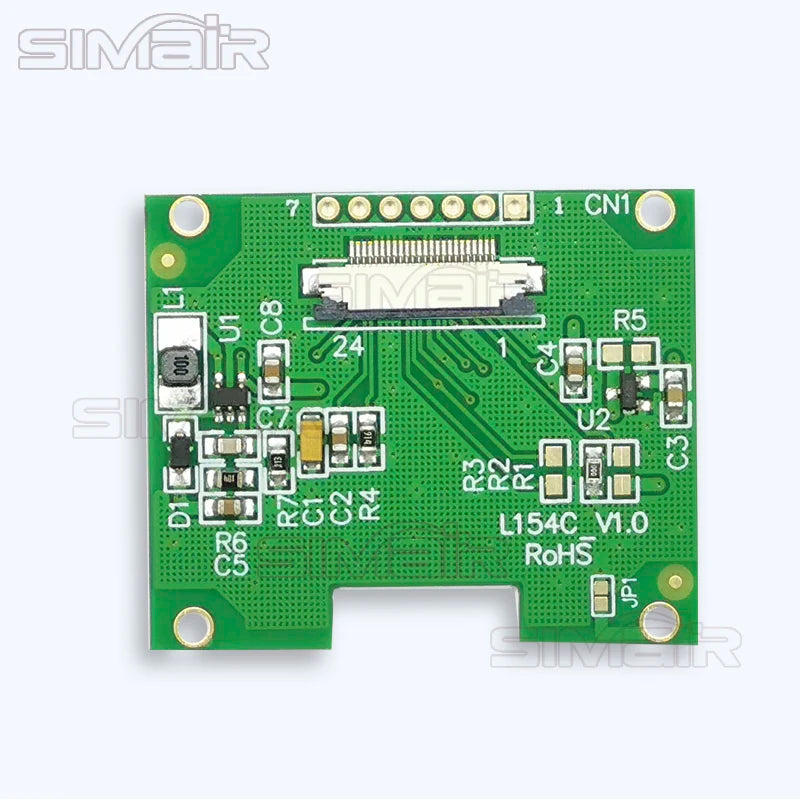

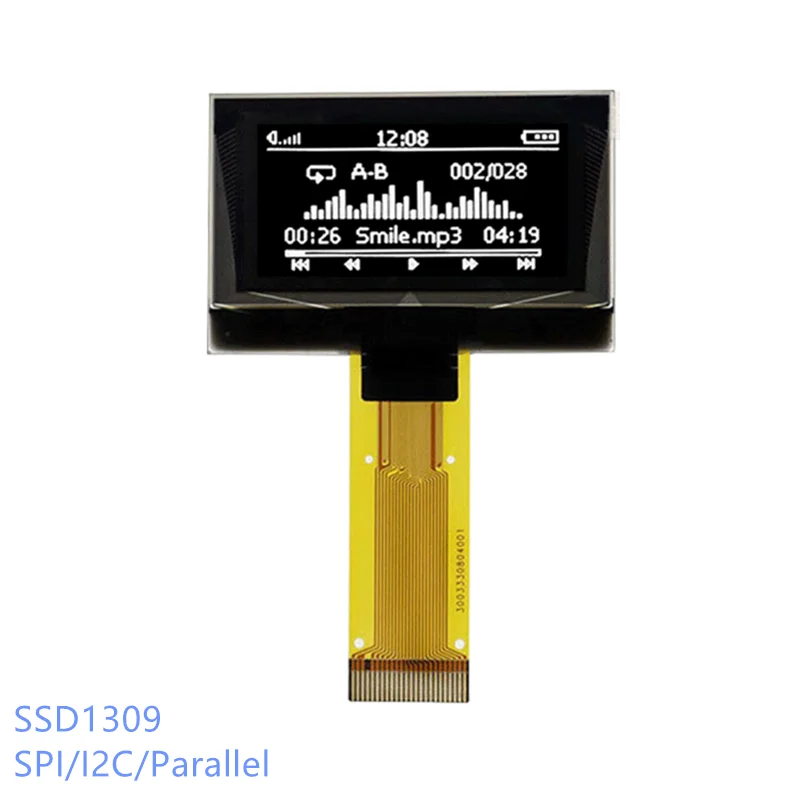

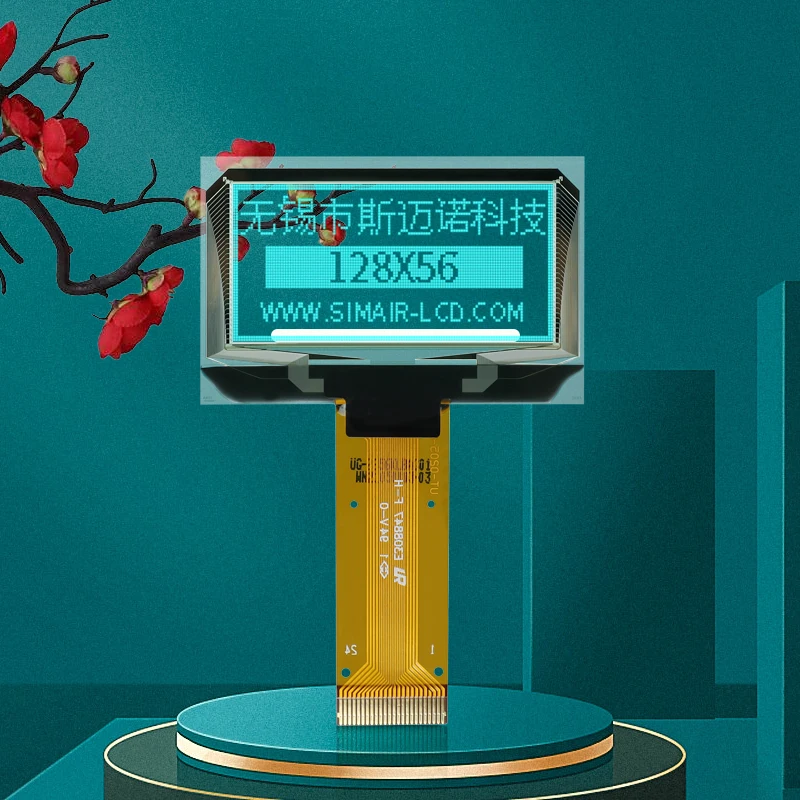

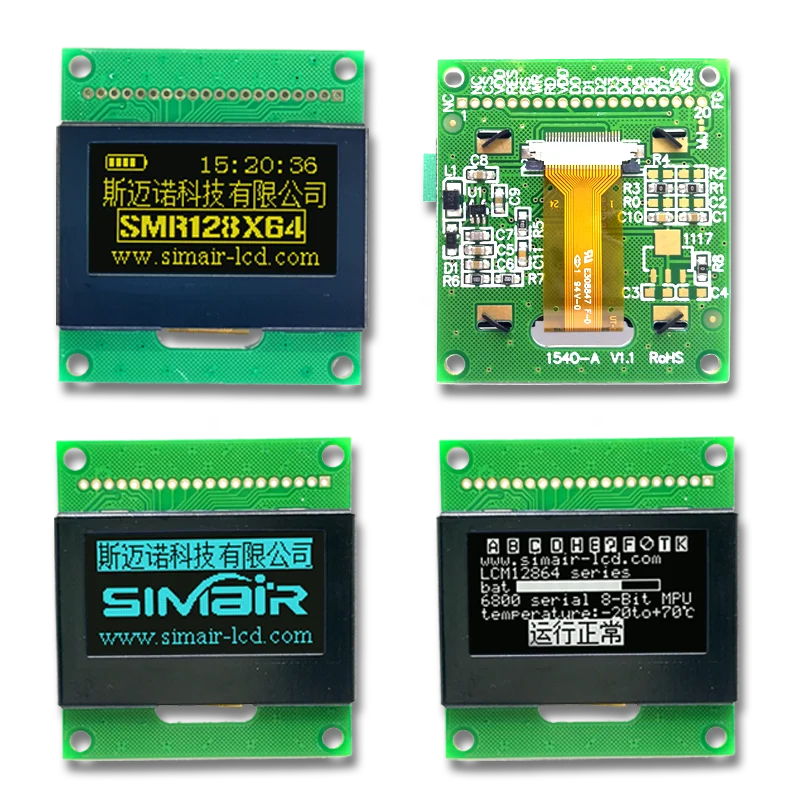

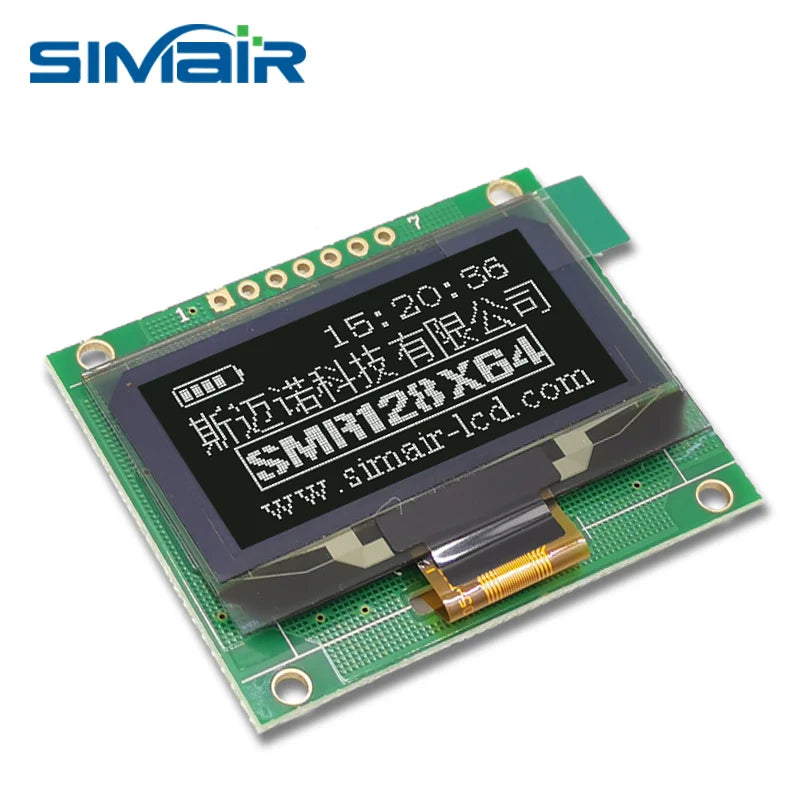

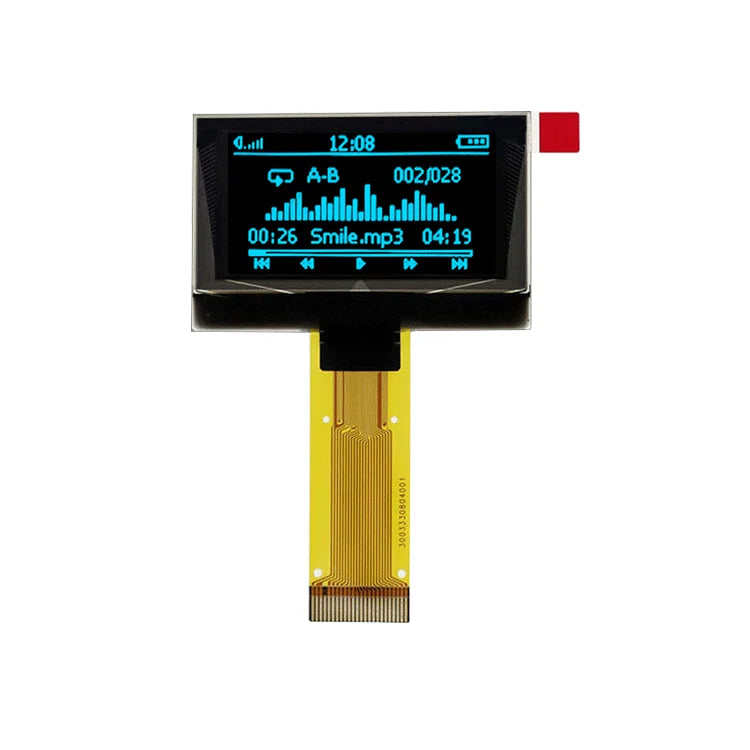

4.Photo Display
