SPECIFICATIONS

Application: Computer

Brand Name: AOKIN

Choice: yes

Condition: New

Dissipation Power: 5A

High-concerned chemical: none

Operating Temperature: -40-80

Origin: Mainland China

Package: SOP

Supply Voltage: 9V 12V 15V 20V

Type: Voltage Regulator

is_customized: Yes

Features:

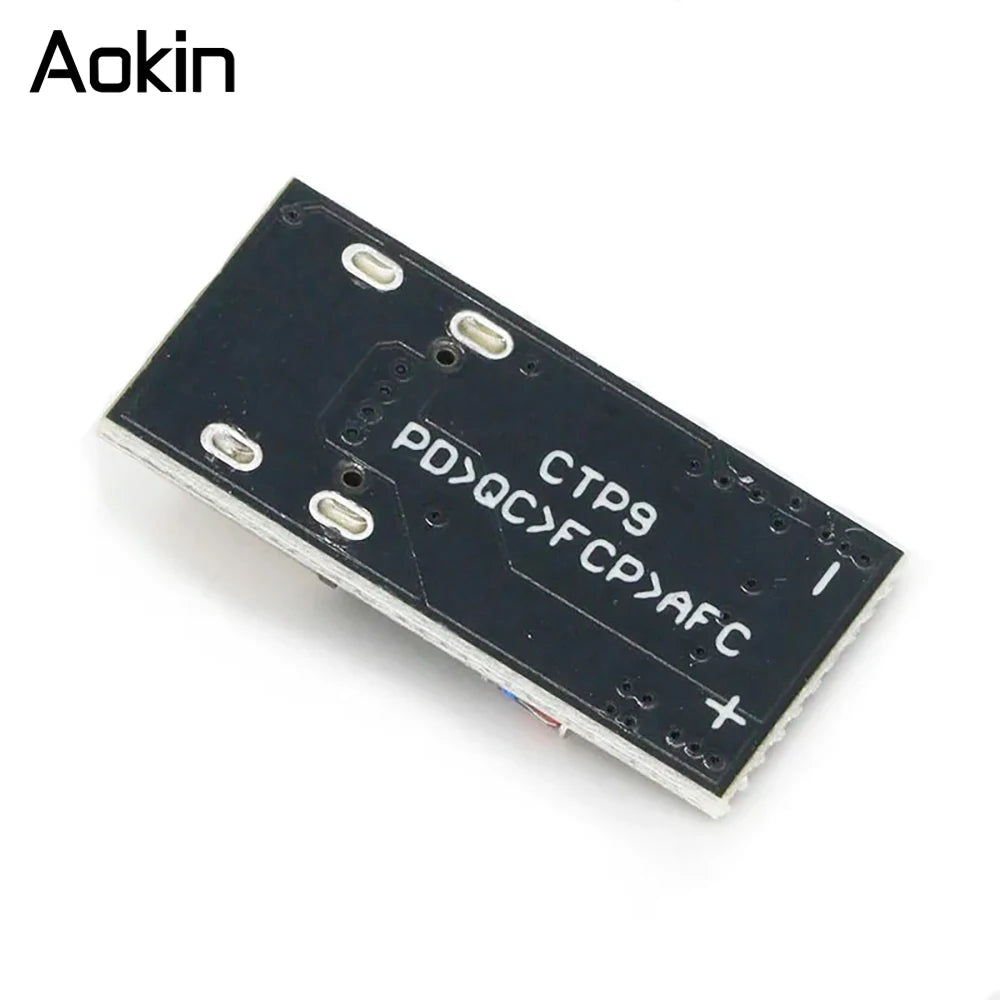

1.This module supports the two most commonly used fast charging protocols: PD3.0/2.0, PPS/QC4+, QC3.0/2.0, FCP, AFC;

2.This module can be used as a DC power source, such as deceiving the voltage of the fast charging power bank/charger;

3.It can enable the fast charging power bank to output 9V/12V to power monitoring, routers, optical cats, fans, etc;

4.Easy to use, allowing monitoring, routers, optical cats, fans, and other products to function normally even when power is cut off;

5.Convert some traditional DC powered devices into TYPE-C ports for power supply.

Parameters:

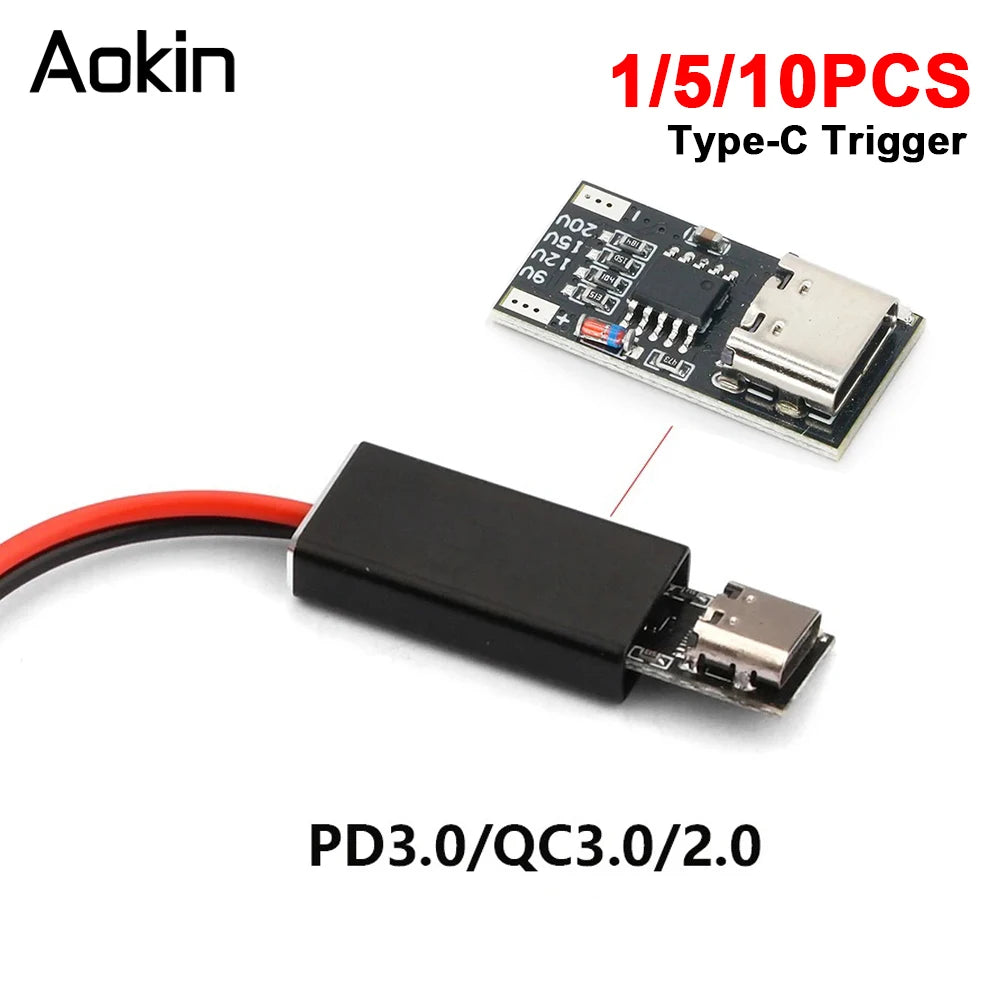

Support protocol: PD3.0/QC3.0/2.0

Voltage range: fixed 9V/12V/15V/20V four ranges

Current: 5A (maximum)

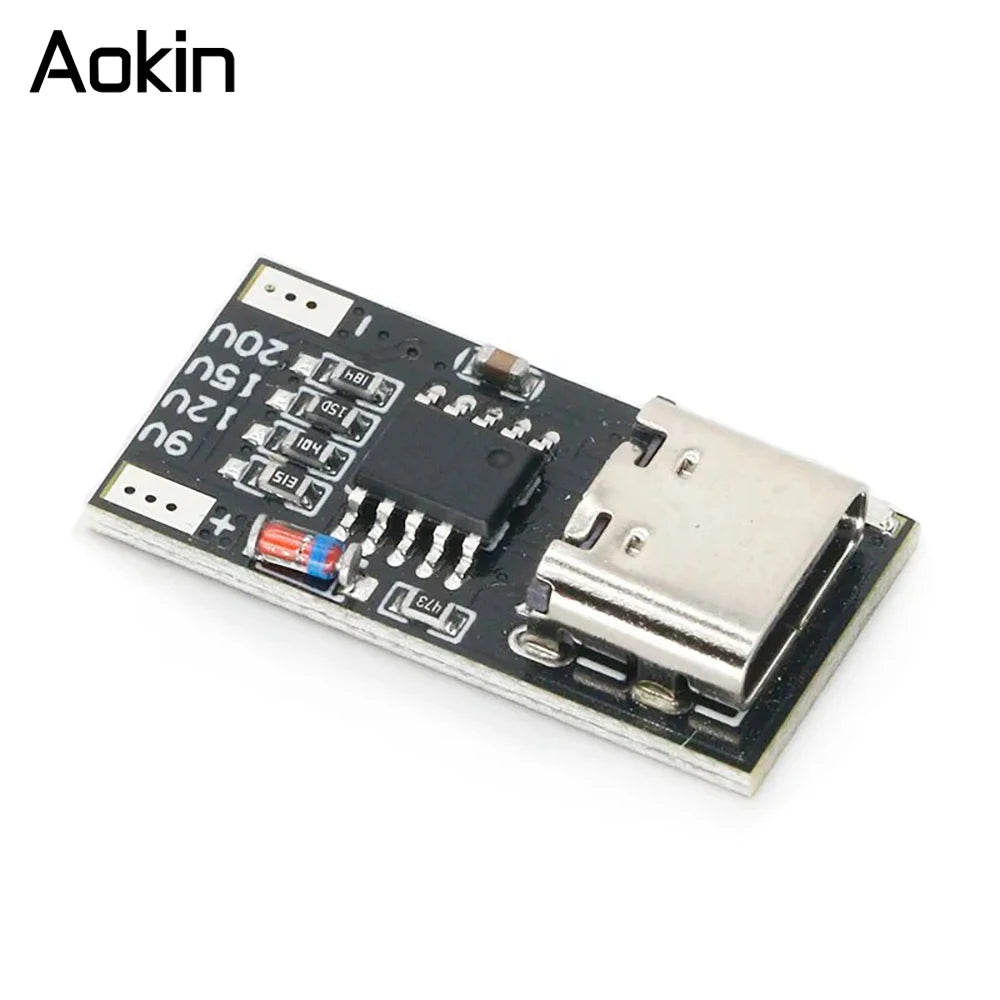

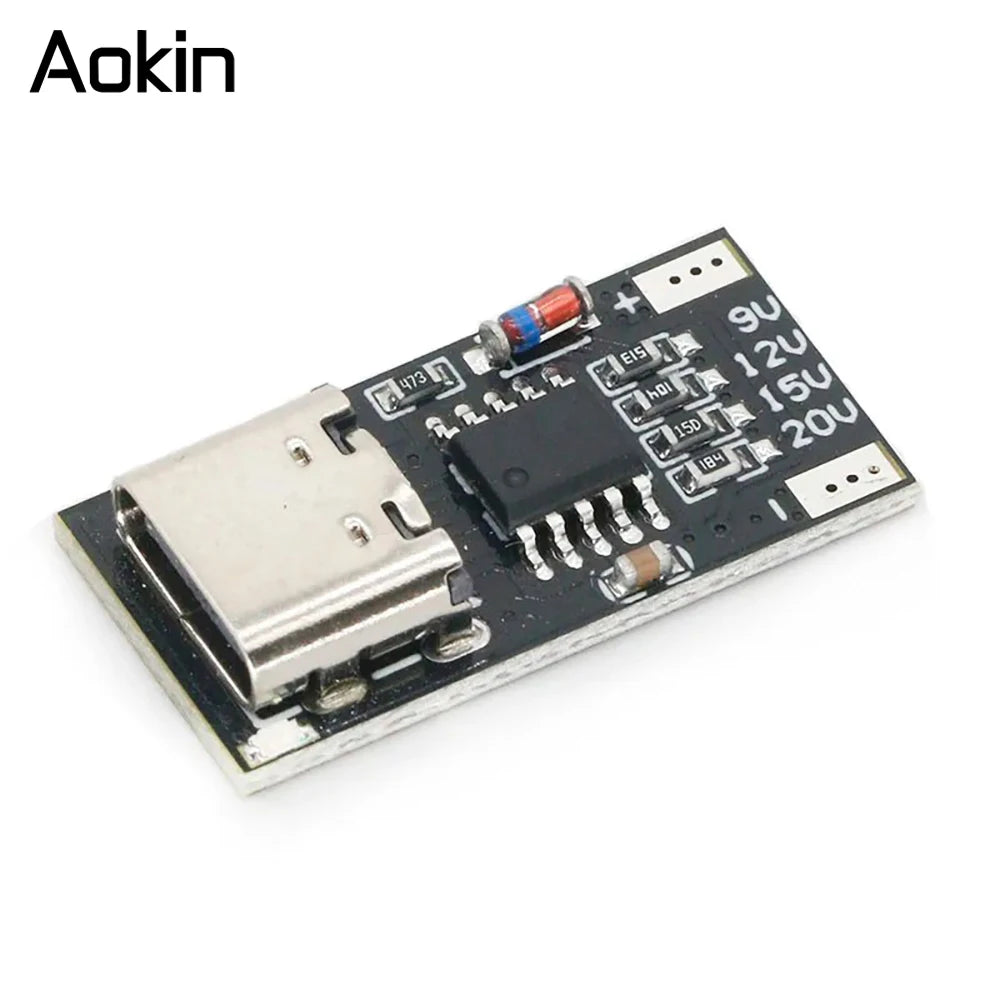

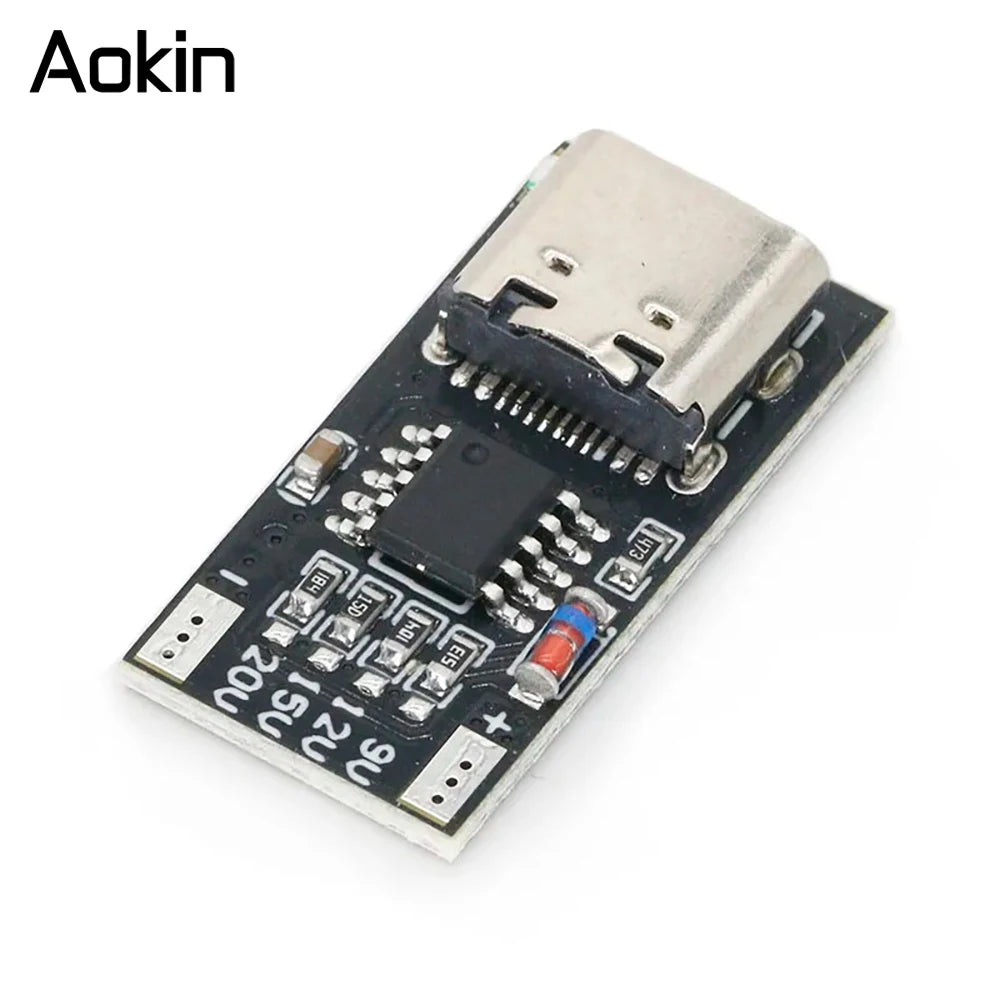

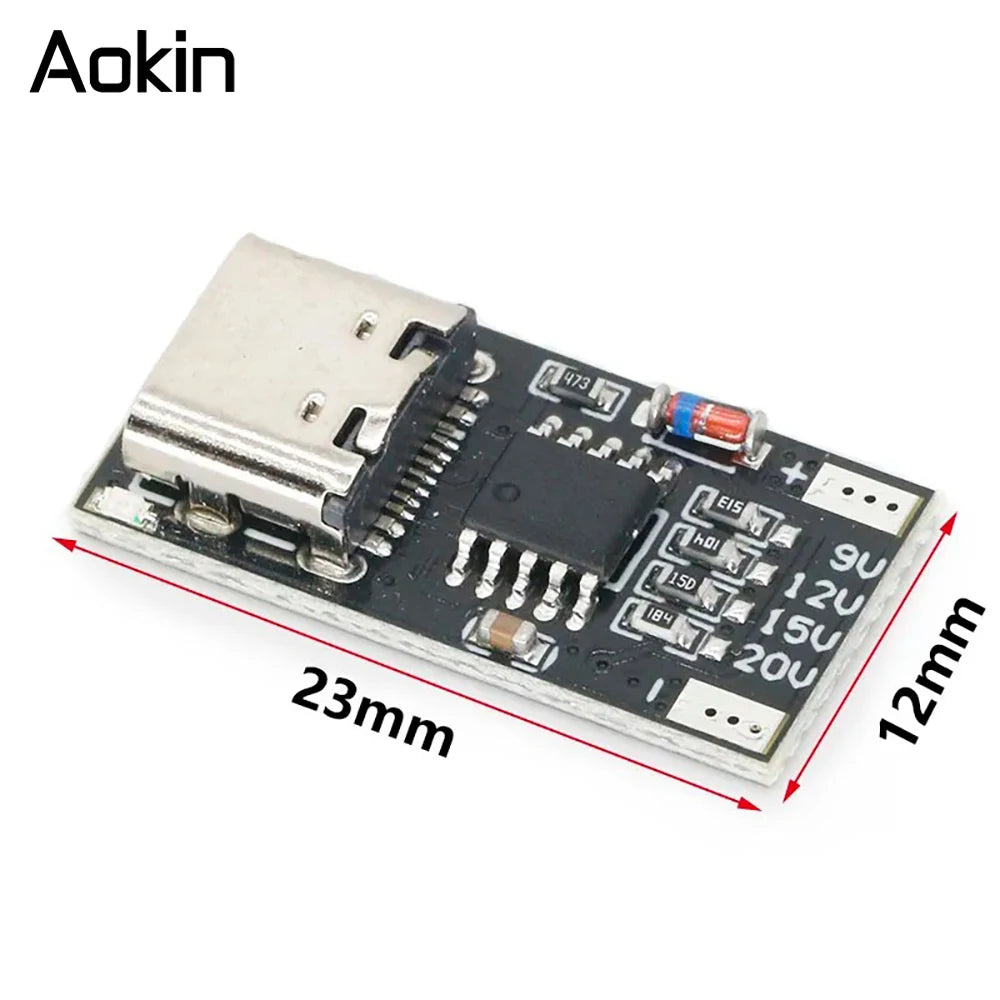

Deception board size: 21 * 11.5 * 4mm

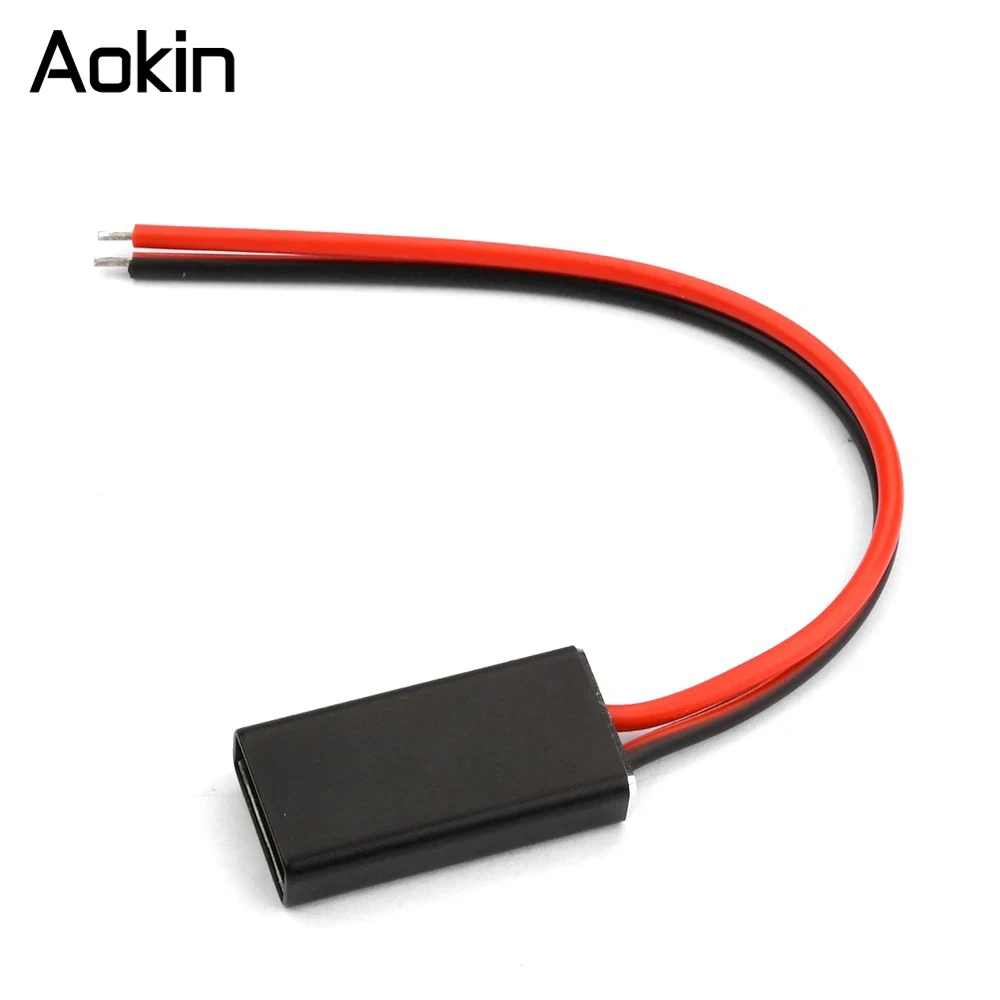

Shellsize: 27.0*14.0*6.5mm

Instructions for use:

1.The charger/power bank must first support universal fast charging such as PD3.0/QC3.0 in order to trick out voltage. Some domestic brands of high-power mobile phone chargers are private fast charging and cannot be deceived.

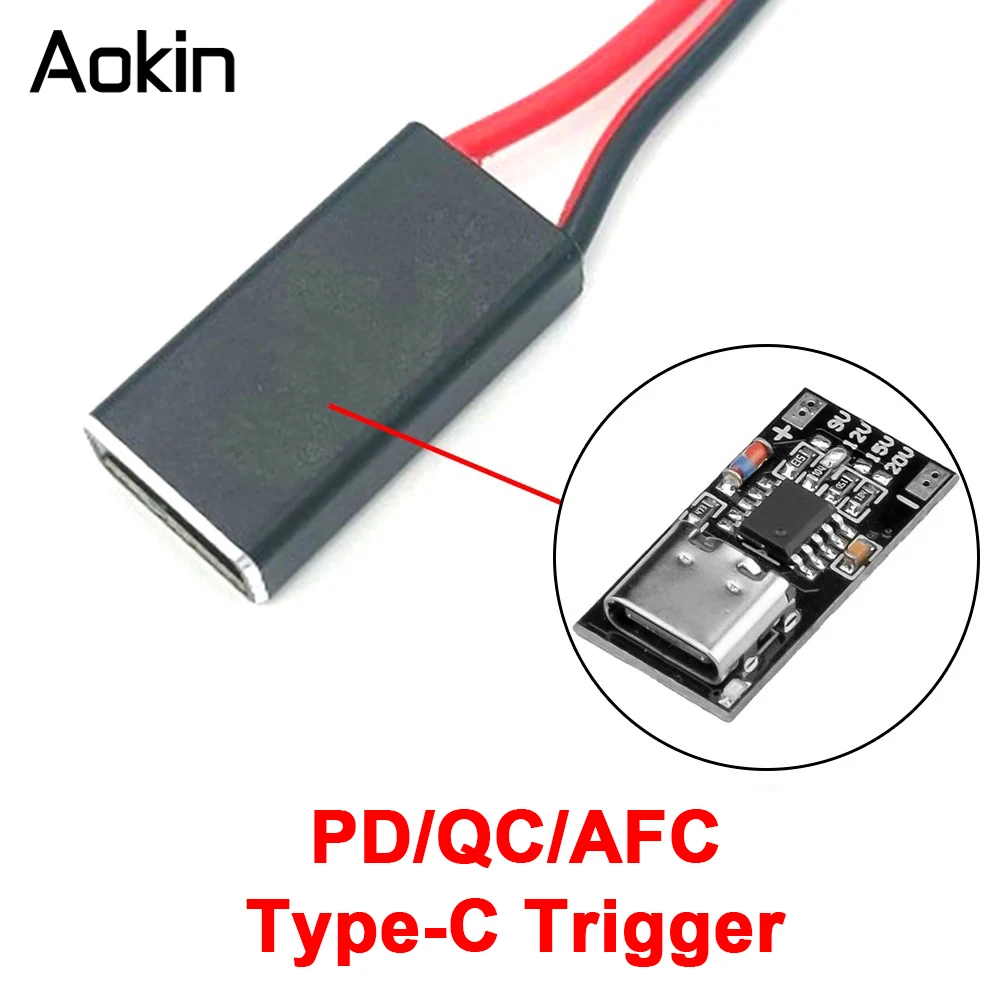

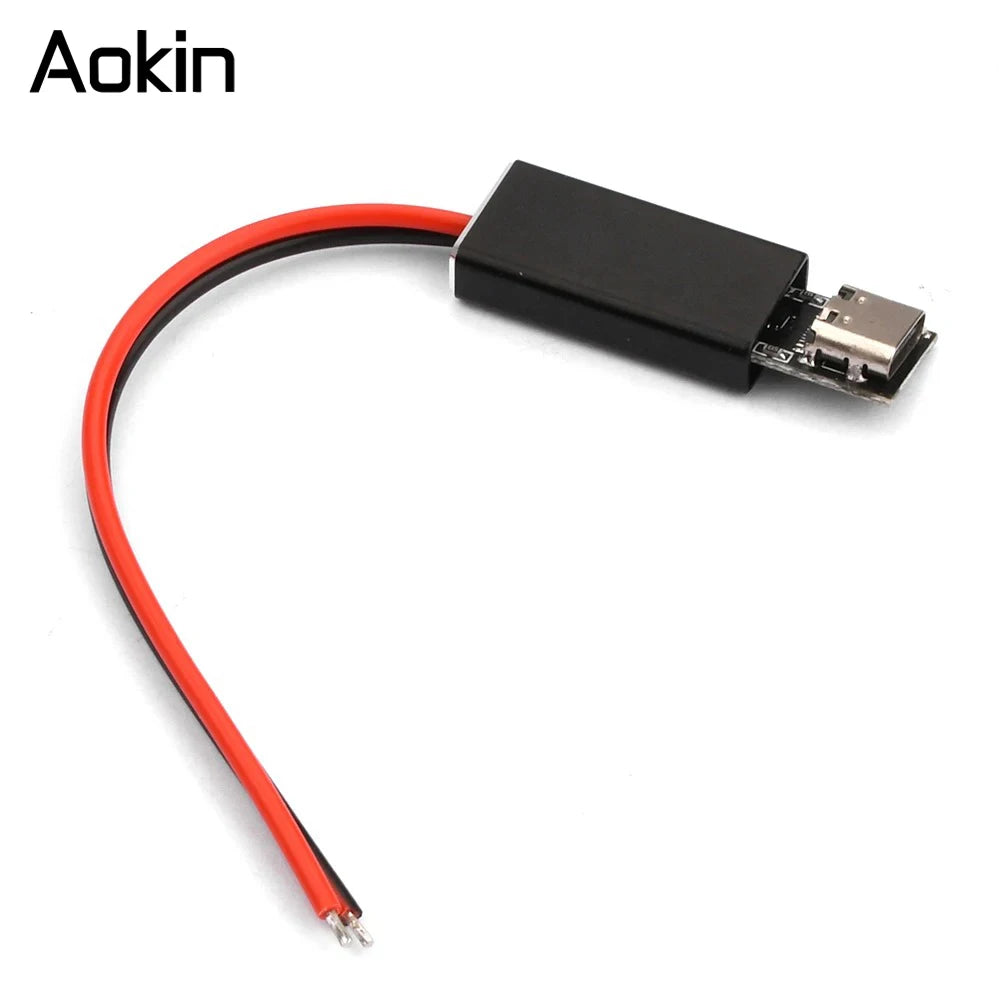

2.The 'Deception Board+Shell' option has no glue inside the shell.

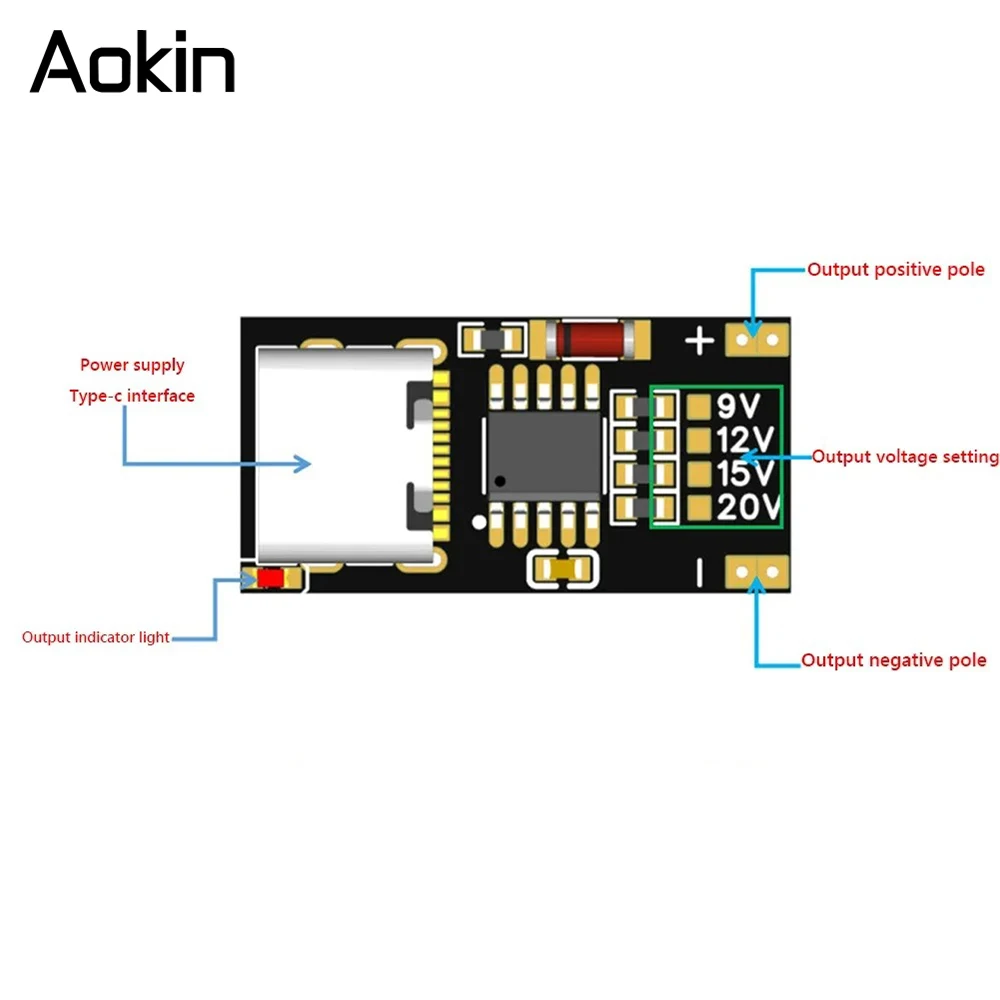

3.Fixed 9/12/15/20V four gears, what voltage is needed, just short circuit the corresponding solder pads.

4.For example, if you set up a trap of 20V, but your charger only has a maximum of 9V, it will automatically downshift to trap the output of 9V.

5.The maximum support is 5A, and the actual output current/power is determined by your fast charging charger and load.

Package include:

1/5/10PCS module+casing
