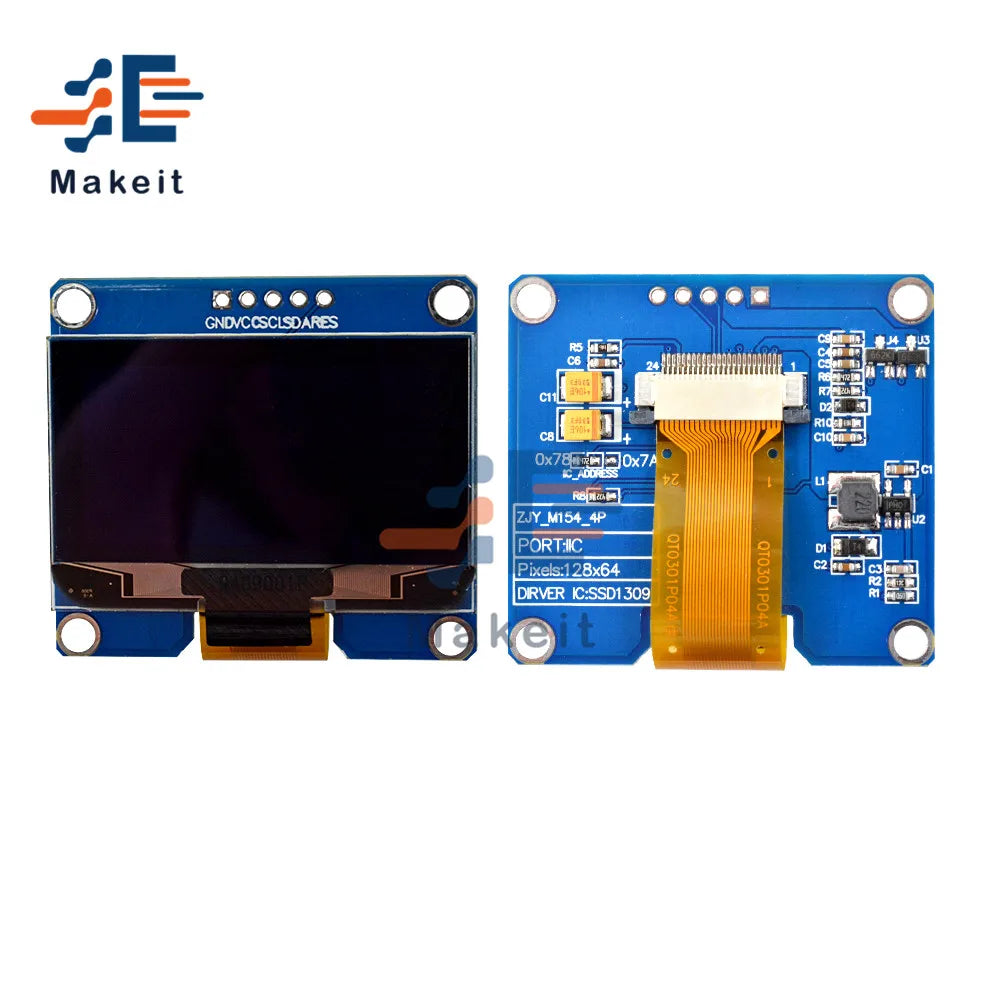

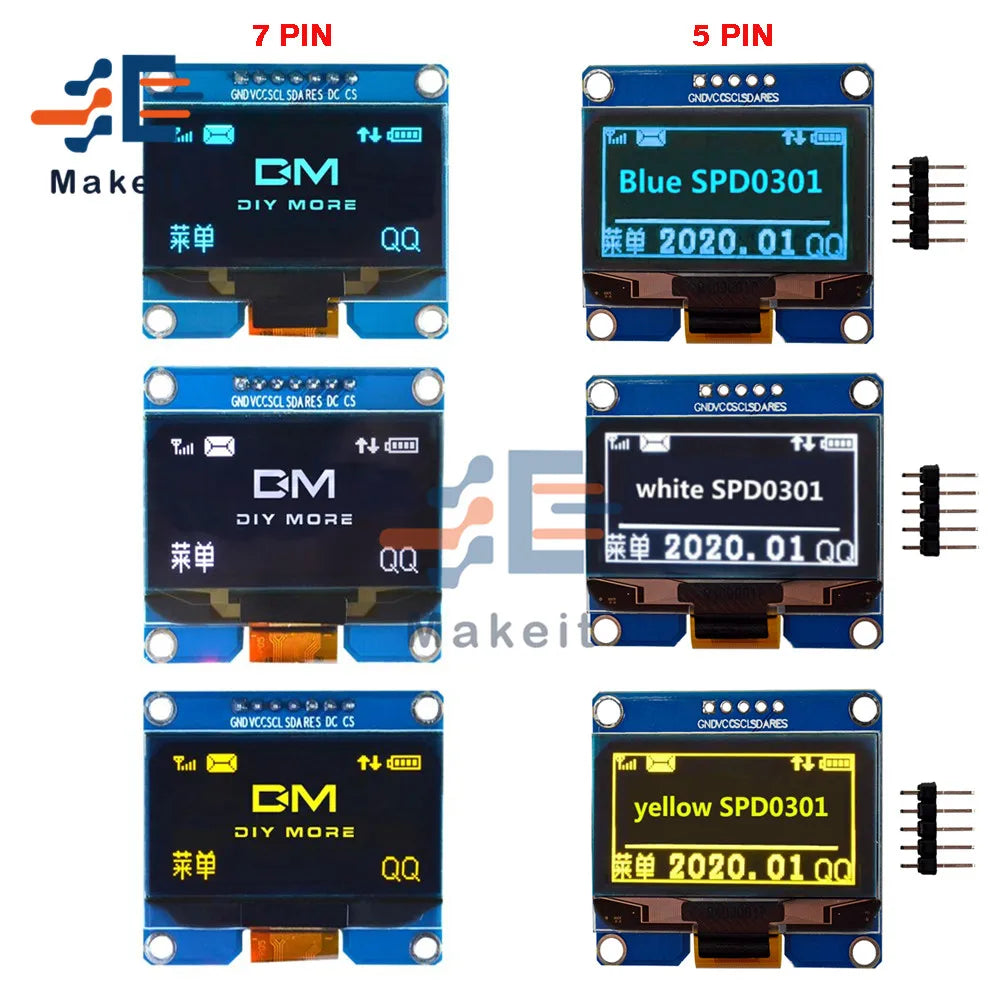

1.54 Inch OLED Module 5 Pin 7 Pin White Blue Yellow SPI IIC I2C Interface SSD1309 SPD0301 Driver 128x64 Display Screen Board

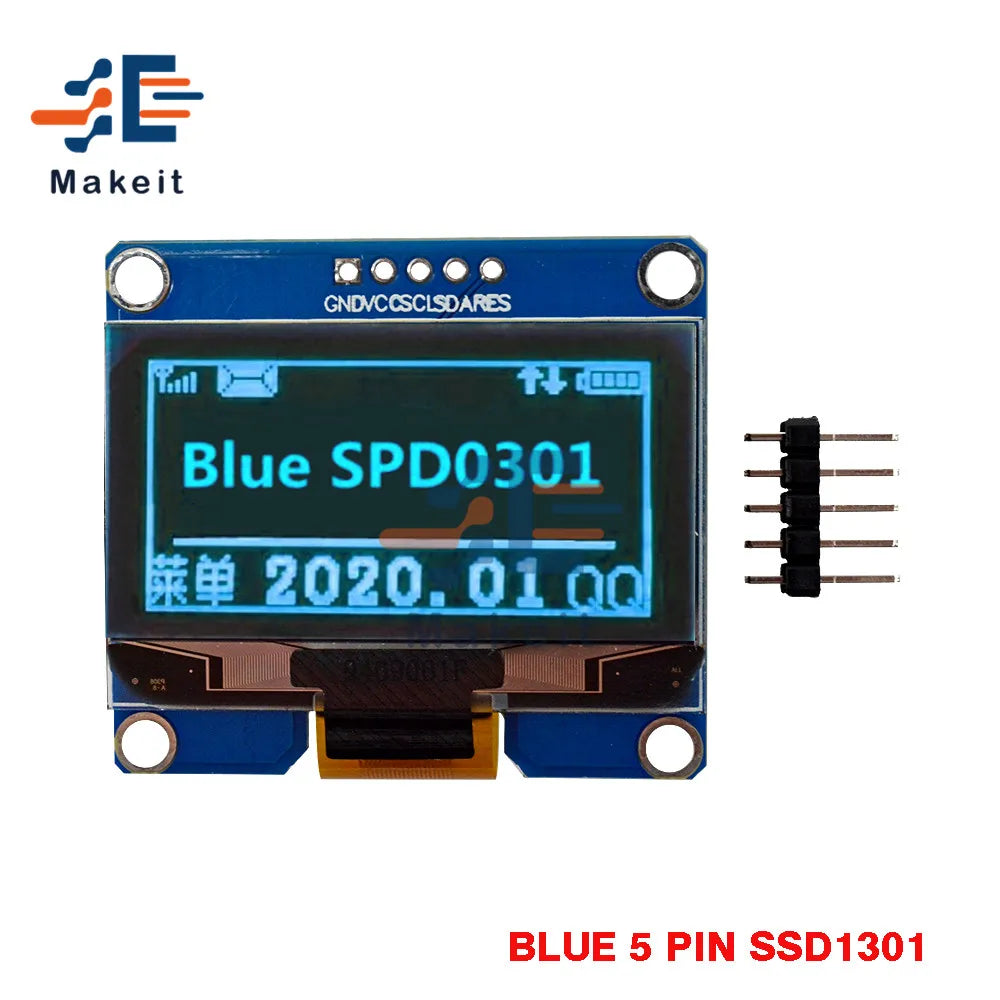

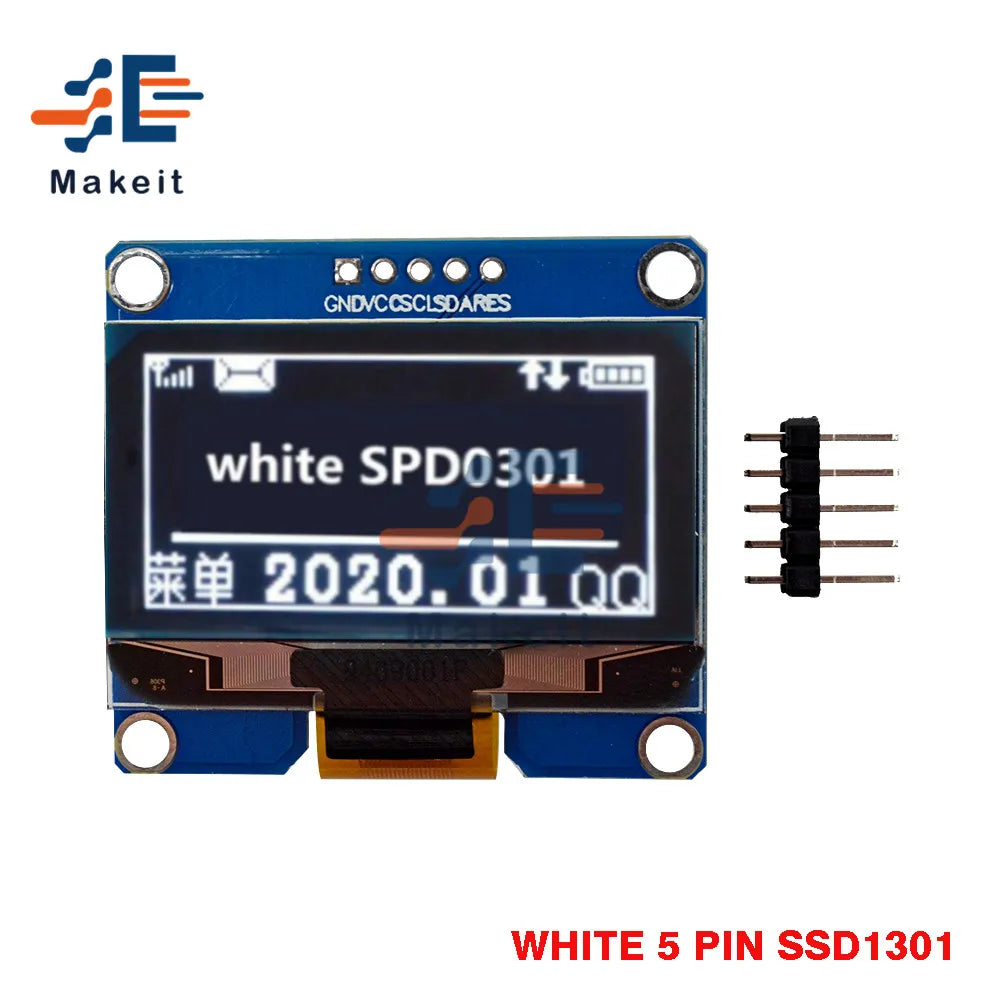

1.54 inch SSD1301 5PIN

Description:

Size: 1.54 inch
Material: PM OLED
Active Area: 35.052*17.516mm
Module Size: 42.4*38mm
Pixel Pitch: 0.274*0.274mm
Pixel Size: 0.254*0.254mm
Resolution: 128*64
Drive IC: SSD1301
Color: White , Blue , Yellow
Interface: SPI Interface, I2C Interface
Voltage: 3.3V
Working Temp.: -40 ~ 70 degree
PIN Number: 5PIN
Viewing Direction: ALL

Pin Definition:

1 GND
2 VCC
3 SCL
4 SDA
5 RES

Package include(you can choose the color):

1 x 1.54 inch 5Pin White Blue Yellow OLED Screen Display Module

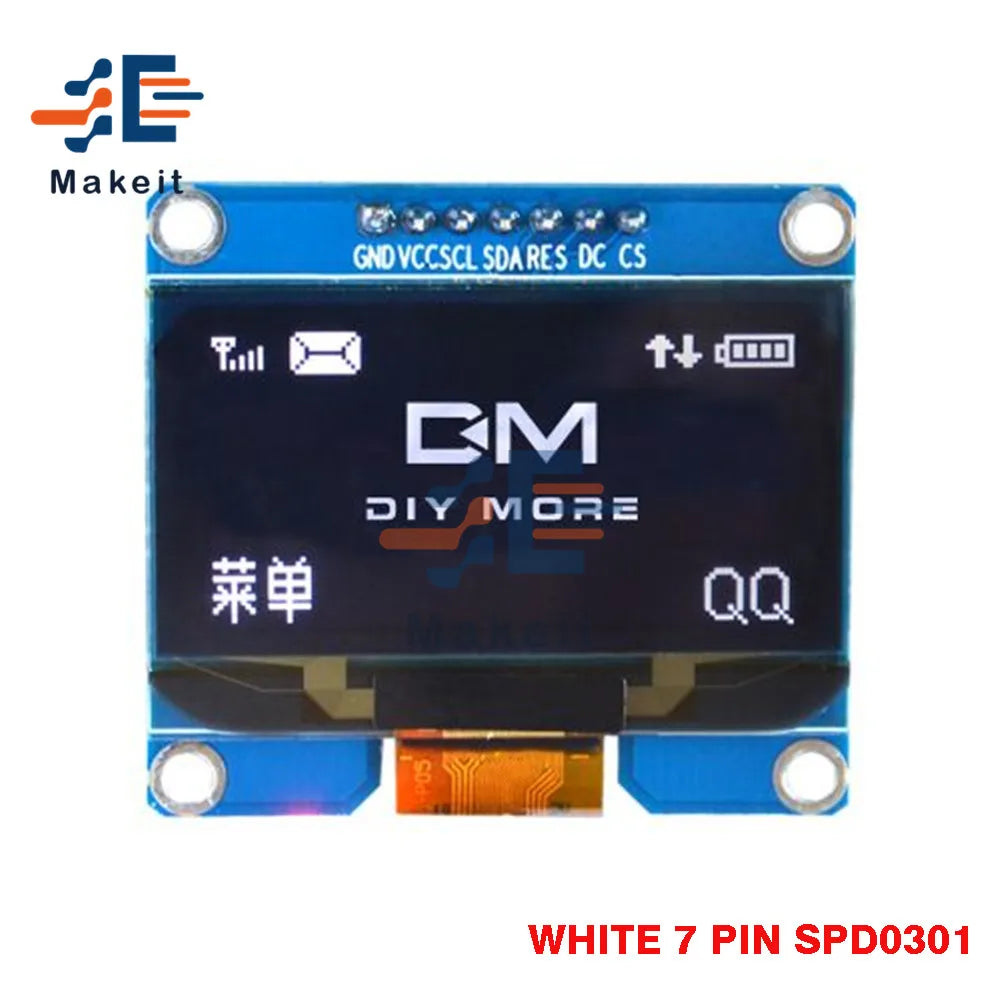

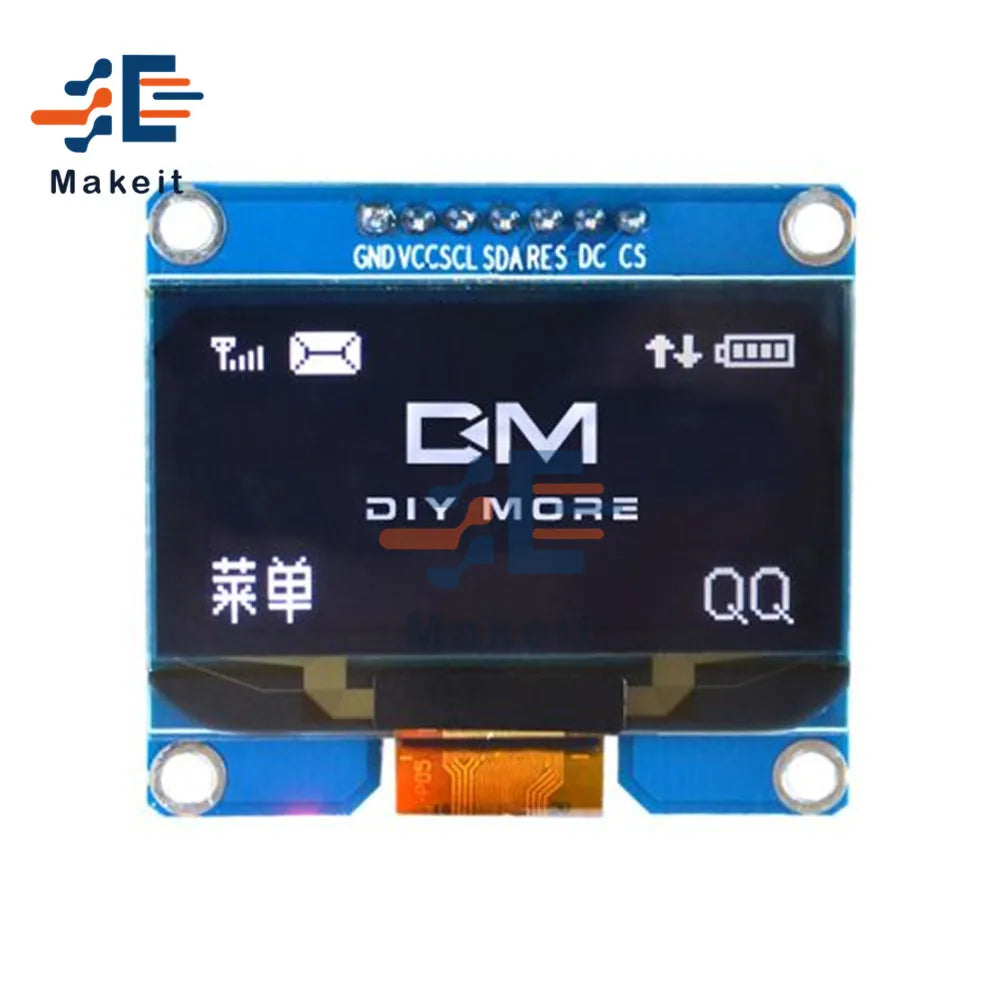

1.54 inch SPD0301 7PIN

Product Introduction:

1.Size:1.54 inch
2.Resolution:128*64
3.Light Color:Yellow/Blue/White
4.Driving IC:SPD0301; compatible with SSD1309
5.Voltage:3.3V-5V

SPI Interface Definition:

1.GND:power ground
2.VCC:power positive
3.SCL:clock wire
4.SDA:data wire
5.RES:reset wire
6.DC:data/command
7.CS:chip selection (if not used,it can be directly connect with ground)

Package included:

1*1.54inch OLED Display Module SPI Interface 3.3-5V SPD0301 (Yellow/Blue/White)

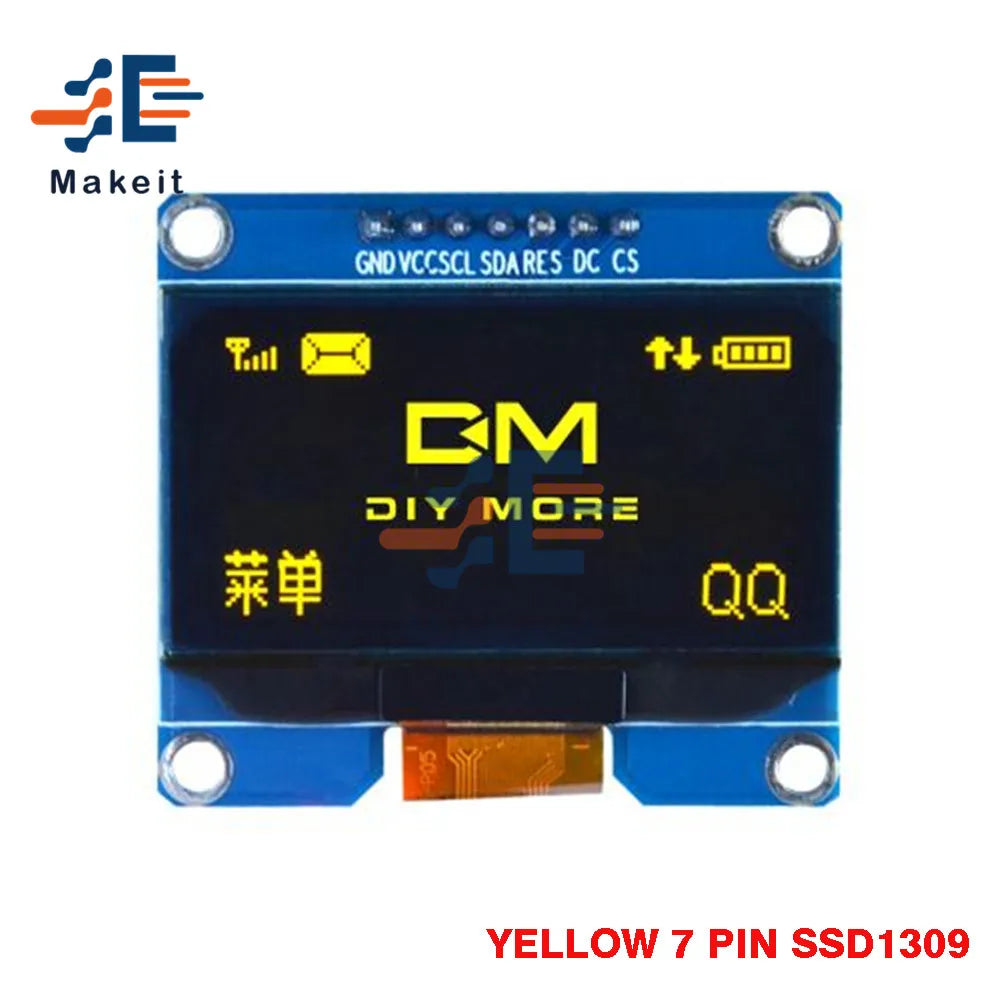

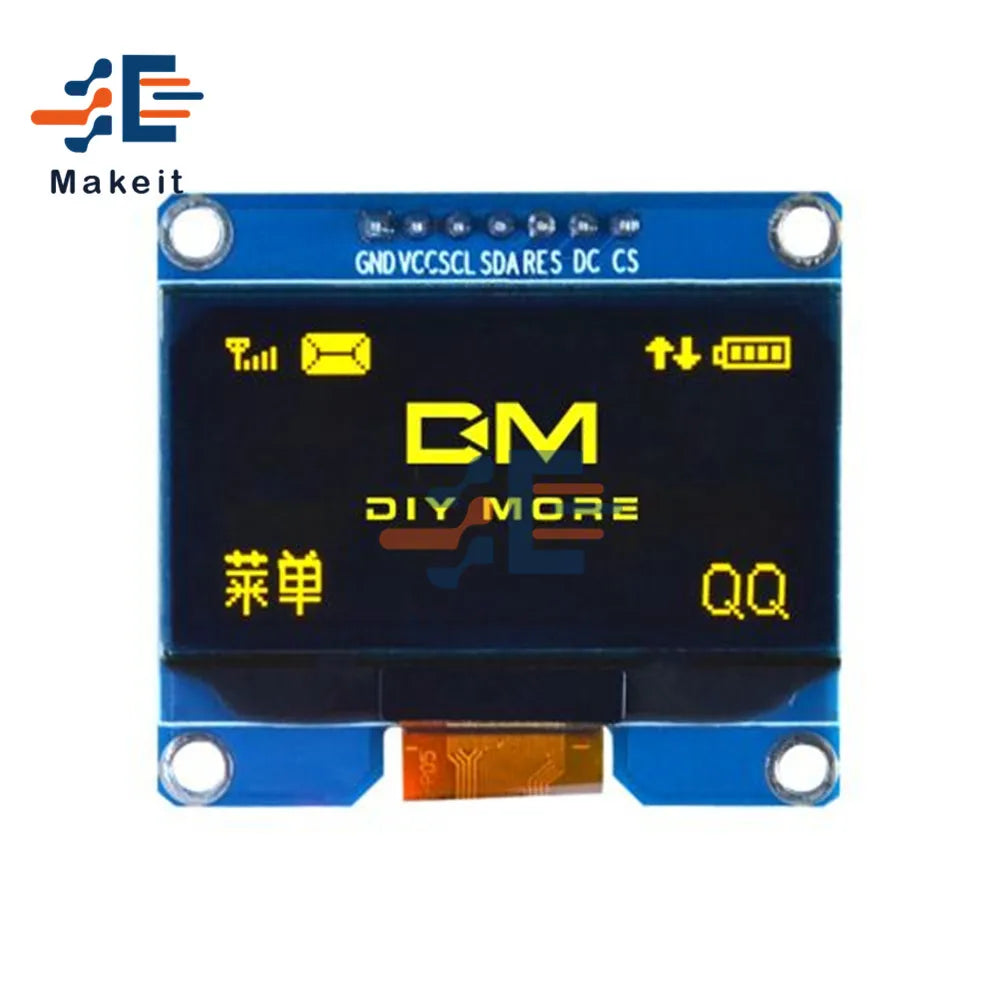

1.54 inch SSD1309 7PIN

Product Introduction:

1.Size:1.54 inch
2.Resolution:128*64
3.Light Color:Yellow
4.Driving IC:SSD1309; compatible with SSD1306
5.Voltage:3.3V-5V

SPI Interface Definition:

1.GND:power ground
2.VCC:power positive
3.SCL:clock wire
4.SDA:data wire
5.RES:reset wire
6.DC:data/command
7.CS:chip selection (if not used,it can be directly connect with ground)

Package included:

1*1.54inch OLED Display Module SPI Interface 3.3-5V SSD1309(Yellow/Blue/White)
