SPECIFICATIONS

Brand Name: AXONUS

High-concerned chemical: none

Origin: Mainland China

Package: Yes

Type: Cable Adapter

Hello dear friend, welcome to our store. Wishing you a pleasant shopping experience!

Product Details

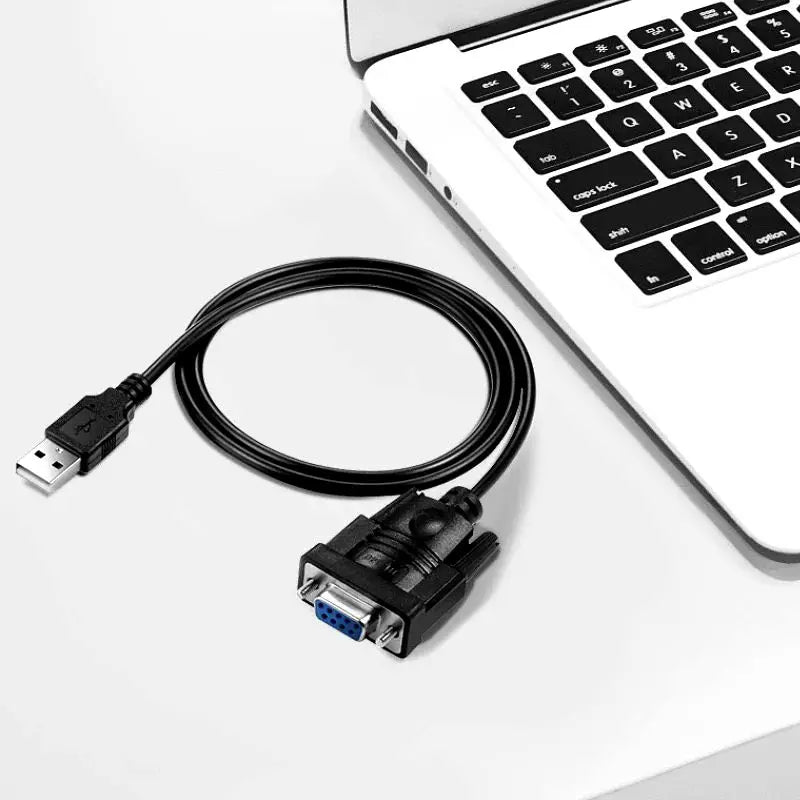

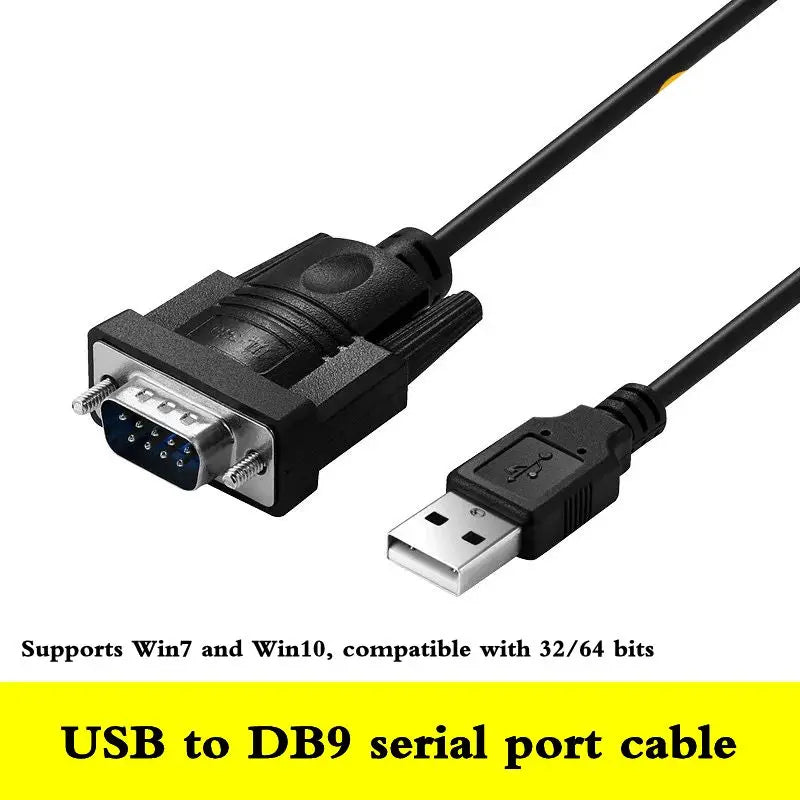

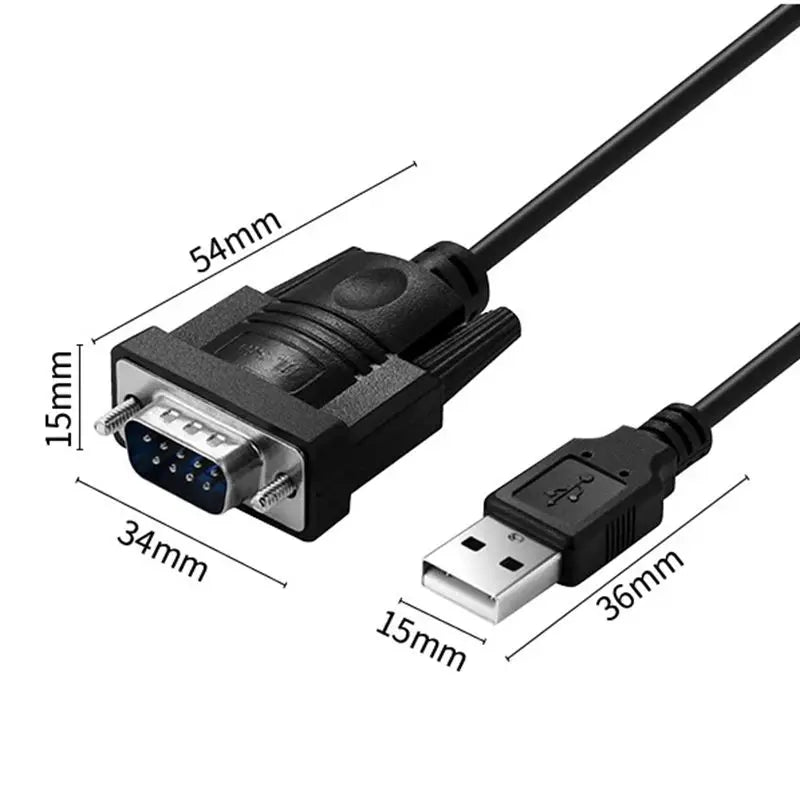

Product Name: USB to RS232 Serial Port Cable 1.5m

Model: UR232

USB interface: USB 2.0

Core material: Tin plated copper

Multi system compatibility

Supports Win7/8/10/11, plug and play

Provide scanning card driver and installation manual, one click installation, worry free and effortless

Windows XP/Vista/Linux system/Mac OS

More technical support

1. Standard USB 2.0 serial port speed

2. Supports USB CDC-ACM, which can achieve drive free use and is simple and convenient

3. Supports CTS/RTS/Xon/Xoff transmission control, supports USB power management, 5 automatically identifies and controls data transmission direction, Android 6 automatically detects serial port signal rate

USB 2.0 A: Suitable for desktop computers and laptops;

RS232 serial port: suitable for programming machines/tax control machines/handwriting boards/CNC machine tools/temperature control equipment/access control systems/industrial instruments/SLAM/LED light control/PLC, etc

Built in high-performance intelligent chip, supporting RS232 protocol for more stable signal transmission

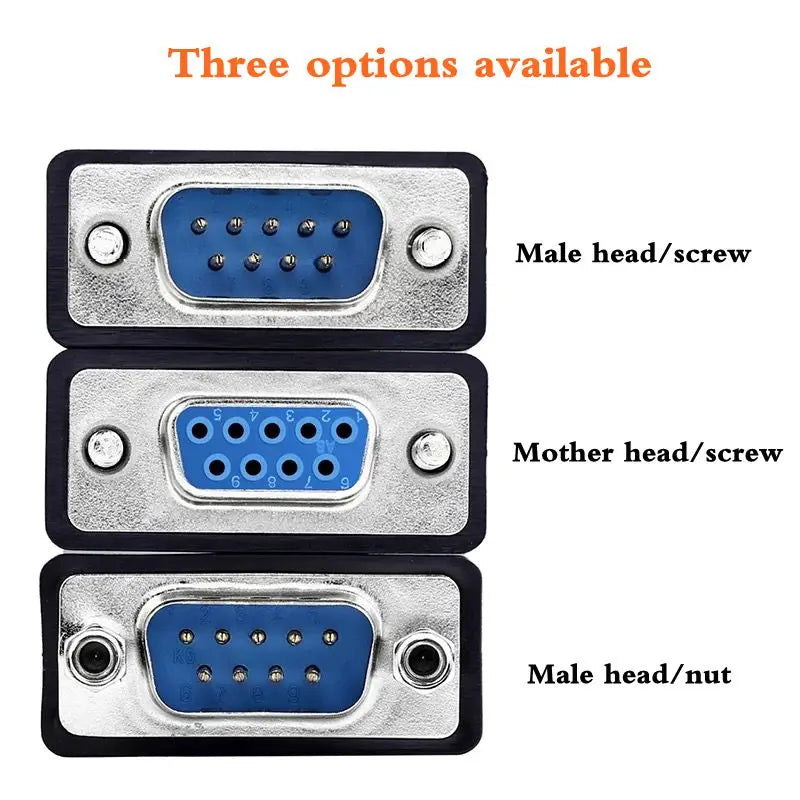

Port design：

One. Insert the USB port of the product into the USB port of a desktop or laptop computer (it is recommended to connect the PC to the USB port of the motherboard)

1. Right click on "This Computer" with the mouse button and select "Open Management Options"

2. Click on [Computer Management] - [Device Manager] - [Port] in sequence

2. Discovered a new device name: such as USB-SERIAL CH340 (COM3)

Two. Connect the other end 232 to the device, and set the corresponding communication port parameters of the product in the application software that comes with your device. If you find that the device's application software does not support selecting a larger port number, you can change the port number in the port properties

Port change：

1. Right click on the properties of USB-SERIALCH340 (COM3)

2. Click on the [Port Settings] ->[Advanced] option in the Port Properties section

3. Click on the [COM Port Number] and select an idle COM port (such as COM3) to complete the setup.

4. Select [Port] in [Computer Management], click on the [Scan] icon in the toolbar to detect hardware changes, search for new devices, and you will see that port COM18 has been converted to COM3
