SPECIFICATIONS

Brand Name: NONE

Choice: yes

Display Mode: 12864

High-concerned chemical: none

Model Number: 978

Origin: Mainland China

Resolution: 128*64

Type: OLED

is_customized: Yes

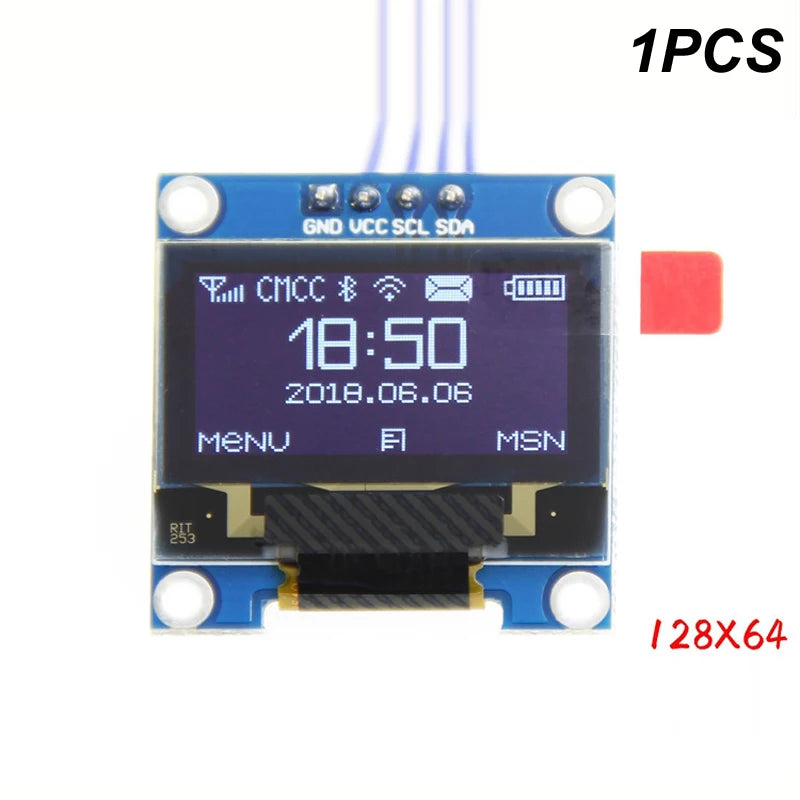

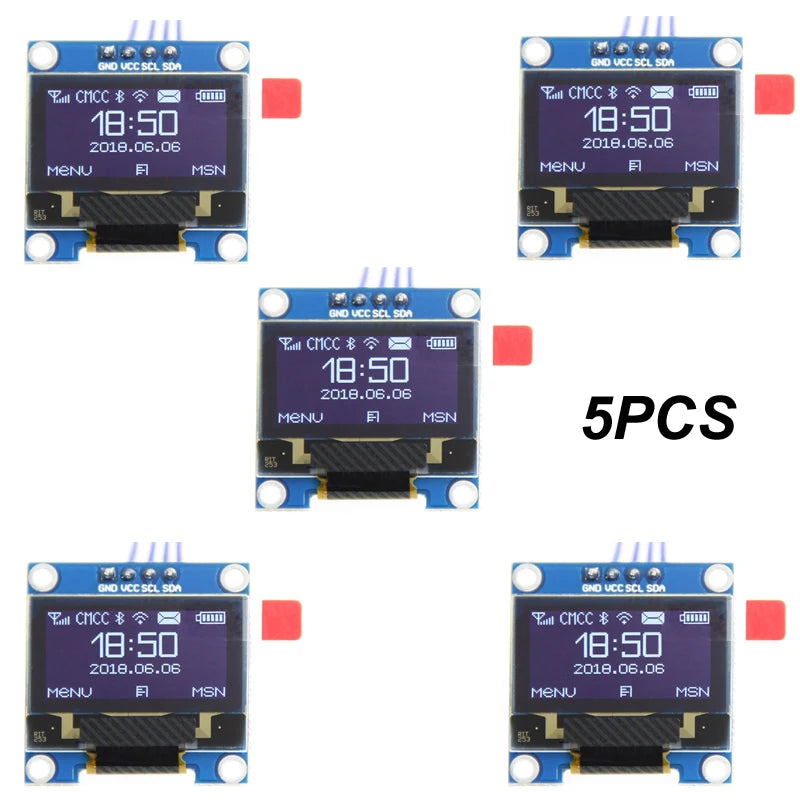

1/5PCS 0.96 Inch I2C OLED Display Module SSD1315 128X64 4Pin IIC Serial LCD Screen Board FOR ARDUINO STM32 RASPBERRY PI Mega2560 UNO

Product description

High resolution: 128x64 (have the same resolution as 12864, high PPI)

Large viewing angle: greater than 160° (a screen with the largest viewing angle in the monitor)

Ultra-low power consumption: it's 0.06w in normal condition(far less than TFT display)

Wide voltage supply (3V~5V), 3.3V and 5V level logic compatible, no level shifter IC

IIC interface and only requires 2 IOs to light up easily

The range of working temperature is industrial (-20°C~70°C)

Military-grade process standards, long-term work steadily

Provide rich multi-platform routines and the technology support of underlying driver

Have three color display schemes of yellow and blue,white,blue to choose from

Interface definition

PIN label Pin description

1 GND OLED GND

2 VCC OLED VCC input(3.3V~5V)

3 SCL OLED clock signal of IIC bus

4 SDA OLED data signal of IIC bus
