1/5pcs DSpower 9g 12g Metal/plastic Gear Mini Micro Servo Motor for RC Plane SG90 MG90S Helicopter Drone Fixed-Wing Car Robot
5pcs 12g S006M Blue
$199.84
Sale price
$199.84
Regular price
$0.00
Skip to product information
1/5pcs DSpower 9g 12g Metal/plastic Gear Mini Micro Servo Motor for RC Plane SG90 MG90S Helicopter Drone Fixed-Wing Car Robot
$199.84
Sale price
$199.84
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: hot rc
Certification: CE
Choice: yes
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: none
Material: Metal,Plastic
Model Number: S006
Origin: Mainland China
Product name: DSpower SG90 MG90S 9g 12g Micro Metal/Plastic Gear Motor Servo for 450
Quantity: 1 pcs
RC Parts & Accs: Servos
Recommend Age: 14+y
Remote Control Peripherals/Devices: Servos
Size: 9g 12g,9g 12g
Technical parameters: value 2
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Frame
Use: Vehicles & Remote Control Toys
semi_Choice: yes

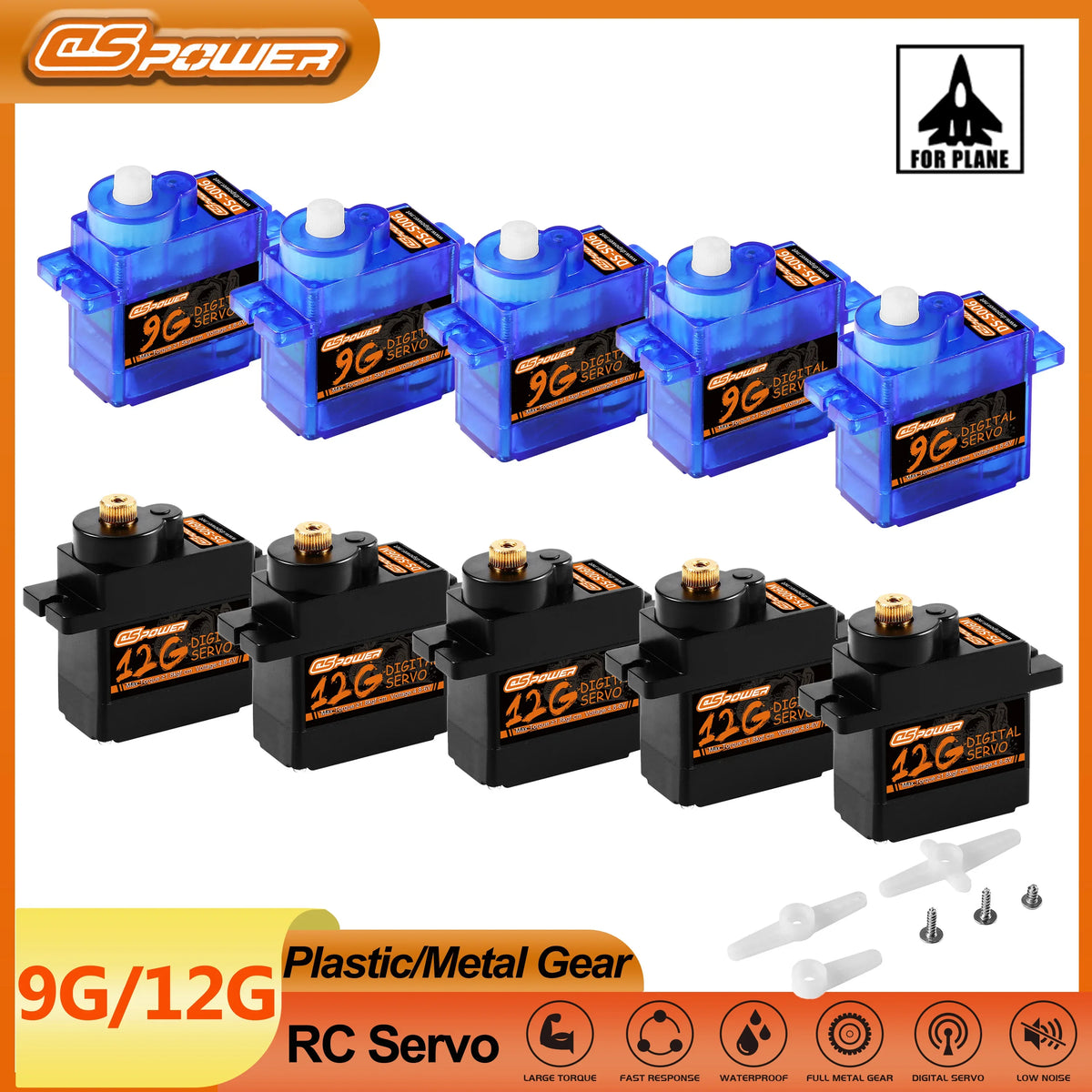

5pcs DSpower 9g 12g Metal/Plastic Gear Motor Mini Micro Servo SG90 MG90S for RC Plane Helicopter Drone Fixed-Wing Boat Car Robot

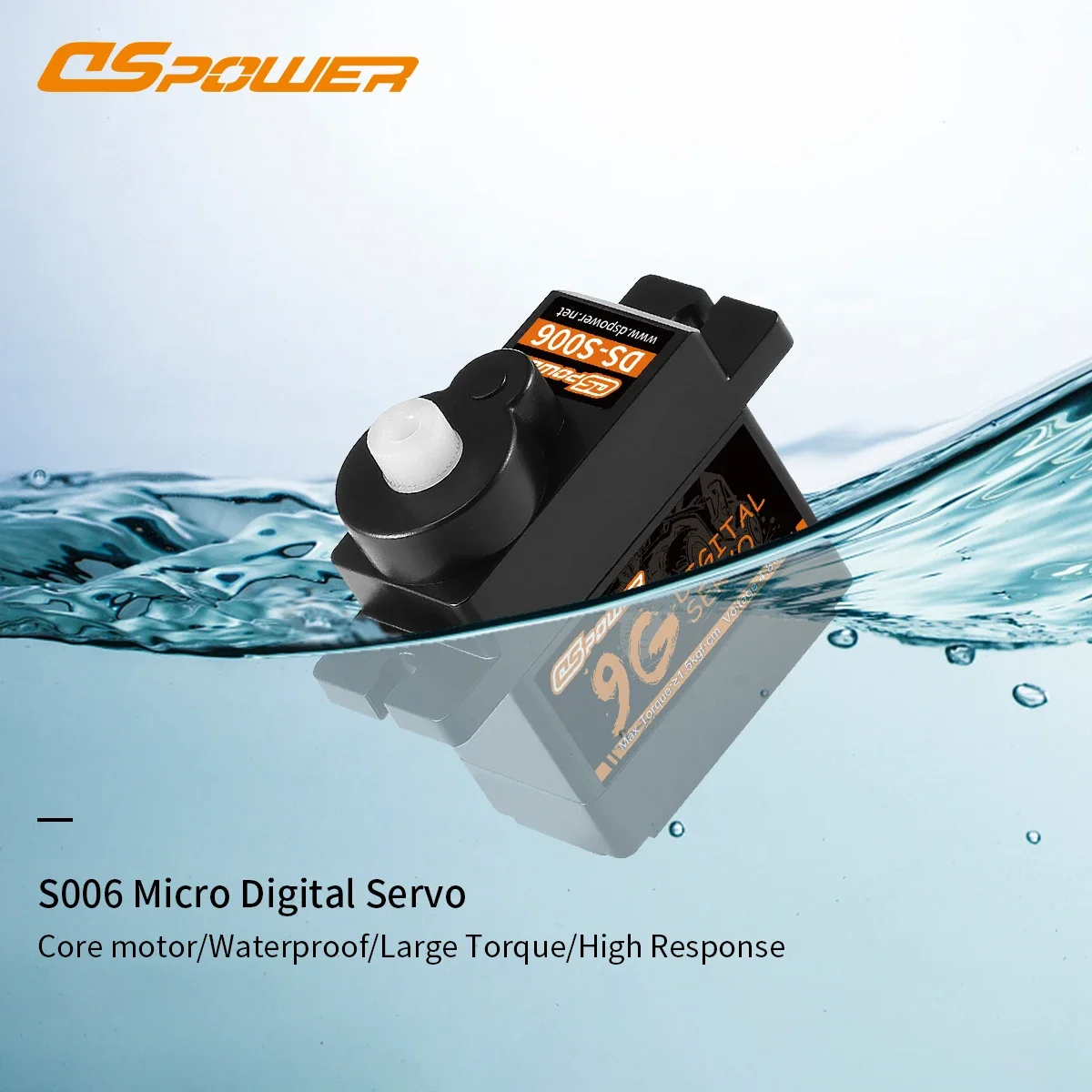

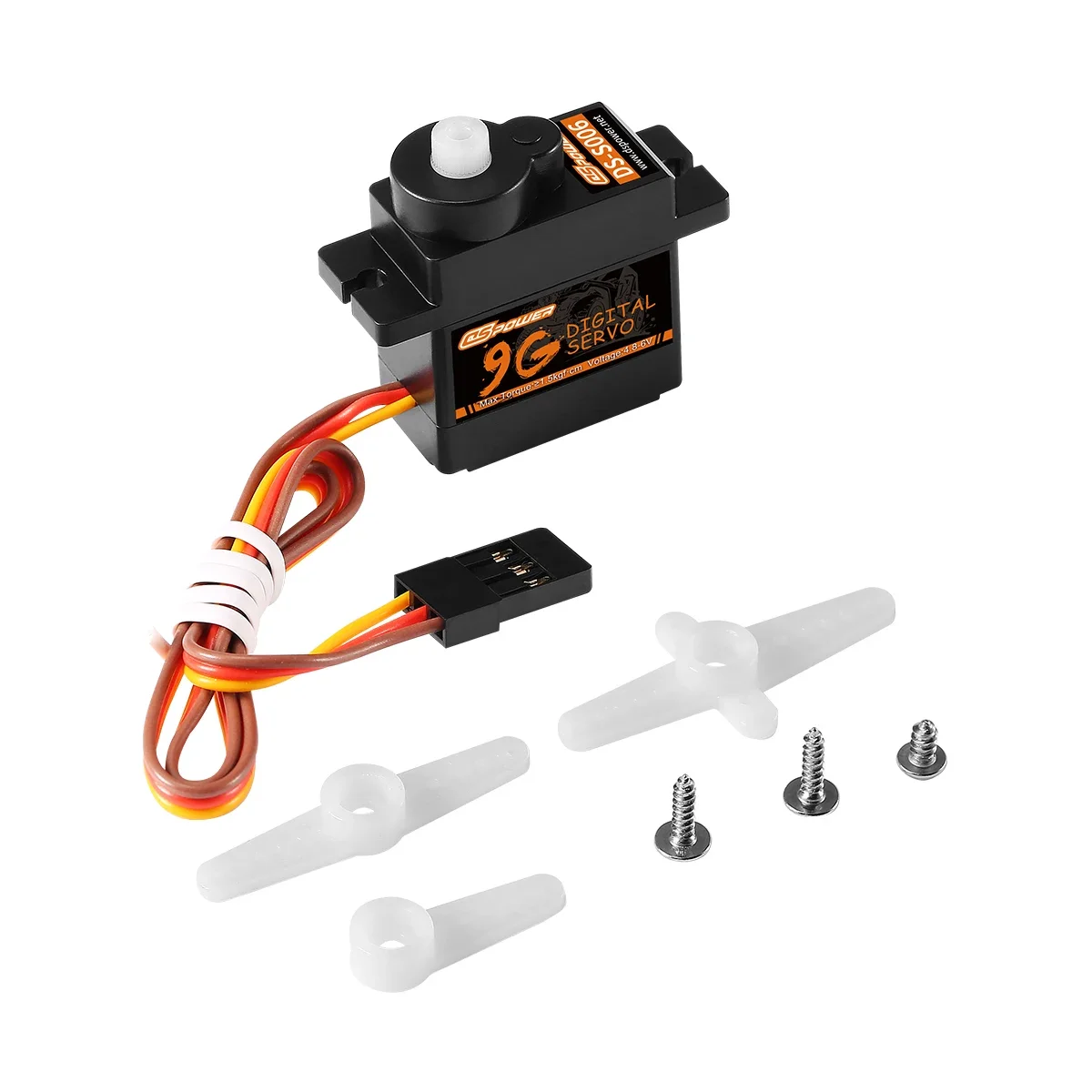

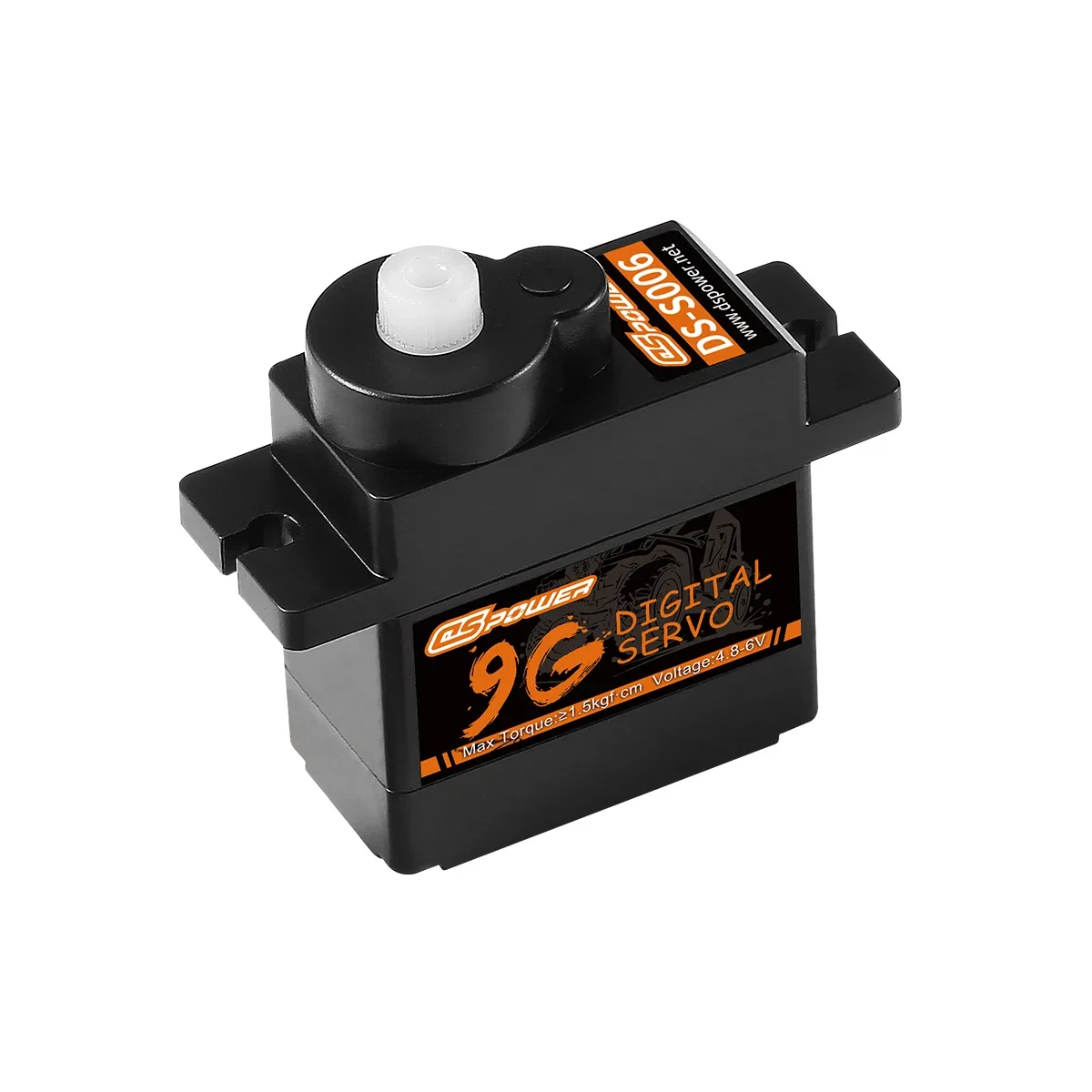

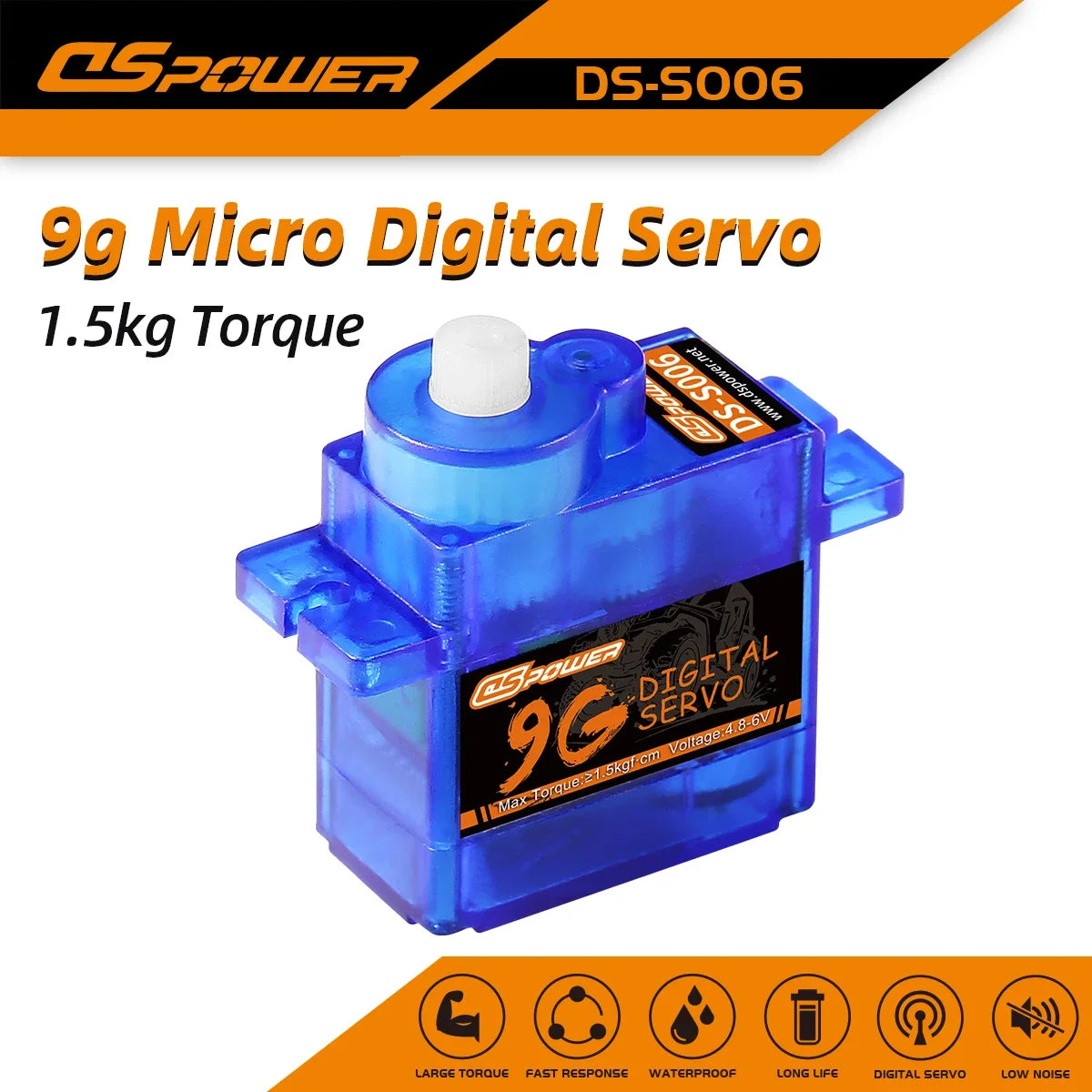

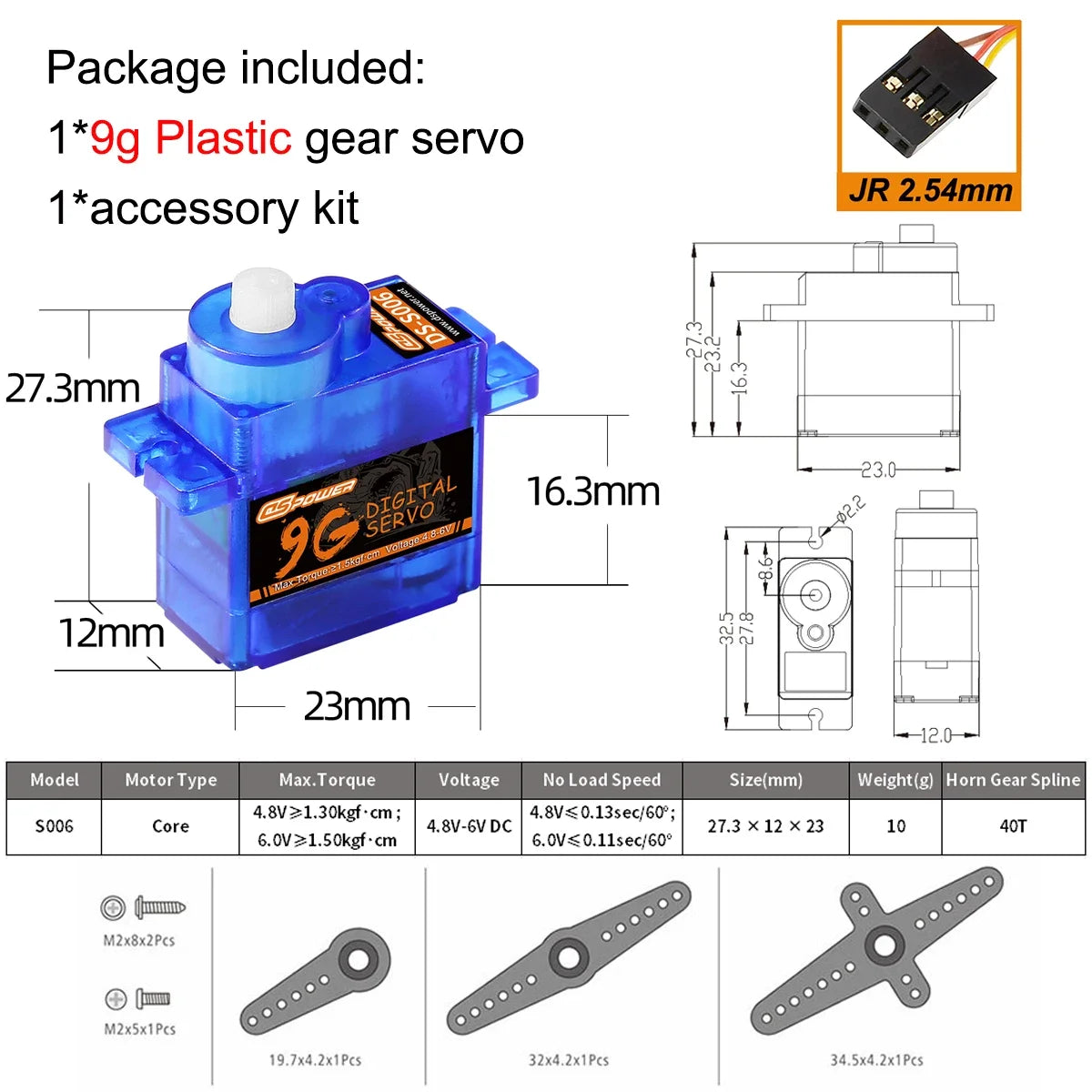

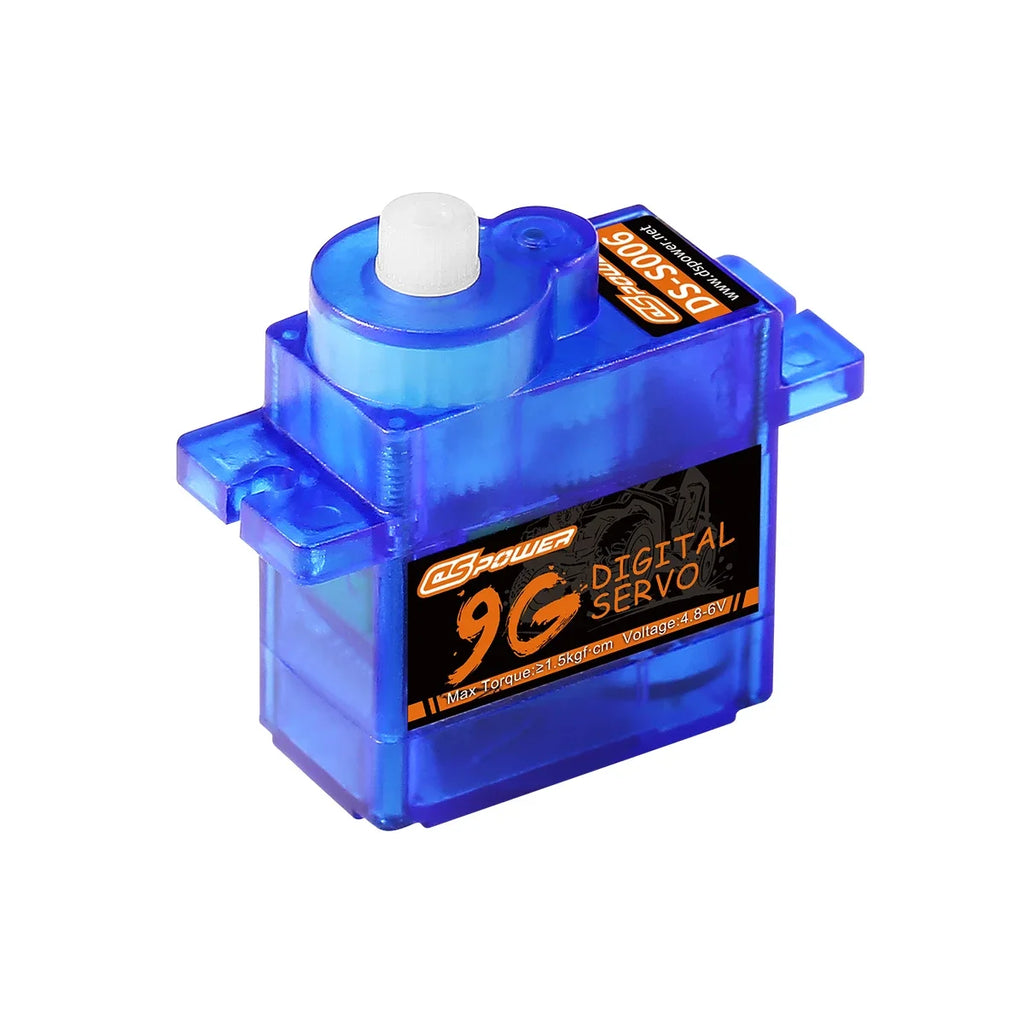

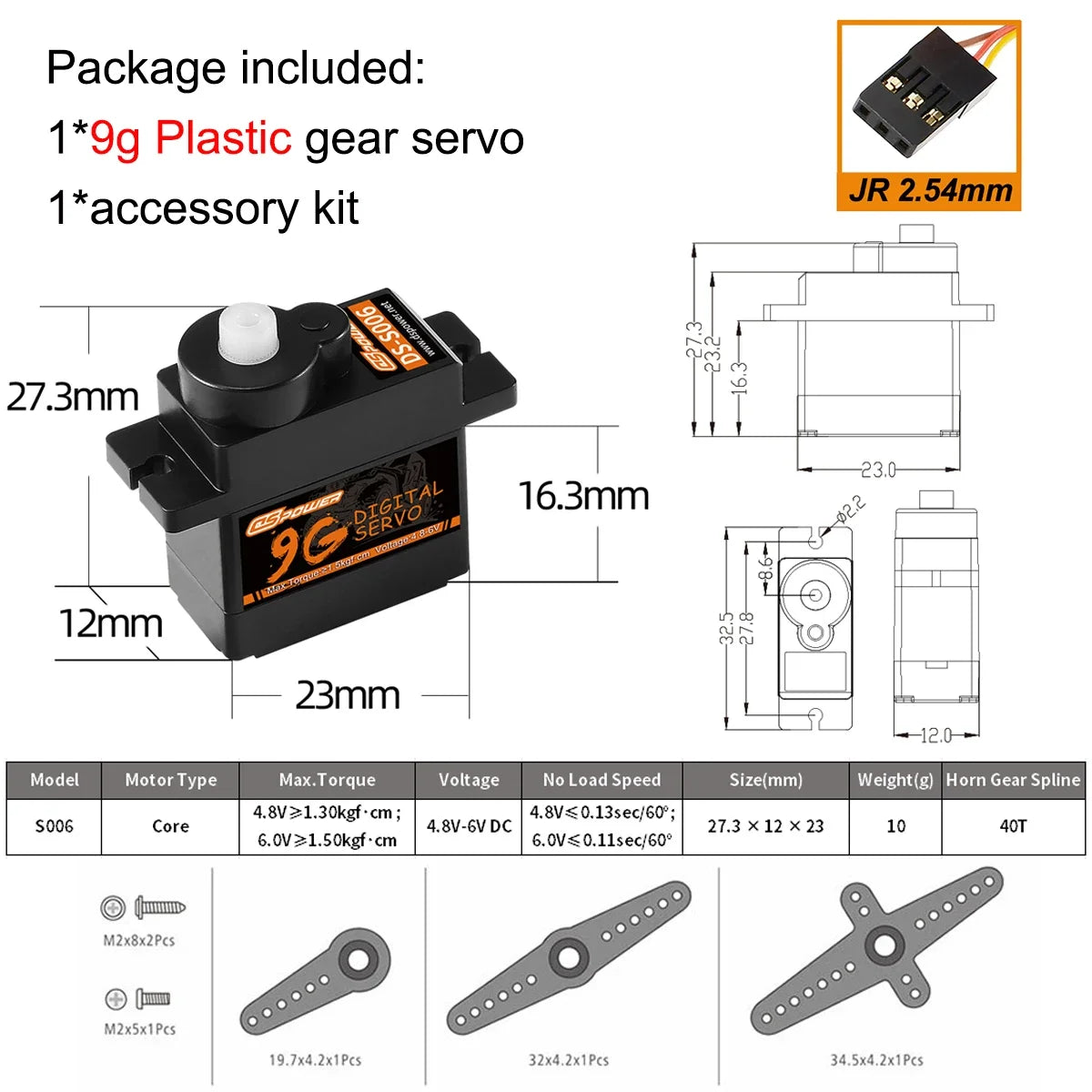

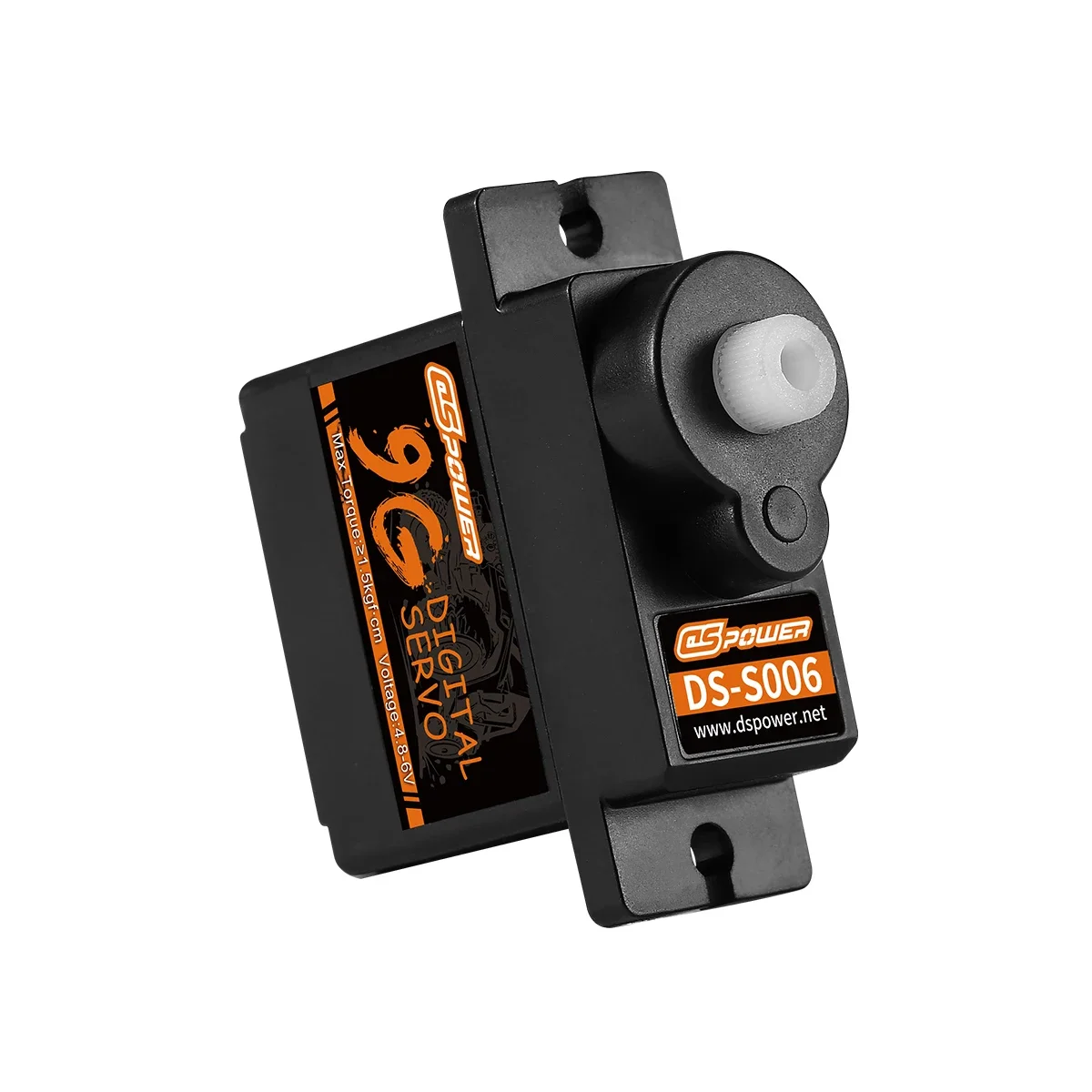

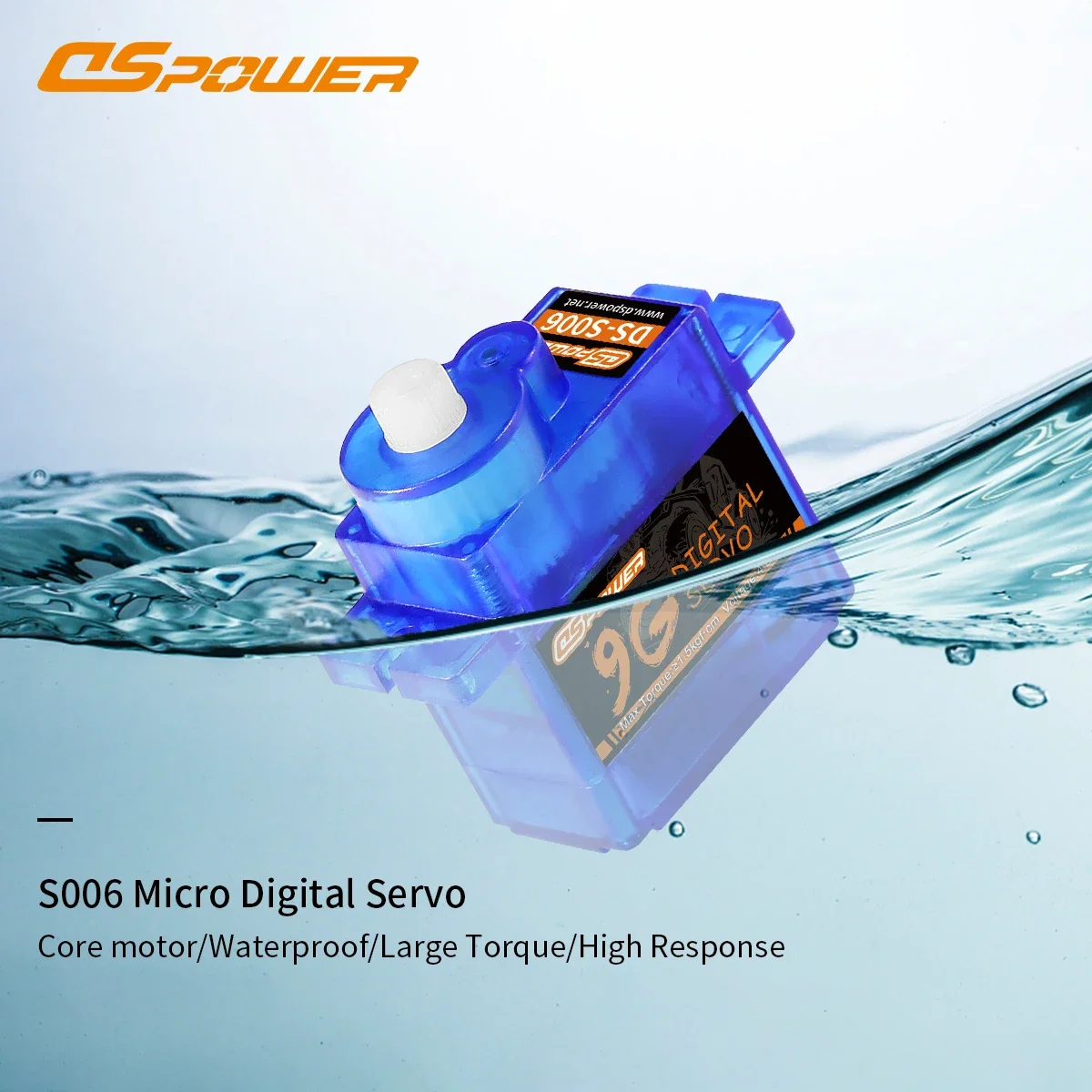

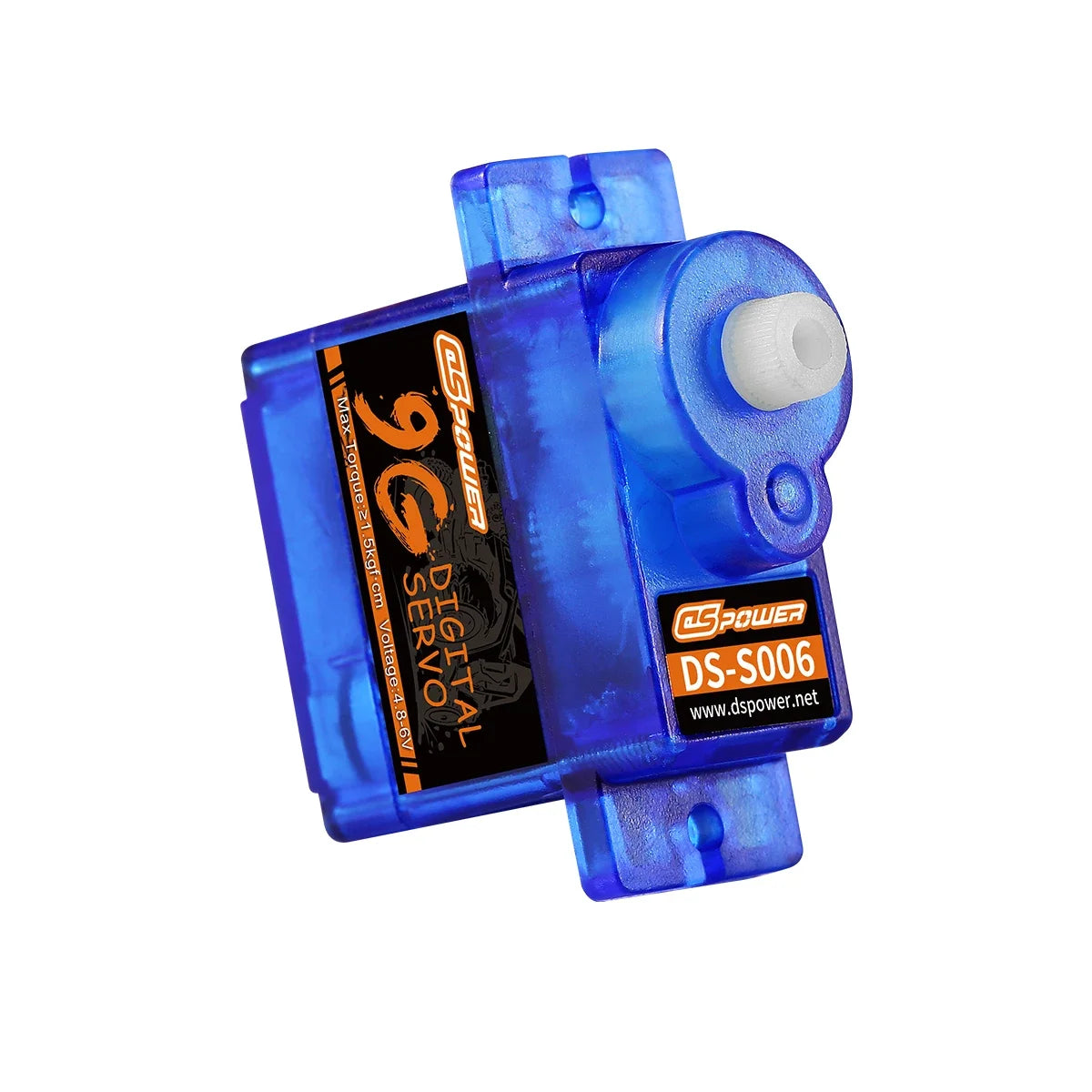

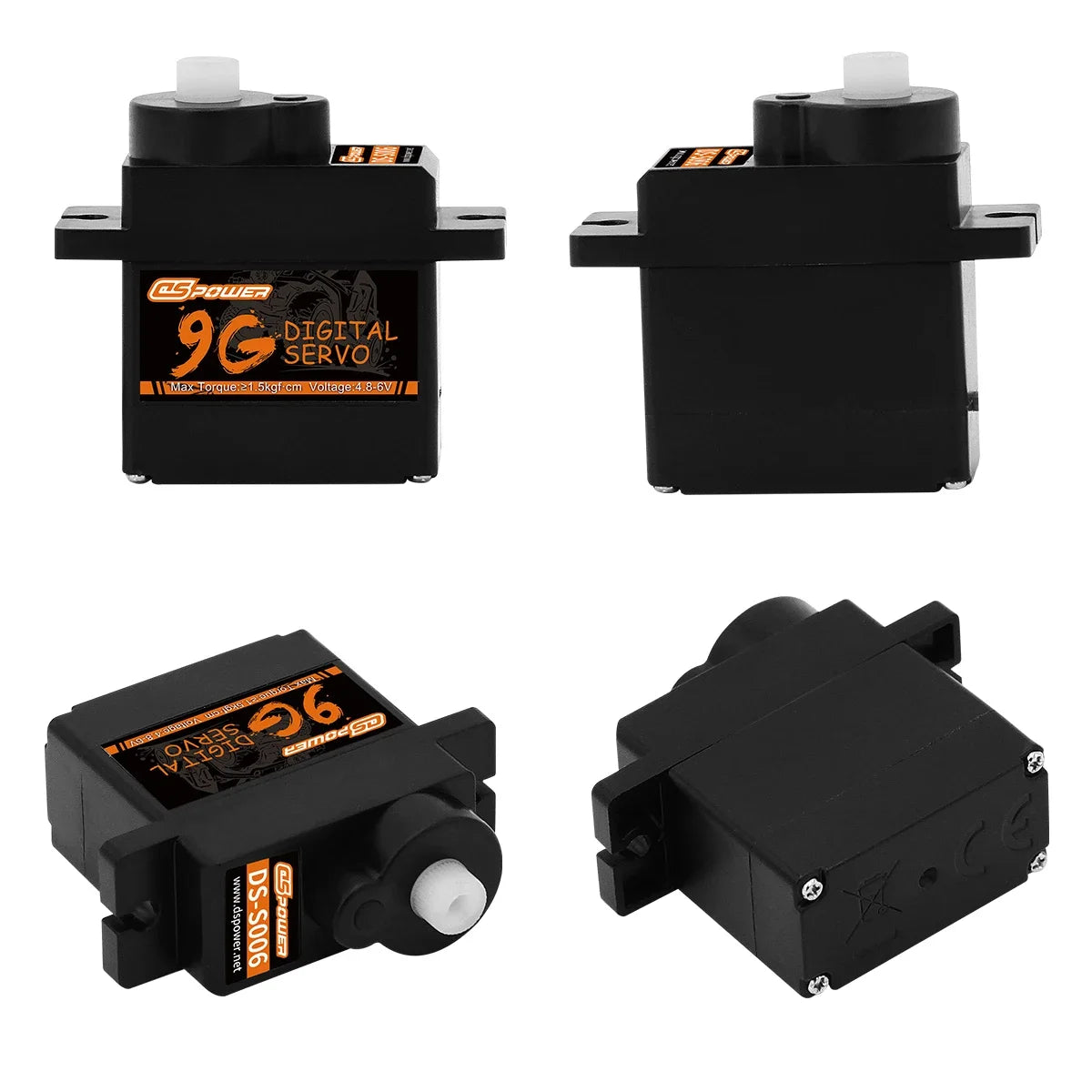

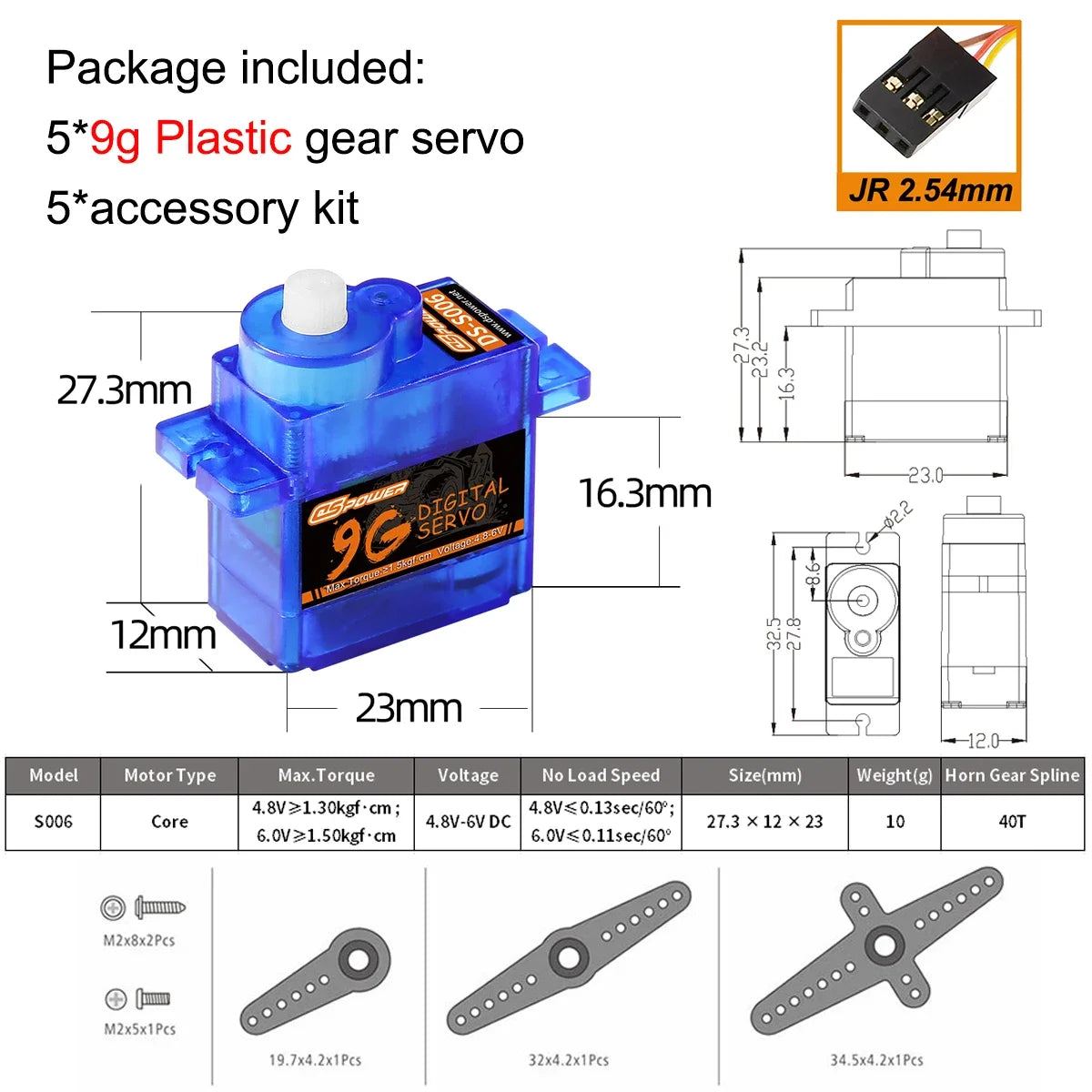

9g Plastic Version:
Specifications:

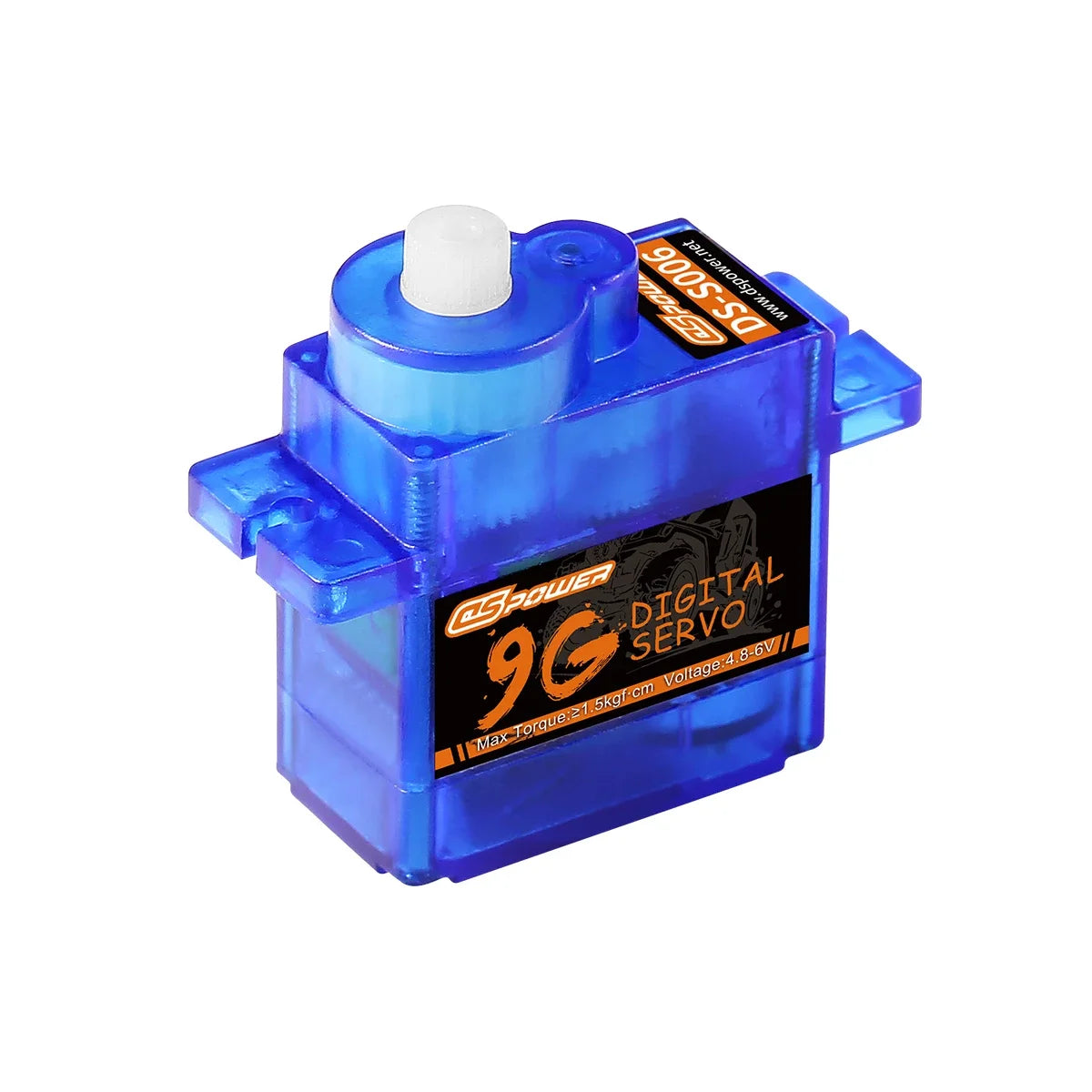

Item name: DSpower S006
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥1.30kgf·cm ; 6.0V≥1.50kgf·cm
No Load Speed : 4.8V≤0.13sec/60°; 6.0V≤0.11sec/60°
Stall Current:4.8V≦550mA;6.0V≦650mA
Consumption Current* (No Load):4.8V ≦50mA ;6.0V≦60mA

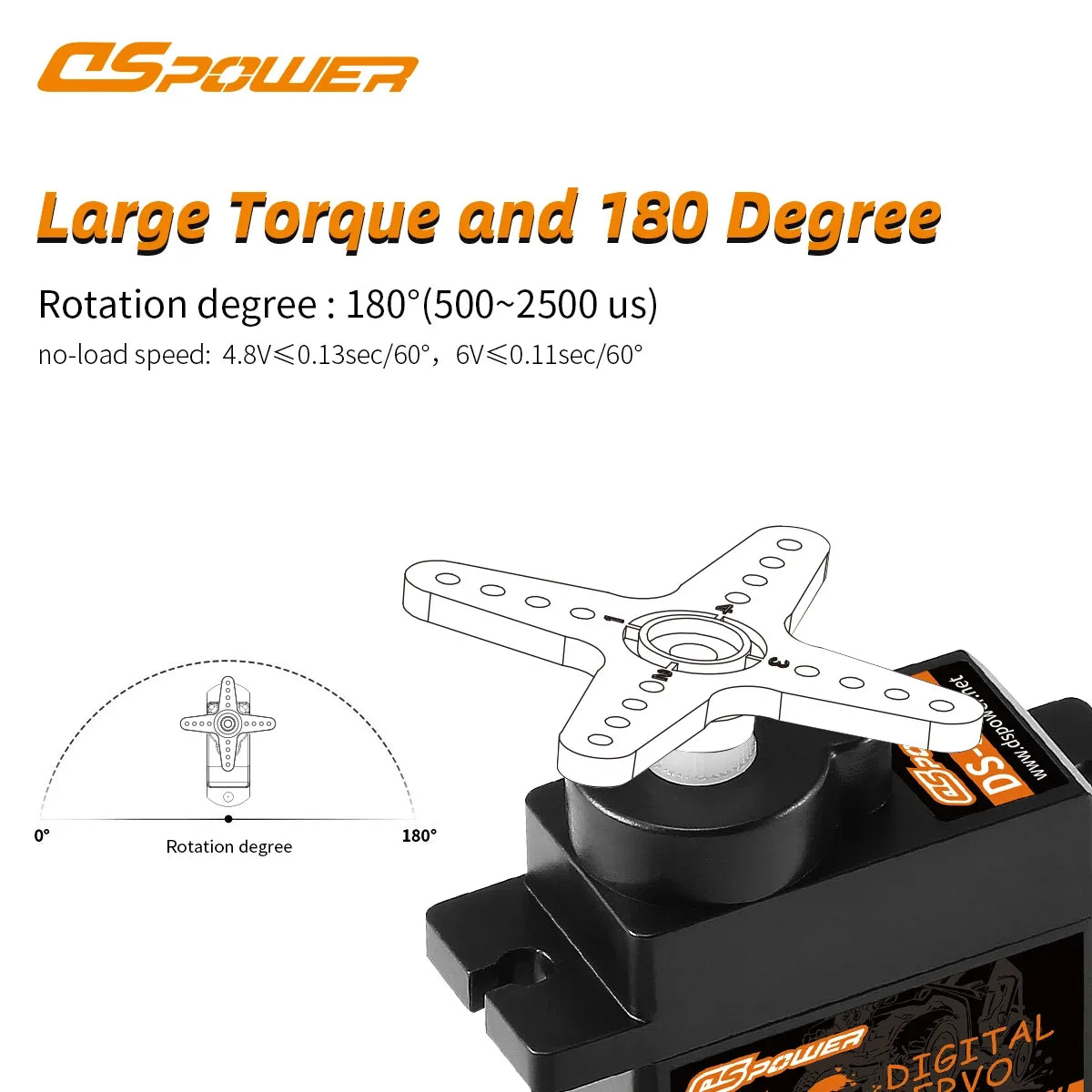

Max. Operating Travel Angle:180°±10°(500~2500μs)
Dead Band Width: ≤ 2us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material : Plastic gear
Weight: 9 g

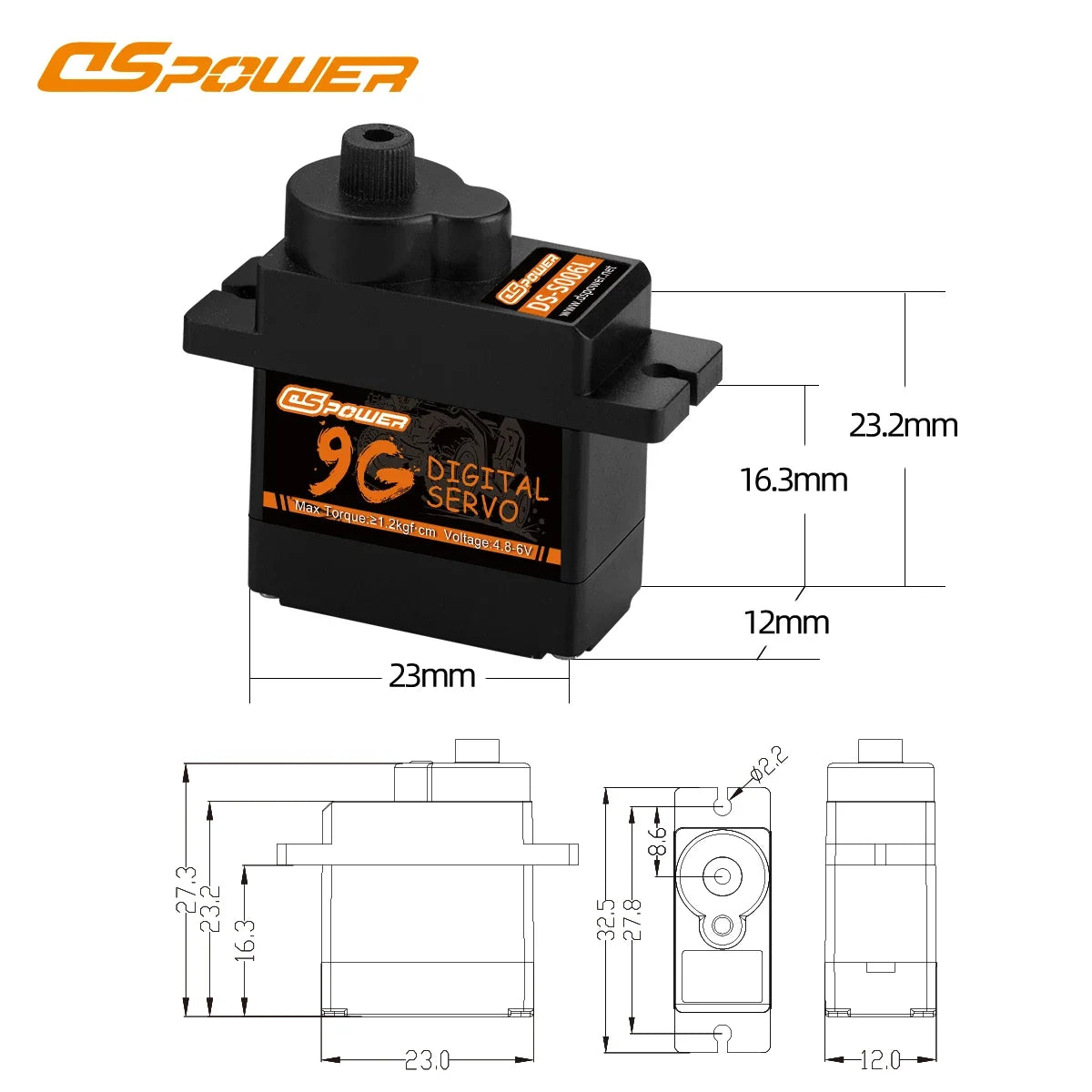

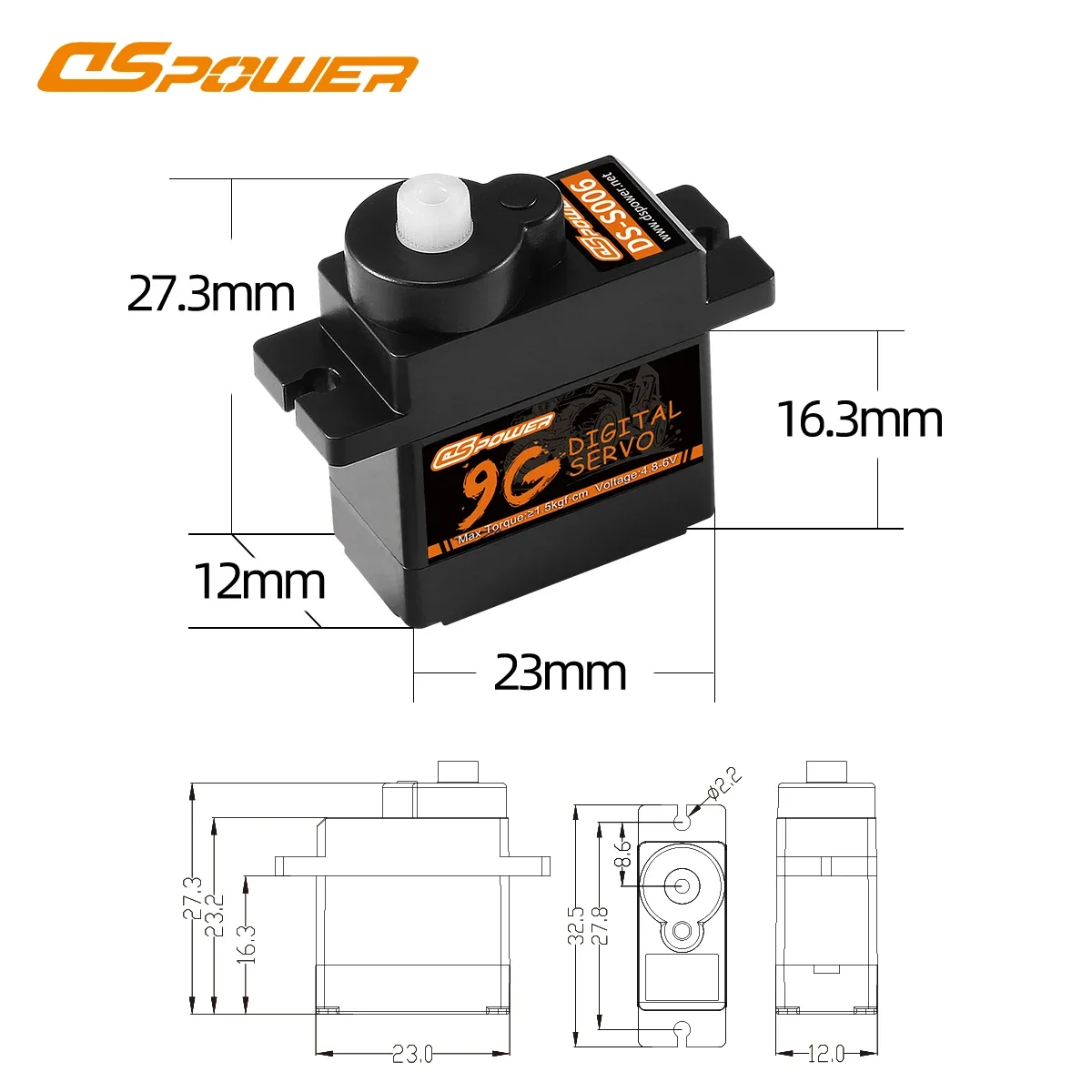

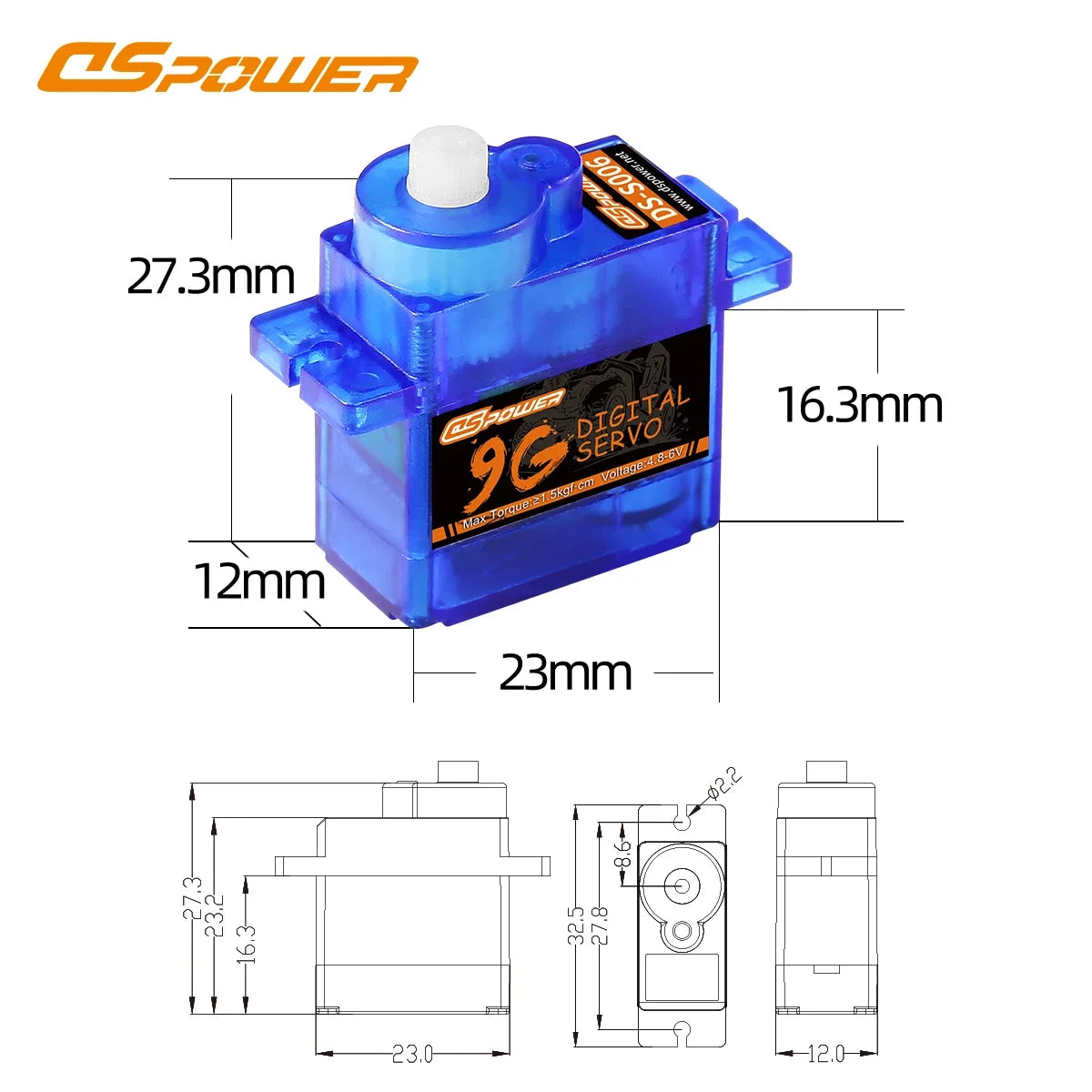

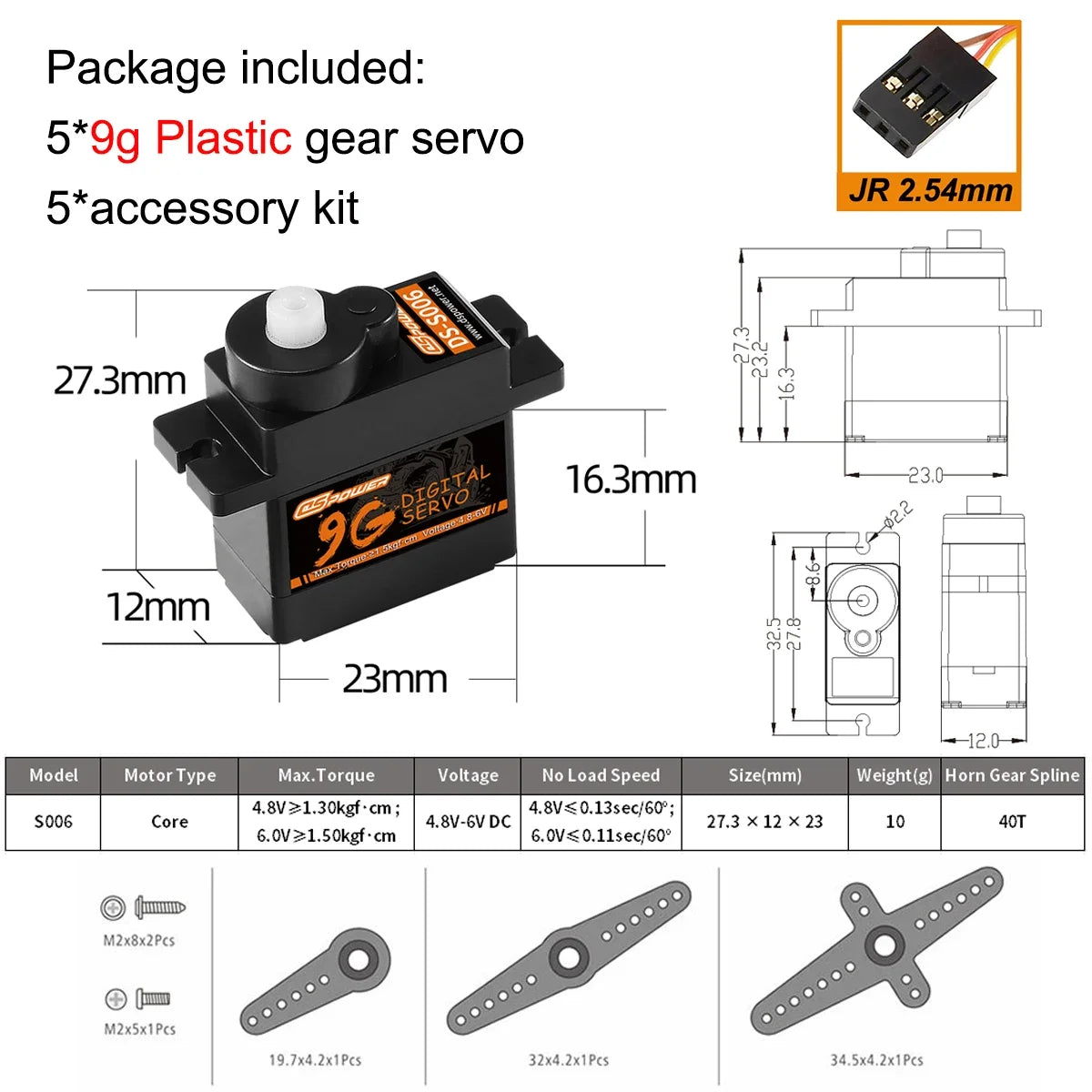

Size: 27.3 × 12 × 23mm
Length of Connector cable: JR 250±5mm (exposed without plug)

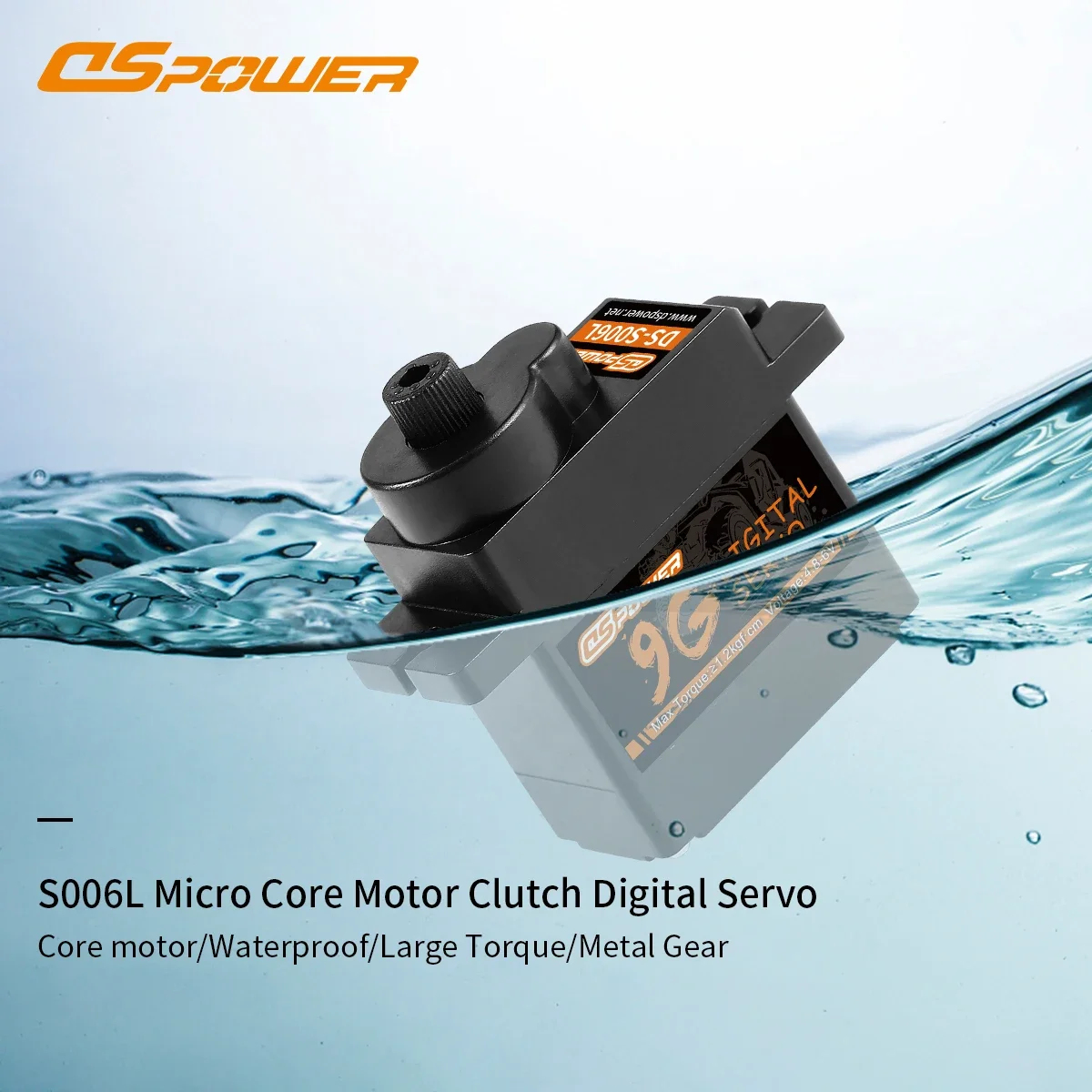

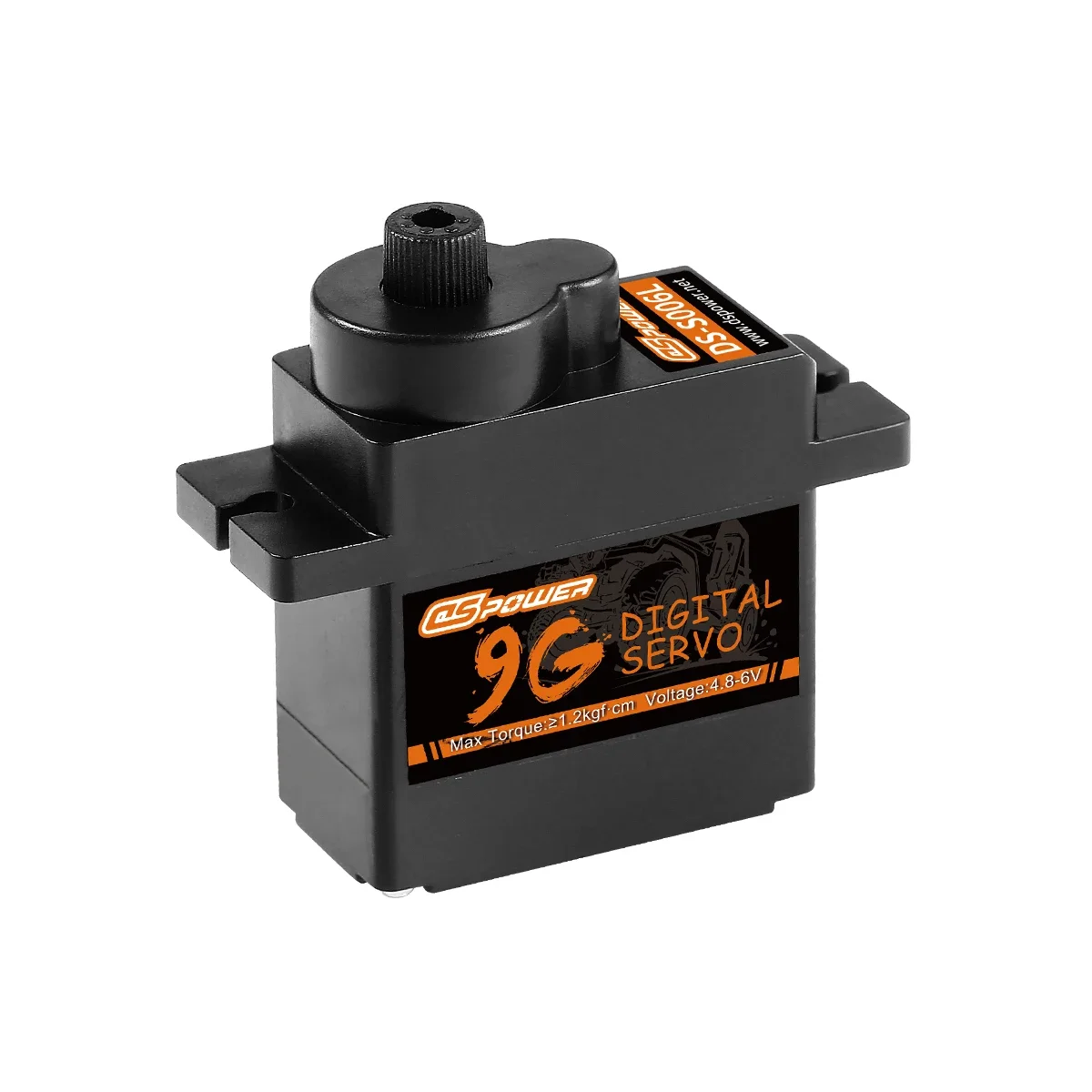

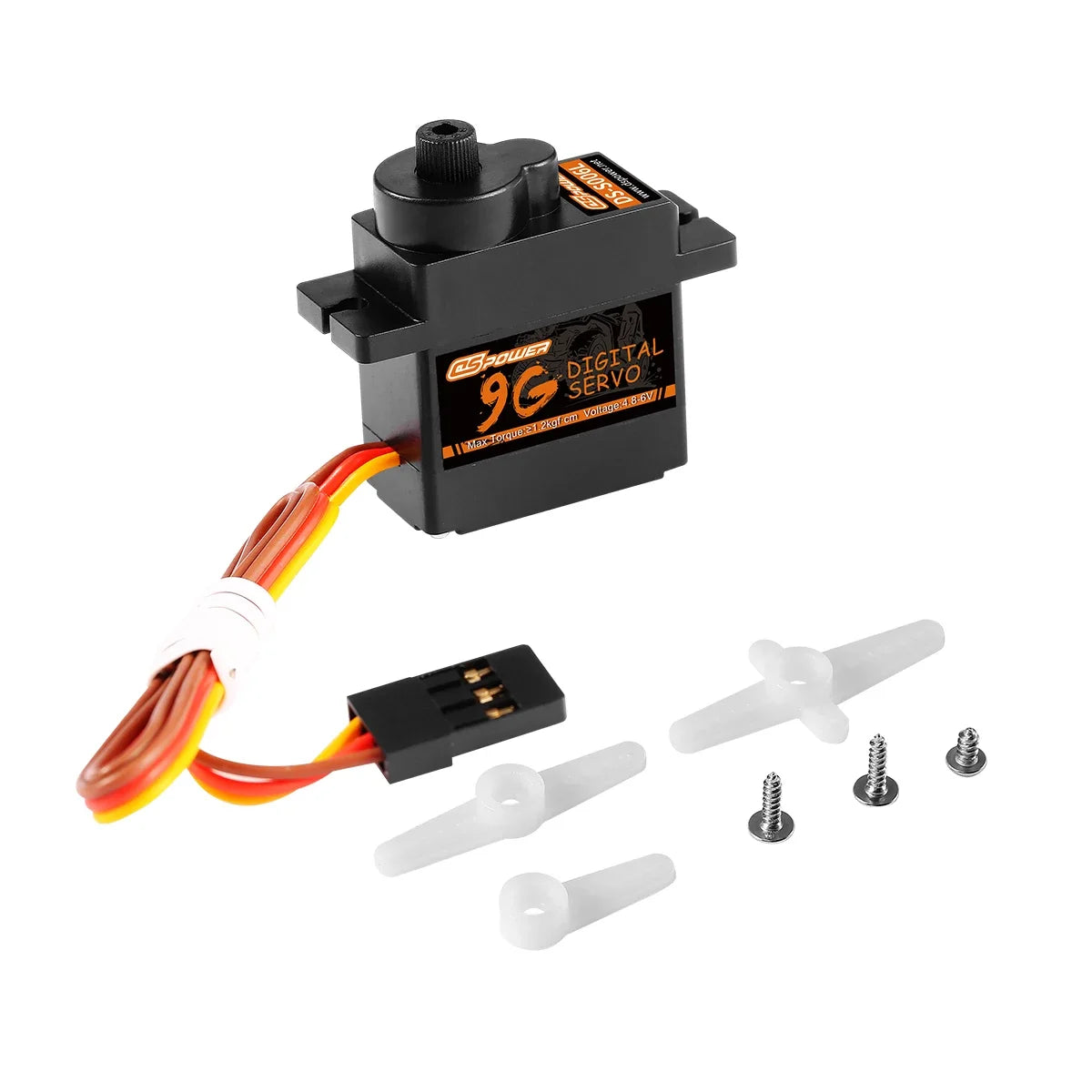

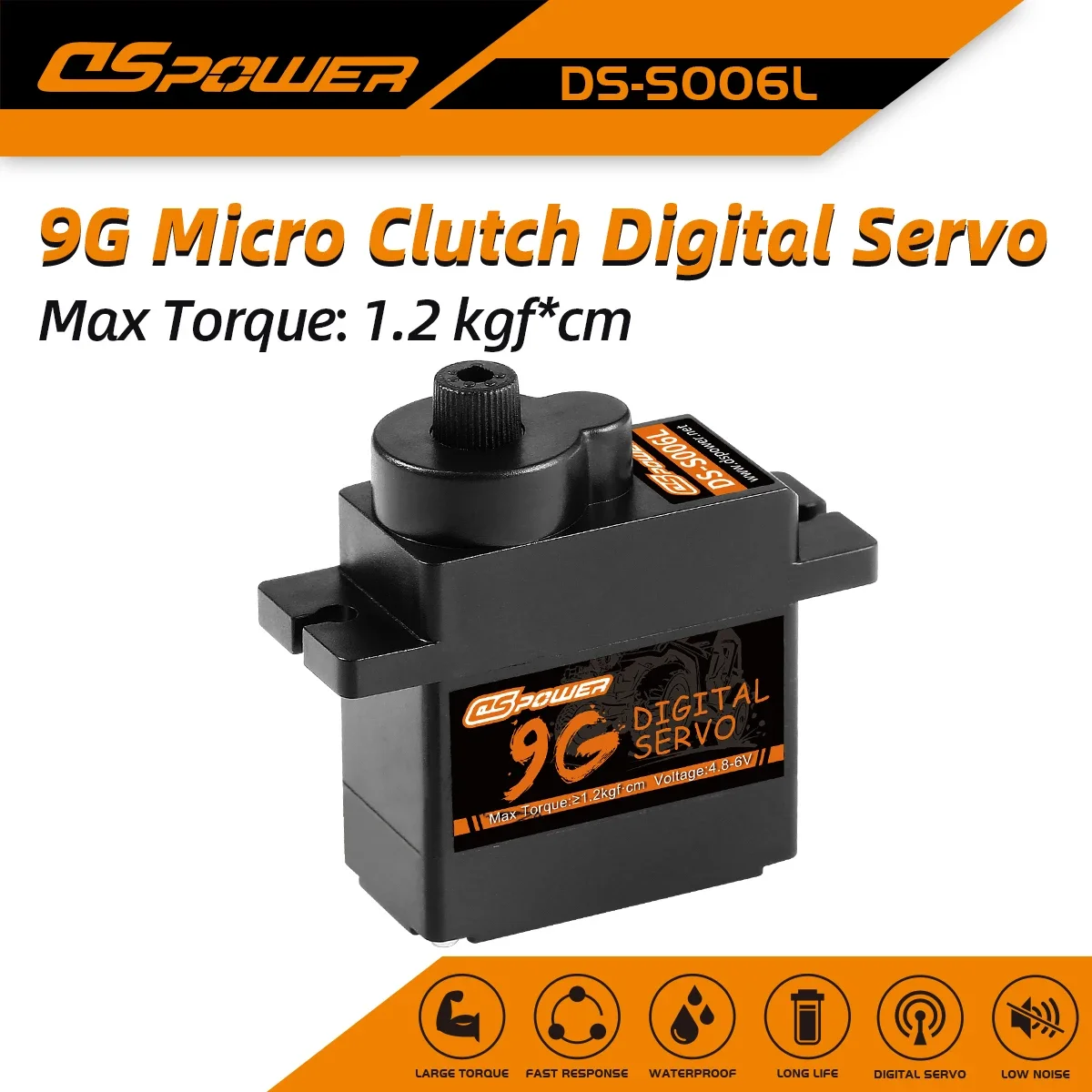

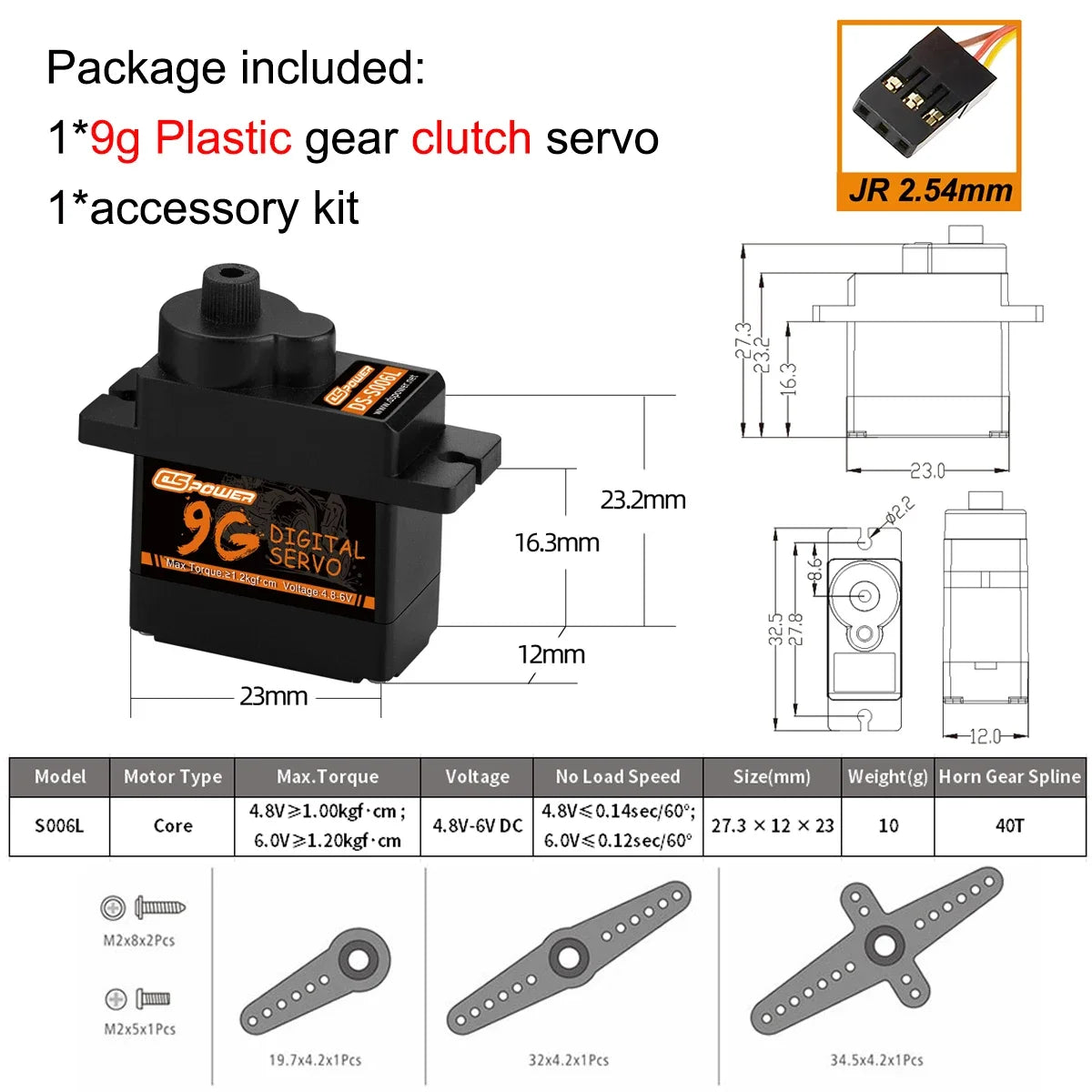

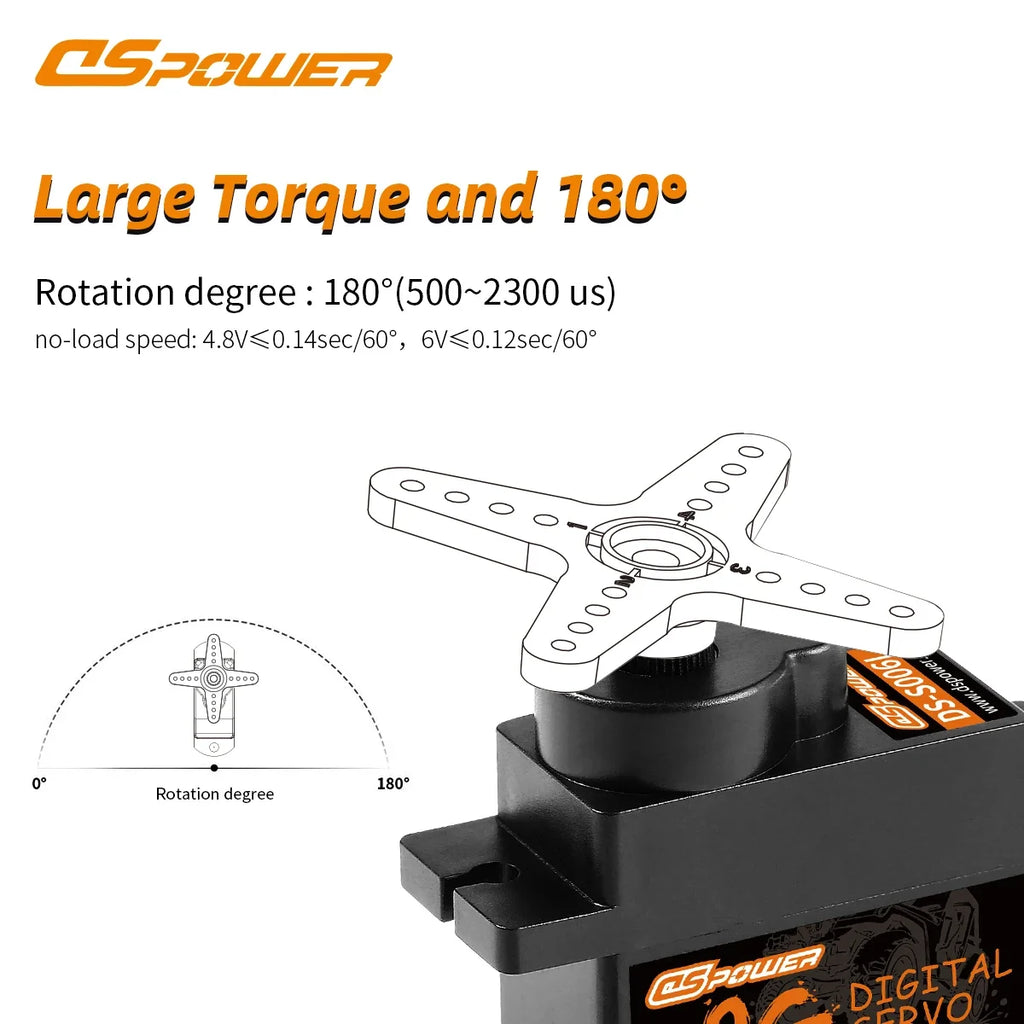

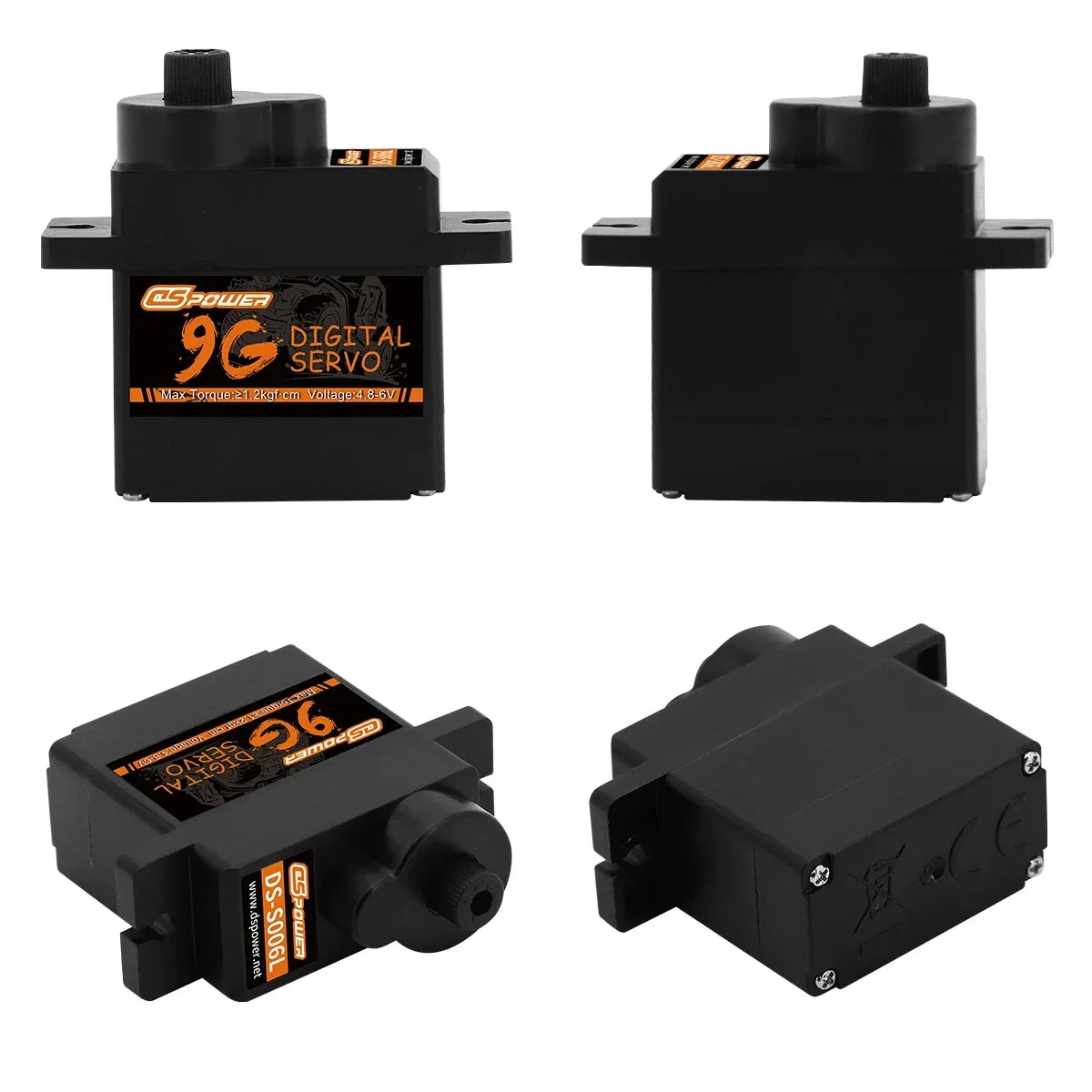

9g Plastic clutchVersion:
Specifications:

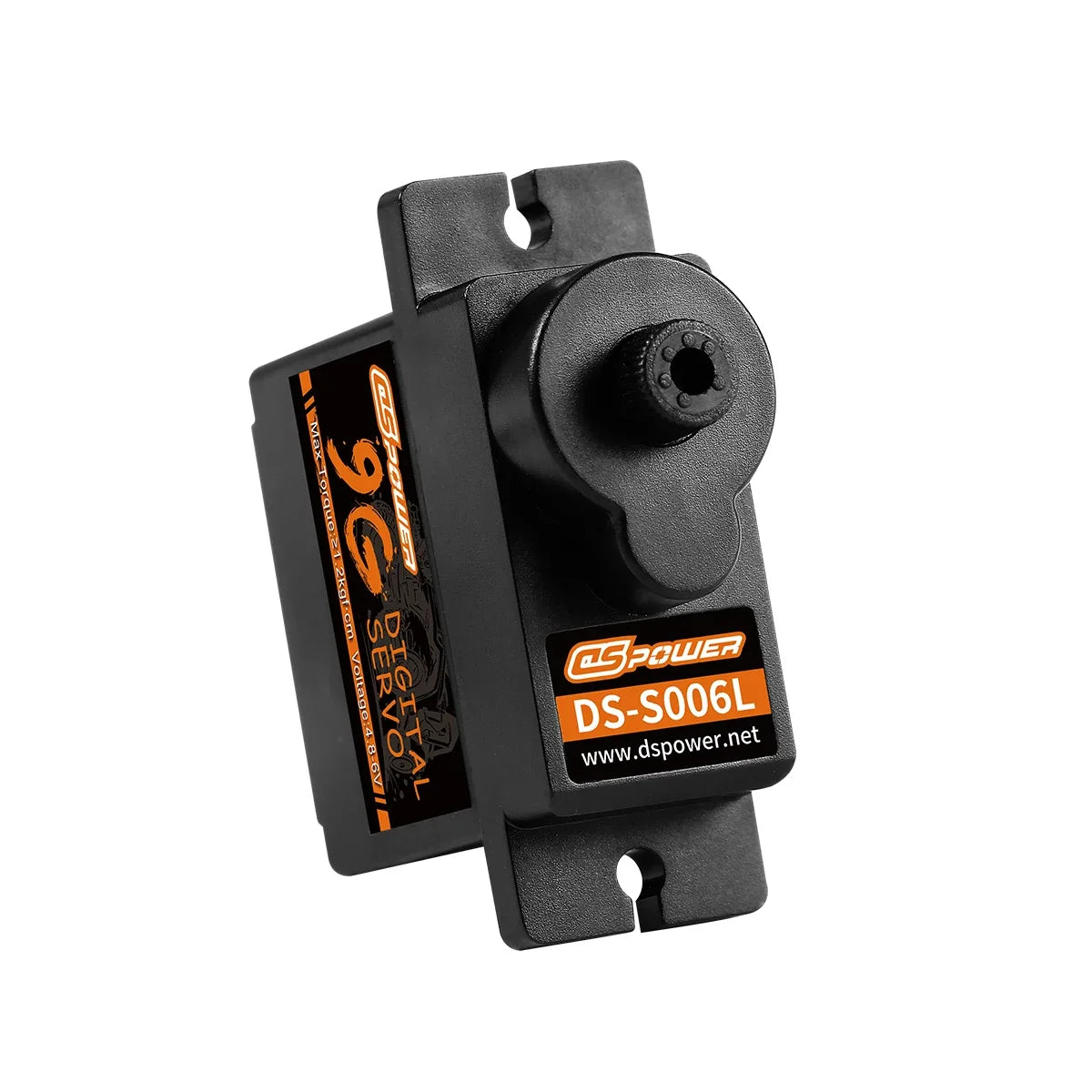

Item name: DSpower S006L
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥1.00kgf·cm ; 6.0V≥1.20kgf·cm
No Load Speed : 4.8V≤0.14sec/60°; 6.0V≤0.12sec/60°
Stall Current:4.8V≦550mA;6.0V≦650mA
Consumption Current* (No Load):4.8V ≦50mA ;6.0V≦60mA

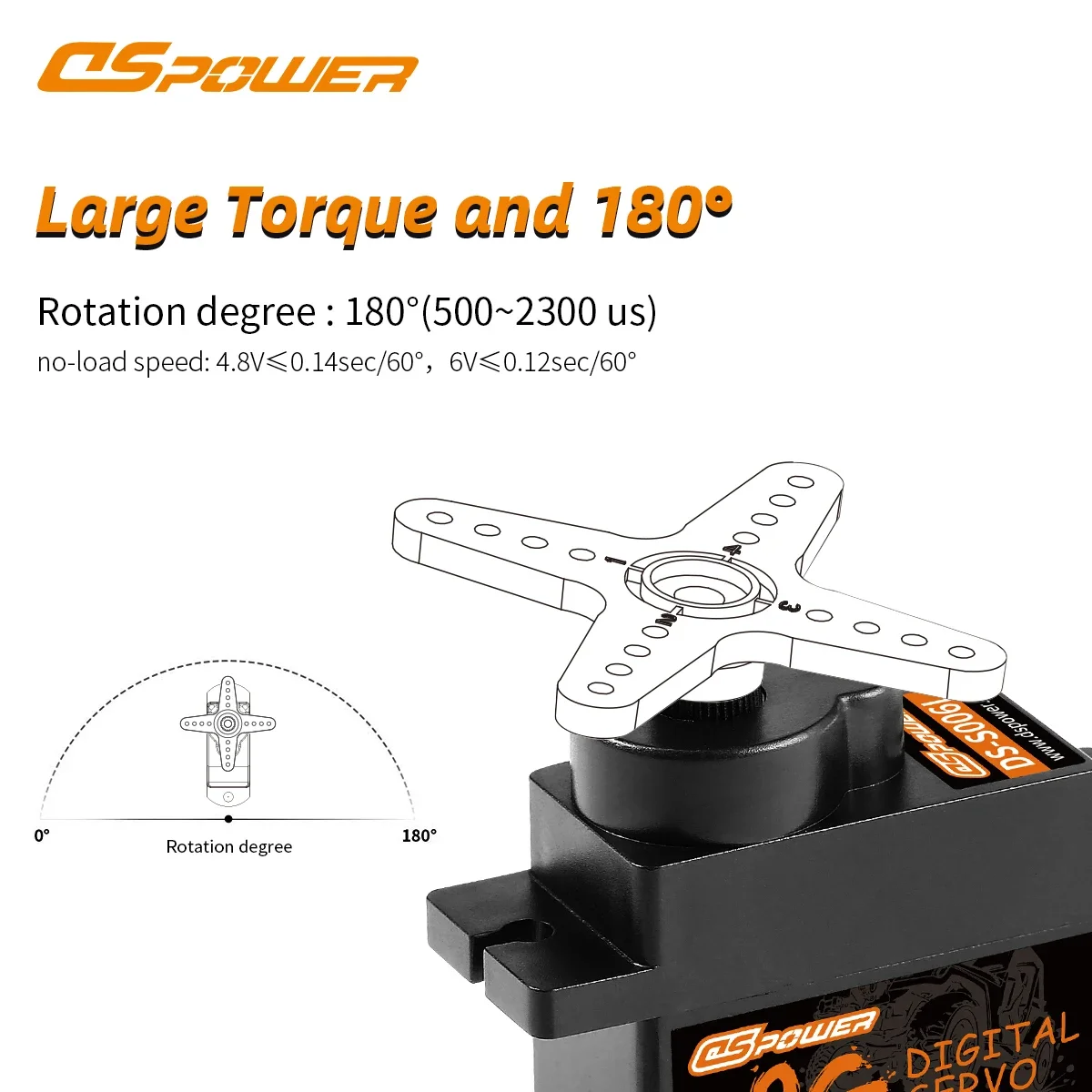

Max. Operating Travel Angle:180°±10°(500~2500μs)
Dead Band Width: ≤ 2us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material : Plastic gear
Weight: 9 g
Size: 27.3 × 12 × 23mm
Length of Connector cable: JR 250±5mm (exposed without plug)
Package included:
1/5 * 9G Digital Servo
1/5 * Servo Arm Accessories

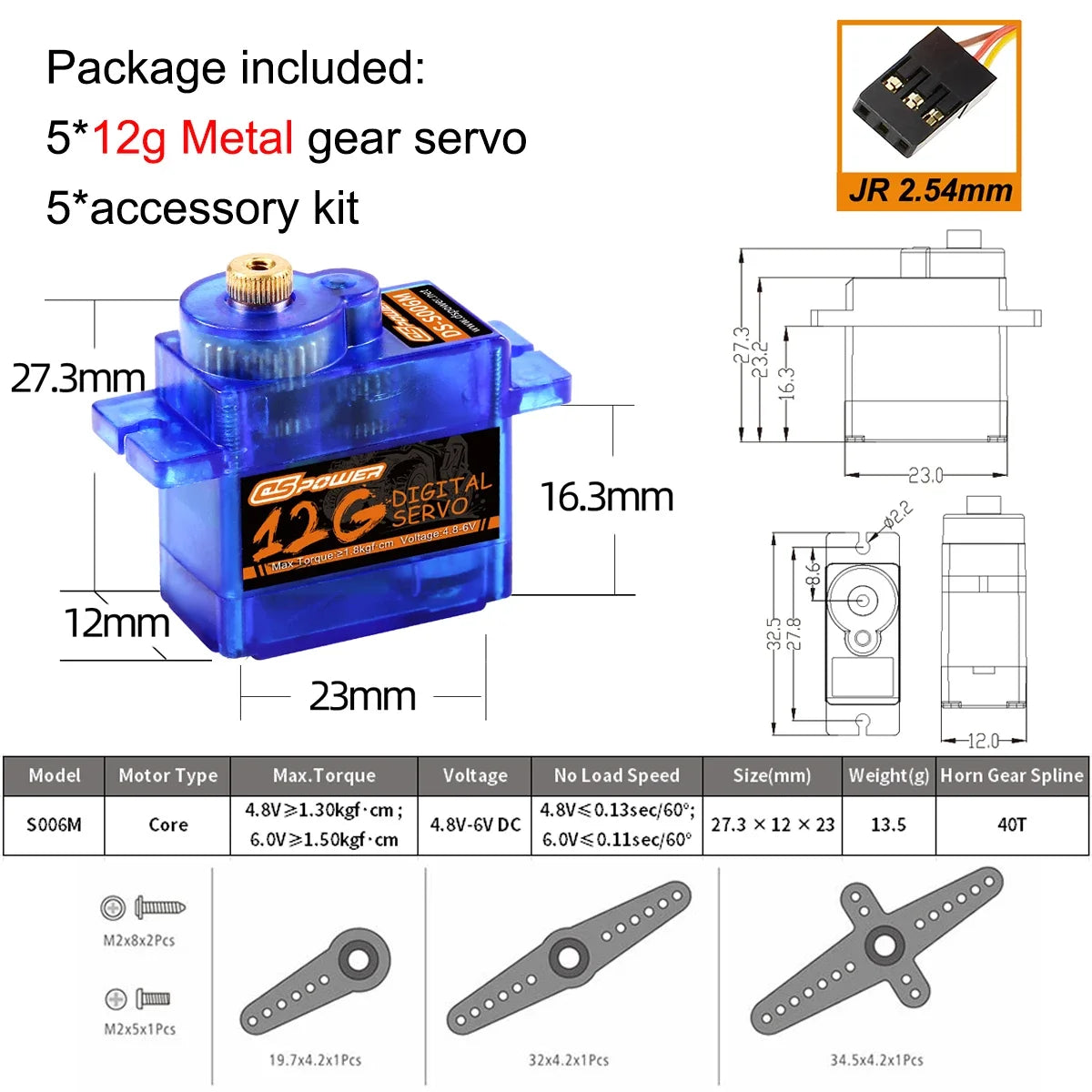

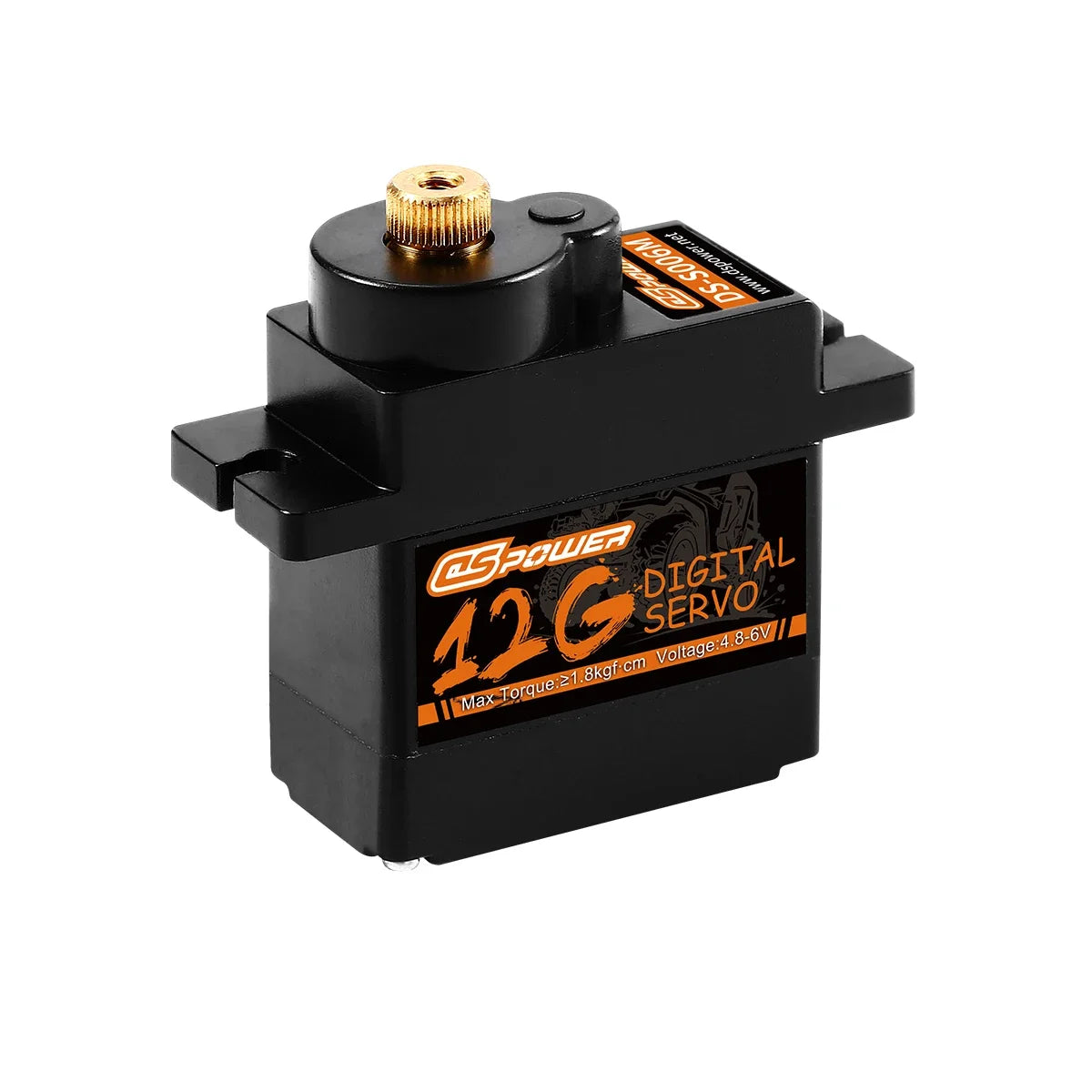

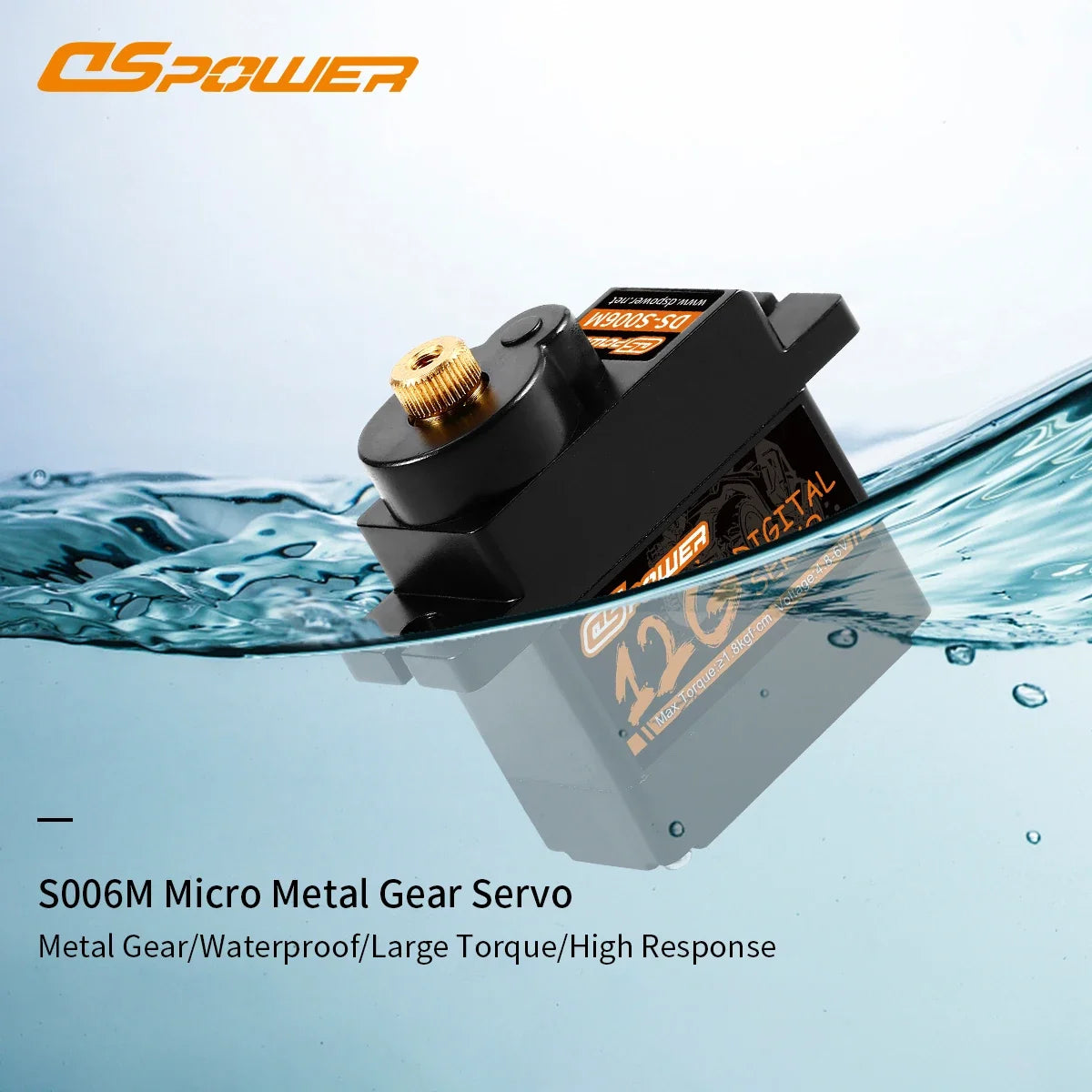

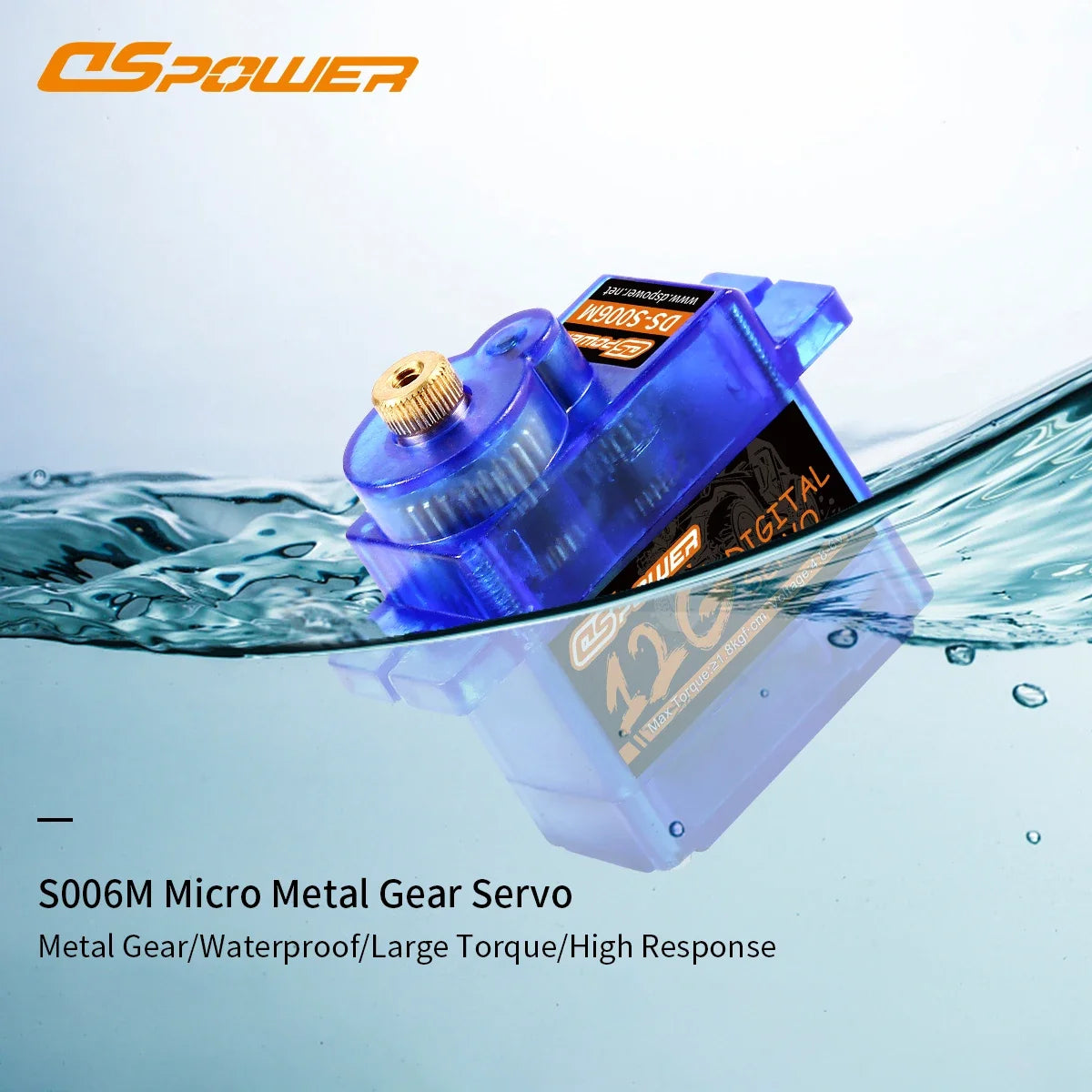

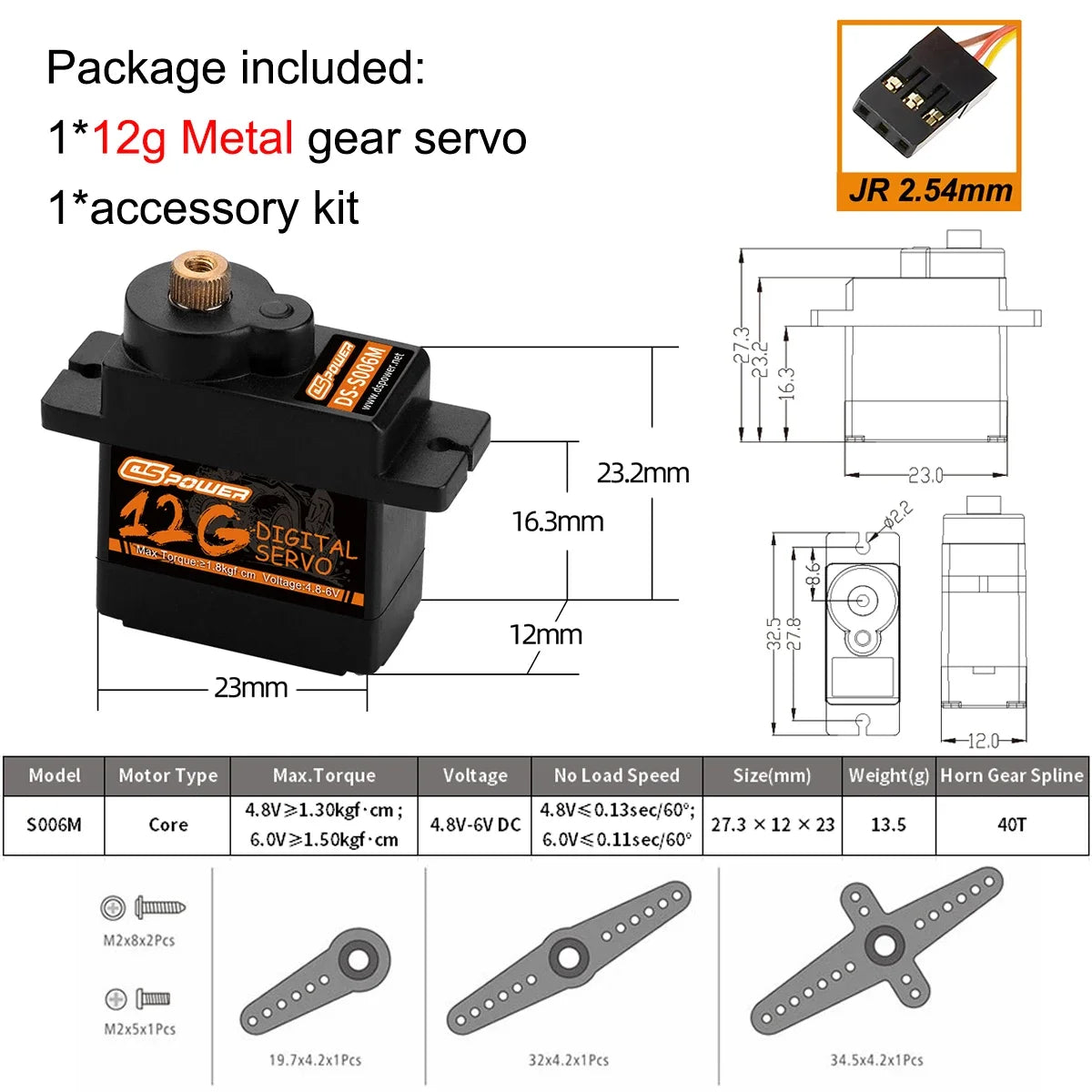

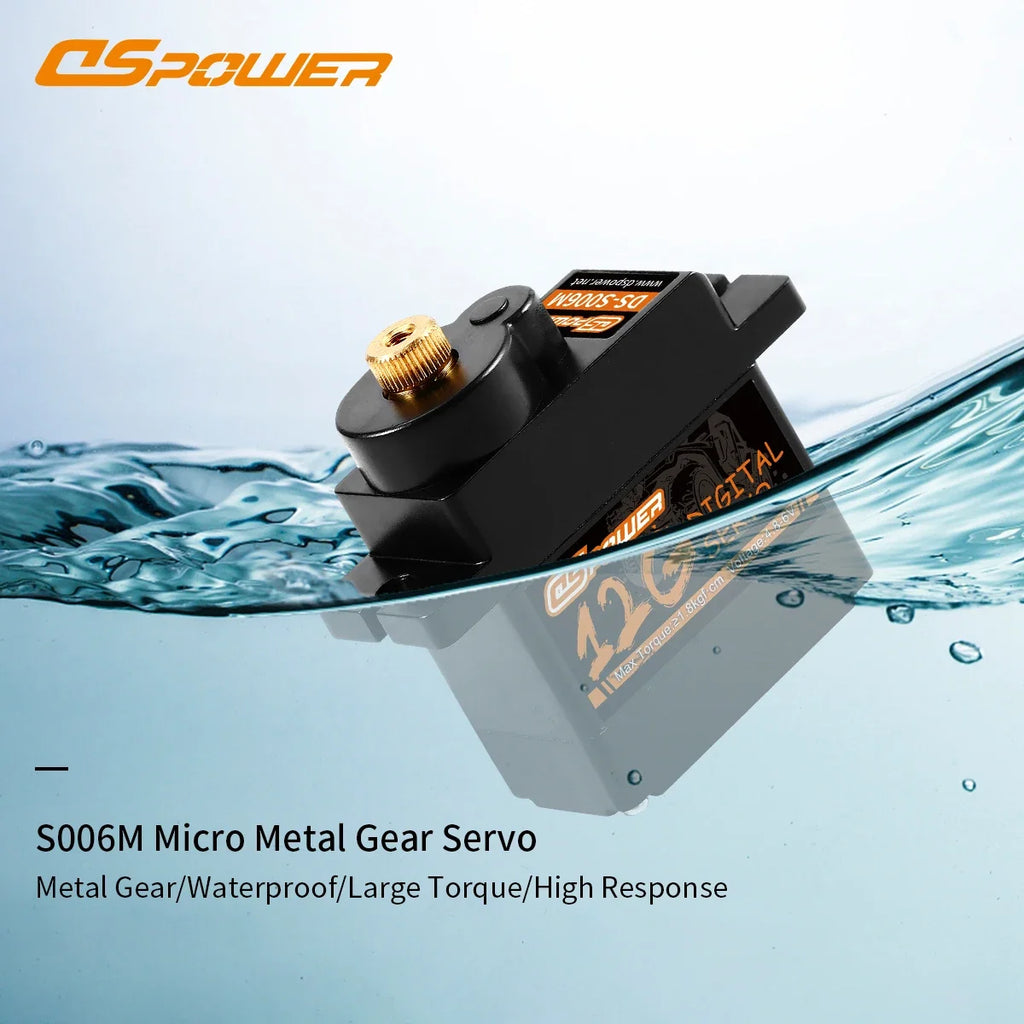

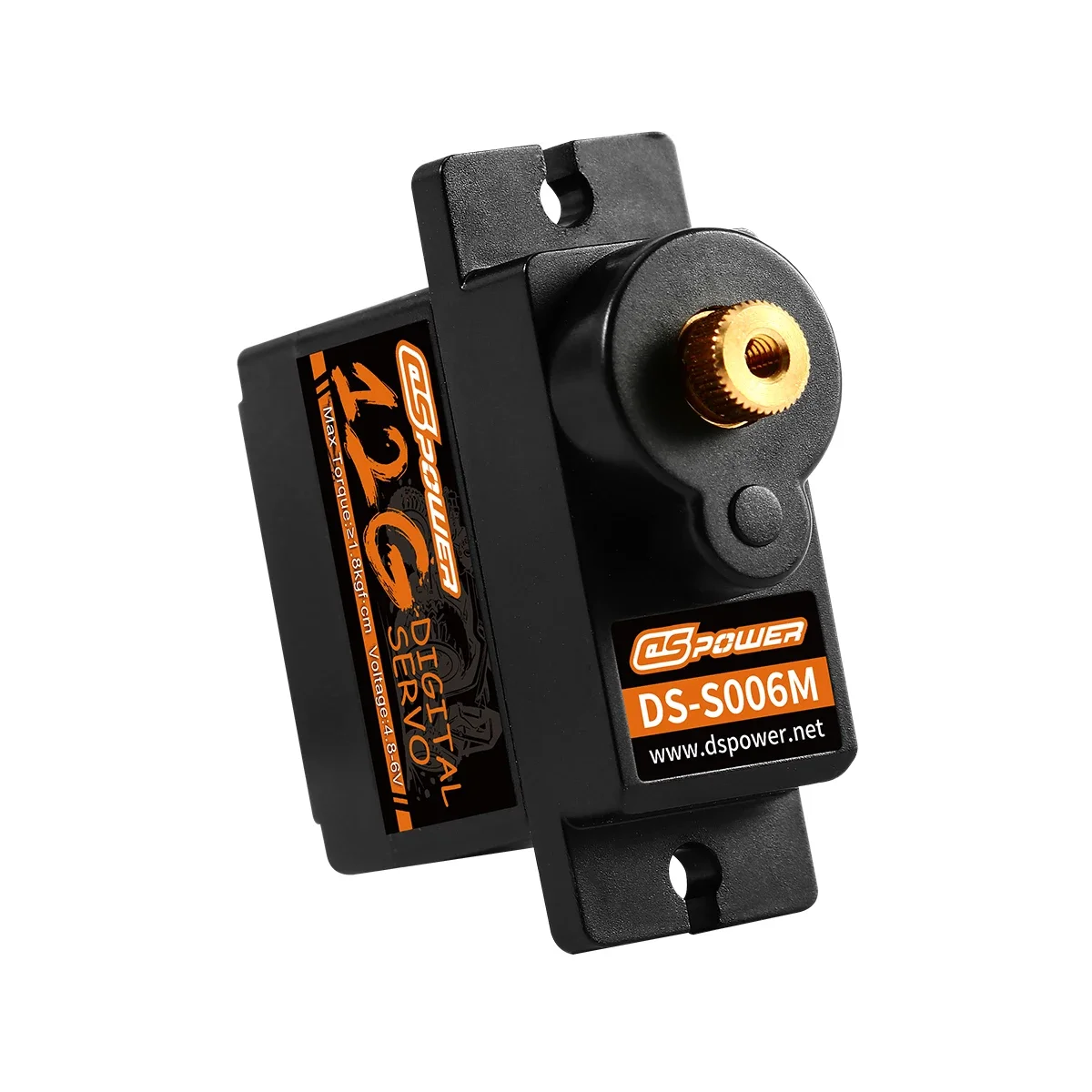

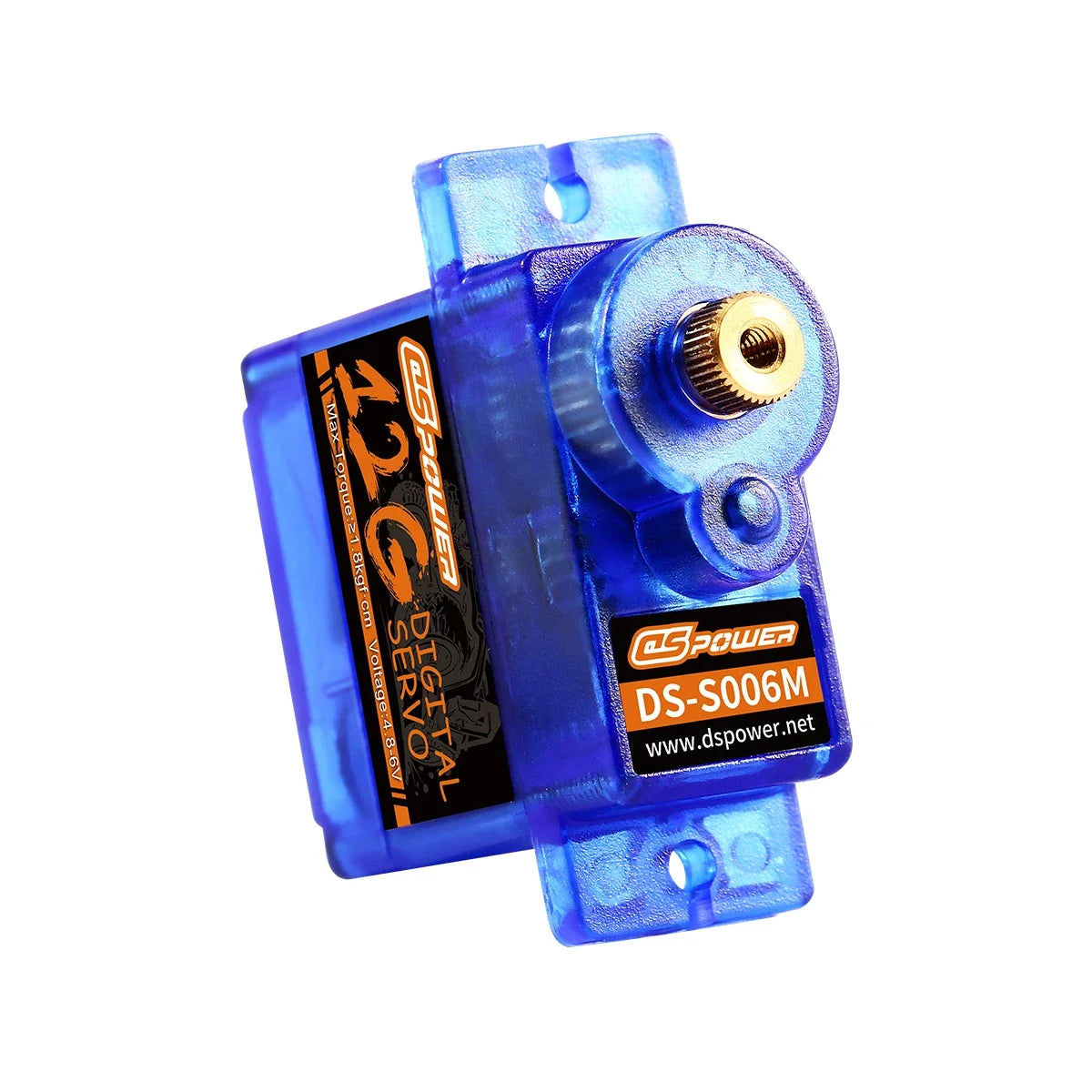

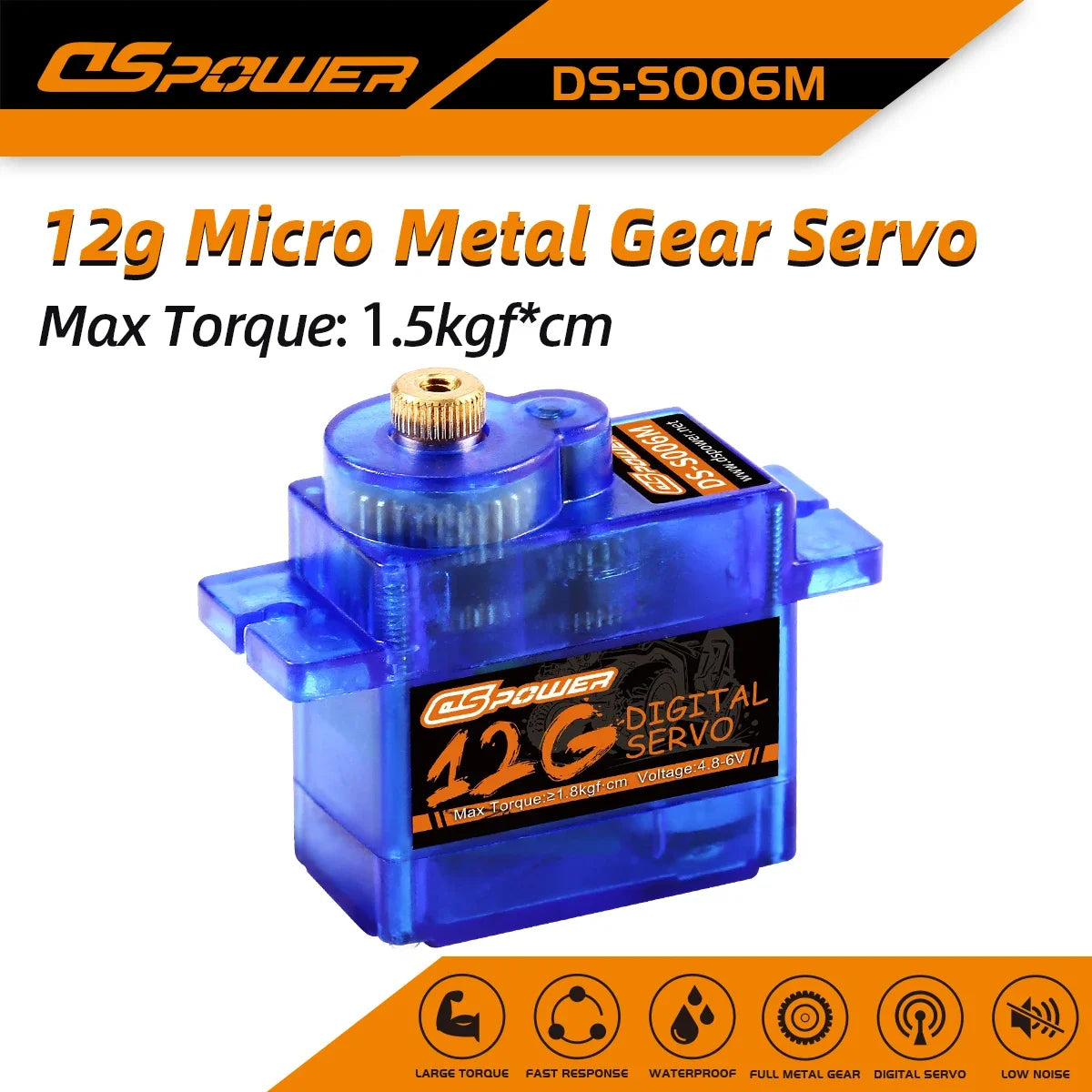

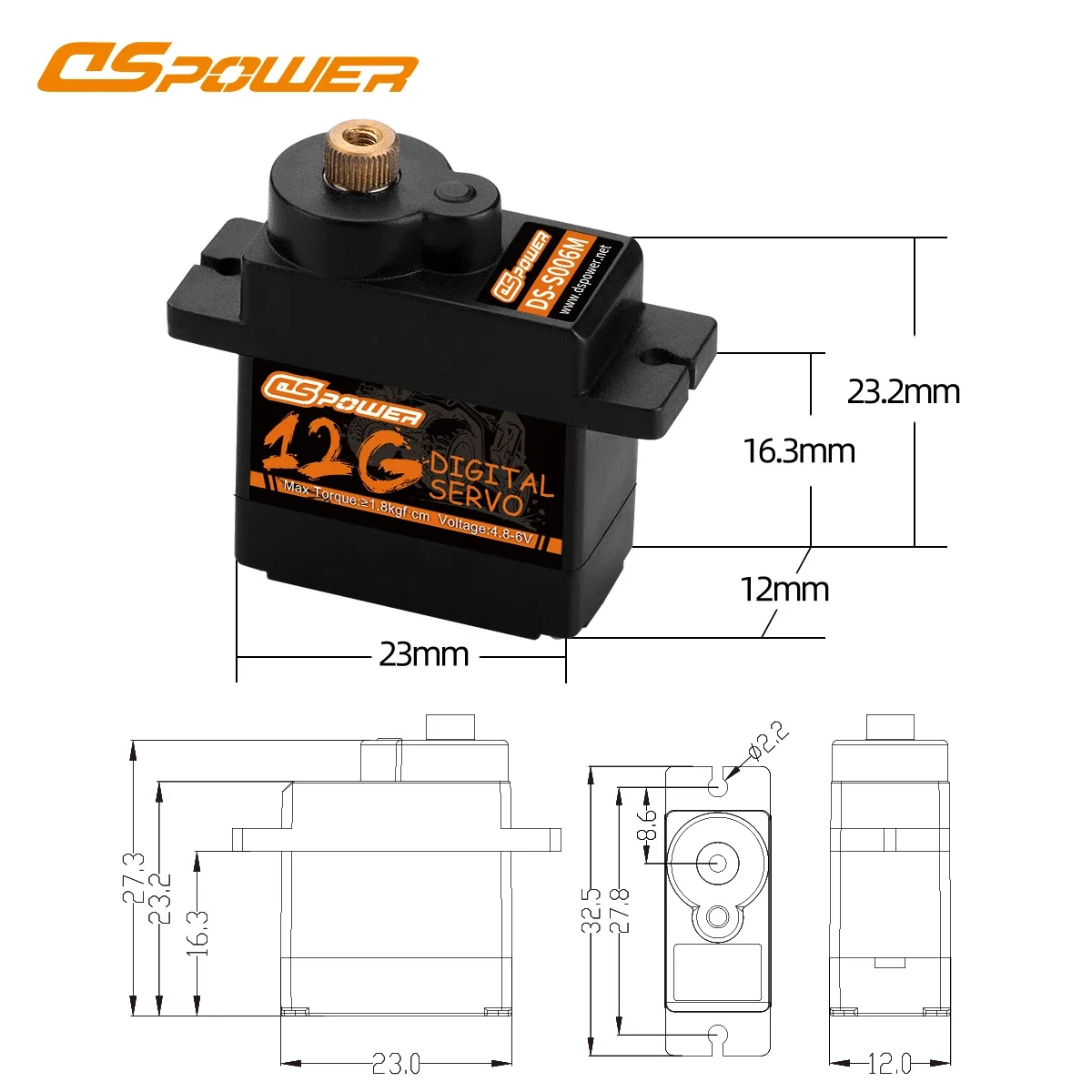

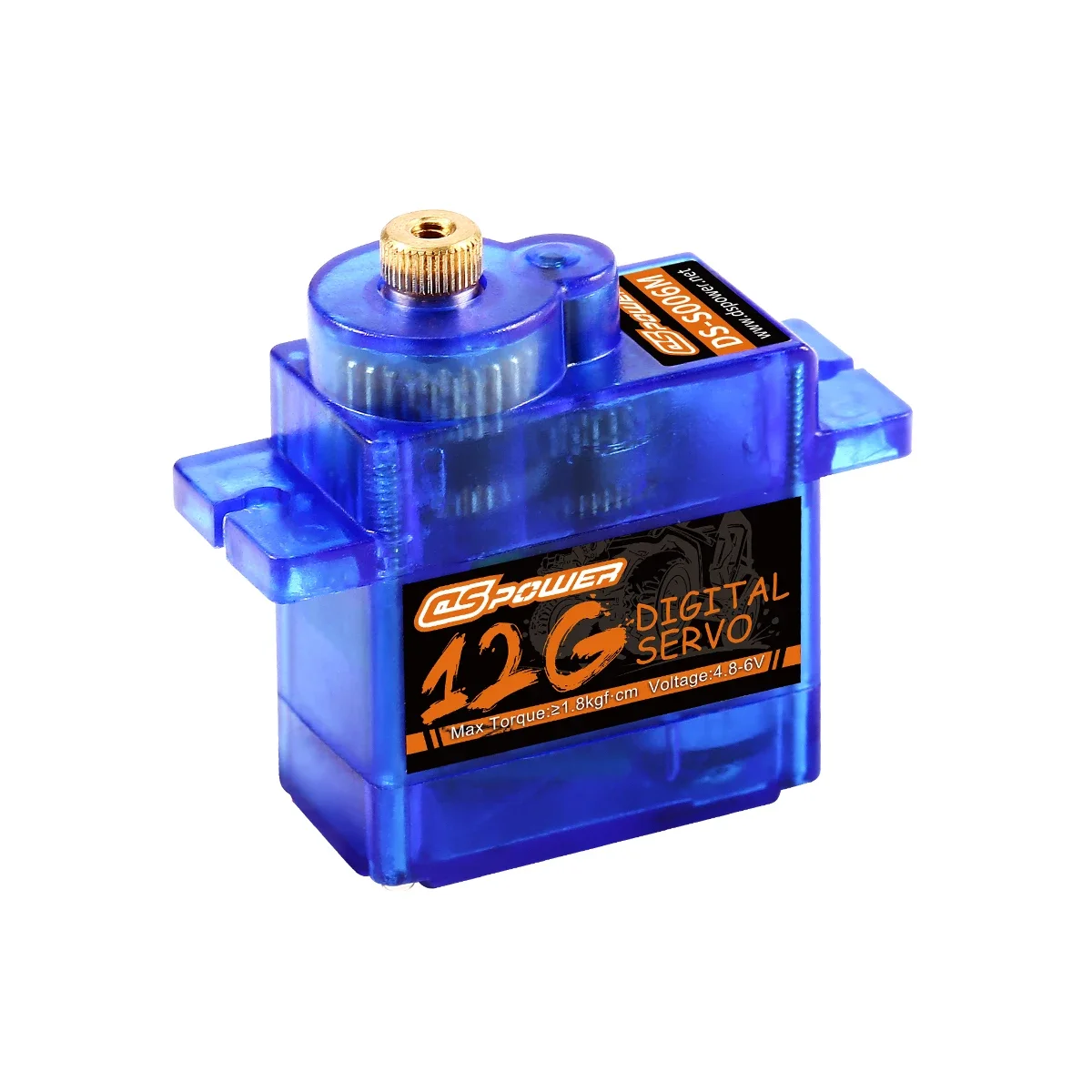

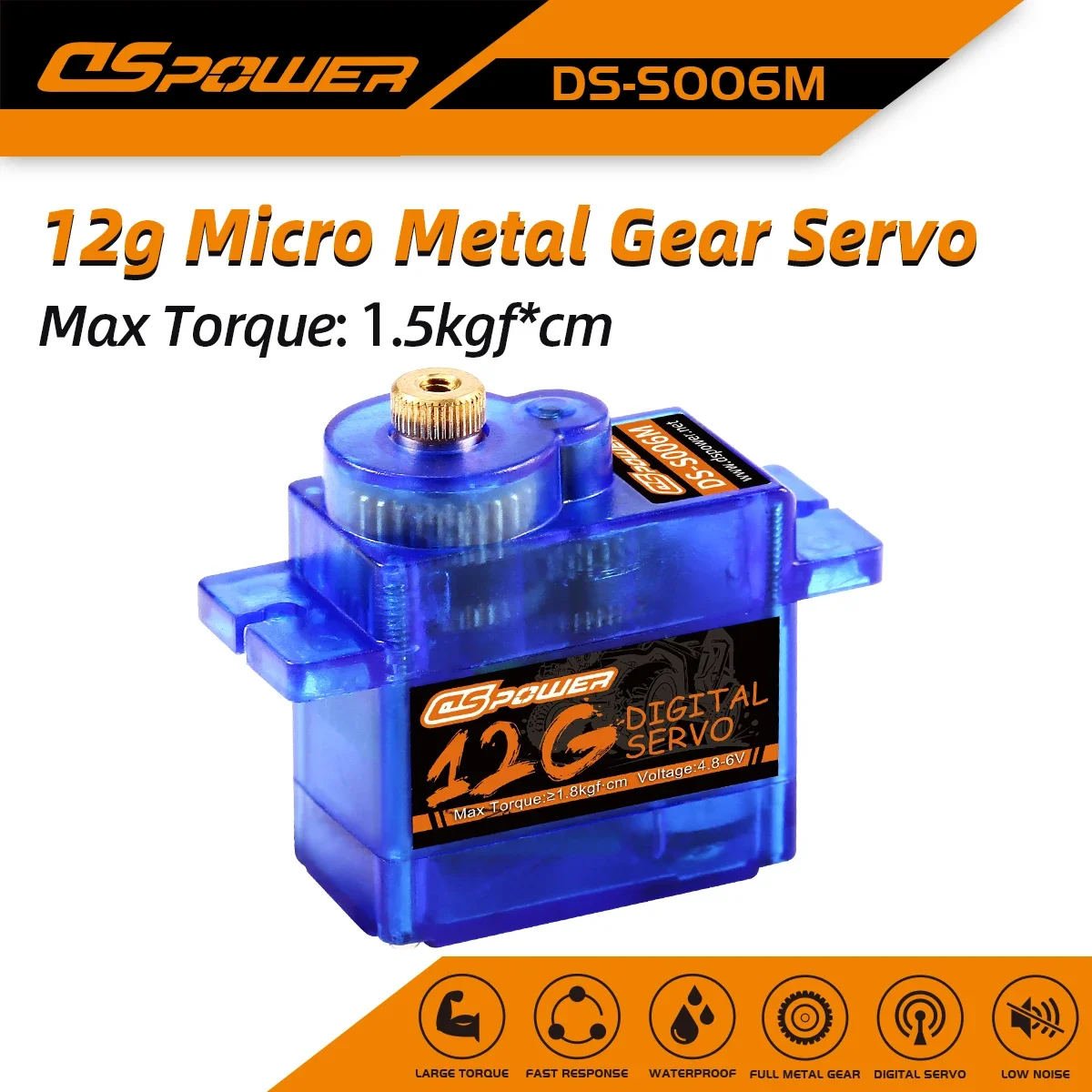

12g Metal Version:
Specifications:
Item name: DSpower S006M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥1.30kgf·cm ; 6.0V≥1.50kgf·cm
No Load Speed : 4.8V≤0.13sec/60°; 6.0V≤0.11sec/60°
Stall Current:4.8V≦700mA;6.0V≦800mA
Consumption Current* (No Load):4.8V ≦150mA ;6.0V≦170mA

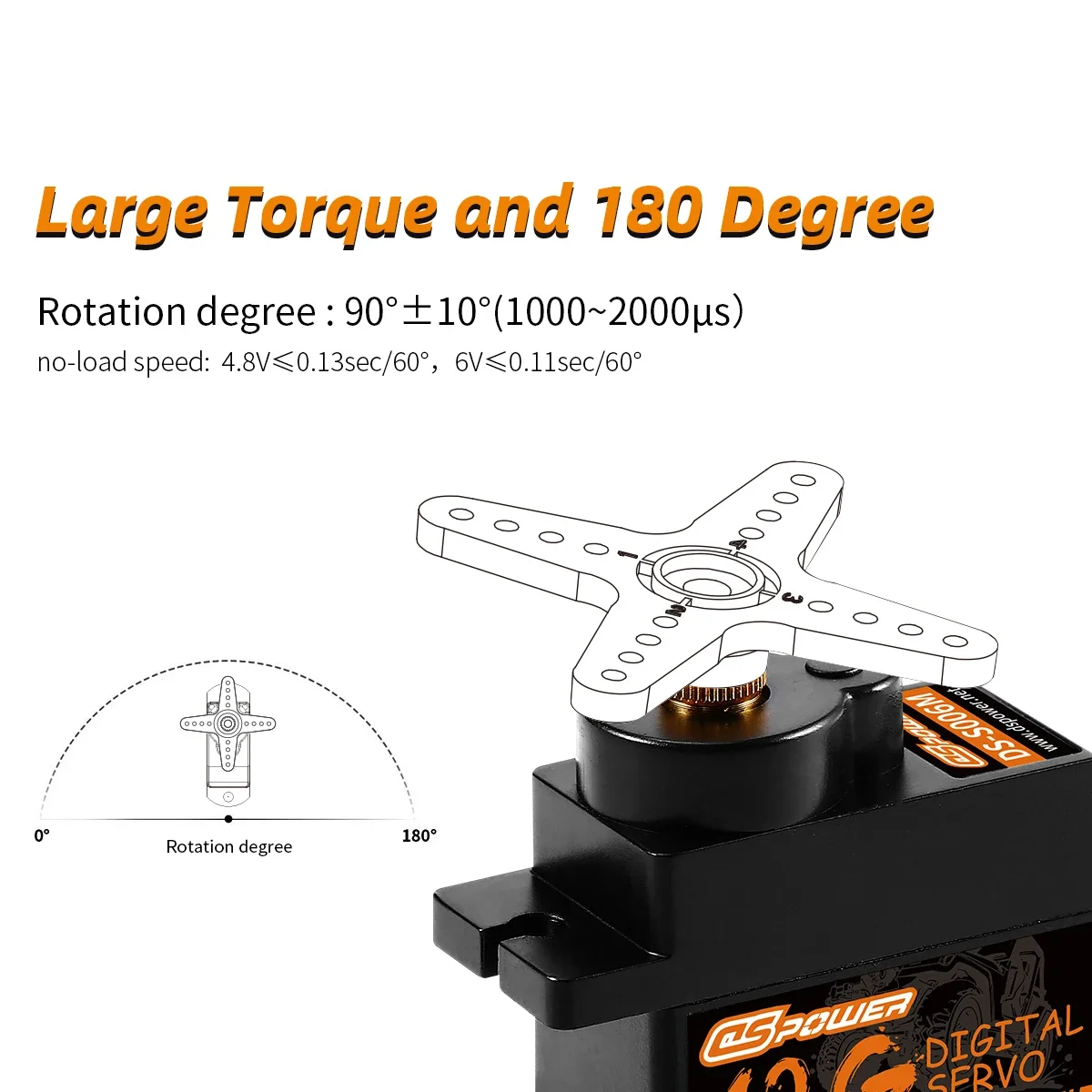

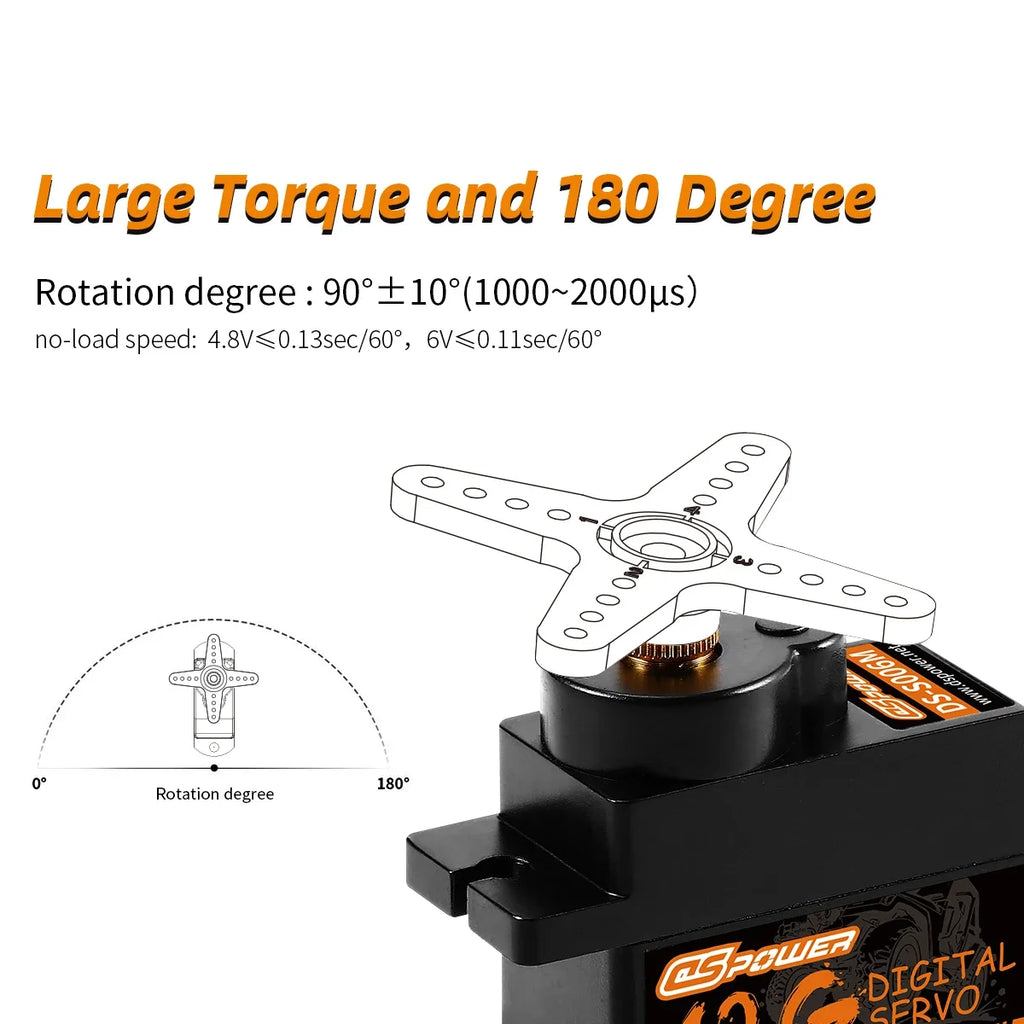

Max. Operating Travel Angle:180°±10°(1000~2000μs)
Dead Band Width: ≤ 1us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS

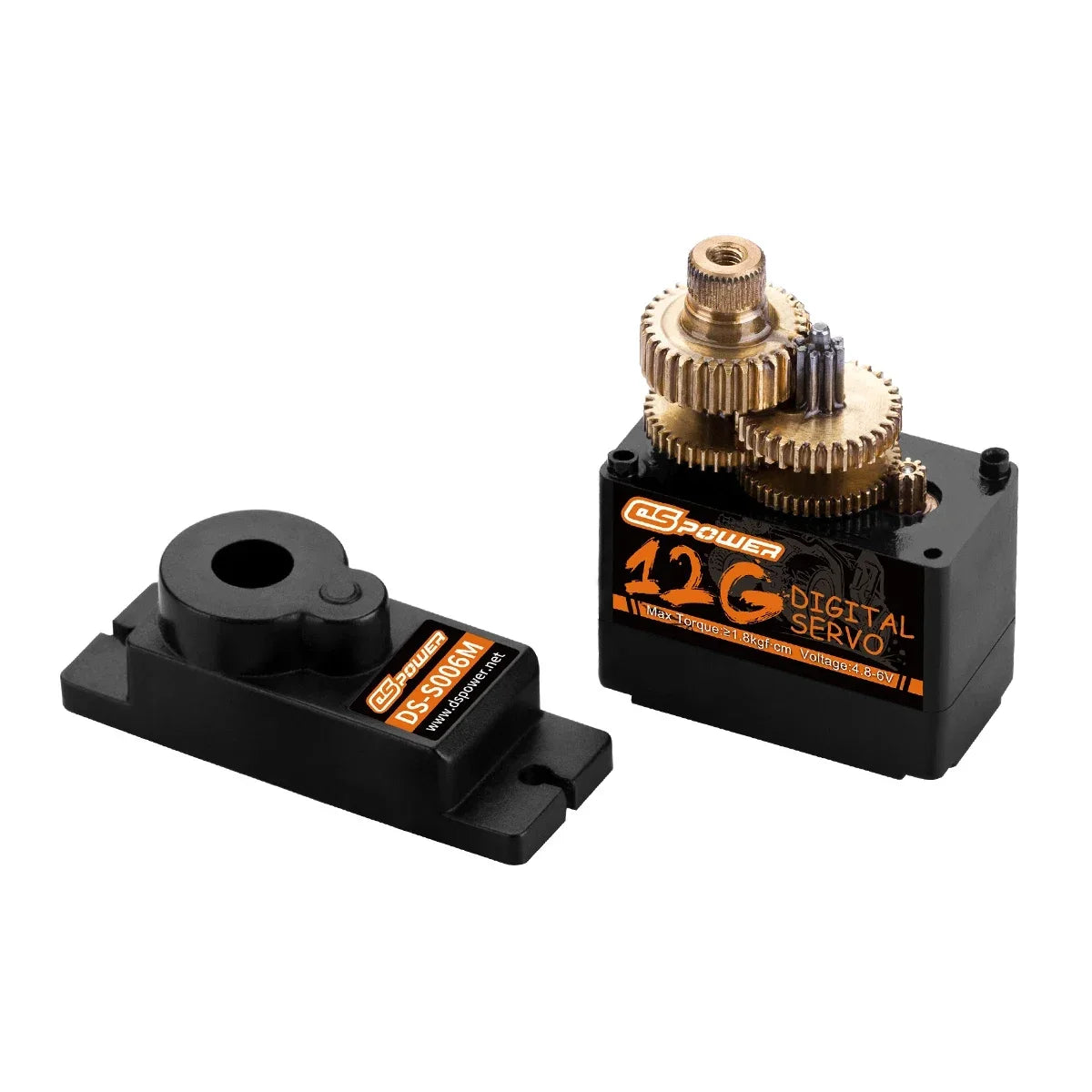

Gear Set Material : Metal gear
Weight: 13.5g
Size: 27.3 × 12 × 23mm
Length of Connector cable: JR 250±5mm (exposed without plug)

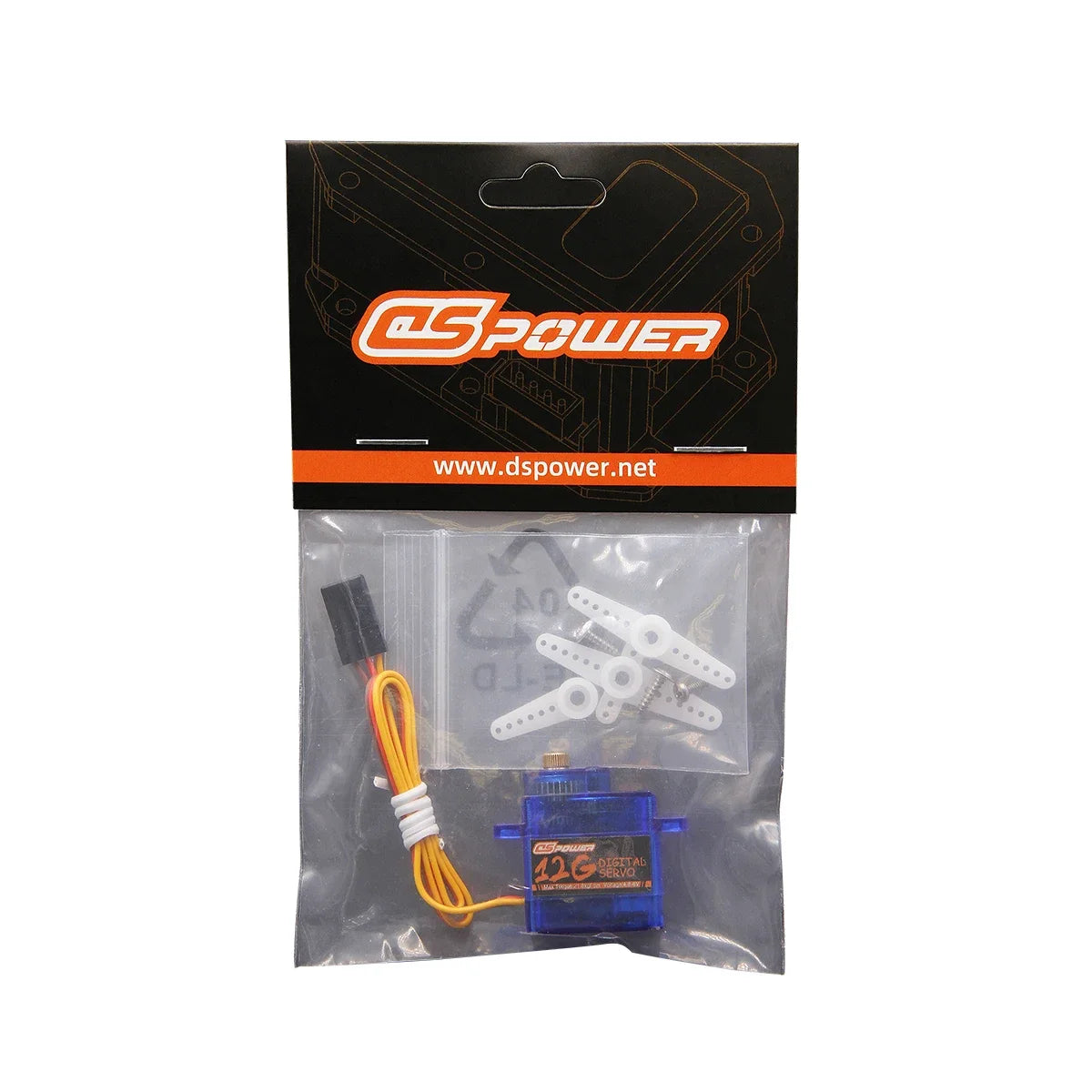

Package included:
1/5* 12G Digital Servo
1/5* Servo Arm Accessories.
