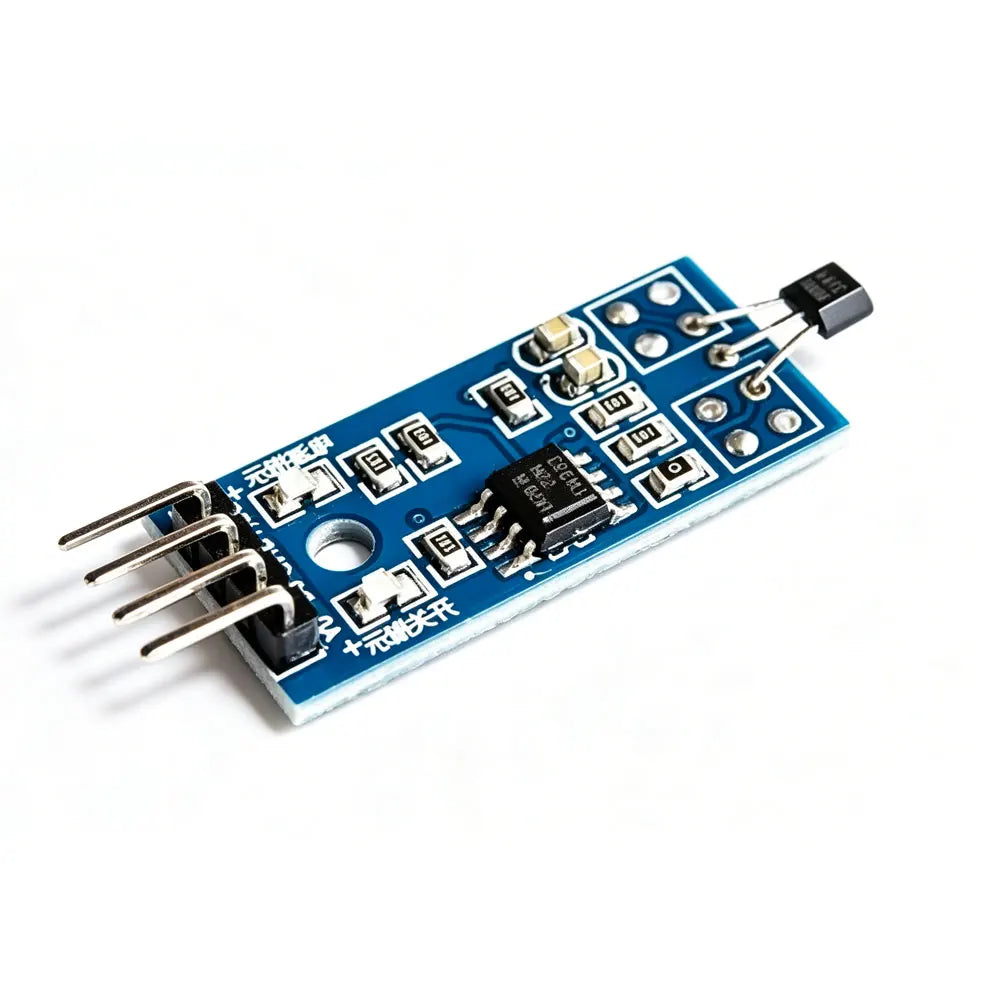

1-5pcs Hall Sensor Motor Speed Measurement Module 3144E Single Open Circuit Speed Sensor 3144 Count Sensor A3144 Board A3144E
1pcs
$3.38
Sale price
$3.38
Regular price
$0.00
Skip to product information
1-5pcs Hall Sensor Motor Speed Measurement Module 3144E Single Open Circuit Speed Sensor 3144 Count Sensor A3144 Board A3144E
$3.38
Sale price
$3.38
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
High-concerned chemical: none
Origin: Mainland China
sensor module counting sensor speed sensor Hall sensor
A module Description:

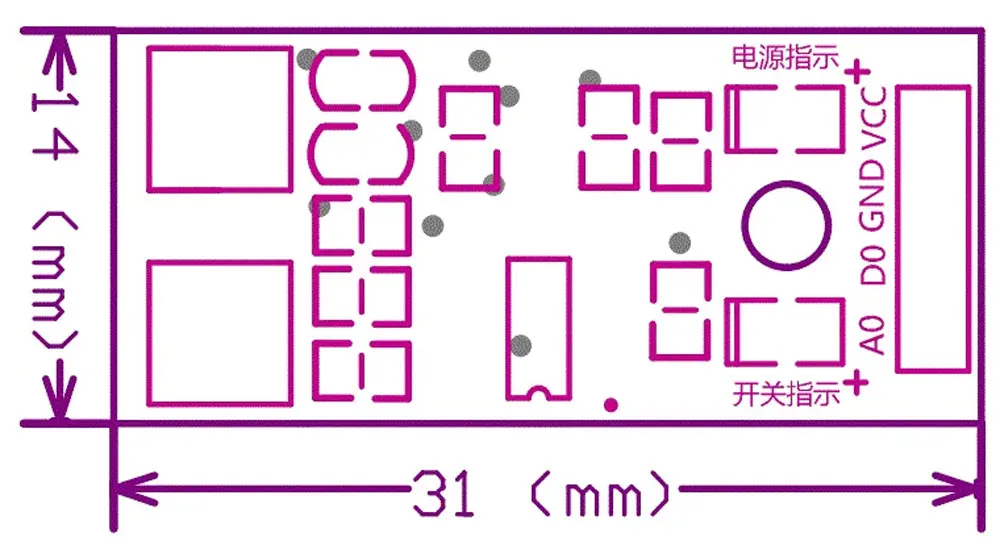

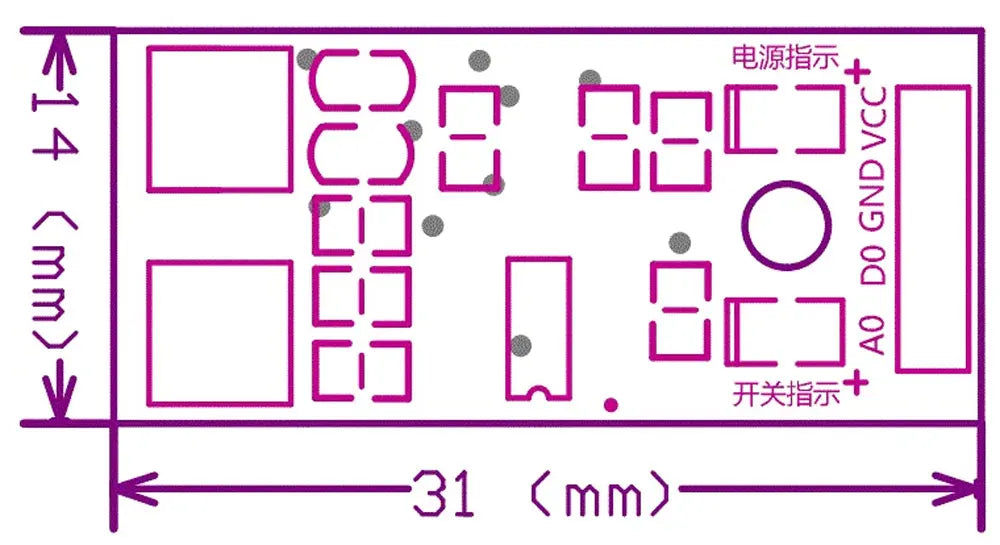

1 Size: 2.7 cm * 1.4mm
Main chip 2: LM393,3144 Hall sensor
3 Operating voltage: DC 5 V
Description two module interface (4-wire)
1 VCC external voltage of 5V
2 GND GND External
3 DO platelets digital output interfaces (0 and 1)
Three module features:
1, having a power indicator and a signal output instruction.
2, a single channel output.
3, no trigger module outputs a low level; trigger module outputs a high level.
4, sensitivity adjustable (fine adjustment).
5, there is a cutting signal output magnetic field.
6, the output switch circuit board can be directly connected microcontroller shop or relay modules, a buzzer module.
7, can be used for the motor speed / position detection applications.
