SX1262 XL1262-SMT 433MHz 868MHz 915MHz: LoRa Spread Spectrum Wifi Wireless Transceiver Module Low Power Consumption

SX1276 LORA/GFSK 868MHZ 915MHZ Wifi: Transceiver Module SX1262 SX1278 CMT2300A 433MHz 470MHz Spread Spectrum Long-Range

Smart Electronics Experiment: Switch And Sensor For Arduino STM32

Supply Voltage: 1.8-3.6V 20dBm LORA/GFSK

Type: Logic ICs

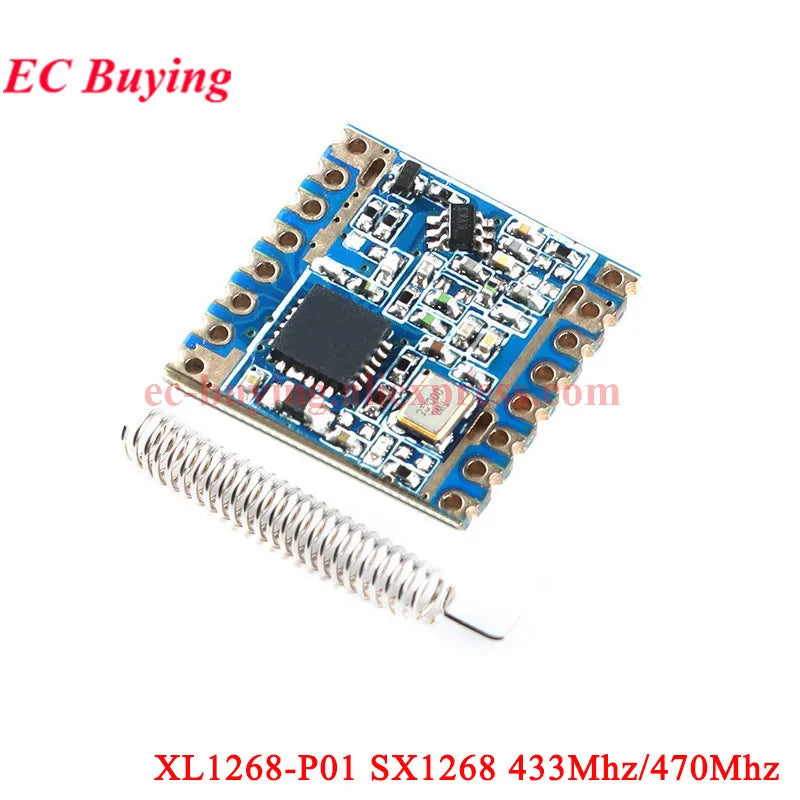

XL1268-P01 SX1268 433Mhz/470Mhz: XL2300-SMT CMT2300A 433MHz 470Mhz SI4438 SI4432

XL1278-SMT SX1278 433Mhz: XL1276-P01 SX1276 868Mhz 915Mhz

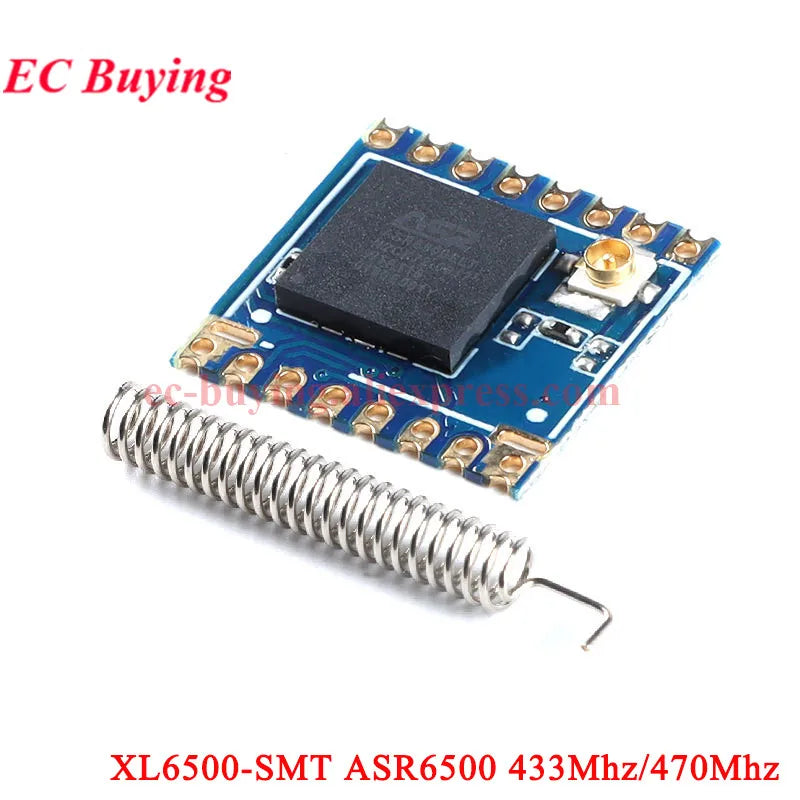

XL6500-SMT ASR6500 433Mhz/470Mhz: XL1262-SMT SX1262 433Mhz 868Mhz 915Mhz

frequency band: 433 470 868 915 Mhz 433M 470M 868M 915M Hz

is_customized: Yes

Product Parameters:

Working voltage: 1.8V ~ 3.6V
Working temperature: -20 ~ 70 ℃
Operating frequency: 410 ~ 525 MHZ
Transmitting power: 19 ~ 20.5 dBm
Receiver sensitivity: frequency deviation 5K

BW = 62.5KHZ SF = 12

BW = 125KHZ SF = 12

Product Features:

FSK / GFKS technology, LoRa (remote) spread spectrum technology
Half duplex communication
Super anti-jamming (channel rejection ratio: 56db)
High Receive Sensitivity -139dbm. (32M Passive 10ppm Crystal)
ISM multi-band, no need to apply for frequency free use.
Multi-frequency optional, a variety of transmission rate. Can be used in FDMA and FM technology.
Intelligent reset, low voltage monitoring, timer wakeup, low power mode, sleep mode
Low power consumption to accept current: 10-12mA
256-bit FIFO TX / RX
RSSI channel detection function
Transmission mode: FIFO / direct mode (recommended FIFO pack mode)
Configuration: AFC / air wake-up function / low power consumption / carrier sense / FEC error correction / AEC encryption
Ultra-long distance transmission open up to 5KM
Small size, size: 17 * 16.5mm

Applications:

Remote remote control and remote data acquisition system
Wireless meter reading (water meter, meter, gas meter)
Wireless ordering machine, oil field, mining area, site, factory and other original 485/232 interface system
Industrial data acquisition, transmission, intelligent control system
Wireless alarm system
Smart home system
Infant Surveillance System / Hospital Paging System
Wireless small data transmission system

Pin Definition:

GND: signal ground
DI01: Digital I / O, definable
DI02: Digital I / O can be defined
DI03: Digital I / O can be defined
VCC: Power supply (3.3v)
MISO: SPI data output
MOSI: SPI data output
SCK: SPI clock input
NSS: SPI chip select
DI00: Digital I / O can be defined
REST: Reset
REST: Reset
GND: signal ground
DI04: Digital I / O can be defined
DI05: Digital I / O, can be defined
ANT: Antenna interface

XL4432-SMT is a cost-effective 433M wireless transceiver module designed by wireless transceiver IC CMT2300A. It has multiple modulation modes. The module's transmit power, working frequency, modulation rate and other parameters can be configured by the microcontroller. Based on the SPI interface, it is convenient for various MCU connections. Can do a variety of wireless two-way data transmission and reception, the microcontroller through the SPI control wireless module to transmit, receive data or sleep, the wireless module receives data through the NIRQ port to notify the microcontroller to receive, the microcontroller reads the data received by the wireless module through the SPI interface.

Parameter:

Frequency band: 433/470MHZ 433/470MHZ

Module size: 16. 5 * 17mm, interface spacing 1. 27m

Output power: 20dBm/100m

Emission current: 85mA@100mw

Receive sensitivity: -124dBm@O. 5K

Receive current: 18mA

Modulation method: GFSK

Sleep current: 1uA

Data interface: four-wire SPI

Open distance: 1000m

Module function

FSK / GFKS technology, LoRa (remote) spread spectrum technology
Half-duplex communication
Super anti-interference (channel rejection ratio: 56db)
High receiver sensitivity -139dbm.
ISM multi-band, do not need to apply the frequency of free use.
Multi-frequency optional, a variety of transmission rates. Can be used in FDMA and FM technology.
Intelligent reset, low-voltage monitoring, wake-up time, low-power mode, sleep mode
Low power receive current: 10-12mA
256-bit FIFO TX / RX
RSSI channel detection function
Transmission Mode: FIFO / Direct Mode (Recommended FIFO Packet Mode)
Configuration: AFC / Wake on Air / Low Power / Carrier Sense / FEC Error Correction / AEC Encryption
Ultra-long-distance transmission as far as 3KM open
