SPECIFICATIONS

Brand Name: emakefun

Choice: yes

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

is_customized: Yes

semi_Choice: yes

Manual Link:

RF-Nano         :  https://github.com/emakefun/rf-nano

LGT-RF-Nano :  https://github.com/nulllaborg/lgt-rf-nano

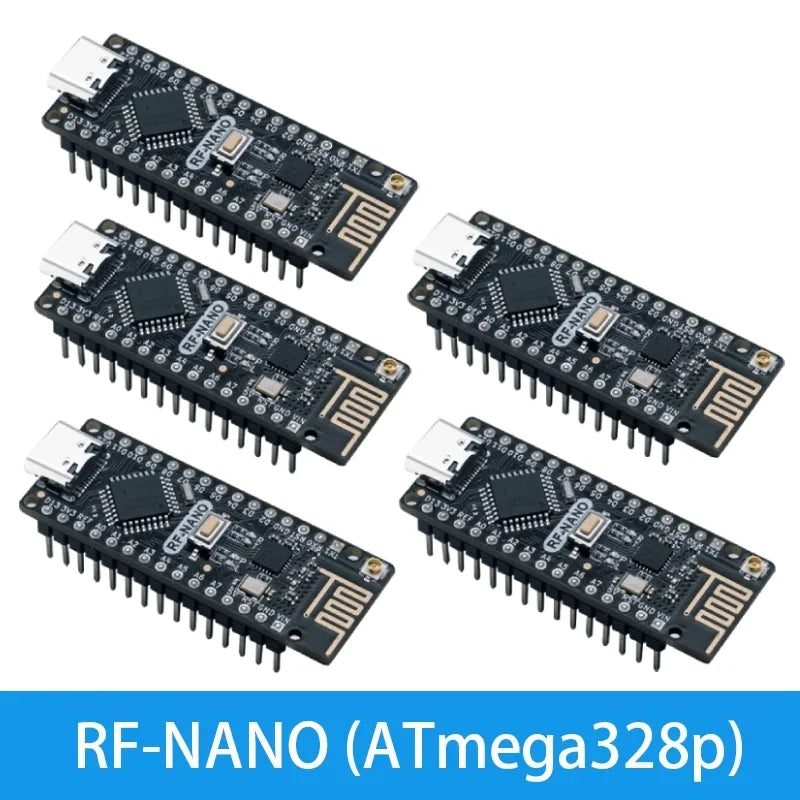

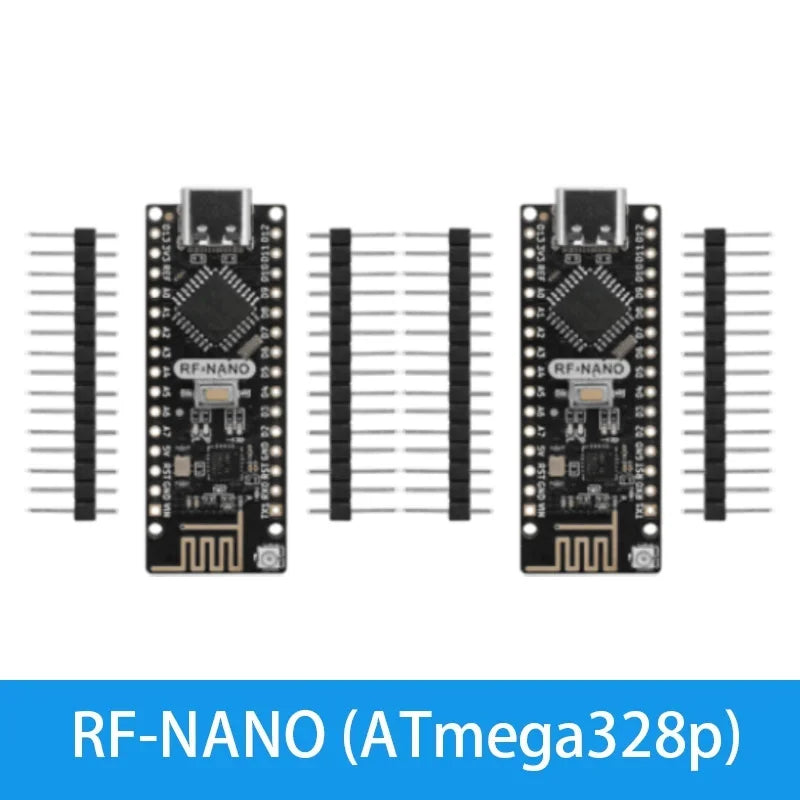

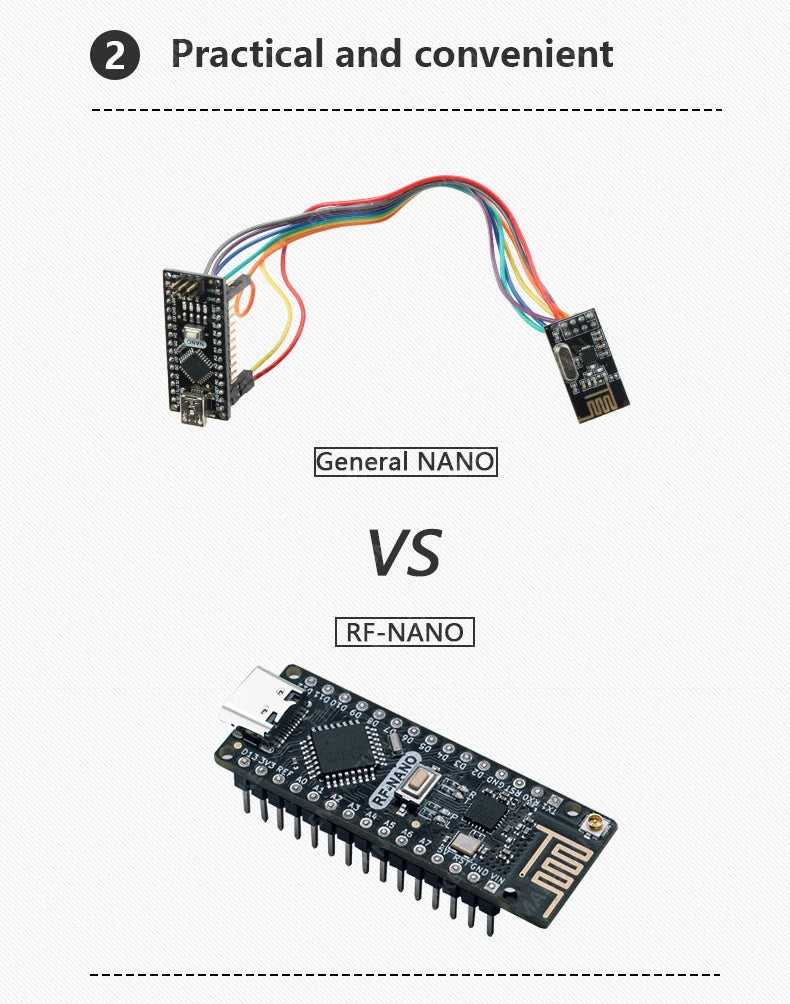

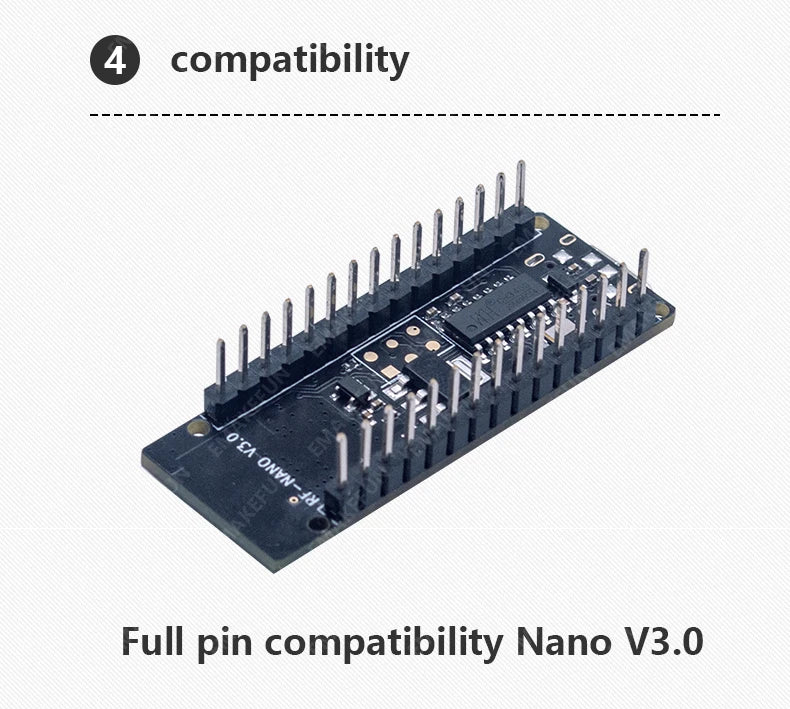

RF nanoa 2.4G wireless development boare standard nanoV3.0 development board, directly compatible with the RF24 open source library, and can be set for power consumption, transmission rate, channel, and other settings. It supports Mixly, Mblock5, and Magicblock graphical programming; Optimize the transmission distance of the onboard antenna to reach 30m, and use an IPEX patch antenna base on the board to achieve a transmission distance of up to 100m using an external antenna.

Product parameters:

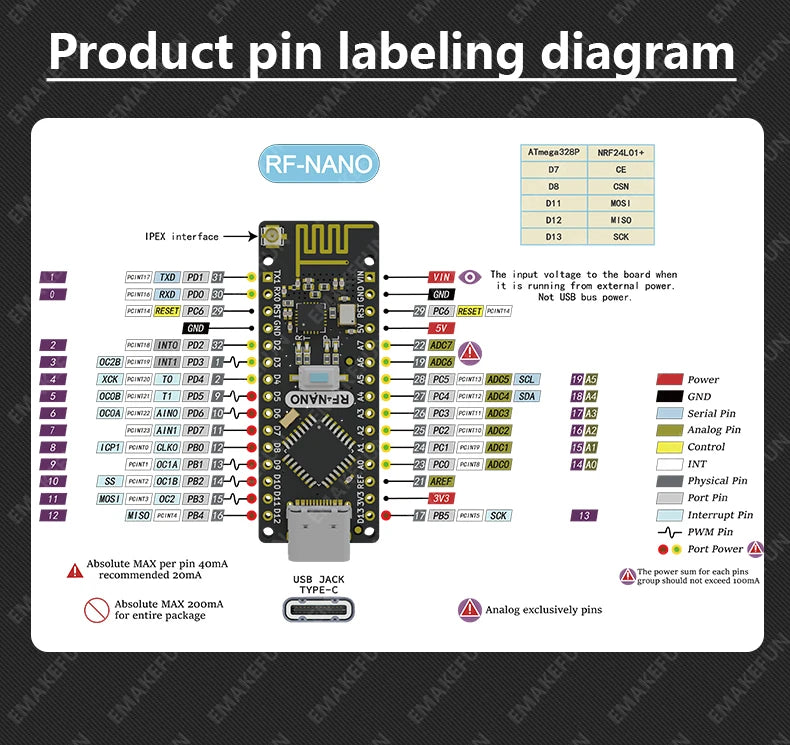

Processor : ATmega328P-AU

Operating voltage :5V Recommended VIN input voltage :6V to 15V

Digital IO Pins :22 (6 of which are used as PWM output)

Analog input pin :8 (A0~A7)

IO pin DC current :40mA

5V pin current: 1000mA at VIN input

3.3V pin current: 50mA

Flash memory :32KB(of which 0.5KB is for boot loader)

SRAM: 2KB

EEPROM: 1KB

USB to serial port chip: CH340G chip with external crystal oscillator

Working clock :16 MHZ

Notes:

RF nanoV1.0 has long been discontinued, but there are still a large number of V1.0 shaped motherboards on the market that are clone versions, with rough workmanship and many components made of refurbished materials, which are unreliable in quality. Please pay attention to distinguishing.
