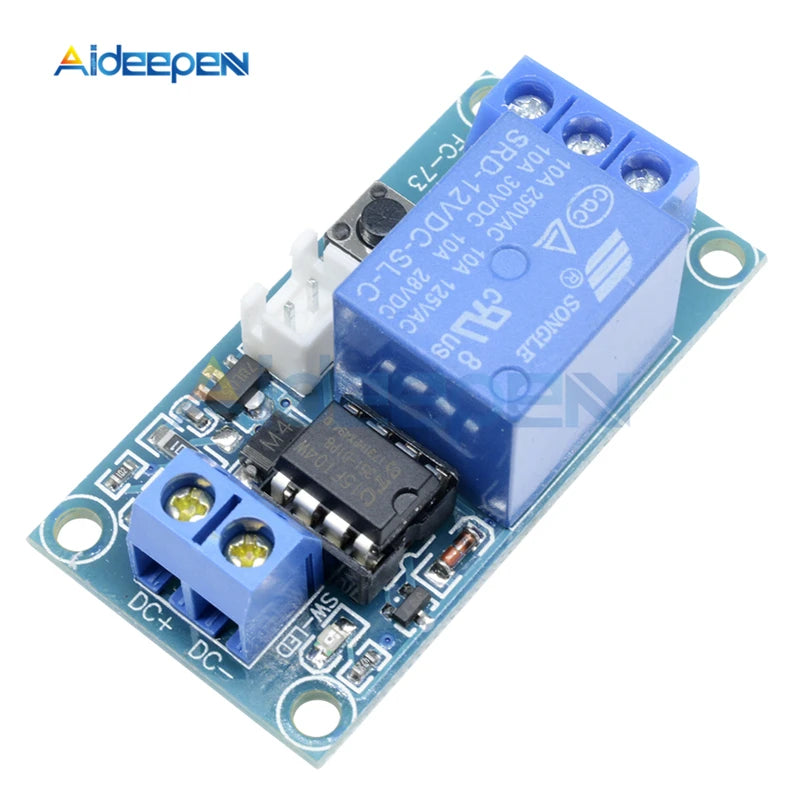

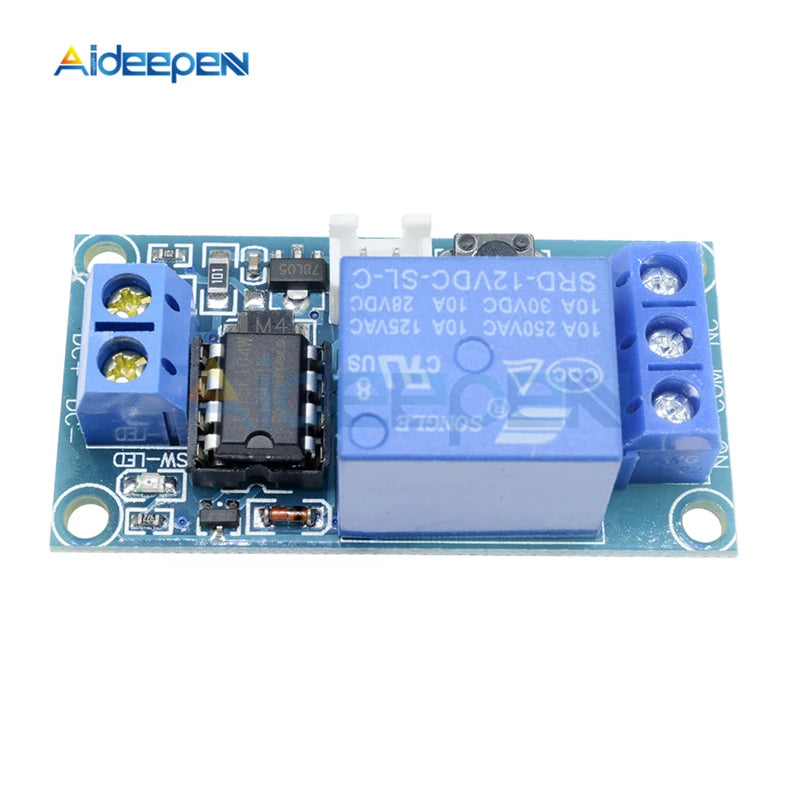

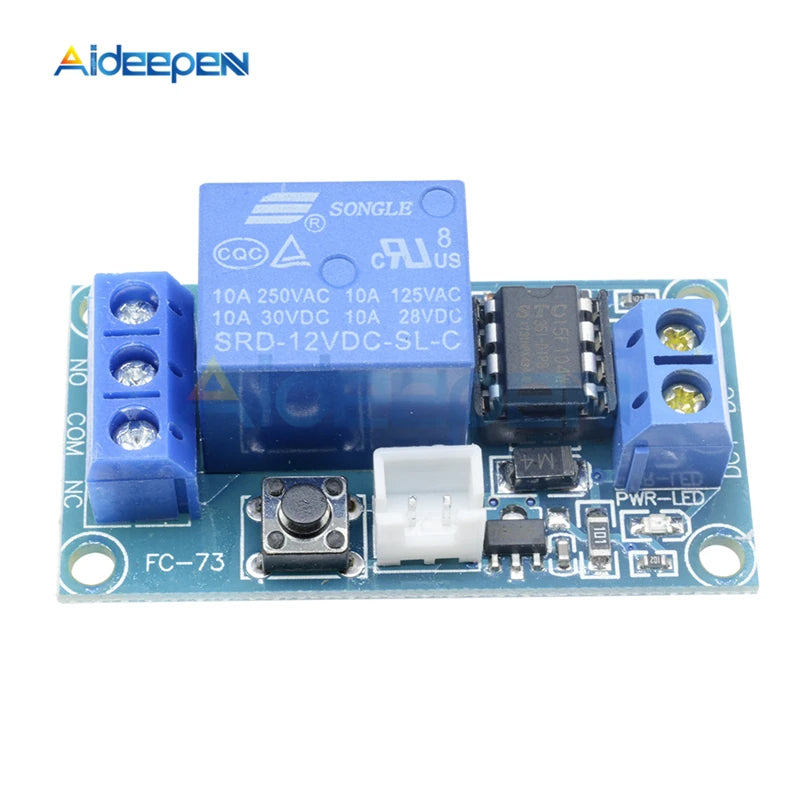

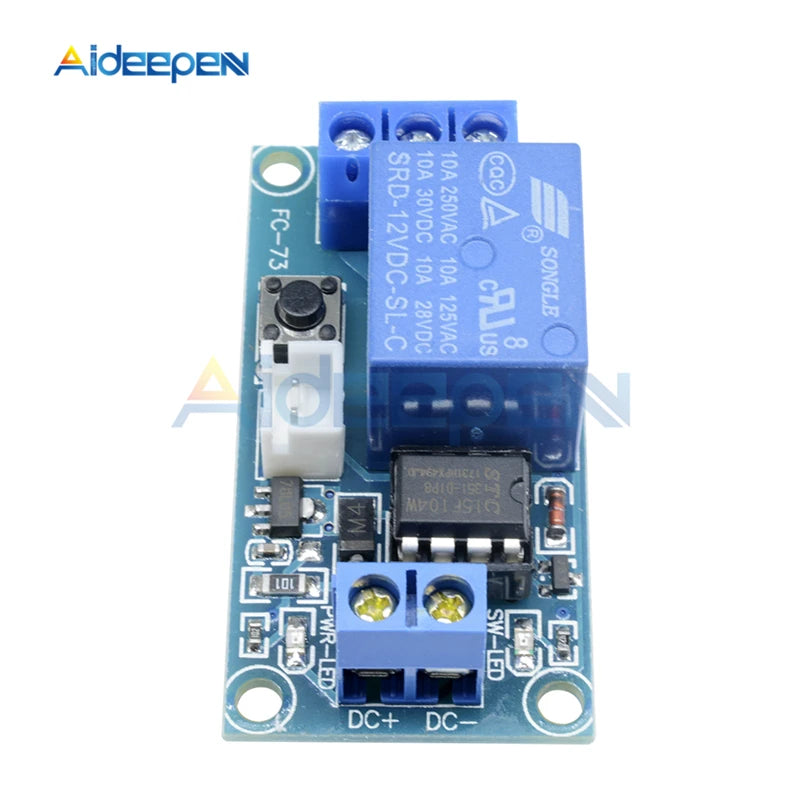

1 Channel DC 5V/12V/24V Latching Relay Module with Touch Bistable Switch MCU Control One Channel Relay

1 Channel DC 5V/12V/24V Latching Relay Module with Touch Bistable Switch MCU Control One Channel Relay

$12.06

$12.06 $0.00

Description

SPECIFICATIONS

Brand Name: Aideepen

Certification: NONE

Choice: yes

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Feature: Double panel design PCB

High-concerned chemical: none

Life: 1 million times

Load: 250V 10A (AC) or 30V 10A (DC)

Model Number: 1 Channel Latching Relay Module

Origin: Mainland China

Power Source: DC

Protect Feature: 1 Channel Latching Relay Module

Supply Voltage: 5V 12V 24V (DC)

Supply current: More than 100mA

Theory: 1 Channel Latching Relay Module

Use: 1 Channel Latching Relay Module

Voltage: 12V

is_customized: Yes

semi_Choice: yes

DC 5V/12V/24V 1 Channel Self-locking Latching Relay Module With Touch Bistable Switch MCU Control One Channel Relay

Description:

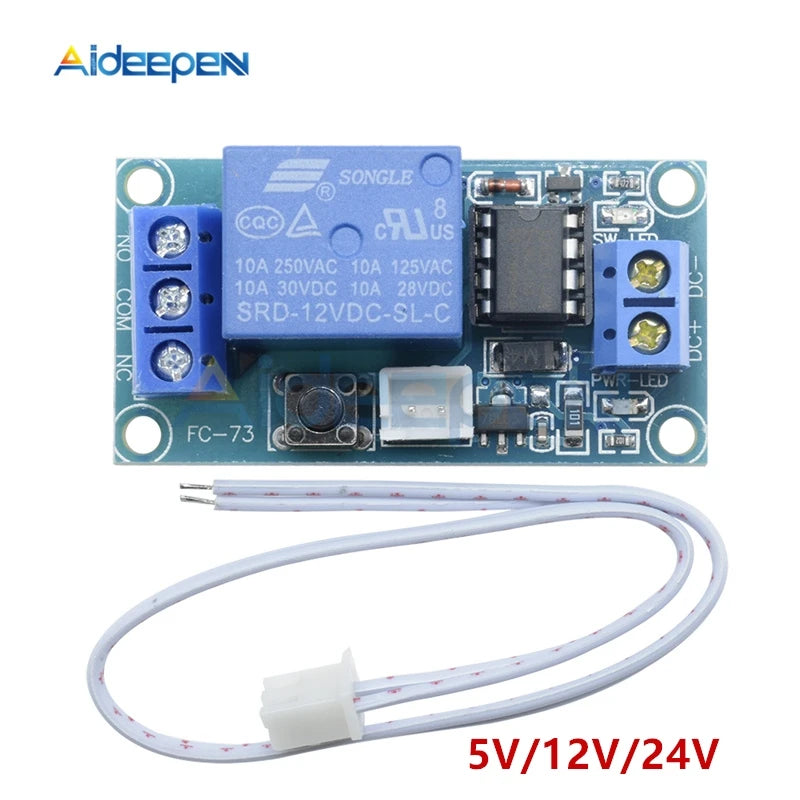

Power supply to meet the scope , DC 12V,5V and 24V

The power required by the by -line diagram , is not reversed , although the protection circuit , but not for a long time reversed ;

Product regulator slight fever is a normal phenomenon , long working hours have a normal relay heat phenomena are normal ;

Relay load power to give leave some margin should avoid high-power ( about 2000W) and long working environment , there will be some impact on the life of the product .

Features :

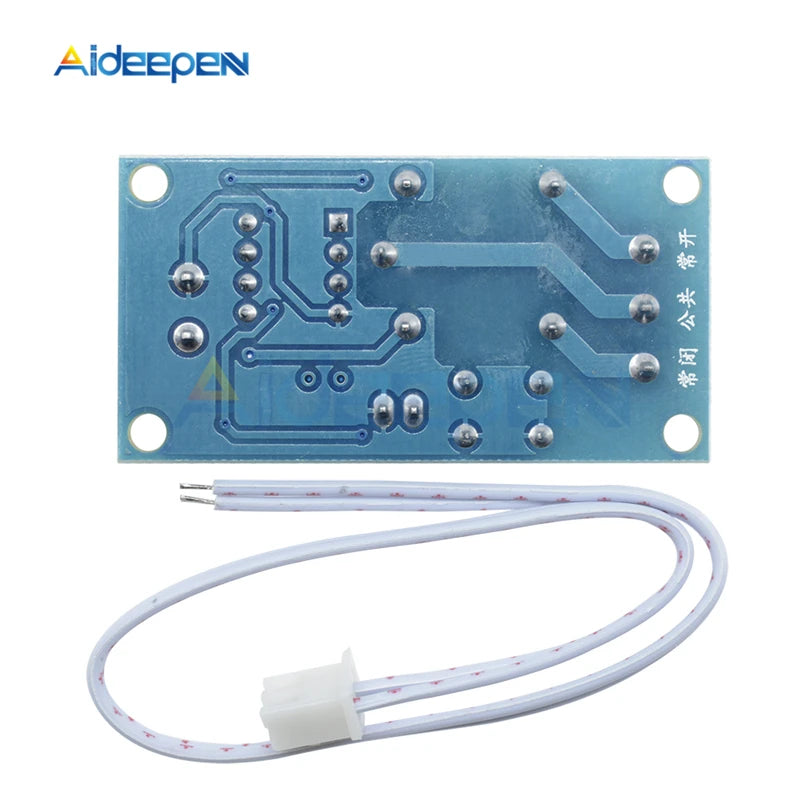

Double panel design PCB;

Chips made ??using stable and reliable control , stable and reliable performance , strong anti-interference , not false triggering , performance is superior than the CD4013 ;

Regulator has the power to provide adequate and stable voltage , and have enough vents to ensure stable and reliable product for a long time to work ;

With anti- reverse protection diode power , reverse power for a short time without any damage to the product ;

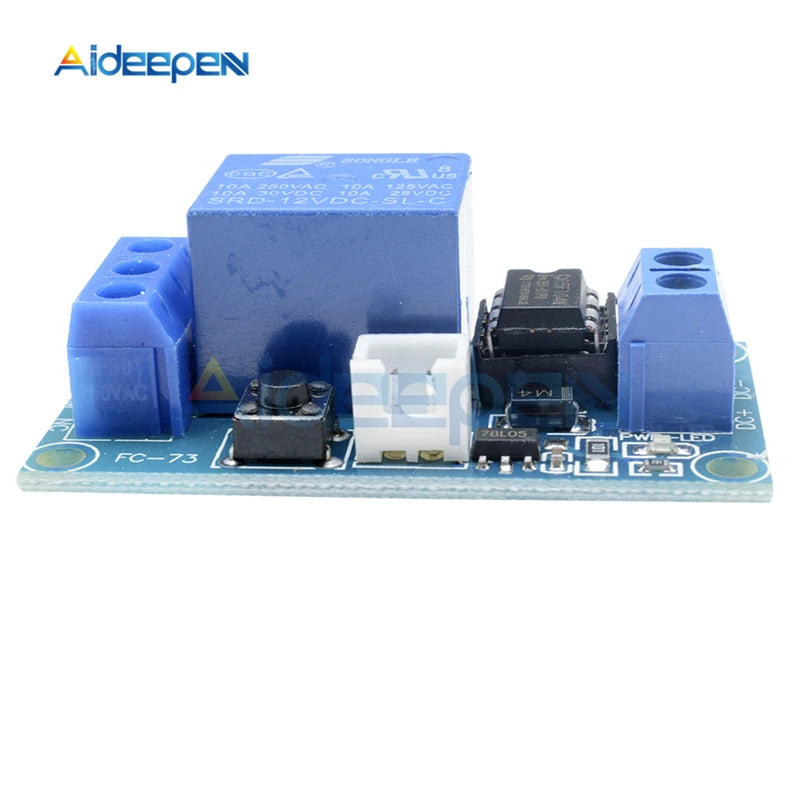

Use SONGLE genuine relay control load in 250V 10A ( AC ) and 30V 10A ( DC ) under load can withstand ;

Has a touch switch as product testing , stability testing of products directly ;

Can also trigger an external trigger switch , the products have a connection with a good seat and lead , more convenient to use ;

Triggering sensor module can also be used to do other triggers , are valid as long as the trigger is low , there are more functional expansion;

Usage:

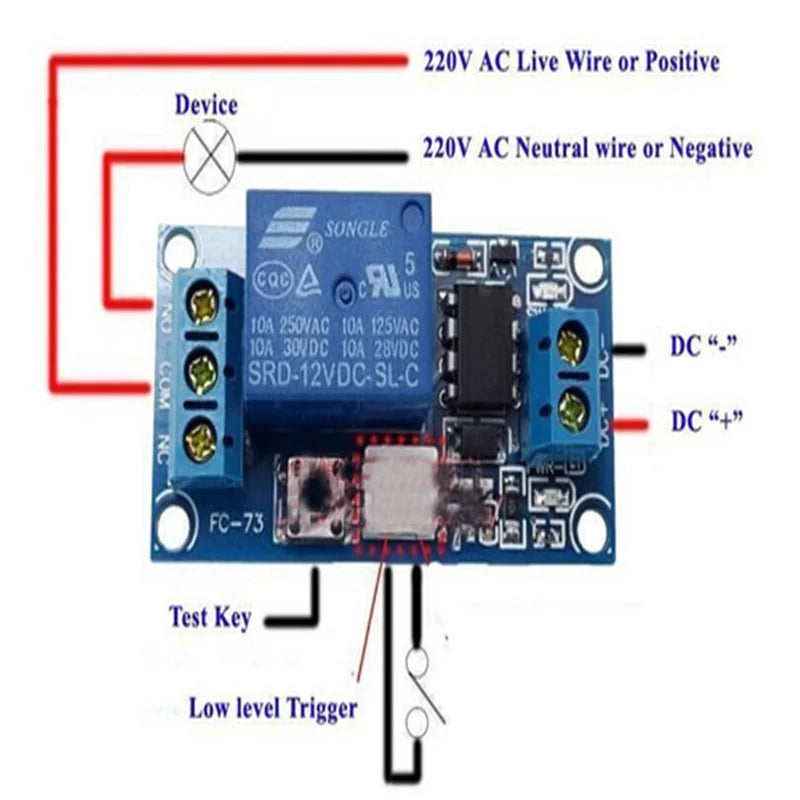

Press the trigger button , the relay is locked , press again , the relay off , you can also add the trigger switch , and the use of low-level trigger .

Control appliances , home of various lighting control, factory equipment control , current control for a variety of small high-voltage power control products .

Note:

Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenomenon.

And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Packing Included:

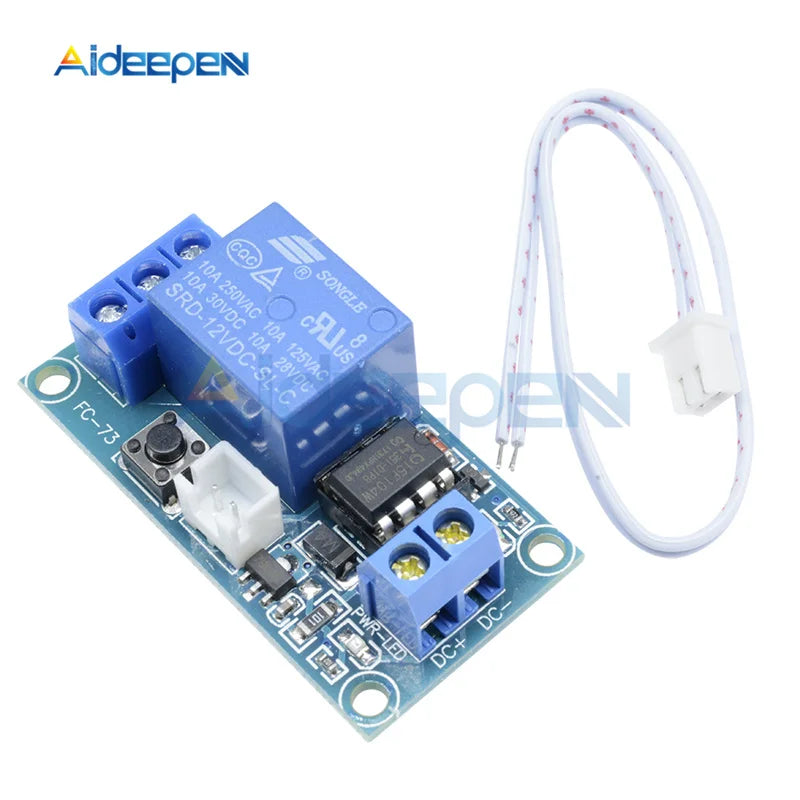

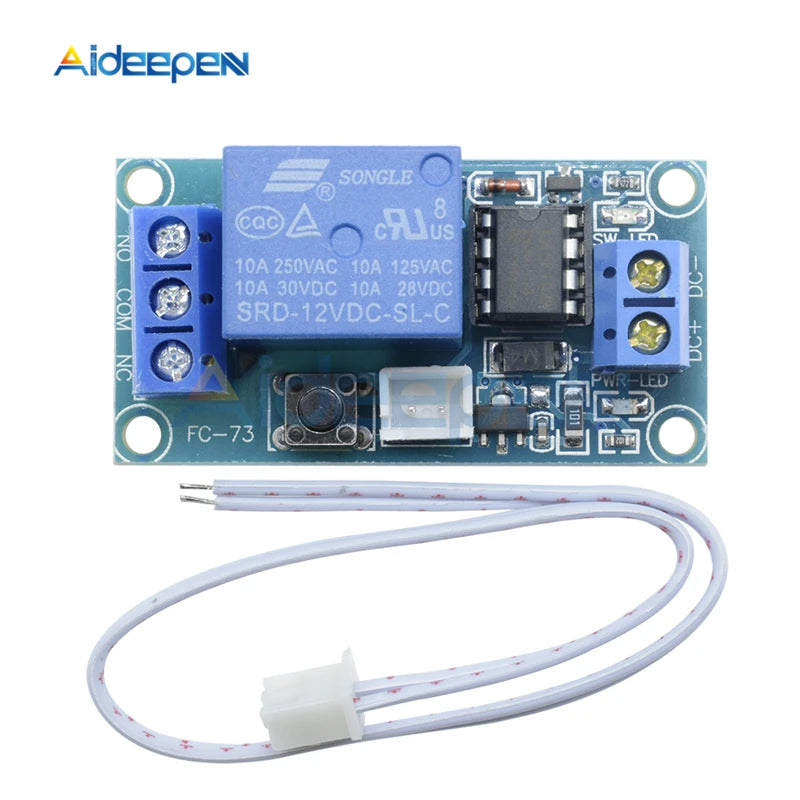

1x 1 Channel Self-locking Relay Module

1x Trigger Line
