SPECIFICATIONS

Applicable Object: Electromechanica

Brand Name: JUYORON

Certification: CE,RoHS

Contact Arrange: SPDT

Contact Load: Low Power

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Load Current: 40A

Model Number: JD2912

Origin: Mainland China

Power Source: DC,DC

Protect Feature: Sealed

Theory: Electromagnetic Relay

Voltage: 12V

is_customized: Yes

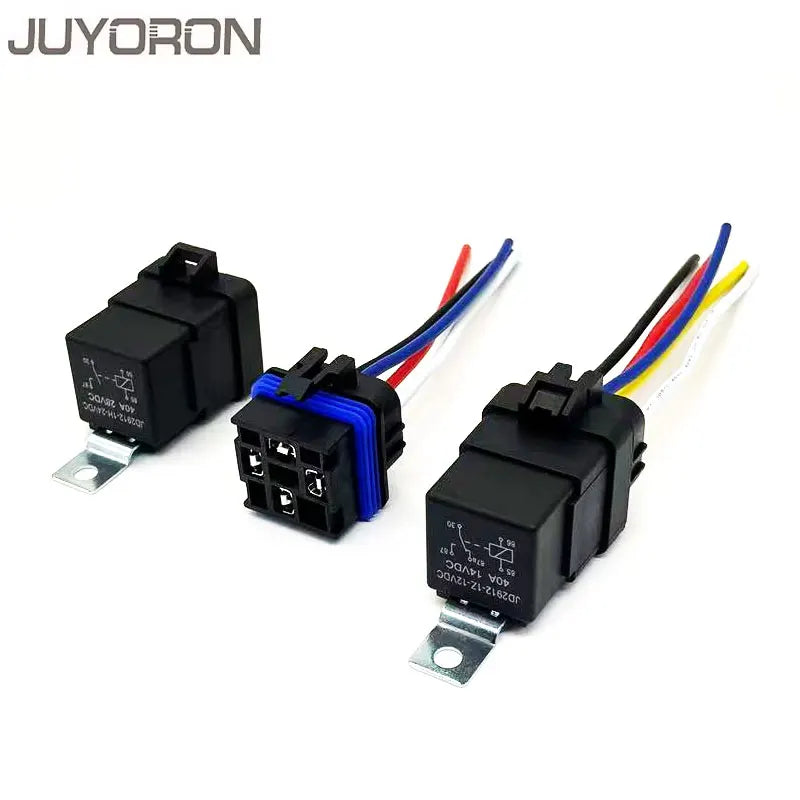

5-pin 12/24v 40a waterproof relay with harness kit:

5 pin waterproof relay With harness

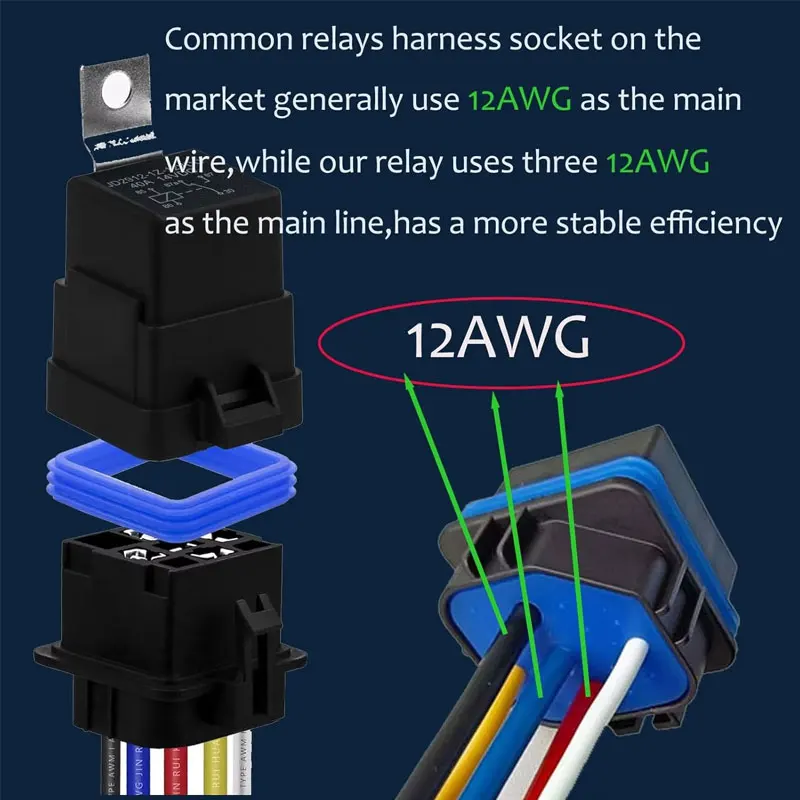

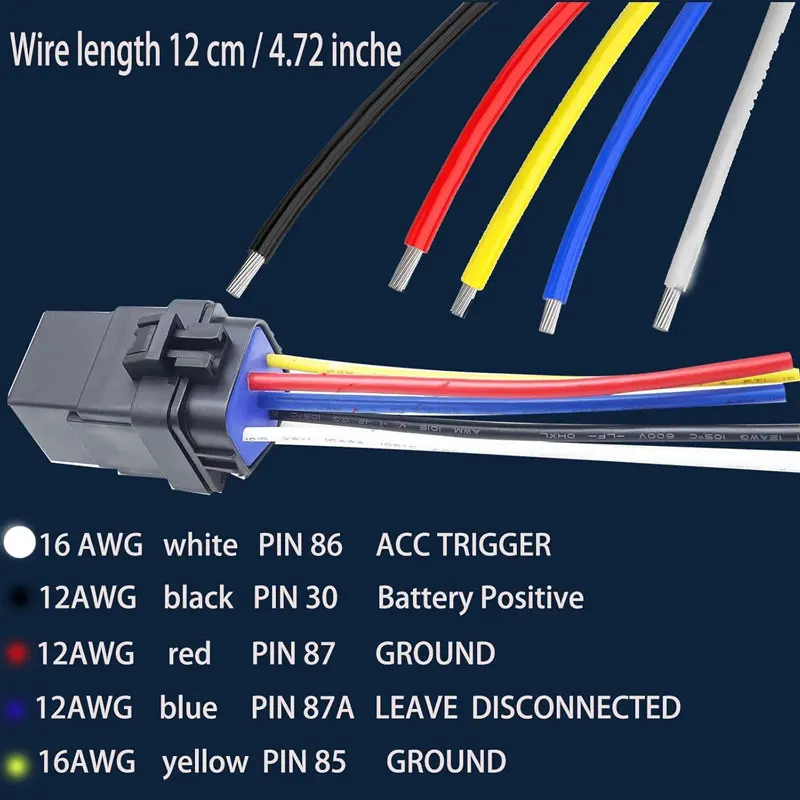

Harness with heavy duty 12/16 AWG harness. 12AWG pin30 - Black, 16AWG pin86 white, 12AWG pin87 - red, 16AWG pin85 - yellow 12AWG pin87a - blue, with a large current carrying . The different colors and pin numbers of the harness make it easy to install and connect. The relay has a high switching capability of 40A and is suitable for a variety of automotive circuit requirements.

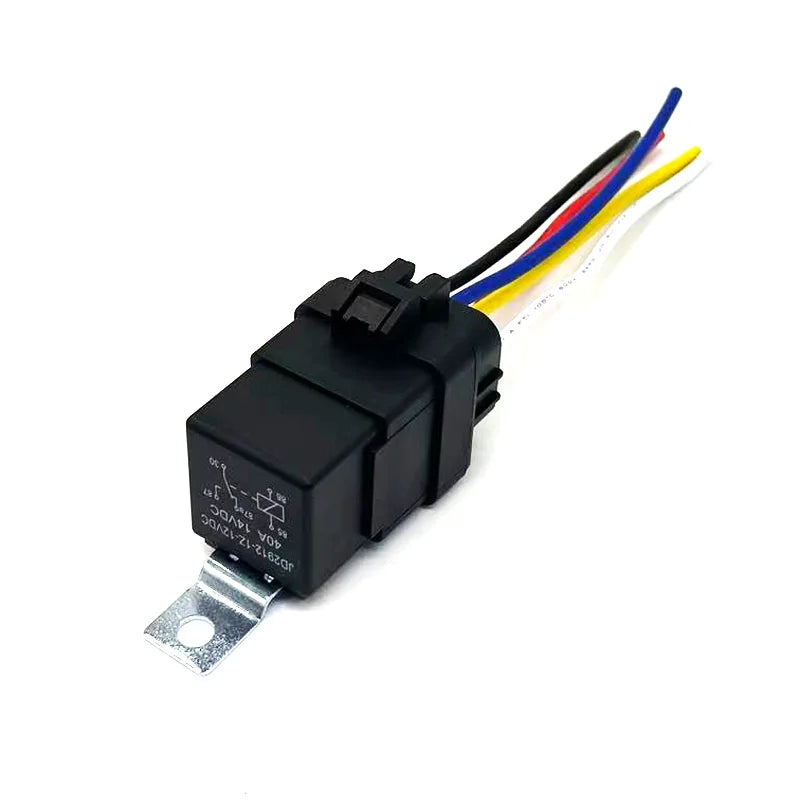

JD2912 Relay Swith

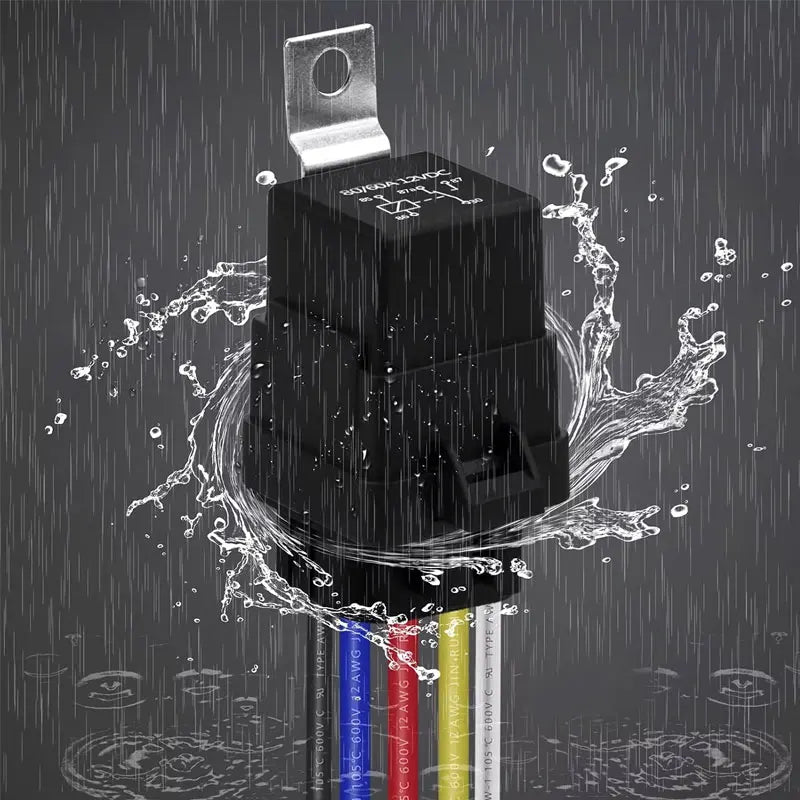

waterproof relays with harness are constructed with high-quality materials and are built to last. They feature a stable structure that helps prevent damage and ensure reliable performance over time

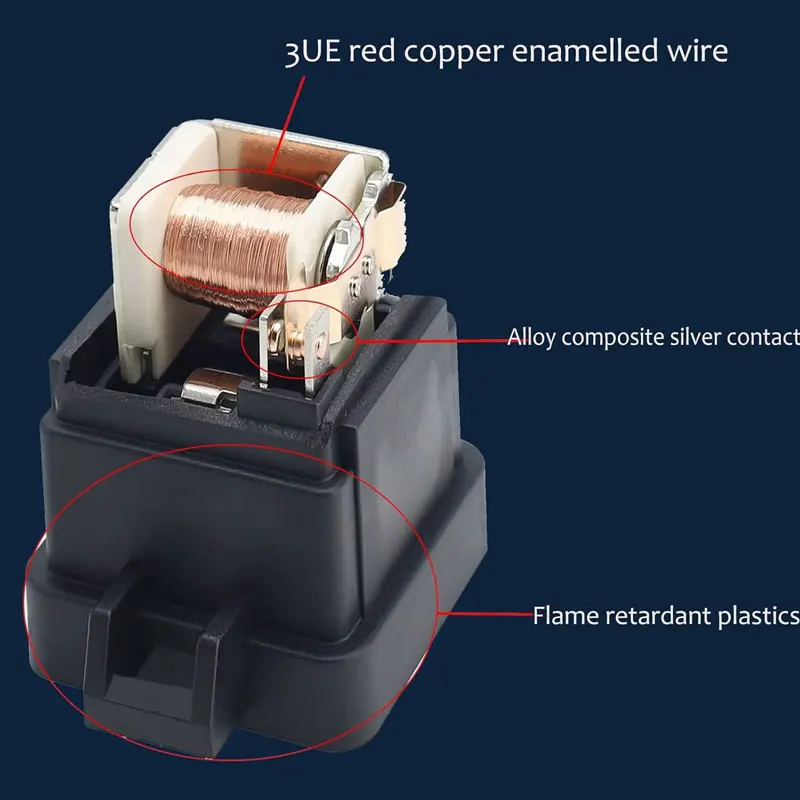

The 12v relay kit is made of high-grade PA66 materials, high-quality copper coils and silver contacts provide excellent electrical conductivity. Ensure excellent quality and long service life.

Copper Wire Relay

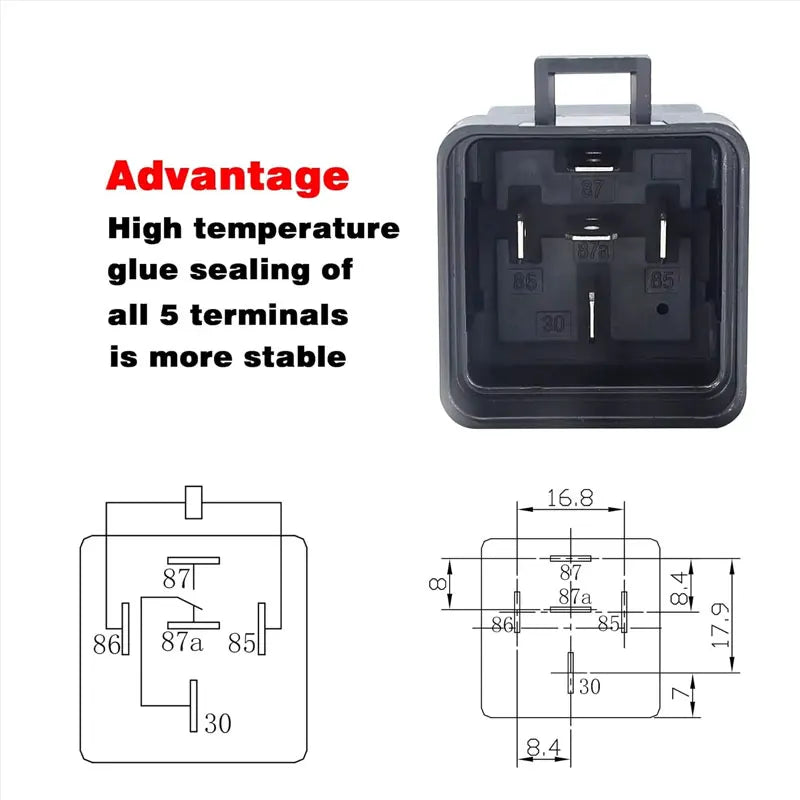

Automobile relay wiring diagram

This car relay with Harness has a high switching capability of 40A and can handle large current loads.
