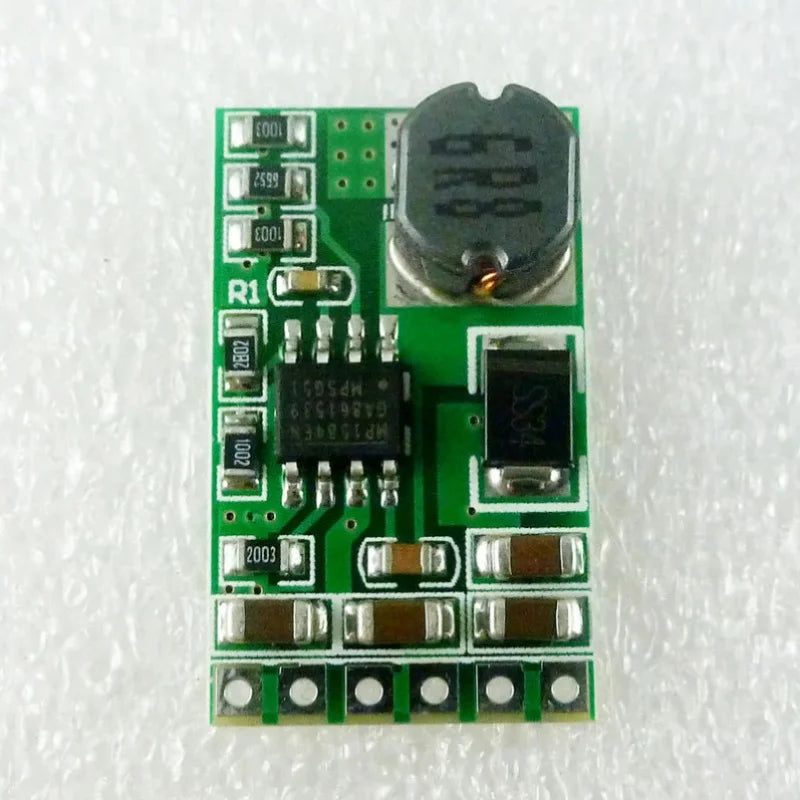

1 PCS 3.5A DC-DC Converter Module Buck Step-Down Voltage Regulator Board 4.5V-27V to 3V 3.3V 3.7V 5V 6V 7.5 9V 12V
Output 3.3V
$5.92
Sale price
$5.92
Regular price
$0.00
Skip to product information
Product Name:1 PCS3.5A DC-DC Converter Module Buck Step-Down Voltage Regulator Board 4.5V-27V to 3V 3.3V 3.7V 5V 6V 7.5 9V 12V
Packing list:
1 PCS 3.5A DC-DC Converter Module Buck Step-Down Voltage Regulator Board 4.5V-27V to 3V 3.3V 3.7V 5V 6V 7.5 9V 12V
$5.92
Sale price
$5.92
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE,eletechsup
Certification: NONE,None
High-concerned chemical: none
Input Voltage: DC 4.5-28V
Model Number: DD2712SA,DD2712SA
Origin: Mainland China,Mainland China
Output Current: <=3.5A,<=3.5A
Output Frequency: DC-DC,DC-DC
Output Power: 1 - 50W
Output Type: SINGLE,SINGLE
Output Voltage: DC 3V/3.3V/3.7V/5V/6V/9V/12V
Size: 25 x 15.1 x 6.2mm
Type: DC/DC Converters,DC/DC Converters
Weight: 2.46g,2.46g
isCustomized: Yes
Applications:
Motor Toy
WIFI Router Switch
Network equipment
Multimeter instrumentation
CCTV camera
Electric toys
Wireless Module:Nrf24l01 CC1101 CC2500 CC2530 Zigbee
Smart home / home automation
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
FM radio
Battery powered equipment
Audio amplifier
Product Name:1 PCS3.5A DC-DC Converter Module Buck Step-Down Voltage Regulator Board 4.5V-27V to 3V 3.3V 3.7V 5V 6V 7.5 9V 12V
Packing list:
1 PCS DD2712SA 3.5A DC DC Step Down Converter Module 4.5V-27V to 3V/3.3V/3.7V/5V/6V/7.5V/9V/12V
Description:

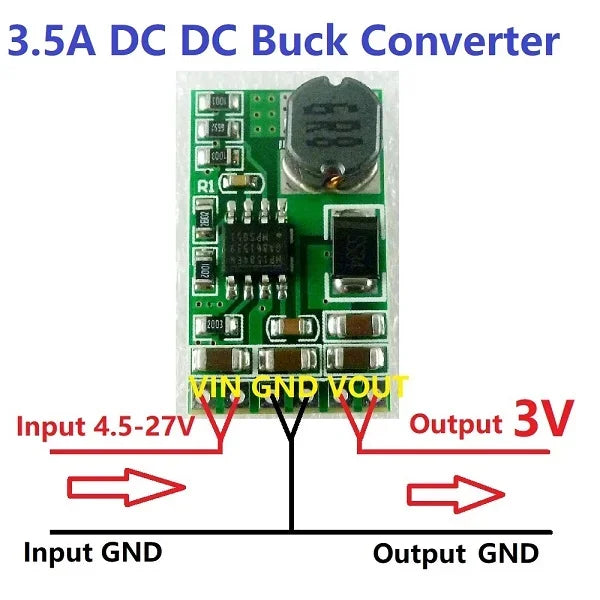

3V :
Input voltage 4.5~27V,output 3V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz.efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C

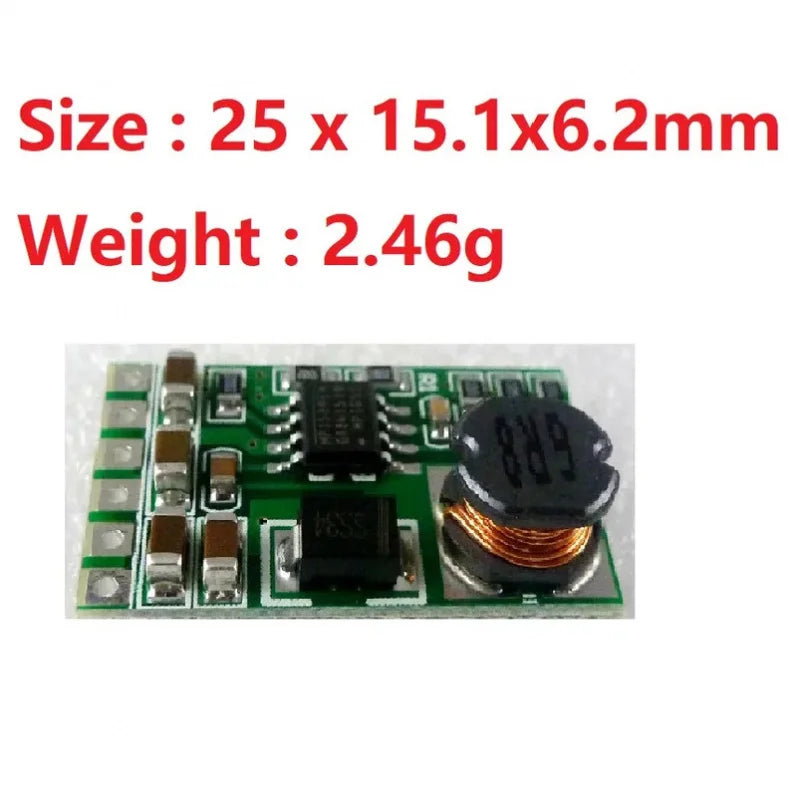

Size : 25 x 15.1 x 6.2mm
Weight : 2.46g

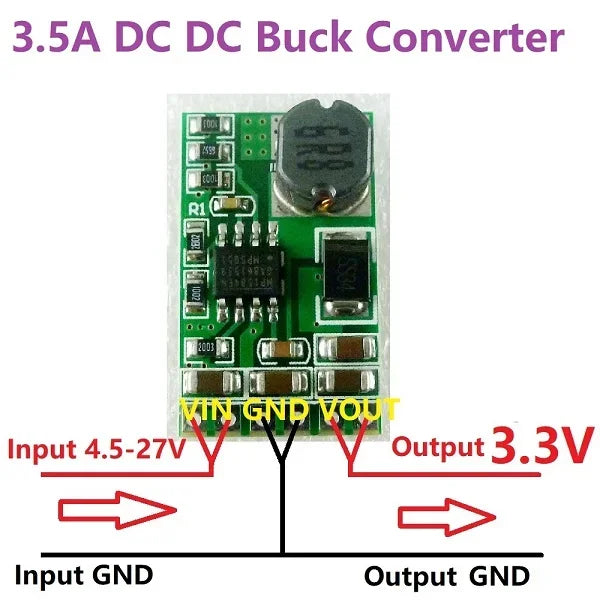

3.3V :
Input voltage 4.5~27V,output 3.3V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz.efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15.1 x 6.2mm
Weight : 2.46g

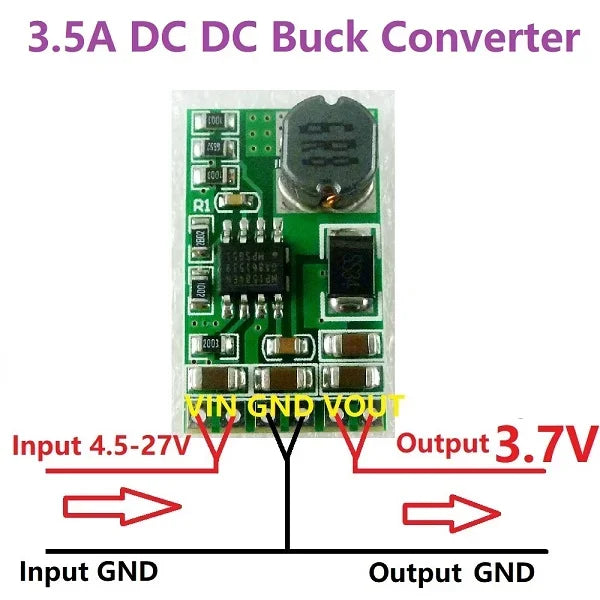

3.7V :
Input voltage 4.5~27V,output 3.7V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz.efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15.1 x 6.2mm
Weight : 2.46g

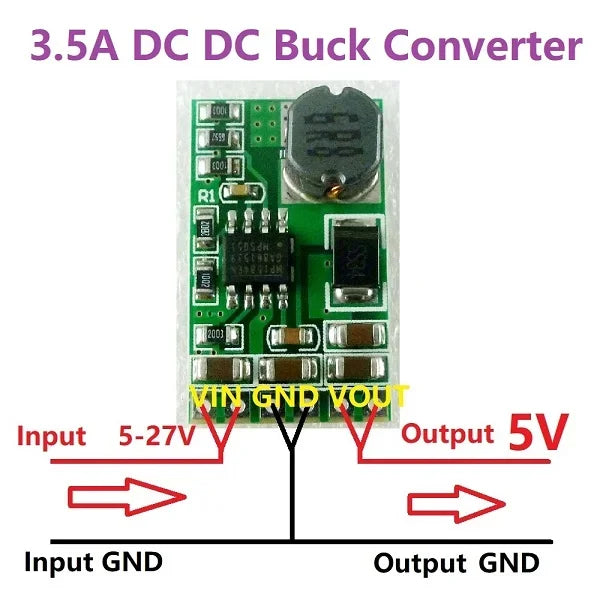

5V :
Input voltage 6.5~27V,output 5V
Maximum output current 2.5A,Short time maximum output current 3.5A
DC-DC Step-Down Converter module working frequency 900KHz.efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15.1 x 6.2mm
Weight : 2.46g

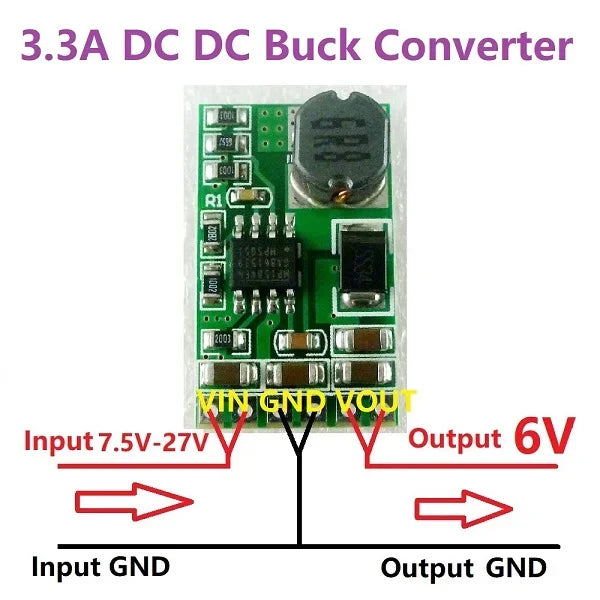

6V :
Input voltage 7.5~27V,output 6V
Maximum output current 2.5A,Short time maximum output current 3.3A
DC-DC Step-Down Converter module working frequency 900KHz.efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15.1 x 6.2mm
Weight : 2.46g

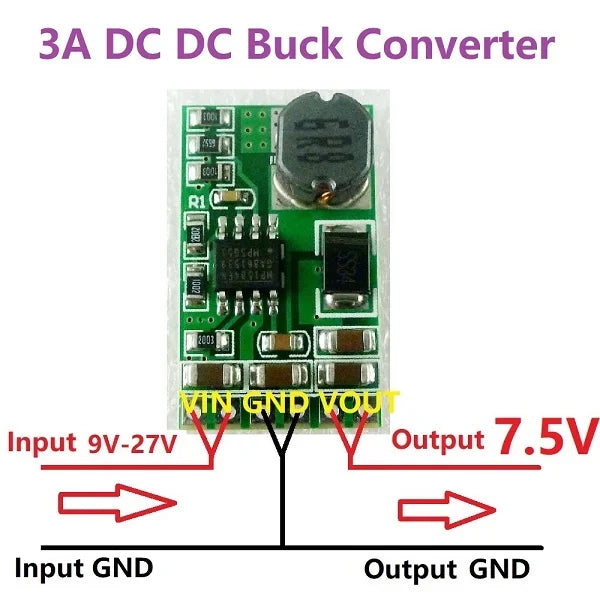

7.5V :
Input voltage 9~27V,output 7.5V
Maximum output current 2.5A,Short time maximum output current 3A
DC-DC Step-Down Converter module working frequency 900KHz.efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15.1 x 6.2mm
Weight : 2.46g

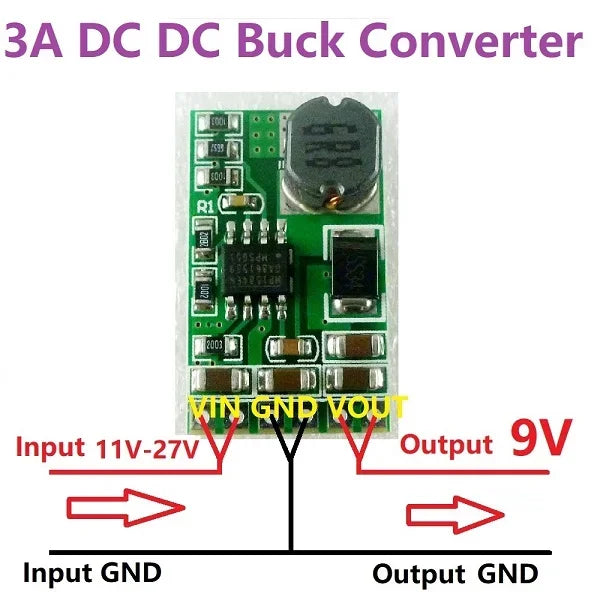

9V :
Input voltage 11~27V,output 9V
Maximum output current 2.3A,Short time maximum output current 3A
DC-DC Step-Down Converter module working frequency 900KHz.efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15.1 x 6.2mm
Weight : 2.46g

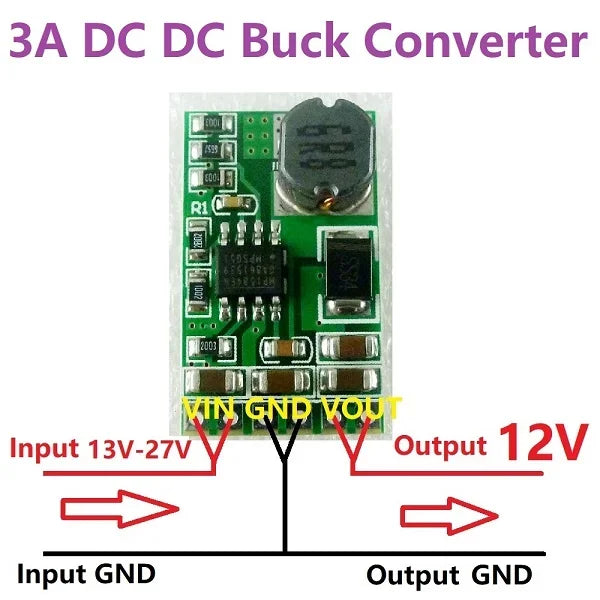

12V :
Input voltage 13~27V,output 12V
Maximum output current 2A,Short time maximum output current 3A
DC-DC Step-Down Converter module working frequency 900KHz.efficiency is 76-93% .
Quiescent current: about 250uA
Overtemperature shutdown, Under-Voltage Lockout (UVLO), BS-voltage protection, and short circuit protection.
Operating Temperature :–20°C to +85°C
Size : 25 x 15.1 x 6.2mm
Weight : 2.46g
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
