SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Quantity: 1

Type: Module

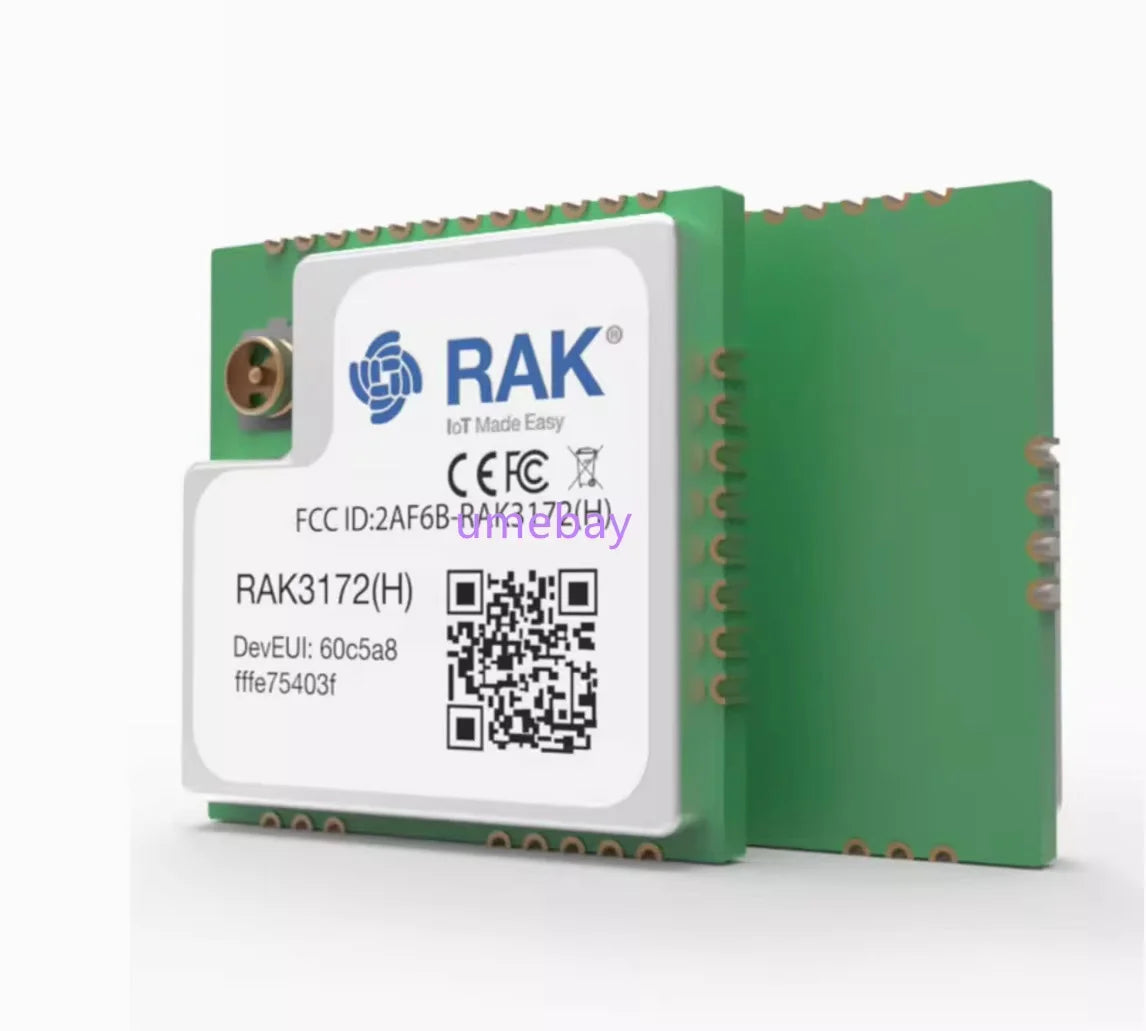

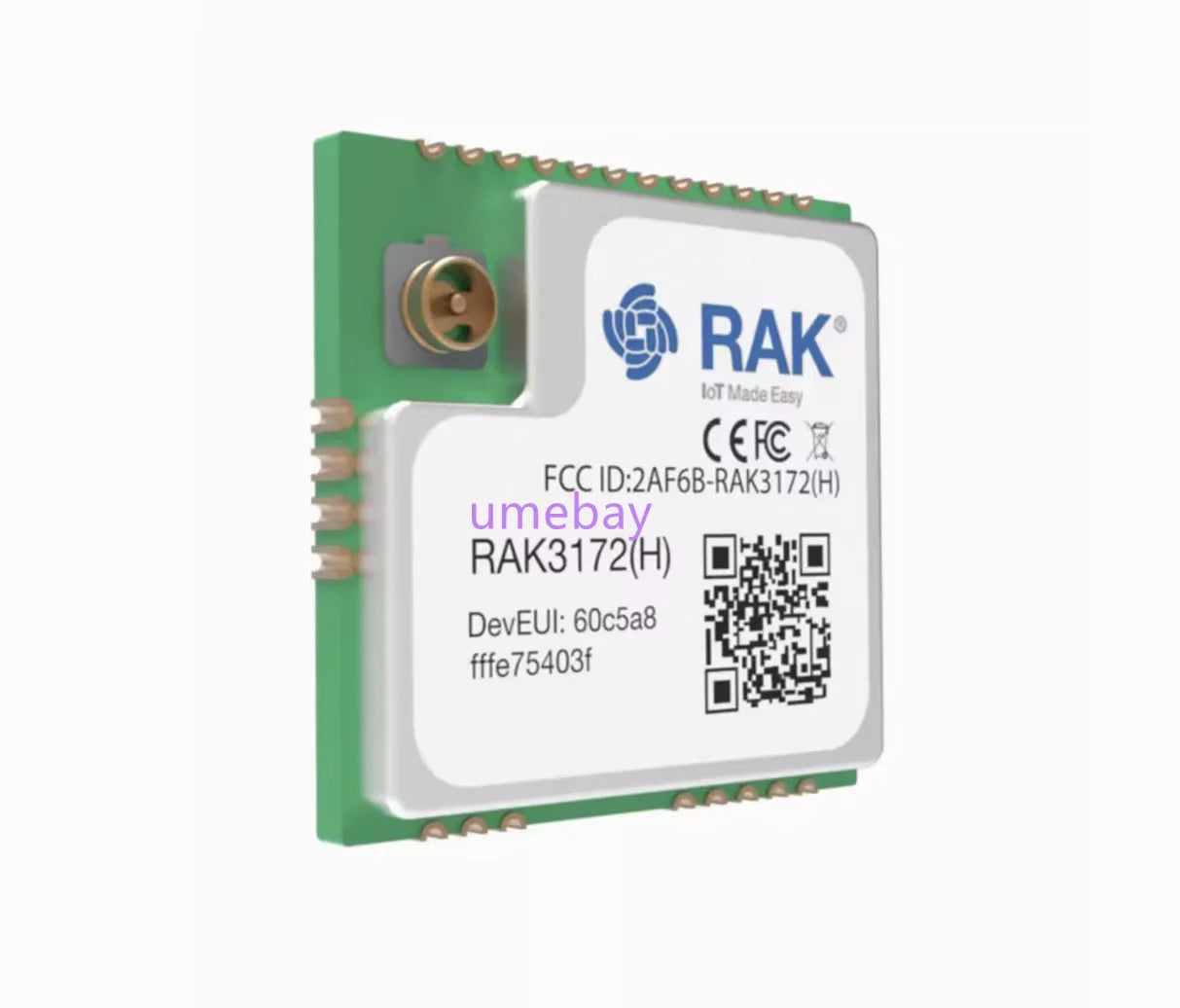

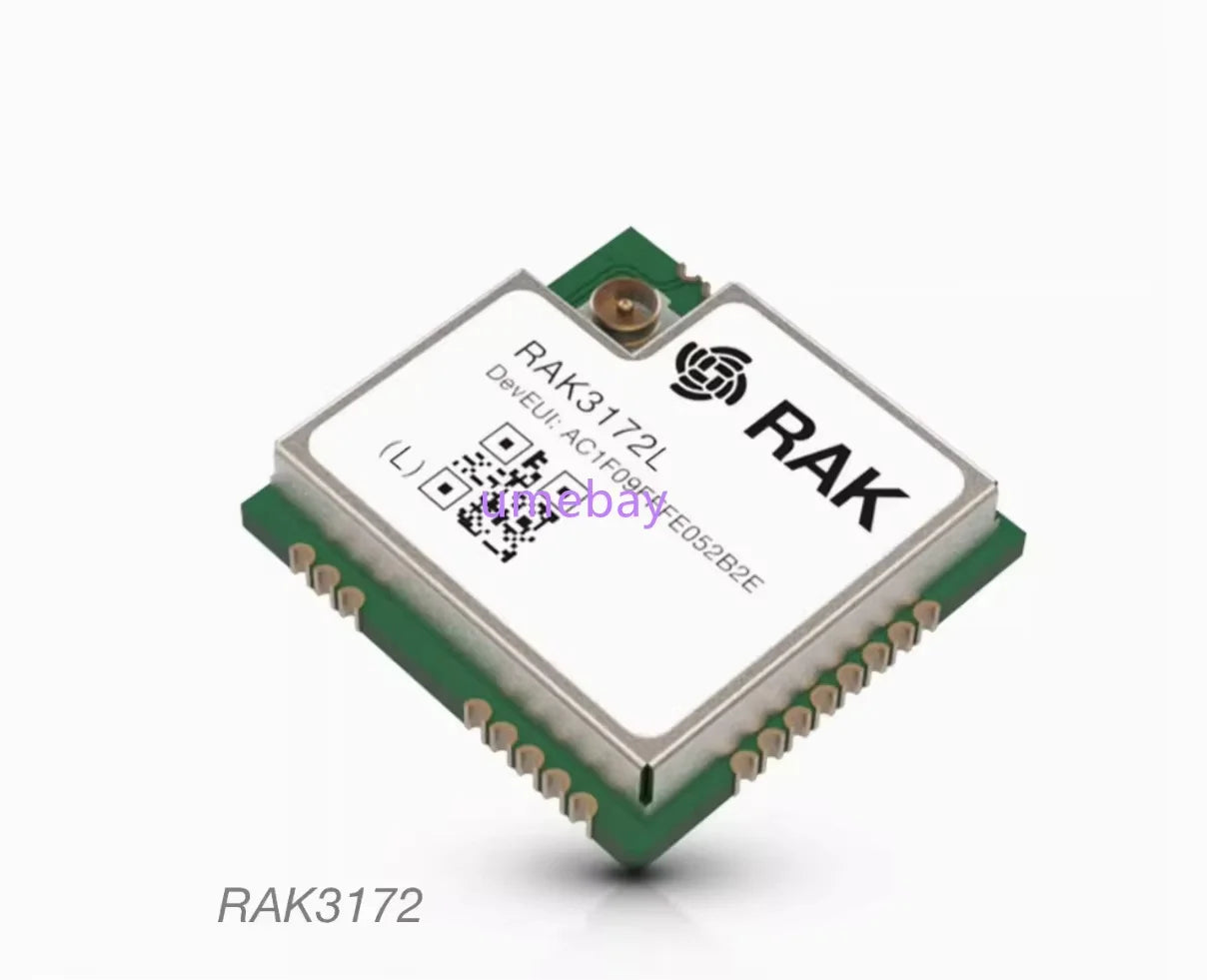

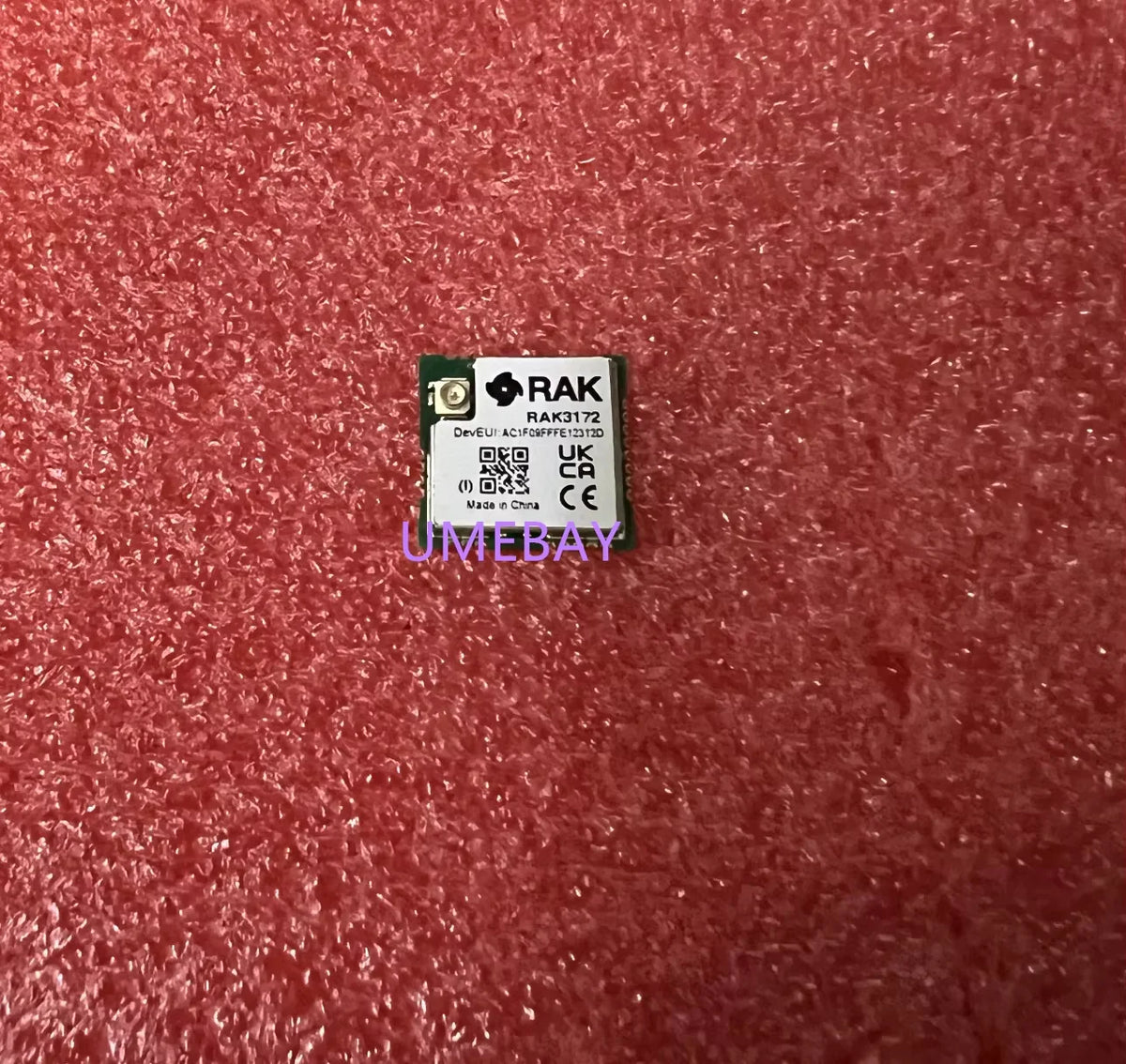

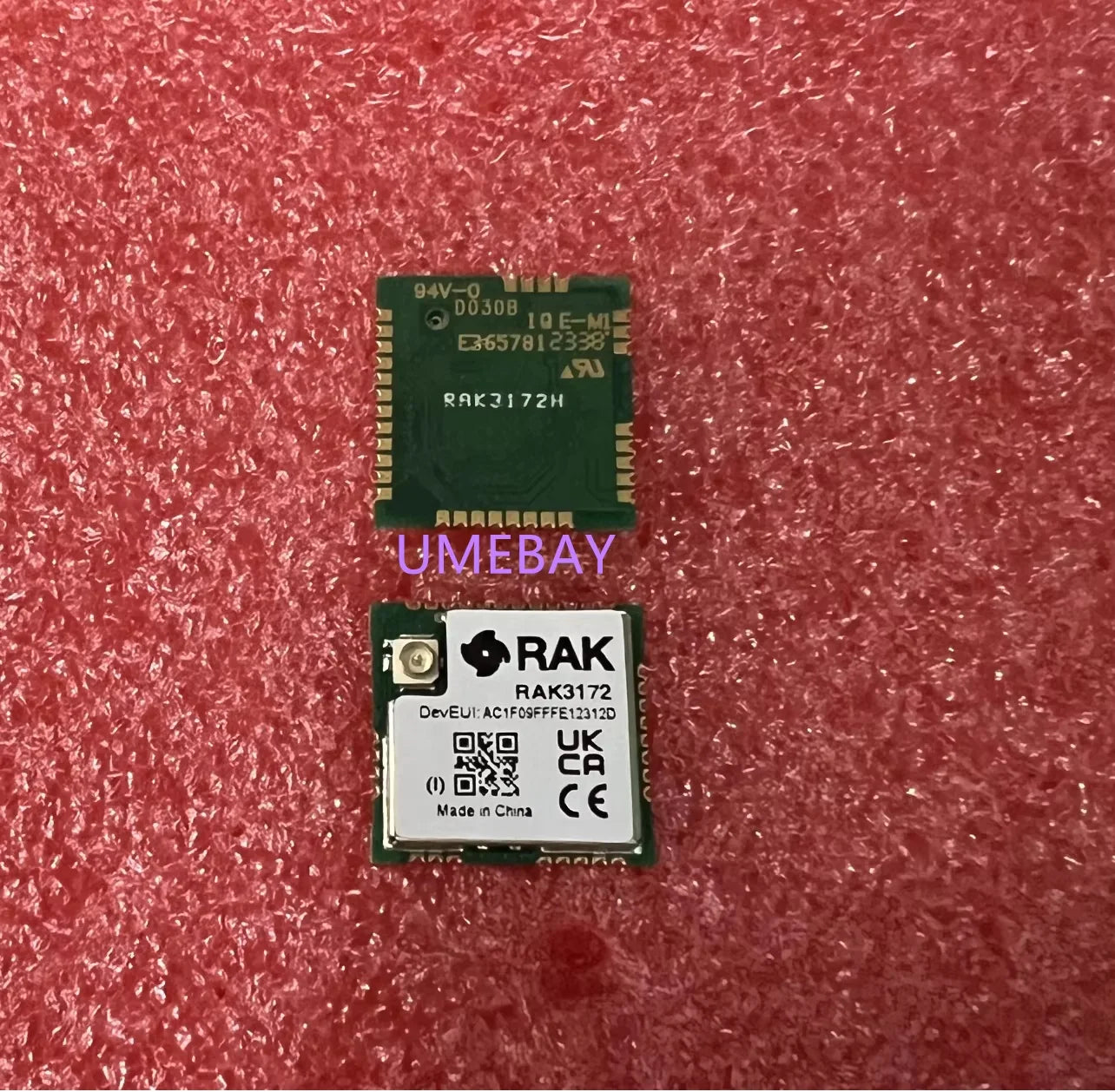

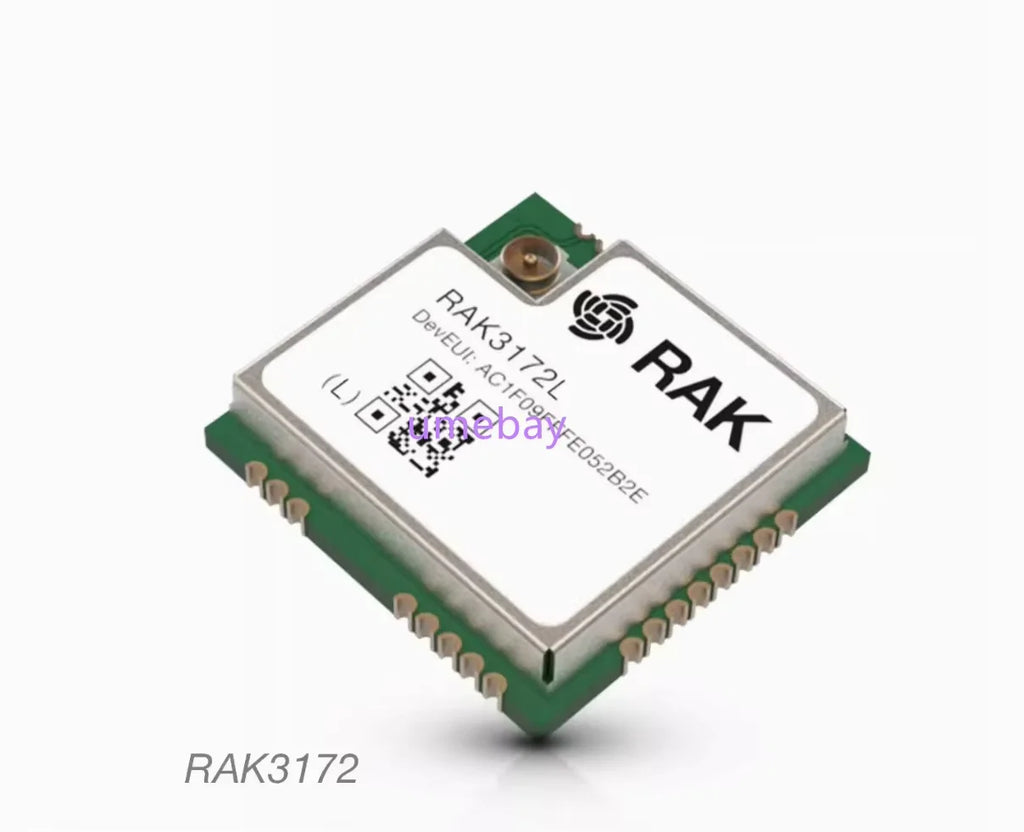

RAK3172 is a low-power long-distance transceiver module based on STM32WLE5CC chip, suitable for LoRa and LoRaWAN applications. Its firmware is based on RAKwireless Unified Interface V3 (RUI3), which allows you to create different functions using the RUIII API. It provides an easy-to-use, compact, and low-power solution for long-distance wireless data applications. This module complies with the A, B, and C standards of the LoRaWAN 1.0.3 specification and can easily connect to different LoRaWAN server platforms, such as TheThingsNetwork (TTN), Chirpstack, Helium, etc. It also supports LoRa peer-to-peer (P2P) communication mode, which can help you quickly build your own customized long-distance LoRa network.

It can create custom firmware as a standalone device through the RUI3 API, or be deployed as a LORA modem with an external host (such as a microcontroller or microprocessor), configured with AT and binary commands through the UART interface, and send commands to it.

Notes:

The antenna checked to include is a certified auxiliary antenna. When purchasing a blade antenna, it is necessary to use it together with the IPEXTO RP-SMA connector

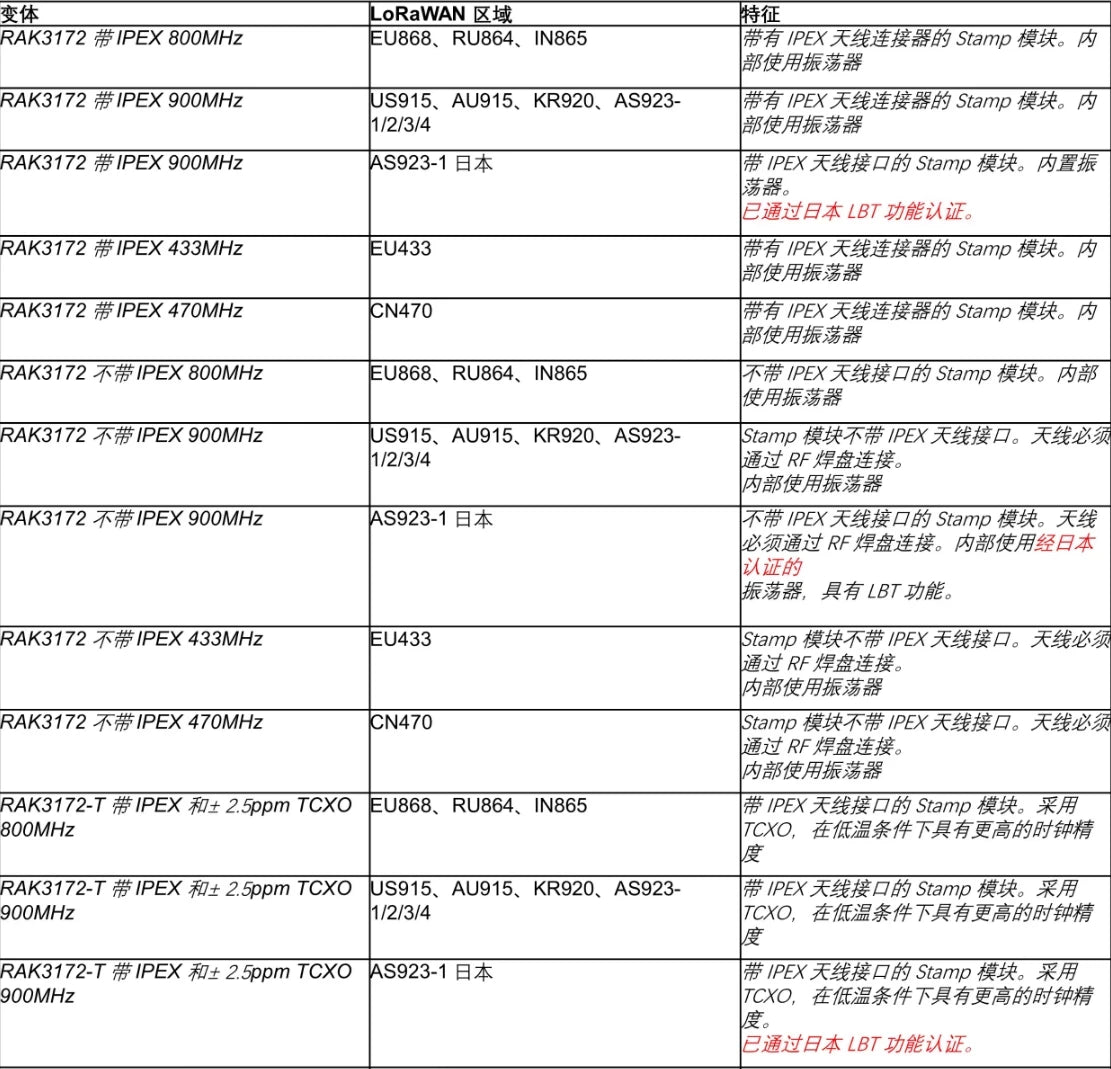

As our clients are starting large-scale production and deploying their products globally, we would like to clarify that our module hardware supports multiple LoRaWAN regions. Due to the lack of hardware differences, we have optimized the versions available in the store to make it easier for you to choose the correct module. Please note that the differences between different versions are only in the labels on the modules to reflect different regional telecommunications certifications. The "with IPEX" version has different hardware on its RF path compared to the "without IPEX" version. This means that if the "with IPEX" version is selected, the RF pin arrangement will be internally disconnected. If 'No IPEX' is selected, the RF path of the IPEX connector will also be disconnected.

Product Features

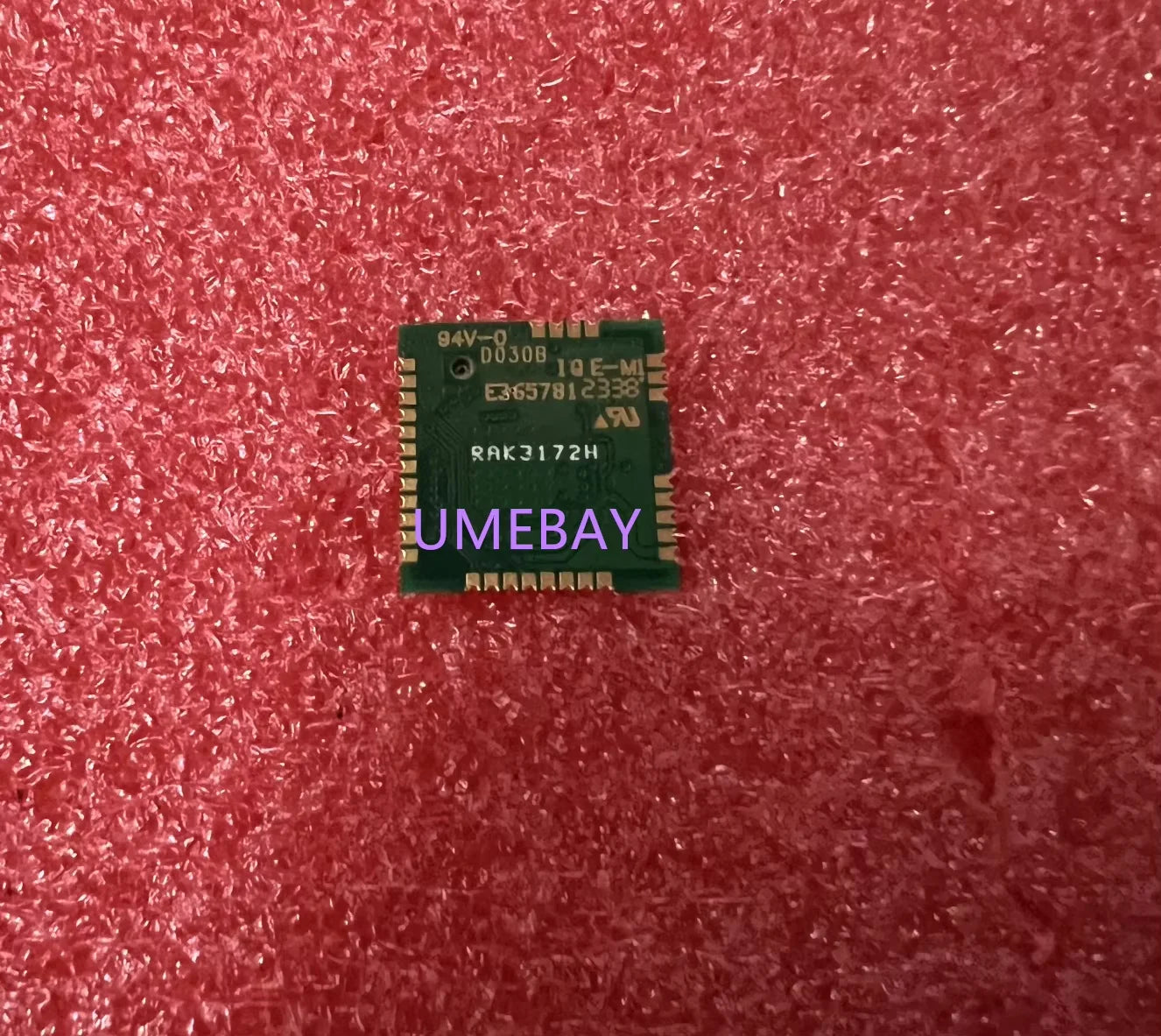

LoRa module suitable for smart cities, smart agriculture, and smart industry. Compact size: 15x15.5x3.5mm 32 pin stamp pad, used for PCBSMT installation. I/O ports: UART/I2C/SPI/ADC/GPIO

Temperature range: -40 ° C to+85 ° C

Supply voltage: 2.0~3.6V

Frequency range: 150 MHz to 960 MHz

Low power wireless system with bandwidth ranging from 7.8 kHz to 500 kHz

Ultra low power consumption of 1.69 μ A in sleep mode

Core: ARM 32-bit Cortex-M4 with MPU, up to 256 KB flash memory with ECC

64 KB memory

Compatible with RUI3 API

AT and binary command support (EU433, CN470, RU864, IN865, EU868, AU91 support frequency bands: 5, US915, KR920, and AS923) support LBT for Japanese AS923-1

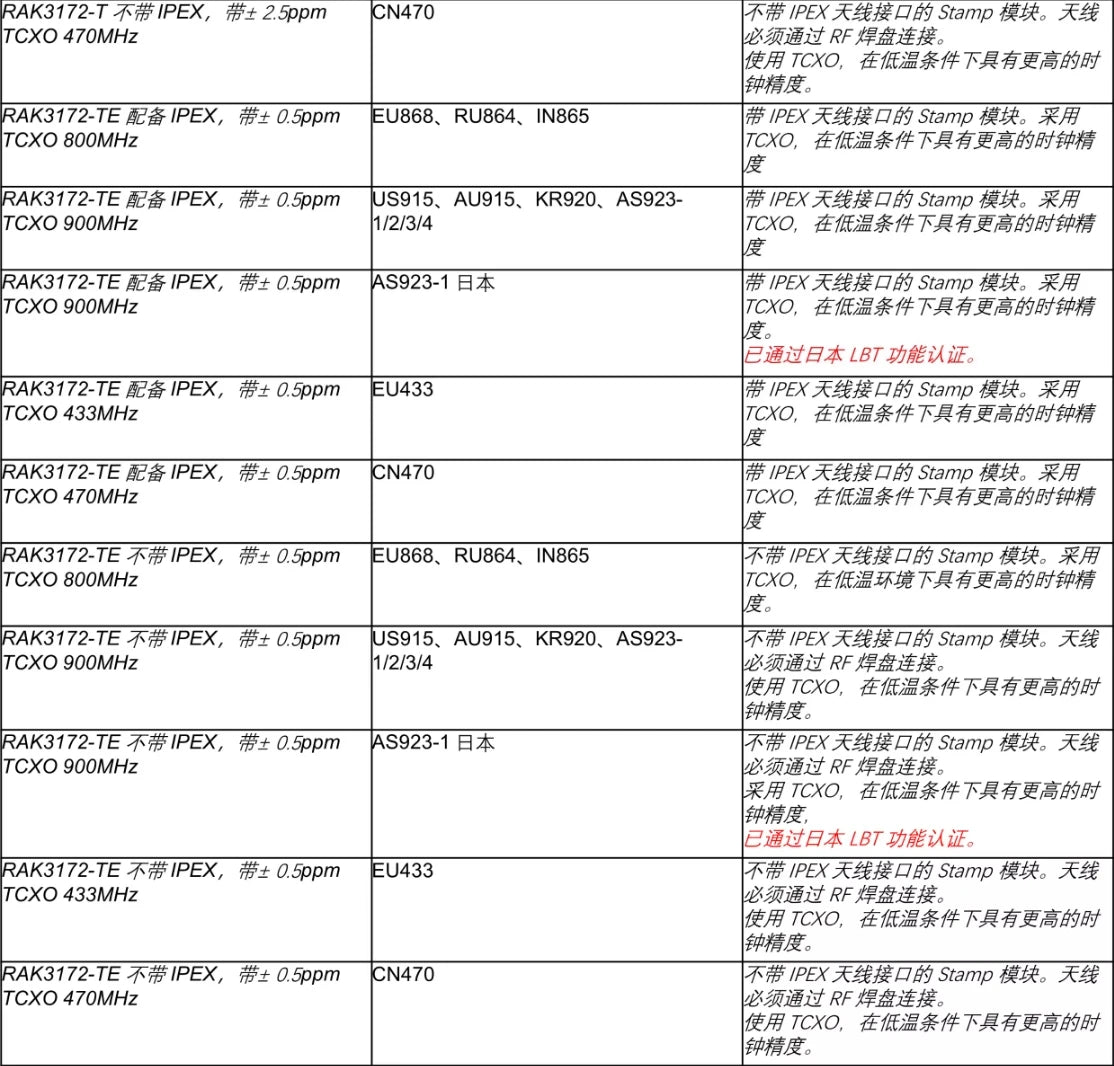

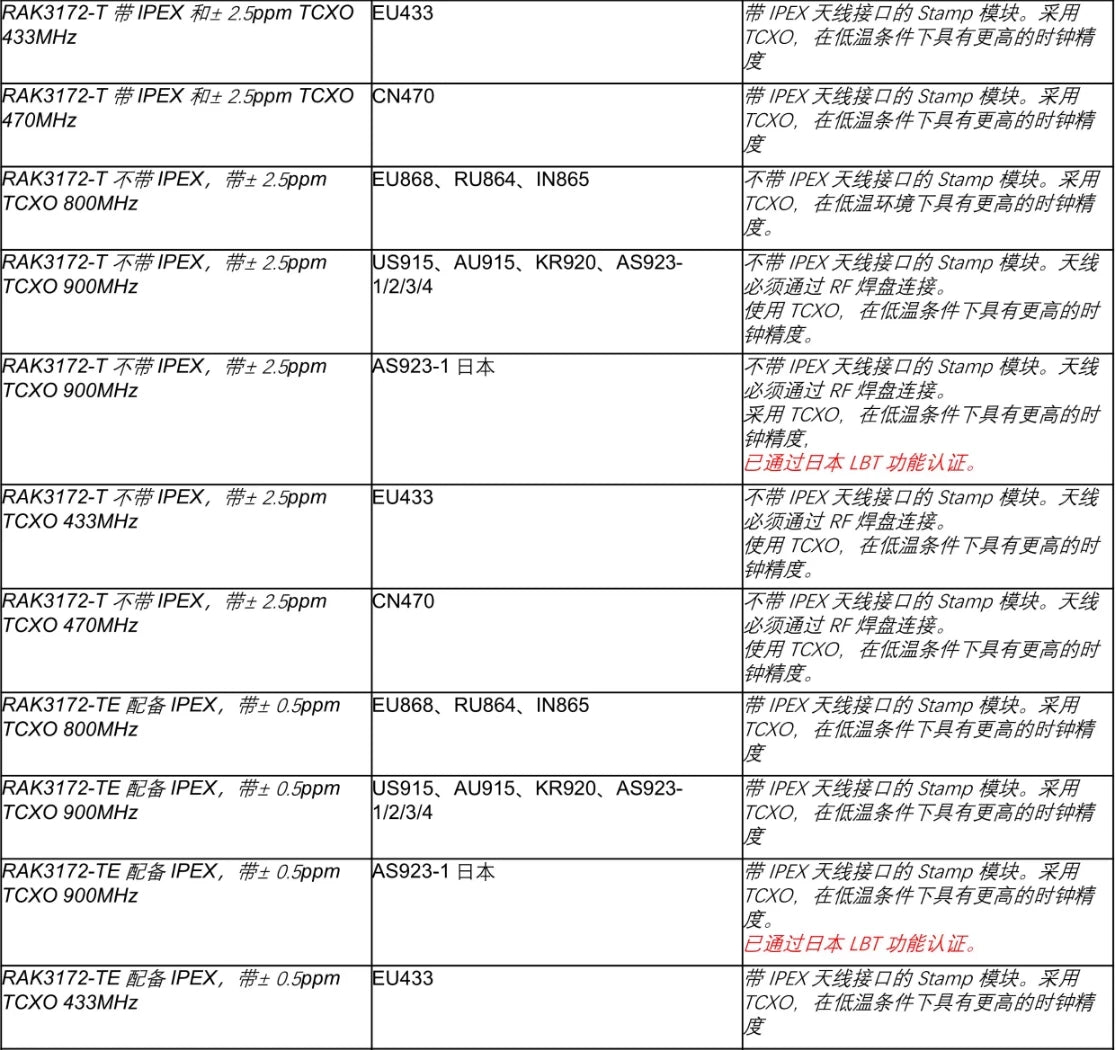

RAK3172 offers multiple models, including TCX0 and oscillator. The former ensures higher clock accuracy under low temperature conditions, while the latter is suitable for ambient temperature environments. You can choose the desired frequency accuracy from ± 2.5ppm or ± 0.5ppm.
