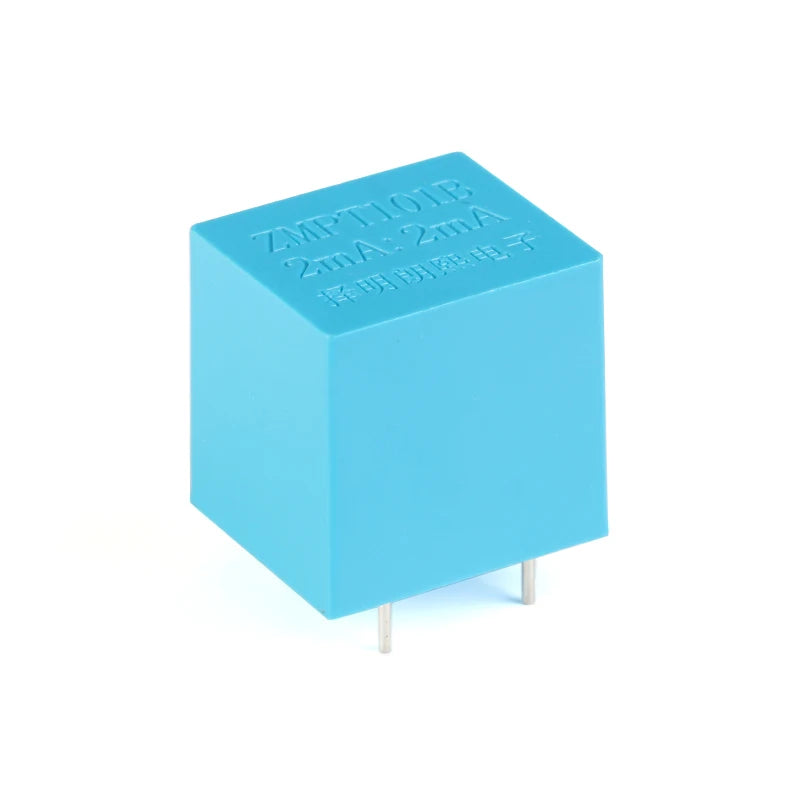

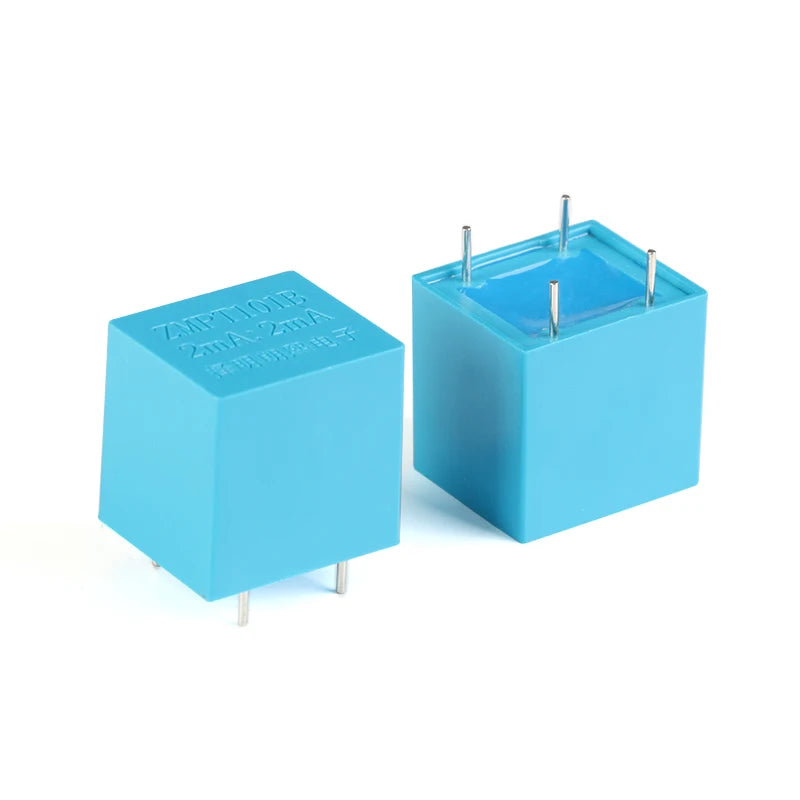

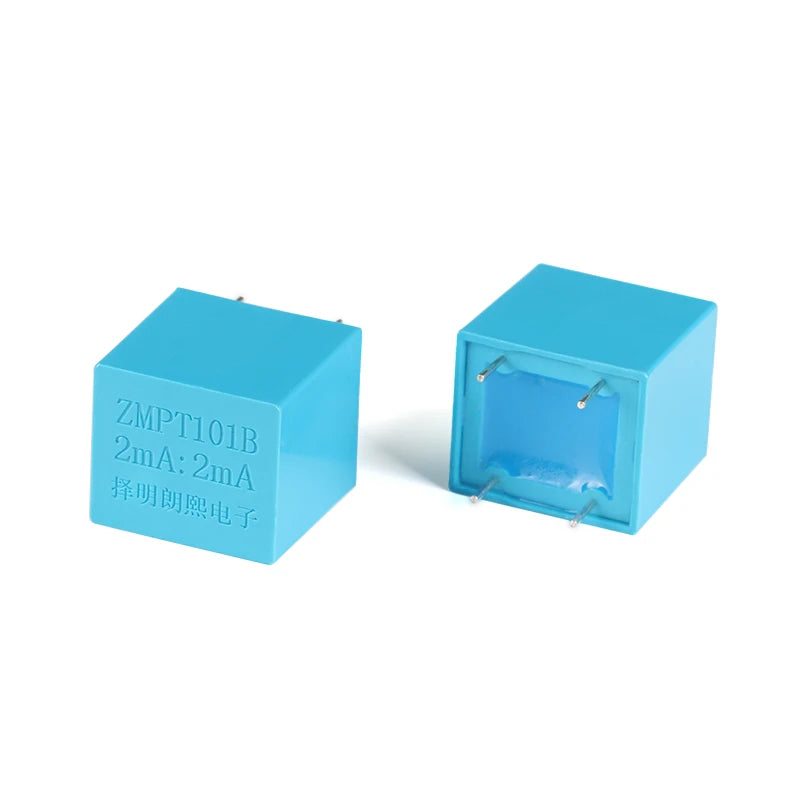

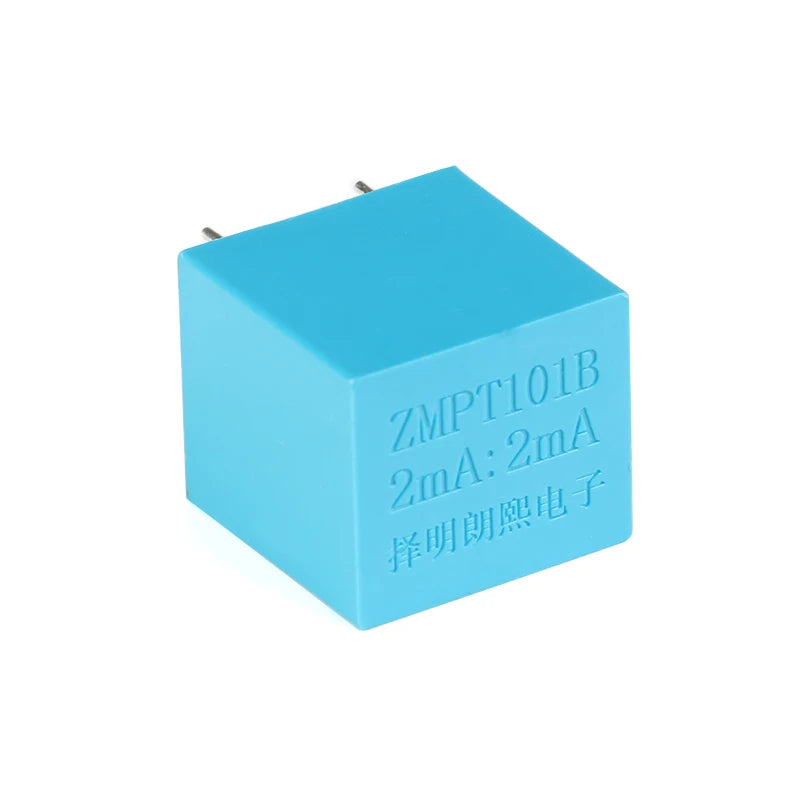

10/1pc ZMPT101B 2mA/2mA Precision Phase voltage transformer Output Voltage Sensor
$4.84
Sale price
$4.84
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: Your Cee
Coil Number: Autotransformer
Coil Structure: -
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: ZMPT101B
Origin: Mainland China
Phase: SINGLE
Use: -
is_customized: Yes
Feature:
Product model: ZMPT101B
Rated input current: 2mA
Rated output current: 2mA
Change ratio: 1000:1000
Phase difference: ≤20'
Linear range: 0~1000V 0~10mA
Linearity: ≤0.2%
Allowable error: -0.3≤f≤0.2%
Isolation withstand voltage: 4000V
Uses: accurate measurement of voltage and power
Sealing material: epoxy resin

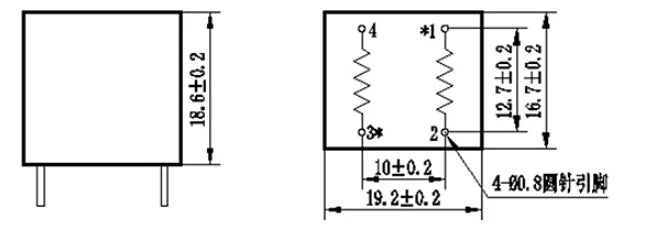

Installation method: printed board installation
Working temperature: -40 to +60 degrees
Shell material: ABS
