SPECIFICATIONS

Battery Included: no

Brand Name: NONE

Certification: RoHS

Data Record: No

Display Size: 1.9 Inches & Under

Electronic: No

High-concerned chemical: none

Is Smart Device: no

Max Measuring Temperature: 49°C & Under

Model Number: DS18B20 Temperature Sensor Module KY-001 Accessories Electronic Kit

Origin: Mainland China

Power Source: None

Power Type: None

Semi-finishedproduct: Yes

Style: Embedded

Theory: Temperature Controller

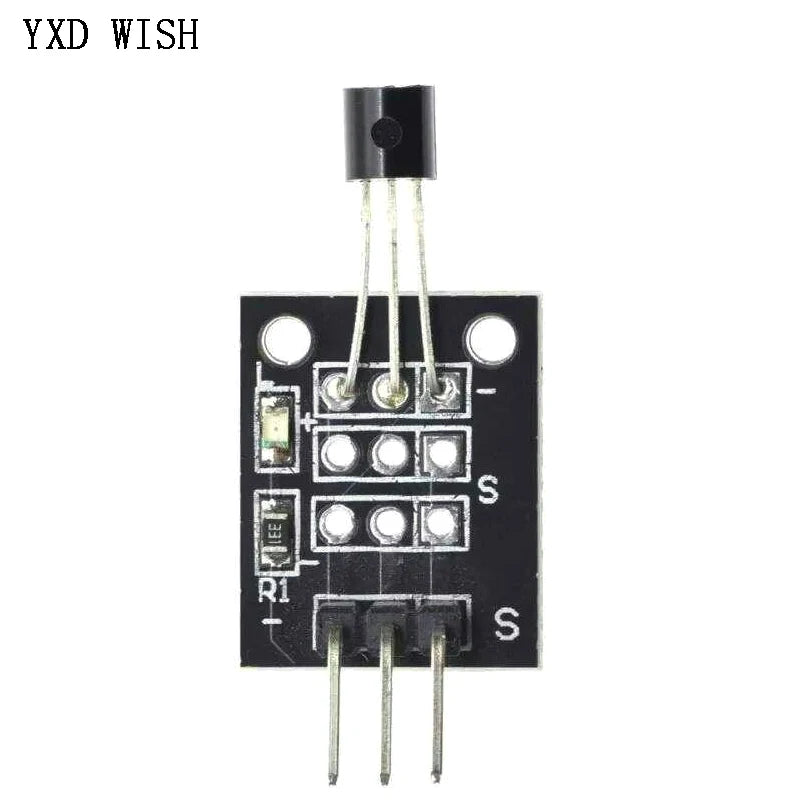

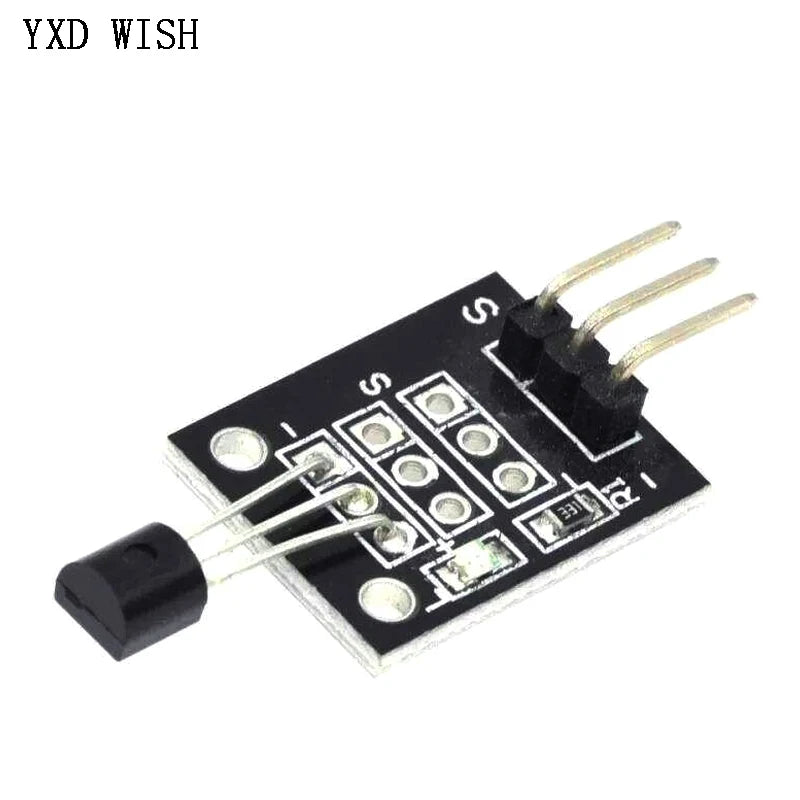

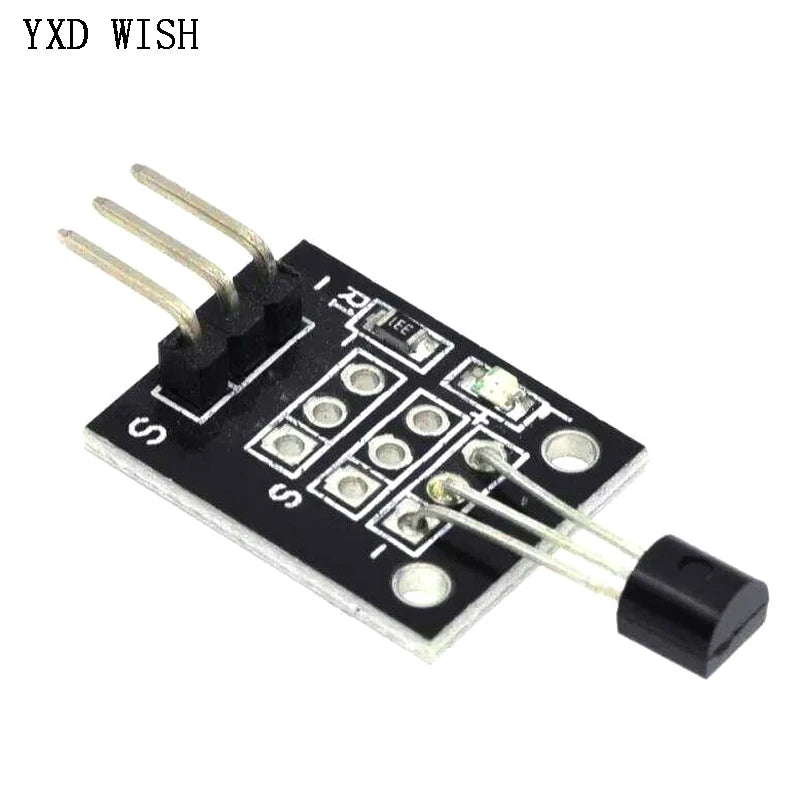

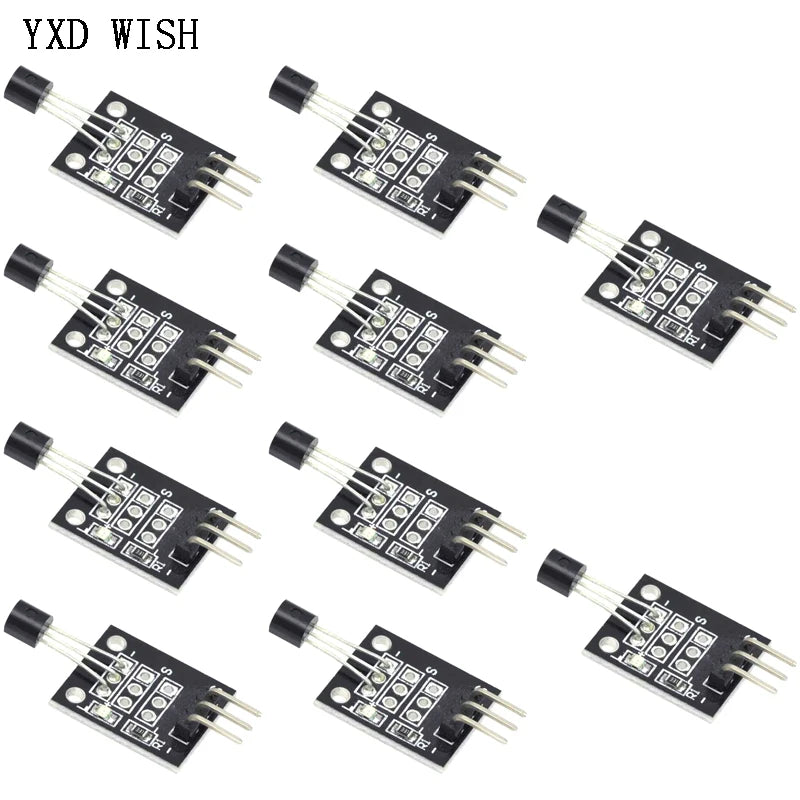

10-30pcs KY-001 3 Pin DS18B20 Temperature Measurement Sensor Module For Arduino KY001 Temperature Sensors DIY Kits

18B20 temperature sensor:
The product is made of DALLAS company's DS18B20 networkable digital temperature sensor chip package, with wear-resistant touch, small size, easy to use, packaging in various forms, suitable for a variety of small space equipment, digital temperature measurement and control. Technical performance description:

Unique single-line interface, DS18B20 in connection with the microprocessor only need a mouth line to achieve the microprocessor and DS18B20 two-way communication; Temperature range: -55 ° ~ +125 °, the inherent temperature resolution of 0.5 °; Support multi-point network function, multiple DS18B20 can be connected in parallel on the only three lines, up to only 8 in parallel, if the number is too much, will make the power supply voltage is too low, resulting in signal transmission instability, Temperature; working power: 3 ~ 5V / DC; in use without any external components; measurement results to 9 to 12 digital serial transmission; PVC cable direct outlet or German ball junction box outlet, easy and other Electrical equipment connection.

Applications:
The products are suitable for the cold storage, granaries, storage tanks, telecommunications room, electric power room, cable trough and other temperature measurement and control areas; bearing, cylinder, textile machinery, air conditioning, and other small space industrial equipment temperature and control; , Refrigerator, freezer, and low-temperature drying oven, etc .; heating / cooling pipe calorie measurement, central air conditioning household thermal energy measurement and industrial temperature measurement and control.

Product model and specifications:
Model Temperature range Mounting thread Cable length Applicable pipe
TS-18B20 -55 ~ 125 no 1.5 m
TS-18B20A -55 ~ 125 M10X1 1.5 m DN15 ~ 25
TS-18B20B -55 ~ 125 1/2 "G junction box DN40 ~ 60
The DS18B20 digital temperature sensor is availableVarious SCM controllerOn the application, especially in the controllerOn the more simple, ready-made library function call, you can complete the temperature measurement, through3P sensor cablePlug in to dedicated sensor expansion board, It is very easy to achieve interactive work related to ambient temperature perception.
