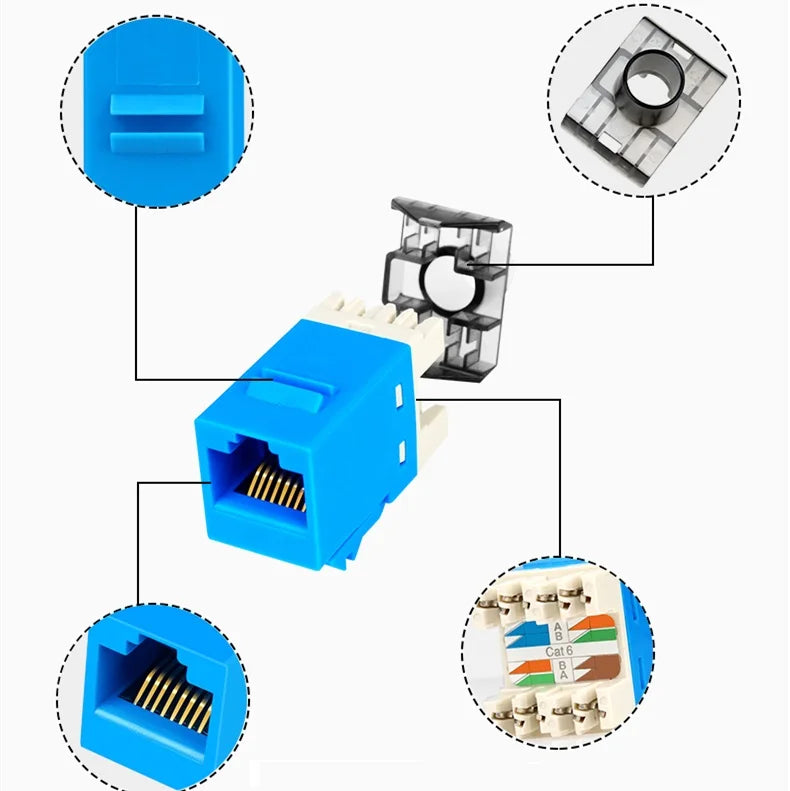

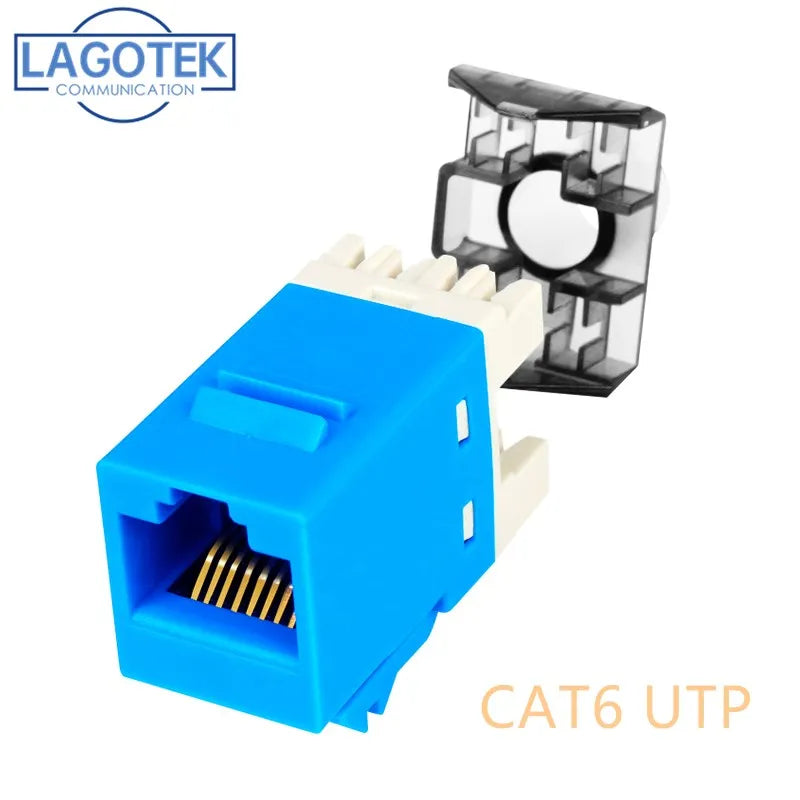

10/50/100pcs Gigabit CAT6 UTP RJ45 Connector CAT6 Module Information Socket Computer Outlet Network Cable Adapter Keystone Jack

10/50/100pcs Gigabit CAT6 UTP RJ45 Connector CAT6 Module Information Socket Computer Outlet Network Cable Adapter Keystone Jack

$464.00

$464.00 $0.00

Color Black Blue

Cable length 100pcs 50pcs 10pcs

Description

SPECIFICATIONS

Brand Name: LAGOTEK

Certification: CE

High-concerned chemical: none

Model Number: Cat6 Utp Module

Origin: Mainland China

Package: Yes

Type: Jacks

Description:

Product Features
Port RJ45 series lead in line with international standards; IDC: phosphor bronze material, tin, according to 22 ~ 26AWG solid wire; repetitions card line:> 80 times; eight lines reed: phosphor bronze, gold plated 3Minch, 6Minch, 15Minch , 30Minch, 50Minch; plug and socket mating cycles:> 1000; technical performance in line with TIA / EIA568 CAT6 standards.
Electrical Performance
1. Insulation resistance: not less than 500mΩ
2. Compressive strength: DC1000V (AC750V) 50 ~ 60Hz1 minutes
3. Contact resistance: less than 20mΩ
Mechanical behavior
Life: insert pull repetition frequency less than 750 times less than 80 times the terminal snap cable
working environment
1. Working temperature: -10 ~ 60 Celsius
2. Operating temperature: 10 to 90%

Specifications:
Specifications: 180 degrees wire
Material: Flame-retardant pcs phosphor bronze contact with PCB
Technology: Assembly
Scope: network cabling weak building home improvement project
Note:
1.Transition: 1cm=10mm=0.39inch
2.Please allow 0-3mm error due to manual measurement. pls make sure you do not mind before you bid.
3.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:

10x CAT6 network modules
