SPECIFICATIONS

Brand Name: HANZHIZAO

Choice: yes

High-concerned chemical: none

Origin: Mainland China

Instructions for Use of Copper Soldering Iron Tip Set

I. Product Overview

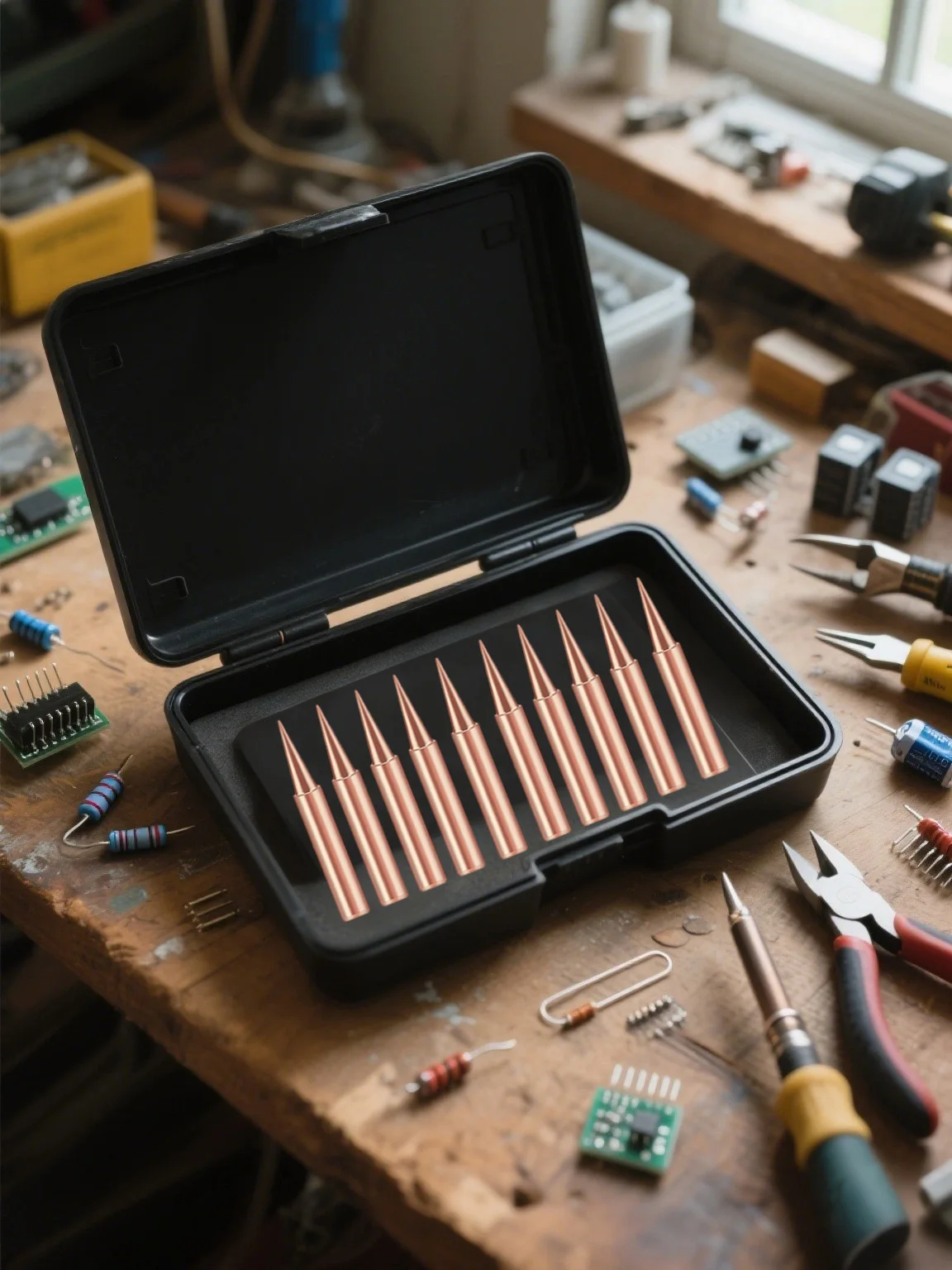

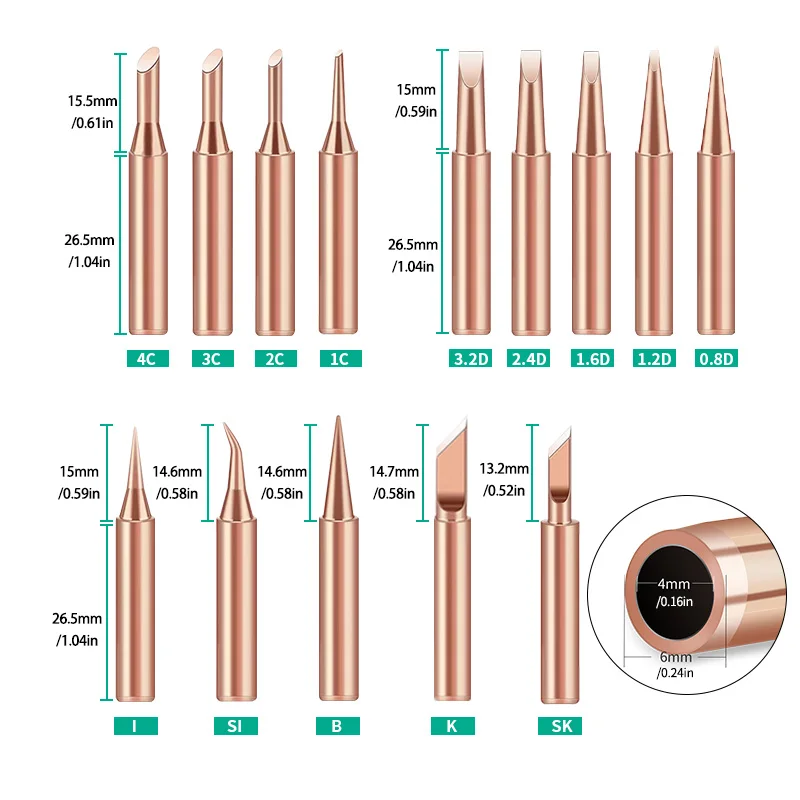

This set contains 10 copper soldering iron tips of different shapes. Leveraging the excellent thermal conductivity of copper, it is compatible with most standard electric soldering irons. It can meet the requirements for different solder joint shapes and precision in scenarios such as electronic soldering and small hardware processing, facilitating efficient and precise operations.

II. Usage Process

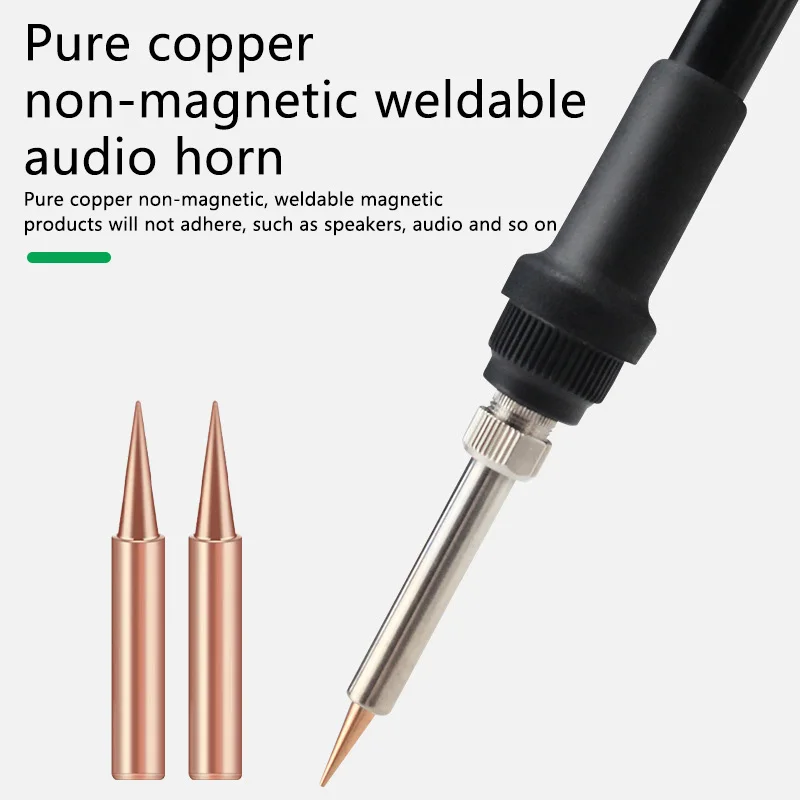

(I) Installation and Adaptation Ensure that the electric soldering iron is powered off and cooled down. Unscrew the original soldering iron tip. Select the corresponding type of copper soldering iron tip, align it with the heating core interface of the electric soldering iron, insert it smoothly, and tighten it. Make sure it is installed firmly without any looseness or abnormal noise.

(II) Preheating and Debugging Connect to the power supply and adjust the temperature of the electric soldering iron according to the soldering requirements (for example, 280 - 320℃ for fine soldering, and 320 - 380℃ for regular soldering). During the heating - up process, you can observe the color change of the soldering iron tip (copper changes color gradually when heated) for assistance in judgment, or use temperature - measuring equipment for precise control.

(III) Soldering Operation

1. Cleaning Treatment: Wipe the parts to be soldered and the soldering iron tip with flux (such as rosin, soldering paste) to remove the oxide layer and oil stains, and improve the soldering quality.

2. Tin - Coating Preparation: When the soldering iron tip reaches the set temperature, gently touch the solder wire to make the soldering iron tip evenly coated with a thin layer of solder, enhancing thermal conductivity and soldering adhesion.

3. Solder Joint Soldering: Hold the electric soldering iron and make the tinned soldering iron tip attach to the solder joint. Keep it for 1 - 3 seconds (adjust according to the size of the solder joint) to allow the solder to fully infiltrate and fuse the solder joint. Then, move the soldering iron tip away at a constant speed and wait for the solder to cool and set naturally.

(IV) Maintenance and Storage After soldering, turn off the power. While the soldering iron tip still has residual heat, gently touch the solder again to form a "protective tin layer" and delay oxidation. After it is completely cooled, store the soldering iron tip properly in a dry environment without corrosive gas, avoiding bumps and moisture.

III. Precautions

1. Safety Protection: Wear heat - insulating gloves and goggles during operation, and stay away from materials; do not place the electric soldering iron randomly during operation to prevent fire or burns.

2. Temperature Control: When soldering heat - sensitive components (such as capacitors, chips), it is necessary to lower the temperature and shorten the soldering time. A heat - dissipation fixture can be used to avoid component damage due to high temperature.

3. Daily Maintenance: Regularly wipe the soldering iron tip with a damp sponge (when the power is off and it has cooled down a little) to clean the oxide residues; if the soldering iron tip is severely deformed or cannot wet with tin, replace it in time to ensure the soldering effect. 4. Child Safety: The tools should be placed out of the reach of children to prevent accidental burns or misoperation.

By reasonably following the above steps and key points, the advantages of the copper soldering iron tip can be fully utilized, the service life of the tool can be prolonged, and soldering operations can be completed efficiently. In case of abnormal problems, you can contact the after - sales service for technical support.
