SPECIFICATIONS

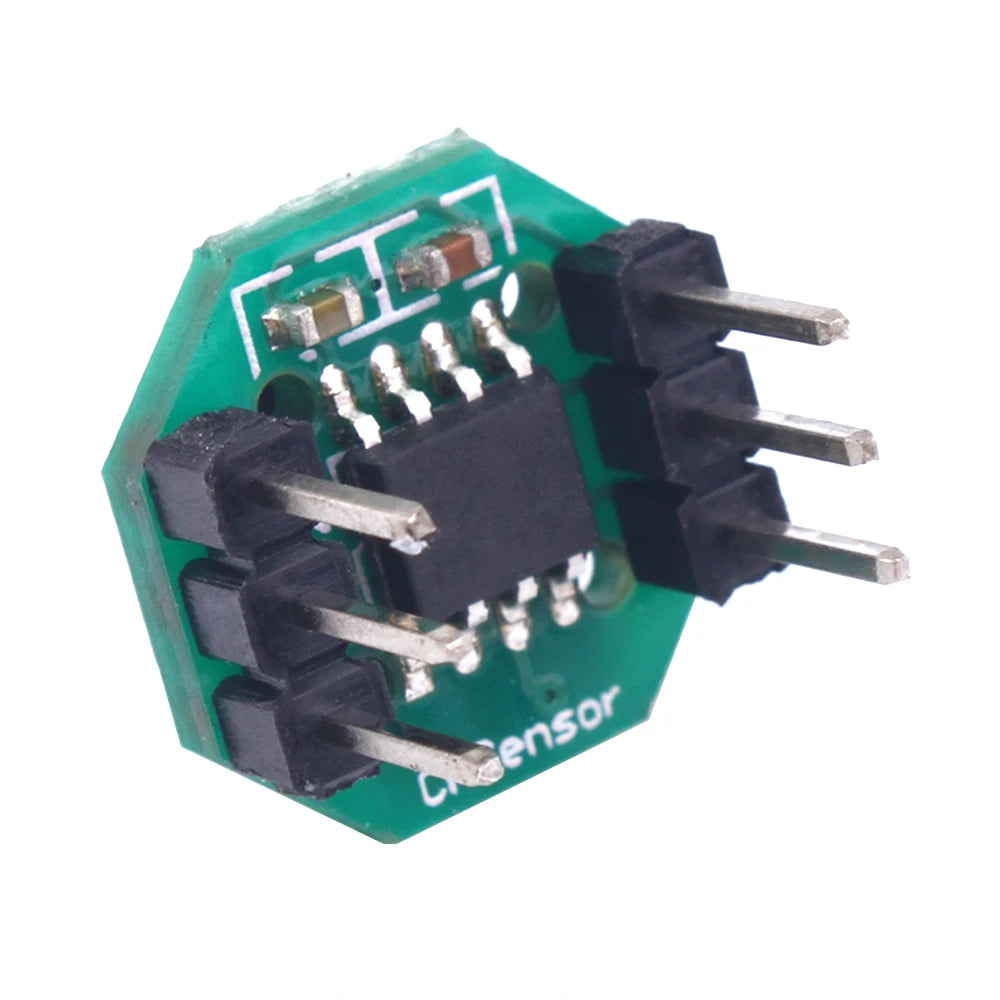

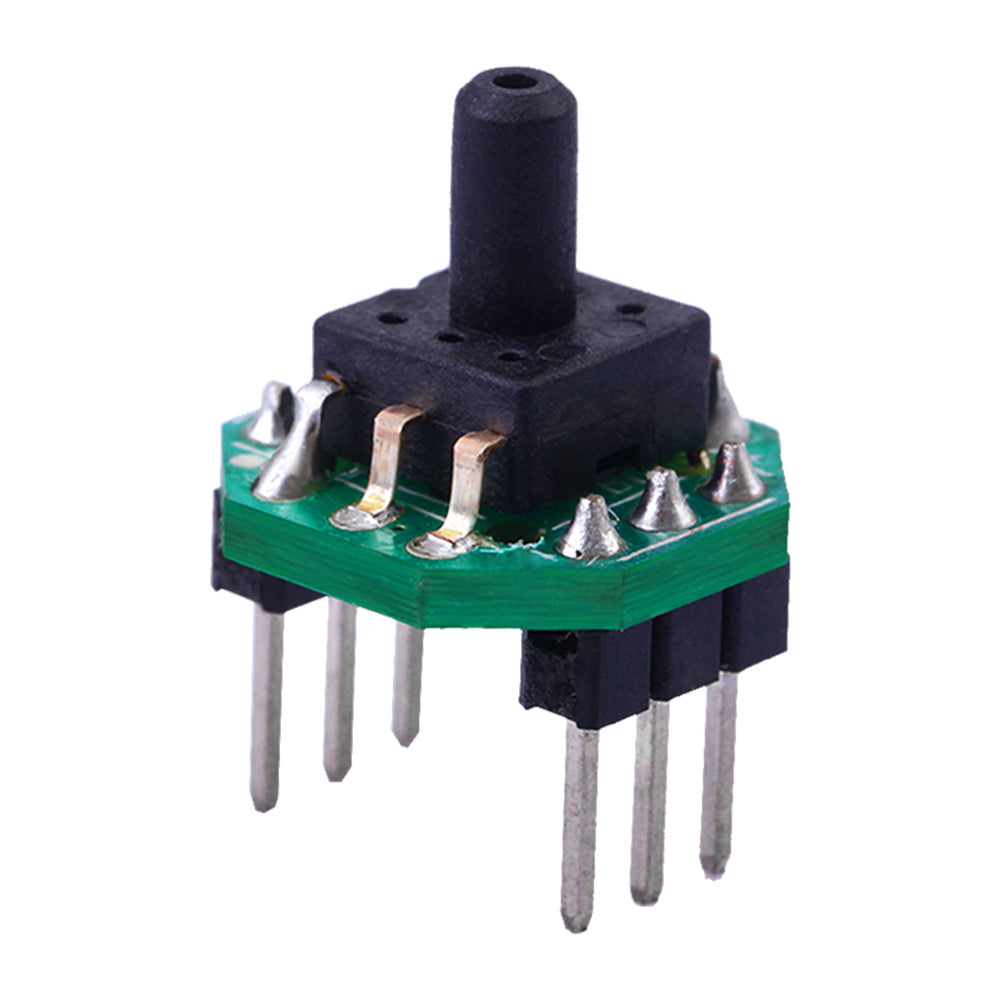

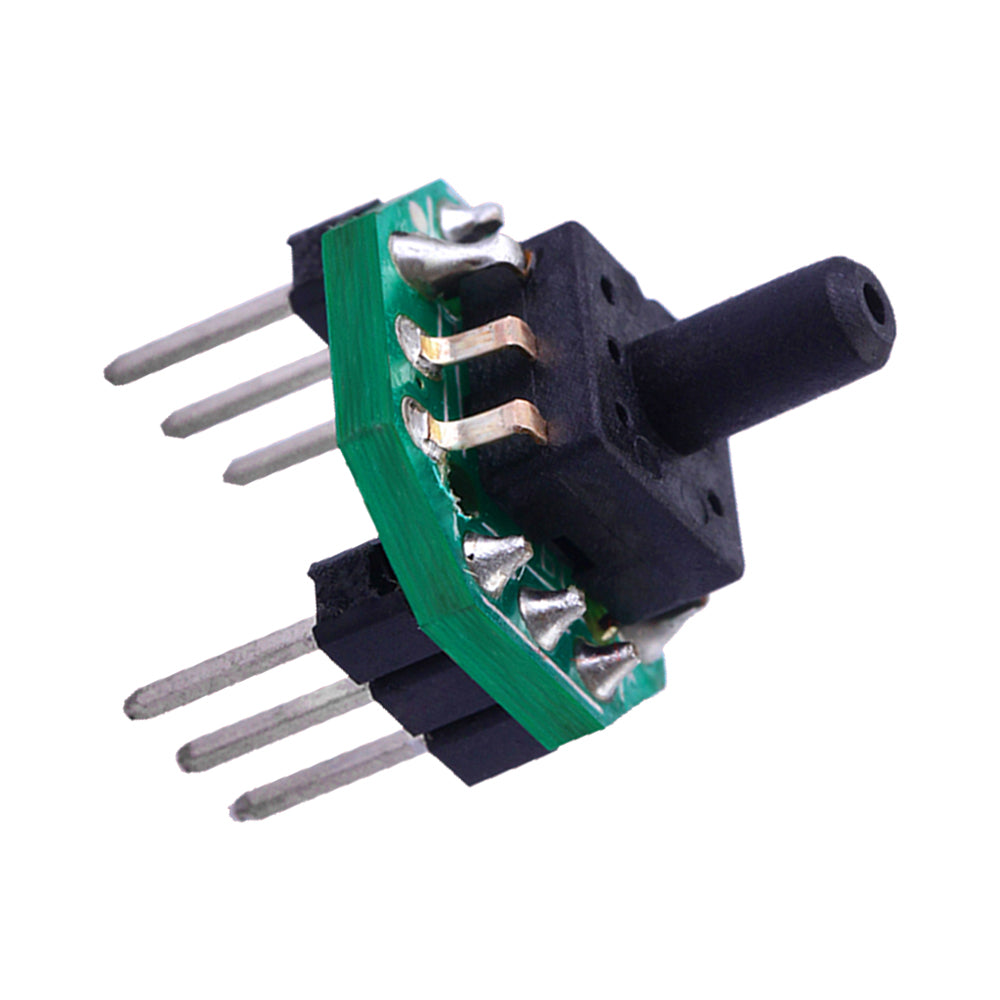

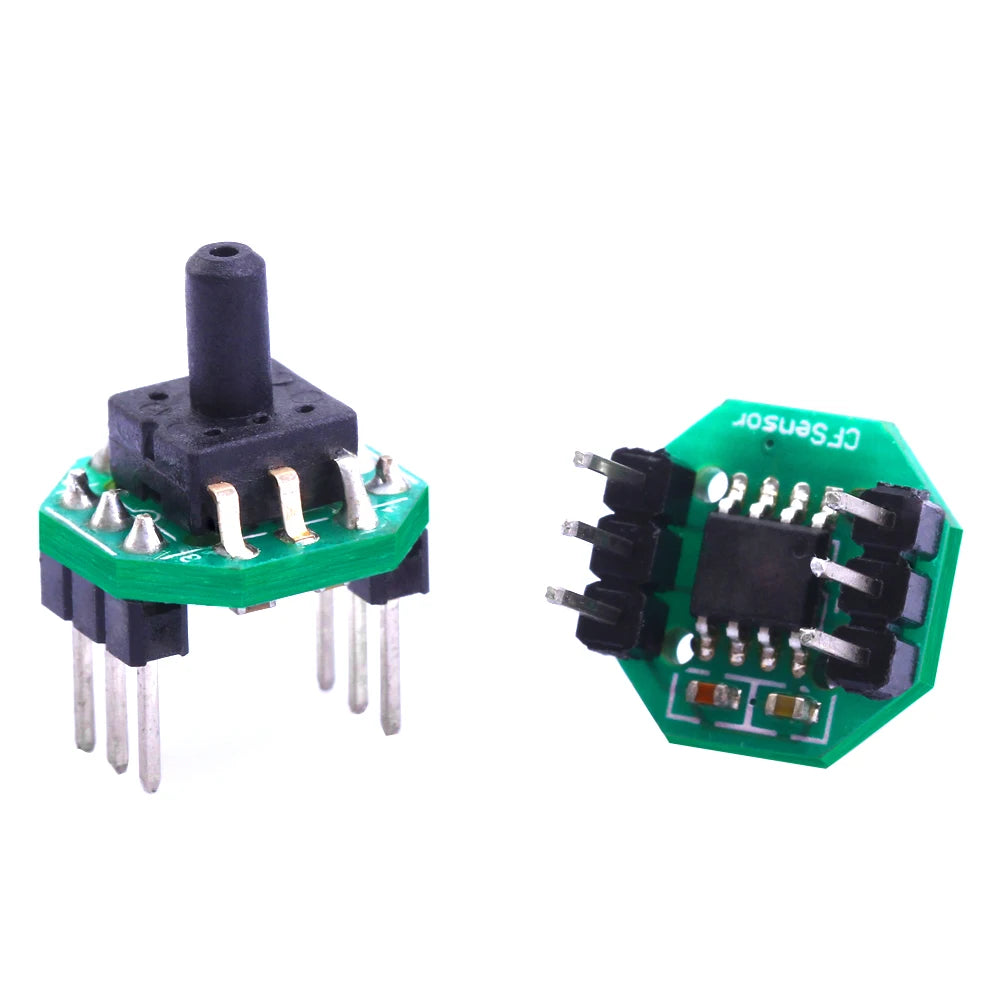

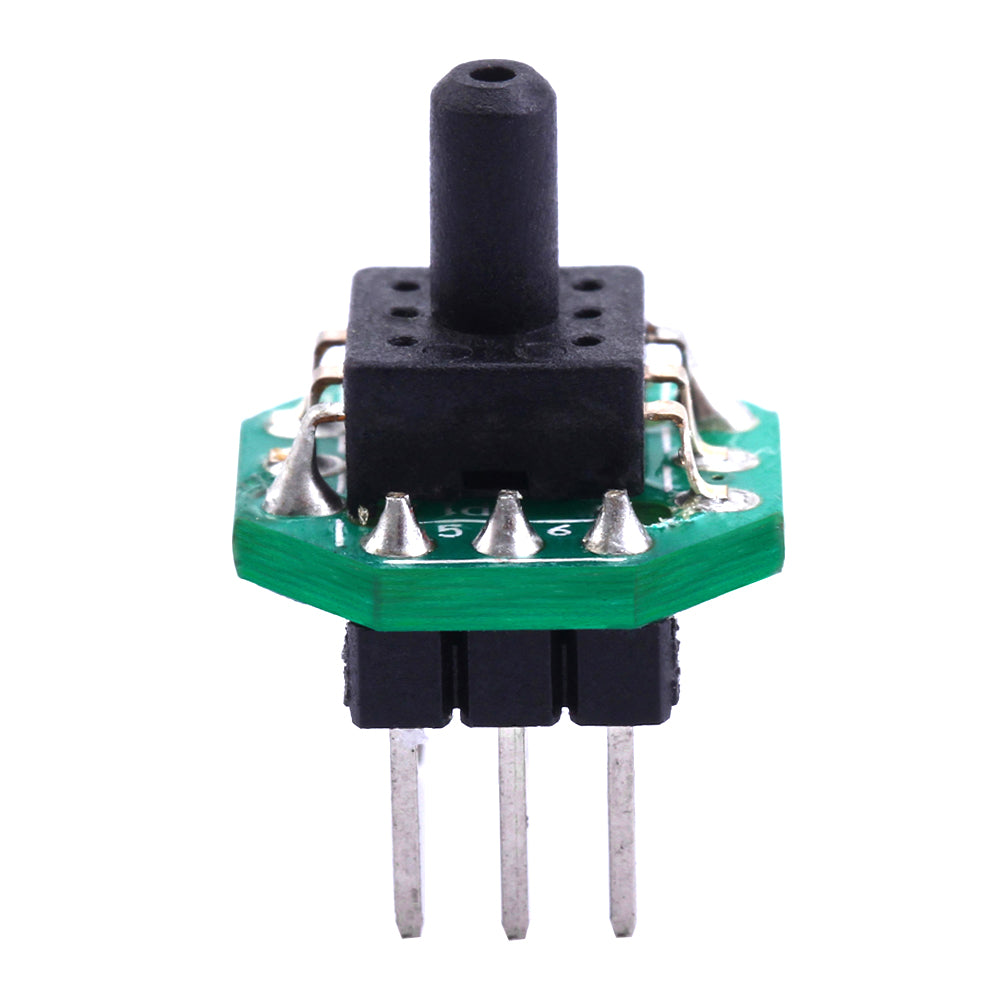

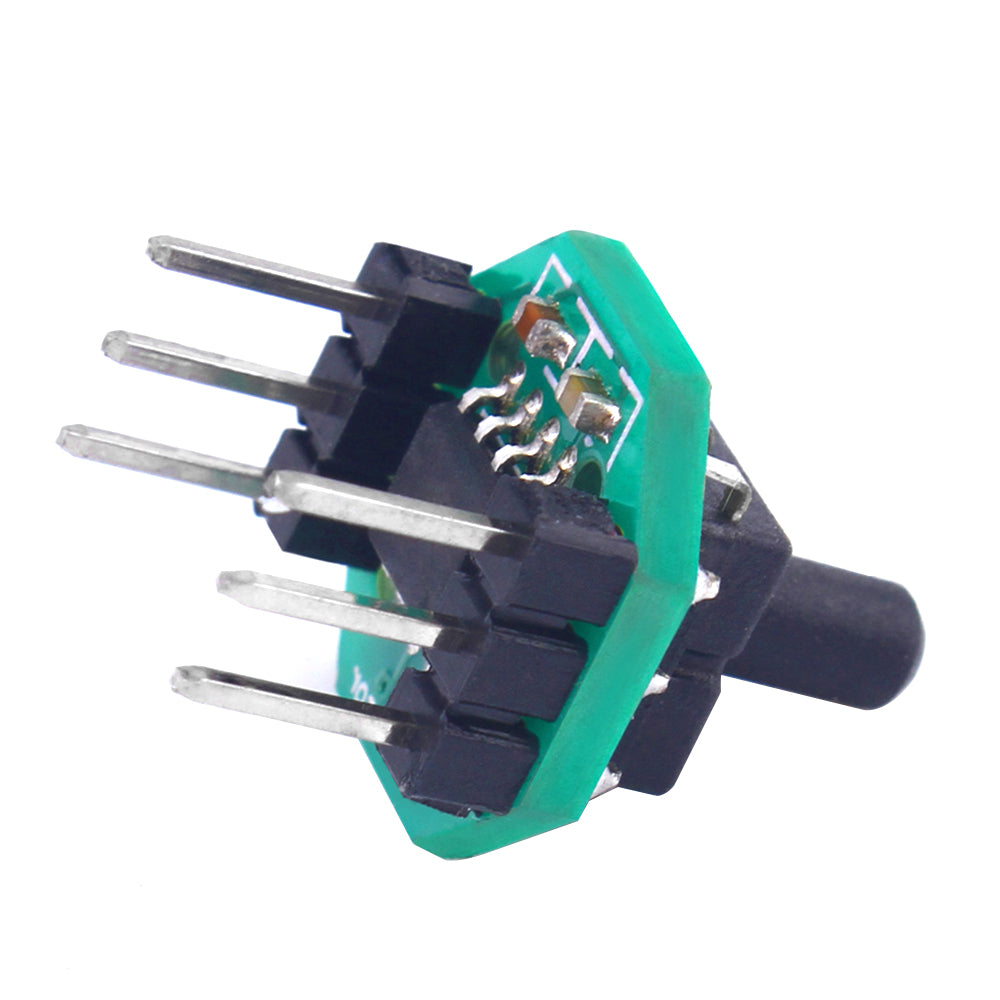

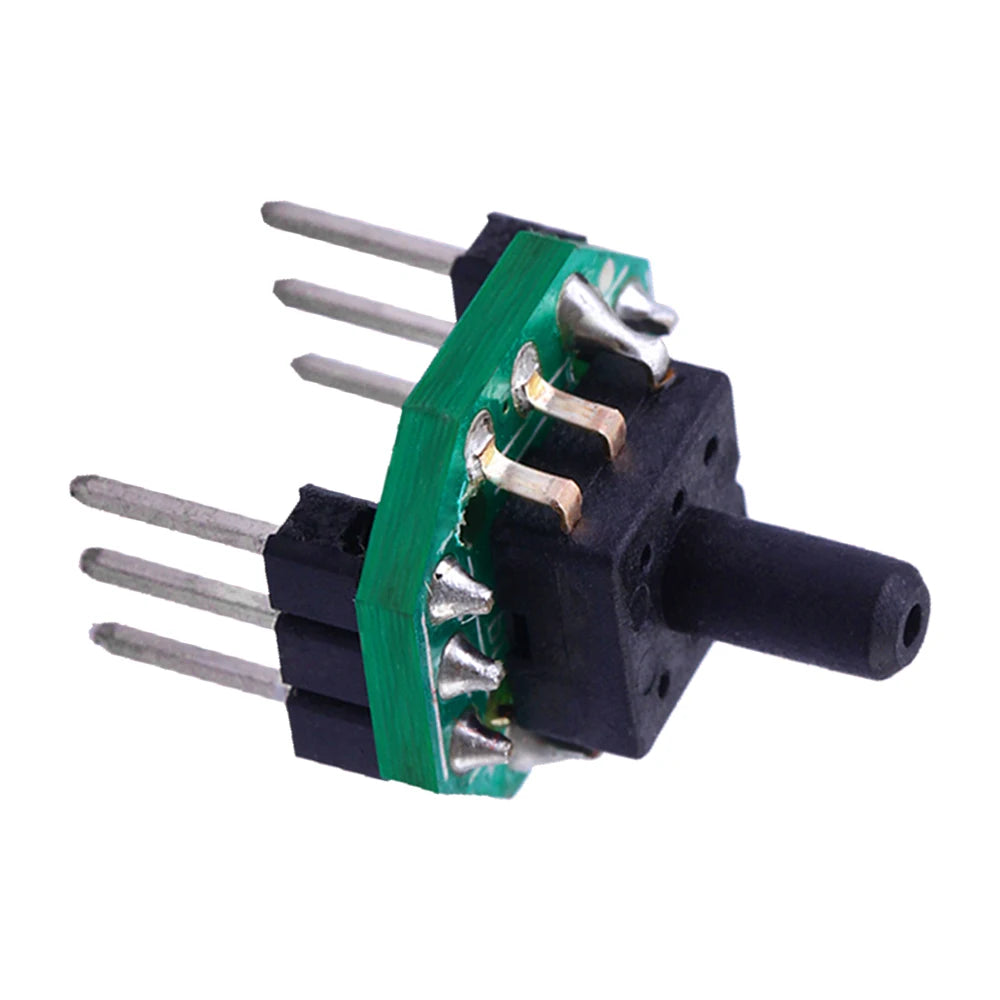

XGZP6847A -100-0KPa 0-100KPa 0-200KPa 0-700KPa 0-500KPa Gas Pressure Transmitter Module 0.5-4.5V Gas Pressure Oxygenerator Sensor Transmitter Module

Features:

1. Suitable for electronic sphygmomanometers, ventilators, oxygen generators, monitors and other medical fields
2. Suitable for tire pressure gauge, steering assist, brake assist, MAP sensor and other automotive electronics fields
3. Applicable to the field of sports and fitness equipment such as massagers, massage chairs, air beds, etc.
4. Suitable for water heaters, oxygenated water machines, beer machines, coffee machines, air pumps, vacuum pumps, pressure instruments, electric breast pumps, vacuum cleaners, etc.
5. Suitable for non-corrosive gases.

Parameter:

Output signal: 0.5-4.5 (5V power supply)
Accuracy: ±1.0, ±0.5, ±2.5
Compensation temperature: 0-60℃
Measuring medium temperature: -10-85℃
Storage temperature: -40-150℃

Notice:

1. Do a good job of anti-static protection during the welding process
2. Overload voltage (6.5Vdc) or current (5mA) is very likely to burn the circuit chip

1. Welding

Since this product has a small structure with a small heat capacity, please minimize the influence of heat from the outside. Otherwise, it may be damaged due to thermal deformation, resulting in changes in characteristics. Please use non-corrosive rosin type flux. Also, since the product is exposed, be careful not to allow flux to penetrate inside.

2. Cleaning

1) Since the product is an open type, be careful not to allow cleaning fluid to penetrate inside.
2) When cleaning with ultrasonic waves, the product may malfunction, so please avoid cleaning with ultrasonic waves.

Package list:

Pressure sensor*1 (-100-0KPa/0-100KPa/0-200KPa/0-500KPa/0-700KPa)
