Description

SPECIFICATIONS

Accuracy: 0.5%FS

Battery Included: no

Brand Name: NoEnName_Null

Certification: CE

Customized support: OEM, ODM

High-concerned chemical: none

Max Measuring Range: 400 Bar & Above

Measurement Medium: Oil Air Gas Water Pressure

Measuring Range: -0.1 ~ 0 ~ 60Mpa

Model Number: pcm950a

Origin: Mainland China

Output Signal: 4-20mA HART

Power Supply: DC12V ; DC24V

Semi-finishedproduct: No

Thead: G1/4,G1/2,1/2NPT,1/4NPT,M2*1.5 etc

Product description

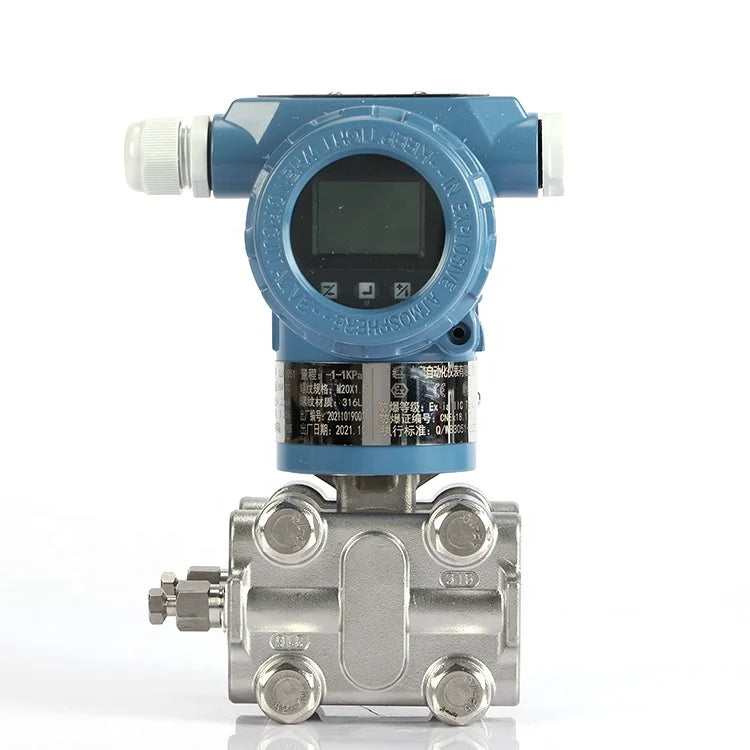

Pressure/differential pressure/liquid level transmitter is used to measure the pressure, liquid level or density of liquids, gases or vapors. Using fully sealed capacitor or silicon differential pressure sensor, the pressure measurement has a high accuracy measurement while guaranteeing excellent stability and reliability. 3501 series products can be configured with HART communication protocol, which can communicate with the control system or hand operated device , through which setting, monitoring, testing and configuration can be carried out. HART protocol uses industry standard BELL202 frequency phase shift keying (FSK) technology to realize communication by superimposing digital signals on 4 ~ 20mA signals, the frequency signals do not interfere with 4 ~ 20mA signals when communicating.

Technical specifications

Ordinary	0-1 Mpa~200Mpa
Combined Accuracy	0.25%FS; 0.5%FS; 1%FS
Nolinear	Full range of 0.2%FS
Repeatability	Full range of 0.05%

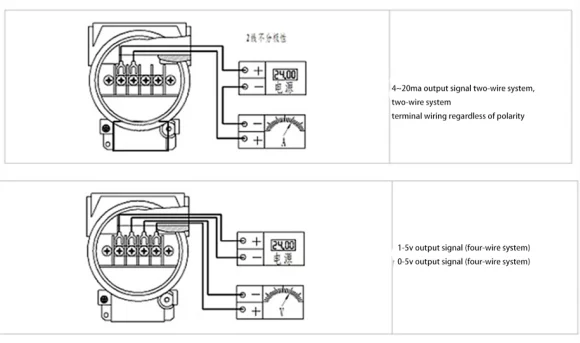

Output signal	4-20mA (two-wire system）, 2MV/V, 0-5V; 0-10V (three-wire system）;
Supply voltage	24(12~36)VDC (amplifying signal）
Operating temperature range	-40-120℃
Compensation temperature range	-20-80℃
Load pressure	150%FS
Dielectric material	Pressure joint material is SS, shell material is SS or hard aluminium optional
IP grade Electrical connector	Hirschmann(DIN43650), Enclosure protectionIP65;Waterproof Gland, Enclosure protectionIP68;Aviation plug-in, Enclosure protectionIP45;
Pressure connector	G1/4.G1/2, 1/2NPT, 1/4NPT, M12*1.5 etc. clamp type（customer design）
Zero & full span adjustment	This function can be added as required, with external (side and top) and internal adjustments, but the shape and size will be changed.
