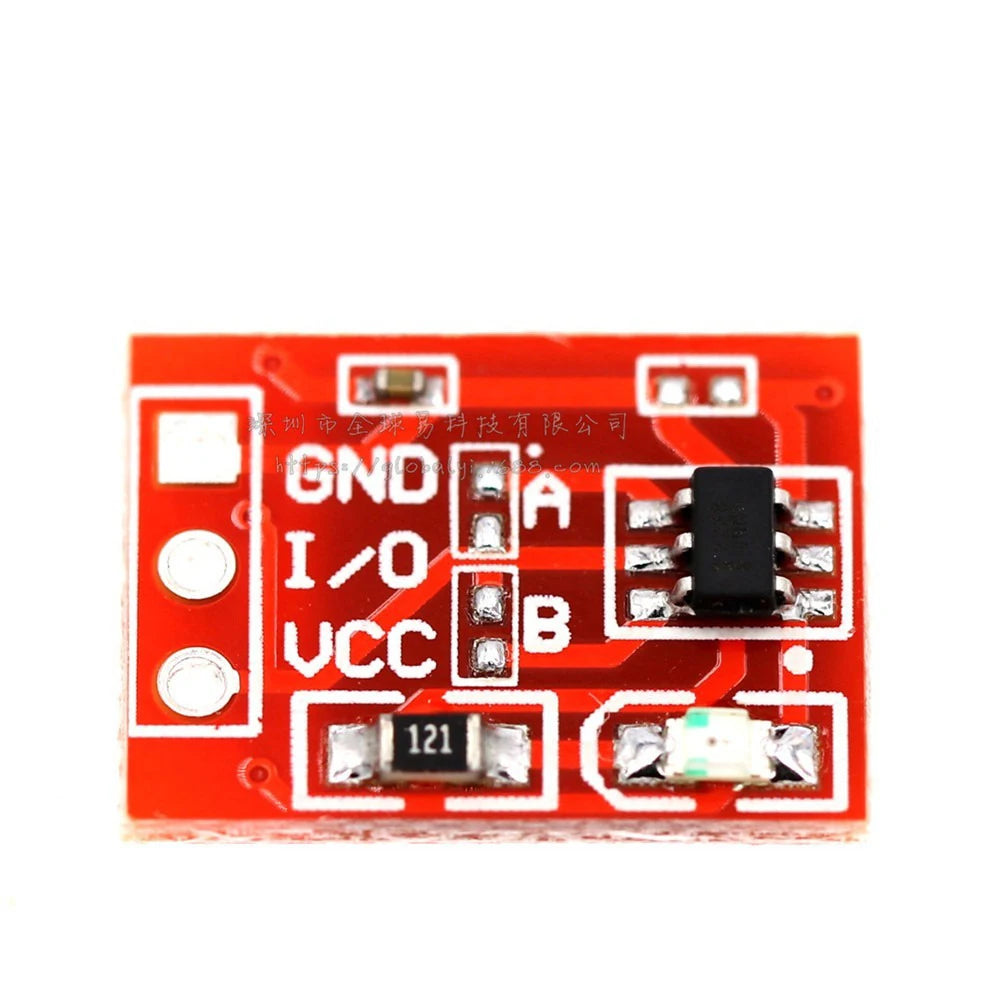

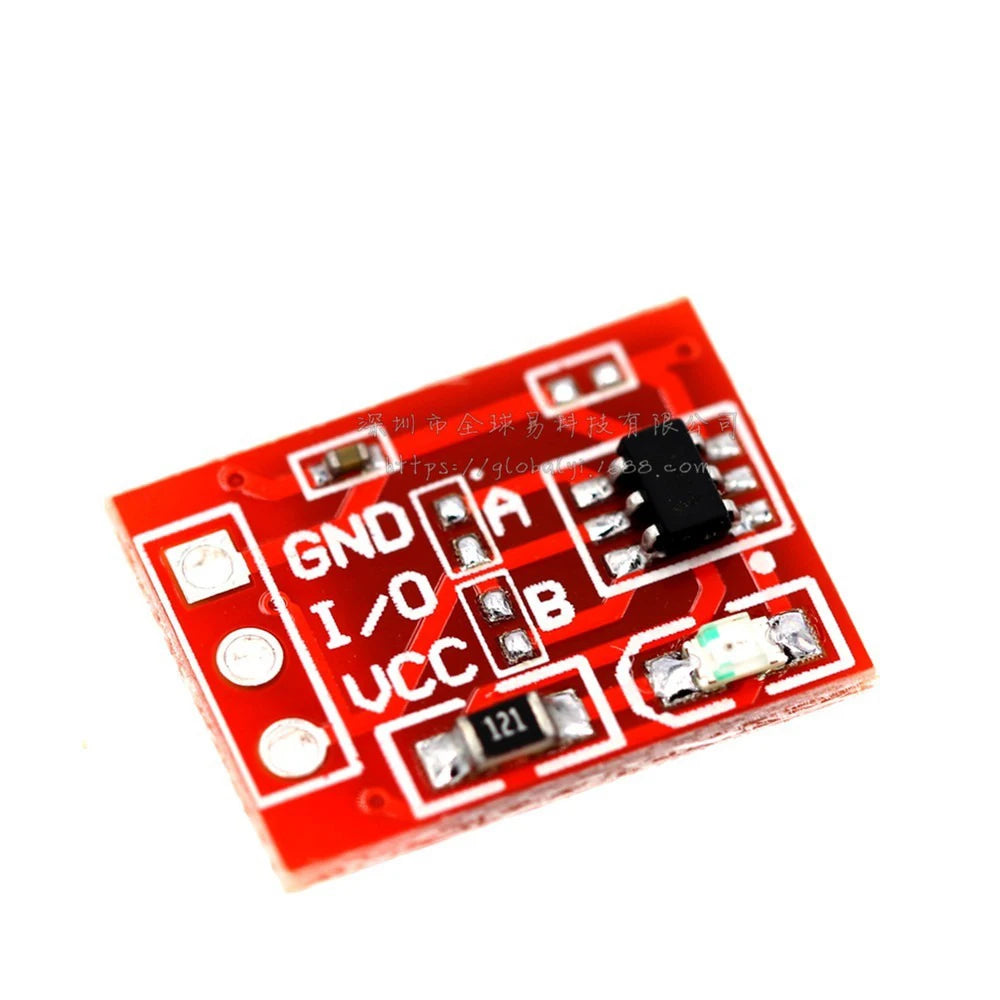

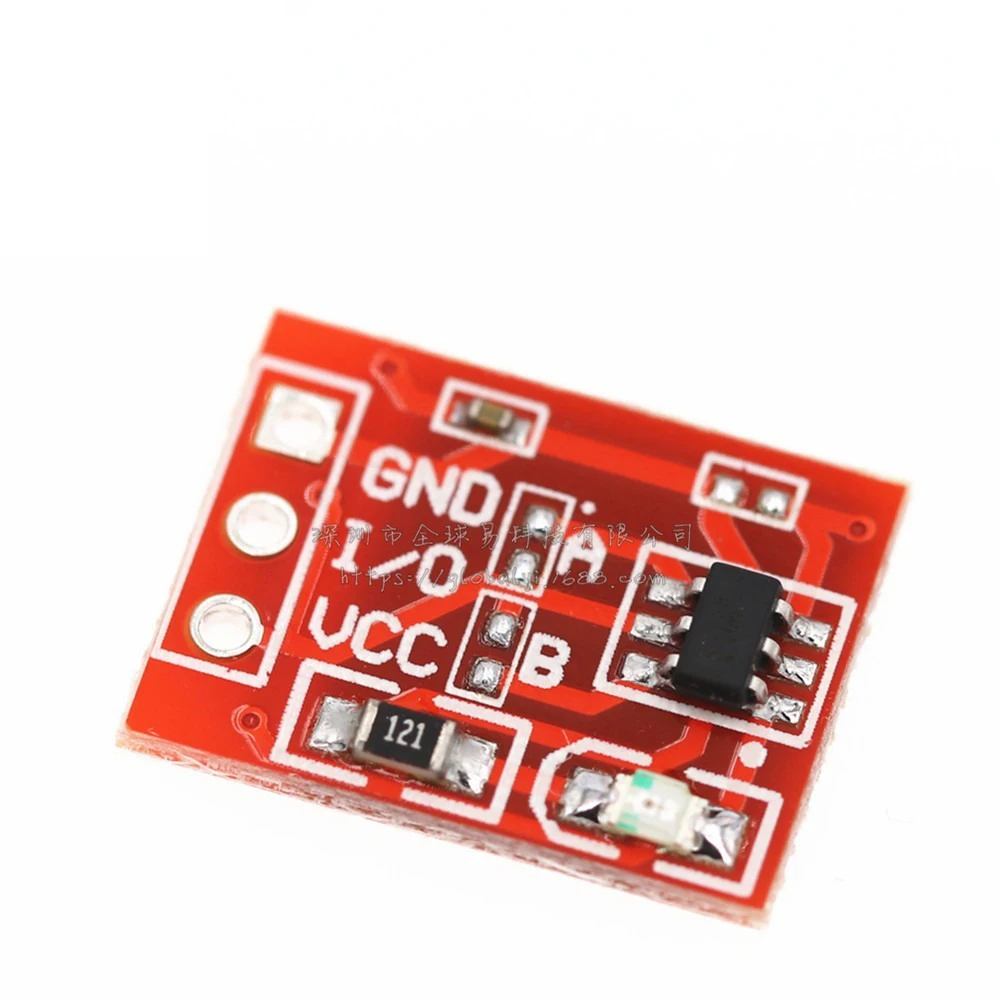

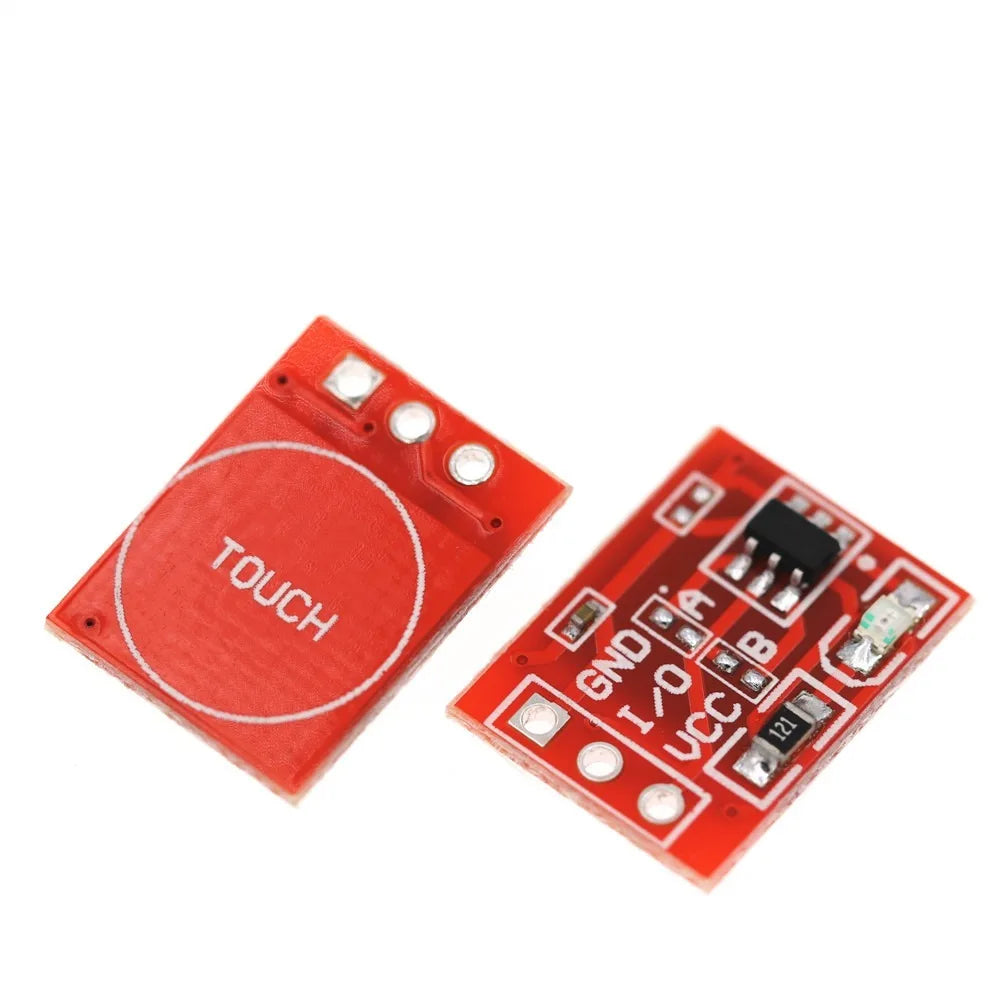

100/200/300/400PCS TTP223 Touch Button Module Capacitor Type Single Channel Self Locking Touch Switch Sensor
400Pcs
$154.53
Sale price
$154.53
Regular price
$0.00
Skip to product information
100/200/300/400PCS TTP223 Touch Button Module Capacitor Type Single Channel Self Locking Touch Switch Sensor
$154.53
Sale price
$154.53
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: NONE
Choice: yes
Condition: New
High-concerned chemical: none
Origin: Mainland China
Quantity: 100
Type: Module
Product Description:
Module size: 15mmX11mm
Power supply: 2.5v-5.5v
The latest version, red board, character confused, distance increase use as shown below:
Trigger setting mode:(1- > Short ; 0- > No Short)
AB=00:No-lock High TTL level ouput;
AB=01:Self-lock High TTL level ouput;
AB=10:No-lock Low TTL level ouput;
AB=11:Self-lock Low TTL level ouput.
