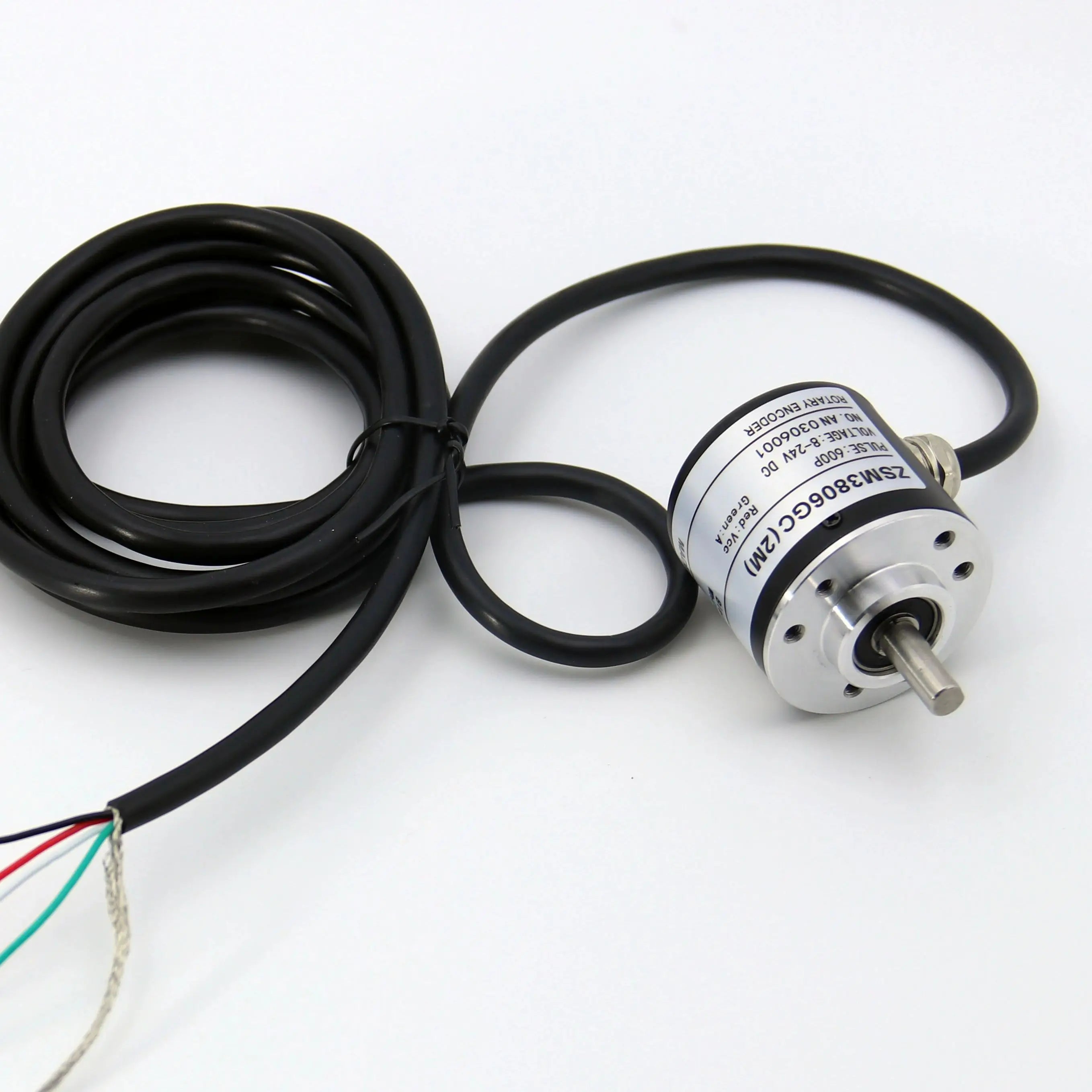

100/200/360/400/500/600P Photoelectric Incremental Rotary Encoder AB 2-phase NPN open collector output Optical rotary encoder
  • 100/200/360/400/500/600P Photoelectric Incremental Rotary Encoder AB 2-phase NPN open collector output Optical rotary encoder
  • 100/200/360/400/500/600P Photoelectric Incremental Rotary Encoder AB 2-phase NPN open collector output Optical rotary encoder
  • 100/200/360/400/500/600P Photoelectric Incremental Rotary Encoder AB 2-phase NPN open collector output Optical rotary encoder
  • 100/200/360/400/500/600P Photoelectric Incremental Rotary Encoder AB 2-phase NPN open collector output Optical rotary encoder
  • 100/200/360/400/500/600P Photoelectric Incremental Rotary Encoder AB 2-phase NPN open collector output Optical rotary encoder
  • 100/200/360/400/500/600P Photoelectric Incremental Rotary Encoder AB 2-phase NPN open collector output Optical rotary encoder
100/200/360/400/500/600P Photoelectric Incremental Rotary Encoder AB 2-phase NPN open collector output Optical rotary encoder
100/200/360/400/500/600P Photoelectric Incremental Rotary Encoder AB 2-phase NPN open collector output Optical rotary encoder
$51.17
$51.17 $0.00
Color
Size
Voltage
Description

SPECIFICATIONS

Brand Name: NONE

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Item Type: SWITCHES

Material: Aluminium alloy

Origin: Mainland China

modname=ckeditor

Power source: DC8-24V

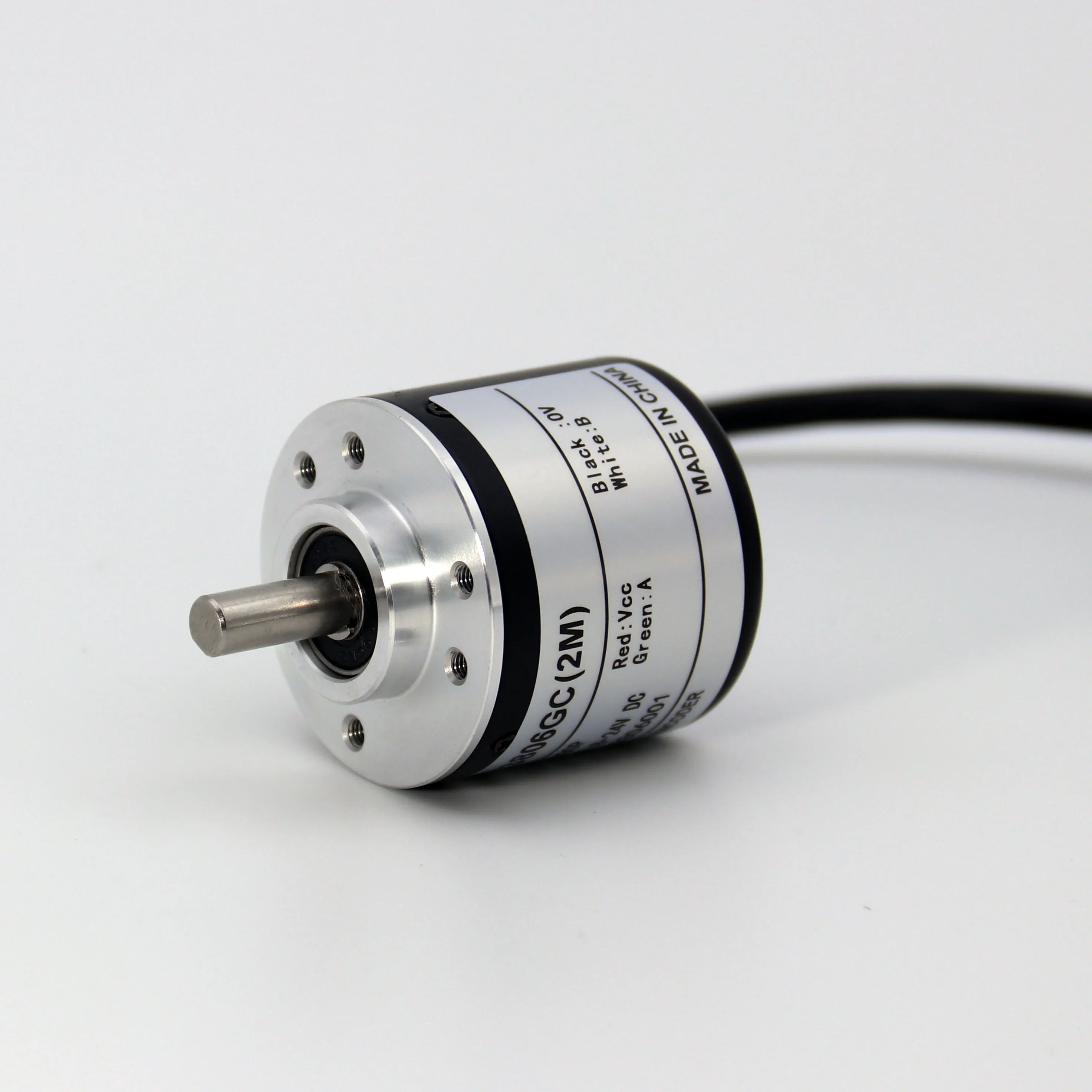

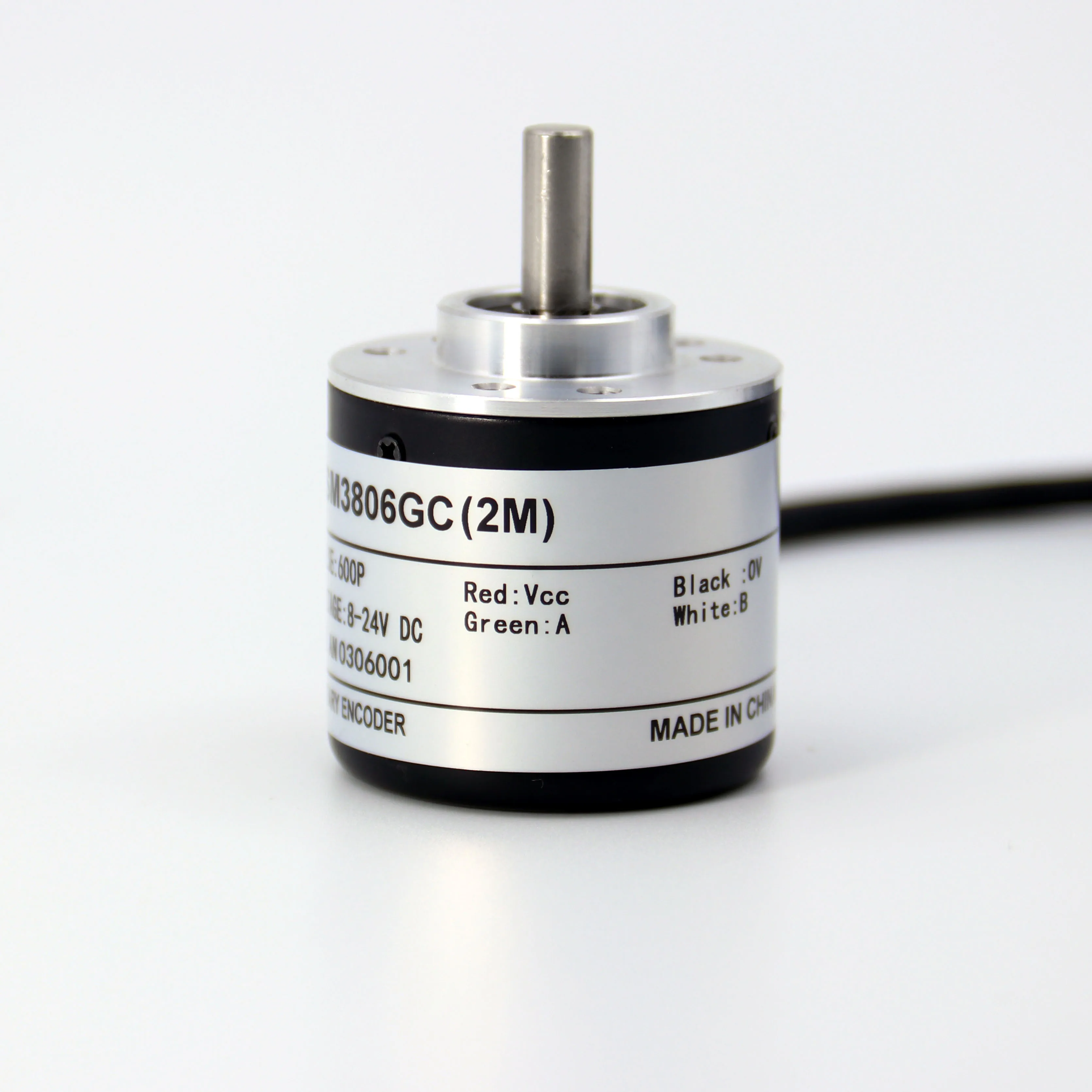

Shaft: 6*13mm/0.23*0.51"


Size: 38*35.5mm/1.49*1.39"


Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type


Maximum mechanical speed: 5000 R / min


Response frequency: 0-20KHz

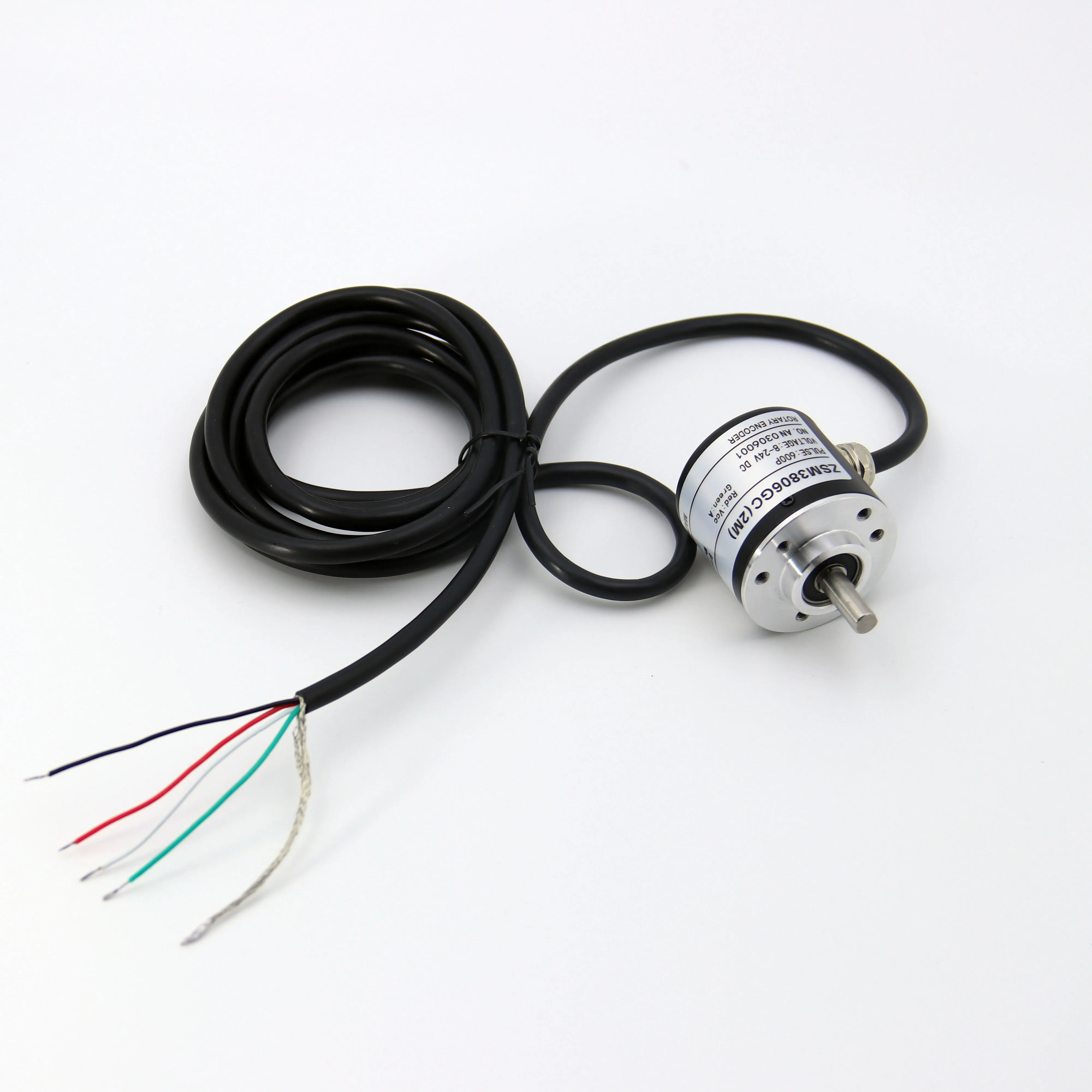

Cable length: 1.5 meter


Notice:AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal




Connection:

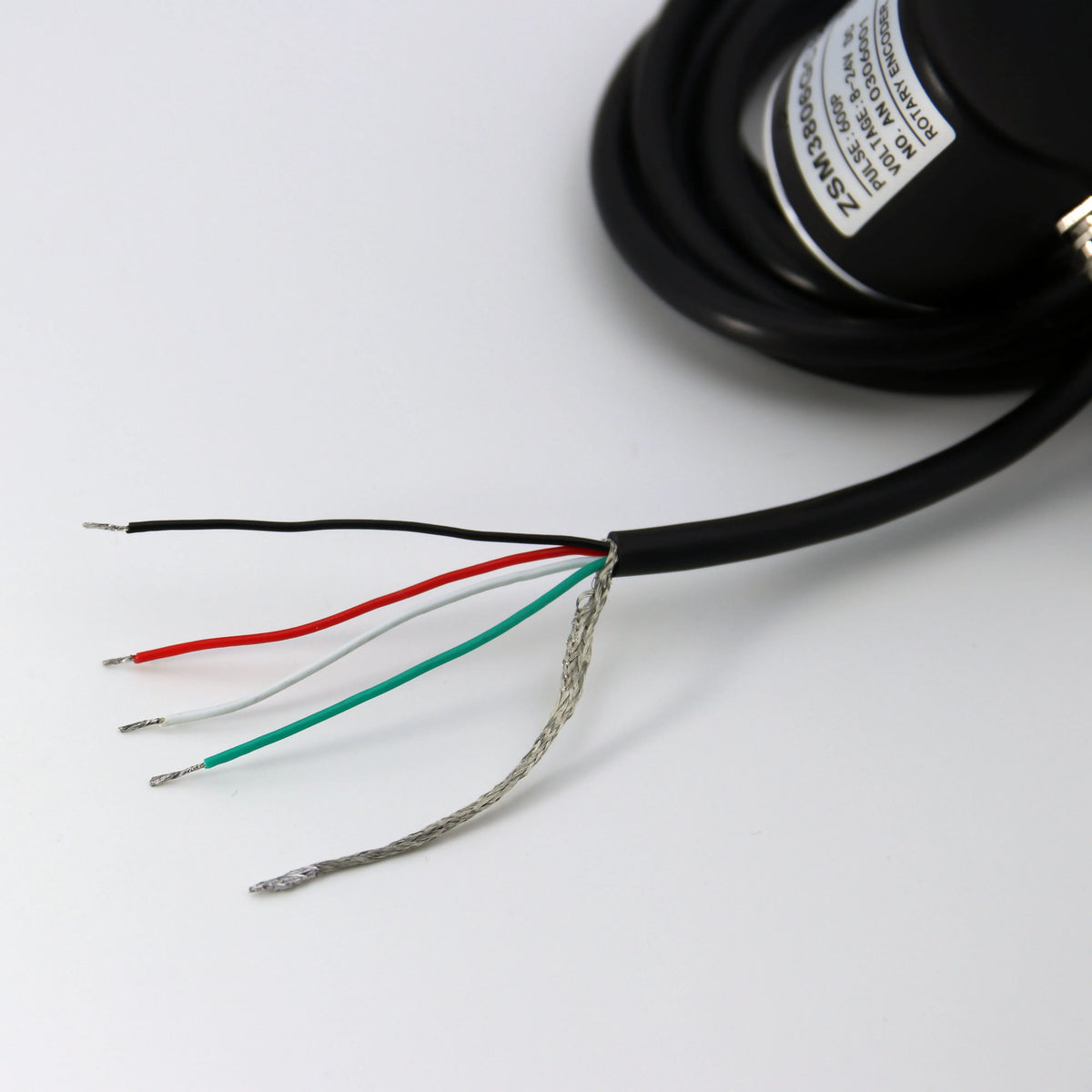

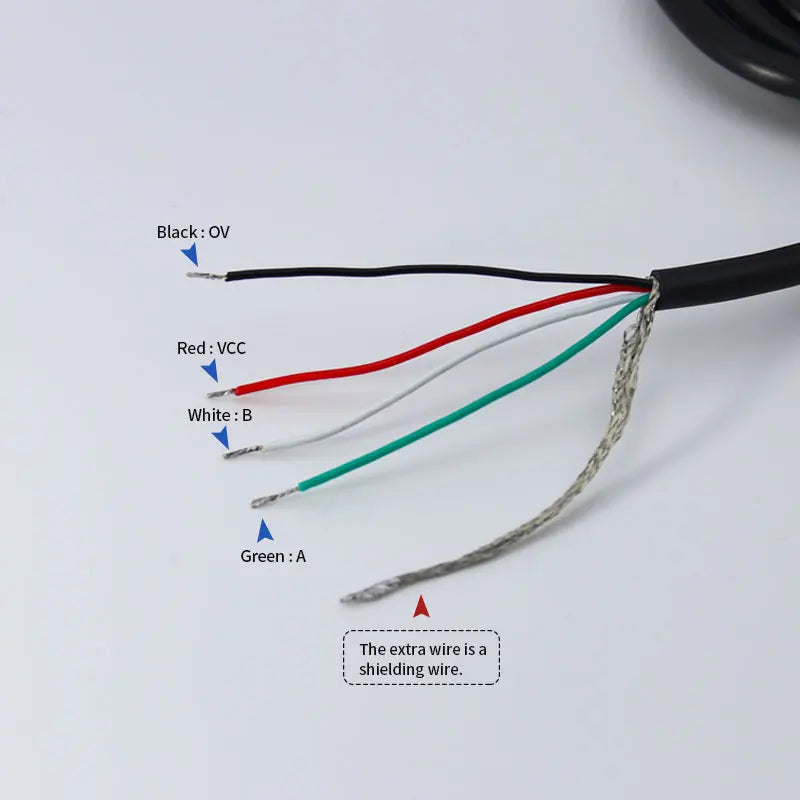

Green = A phase, white = B phase, red = Vcc power +, black = V0


Application:


Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement


Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots






Package included:


1 x Encoder Incremental Rotary Encoder
