SPECIFICATIONS

ull Support LCD TV FLASH drivers read and write unlimited capacity TSOP48 nand FLASH EMMC TSOP56 pin TOP8-16 pin Support CAR DVD, SMART TV.

The Only universal programmer which can automatically detect chip number for all Chips.

The only universal programmer which can put ic in any position and make intelligent sense.

The Only universal programmer Support Read and program Laptop I/O via keyboard line.

The Only universal programmer Support Read and Program LCD TV VIA VGA and HDMI PORT.

The Only universal programmer Support ADD new flash by yourself without wait for factory.

The Only universal programmer built in Most of repair applications TV,DVD,DVB,and many isp software.

The Only universal programmer make selftest for LCD TV itself and diagnostic fault.

The best programmer to read and programing flash on motherboard without removing out

Support Read and Programming OTP area .

Support UPTO 64GB NAND FLASH

· 48-pins powerful pindrivers, no adapter required for any DIL devices

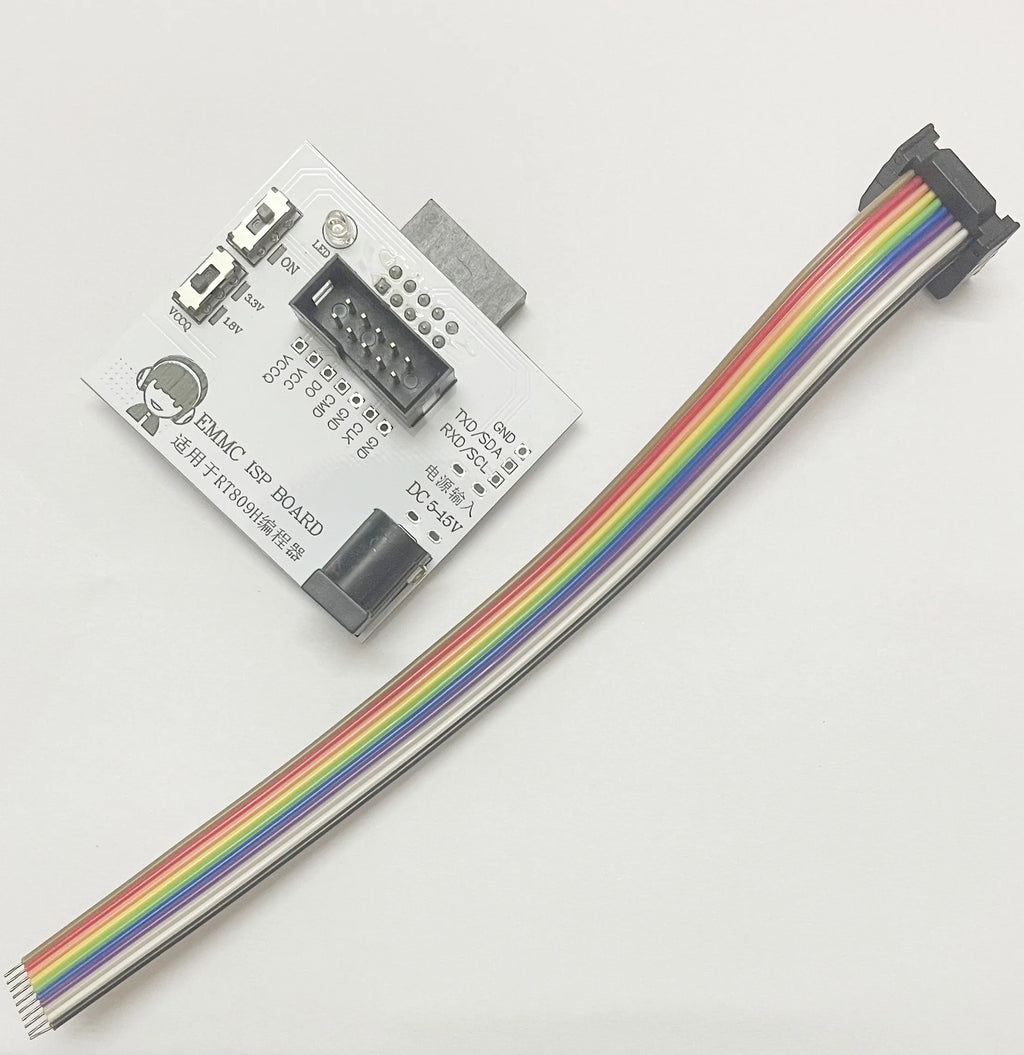

· ISP connector for in-circuit programming

· VGA port to read and write LCD TV-MONITORS without disassembly .

· HDMI port to read and write LCD TV-MONITORS without disassembly .

· Connection to PC: USB 2.0 (up to 480 Mbit/s, high speed/full speed) and 1.1 compatible interface

· Comfortable and easy to use control program, works with all versions of MS Windows

· can support any flash and very easy to add new flash .

· High programming speed.

·Advanced and powerful software functions.

·Online Technical Support is also available 24 hours .

· One Year warranty.

·Provides very competitive price coupled with excellent hardware design for reliable programming.

· the programmer performs device insertion test (wrong or backward position) and contact check (poor contact pin-to-socket) before it programs each device. These capabilities, supported by overcurrent protection and signature-byte check help prevent chip damage due to operator error.

· The selftest capability allow to run diagnostic part of software to thoroughly check the health of the programmer.

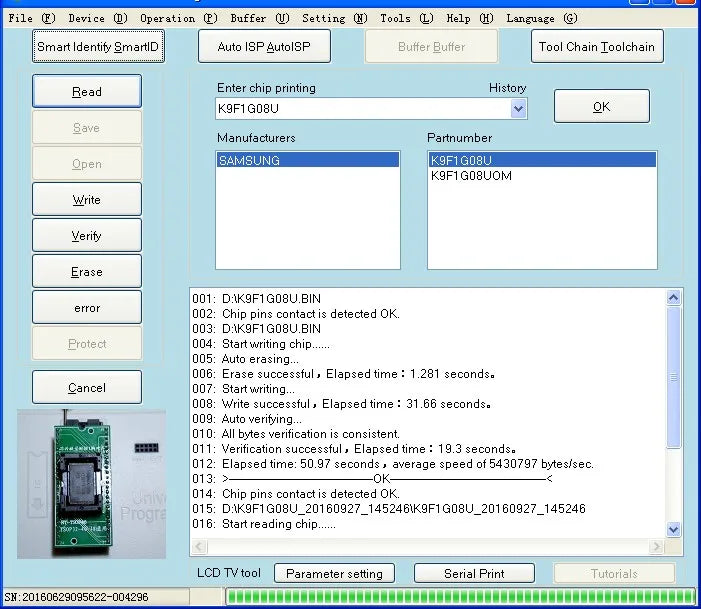

·Support Auto select for any series of flash including TSOP48-NAND-EMMC-PLCC,,ETC however Programmer is driven by an easy-to-use control program with pull-down menu, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number.

· All known data formats are supported. Automatic file format detection and conversion during loading of file.

·The software also provide a special information about programmed device. As a special, the drawings of all available packages are provided

· The software provide a full information for ISP implementation: Description of ISP connector pins for currently selected chip, recommended target design around in-circuit programmed chip and other necessary information.

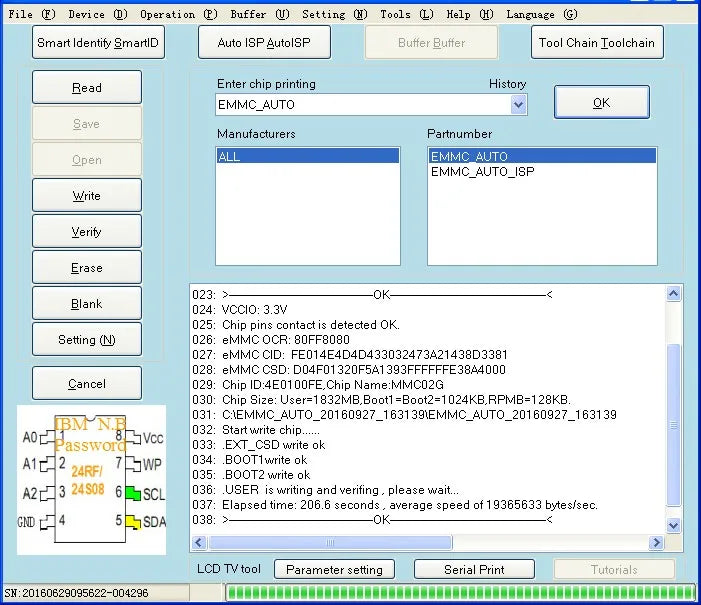

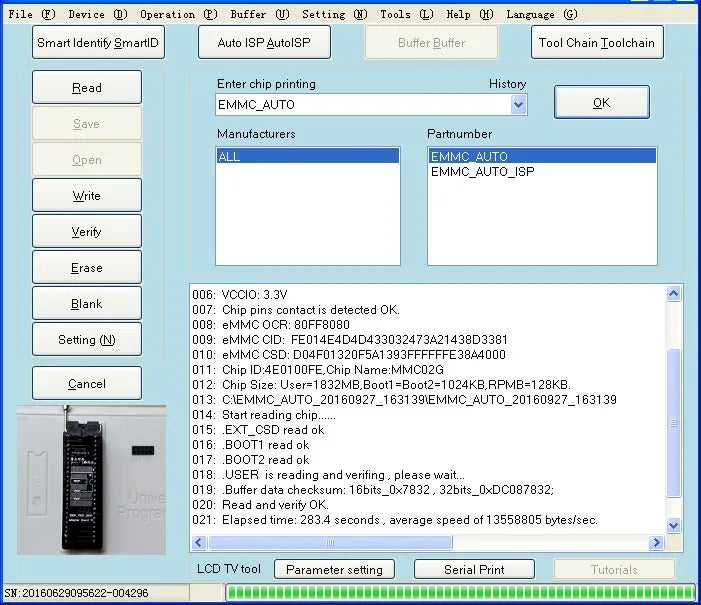

eMMC Read Verify 2GBytes with socket

eMMC_WRITE_Verify_2GBytes_with socket

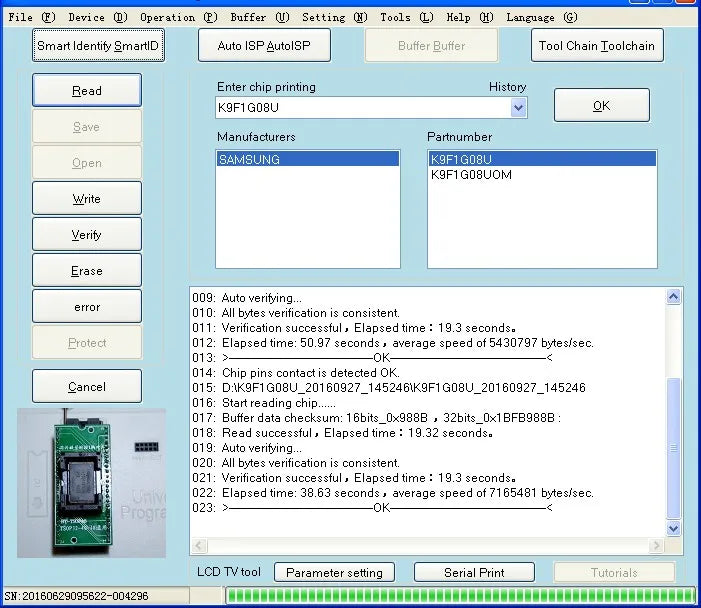

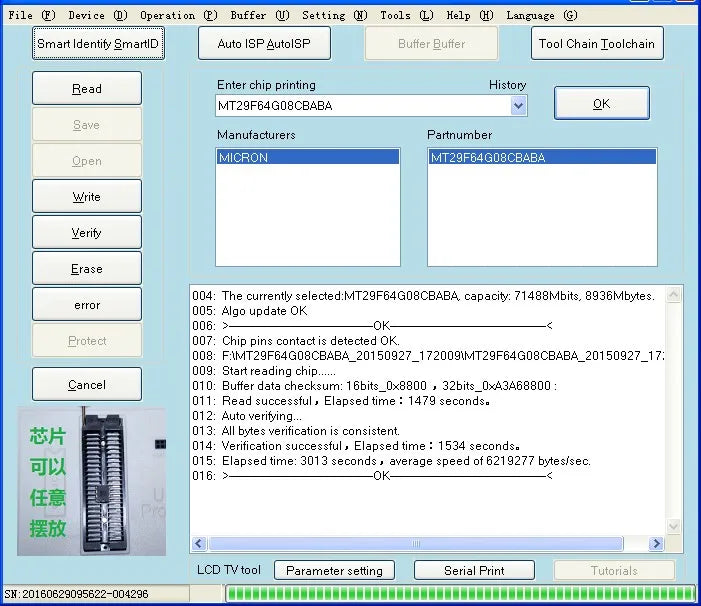

NAND_Read_Verify_64Gbits

NAND_Read_Verify_1Gbits

NAND_WRITE_Verify_1Gbits

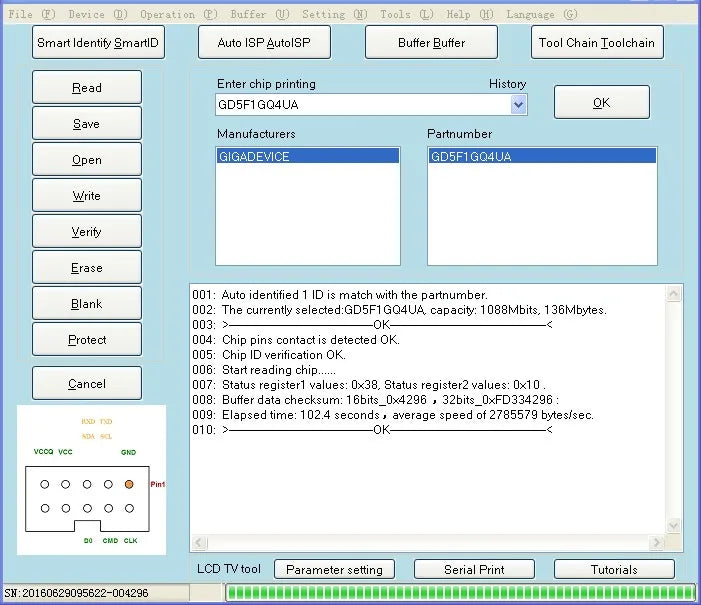

SPI NAND_Read_Verify_1Gbits

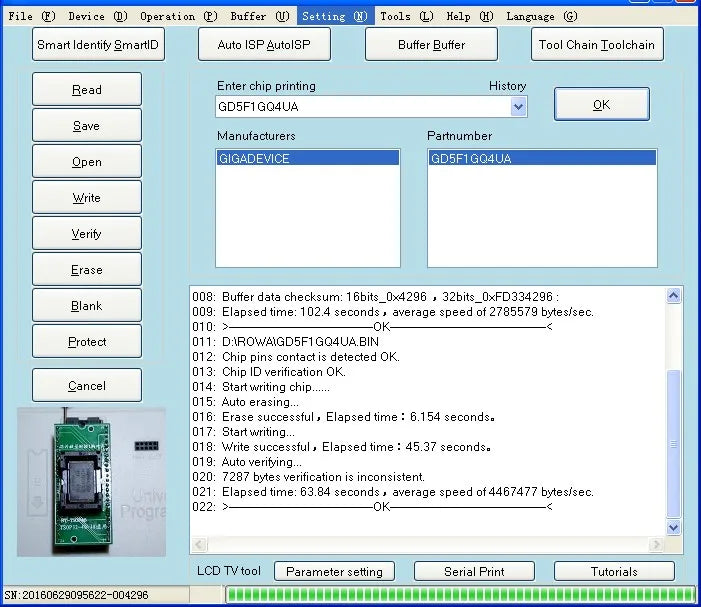

SPI NAND_WRITE_Verify_1Gbits

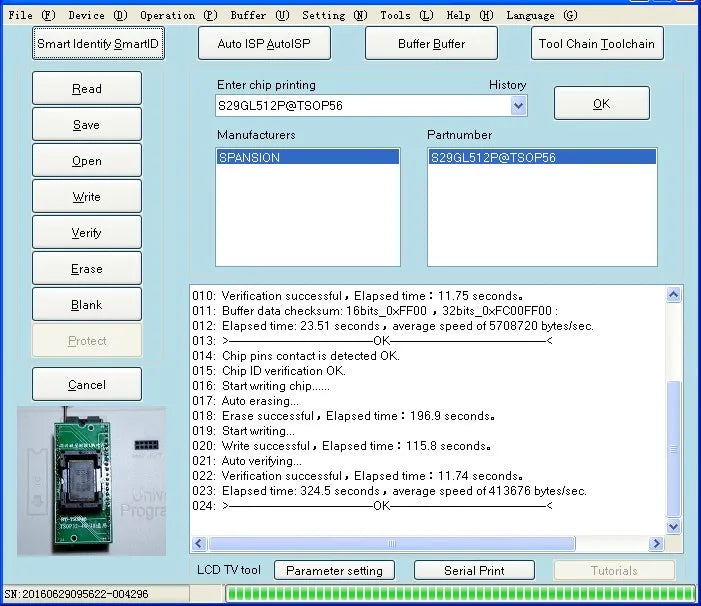

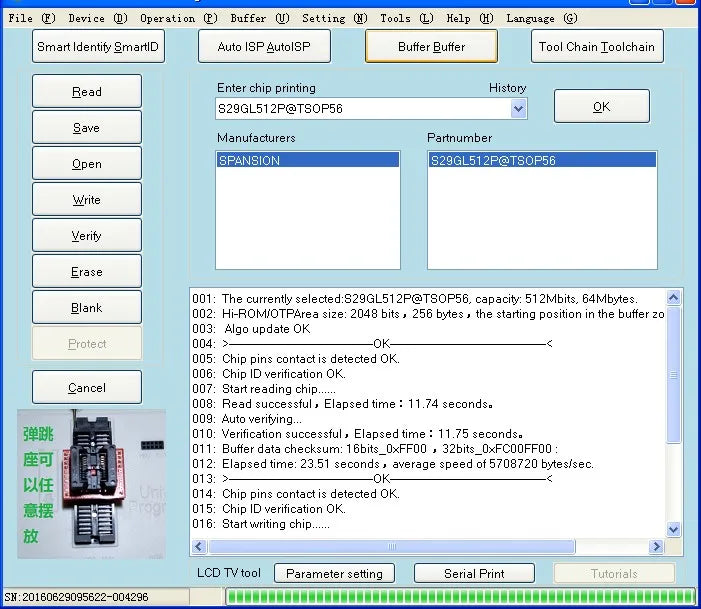

NOR_Read_Verify_512Mbits

NOR_WRITE_Verify_512Mbits

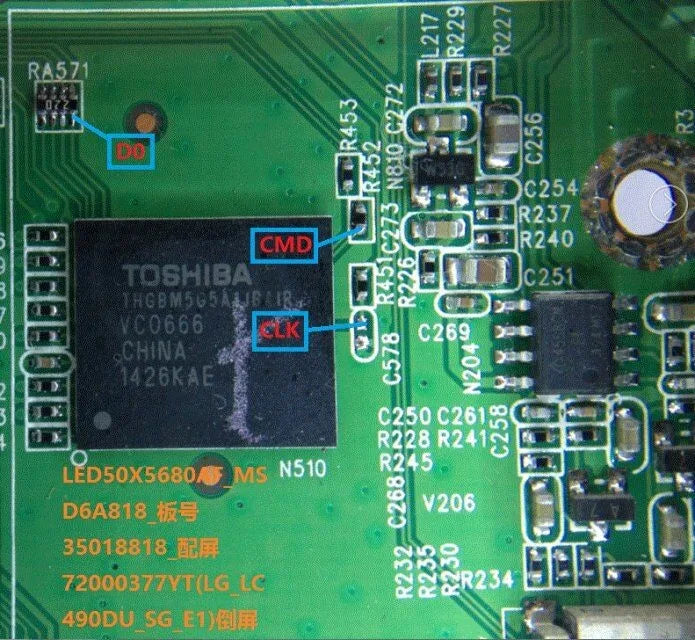

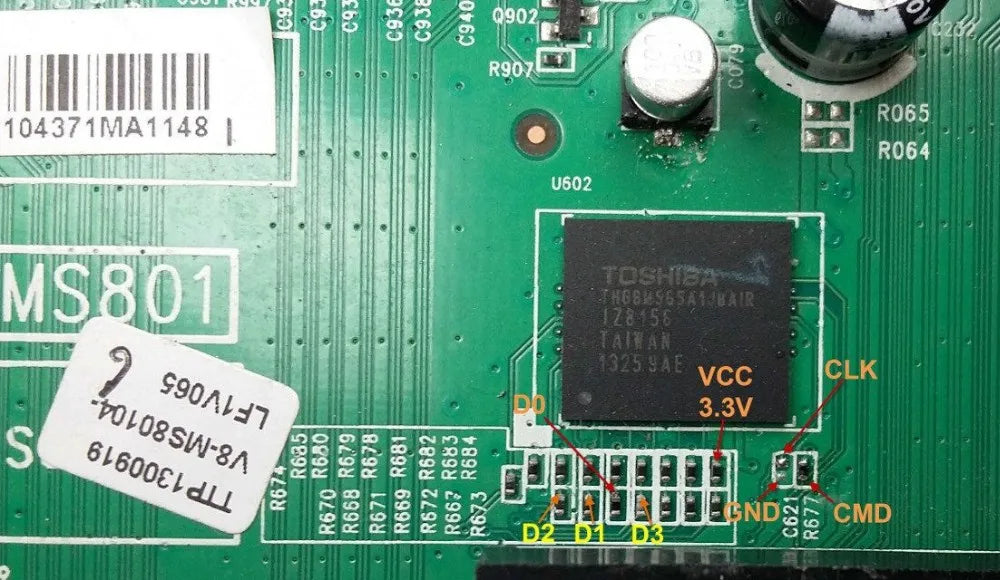

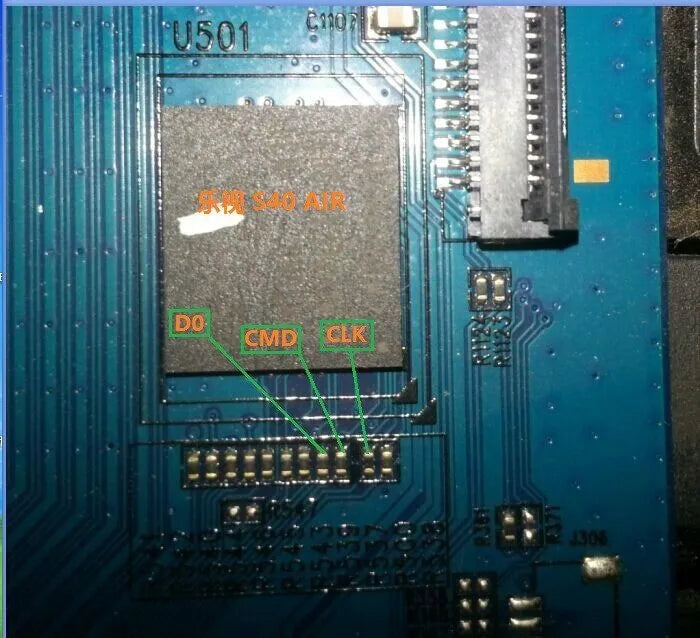

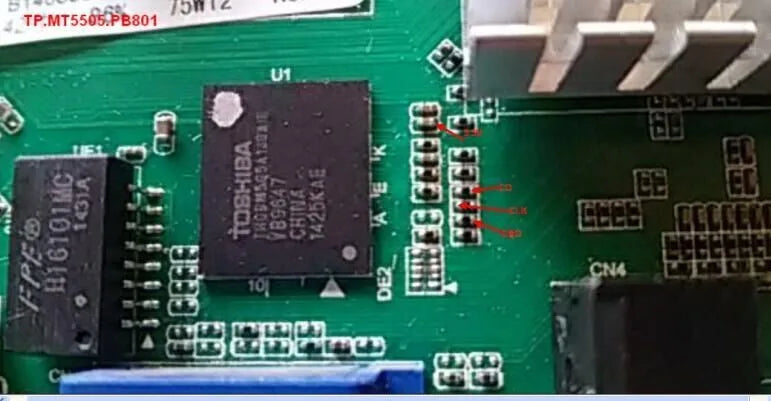

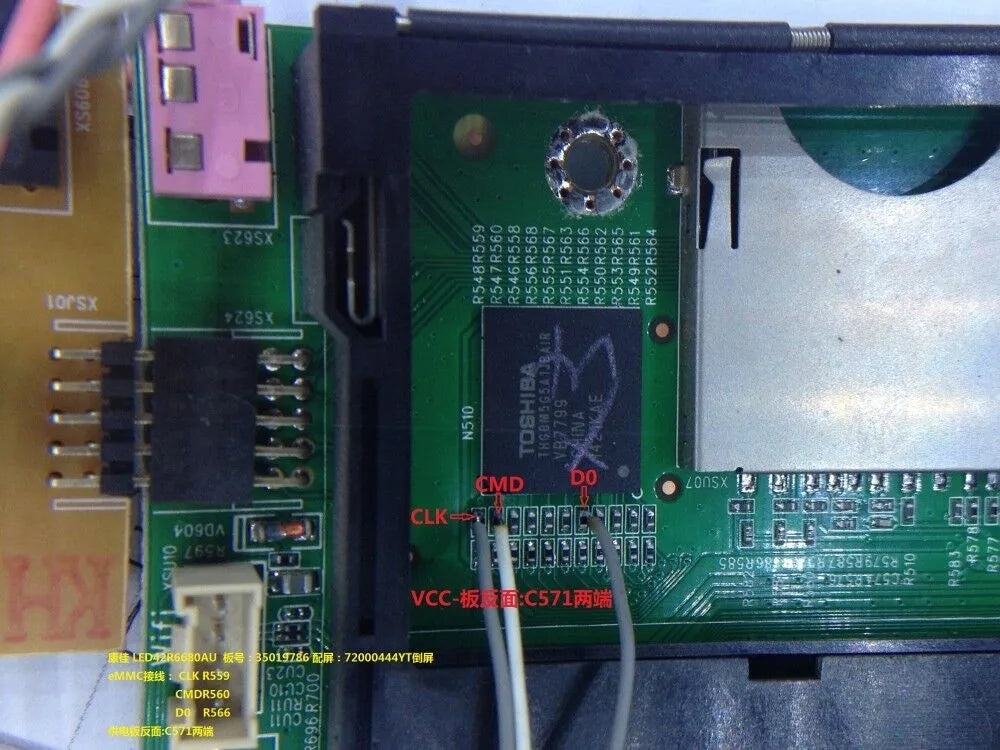

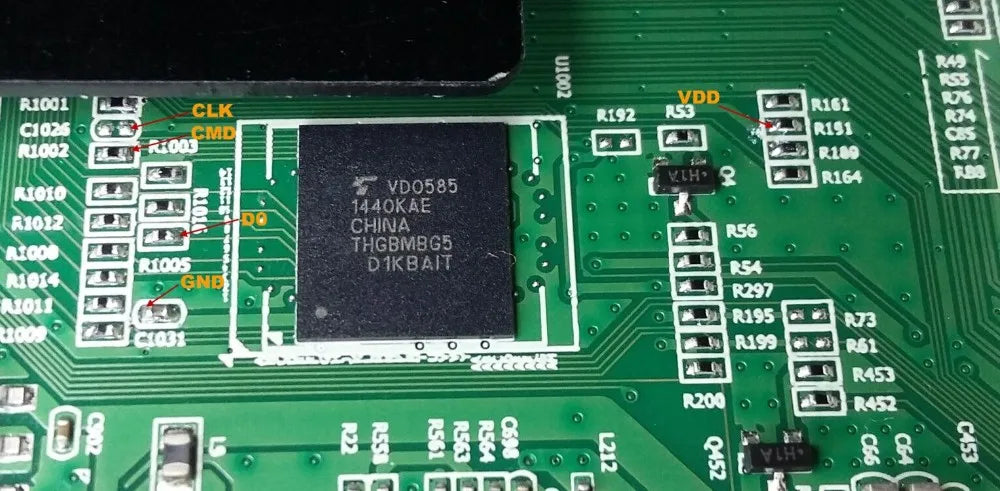

SOME WAYS TO READ AND WRITE EMMC NAND FLASH ONLINE WITHOUT REMOVING
