100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG

100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG

Position 2x3 / SMD
$74.00
$74.00 $0.00
Skip to product information
100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
  • 100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
  • 100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
  • 100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
  • 100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
  • 100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
  • 100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
  • 100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
  • 100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
  • 100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
  • 100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
  • 100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
100 Pcs 2.54 MM Male PCB Header 6 8 10 12 14 16 20 24 26 30 34 40 50 60 64 80 Pin Straight ShroudedDIP SMD IDC Socket Box JTAG
$74.00
$74.00 $0.00
Color
Connector Type
Description

SPECIFICATIONS

Brand Name: RTLECS

Certification: RoHS

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Insulator color: Black

Model Number: BH254S-x-TH/SMD

Origin: Mainland China

Pins: Choose to order

Pitch: 2.54mm

Place of Origin: Guangdong, China (Mainland)

Product type: Box Header

Voltage: 24V

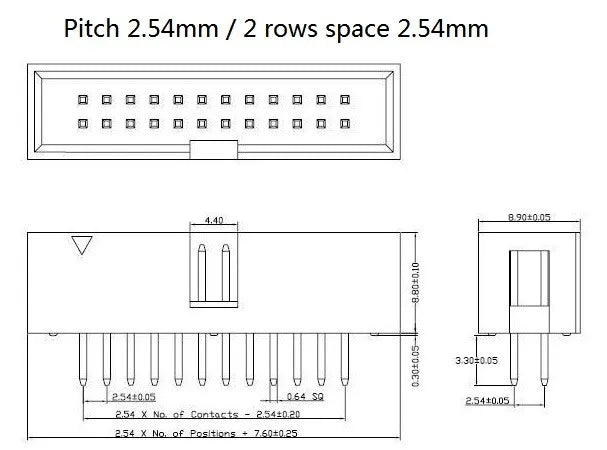

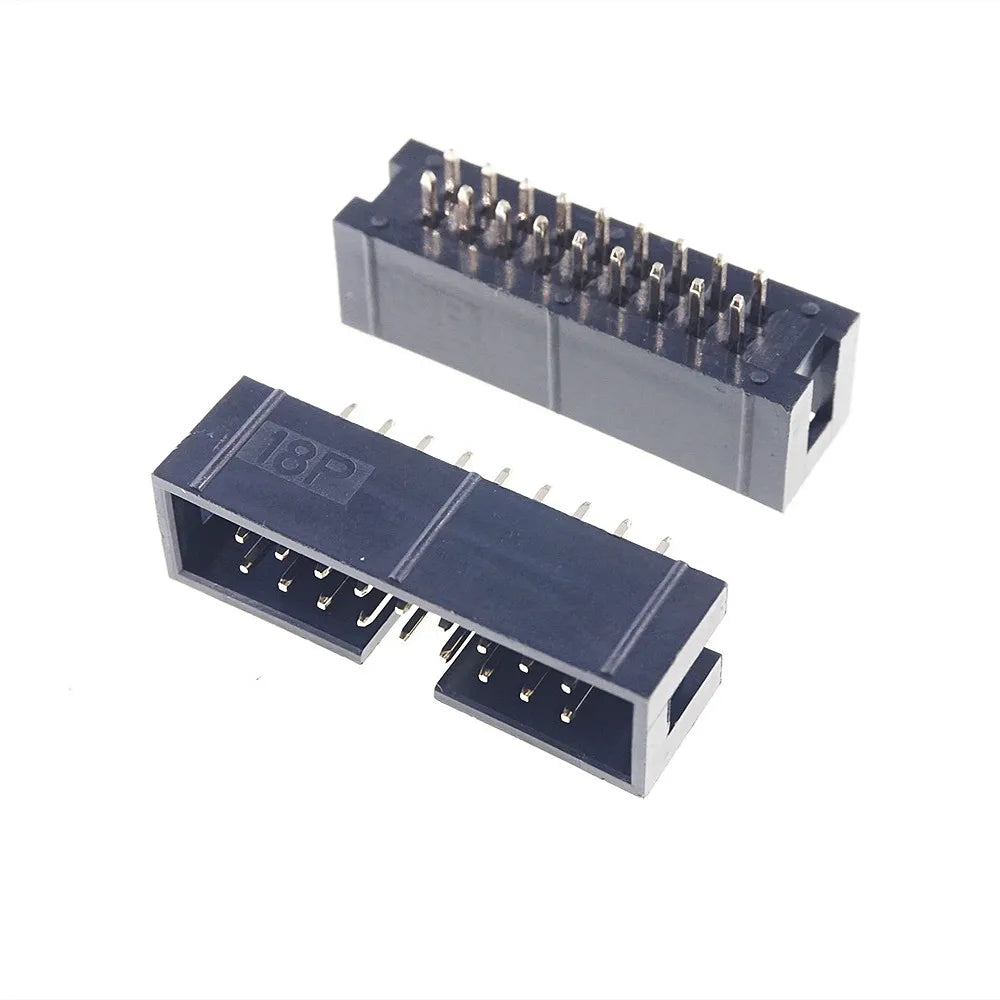

Shrouded Box header IDC Socket

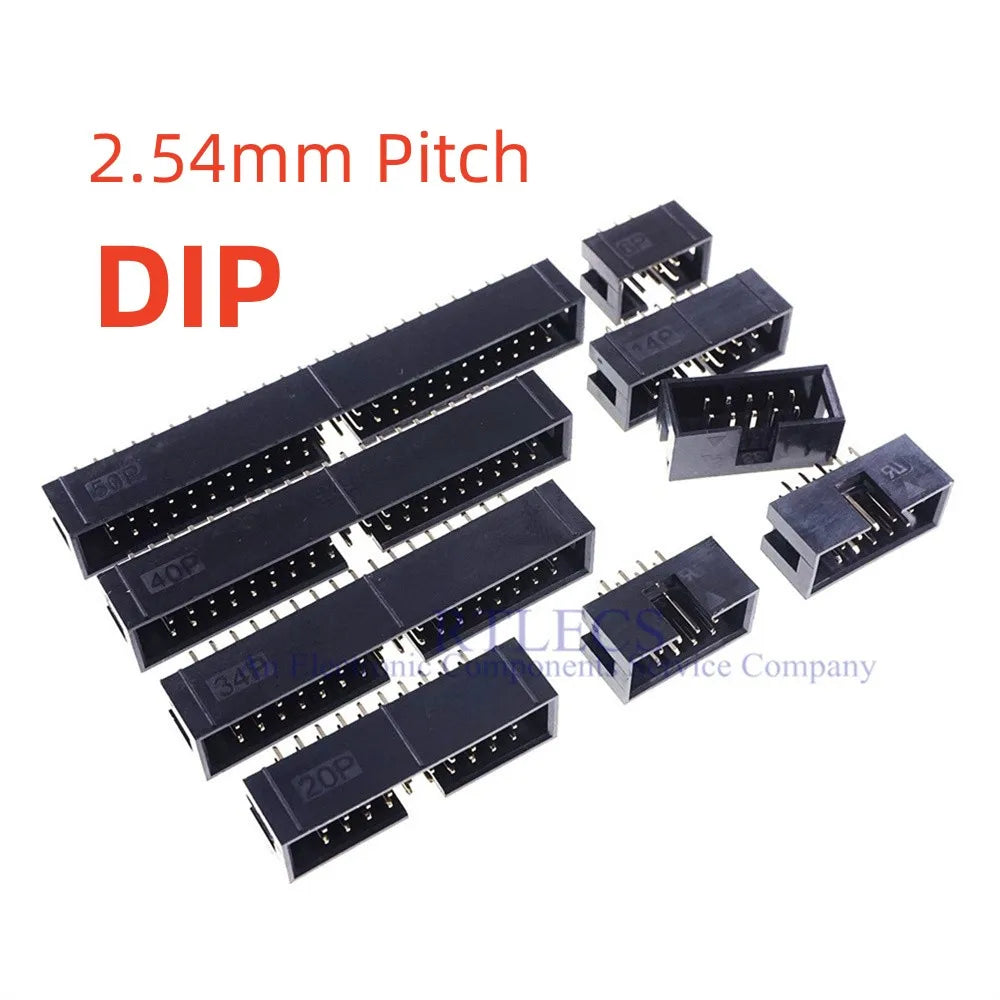

2.54mm

6 8 10 12 14 16 18 20 24 26 30 34 40 50 60 64 80 Pin Choose to order

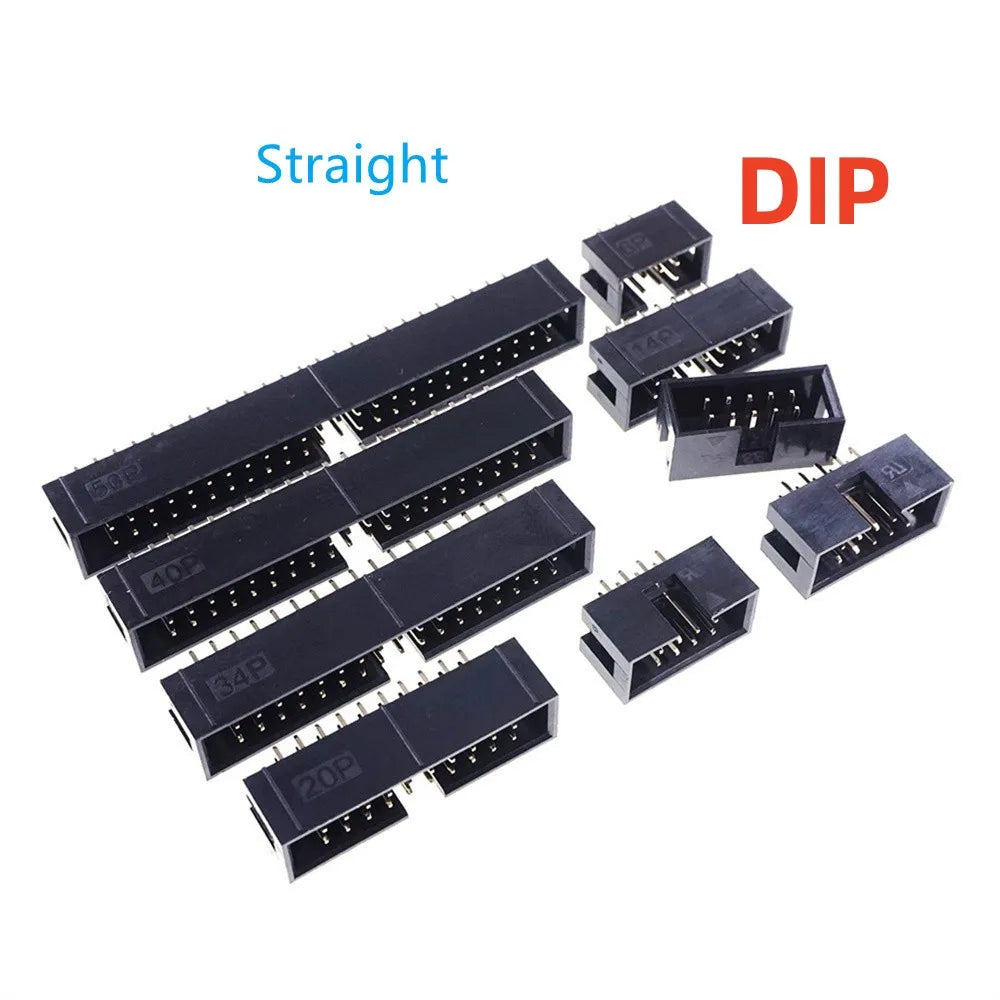

Straight Male

square pin 0.64mm

2 rows

space 2.54

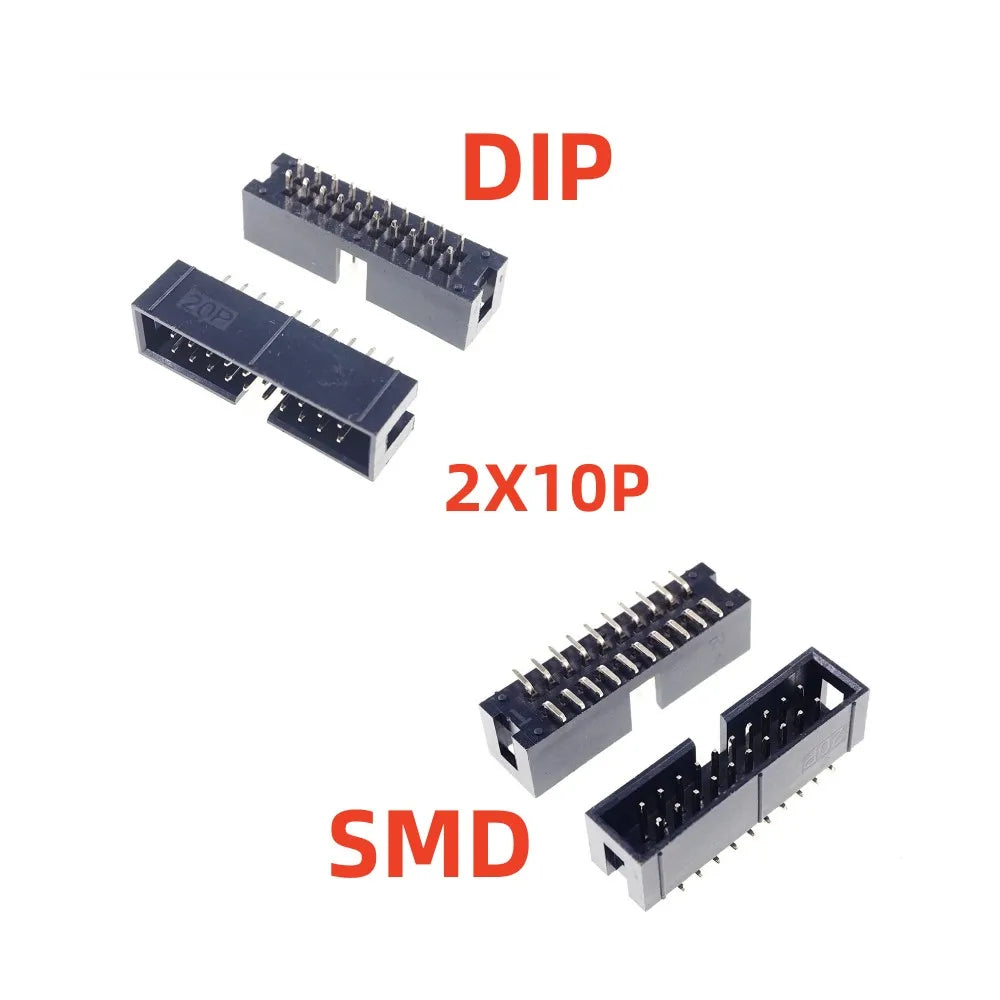

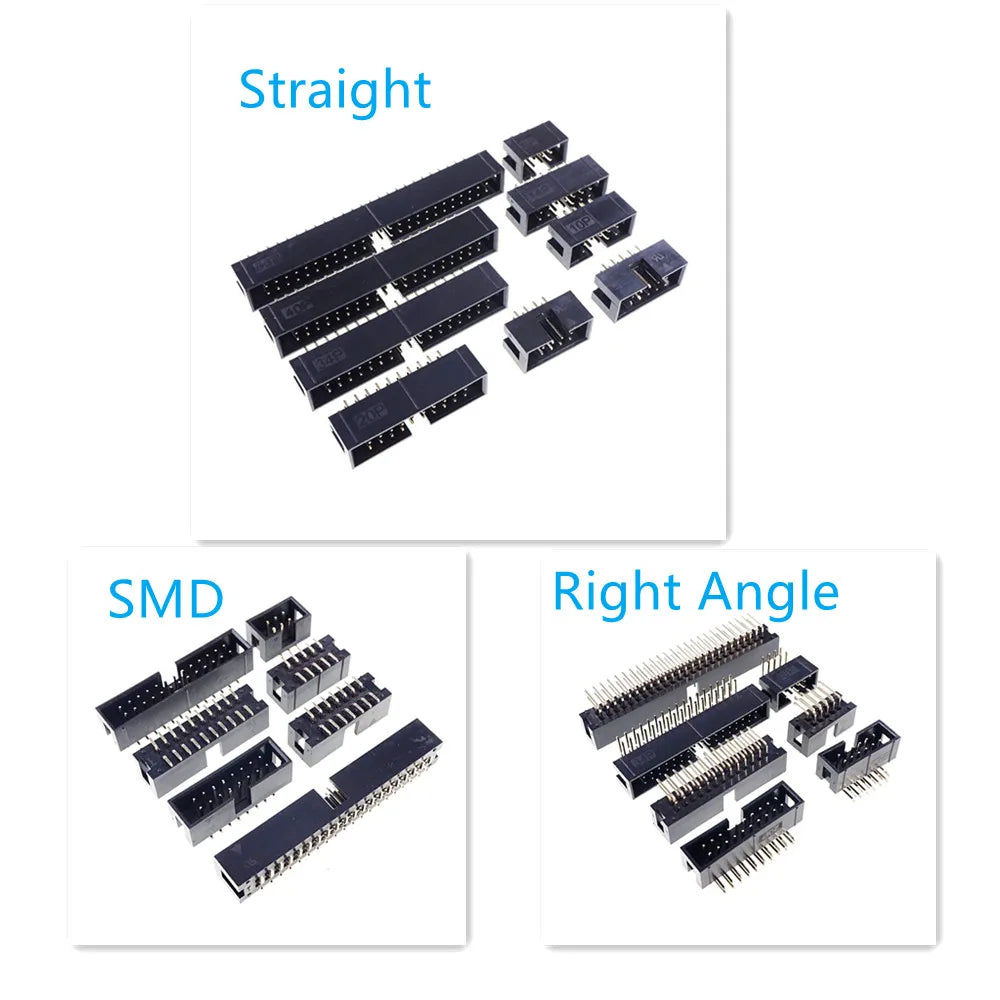

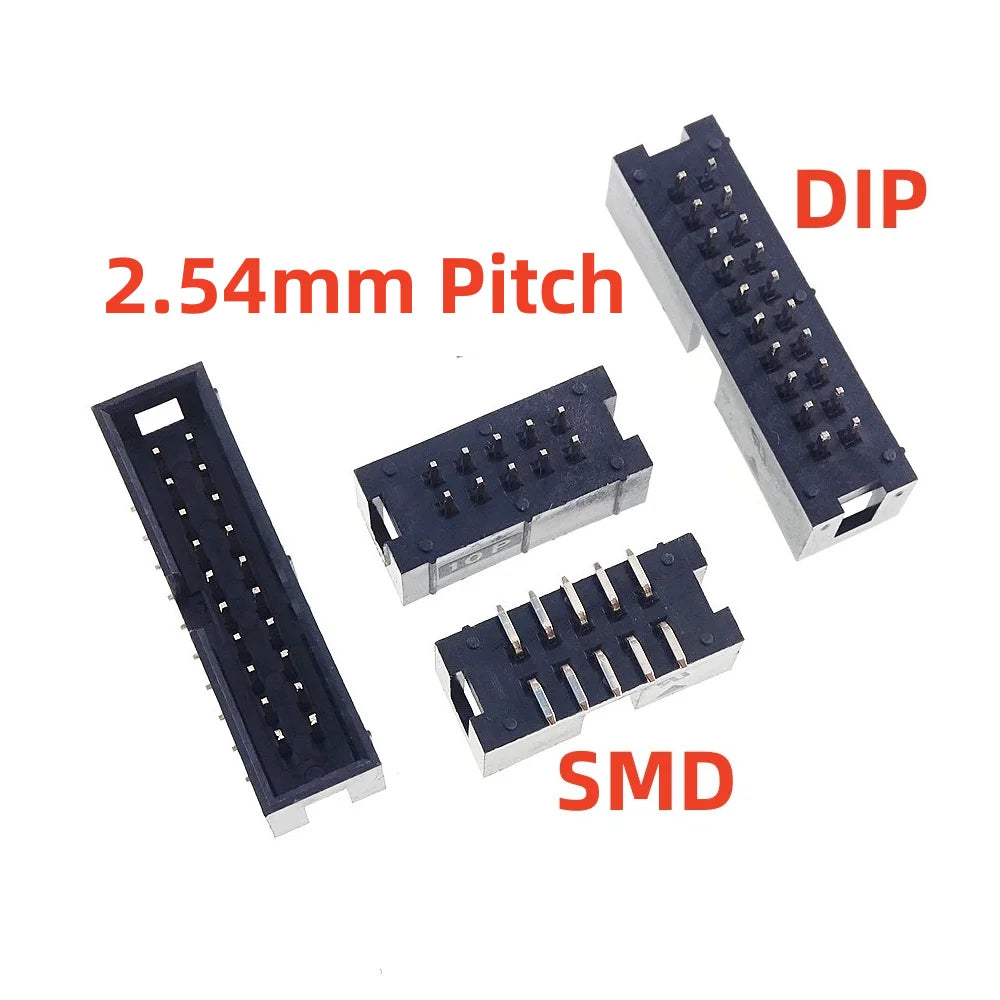

Through hole DIP SMD

Not from China Open Market!


BH connector (IDC type) STRAIGHT


Materials


Insulator:

PBT & 30% glass filled (UL94V-0)

Contact:

brass



Electrical


Current raiting:

1A

Insulaton resistance:

5000MOm min at 500V DC

Contact resistance:

20mOm max at 100mA DC

Mechanical


Operation temperature:

-55 Deg. ~ +105 Deg

Options


No. of contacts:

10, 14, 16, 20, 26, 30, 34, 40, 50, 60, 64

Contact plating:

selective gold plated

Terminal version:

straight

Insulator color:

black
