SPECIFICATIONS

Brand Name: NONE

Condition: New

High-concerned chemical: none

Origin: Mainland China

Type: Module

Product Description:

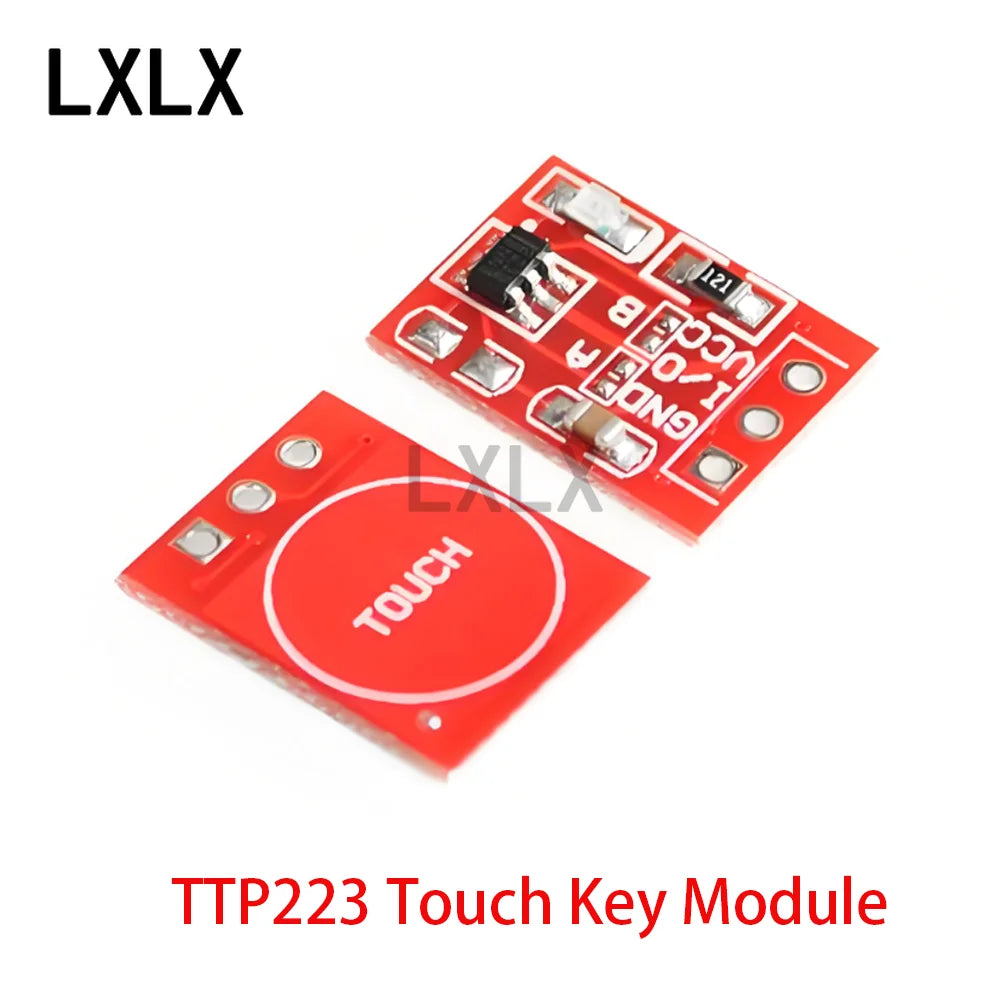

The TTP223 Capacitive Touch Switch Module is a touch-sensitive switch module based on capacitive sensing, designed to replace traditional mechanical buttons. This module features both toggle (latch) and momentary (pulse) modes, which can be selected via simple soldering adjustments, making it highly suitable for various applications that require touch switch functionalities.

Product Specifications:

Module Size: 15mm x 11mm

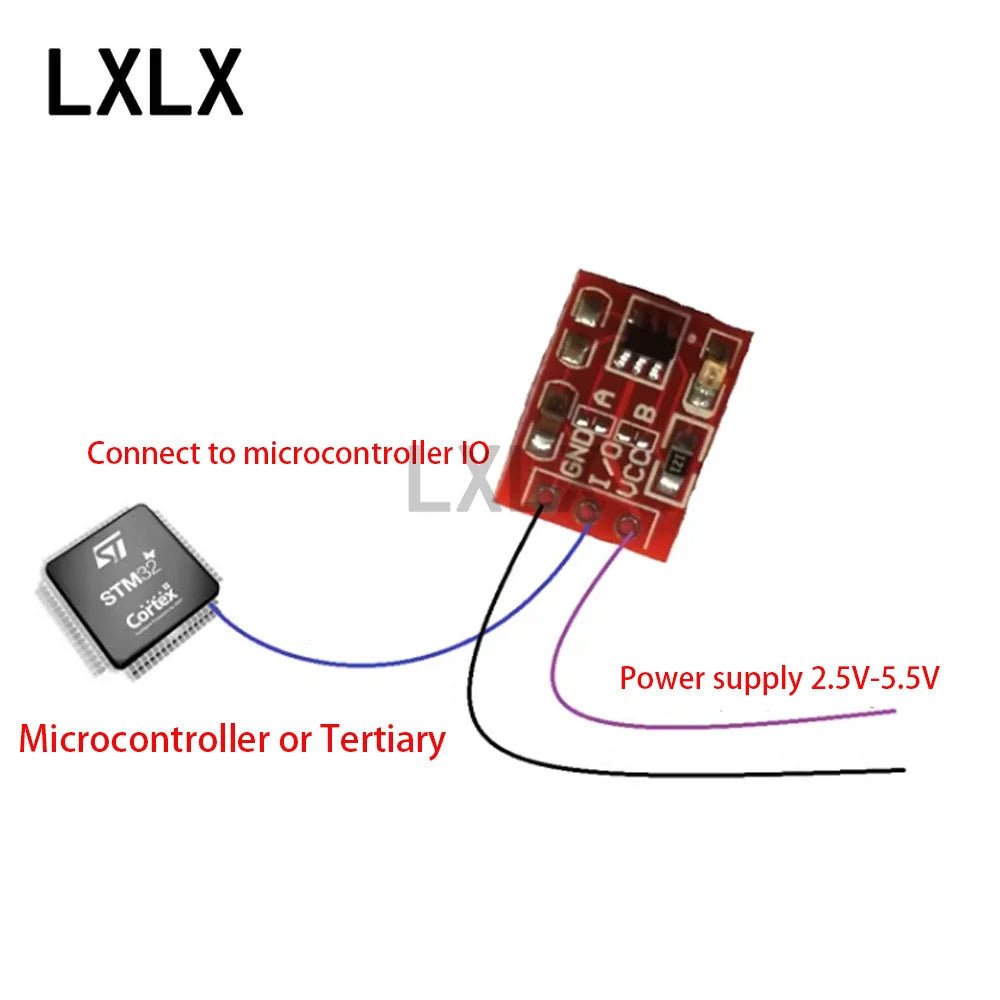

Power Supply: 2.5V - 5.5V
Output Type: Direct drive load

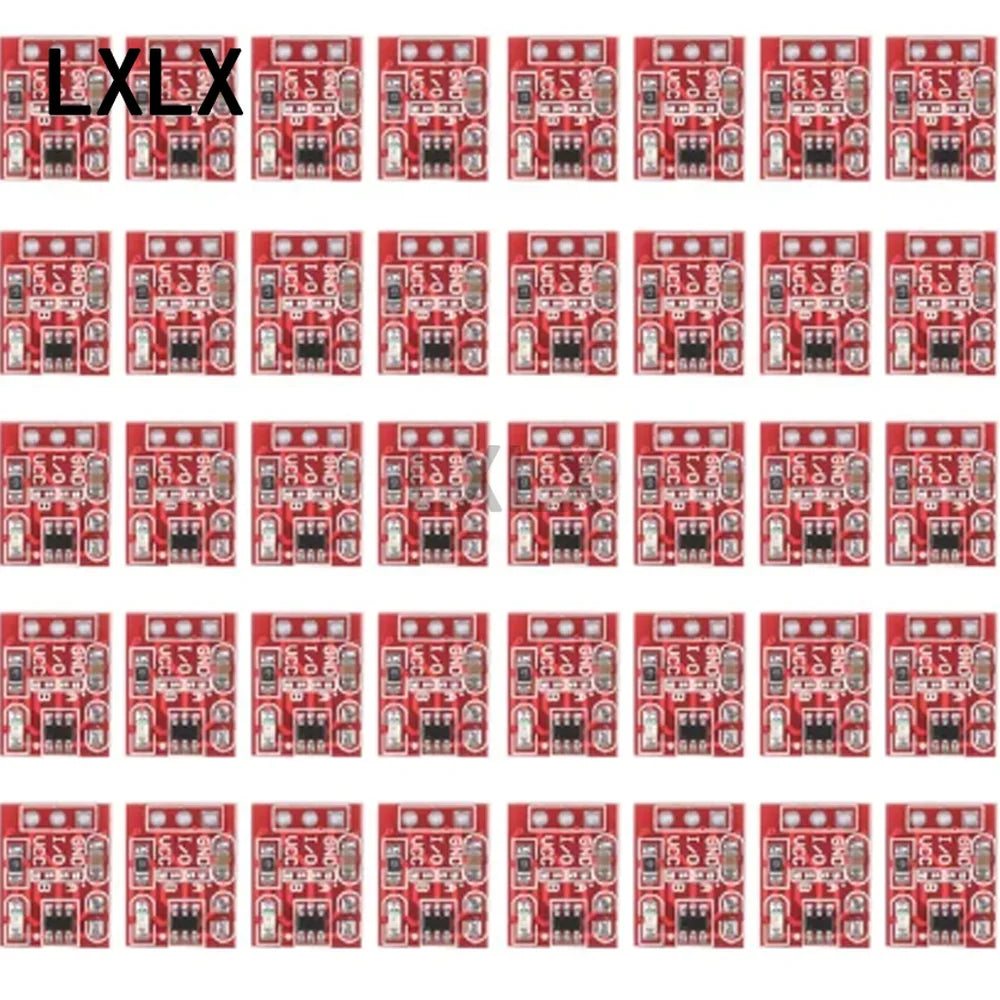

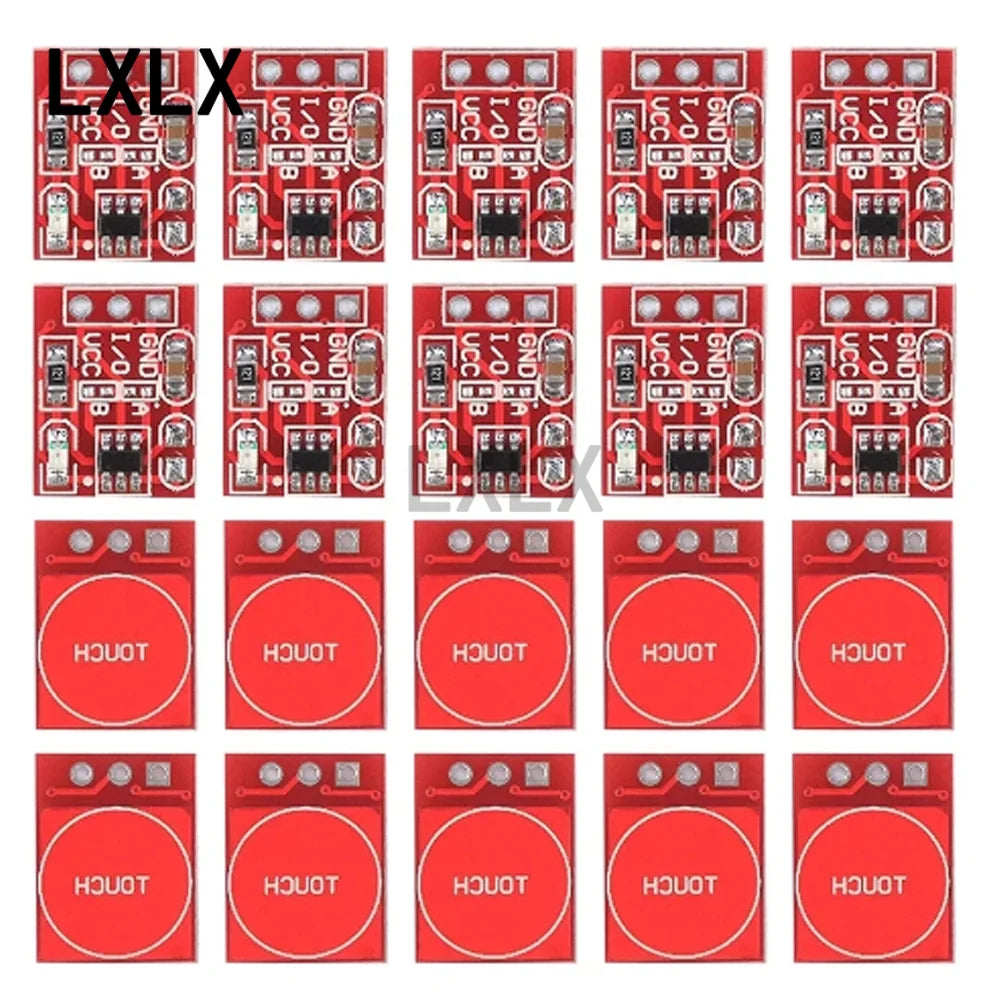

Quantity Per Package: 100 units per pack

New Version Features:

Red PCB with clear markings, increased sensitivity.

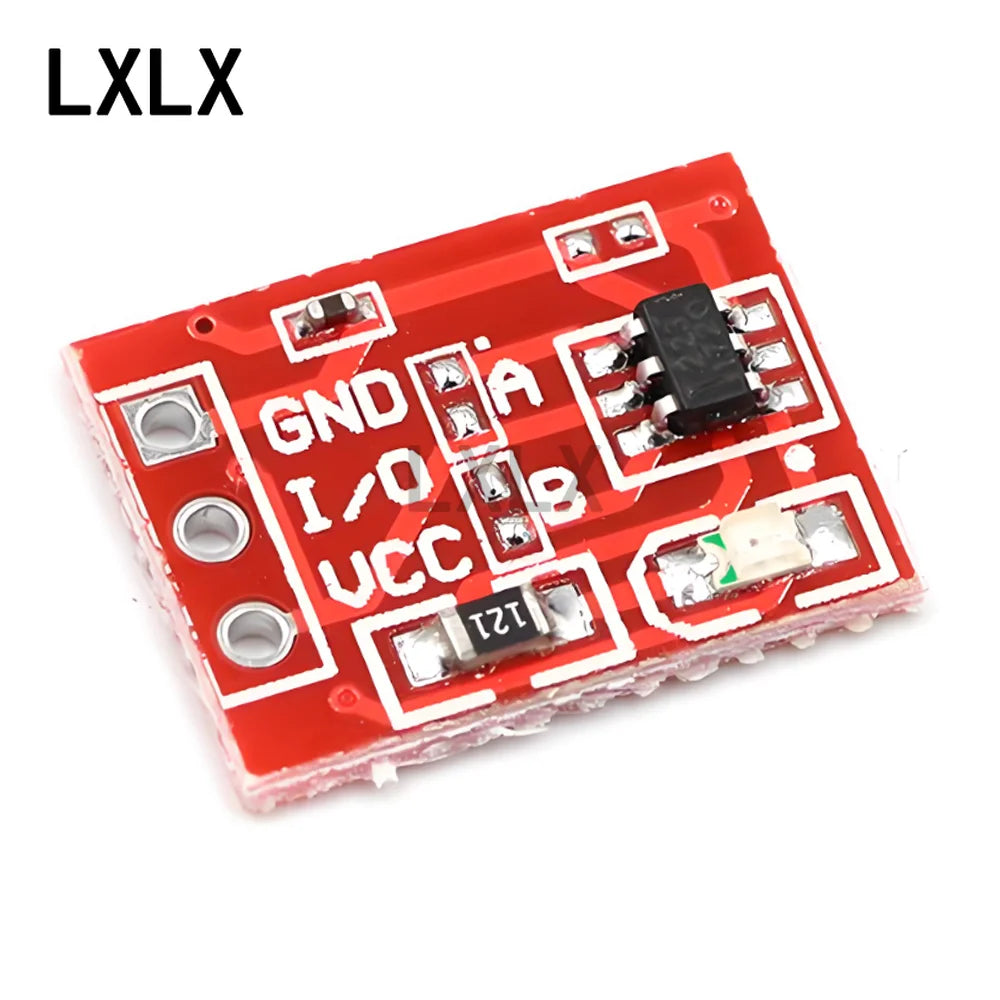

Momentary High-Level Output: No soldering at point B, no soldering at point A.
Toggle High-Level Output: Soldering at point B, no soldering at point A.
Momentary Low-Level Output: No soldering at point B, soldering at point A.
Toggle Low-Level Output: Soldering at both points B and A.

Key Features:

Capacitive Touch Technology: Utilizes capacitive sensing technology for sensitive response without the need for physical pressing, providing a smooth and modern user experience.
Compact Design: The module is small and easily integrated into a variety of electronic projects.
Low Power Consumption: Consumes very low power in standby mode, suitable for low-power devices.
Wide Applications: Can be used in home appliance control, interactive artworks, lighting control, and more.

Application Scenarios:

Smart Home Devices: Such as smart mirrors, smart lighting systems, etc.
Consumer Electronics: For touch interfaces such as tablets, e-readers, etc.
Interactive Art Installations: Integrated into art installations to provide an interactive experience for viewers.
Educational Projects: Used in school technology education projects to help students understand and practice capacitive touch technology.
