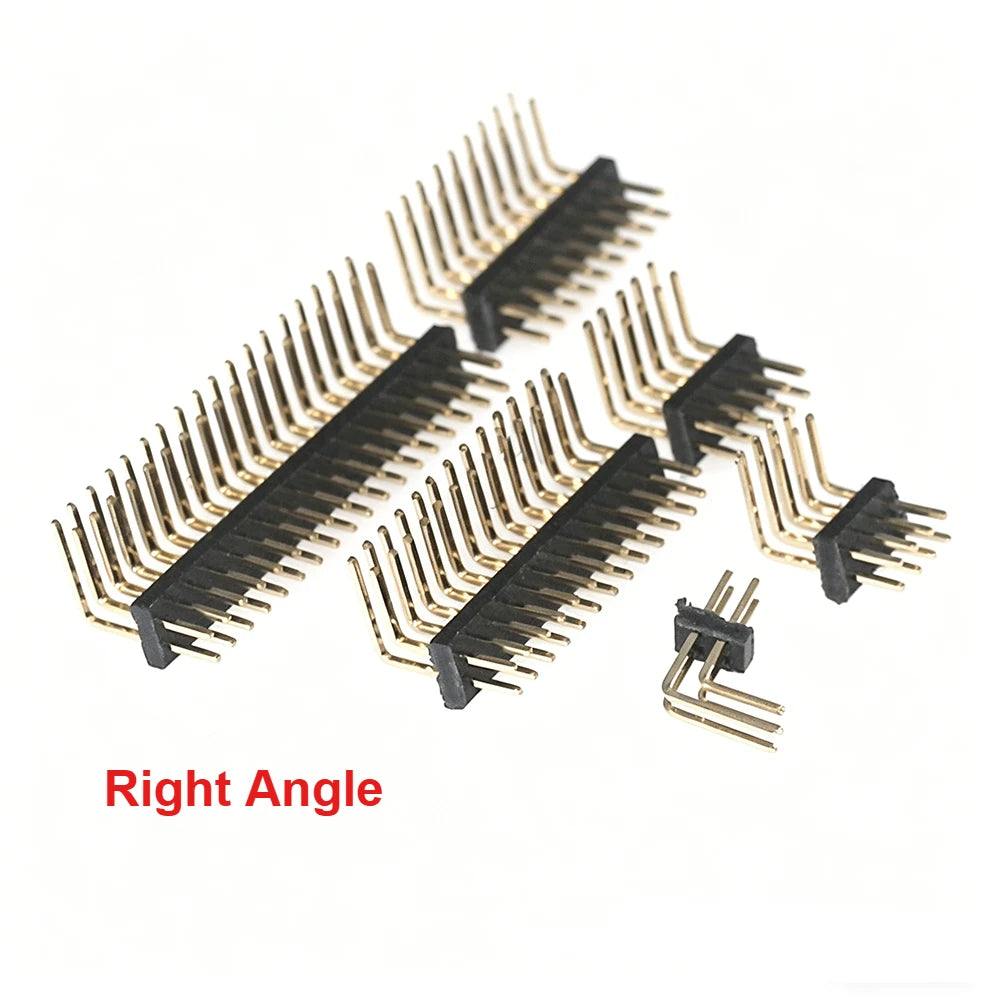

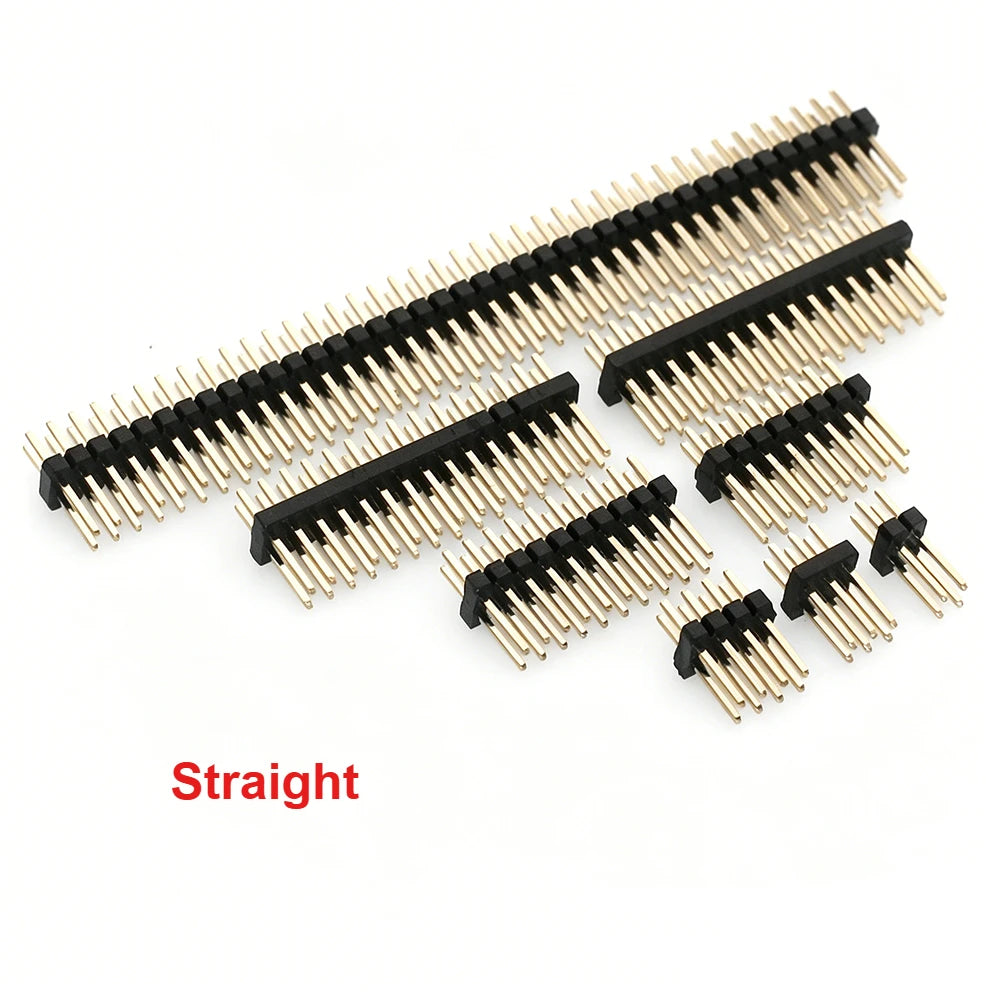

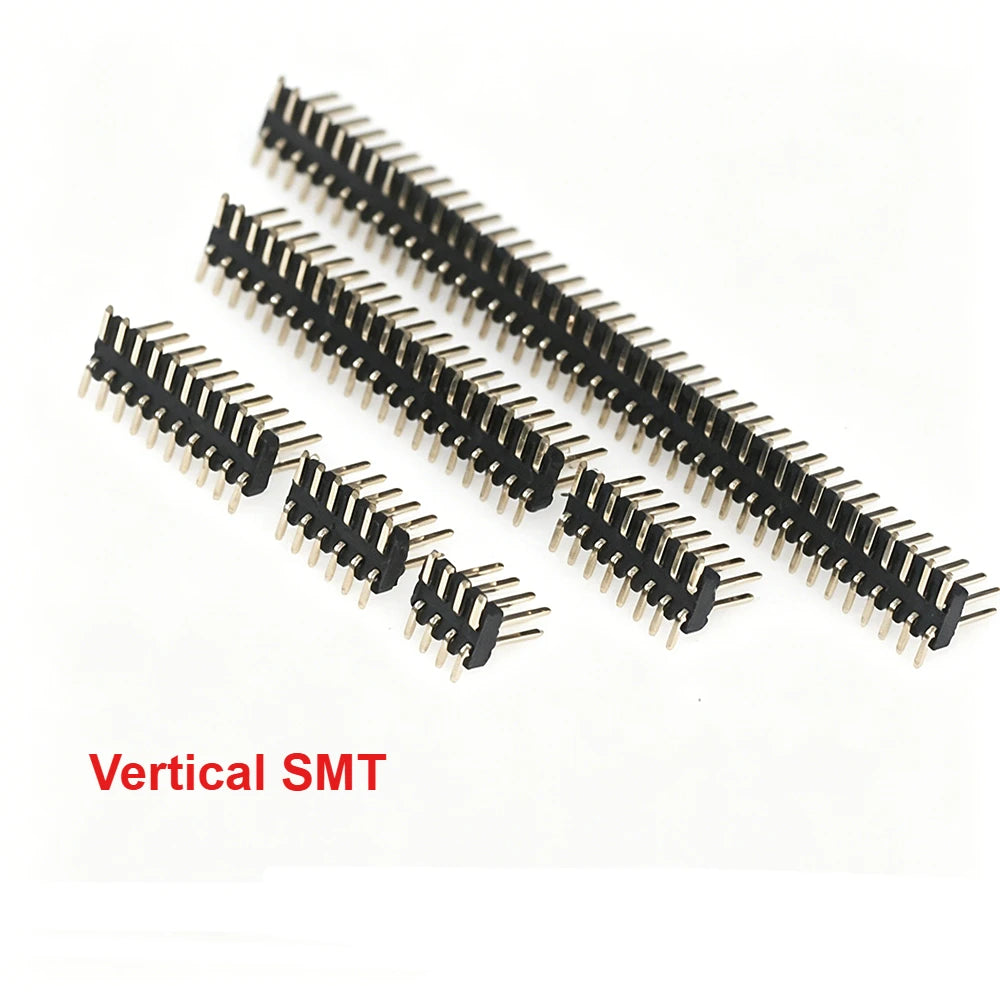

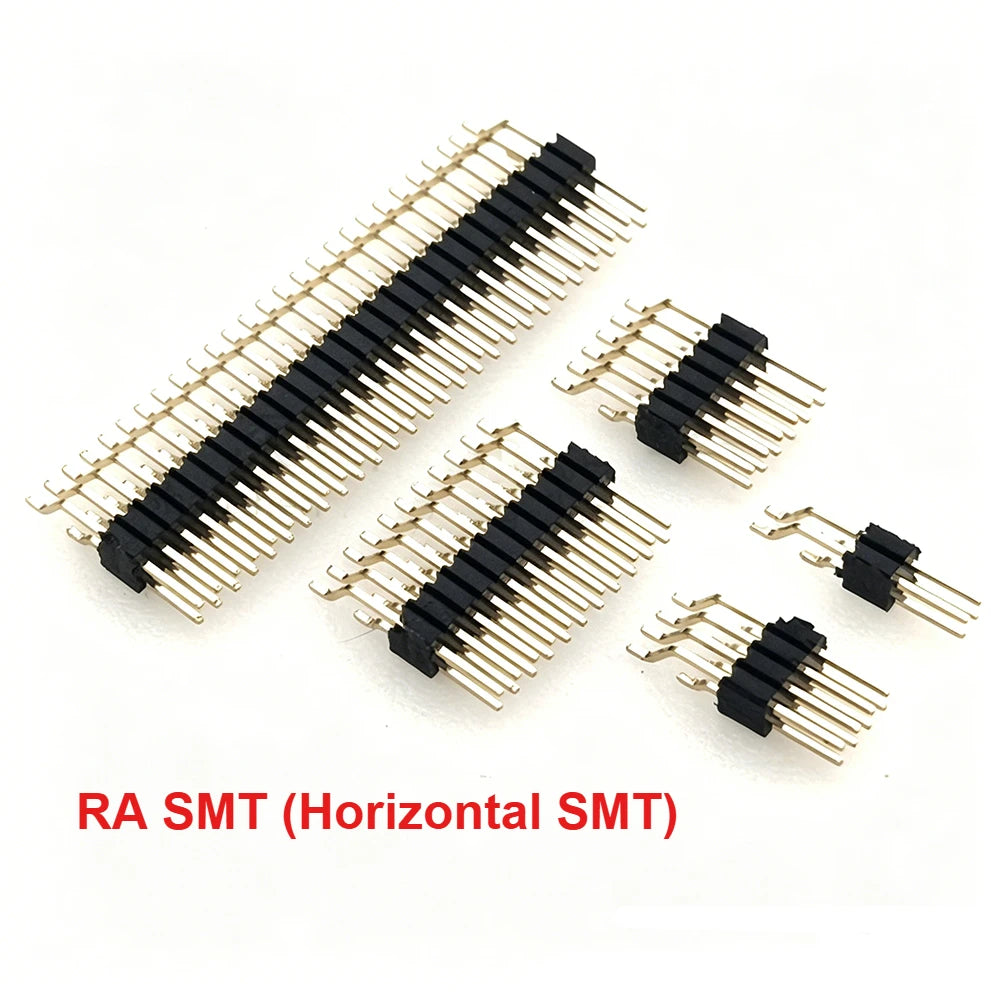

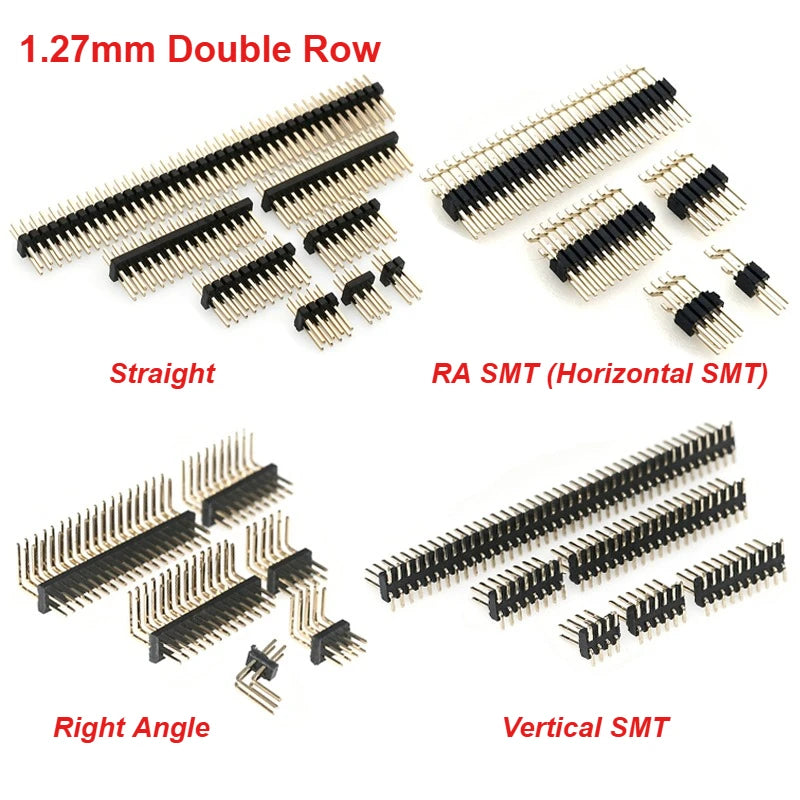

100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header

100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header

2X3P / Straight
$35.24
$35.24 $0.00
Skip to product information
100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
  • 100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
  • 100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
  • 100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
  • 100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
  • 100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
  • 100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
  • 100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
  • 100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
  • 100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
  • 100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
  • 100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
  • 100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header
$35.24
$35.24 $0.00
Color
Package Quantity
Description

SPECIFICATIONS

Application: PCB, Lighting

Brand Name: E-SIMPO

Certification: RoHS

Contact Material: Phosphor bronze

Current Rating: 1Amps

Dielectric Withstanding: AC 800V

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Finish: Gold-plated

Gender: Male

High-concerned chemical: None

Insulator Resistance: >=1000Megohms min

Keyword: 1.27mm connector, Pin Header Double Row

Model Number: 1.27mm

Origin: Mainland China

Type: Pin Header

Voltage: 5 V 12 V 20 V 30 V

is_customized: Yes

100pcs 1.27mm 2*2/3/4/5/6/8/40/50P Double Row Straight/RA 90d/Vertical SMD/Horizontal RASMT Gold-Plated Rohs PCB Male Pin Header

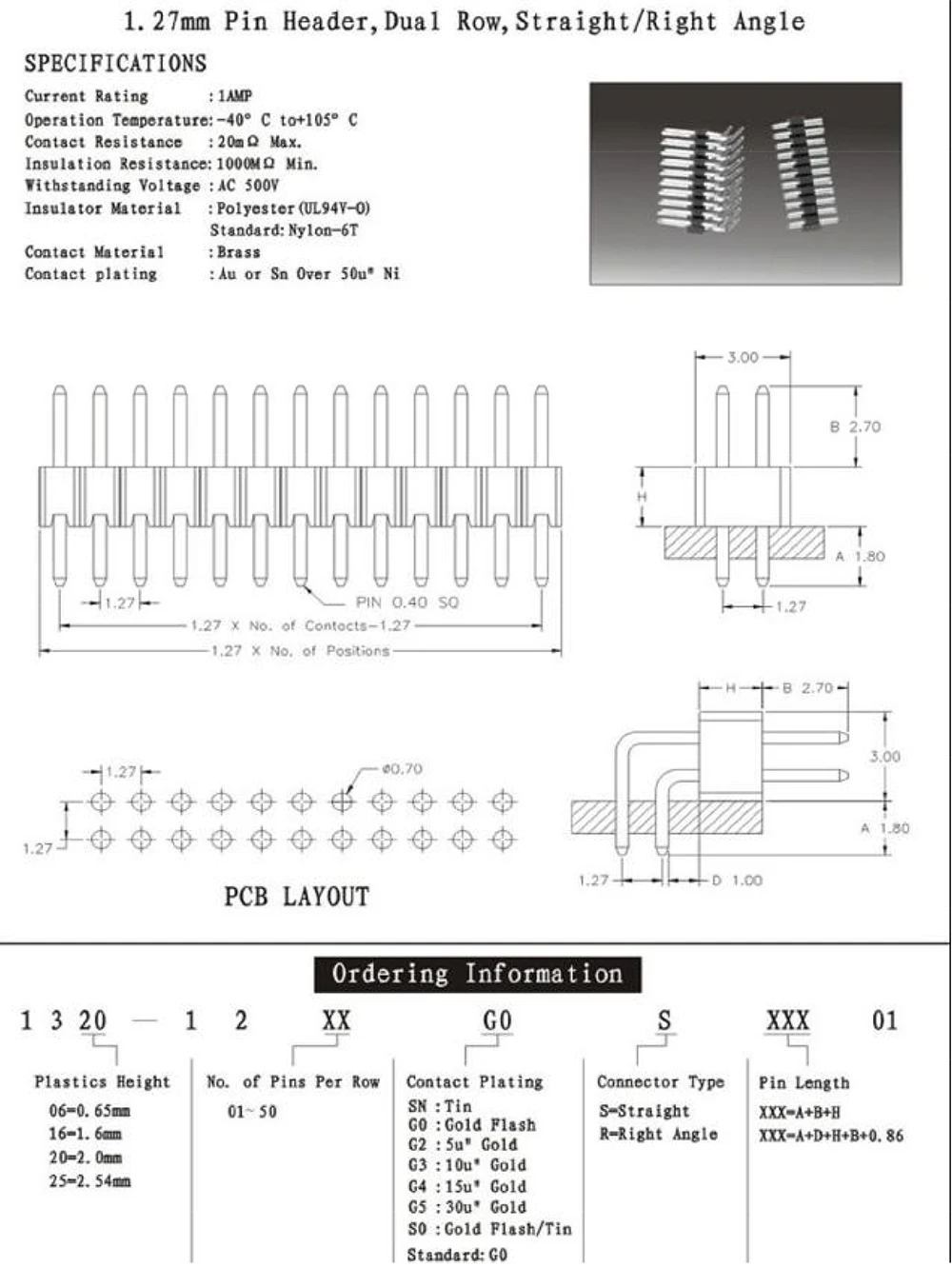

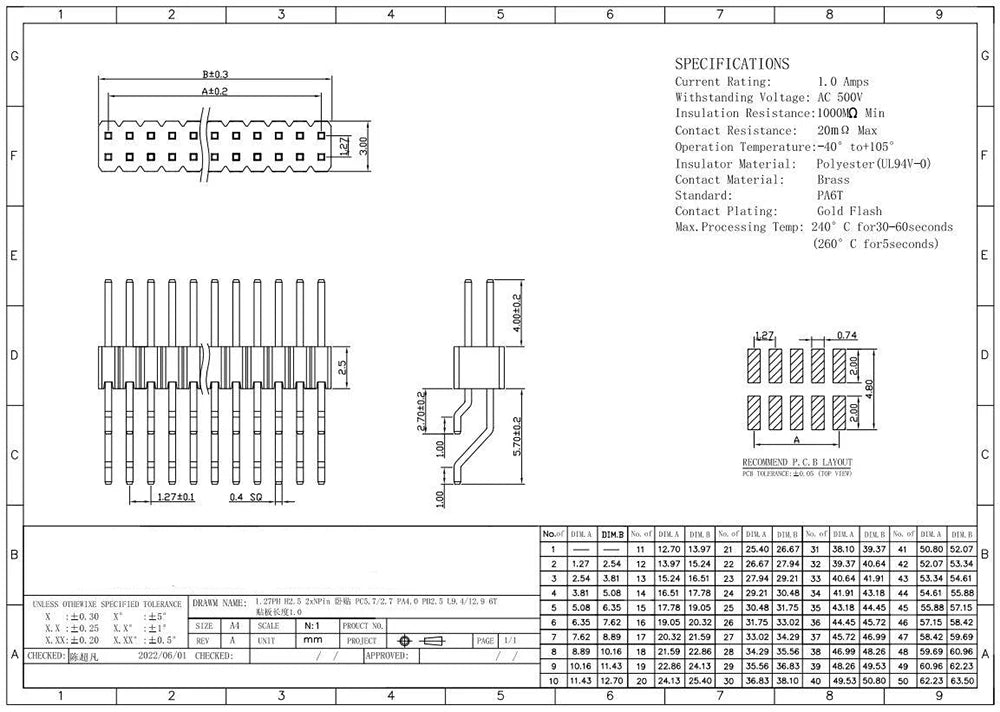

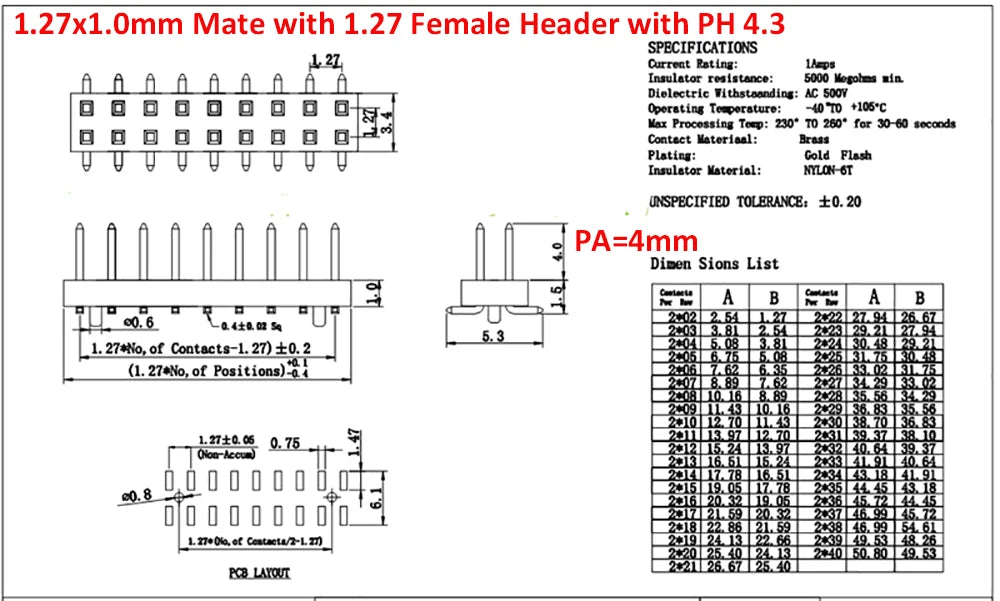

Pitch: 1.27mm
Row Qty: Double Row, 50Positions MAX, cuttable to any pin you need
Straight wefar
PA2.75 PC2.75
Total length is 7.2mm
Current Rating: 1Amps
Insulator Resistance: 5000Megohms min
Dielectric Withstanding: AC 500V
Operating Temperature: -40-105 Celsuis Degree
Contact Material: Phosphor bronze
Finish: Gold Flash
Tolerance: +/-0.2mm
