Description

SPECIFICATIONS

Accuracy: 1%

Brand Name: NONE

Color: Blue

Condition: New

High-concerned chemical: none

Model Number: 1/4W 1% METAL FILM RESISTOR

Operating Temperature: -55c- 155c

Origin: Mainland China

Package Type: Throught Hole

Rated Power: 0.25W

Resistance Tolerance: 1%

Technology: Metal Film

Temperature Coefficient: Metal Film

Type: Fixed Resistor

is_customized: Yes

modname=ckeditor

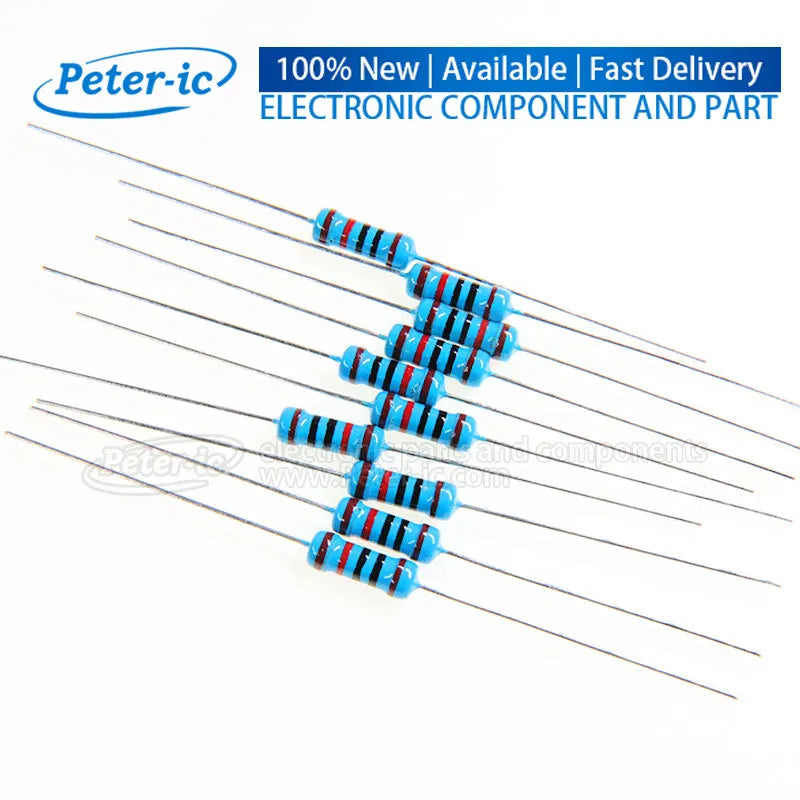

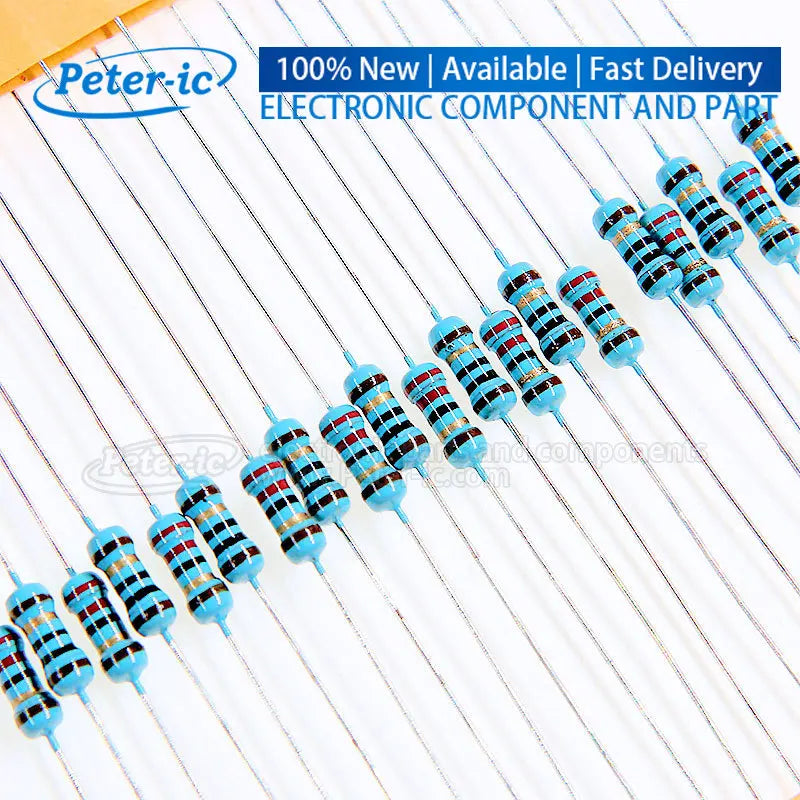

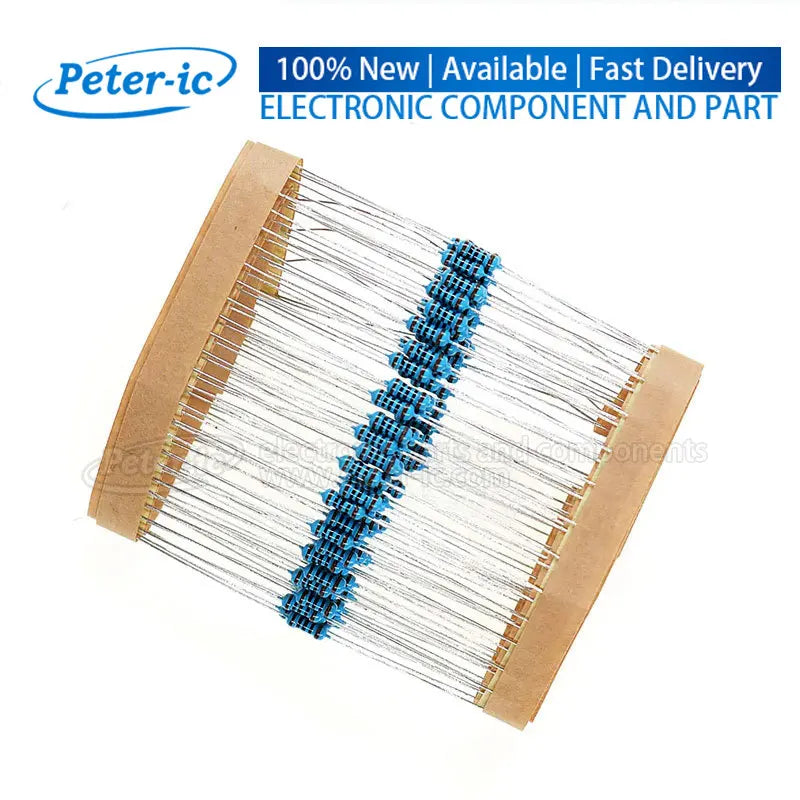

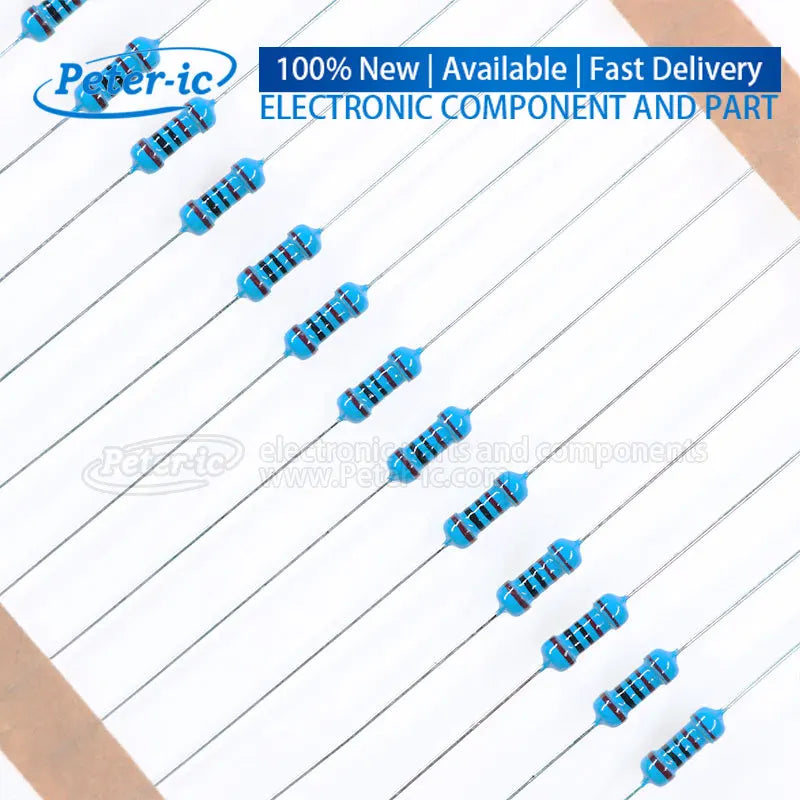

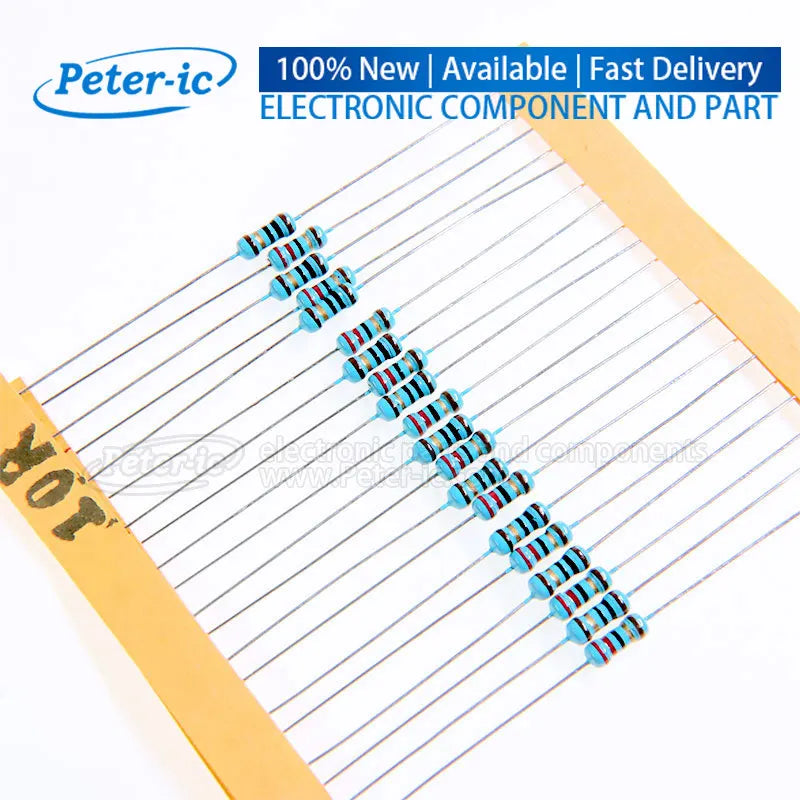

(100pcs) 1/4W 0R-22M Ohm 1% Metal Film Leaded Resistor 0.25W 0 2.2 10 100 150 220 270 330 470 1K 2.2K 4.7K 10K 47K 100K 470K 1M 10M 20M

FEATURES
Power Rating
Resistance Tolerance
TC.R.
1/6W, 1/4W, 112W, IW, 2W, 3W
±0.5%,±1%, ±5%
+15ppm/°C,+25ppm/C,+50ppm/°C,+100ppm/C
DERATING CURVE

For resistors operated in ambient temperatures above 70°C, power rating must be deratedaccordance with the curve

INTRODUCTION
The MFR Series Metal Film Resistors aremanufactured using a vacuum sputtering systemto deposit multiple layers of mixed metalalloys and passivative materials onto a carefullytreated high grade ceramic substrate. After ahelical groove has been cut in the resistive layer,tinned connecting leads of electrolytic copperare welded to the end-caps. The resistors arecoated with layers of blue color lacquer
