Description

SPECIFICATIONS

Application: PCB, Lighting

Brand Name: E-SIMPO

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Gender: Female

High-concerned chemical: None

Keyword: 2.54mm Female Header, Single Row, 5PIn, short version,

Model Number: short version 1*3P/5P/8P/10P

Origin: Mainland China

Place of Origin: China (Mainland)

Type: 2.54mm Female Header

Voltage: 5 V 12 V 20 V 30 V

is_customized: Yes

semi_Choice: yes

电压: 1V 2V 4V 5V 12V 12V 等或自定义

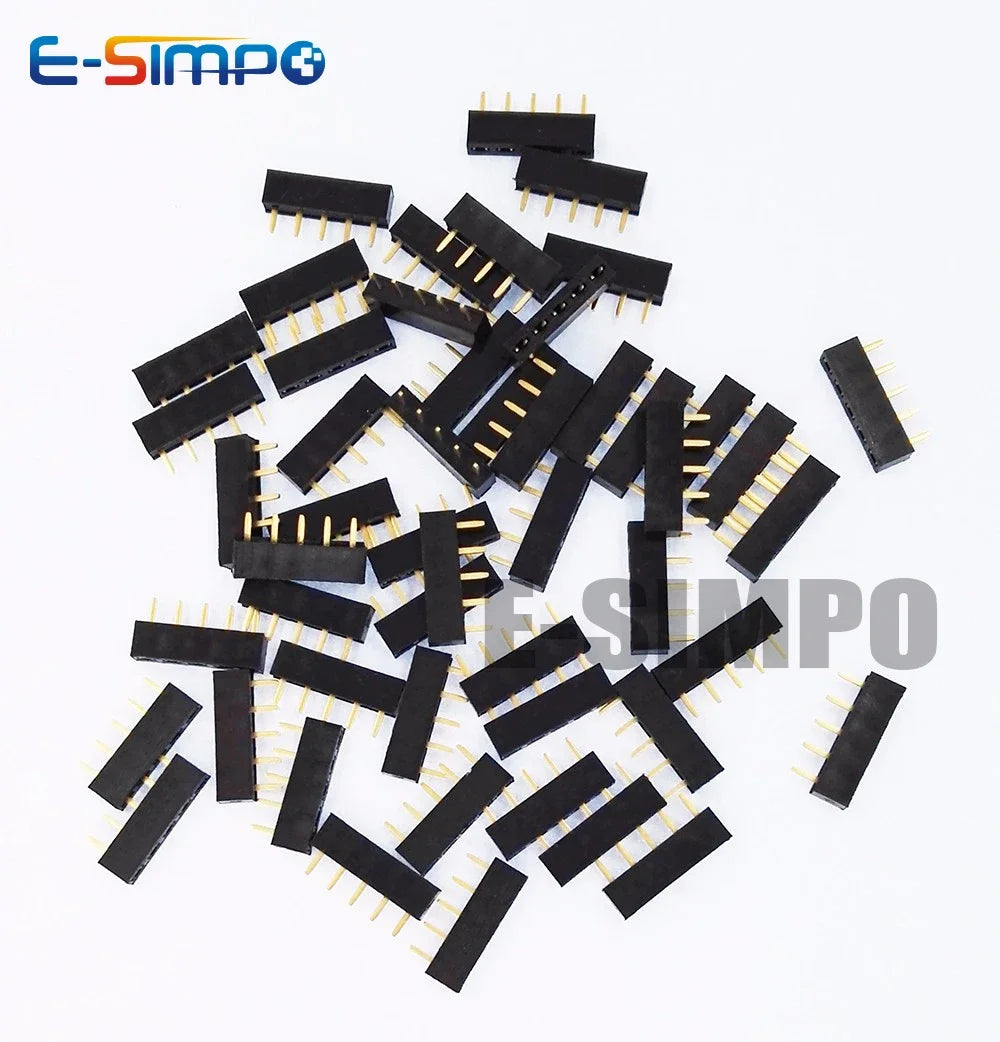

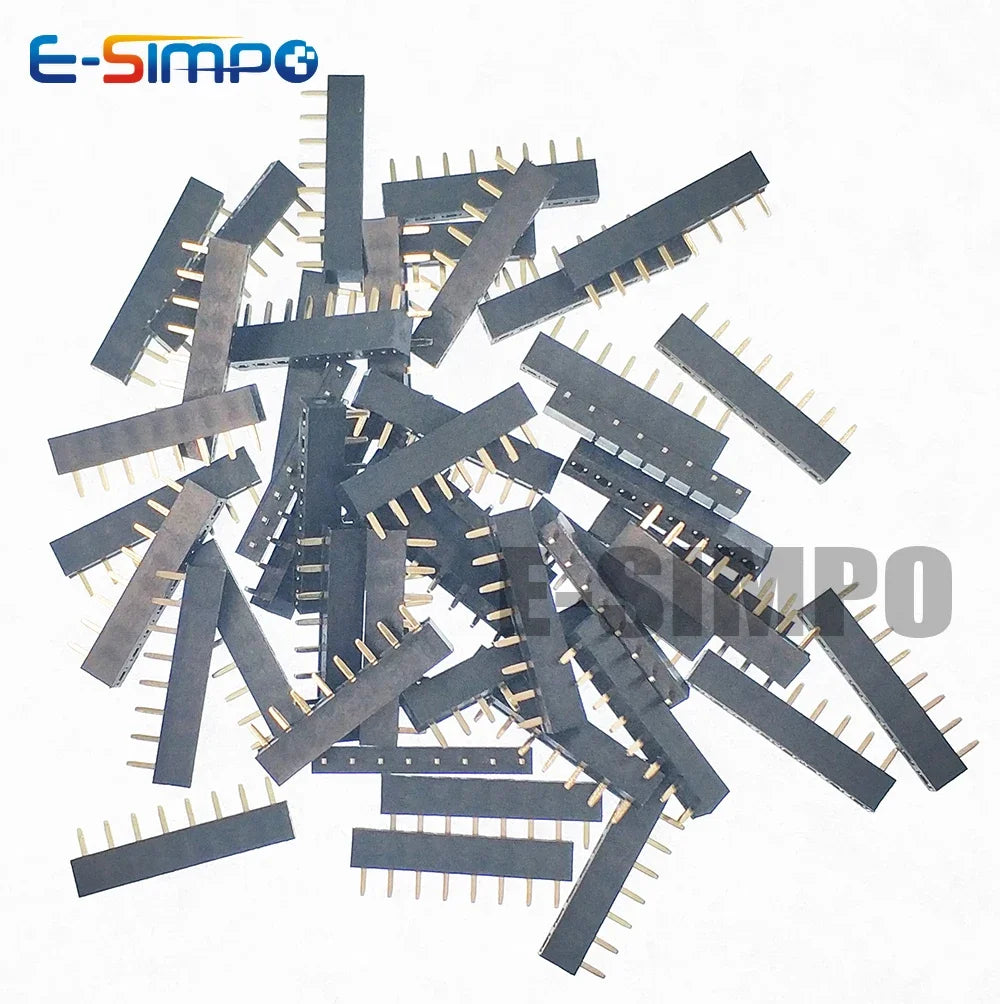

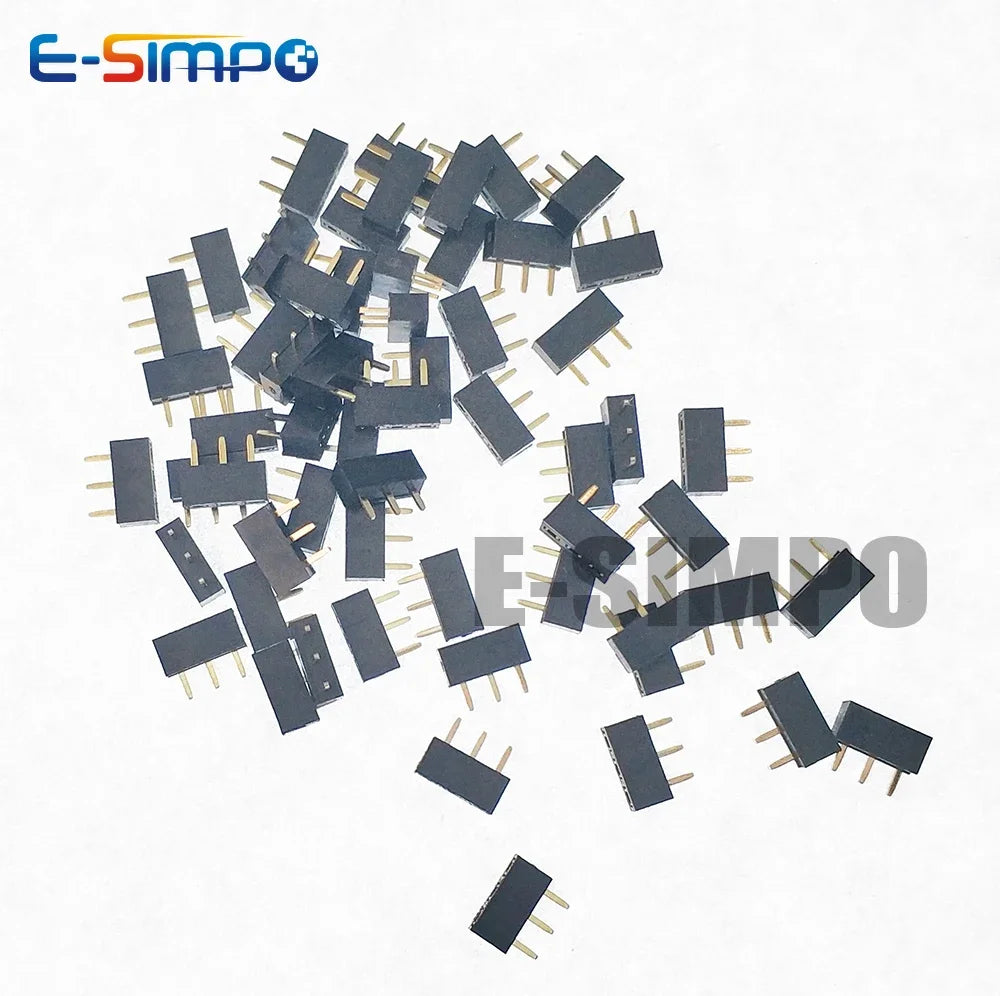

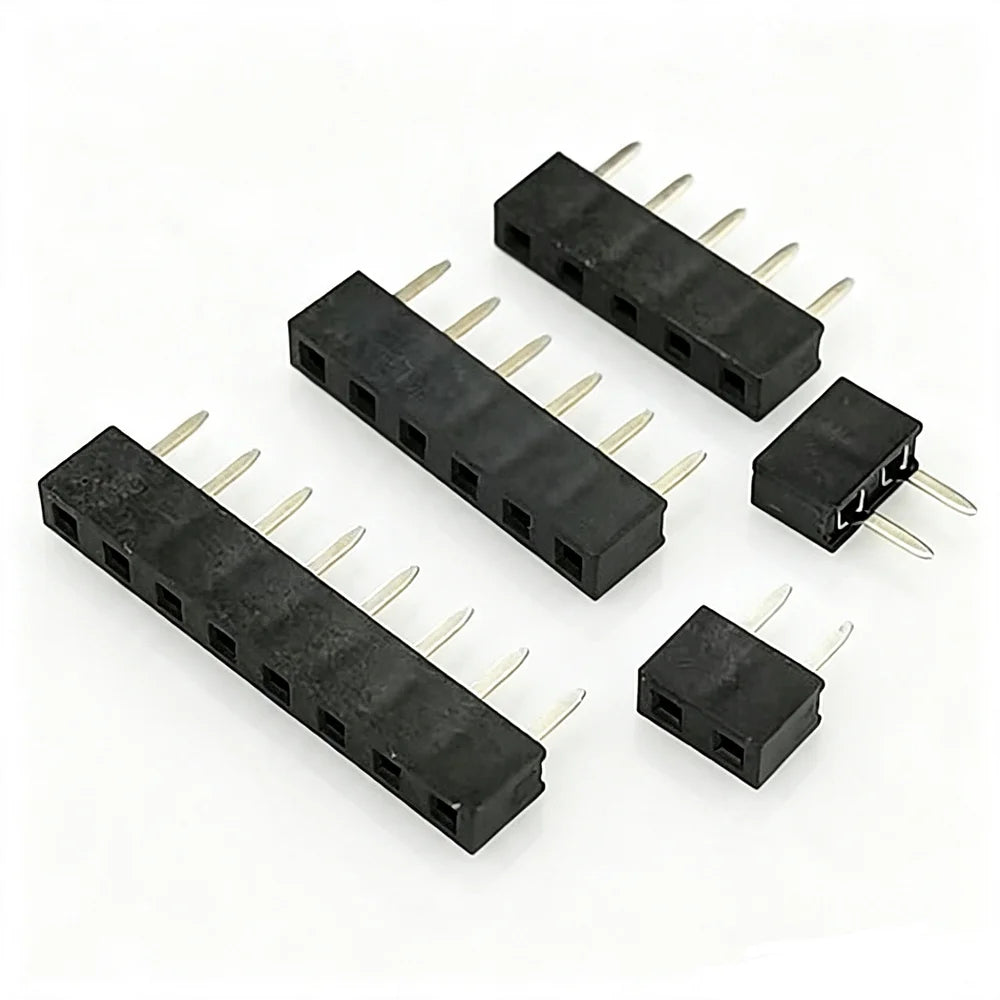

100pcs 2.54mm PH3.5 Single Row Low Profile Straight Female 1x3P/5P/8P/10P Rohs Goldplated PCB Female Pin Header Socket Connector

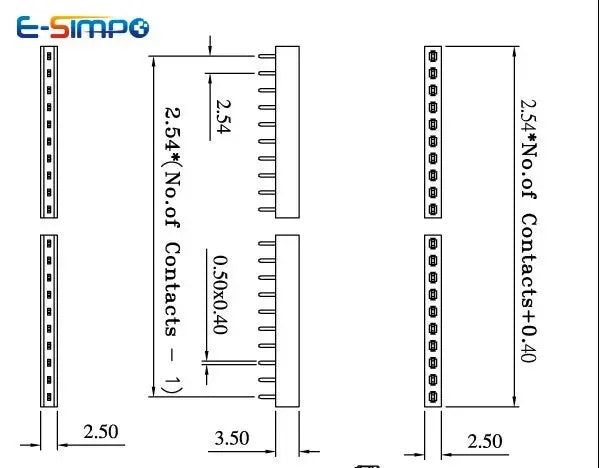

Pin-Pin Distance/Pitch: 2.54mm
Row Qty: Single Row
Pin Quantity: 3/5/8/10Pins Optional, if you need other pin , please contact us for customize
Pin Length: 3.0mm
Plastic Heiht: 3.5mm
Current Rating: 3Amps
Insulator Resistance: 5000Megohms min
Dielectric Withstanding: AC 500V
Operating Temperature: -40-105 Celsuis Degree
Contact Material: Phosphor bronze
Finish: Gold Flash
Tolerance: +/-0.2mm

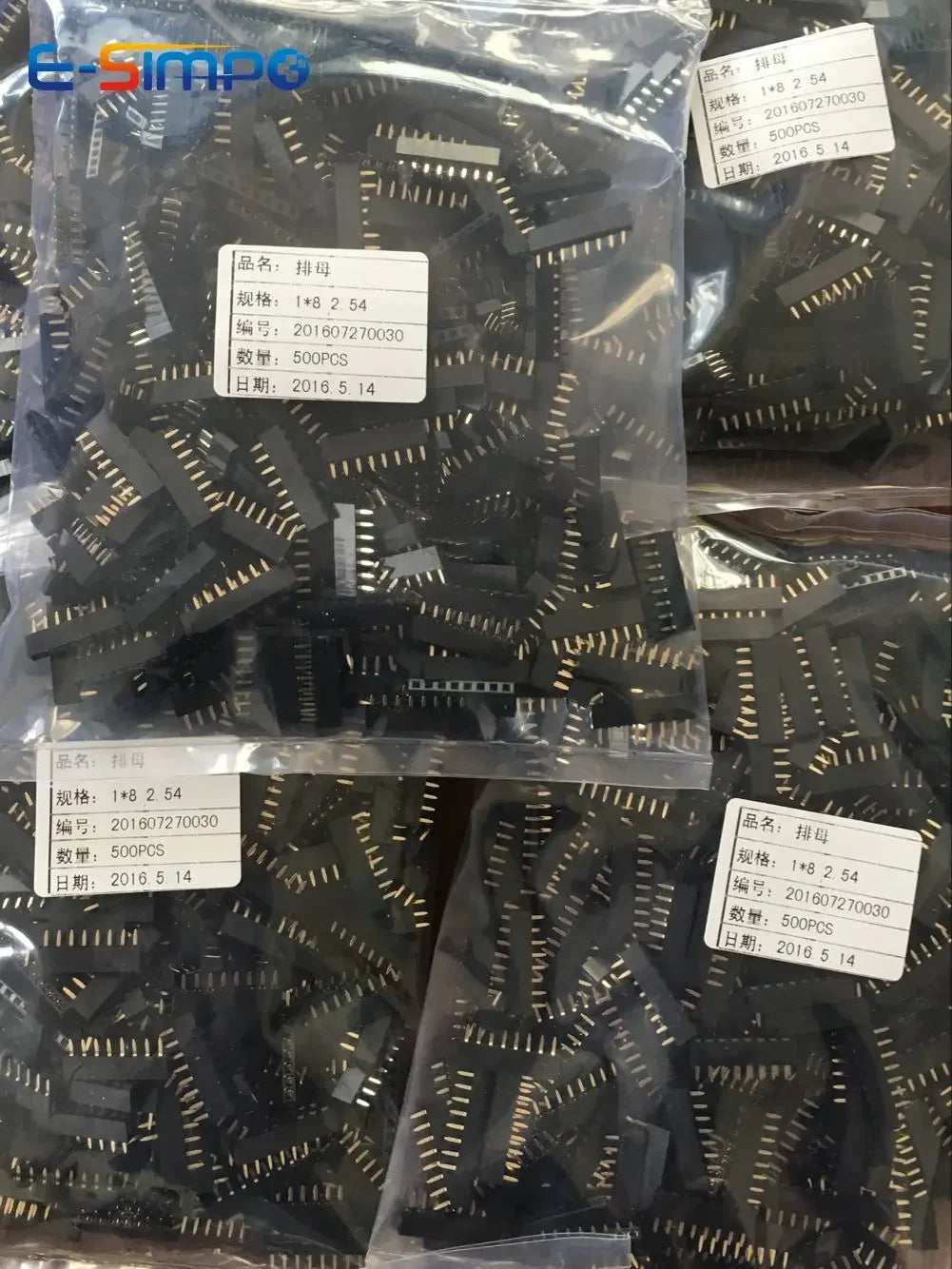

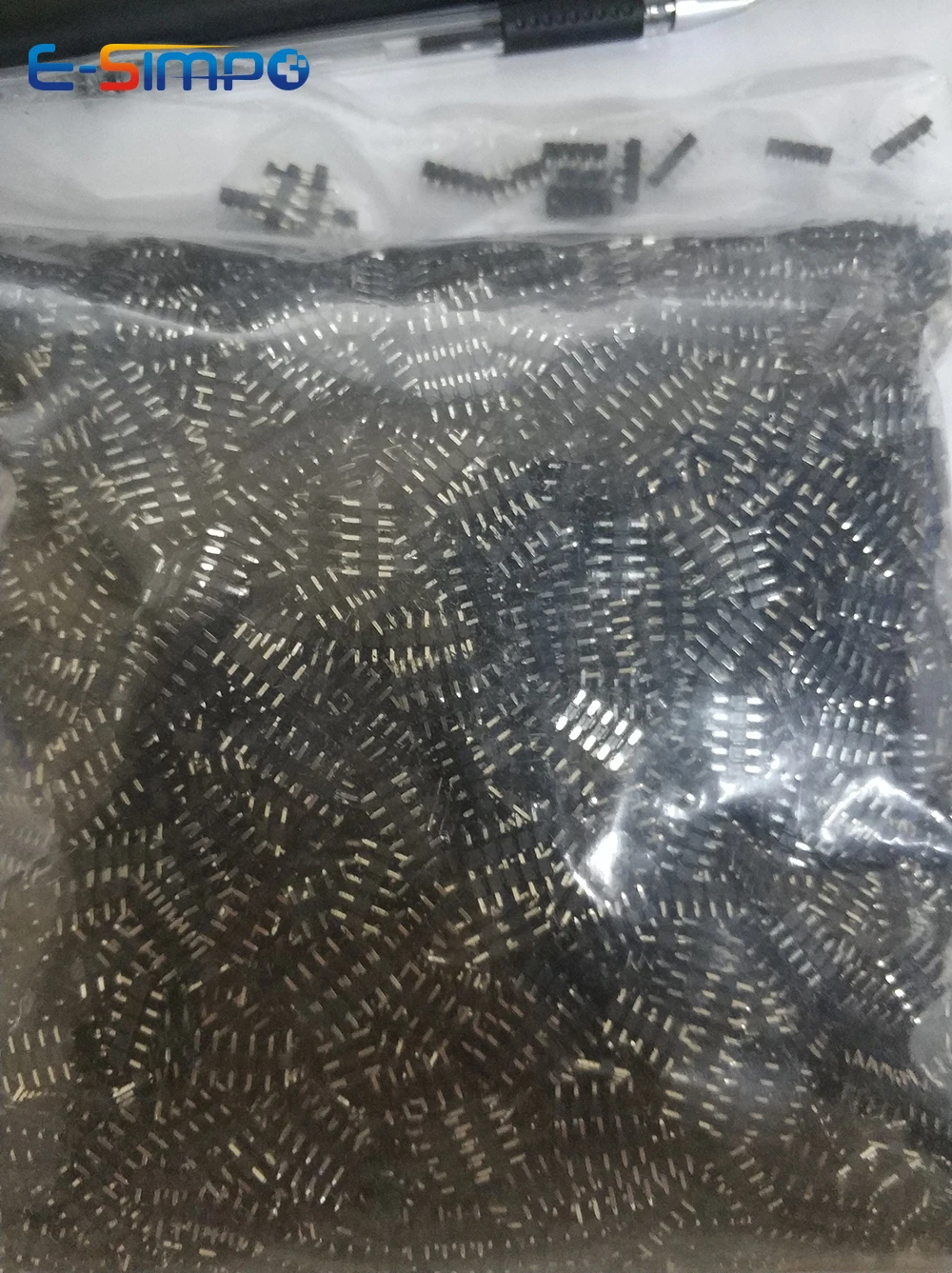

Package Content

100PCS

Other Option: plastic height 8.5mm

This model is for short version plastic height 3.5mm
If you need standard plastic height 8.5mm, please check: https://www.aliexpress.com/item/32392631192.html

Other Option: female header PH5.0

If you want double row female header PH5.0,Please check: https://www.aliexpress.com/item/4000147221999.html

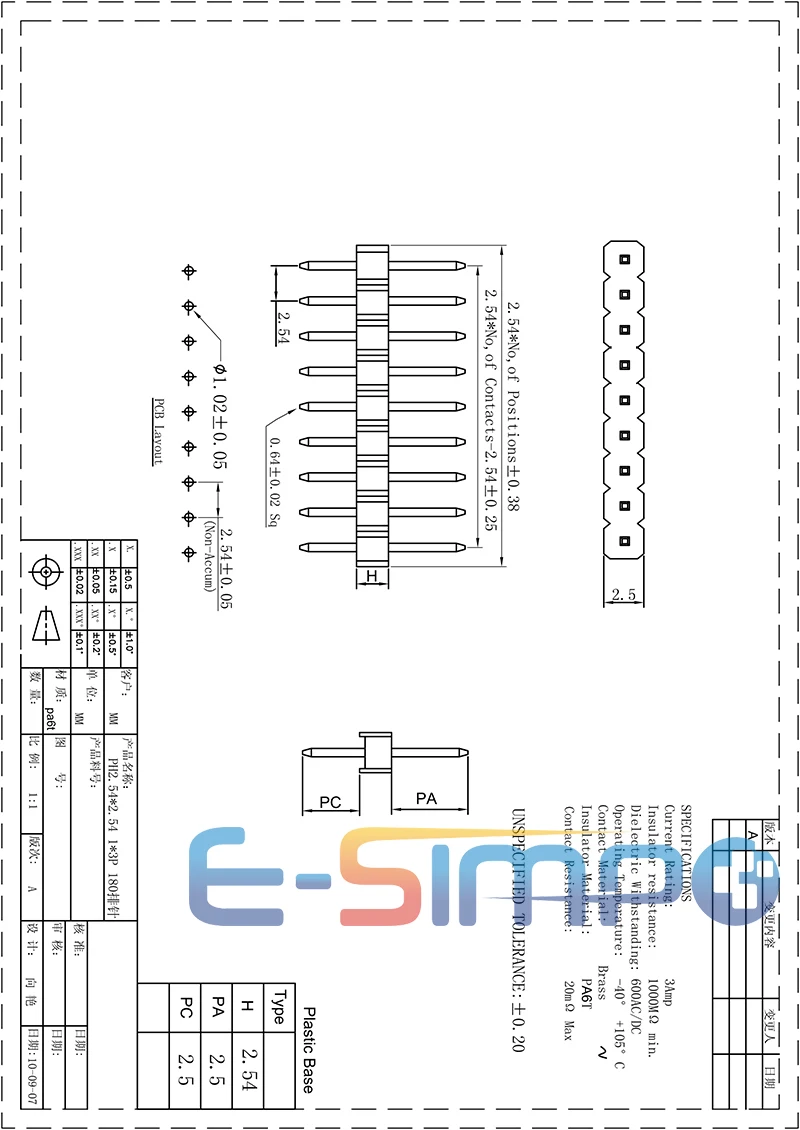

Mating 1X40P Breakable Pin Header

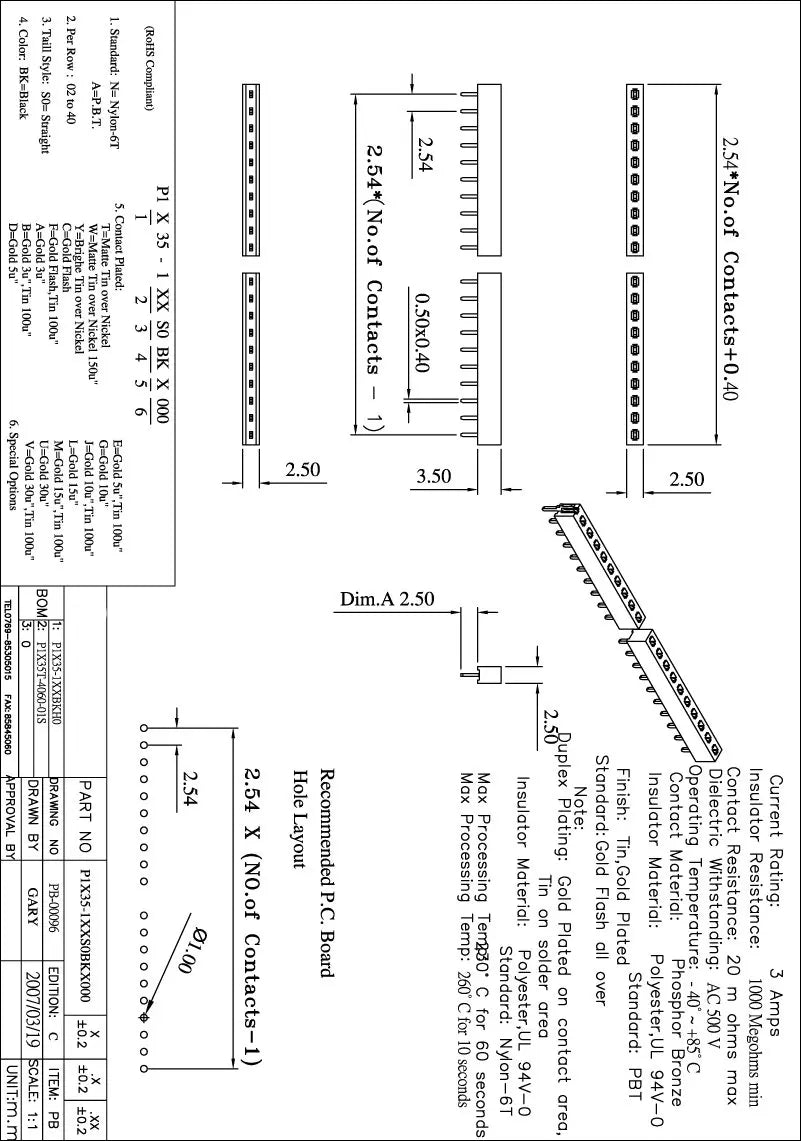

If you need mating pin header, please check the drawing below, and choose "Mating 40P PinHeader" It is breakable male pin header, you can cut into any pn you need, total length is L7.5mm, see drawings below
