Pins
Description

SPECIFICATIONS

Brand Name: E-SIMPO

Certification: CE,RoHS

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Model Number: 2.54 Female Header

Origin: Mainland China

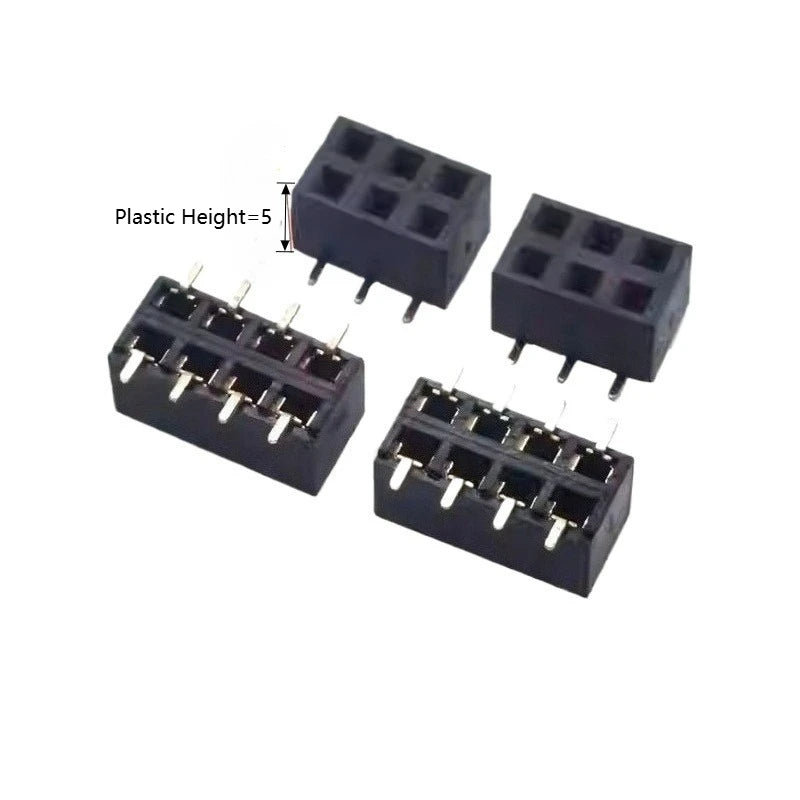

Plastic Height: 5mm

Product name: 2.54 SMT Female Header

Row: double row

Voltage: 5 V 12 V 20 V 30 V

100pcs 2.54mm PH5.0 SMD wt Alignment Pin 2X3/4/5/6/7/8/10P Short Profile PH5 Dual Row Goldplate Rohs PCB Female Header Connector

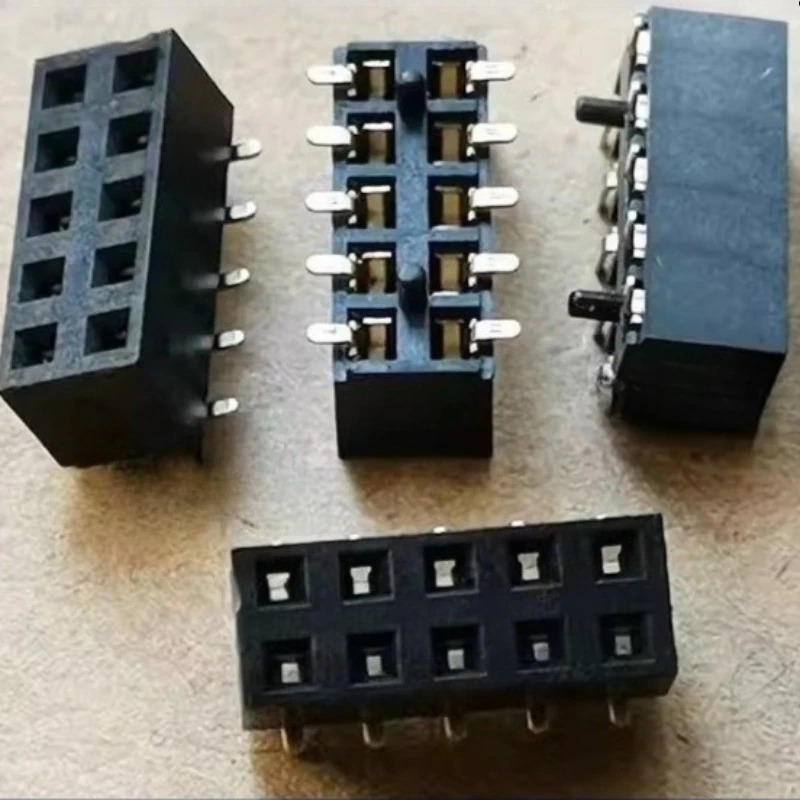

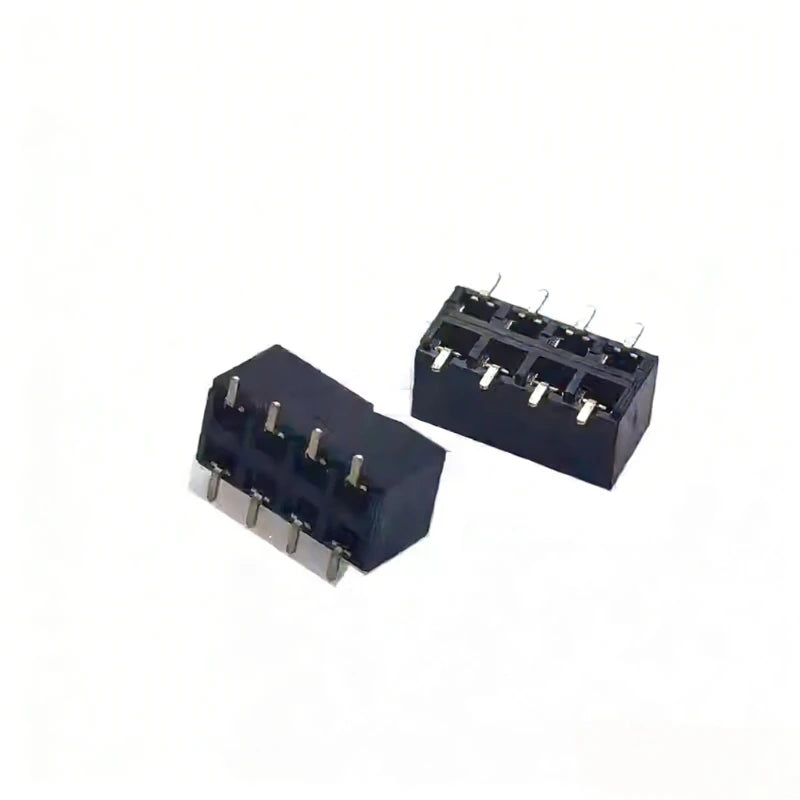

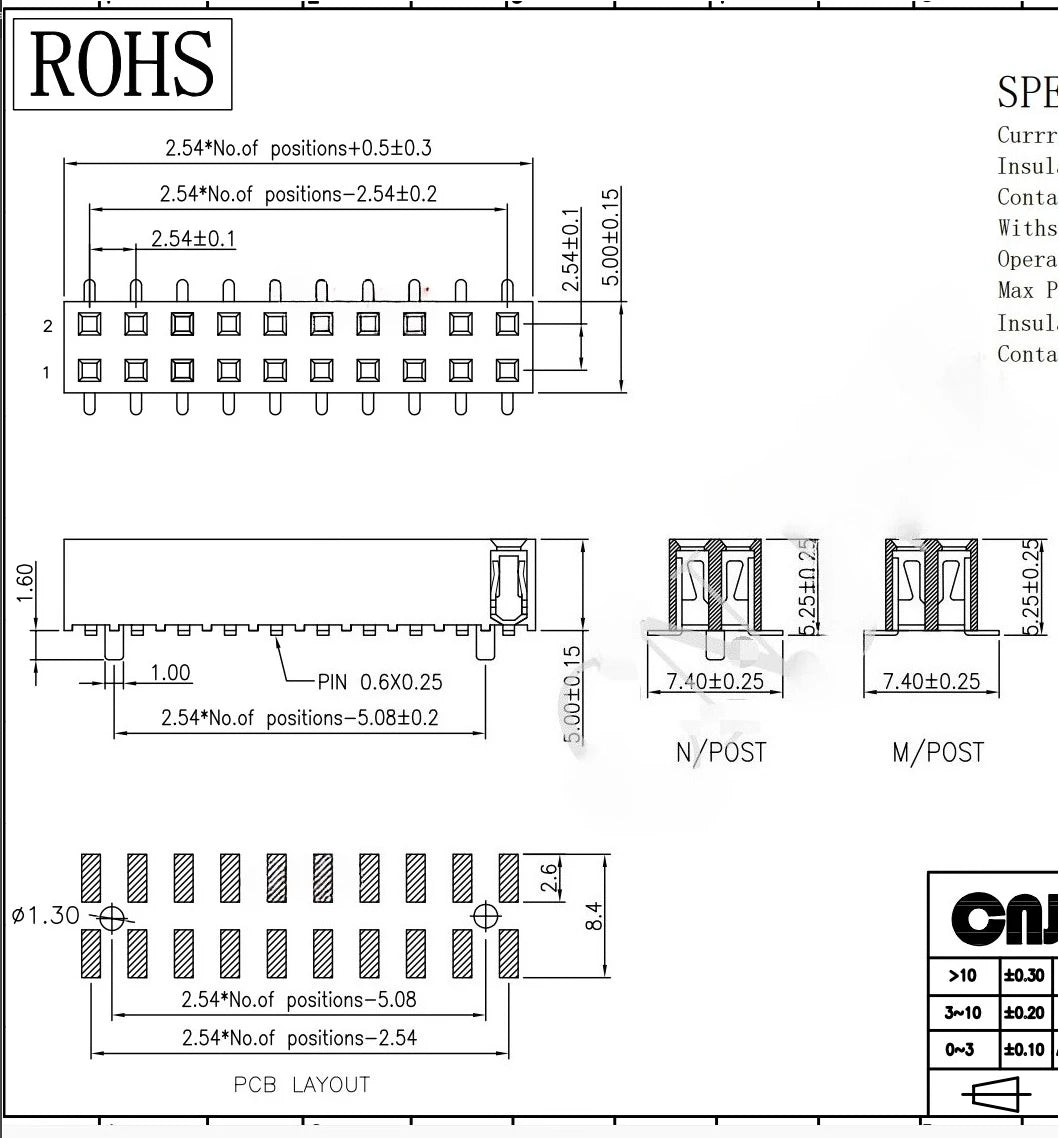

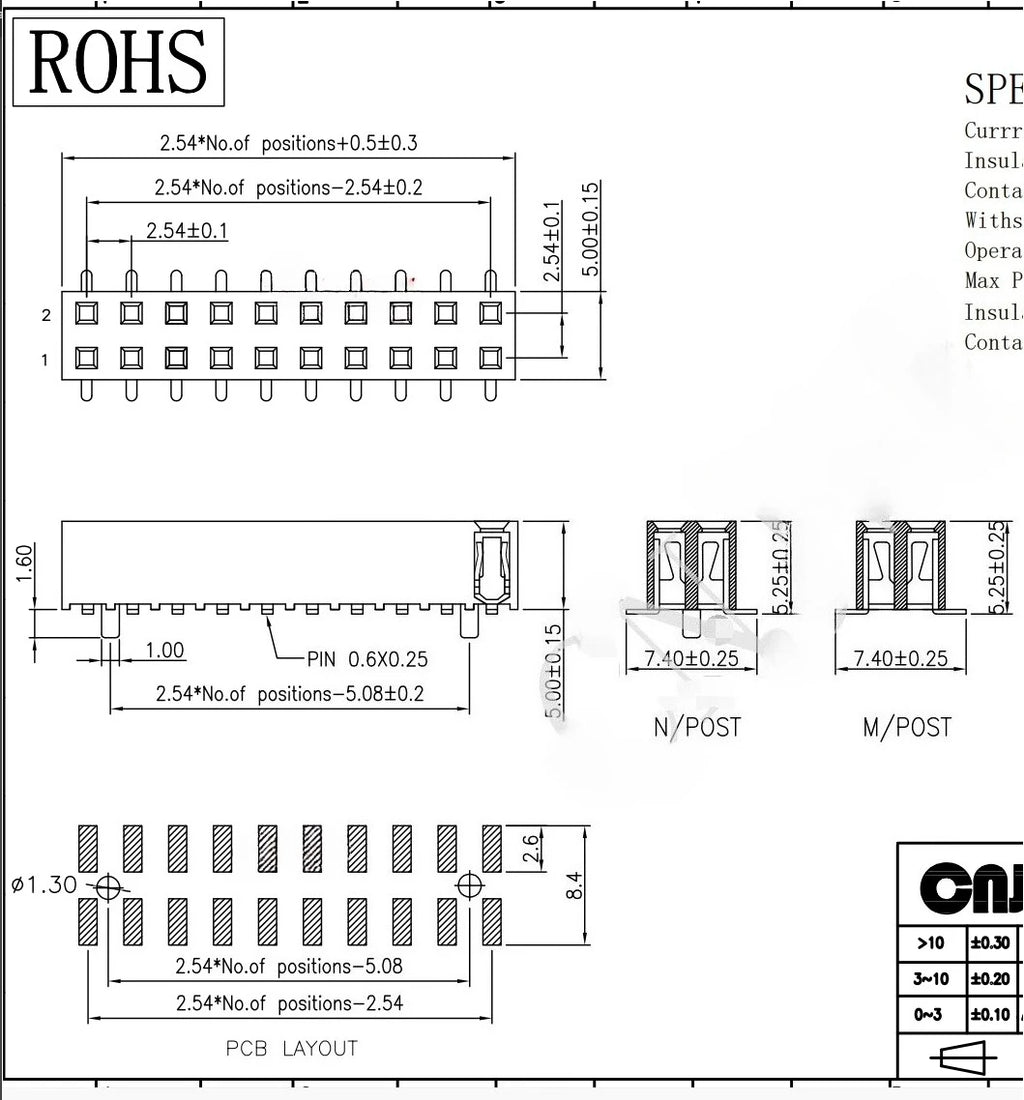

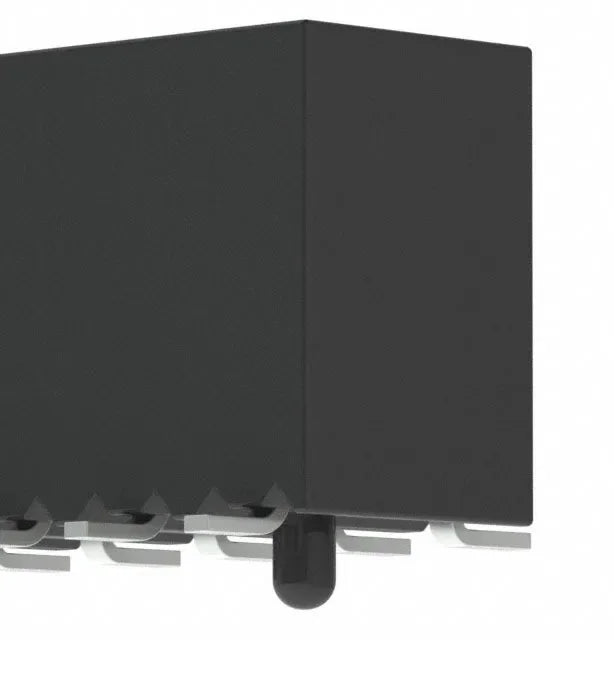

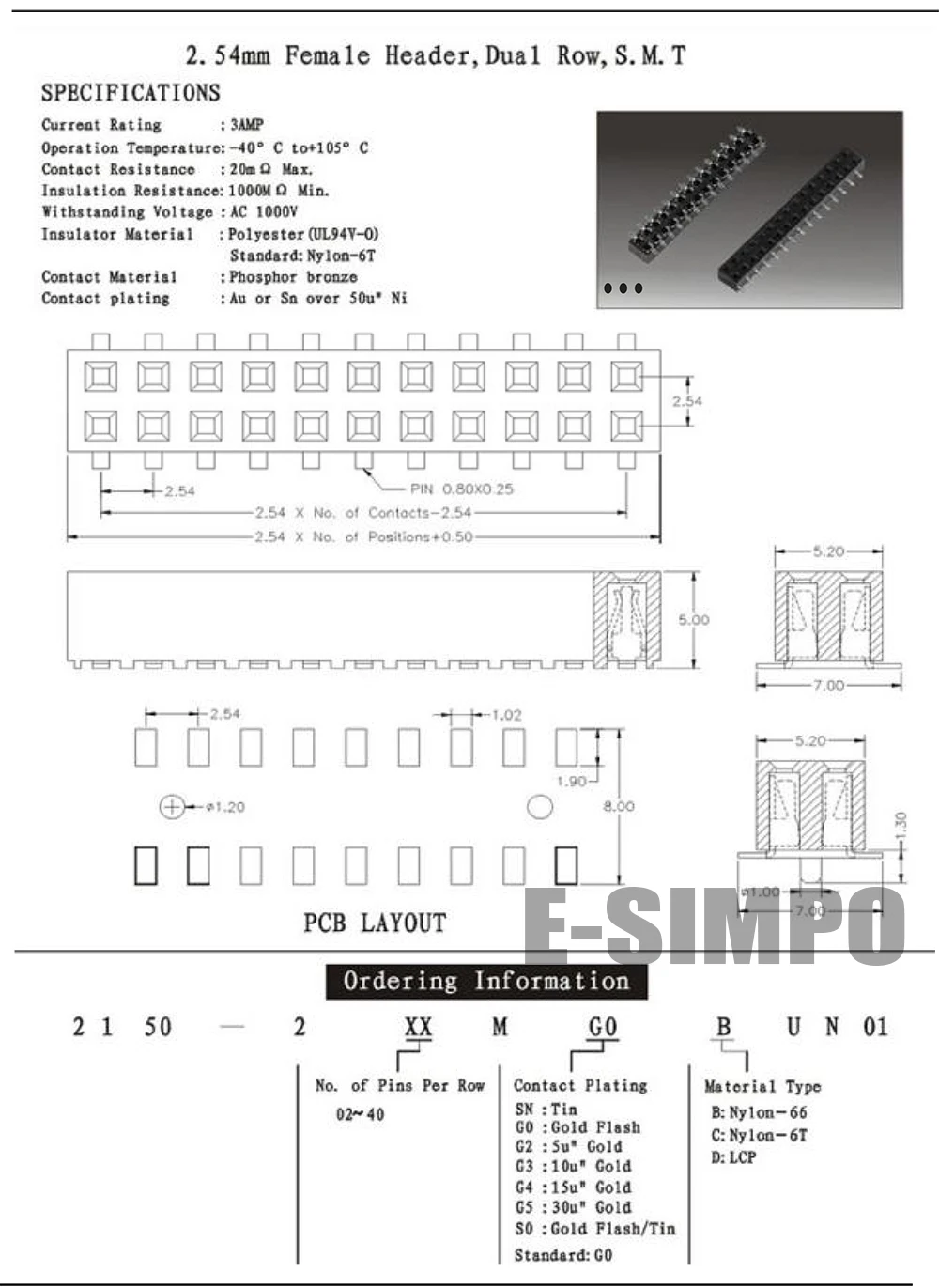

This listing is for 2.54mm SMT Female header with Plastic height 5mm, total 5.2mm with pins with Alignment Pin
If you dont need Alignment Pin please check link: https://he.aliexpress.com/item/32953977429.html?gatewayAdapt=glo2isr

Standard general SMT Female heade plastic height is 8.5mm wholesale Link:

Pin-Pin Distance/Pitch: 2.54mm without mounting post
Row Qty: double Row, 40Positions
Current Rating: 3Amps
Insulator Resistance: 5000Megohms min
Dielectric Withstanding: AC 500V
Operating Temperature: -40-105 Celsuis Degree
Contact Material: Phosphor bronze
Finish: Gold Flash
Tolerance: +/-0.2mm

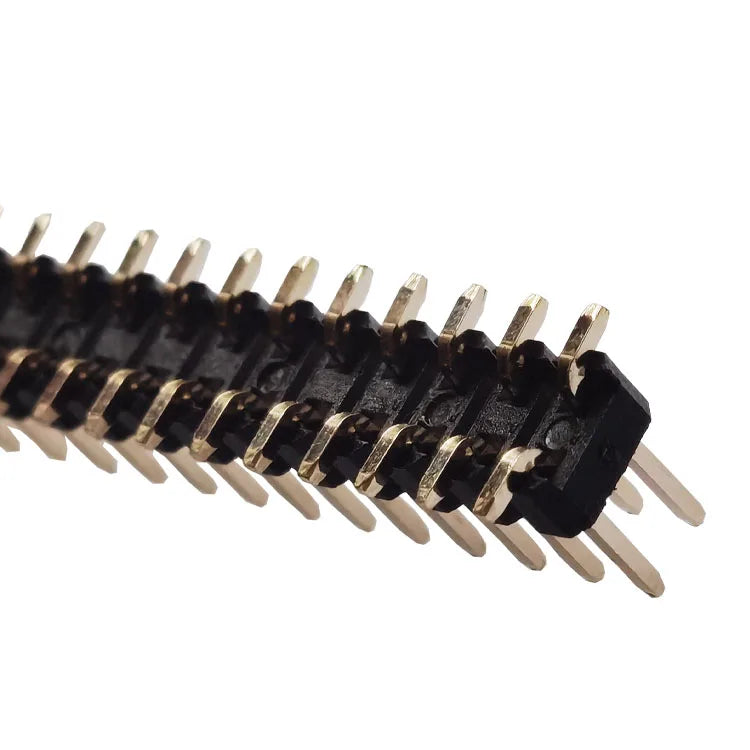

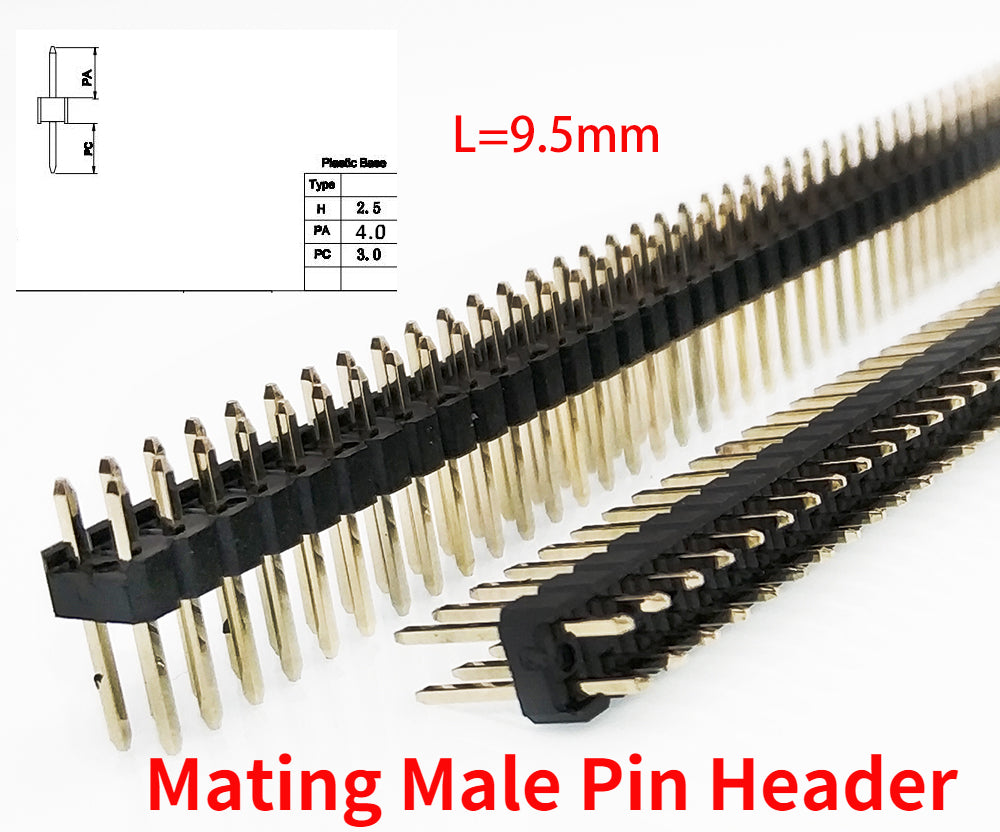

For the mating pin header DIP Straight
2X40P 50PCS, Breakable , you can cut into any pin you need.

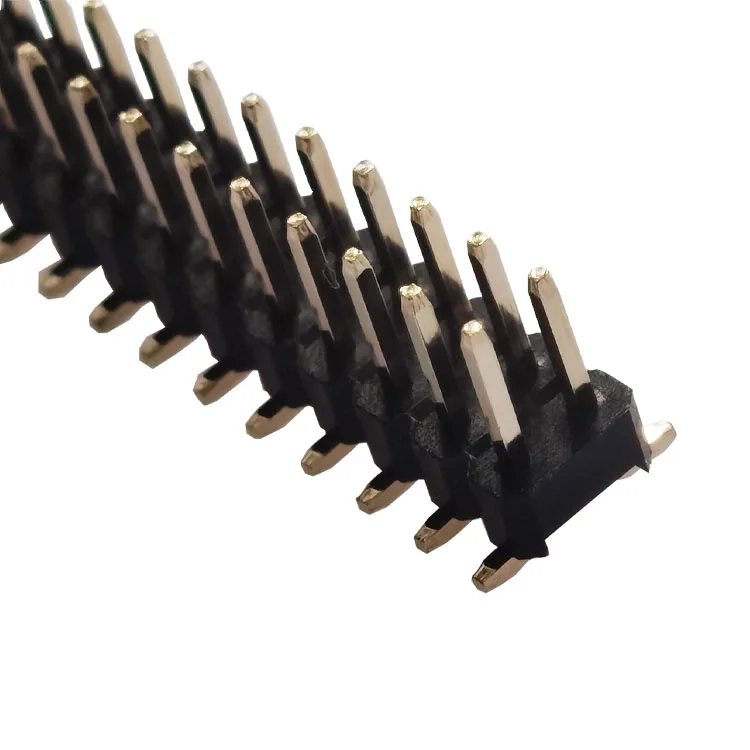

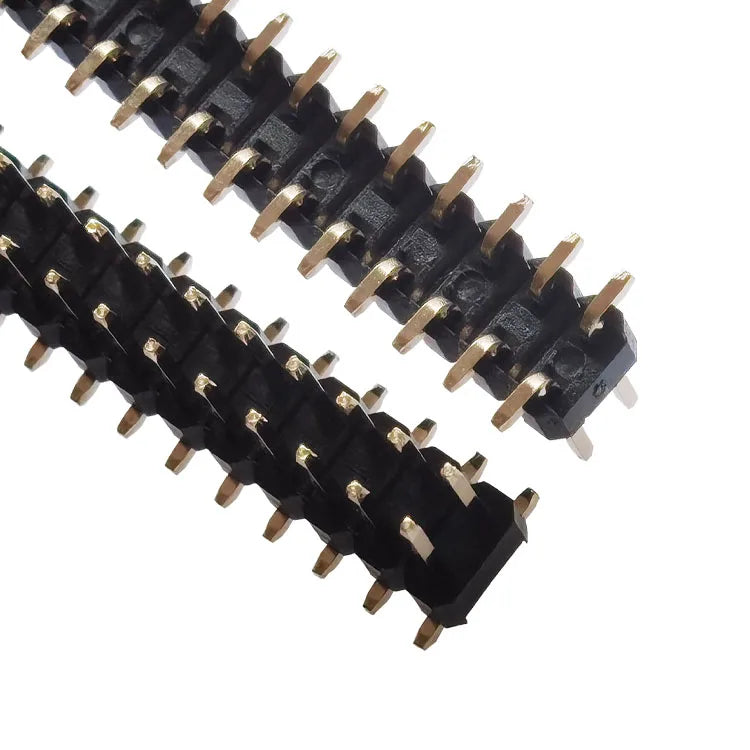

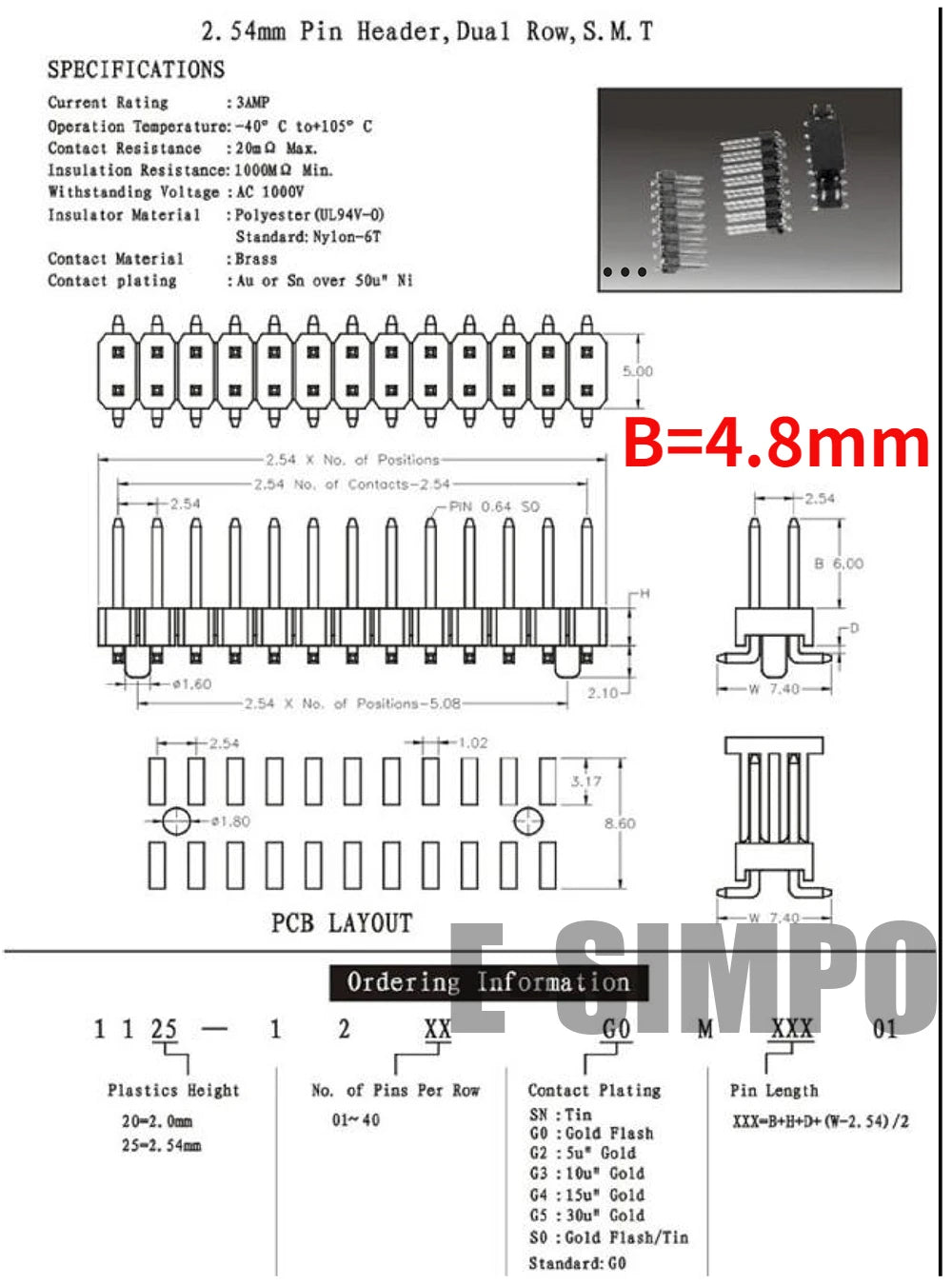

For the mating pin header SMT Type  50pcs 2X40P Breakable B=4.8mm in below drawing
