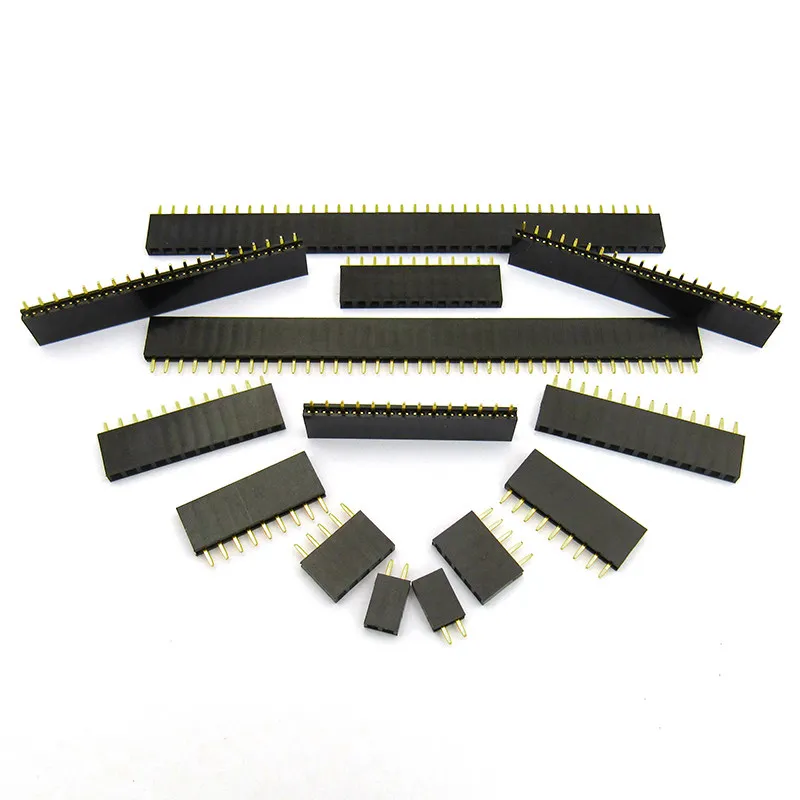

100pcs 2.54mm Single Row Straight 0.1" Reflow Rohs Gold PCB Connector PH8.5 2/3/4/5/6/7/8/9/10/12-40P Female Pin Header Socket
1X4P
$60.03
Sale price
$60.03
Regular price
$0.00
Skip to product information
100pcs 2.54mm Single Row Straight 0.1" PCB Connector PH8.5 2/3/4/5/6/7/8/9/10/12/13/15/20P Rohs Gold Female Pin Header Socket
This is Rohs Material, and Gold Plated, can pass high temperature reflow,
please dont compare with cheap non-ROHS and non-Gold female headers.

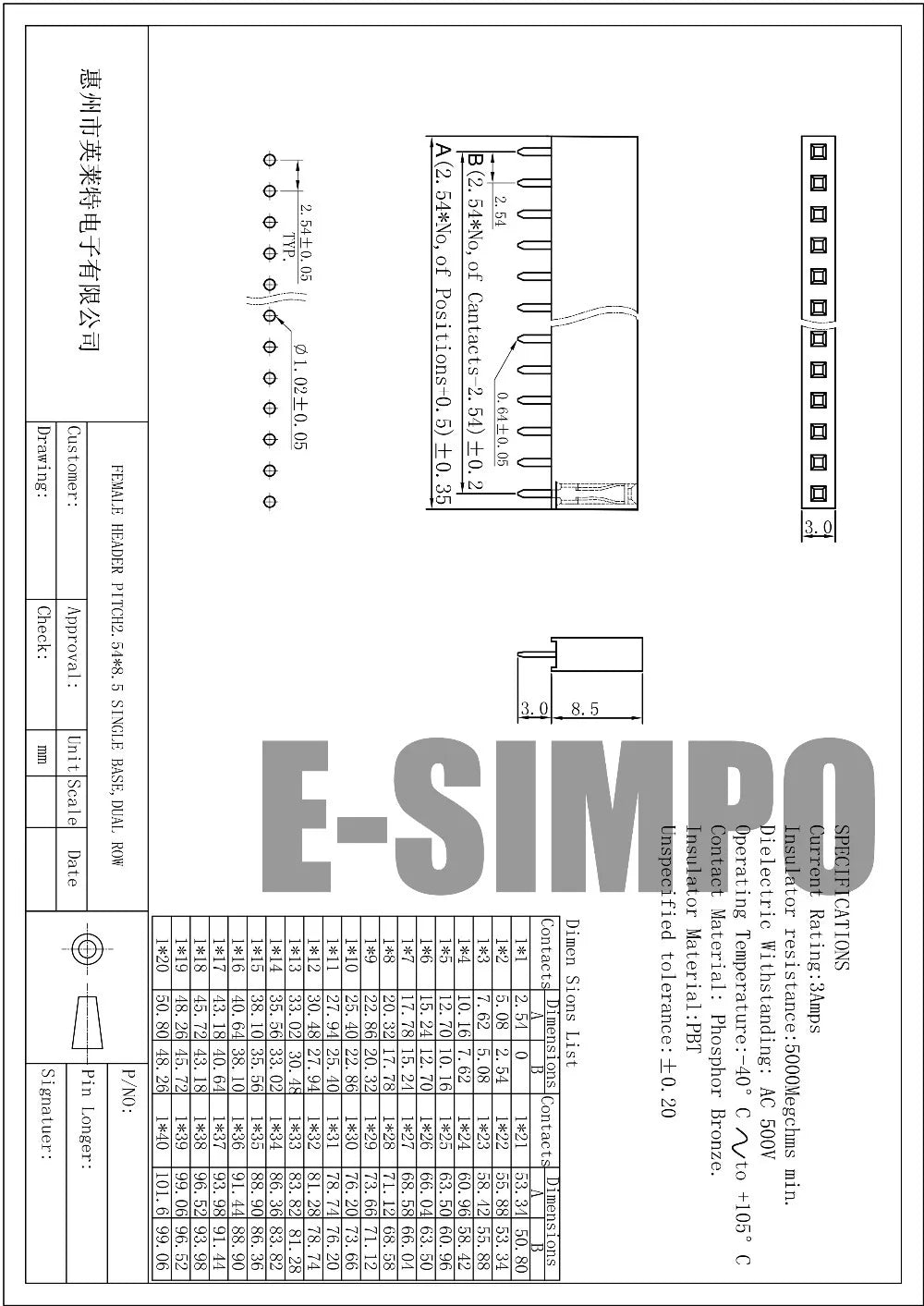

Pin-Pin Distance/Pitch: 2.54mm
Row Qty: Single Row
Plastic Height 8.5mm
1X2P---1X40P Optional
Pin Length: 3.0mm
Plastic Height: 8.5m
Current Rating: 3Amps
Insulator Resistance: 5000Megohms min
Dielectric Withstanding: AC 500V
Operating Temperature: -40-105 Celsuis Degree
Contact Material: Phosphor bronze
Finish: Gold Flash
Tolerance: +/-0.2mm
Package Content
100pcs/bag
100pcs 2.54mm Single Row Straight 0.1" Reflow Rohs Gold PCB Connector PH8.5 2/3/4/5/6/7/8/9/10/12-40P Female Pin Header Socket
$60.03
Sale price
$60.03
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: E-SIMPO
Does it include a Battery?: No
Does it include wireless functionality?: No
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
Gender: Female
High-concerned chemical: None
Keyword: 2.54mm Female Header, Single Row, Straight 180o 8.5mm
Model Number: 2.54mm PCB Female Header Socket
Origin: Mainland China
Place of Origin: China (Mainland)
Voltage: 5 V 12 V 20 V 30 V
100pcs 2.54mm Single Row Straight 0.1" PCB Connector PH8.5 2/3/4/5/6/7/8/9/10/12/13/15/20P Rohs Gold Female Pin Header Socket
This is Rohs Material, and Gold Plated, can pass high temperature reflow,
please dont compare with cheap non-ROHS and non-Gold female headers.
Pin-Pin Distance/Pitch: 2.54mm
Row Qty: Single Row
Plastic Height 8.5mm
1X2P---1X40P Optional
Pin Length: 3.0mm
Plastic Height: 8.5m
Current Rating: 3Amps
Insulator Resistance: 5000Megohms min
Dielectric Withstanding: AC 500V
Operating Temperature: -40-105 Celsuis Degree
Contact Material: Phosphor bronze
Finish: Gold Flash
Tolerance: +/-0.2mm
If you need lower profile, Plastic height 3.5mm, please check: https://www.aliexpress.com/item/622209657.html
If you need standard plastic height 8.5mm, please check: https://www.aliexpress.com/item/2251832206316440.html
If you want double row female header PH5.0,Please check:
https://www.aliexpress.com/item/4000147782502.html
Package Content
100pcs/bag
