SPECIFICATIONS

Brand Name: AOKIN

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

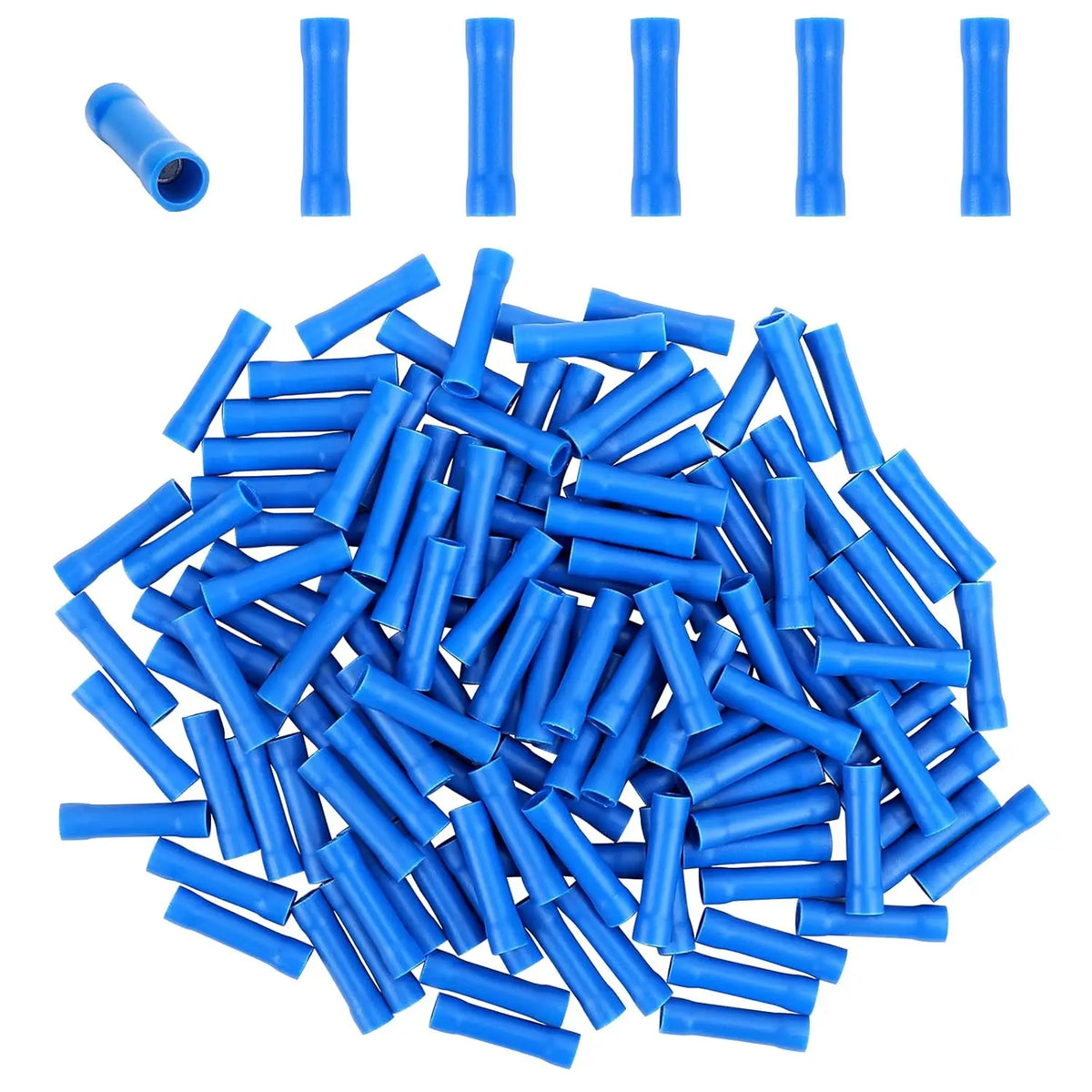

Model Number: 100pcs Blue Butt Connectors

Origin: Mainland China

Type: Crimp Terminal

• ✔ Package:100Pcs Blue Wire Crimp Connectors, Color:Red. Connectors wire range:1.5-2.5mm²/16-14AWG, length:0.96inch. Max current=27A

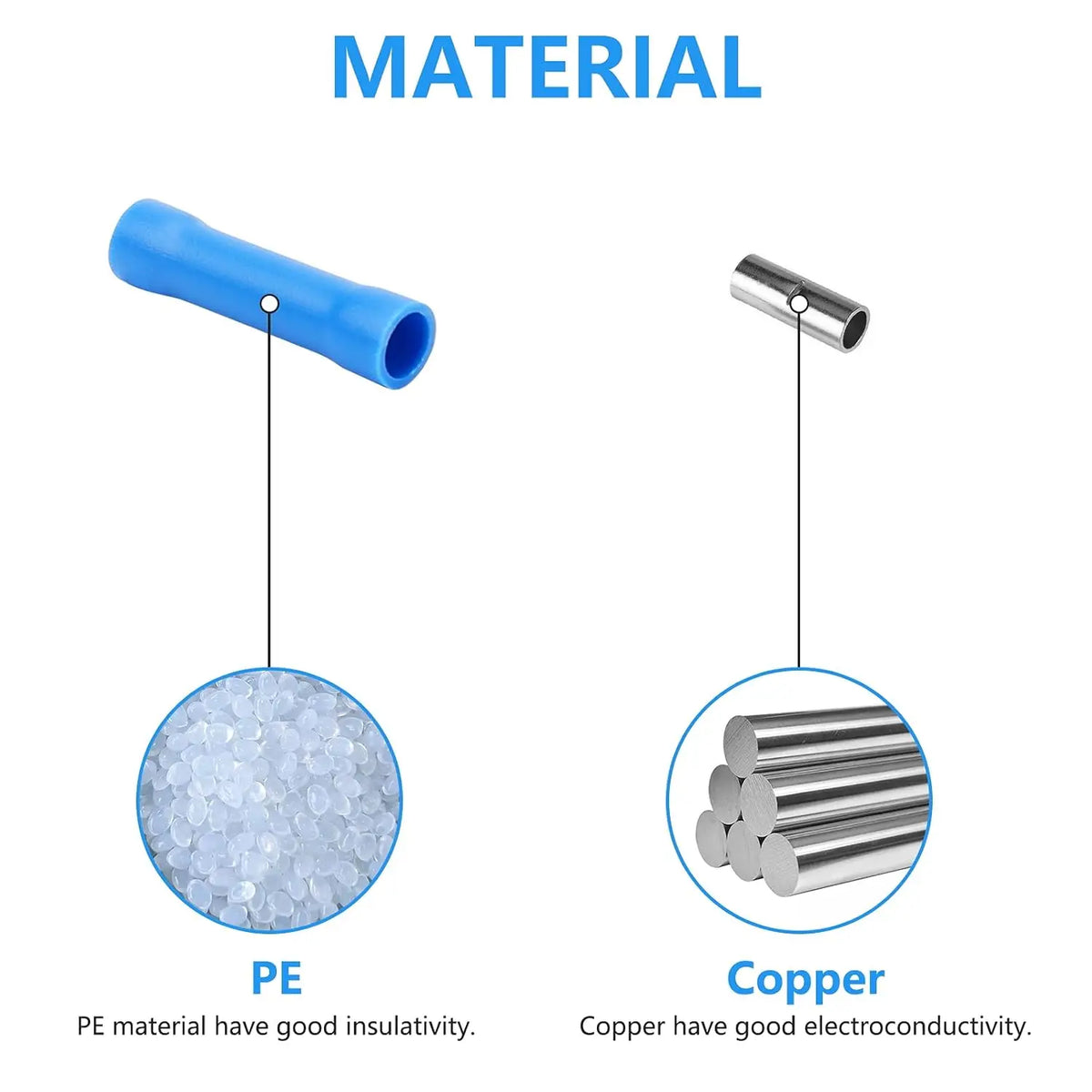

• ✔ High Quality Material: Made by high quality Brass and PE, and finished by tin-plated. It is easy to connect wires, preventing corrosion.

• ✔ Practical Butt Slice Crimp Connetors: With the electronic butt connectors, one or more different conductors can be crimped in a short space.

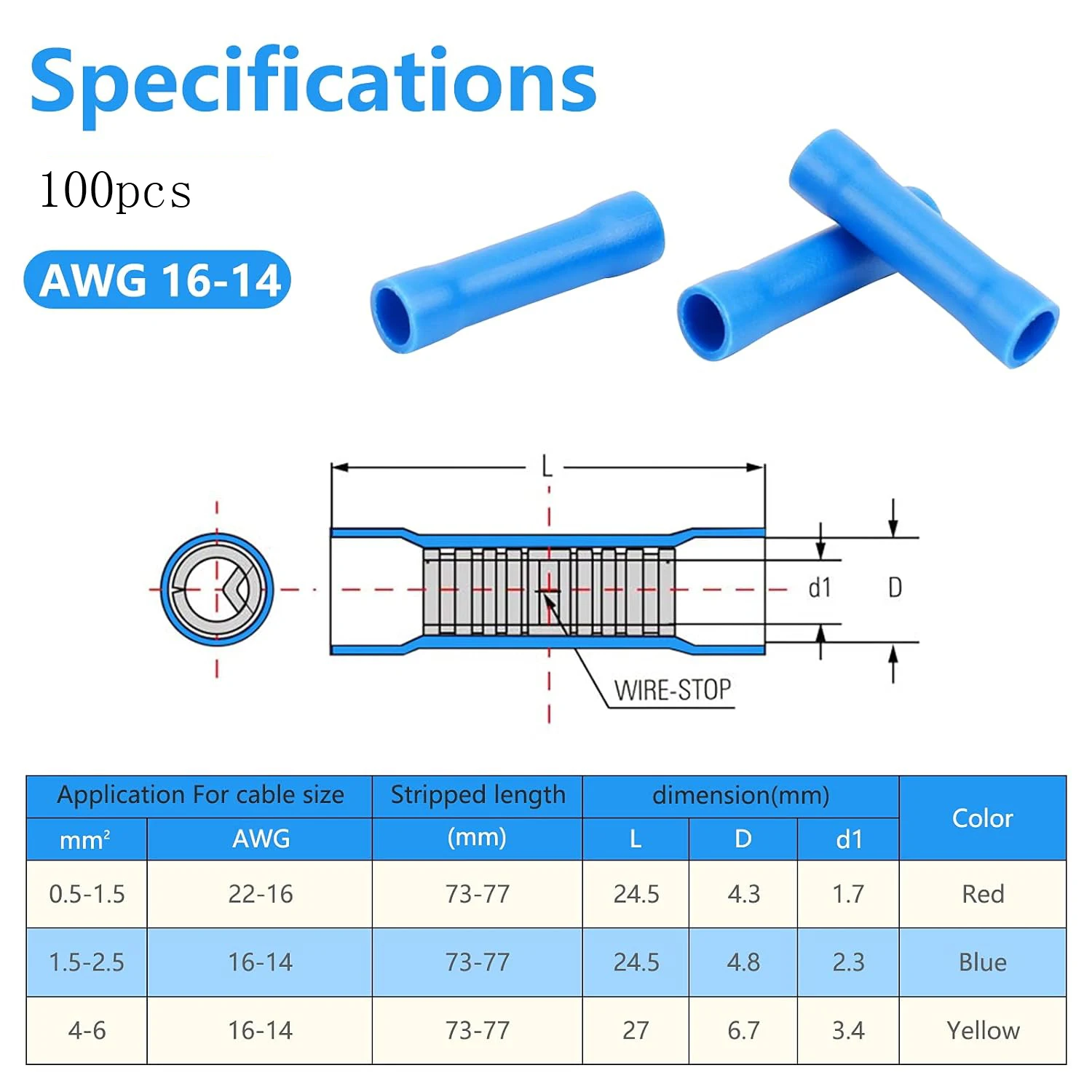

• ✔ Wire-stop Structure:Wire-stop structure of the wire butt connectors is conductive to insert the wire into right place to ensure the effect of compression.

• ✔ Wide Application: The crimp terminals provides the wire side protection, insulation, widely used for connection to the electrical line, car wiring harness processing, car accessories installation, wire repair and maintenance and outdoor lighting wire and cable intermediate connection, easy to use, safe and quick.

Specification:

Type: Insulated Butt Splice Crimp Connectors
Package Quantity: 120PCS
Material: Copper + PE + Tinplate
Finished: Tin-Plated Operating temperature : -10℃ ~ 75℃ (14℉ ~ 167℉)

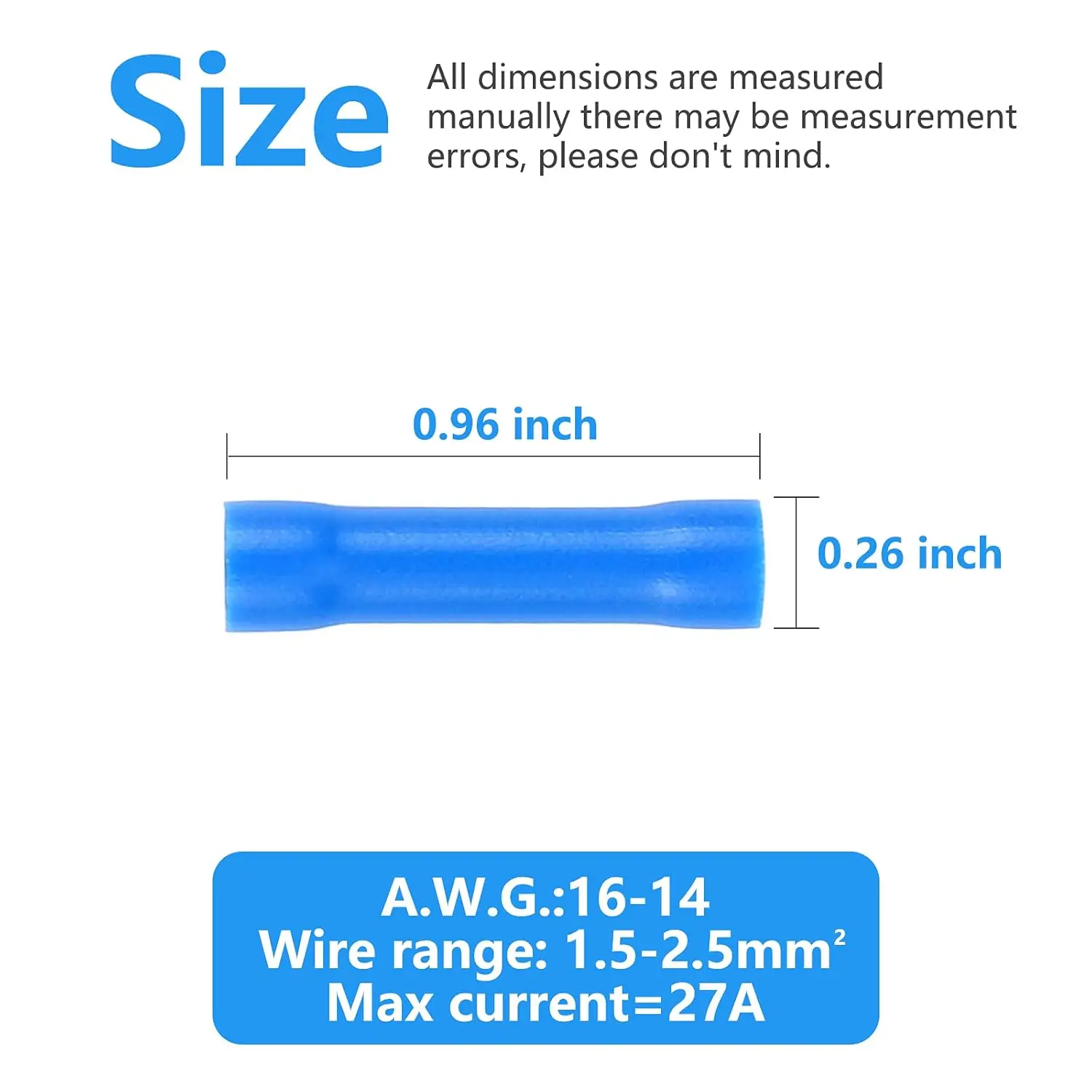

Length: 24.5mm/0.96in.
A.W.G.: 16-14
Wire range: 1.5-2.5mm²
Max current=27A

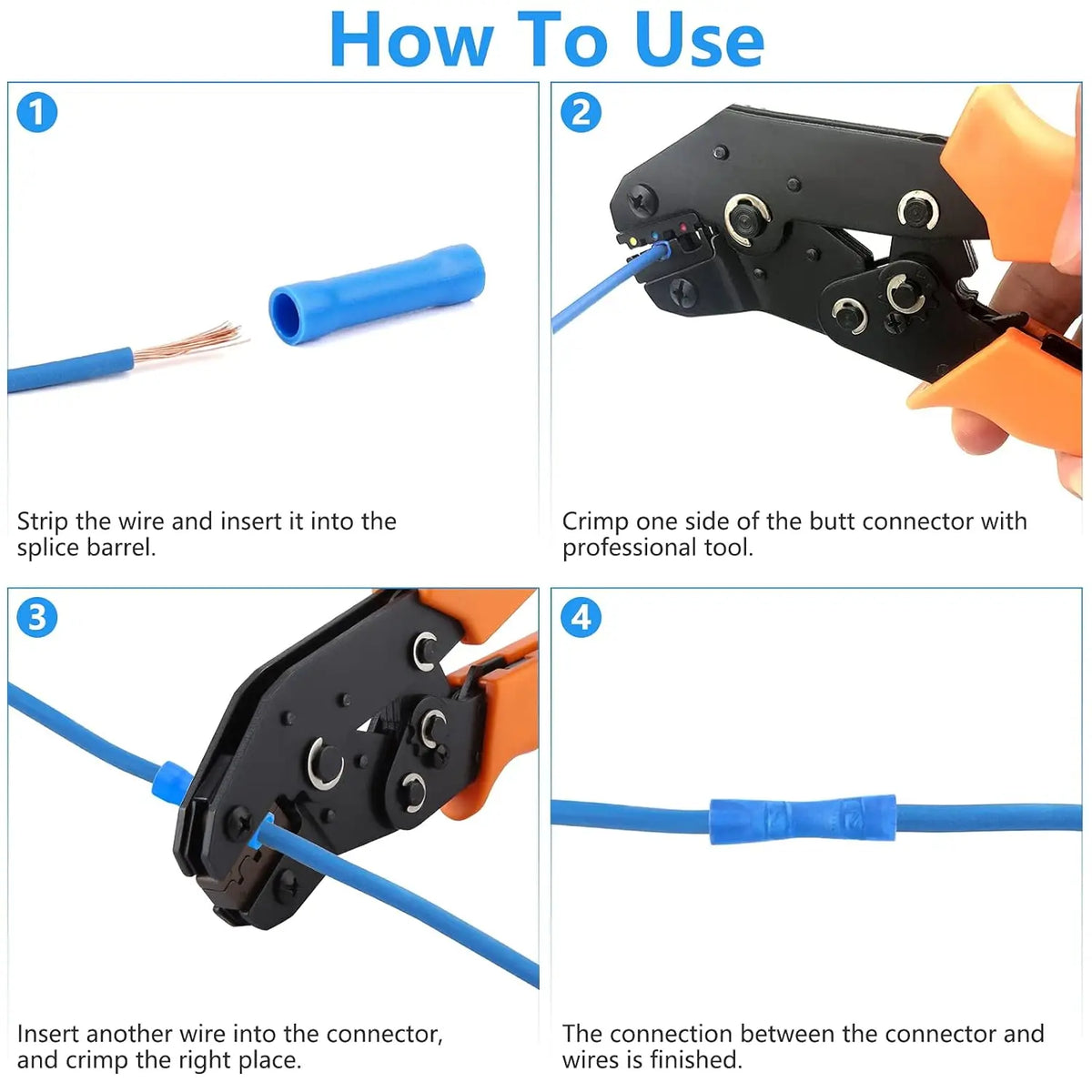

How to Use:
1. Strip the wire and insert it into the splice barrel.
2. Crimp one side of the butt connector with professional tool.
3. Insert another wire into the connector, and crimp the right place.
4. The connection between the connector and wires is finished.

Kindly Note:

❣ Please allow 1-3mm error due to manual measurement. Thanks for your understanding
❣ For best results, please use profession crimping tool.
