Description

SPECIFICATIONS

Brand Name: IAREPDIY

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Origin: Mainland China

Type: Crimp Terminal

semi_Choice: yes

If you want more item, please contact us,we will add the quantity and give you the cheaper price

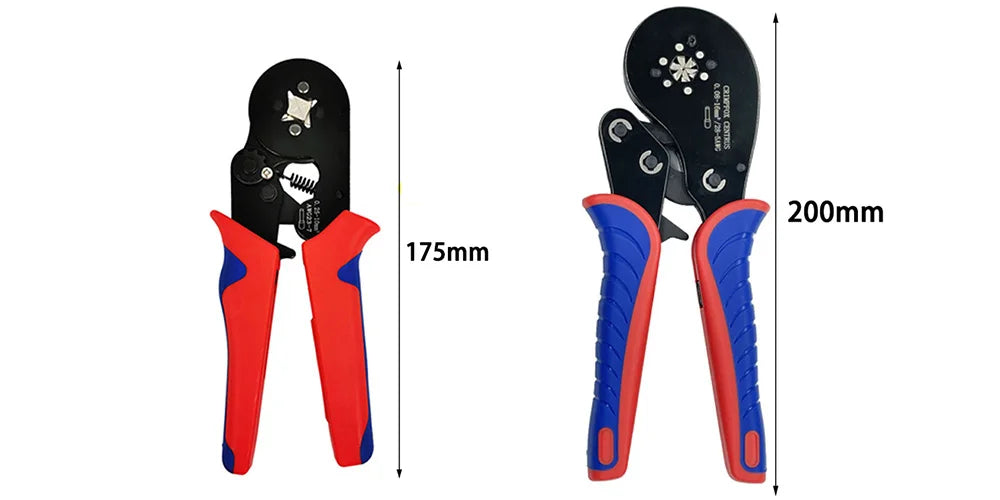

Crimping Pliers Click on the follow picture

Size Selection

Cross-section

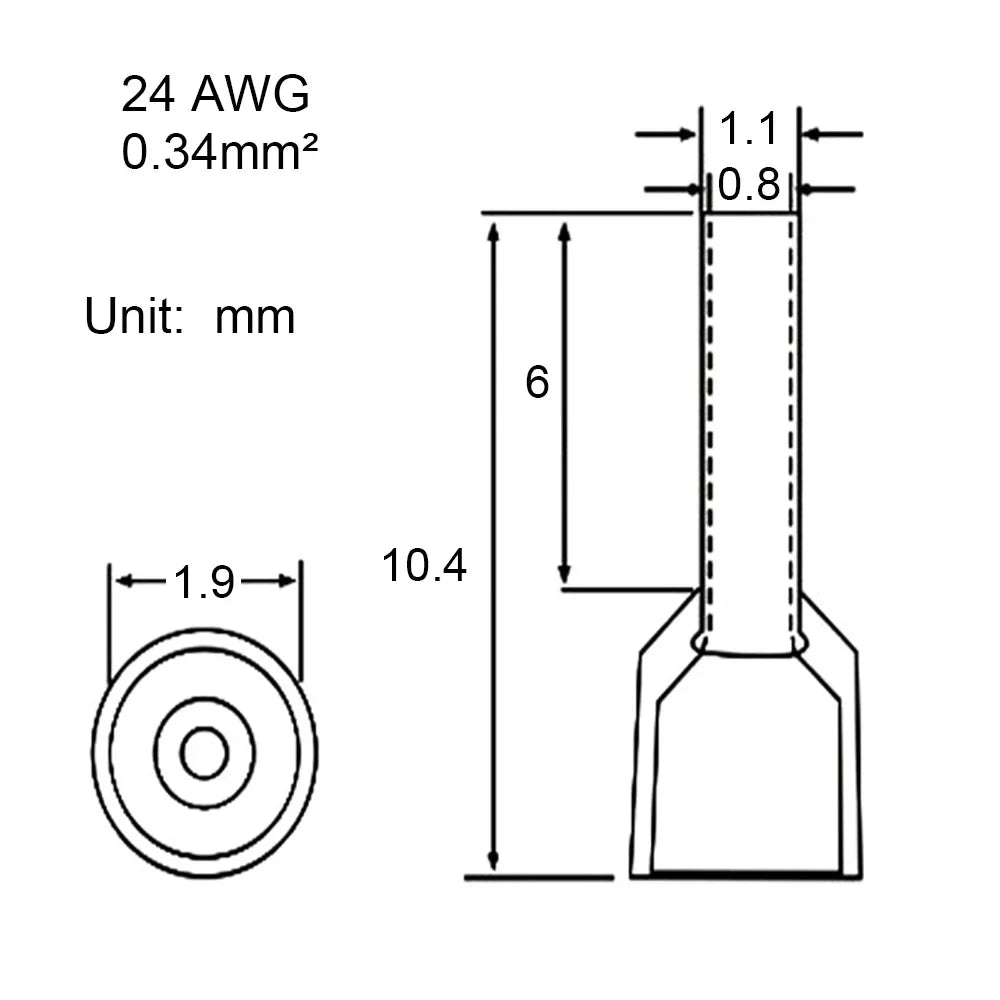

24 AWG Wire ： 0.34mm²
22 AWG Wire ： 0.5mm²
20 AWG Wire ： 0.75mm²
18 AWG Wire ： 1.0mm²
16 AWG Wire ： 1.5mm²
14 AWG Wire ： 2.5mm²

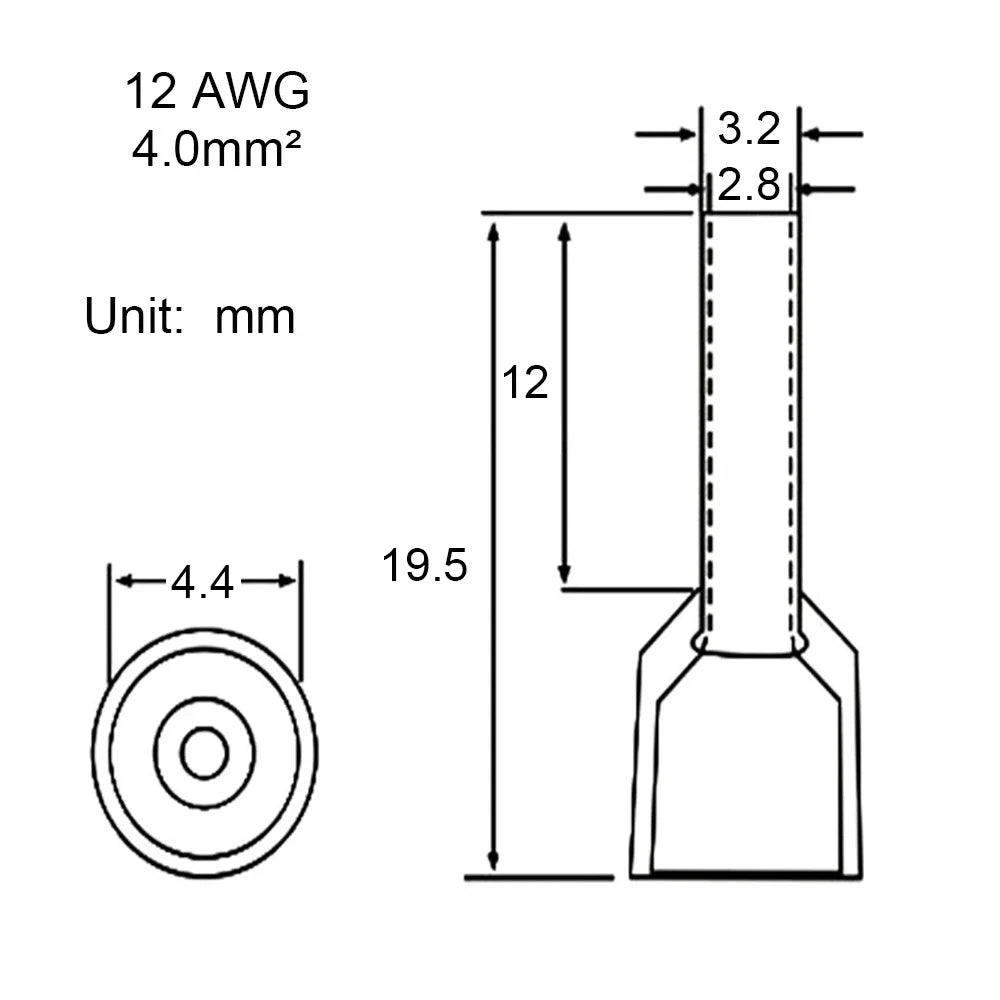

12 AWG Wire ： 4.0mm²
10 AWG Wire ： 6.0mm²
7 AWG Wire ： 10.0mm²

Specification

Material: Brass, Nylon
Surface Finishing: Tin-plating
Operating temperature : -40℃ ~ 105℃ (40℉ ~ 221℉)
Maximum Voltage:300v

Package Includes:

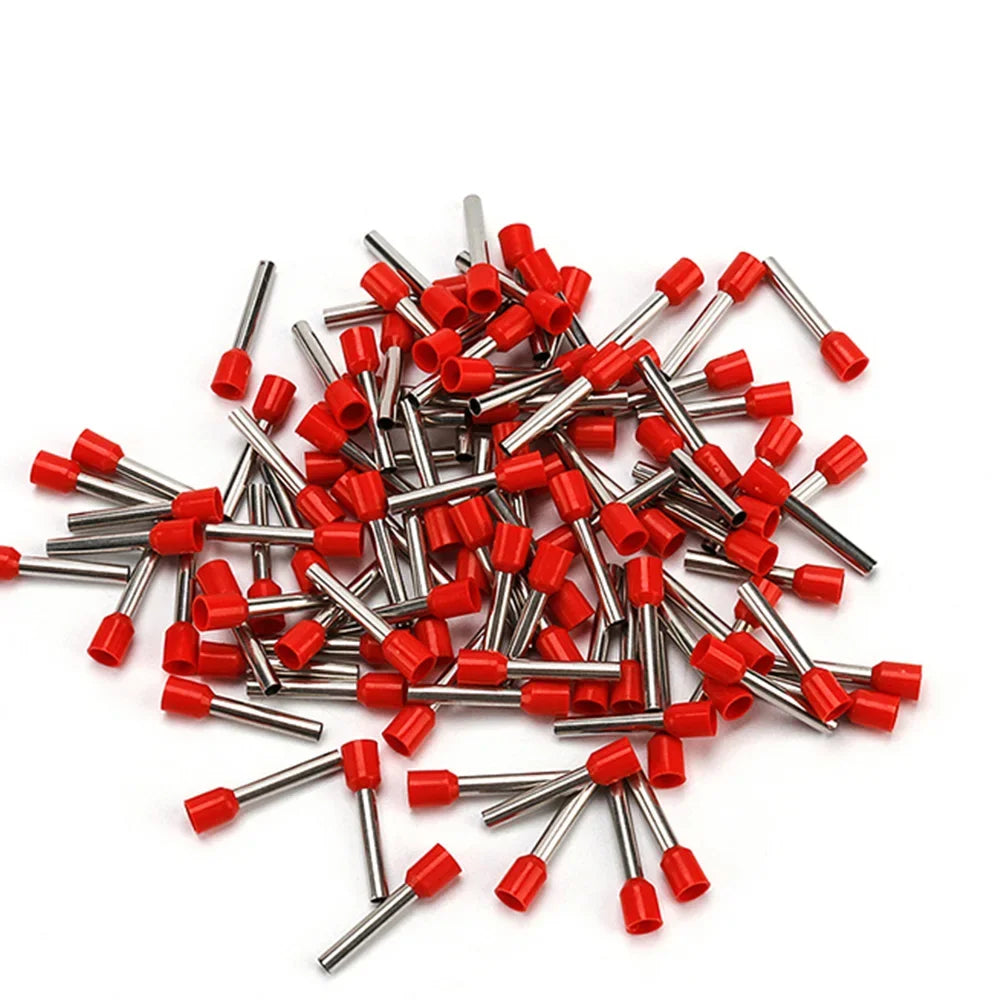

100 x Terminals

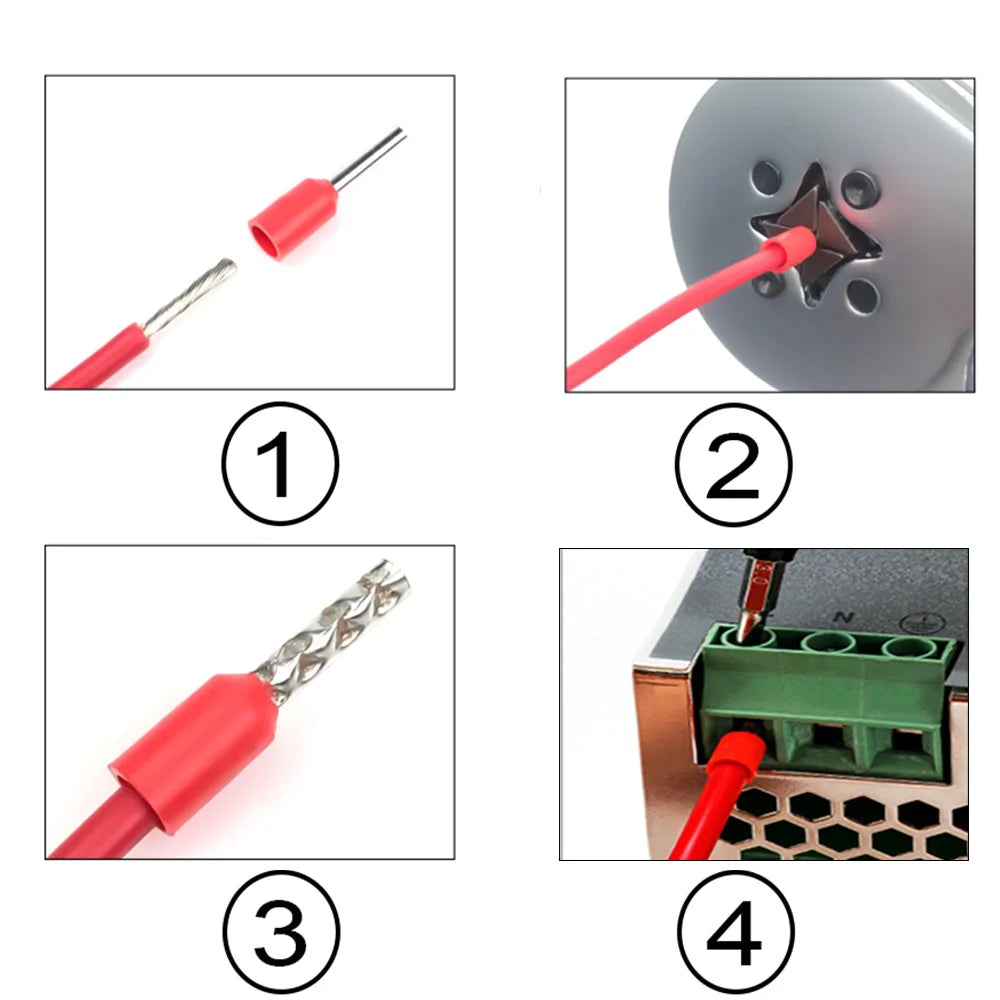

Application Method

1.Strip the wire
2.Insert wire into terminal
3.Crimp the terminal with wire pliers
4.Install on equipment

Product Advantage

Terminal surface is plated with tin which ensures good conductivity and corrosion resistance.
Insulated sleeves would provide support for the wire in order to avoid bend when crimping.
Suitable for the connection in power cable with electrical equipment.
Used widely in machinery, electric power equipment, home appliance, computers or automobiles.
