SPECIFICATIONS

Brand Name: NONE

Certification: CE,RoHS

Choice: yes

Connection Method: Cold Press Crimping (Solderless)

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

High-concerned chemical: None

Material: Pure Copper Conductor + PVC Insulation Sleeve

Model Number: BV1.25 BV2 BV5.5

Model Numbers: BV1.25, BV2, BV5.5

Origin: Mainland China

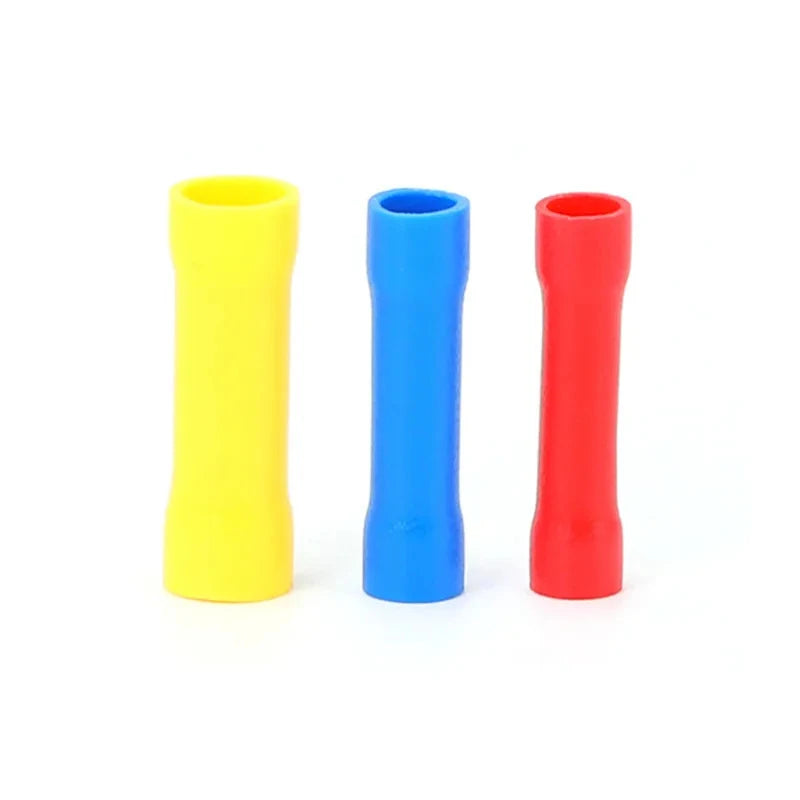

Product Type: Insulated Butt Splice Terminals

Terminal Style: Straight Barrel, Wire-to-Wire Splice

Type: Crimp Terminal

is_customized: None

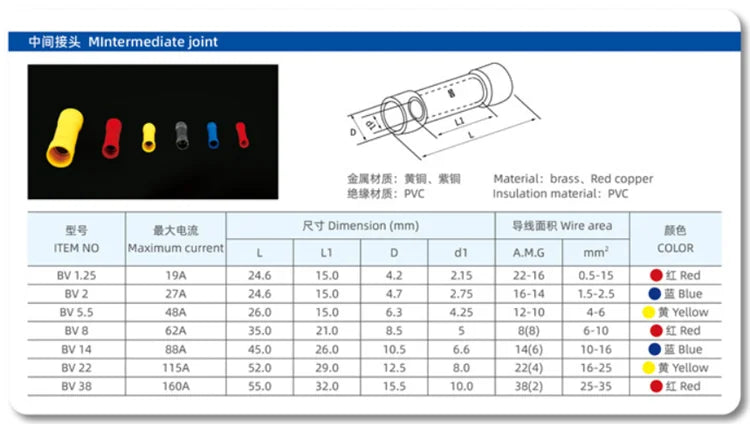

Specification:
-Insulator: PVC
-Terminal Body: Copper
-Plating: Tin
-Maximum Temperature: 75Celsius
-Color: Red, Blue, Yellow
-Insulation Voltage: 600V
-Suits Cable/ Wire Sizes: 0.5-6.0mm2; 10-22AWG
-Quantity: 100pcs

Features:
-Easy installation, and a low installed cost, which is more reliable than conventional crimp terminals.
-Providing strain relief and against vibration in rugged environment, which insulates and protects electrical connections.
-In the middle of the splice is high pure copper tube, with excellent conductivity property.
-Excellent stretch, puncture and mechanic damage resistance performance.
-Fully insulated connectors, tin-plated copper with PVC insulation.

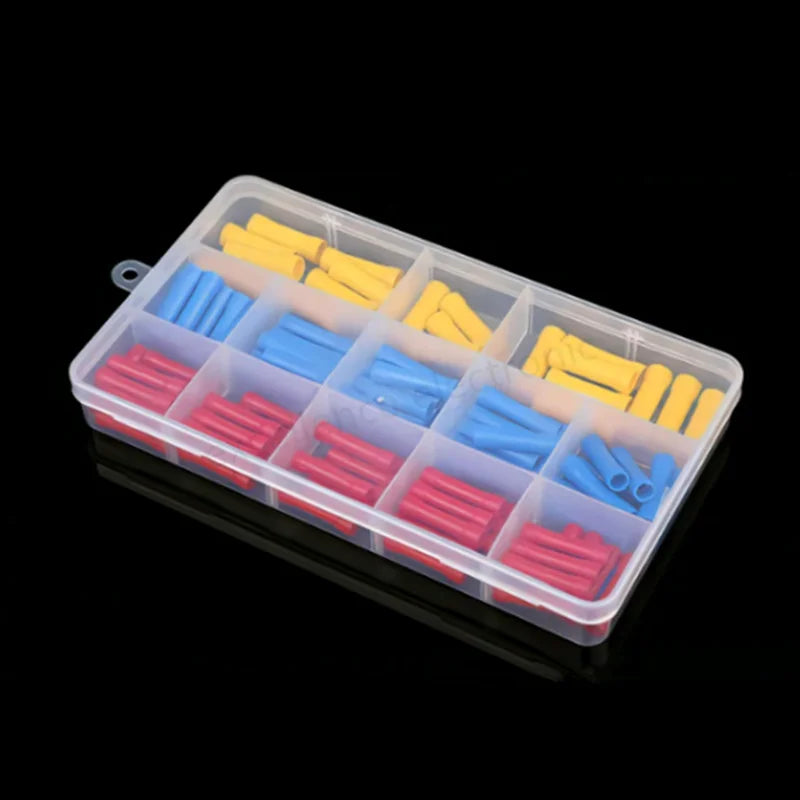

Package Included:
40cs x red terminals

40cs x blue terminals
20pcs x yellow terminals

Note:
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
