SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Model Number: KF301 2P 3P 3P Screw Terminal Block Connector

Origin: Mainland China

Voltage: 24V

电压: 1V 2V 4V 5V 12V 12V 等 或自定义

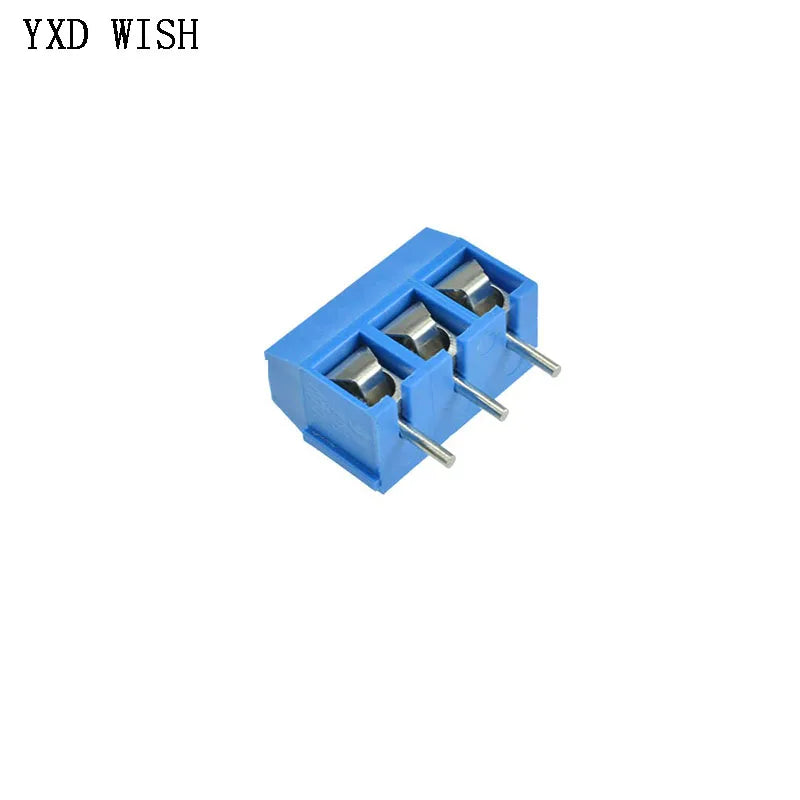

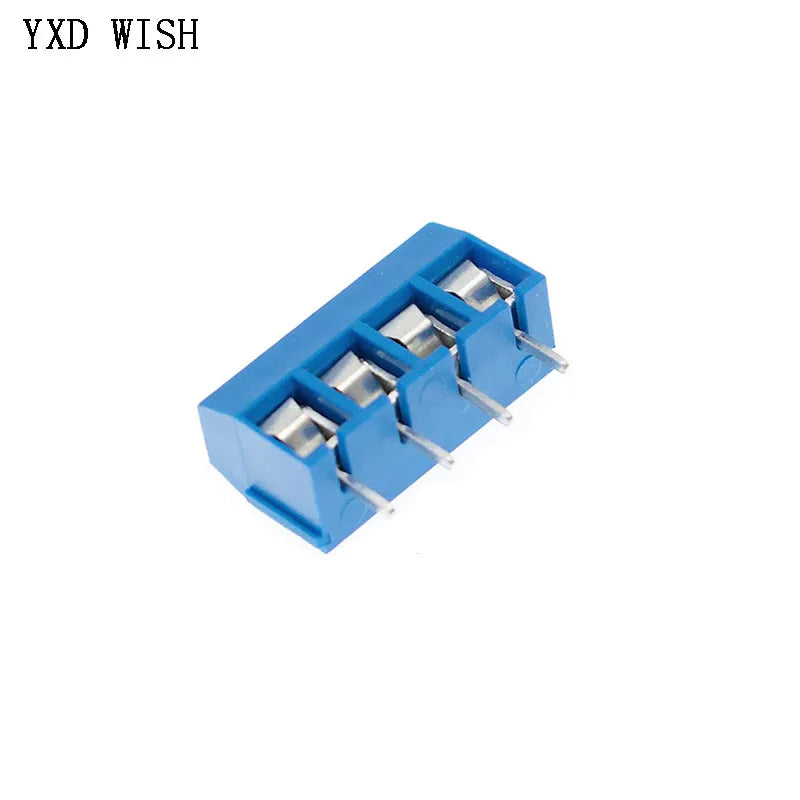

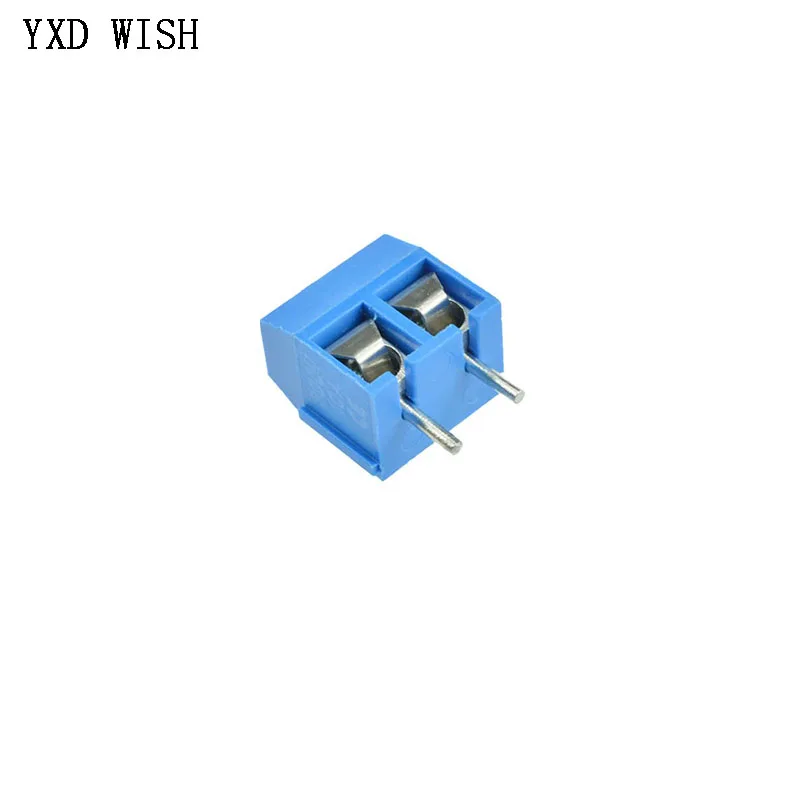

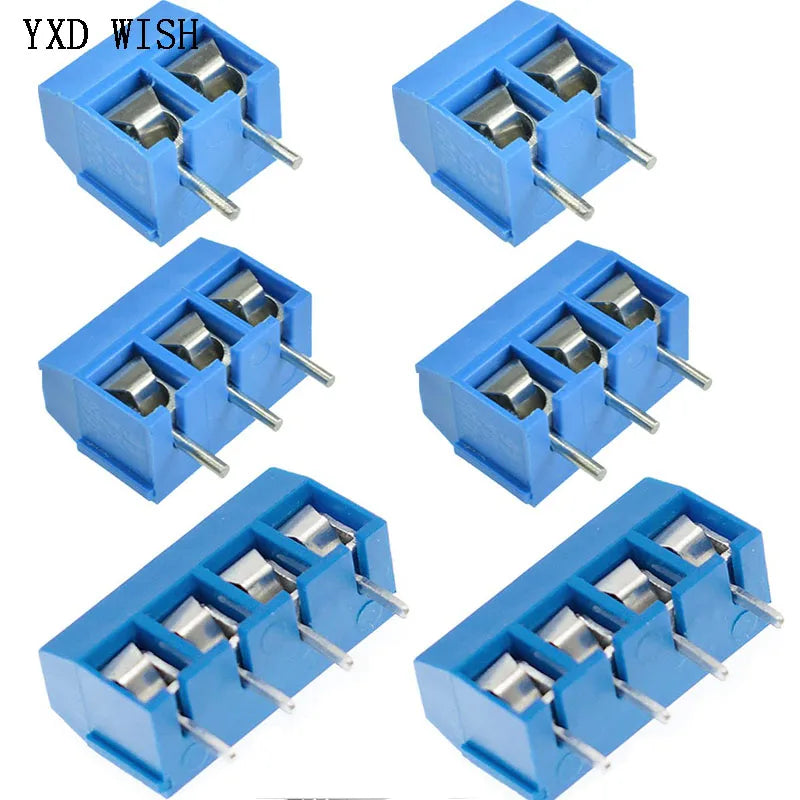

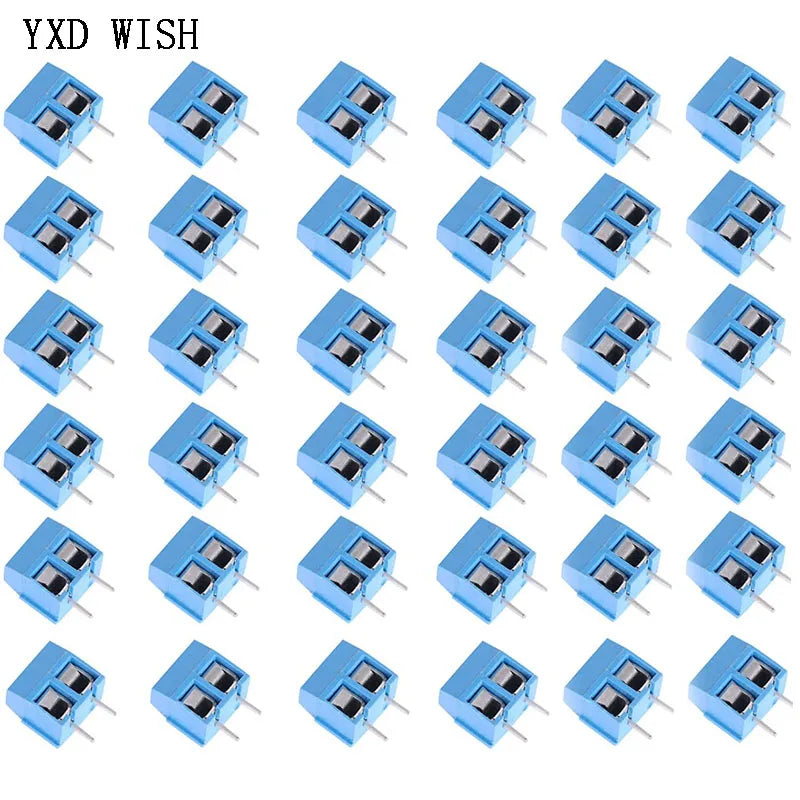

100pcs KF301 2P 3P 4P 5mm Screw Wire Terminal Block KF301-2P KF301-3/4P Pitch 5.0mm Straight Pin Spliceable PCB Cable Connector


Note:
The flaws in the product in the picture are caused by reflections during shooting, the picture may not reflect the actual color of the item.



Product Features:
Pitch: 5.0mm
Poles: 2P 3P 4P
Screws: M2.5 steel Zinc plated
Contact: phosphor bronze Ni plated or stainless steel
Pin header: Copper,Tin plated
Housing: PBT,UL94V-0


Electrical:
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding Voltage: AC1500V/1Min
Wire range: 22-14AWG/2.5mm⊃2;


Mechanical:
Temp.Range: -30°C~+120°C
MAX Soldering: +250°C for 5 Sec.
Torque: 0.5Nm(3.6lb.in)
Strip length: 4.5-5mm
