Description

SPECIFICATIONS

Brand Name: KeKeQeen

Breaking Capacity: High

Certification: RoHS

Does it include a Battery?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: none

Material: CERAMICS

Model Number: 0466.500NR

Origin: Mainland China

Safety Standards: CSA

Use: Circuit protection

is_customized: Yes

• RoHS compliant and Lead-Free.
• For new designs of 7 amp please consult 429 series.
• Product is compatible with lead-free solders and higher
temperature profiles.
• Current ratings available up to 5A.
• High performance materials provide improved performance in elevated
ambient temperature applications.

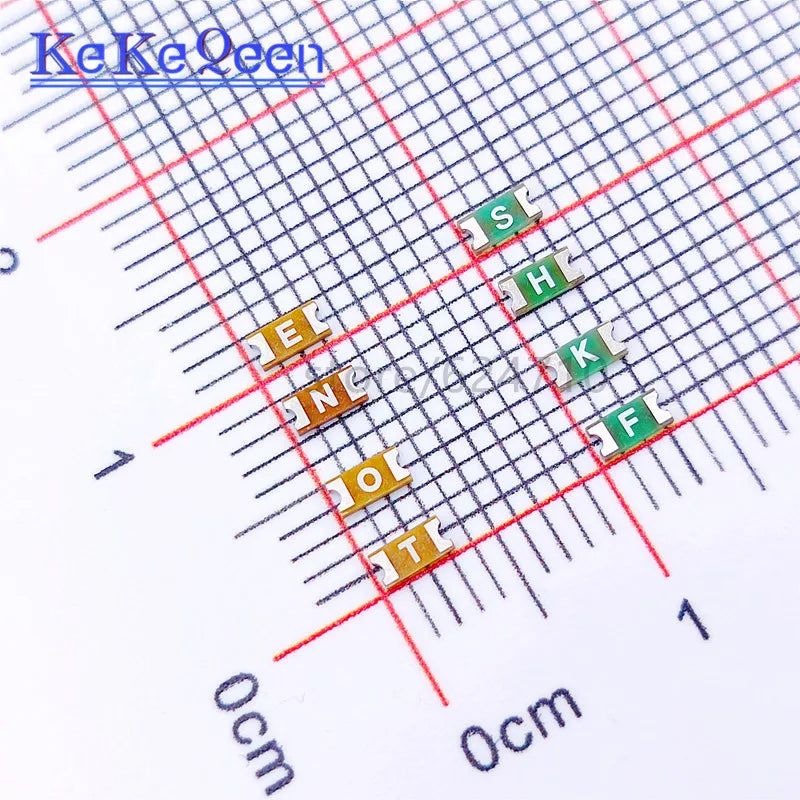

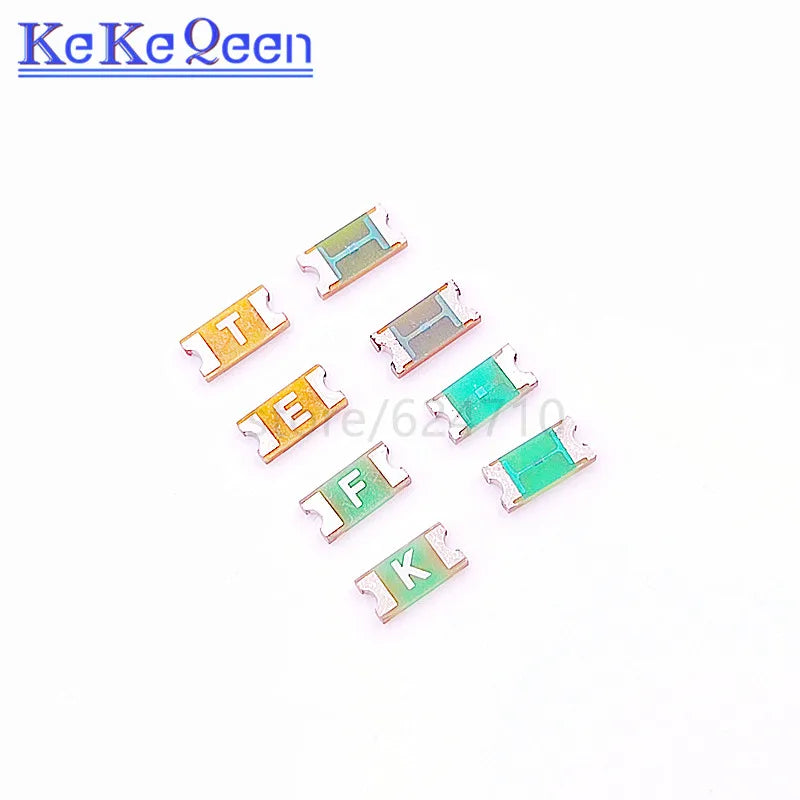

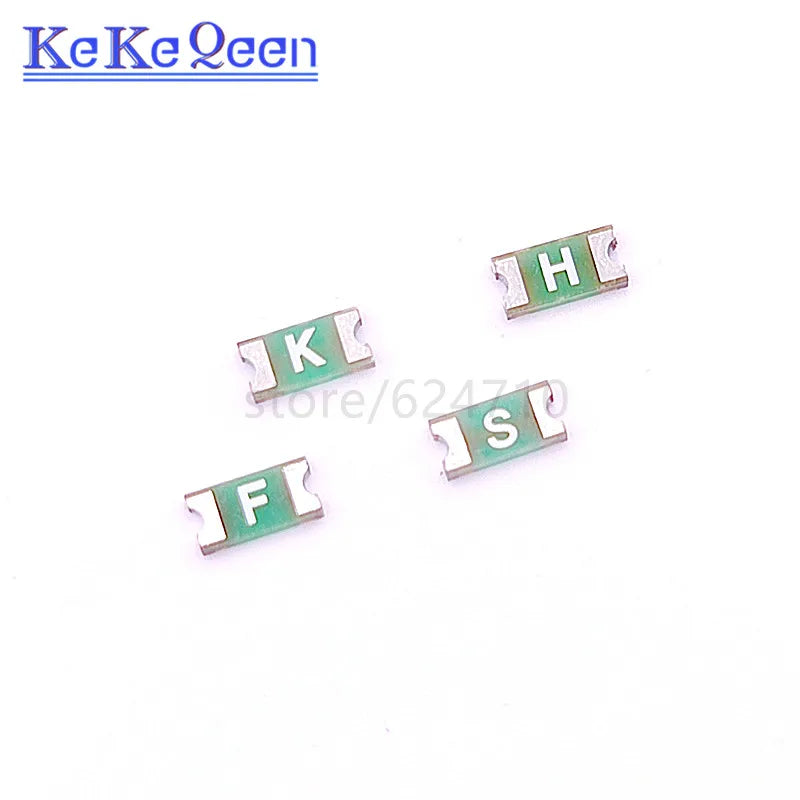

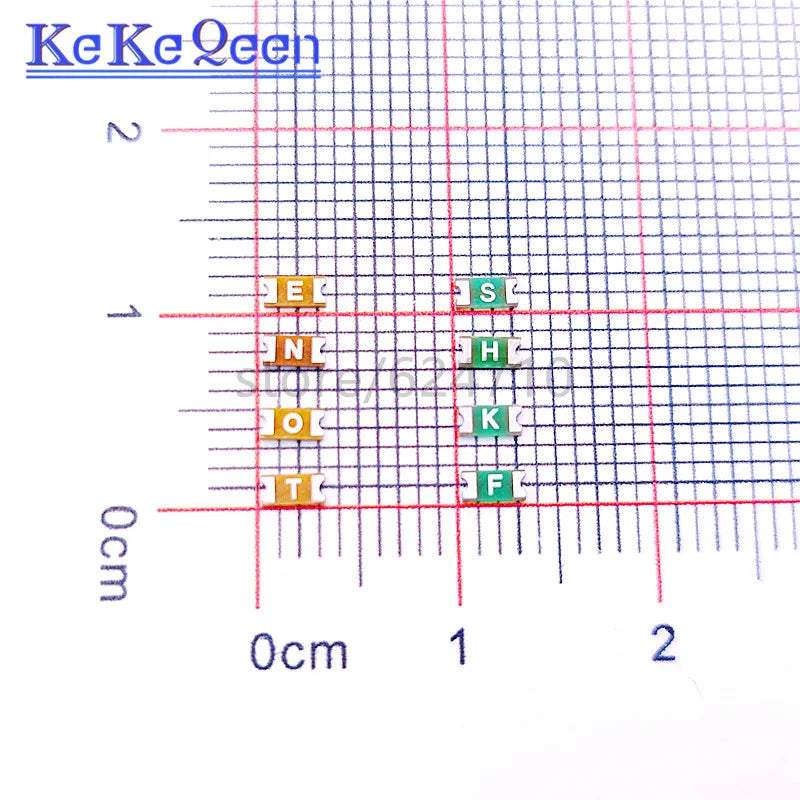

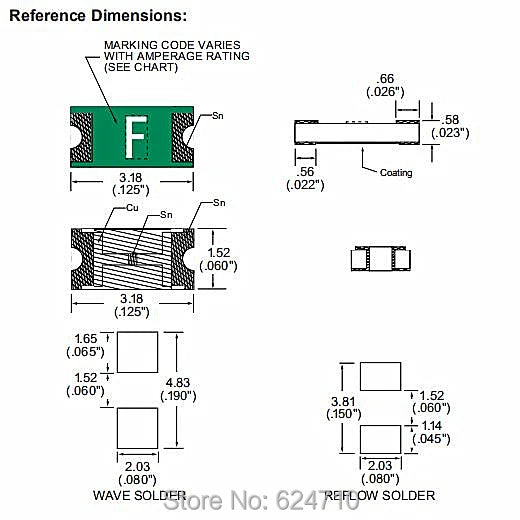

• Product is marked on top surface with code to allow amperage rating
identification without testing.
• Low profile for height sensitive applications.
• Flat top surface for pick-and-place operations.
• Element covering material is resistant to industry standard
cleaning operations.
• Mounting pad and electrical performance is identical to Littelfuse 429
and 433 Series products
• Alloy based element construction provides superior inrush withstand
characteristics (I2
t) over ceramic or glass based 1206 chip fuse products.

My dear friend. there are all series of 0466 complete current for you to

choose

0466.125NR -- 1206 0.125A

0466.250NR -- 1206 0.25A

0466.375NR -- 1206 0.375A

0466.500NR -- 1206 0.5A

0466.750NR -- 1206 0.75A

0466001.NR -- 1206 1A

04661.25NR -- 1206 1.25A

046601.5NR -- 1206 1.5A

04661.75NR -- 1206 1.75A

0466002.NR -- 1206 2A

046602.5NR -- 1206 2.5A

0466003.NR -- 1206 3A

0466004.NR -- 1206 4A

0466005.NR -- 1206 5A

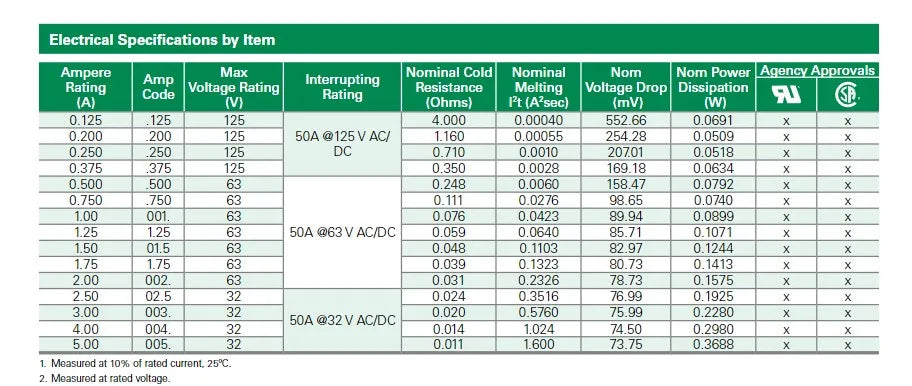

Specifications

Series: 466

Max Voltage Rating: 63 V

Body: Advanced High Temperature Substrate

Interrupt Rating: 50A@63V AC/DC63 V AC/DC3 V AC/DC

Nominal Cold Resistance: 0.041 Ohms

Opening: Very Fast-Acting (FF)

Package Size: 1206(3215)

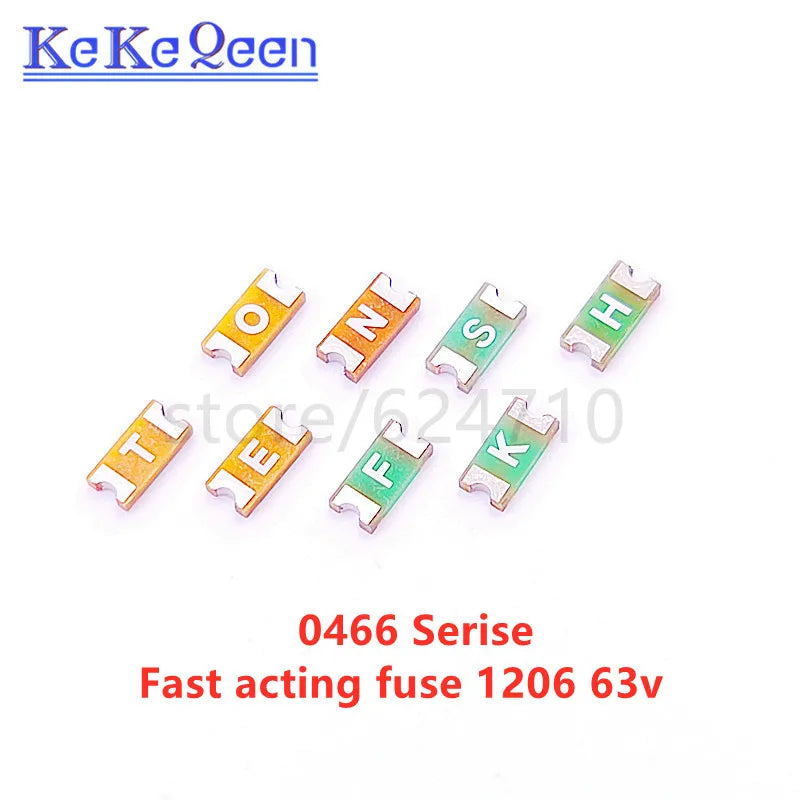

Package includes

100PCS LF Surface Mount Fuse 0466 466 SMD Very Fast Acting 1206 63V 0.25A 0.375A 0.5A 0.75A 1A 1.25A 1.5A 2A 2.5A 3A 4A 5A

Features:

The 466 Series Fast-Acting Surface Mount Fuse (SMF) is a small (1206 size) thin-film device designed for secondary protection of circuits used in space constrained applications such as hand-held portable electronic devices. This series is 100% lead-free and meets the requirements of the RoHS directive. New Halogen-Free 466 Series fuses are available to order using the “HF” suffix. See Part Numbering section for additional information.

Applications:

phones• Battery packs• Digital cameras• DVD players• Hard disk drivesSecondary protection for space constrained applications
