100PCS/LOT U.FL-R-SMT U.FL IPX joint SMT Connect PCB Board Connectors SMD IPX Male socket MINI Card Antenna Pedestal
$15.92
Sale price
$15.92
Regular price
$0.00
Description
SPECIFICATIONS
Brand Name: Your Cee
Certification: NONE
Does it include a Battery?: No
Does it include wireless functionality?: Yes
EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc
High-concerned chemical: none
Model Number: Ipx 1
Origin: Mainland China
Voltage: none

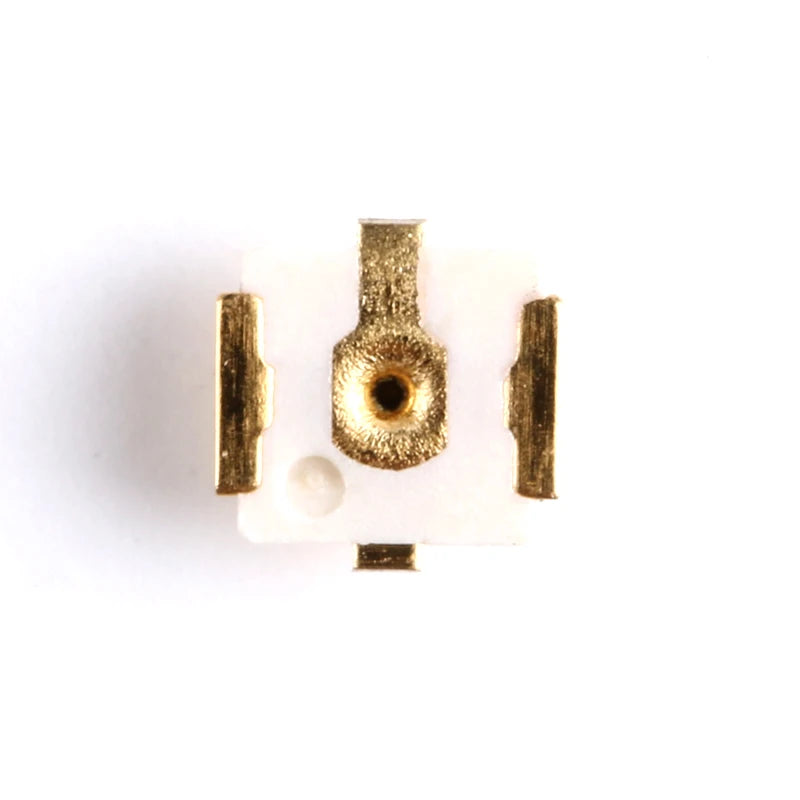

U.FL-R-SMT U.FL IPX joint SMT Connect PCB Board Connectors SMD IPX Male socket MINI Card Antenna Pedestal
Frequency range: DC-6GHz
Standing wave ratio VSWR: 1.3max (0-3GHz) 1.5max (3-6GHz)
Characteristic impedance: 50 Ω
Working temperature: -40 ℃~+90 ℃
Rated voltage: AC60V
Contact resistance of inner conductor: 1500 ohms/km MAX. (Grounding)
Voltage endurance: AC 1000V1 miniuts, no breakdown
Central contact: brass gold-plated
Insulation: LCP, UL94V-0, white
Grounding contact: phosphor bronze plated with gold and nickel
