SPECIFICATIONS

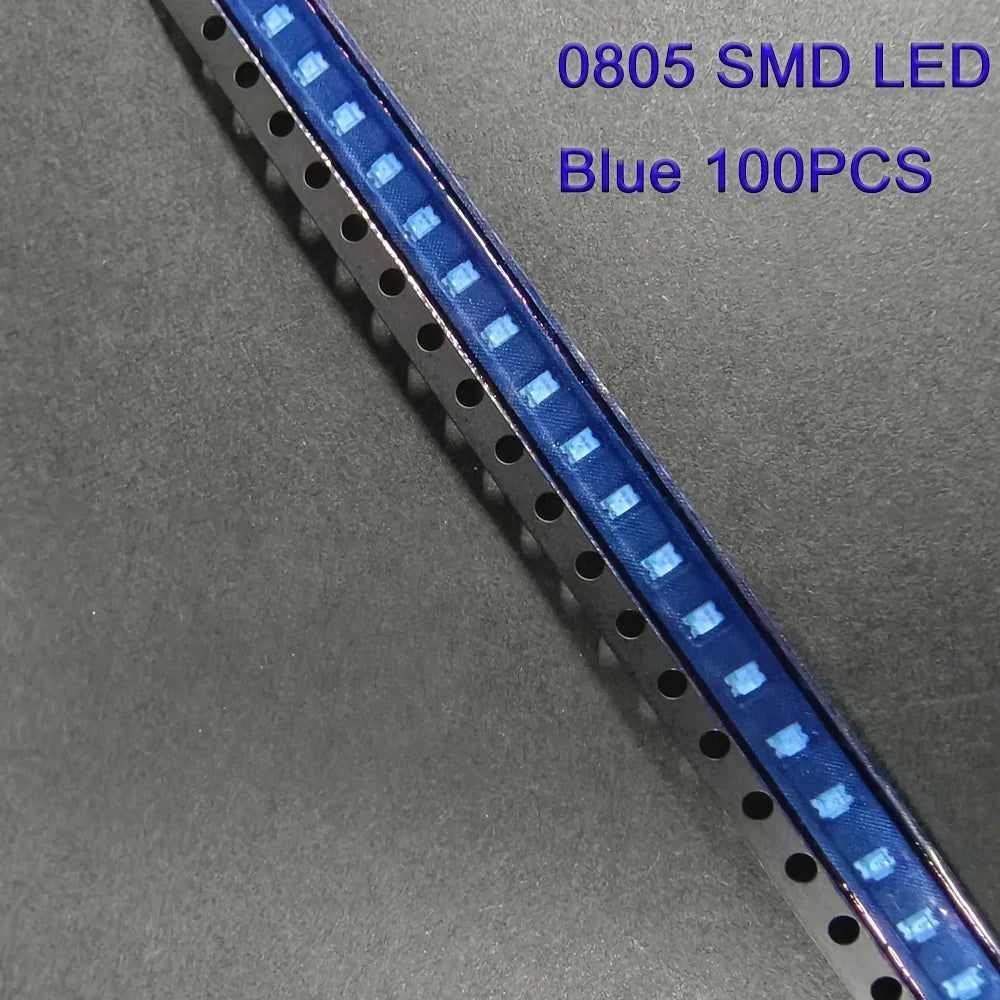

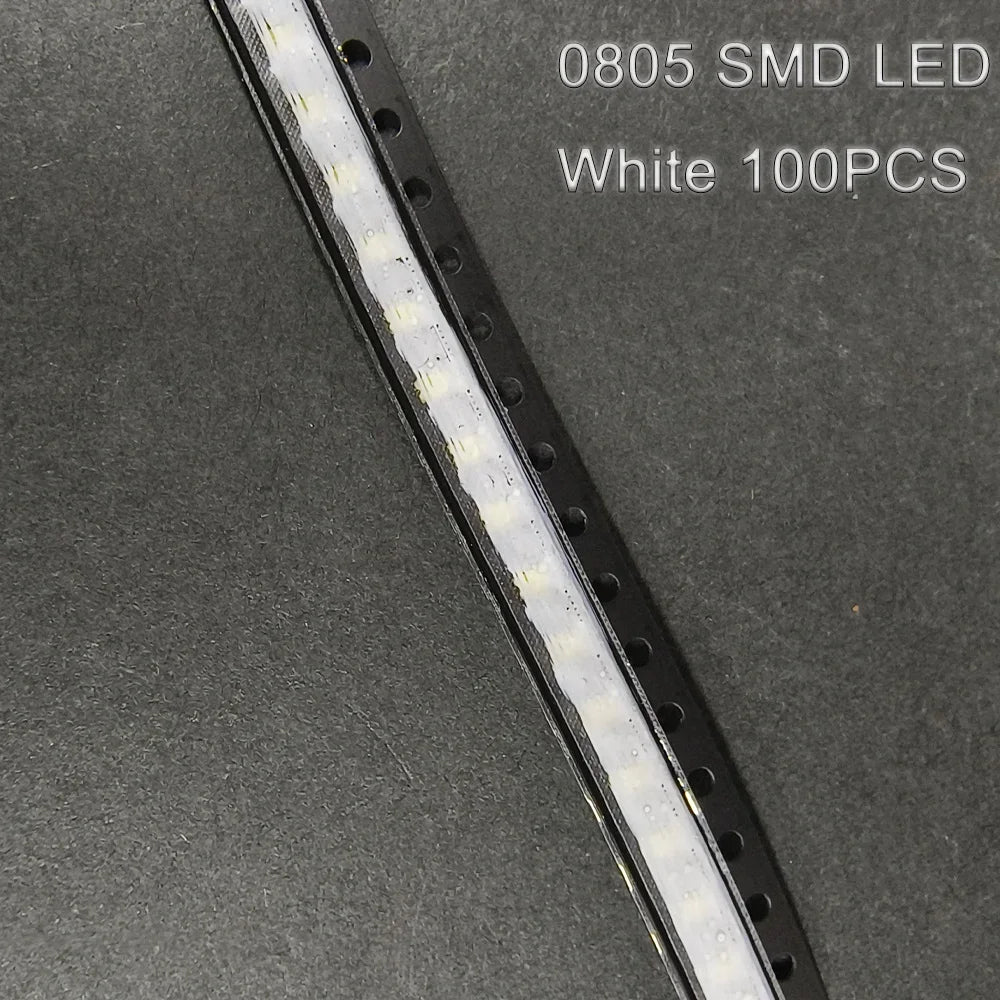

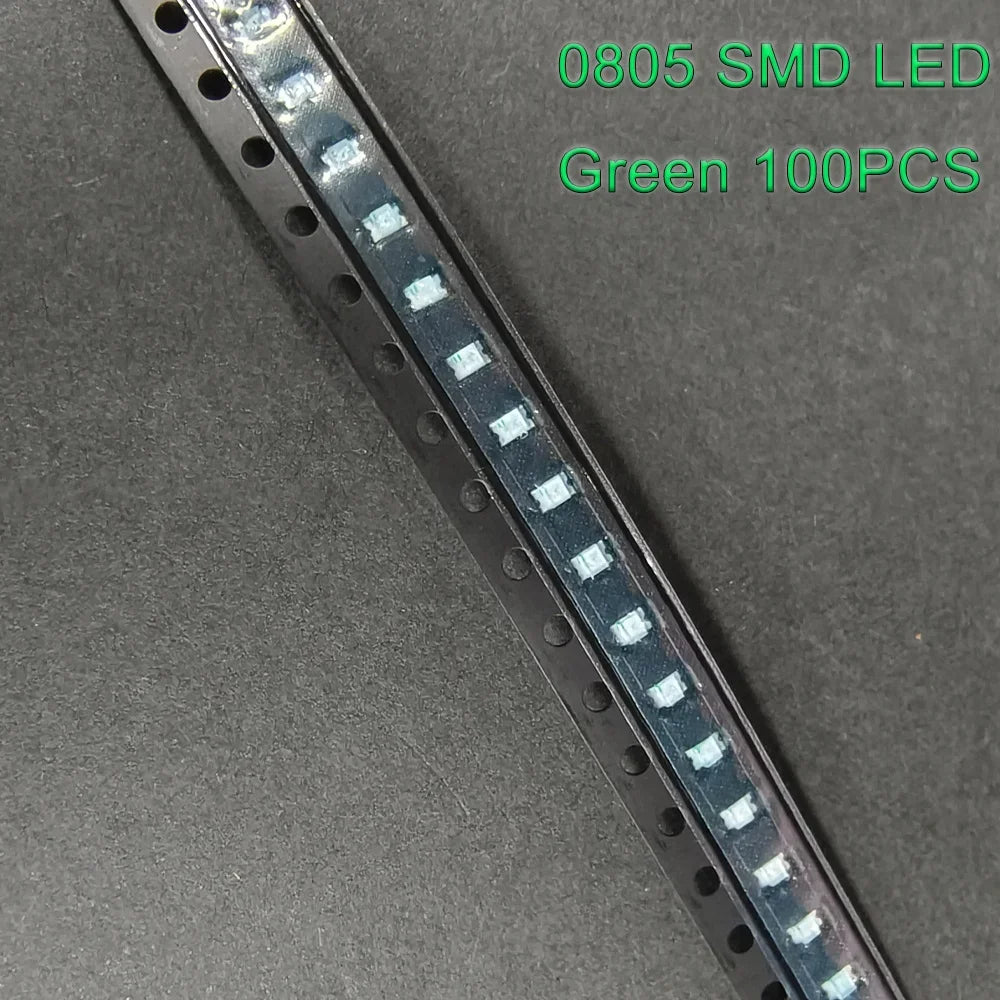

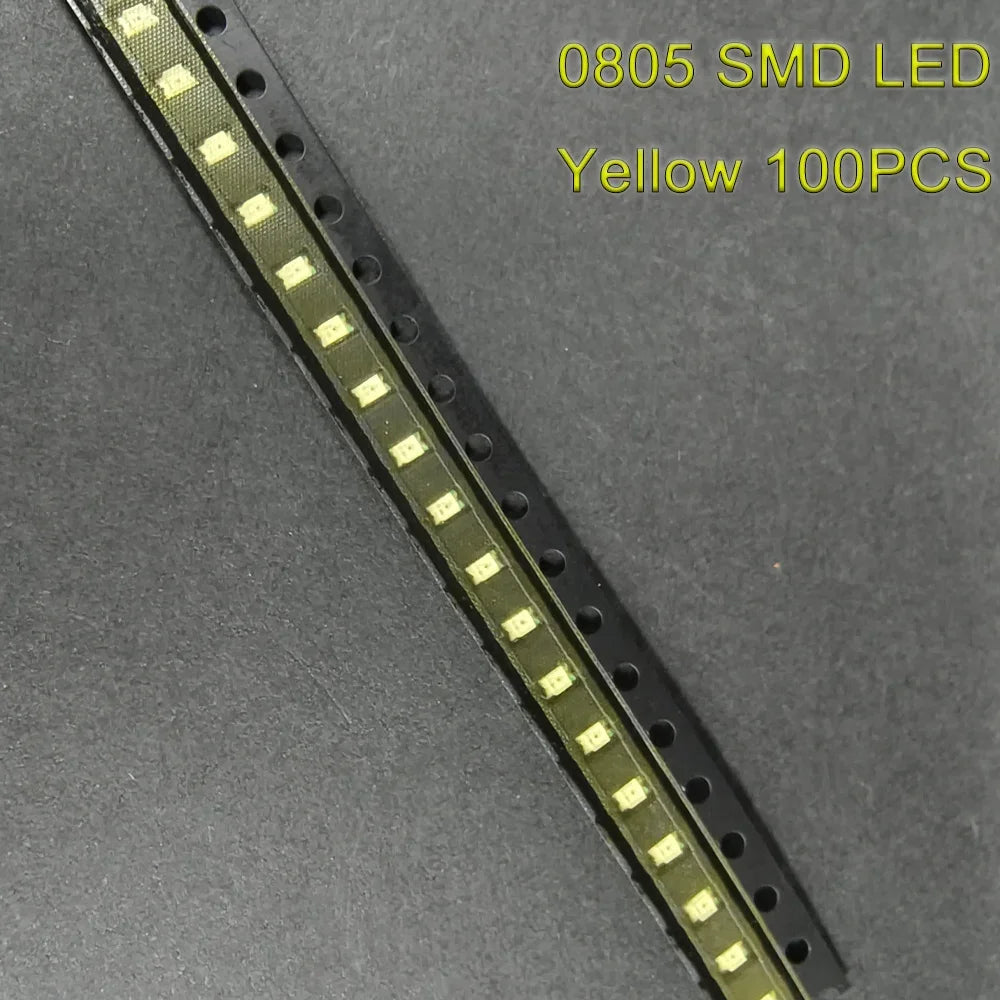

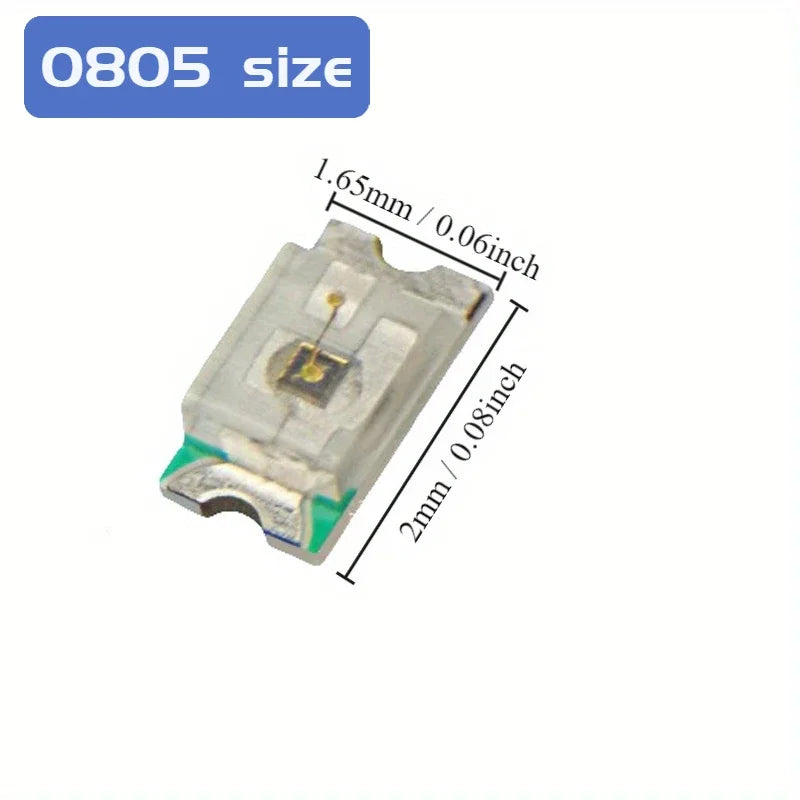

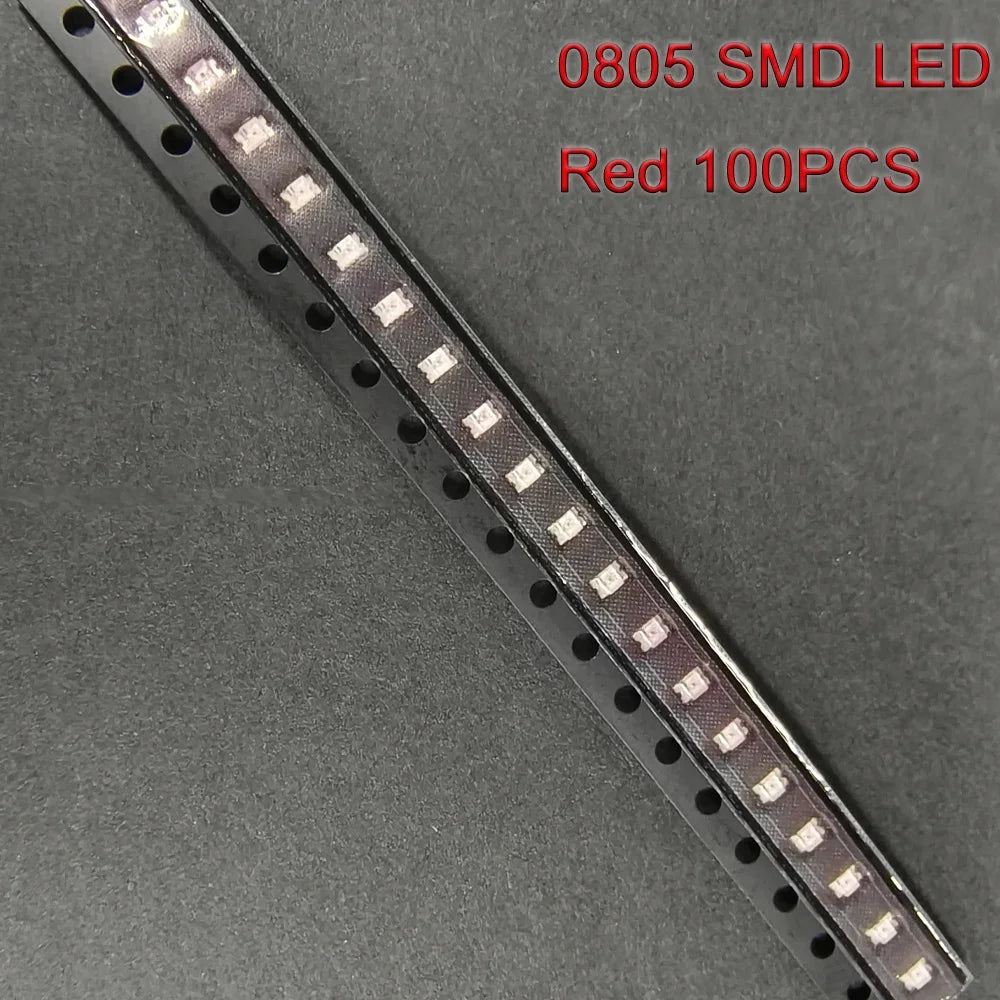

0805 SMD LED :
Product Name： SMT light-emitting diode

Product model： 0805

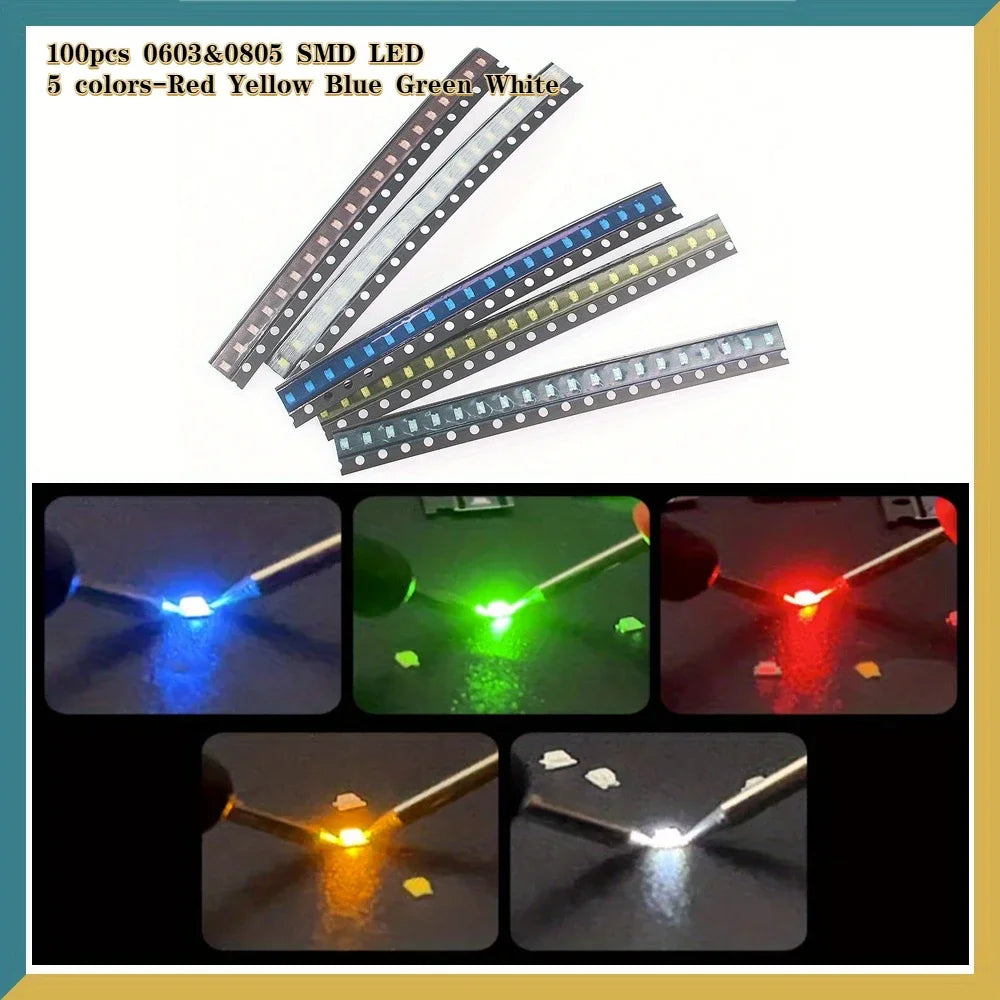

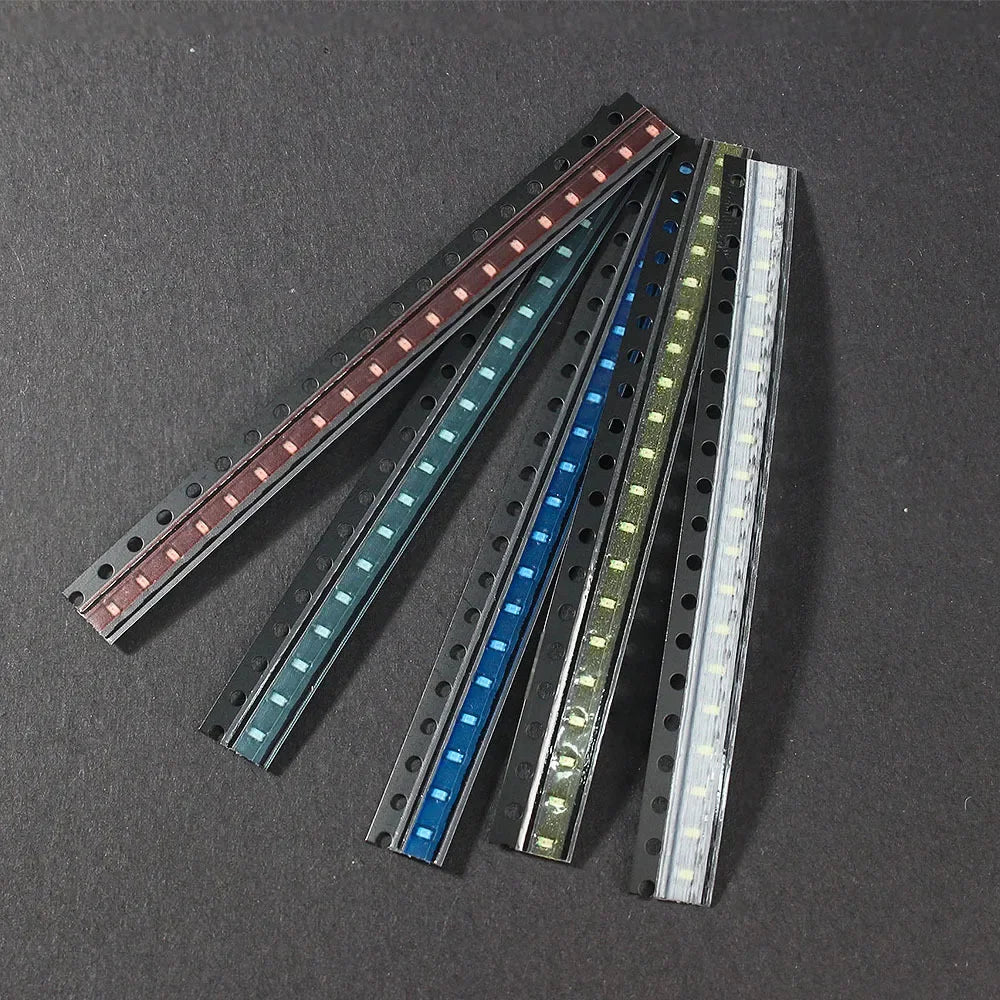

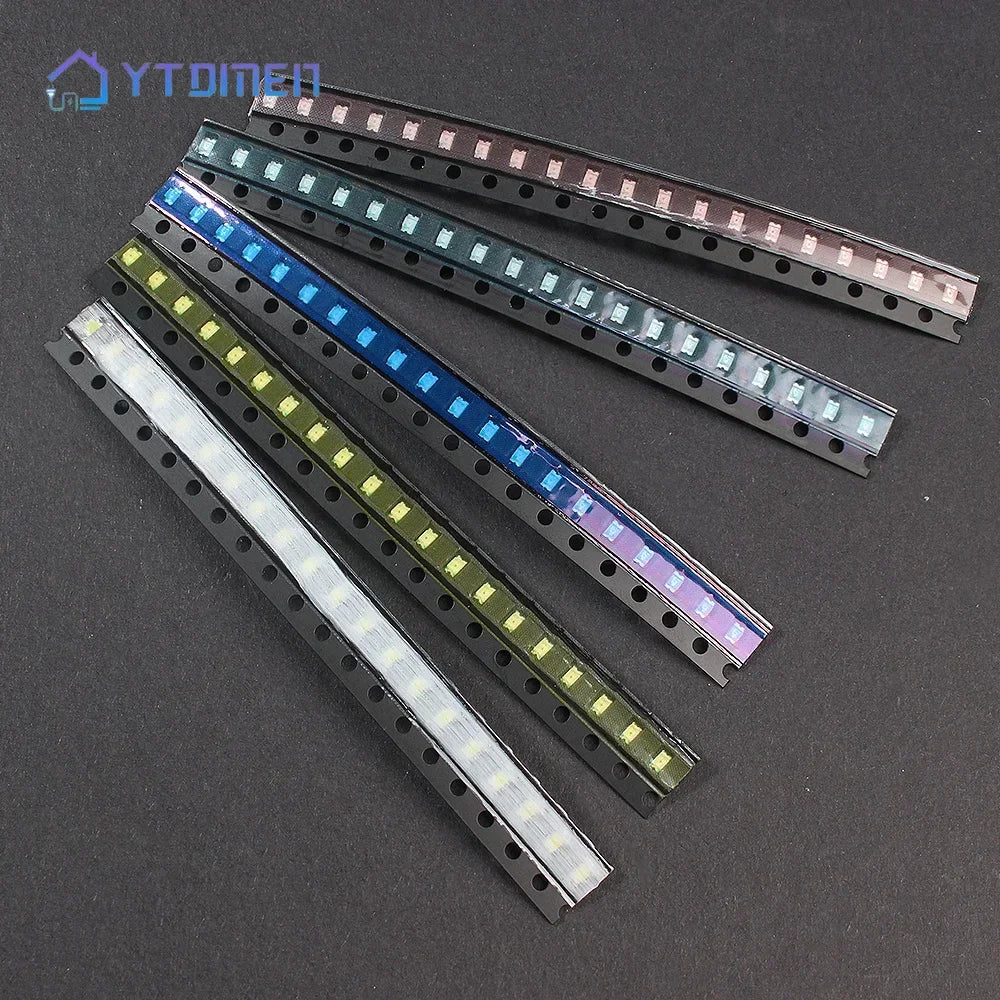

Luminous color： Red, emerald green, yellow, white, blue, yellow green, orange, red green dual colors

voltage： Red, yellow: 1.8-2.0V Green, blue, white: 2.2-2.4V

current： 20mA

Power characteristics： Low power

service life： Approximately 50000 to 80000 hours

Storage environment： Temperature: 530 ° C Humidity: Below 60%


0603 SMD LED :

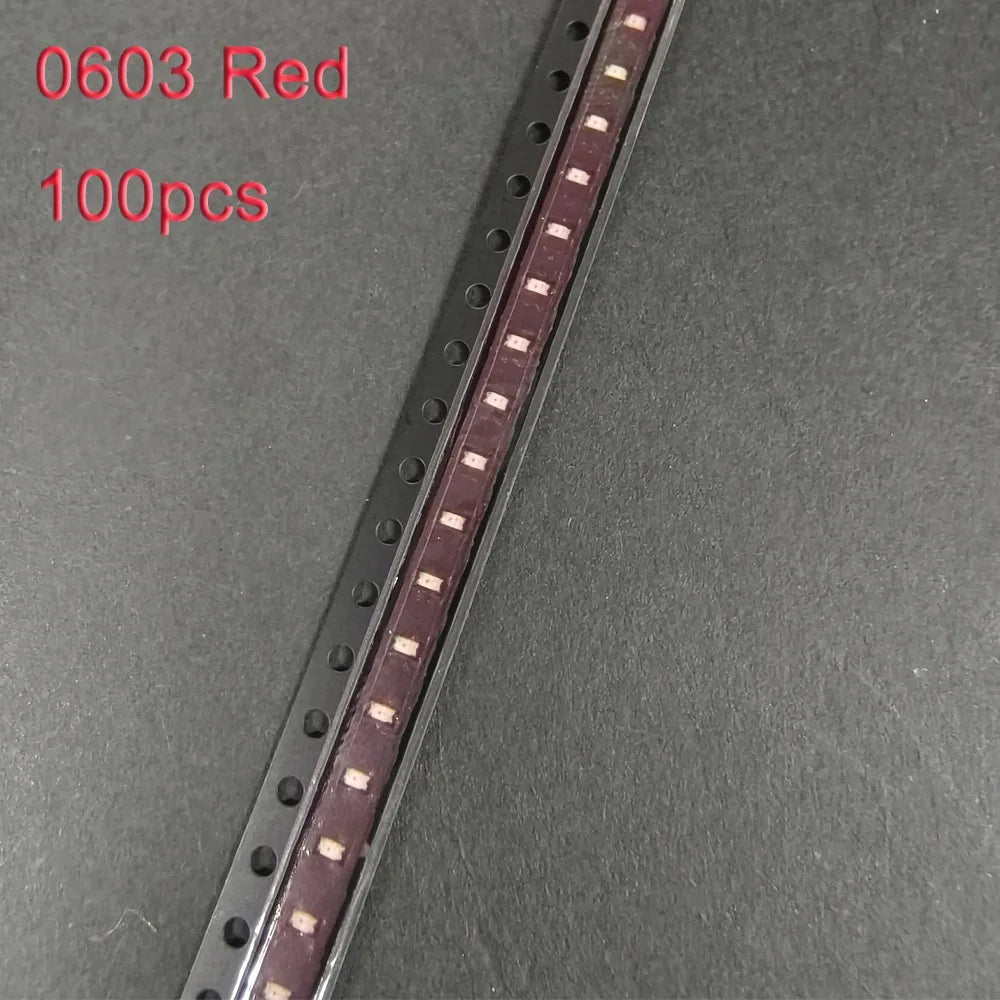

0603 Red light:
Wavelength: 620-625
Voltage: 2.0-2.2
Brightness: 100-200
Working current: 20mA
Luminescent angle: 120 °

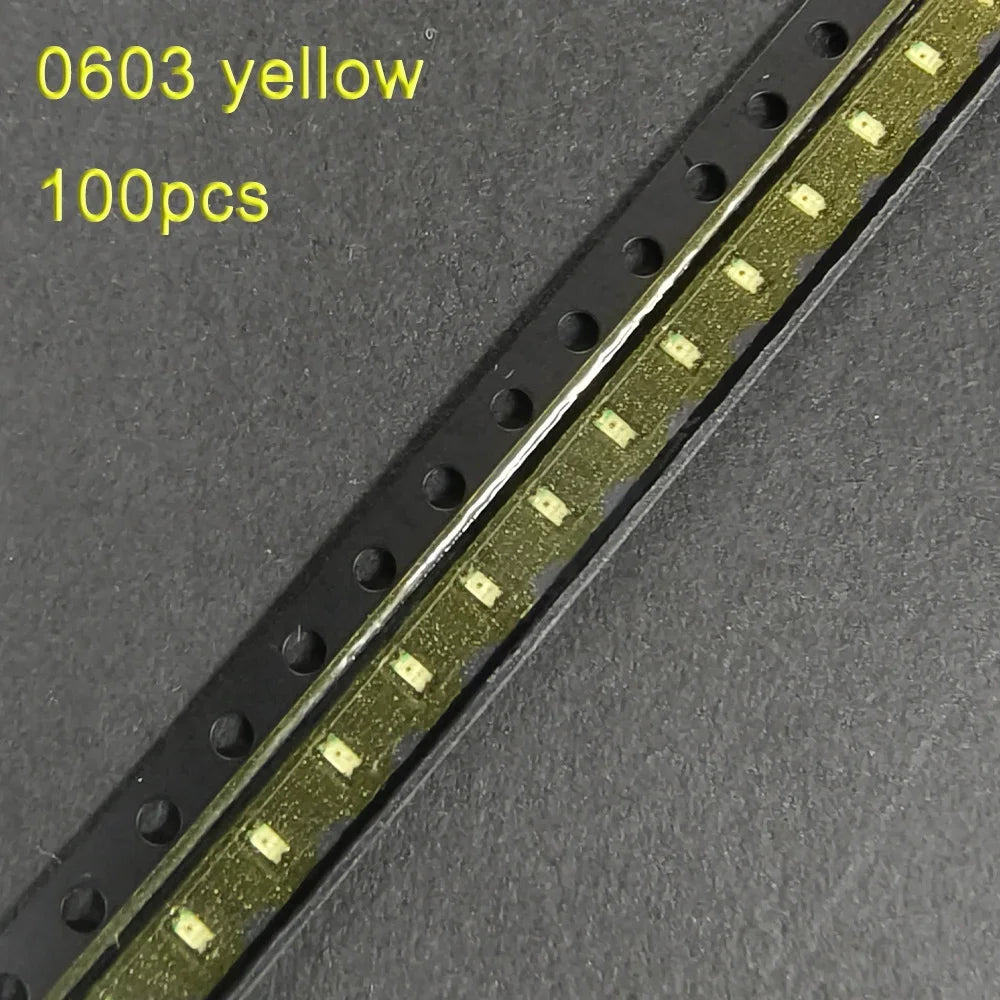

0603 Yellow light:
Wavelength: 588-590
Voltage: 2.0-2.2
Brightness: 100-200
Working current: 20mA
Luminescent angle: 120 °

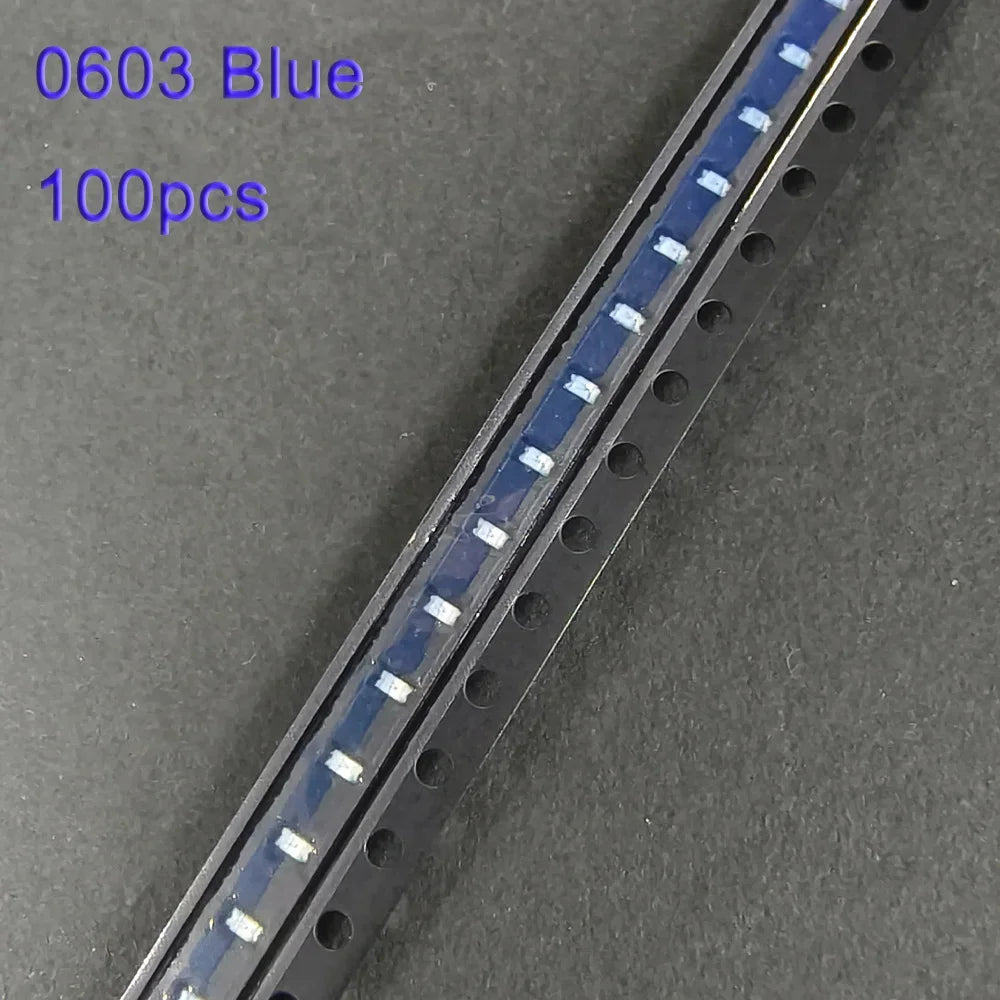

0603 Blue light:
Wavelength: 460-465
Voltage: 3.0-3.2
Brightness: 200-300
Working current: 20mA
Luminescent angle: 120 °

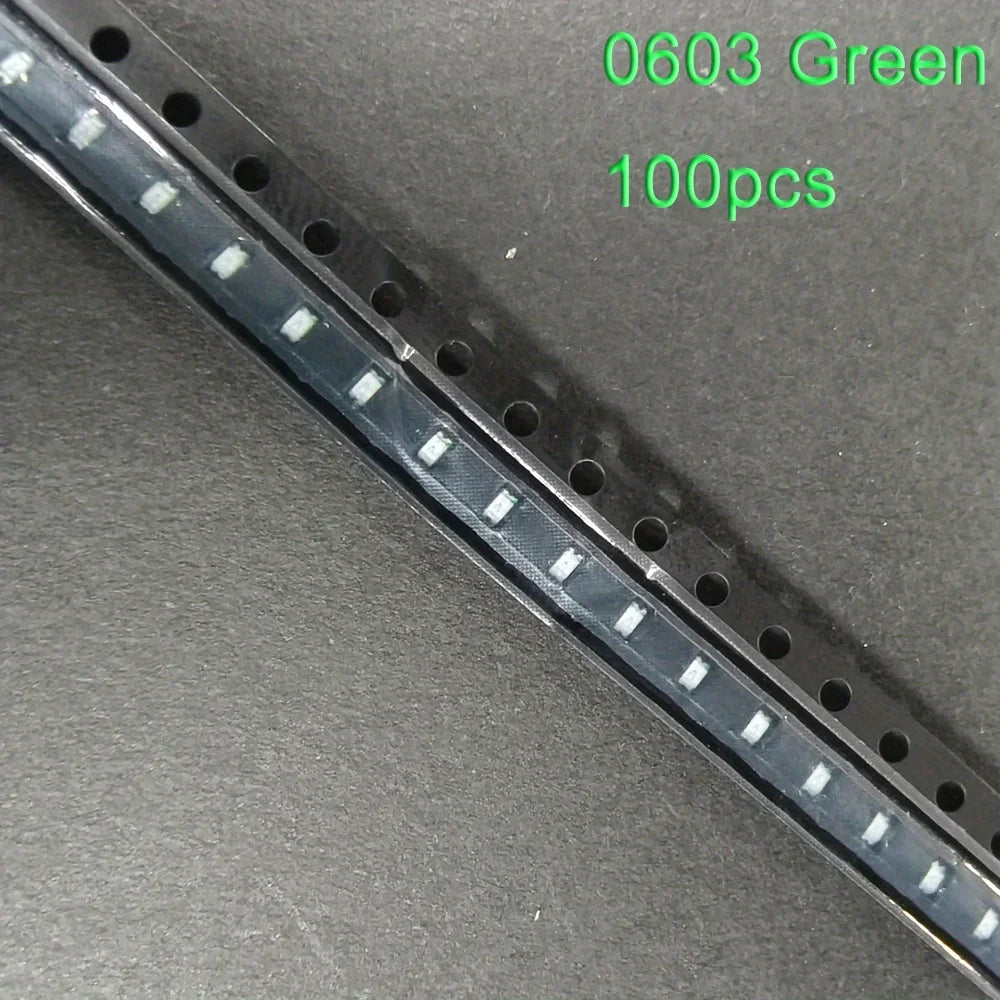

0603 Green light:
Wavelength: 520-525
Voltage: 3.0-3.2
Brightness: 400-500
Working current: 20mA
Luminescent angle: 120 °

Product application:

Widely used in various household appliances, digital products, LED backlight LED display screens, computers, communications, automotive electronics, electronic toys, electronic indicator lights, lighting fixtures, urbanization projects, etc

Product Introduction

LED SMT lights are made of FPC circuit boards, LED lights, and silicone sleeves. Waterproof performance, convenient use of low-voltage DC power supply, diverse luminous colors, and bright colors. SMD, also known as crystal diode, is an

electronic device with unidirectional current penetration. Inside the semiconductor diode, there is a PN junction with two lead terminals. This electronic device has unidirectional current conductivity in the direction of applied voltage. Generally speaking, SMD is a P-N junction interface composed of P-type and N-type

semiconductors sintered together. A space charge layer is formed on both sides of its interface, forming a self built electric field. When the applied voltage is equal to zero, the diffusion current caused by the concentration difference of carriers on both sides of the P-N junction and the drift current induced by the self built electric field are equal and in an electrically balanced state, which is also the characteristic of a diode under normal conditions. Light emitting diode is a

semiconductor component

Chip mounted diode, also known as crystal diode, is an electronic device with unidirectional conduction current. Initially, it was commonly used as an indicator light, displaying light-emitting diode boards, etc; With the emergence of white LED, it has also been used for lighting.
