100UF CBB60 450V Washing Motor Start Capacitor Water Pump 3.5uF 7uF 10uF 25uF 40uF

With Wires 60uF 450v / 2PCS

$170.42

Sale price $170.42 Regular price $0.00

Skip to product information

100UF CBB60 450V Washing Motor Start Capacitor Water Pump 3.5uF 7uF 10uF 25uF 40uF

100UF CBB60 450V Washing Motor Start Capacitor Water Pump 3.5uF 7uF 10uF 25uF 40uF

$170.42

Sale price $170.42 Regular price $0.00

Capacitance With Wires 60uF 450v With Wires 70uF 450v With Wires 80uF 450v With Wires 100uF With Wires 18uF 450v With Wires 20uF 450v With Wires 25uF 450v With Wires 30uF 450v With Wires 35uF 450v With Wires 40uF 450v With Wires 45uF 450v With Wires 50uF 450v No Wire 3.5uF 450v No Wire 12uF 450v No Wire 15uF 450v No Wire 16uF 450v No Wire 18uF 450v No Wire 20uF 450v No Wire 25uF 450v No Wire 30uF 450v No Wire 35uF 450v No Wire 45uF 450v No Wire 4uF 450v No Wire 5uF 450v No Wire 6uF 450v No Wire 7uF 450v No Wire 8uF 450v No Wire 9uF 450v No Wire 10uF 450v With Wires 6uF 450v With Wires 8uF 450v With Wires 9uF 450v With Wires 10uF 450v With Wires 12uF 450v With Wires 14uF 450v With Wires 15uF 450v With Wires 16uF 450v No Wire 60uF 450v No Wire 70uF 450v No Wire 80uF 450v No Wire 100uF 450v With Wires 3.5uF With Wires 4uF 450v With Wires 5uF 450v

Rated Voltage 2PCS 1PC

Description

SPECIFICATIONS

Brand Name: ASEMI

Choice: yes

High-concerned chemical: none

Origin: Mainland China

semi_Choice: yes

📐📐📐Size Options

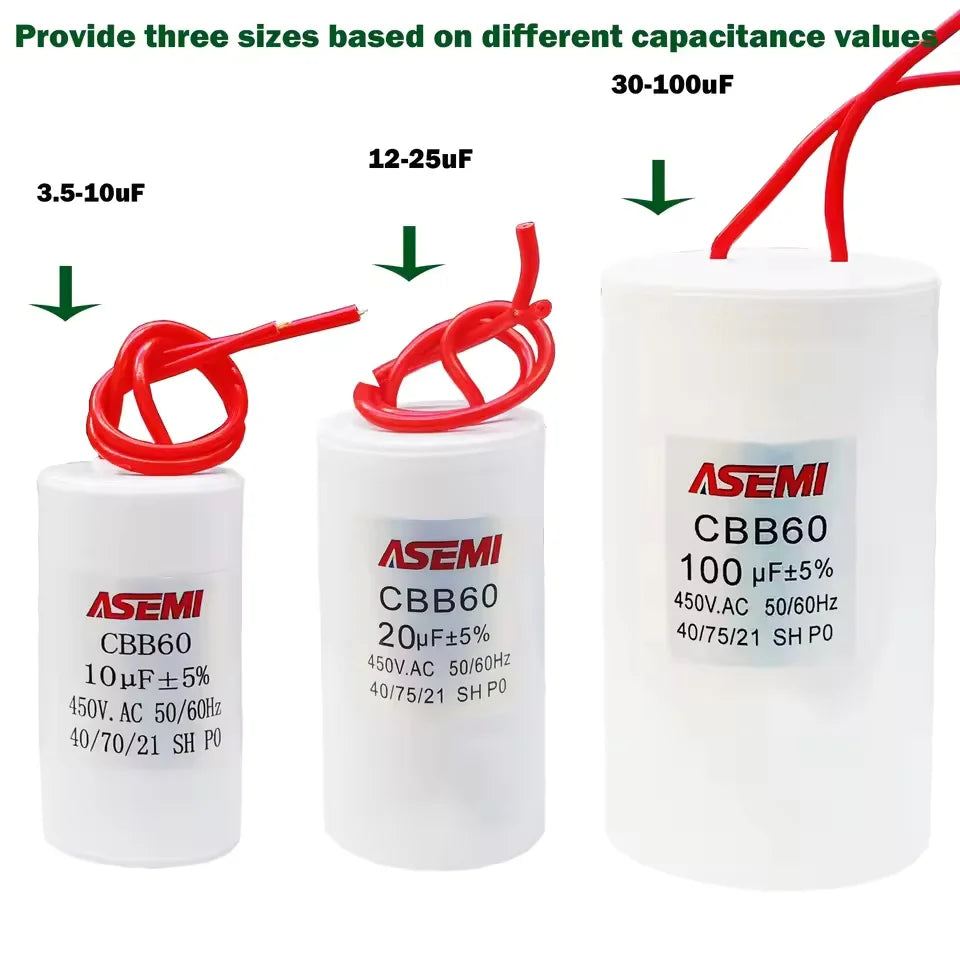

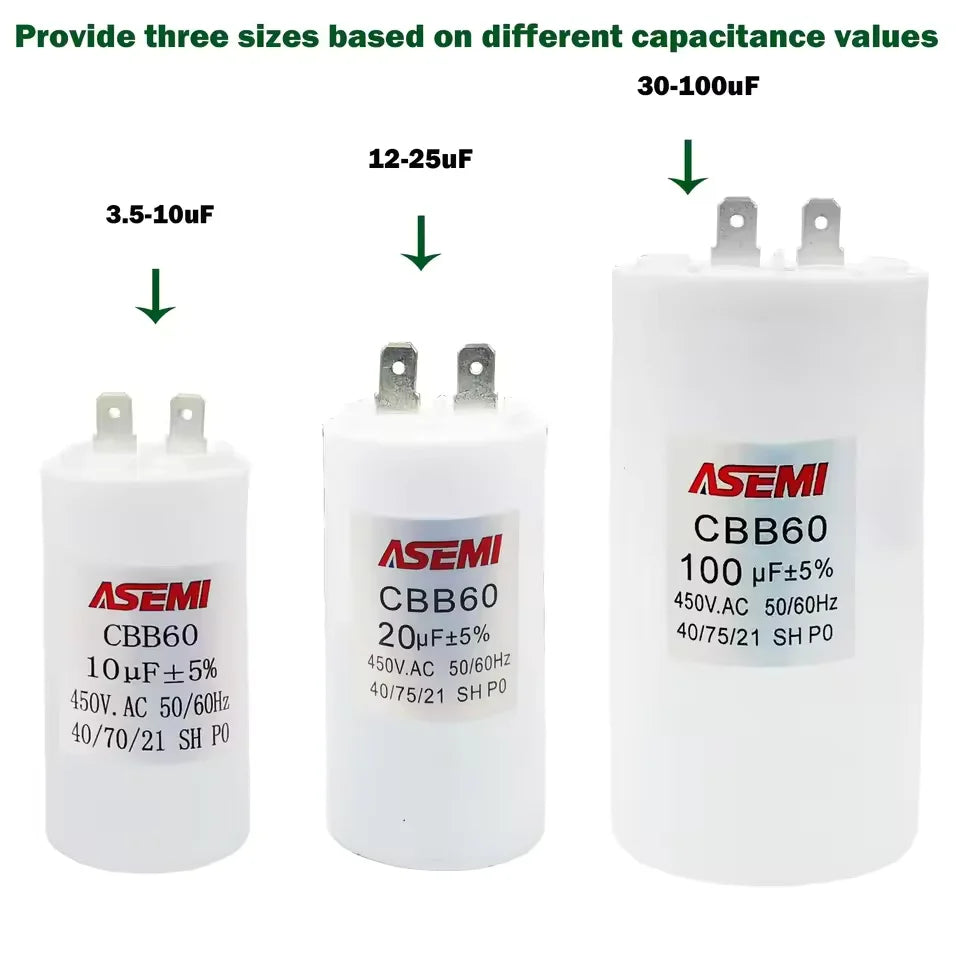

We offer three sizes of products based on the actual usage needs of capacitors.

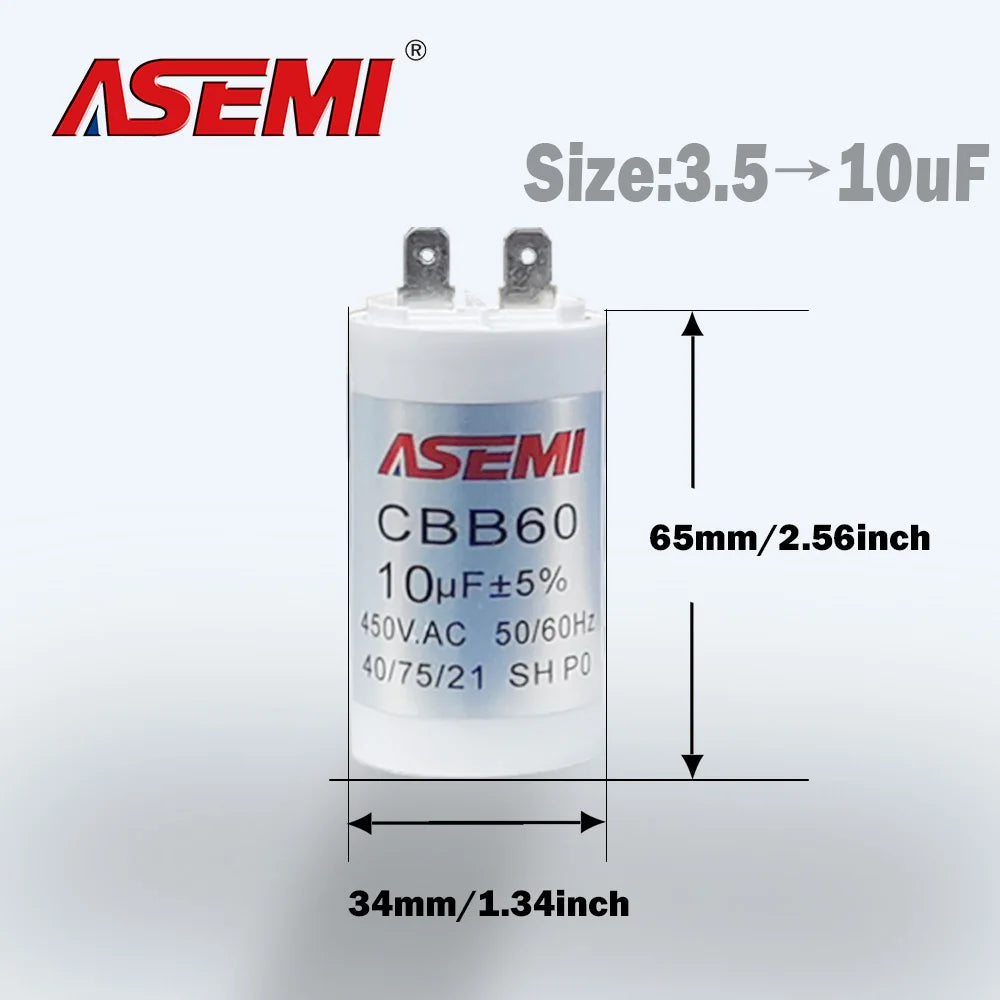

- Type A: Suitable for capacitance values ranging from 3.5 - 10UF, including 3.5uF,4uF, 5uF, 6uF, 8uF, and 10uF. It has a size of 1.34*1.34*2.56inch.

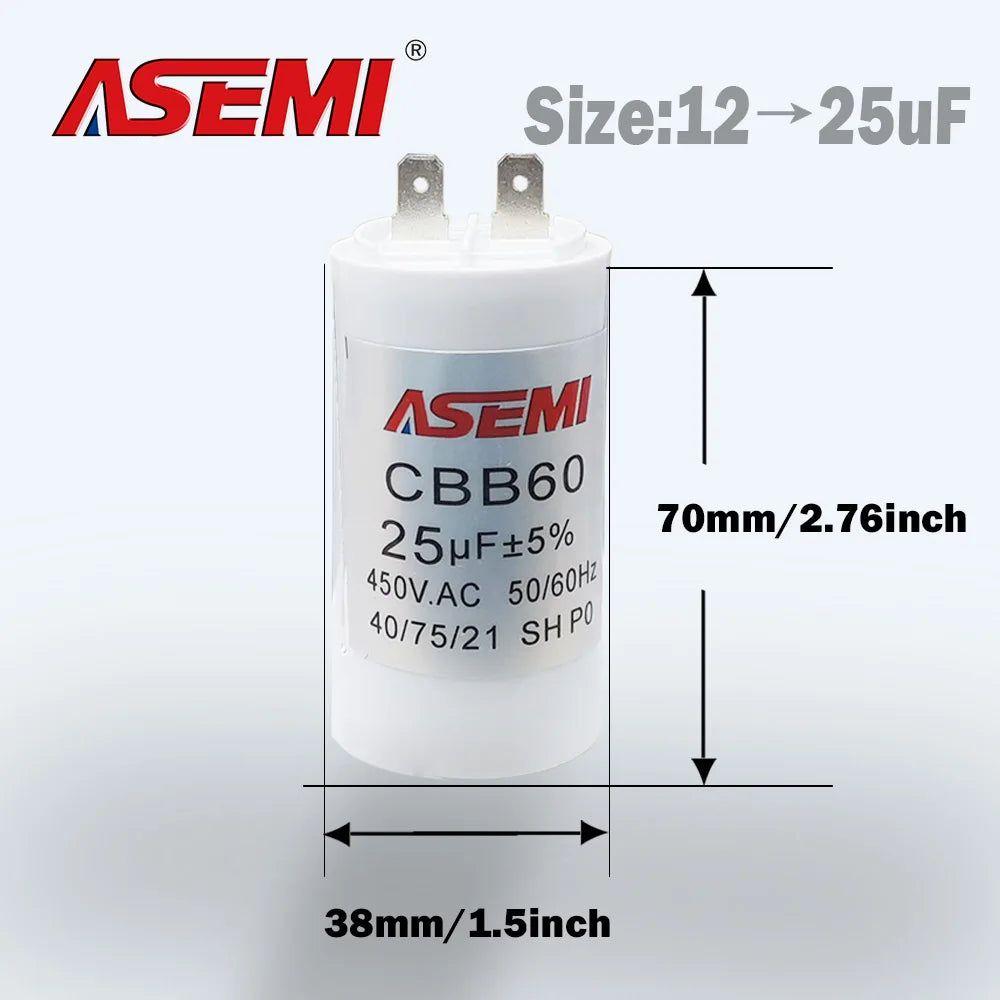

- Type B: Designed for capacitance values from 12 - 25UF, such as 12uF, 14uF, 15uF, 16uF, 18uF, 20uF,and 25uF. The size is 1.5*1.5*2.76inch

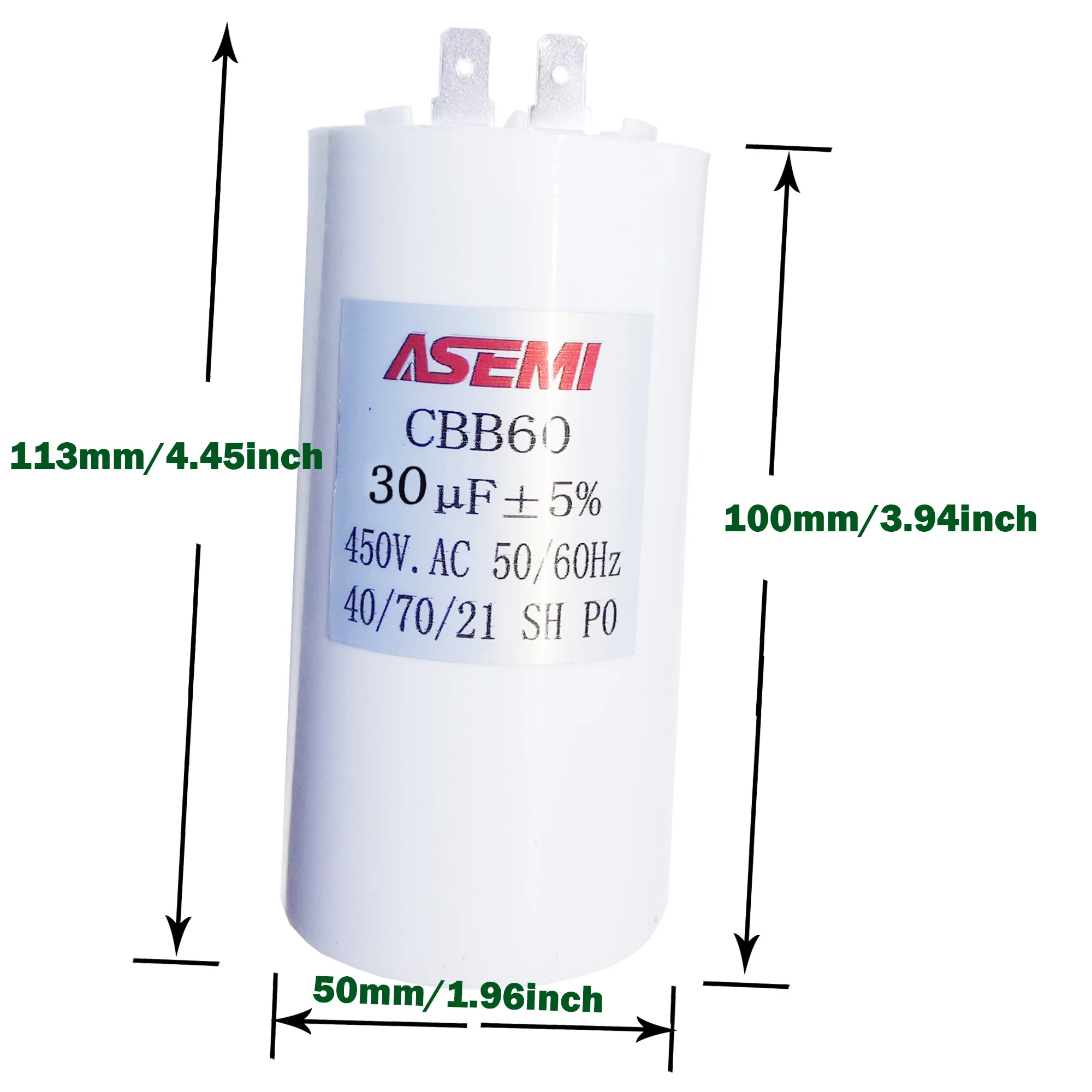

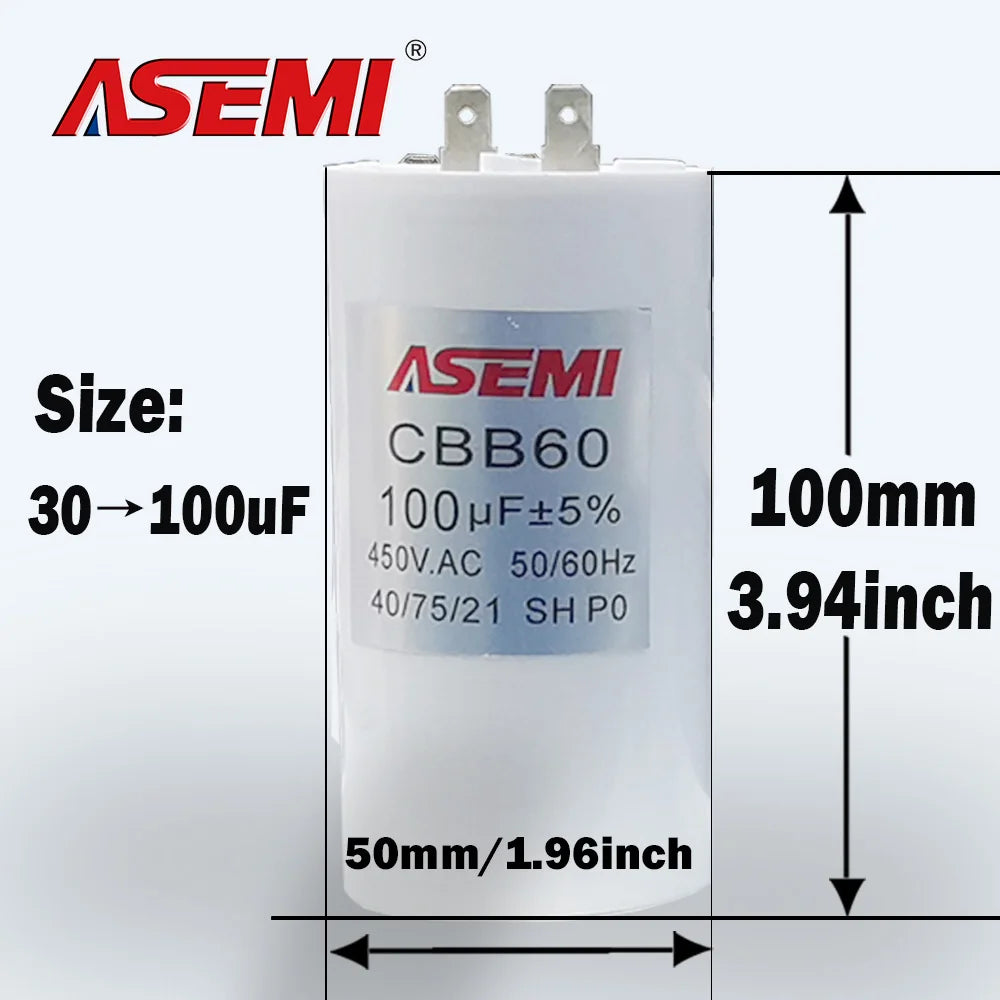

- Type C: For capacitance values between 30 - 100UF, including 30uF, 35uF, 40uF,45uF, 50uF, 60uF, 70uF, 80uF,and 100uF. It shares the same size of 1.96*1.96*3.94inch.

📏 Specifications

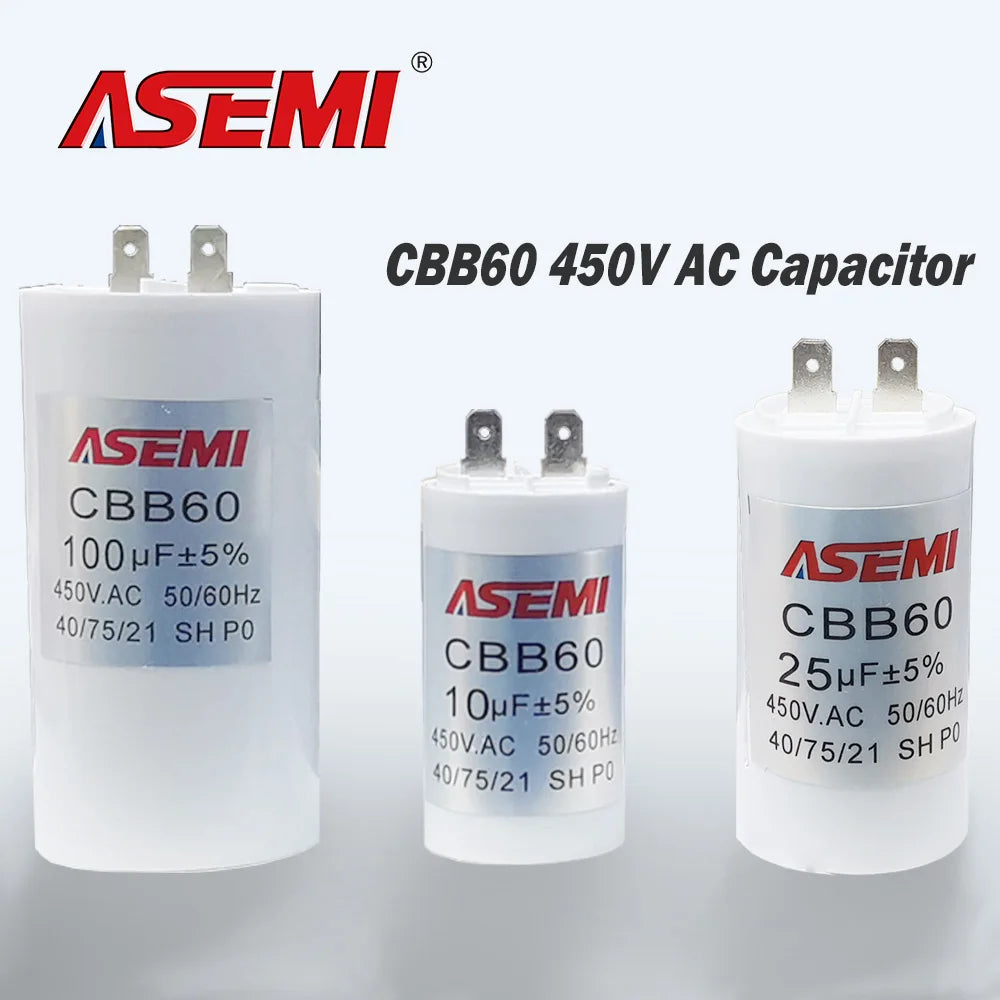

🔧Product name: CBB60 Capacitor
🎨Color: White
🛠️Applications: Air conditioner compressor,Single-phase asynchronous motor,Washing motor for household washing machine,Floor fan motor

📐Size:

3.5uF:1.34*1.34*2.56inch

4uF:1.34*1.34*2.56inch

5uF:1.34*1.34*2.56inch

6uF:1.34*1.34*2.56inch

7uF:1.34*1.34*2.56inch

8uF:1.34*1.34*2.56inch

9uF:1.34*1.34*2.56inch

10uF:1.34*1.34*2.56inch

12uF:1.5*1.5*2.76inch

14uF:1.5*1.5*2.76inch

15uF:1.5*1.5*2.76inch

16uF:1.5*1.5*2.76inch

18uF:1.5*1.5*2.76inch

20uF:1.5*1.5*2.76inch

25uF:1.5*1.5*2.76inch

30uF:1.96*1.96*3.94inch

35uF:1.96*1.96*3.94inch

40uF:1.96*1.96*3.94inch

45uF:1.96*1.96*3.94inch

50uF:1.96*1.96*3.94inch

60uF:1.96*1.96*3.94inch

70uF:1.96*1.96*3.94inch

80uF:1.96*1.96*3.94inch

100uF:1.96*1.96*3.94inch

Product Name：

CBB60 Capacitor

Suitable：

Washing Motor Start Capacitor

Water Pump Capacitor

Washing machine repair

Package：

CBB60 Capacitor*1

Performance Characteristics Advantage

Good stability:

It has good stability and can maintain relatively stable electrical performance in different working environments, ensuring the normal operation of connected devices and reducing equipment failures caused by fluctuations in capacitance performance.

Strong resistance to impact current:

It can withstand large impact currents without damage, which makes it perform well in some devices with high starting currents, such as water pump motors, AC motors, etc.

Small loss:

Low energy loss during operation, which can improve the efficiency of electricity utilization, reduce energy consumption, and save costs for users in long-term use.

High insulation resistance:

High insulation resistance can effectively prevent leakage, ensure safe use, and also help maintain the stability of capacitor performance.

Excellent self-healing performance:

When the dielectric of the capacitor experiences local breakdown, it has self-healing function and can automatically restore normal operation, extending its service life.

Long rated working life:

Through strict control of each production process, the product has a longer rated working life, reducing the trouble and cost of frequent capacitor replacement.

Advantages in application scope

Widely applicable: It can be used in various devices such as refrigerators, air conditioners, AC motors, water pumps, generators, cleaning machines, household appliances, electronic products, etc. It has strong universality and can meet the needs of different users.
