SPECIFICATIONS

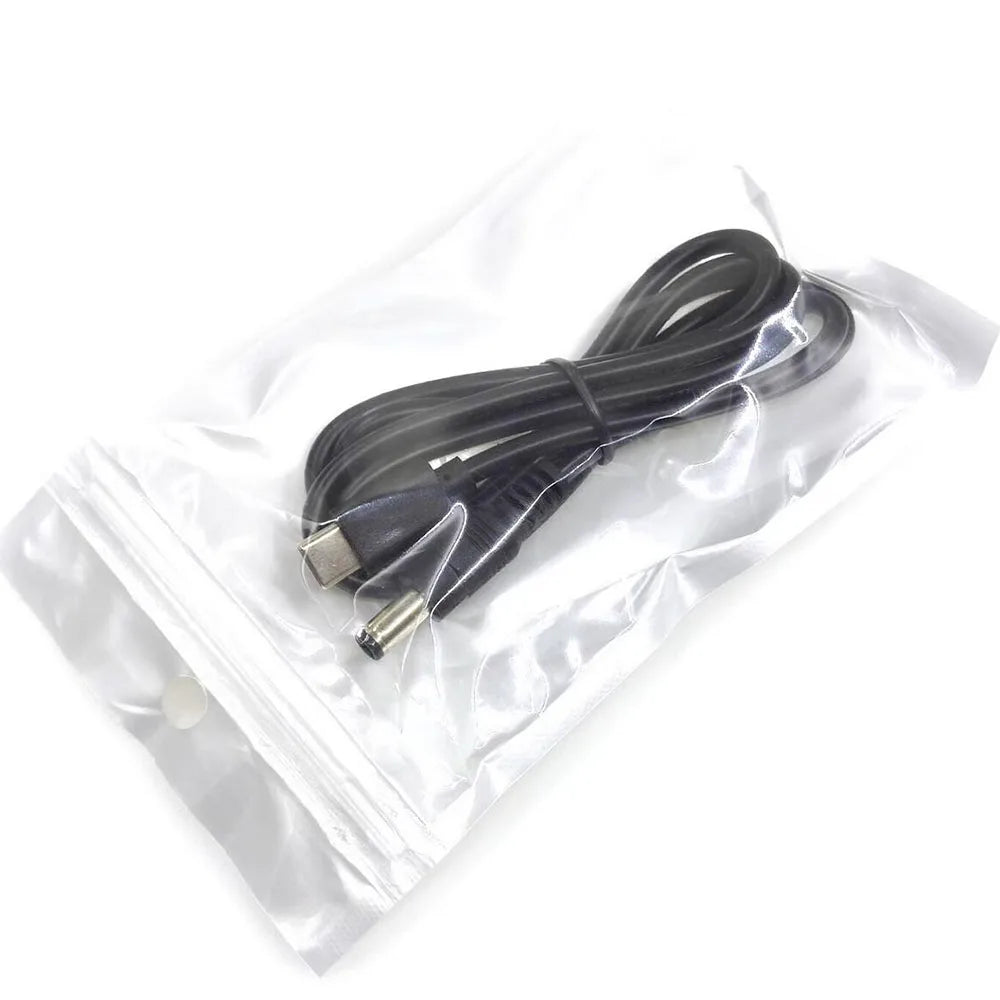

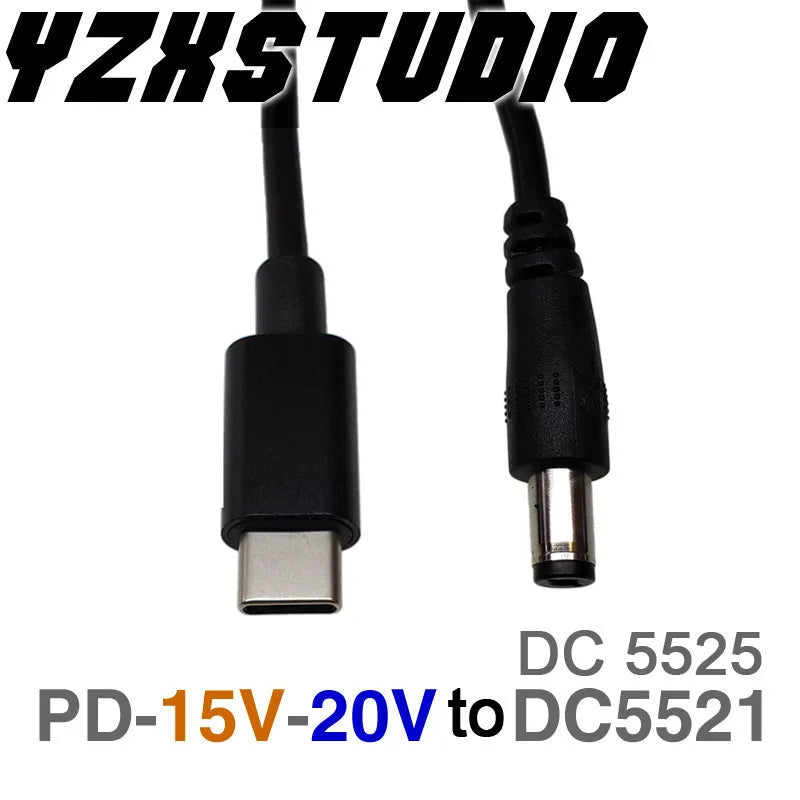

100W 5A PD2.0 3.0 to DC 5.5*2.5  Decoy trigger Adapter cable TYPE-C PD Decoy line QC charging notebook 15V 20V charger 5521

DC interface versions: 5521 and 5525, 1M

voltage versions: 15v version for surface or old imac,

20v version for ordinary 18-20v notebook.

Features:

Industrial design, built-in high stability hardware PD trigger, super compatibility,

Hardware PD trigger, no need to write software, work more stable, no firmware or brush wrong firmware to brush FLASH scrapping and other issues!

Industrial grade stability, CC short circuit to VBUS, all terminals withstand voltage 25V, no moisture short circuit burnt line BUG!

Below 2mA ultra-low static power consumption, it is not a plug-in that is not hot!

20AWG thickened copper wire, lower internal resistance!

Standard PVC integrated injection molding, non-woven wire assembly process, no less internal resistance!

Type-C aluminum shell reinforcement, super high strength!

Specifications:

Wire: PVC injection 20AWG pure copper wire, about 1 meter in length

Support voltage: wire withstand voltage 25V, trigger voltage gear position maximum 20V or maximum 15V

Support current: up to 5A

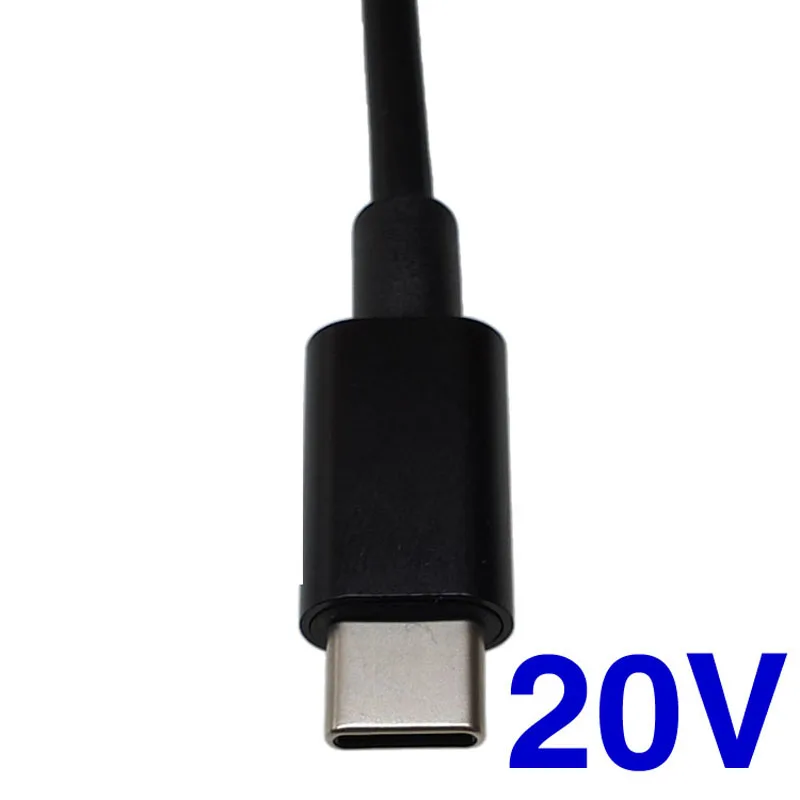

Input interface: TYPE-C stainless steel one-piece gold or nickel-plated plug, full PIN with grounding 5A high current

Output interface: full Copper 5.5* 2.1 or 5.5*2.5

Static power consumption: less than 2mA, measured typical 1.3mA, ultra low power consumption

Internal resistance: less than 0.15 ohms, measured around 0.1 ohms

Trigger Logic: Trigger a voltage less than or equal to the maximum value, such as the 15V line purchased. The charger only supports 5V9V20V, which triggers 9V.
