SPECIFICATIONS

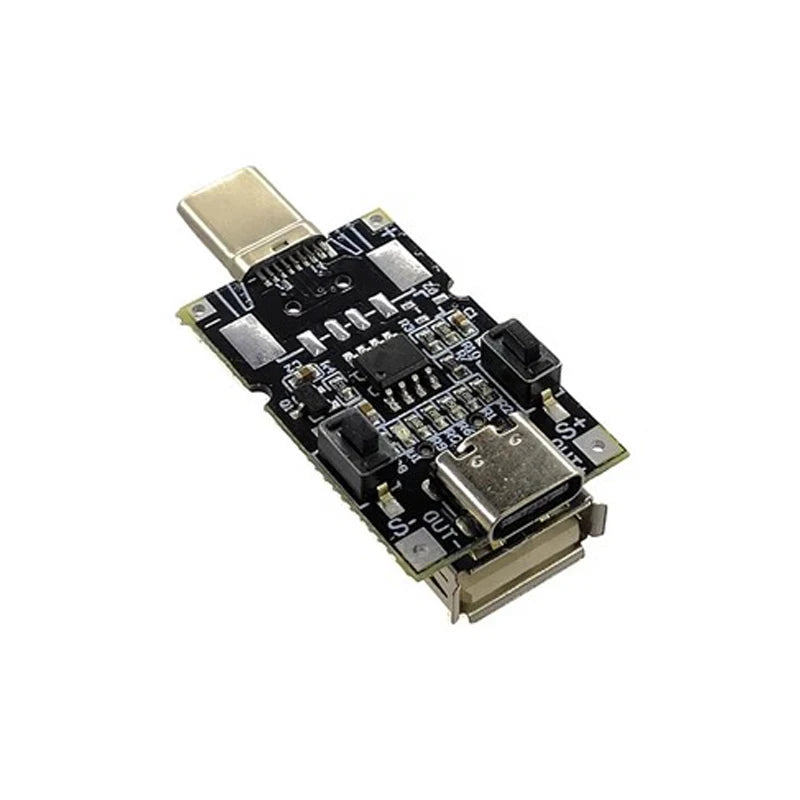

100W 5A USB Type-C PD Decoy Trigger Board 5V 9V 12V 15V 20V Output PD 2.0 3.0 Trigger Adapter Cable Connection Polling Detector

Description:

- It is a PD2.0/3.0 decoy.
- It is often used to use power banks with PD protocol such as power banks or chargers to trick the corresponding voltage to power notebooks and routers.

Features:

 1).It supports PD3.0 and PD2.0 voltage deception output,and the mode can be switched freely.
 2).It has a key lock function to prevent misoperation.
 3).It has an LED output indicator to show the working status.
 4).The parameters are automatically saved,and the last decoy setting is executed when the power is turned on again.
 5).Ultra-low power consumption,support 100W output.

Parameters:

 1).Product Name:PD2.0/3.0 Decoy
 2).Input Voltage:DC 5V
 3).Deceive Output Voltage:5V>9V>12V>15V>20V
 4).Maximum Output Voltage:20V
 5).Maximum Output Current:5A
 6).Work Temperature:-25℃~85℃
 7).Work Humidity:5%~95%RH

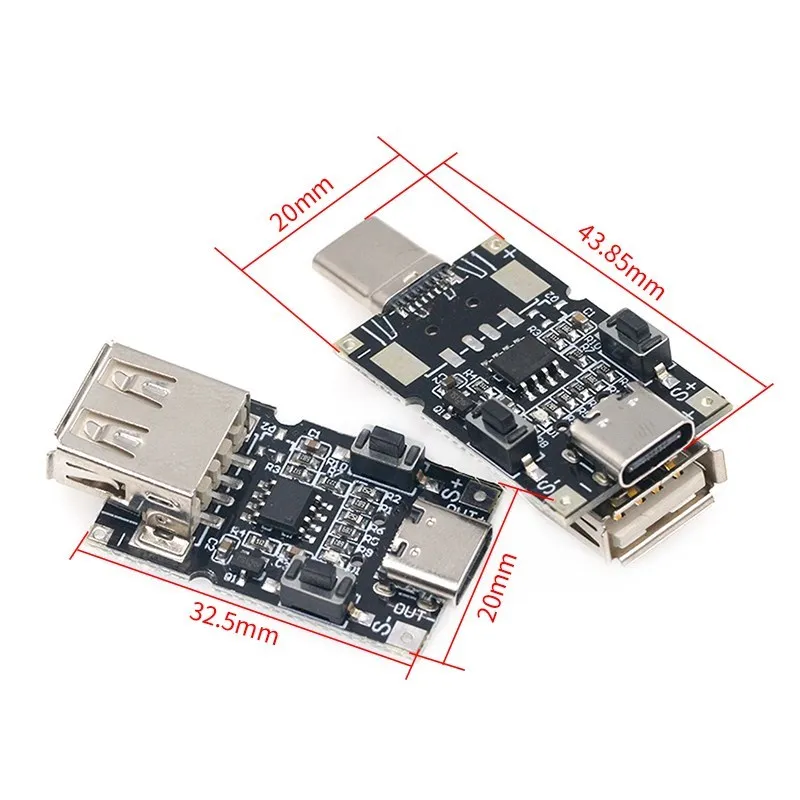

 8).Size:44*20*15mm

Instructions for Use (must use a power supply with PD protocol):

  1). Press and hold the S- button,then insert the module into the power supply,and then reset to 5V output (">>" means power on).
  2). Press and hold the S+ button,and then insert the module into the power supply.At this time,switch whether to turn on the key lock and save the state after power-on.If the key lock is unlocked,it must be unlocked to adjust the voltage after power-on to prevent misoperation.
  3). After power on,press and hold S+ button without letting go,then press S- button,and unlock when there is a button lock.
  4). After powering on,press and hold S- button without letting go,then press S+ button to lock the button.
  5). Quick start:Plug the board into the PD power supply.At this time,the LED light indicates the current setting decoy voltage.If it is not on,it is the default 5V. Adjust the output voltage:The board is locked by default,and you need to unlock it first.The method is to press and hold S+ button and then press S- button.At this time,the unlocking is complete and you can release the button.Then click S+ button to increase the voltage or click S- button to decrease the voltage.

Instructions for Use of Test Function:

  1). Press S- button and S+ button at the same time and then power on,the module enters the test mode,and the output voltage will automatically cycle from 5V>9V>12V>15V>20V.The voltage change time can be adjusted by S+ button and S-button,in seconds.
  2). This function is a test function,the mode is not saved,and the switching time can be saved.

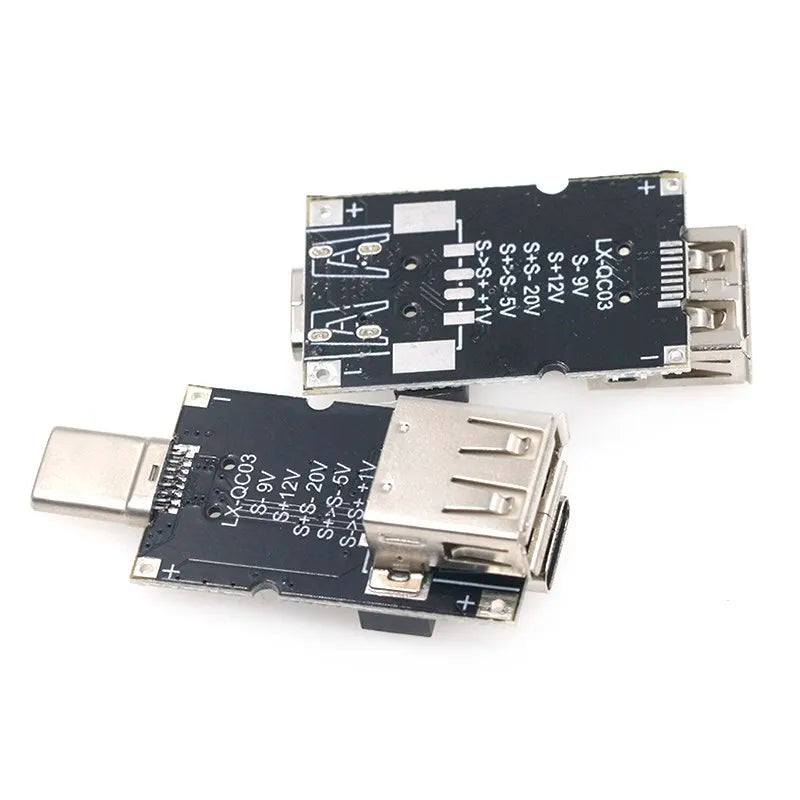

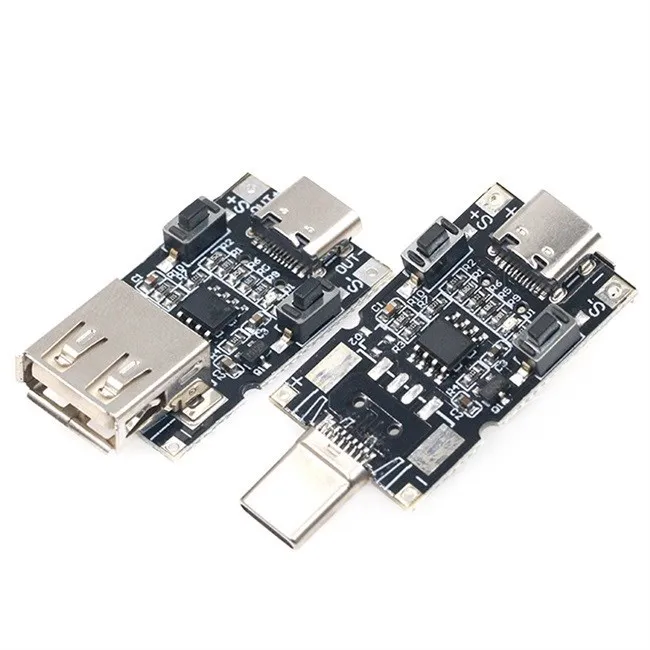

Interface Description:

  1. Type-C Interfeace Male:Type-C male connector:Connect PD power supply as input,which can input 20V 5A voltage and current.
  2. Type-C Interfeace Female:Used as an input to connect to a PD power supply,or as an output interface,which can output 20V 5A voltage and current.
  3. USB-A Female Interface:As an output interface,it can output 20V 3A voltage and current.
  4. Positive and negative wiring pads:as an output interface,it can output 20V 5A voltage and current.
