100W BLDC Motor with RS485 Driver Hall Sensor Support 3000 5000 10000 RPM Speed Adjustable DC Brushless Motor Kit DC 12-48V

100W BLDC Motor with RS485 Driver Hall Sensor Support 3000 5000 10000 RPM Speed Adjustable DC Brushless Motor Kit DC 12-48V

$189.63

$189.63 $0.00

Description

SPECIFICATIONS

Brand Name: NONE

Certification: ce,ROHS,CE,CCC

Does it include a Battery?: No

Does it include wireless functionality?: No

High-concerned chemical: none

Origin: Mainland China

Output Power: 74.6-735（include735）

power: 100w

product name: 100W Brushless DC Motor

speed: 3000rpm 5000rpm 10000rpm

support voltage: 12-48v DC recommend 24v

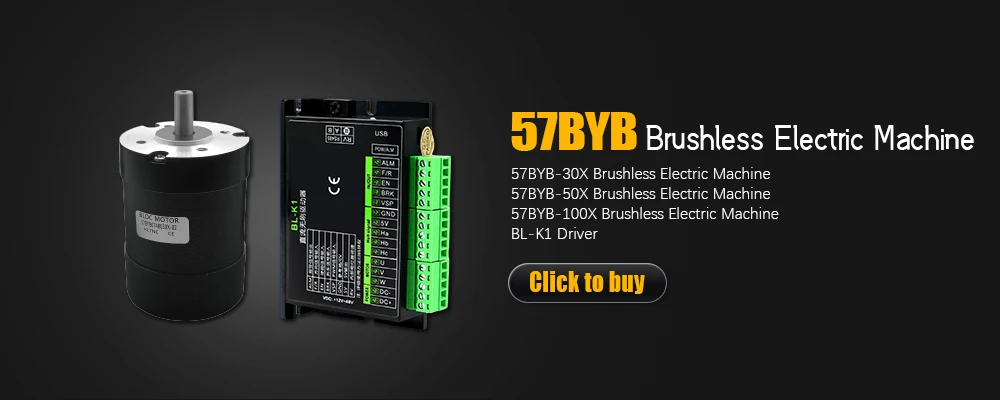

57BYB 100W Brushless DC Motor + BL-K1 Driver Kit | 24V 3000/5000/10000RPM | RS485 Hall Sensor | Industrial Grade BLDC Motor Set for CNC Robotics Automation

🌟 Product Highlights

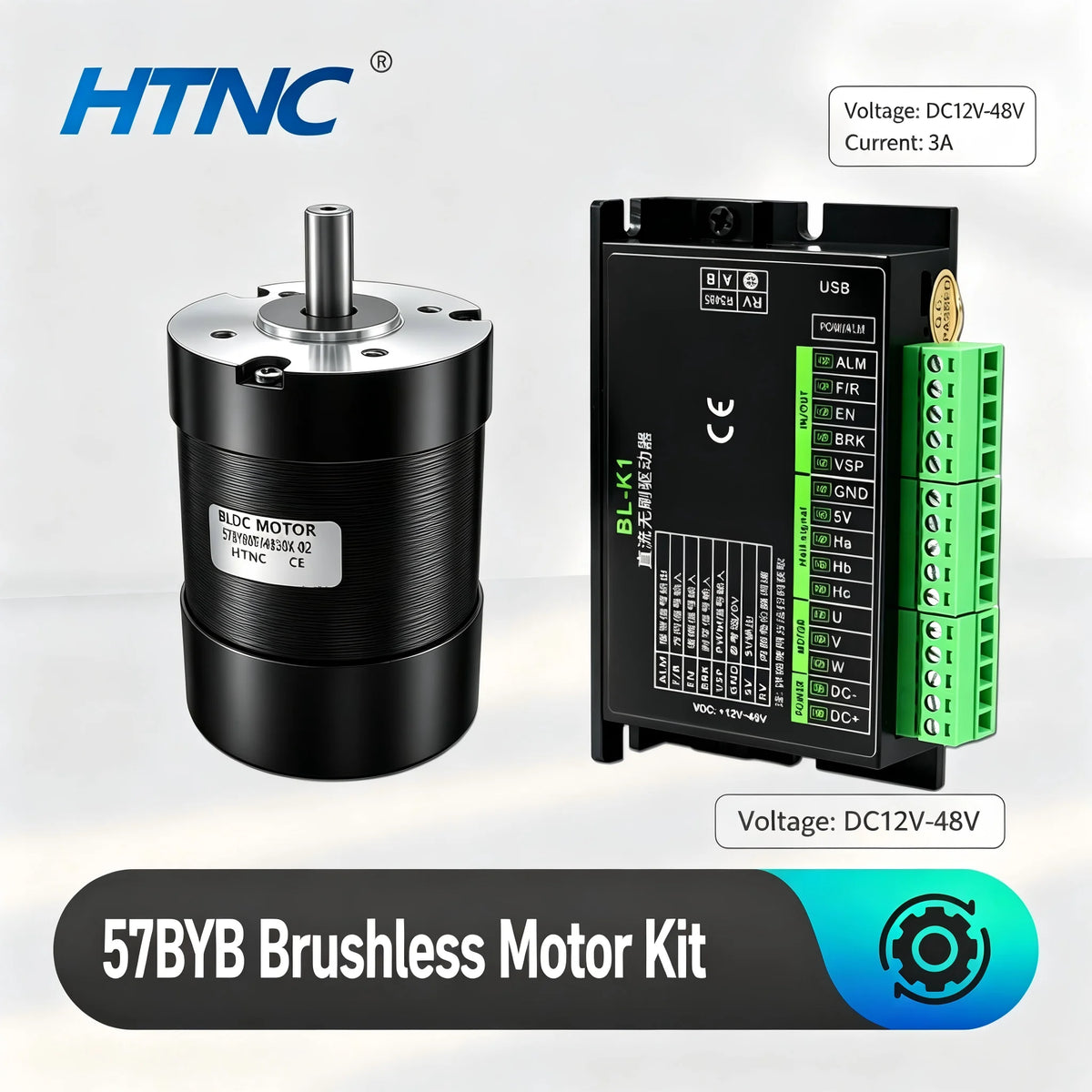

Complete Kit: 57BYB series 100W brushless DC motor + BL-K1 driver, ready to use out of the box
3 Speed Options: 3000RPM, 5000RPM and 10000RPM to meet different application requirements
Dual Control Modes: Support Hall sensor closed-loop control and RS485 communication
USB Debugging: Built-in USB interface for easy parameter setting and debugging
Wide Voltage Range: Driver supports 12V-48VDC input, compatible with various power supplies
Industrial Grade Quality: CE certified, stable performance, long service life
Compact Design: Standard 57mm frame size, easy to install and integrate

📦 Product Overview

This 57BYB series brushless DC motor kit is designed for industrial automation and DIY projects. It features high speed, high torque, low noise and stable operation. The BL-K1 driver supports both Hall sensor control and RS485 communication, allowing for precise speed and position control. With a wide input voltage range of 12V-48VDC, it can be used in various applications such as CNC machines, 3D printers, robotics, conveyor systems, and more.

The kit includes one 57BYB brushless motor (available in 3000RPM, 5000RPM or 10000RPM) and one BL-K1 brushless motor driver. All motors are 3-phase 4-pole design with insulation class B, ensuring reliable performance even in harsh environments.

📊 Detailed Product Parameters

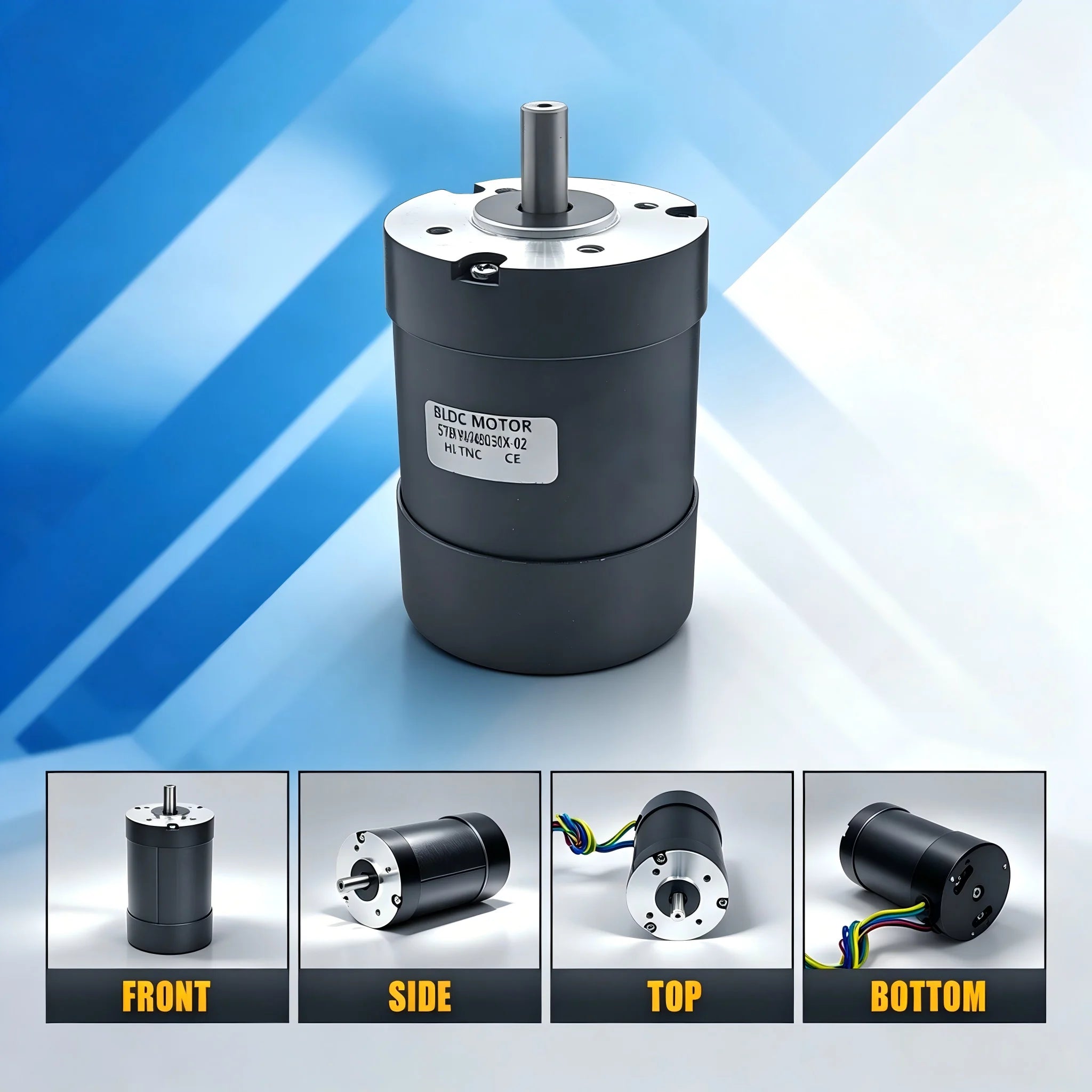

57BYB Series Brushless DC Motor Parameters

Parameter	57BYB-30X	57BYB-50X	57BYB-100X	Unit
Rated Power	100	100	100	W
Rated Speed	3000	5000	10000	RPM
Rated Voltage	24	24	24	VDC
Rated Current	5.3	5.5	5.5	A
Rated Torque	0.32	0.2	0.1	N.m
Motor Phases	3	3	3	-
Number of Poles	4	4	4	-
Insulation Class	B	B	B	-
Frame Size	57	57	57	mm
Motor Length	74±1.5	74±1.5	74±1.5	mm
Shaft Diameter	8	8	8	mm
Shaft Length	20±1	20±1	20±1	mm
Mounting Holes	4-M4	4-M4	4-M4	-
Weight	0.68	0.68	0.68	KG

BL-K1 Brushless Motor Driver Parameters

Parameter	Value	Default Value	Unit
Input Voltage	12-48	-	VDC
Maximum Current	<6	5	A
Number of Pole-pairs	-	4	-
Deceleration Time	10-3000	50	ms
Applicable Speed	-	3000	RPM
Communication Interface	RS485 + USB	-	-
Control Mode	Hall sensor + PWM + RS485	-	-
Dimensions	94×56×21	-	mm
Weight	115	-	g
Certification	CE	-	-

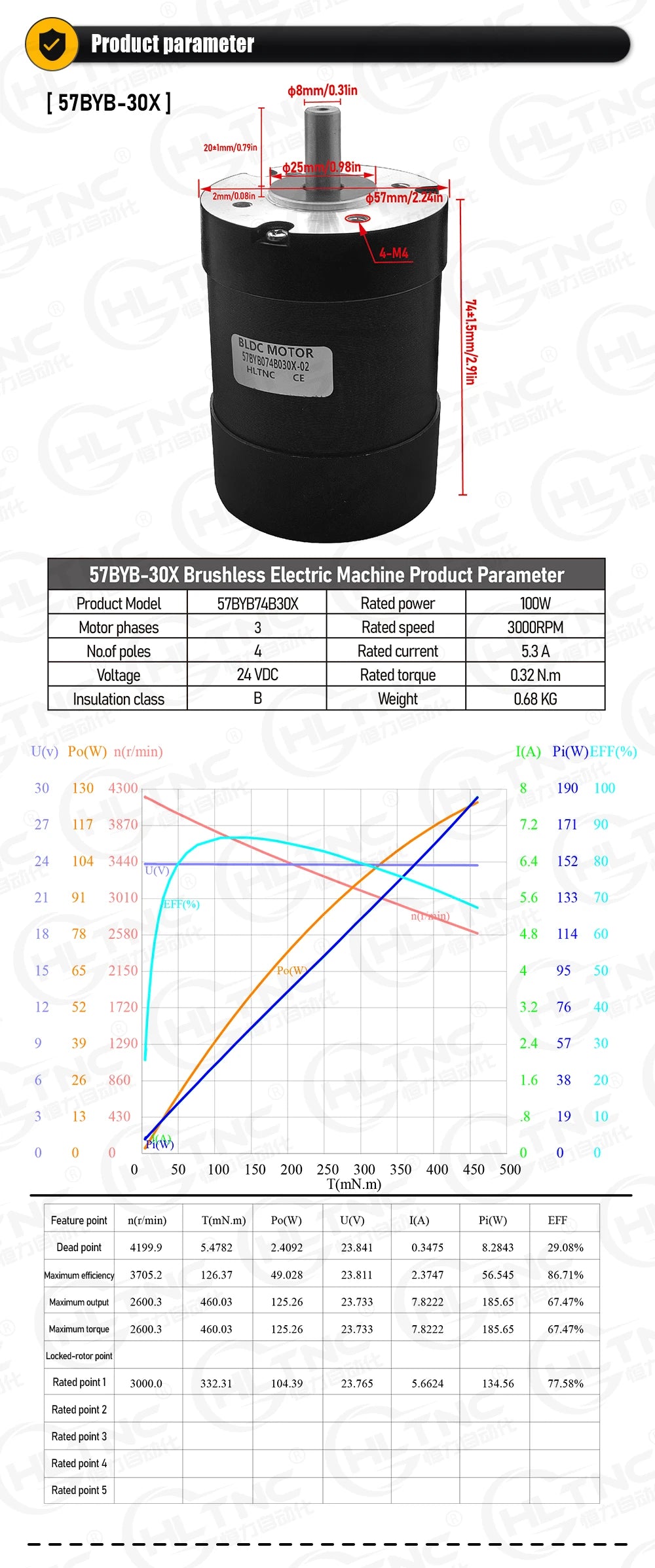

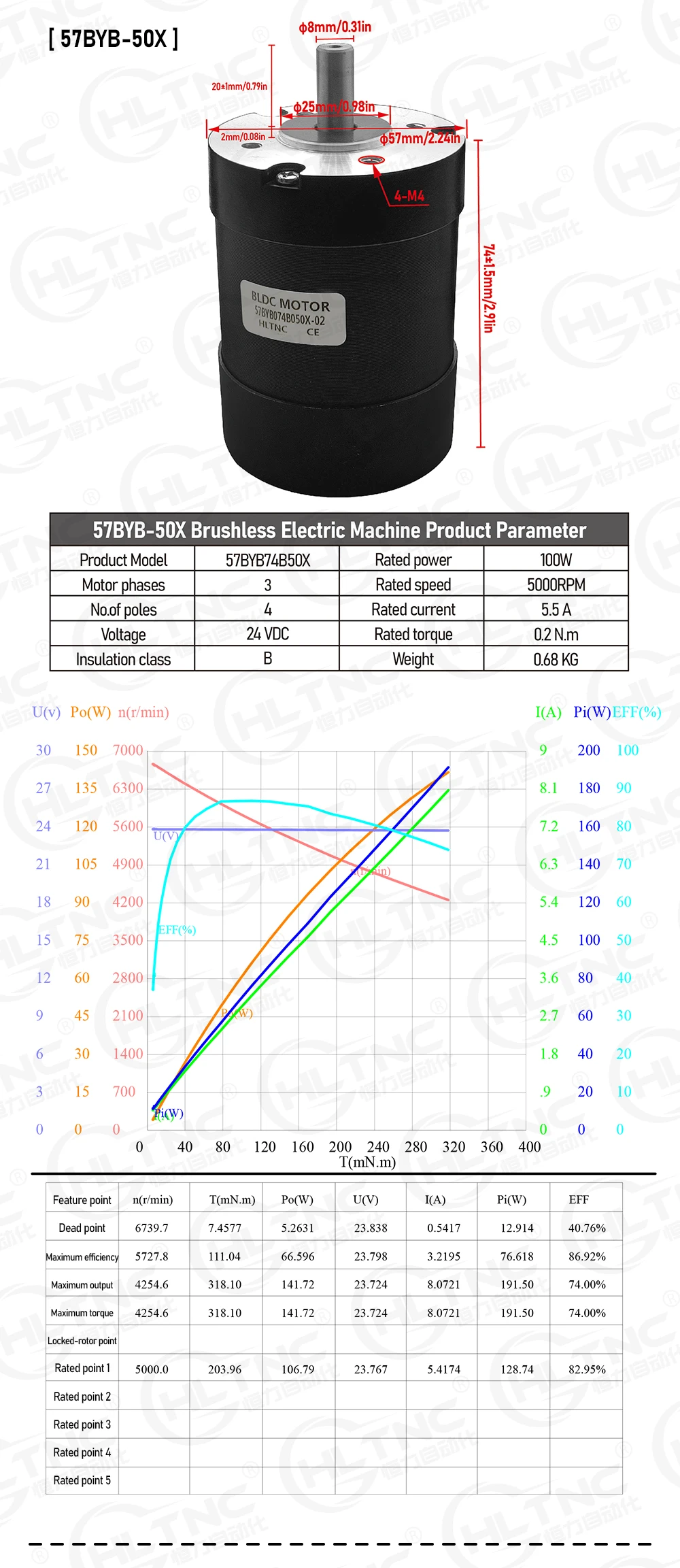

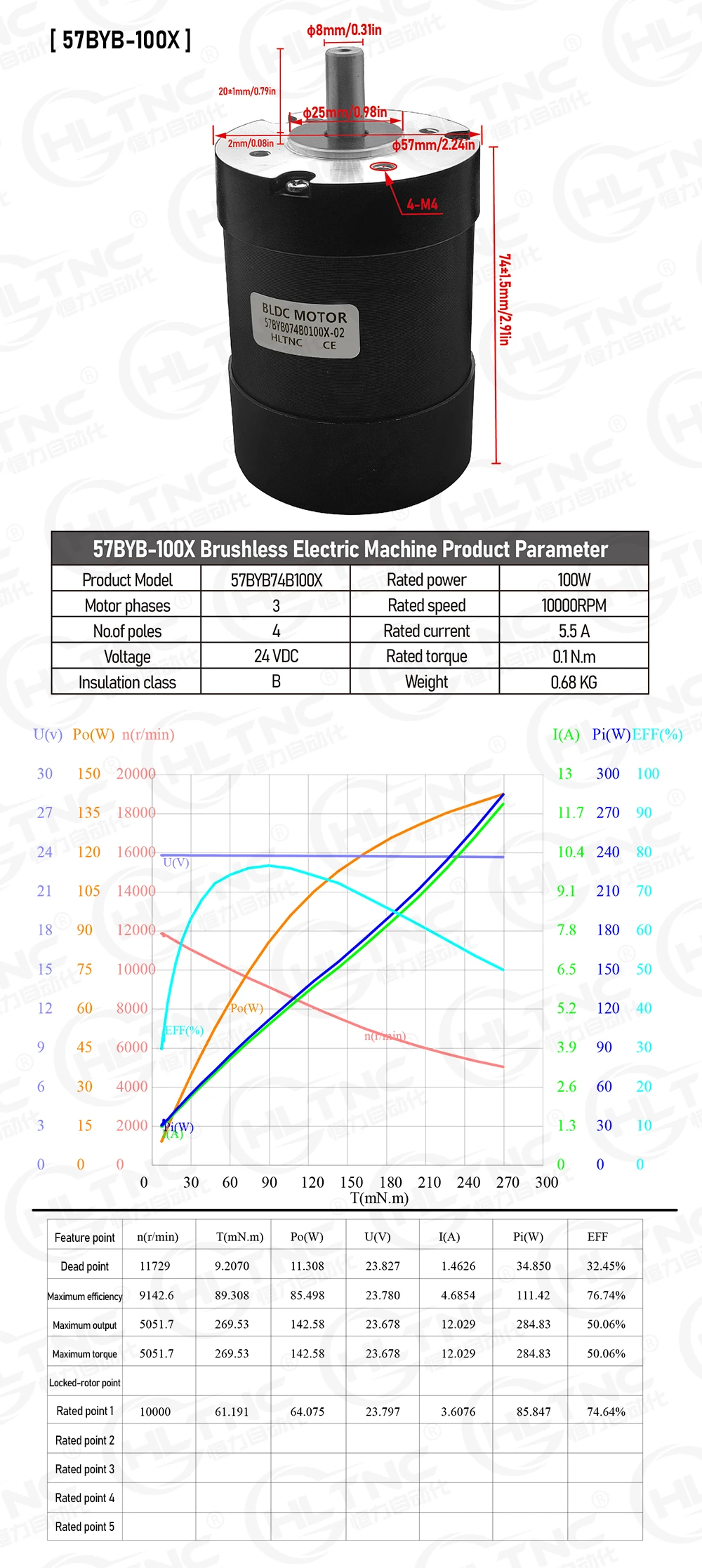

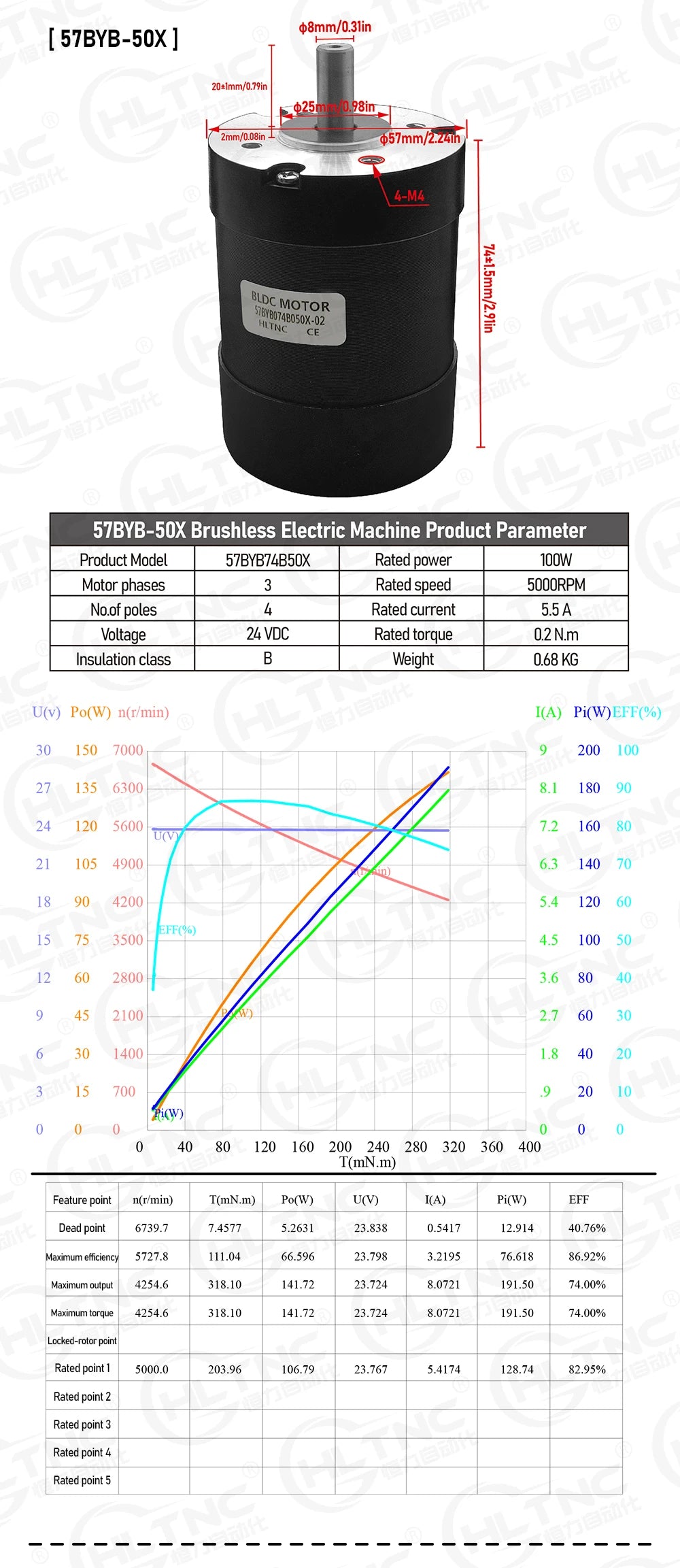

📈 Performance Curves

All motors have been rigorously tested to ensure optimal performance:

57BYB-30X: Maximum efficiency up to 86.71%, maximum output power 125.26W, maximum torque 460.03mN.m
57BYB-50X: Maximum efficiency up to 86.92%, maximum output power 141.72W, maximum torque 318.10mN.m
57BYB-100X: Maximum efficiency up to 76.74%, maximum output power 142.58W, maximum torque 269.53mN.m

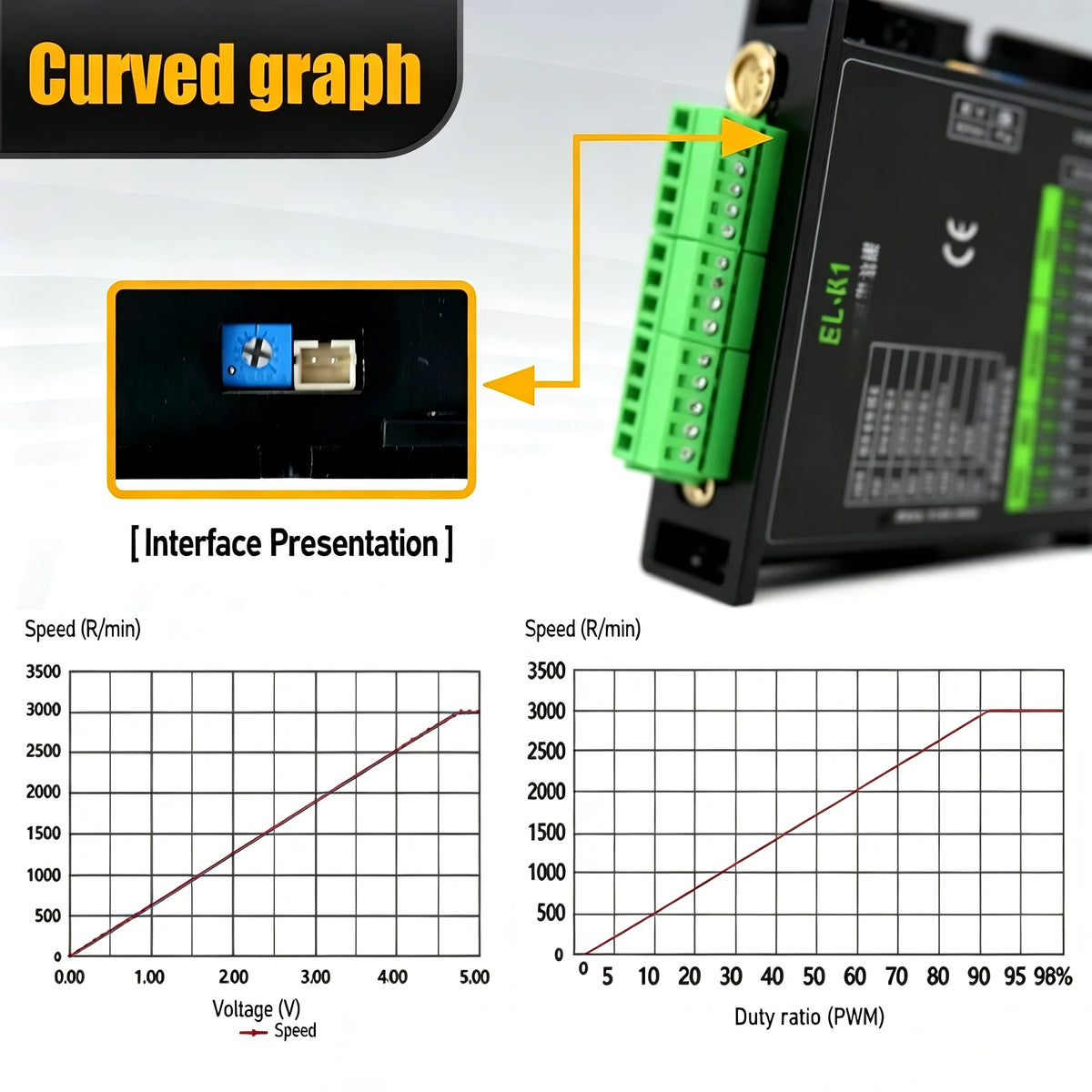

The driver provides smooth speed control from 0 to maximum speed with excellent linearity, supporting both analog voltage control (0-5V) and PWM duty cycle control (0-98%).

📐 Product Dimensions

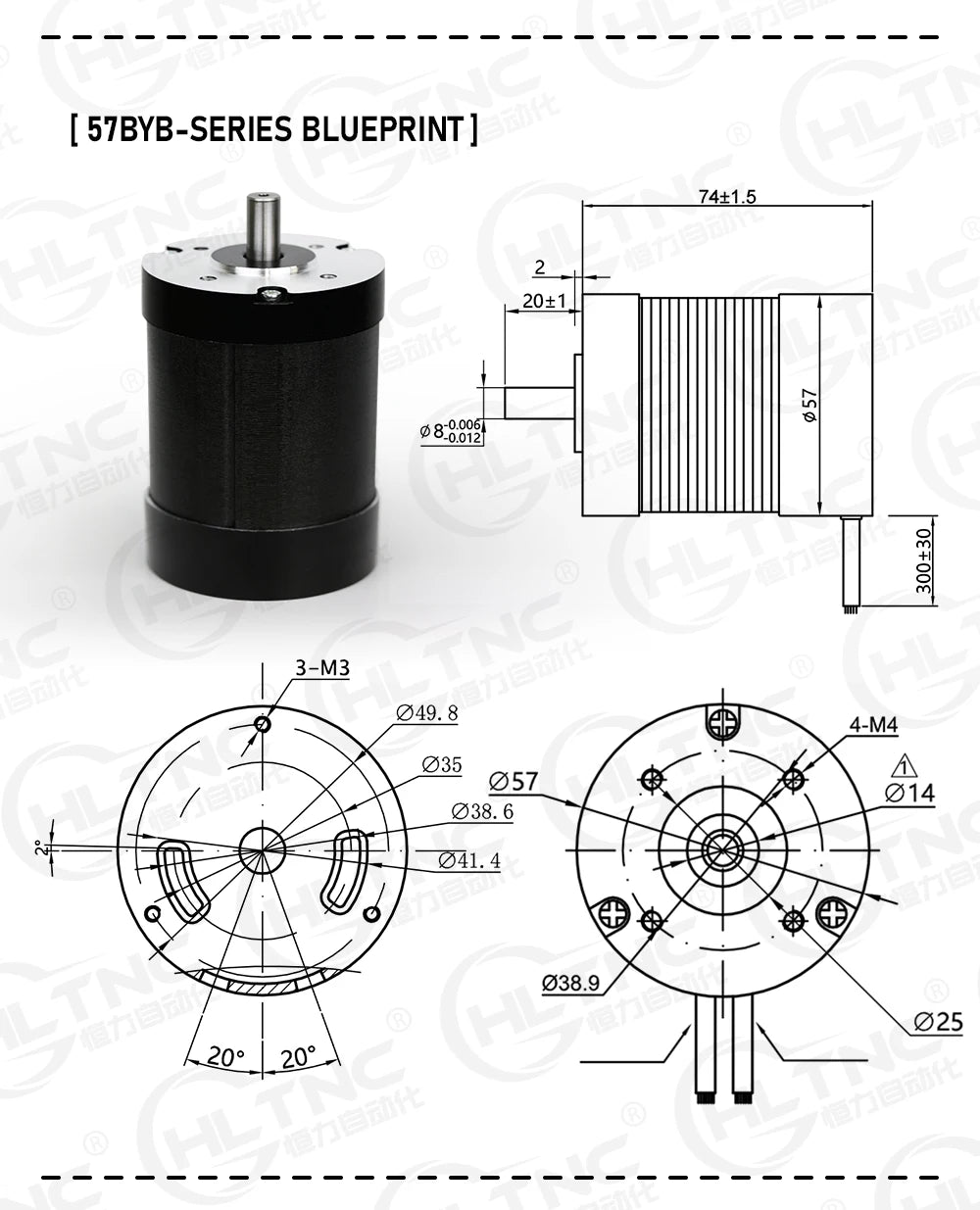

Motor Dimensions

Diameter: 57mm (2.24in)
Length: 74±1.5mm (2.91in)
Shaft diameter: 8mm (0.31in)
Shaft length: 20±1mm (0.79in)
Mounting hole pitch: 49.8mm
Mounting holes: 4×M4

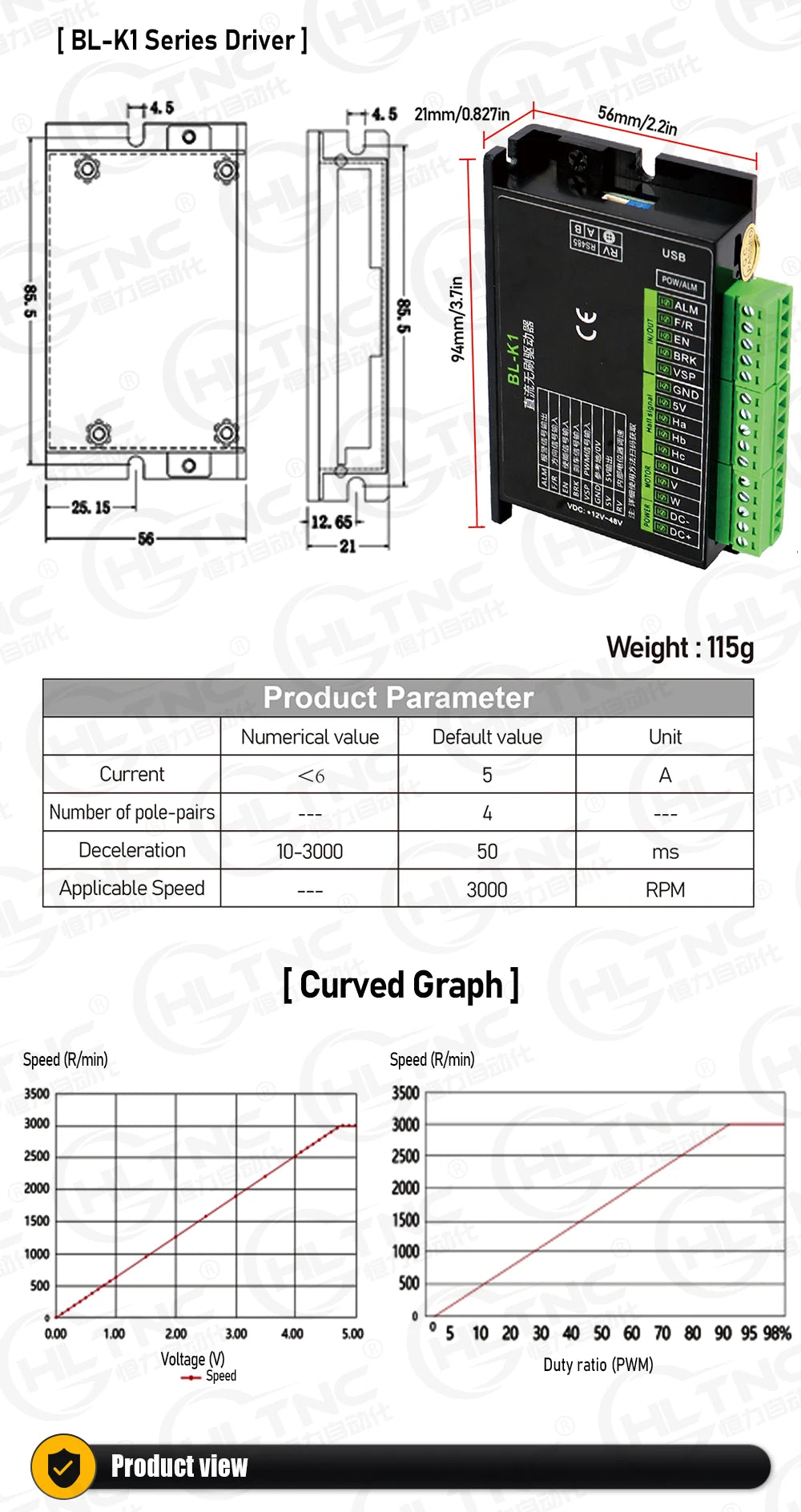

Driver Dimensions

Length: 94mm (3.7in)
Width: 56mm (2.2in)
Height: 21mm (0.827in)
Mounting holes: 4×M3

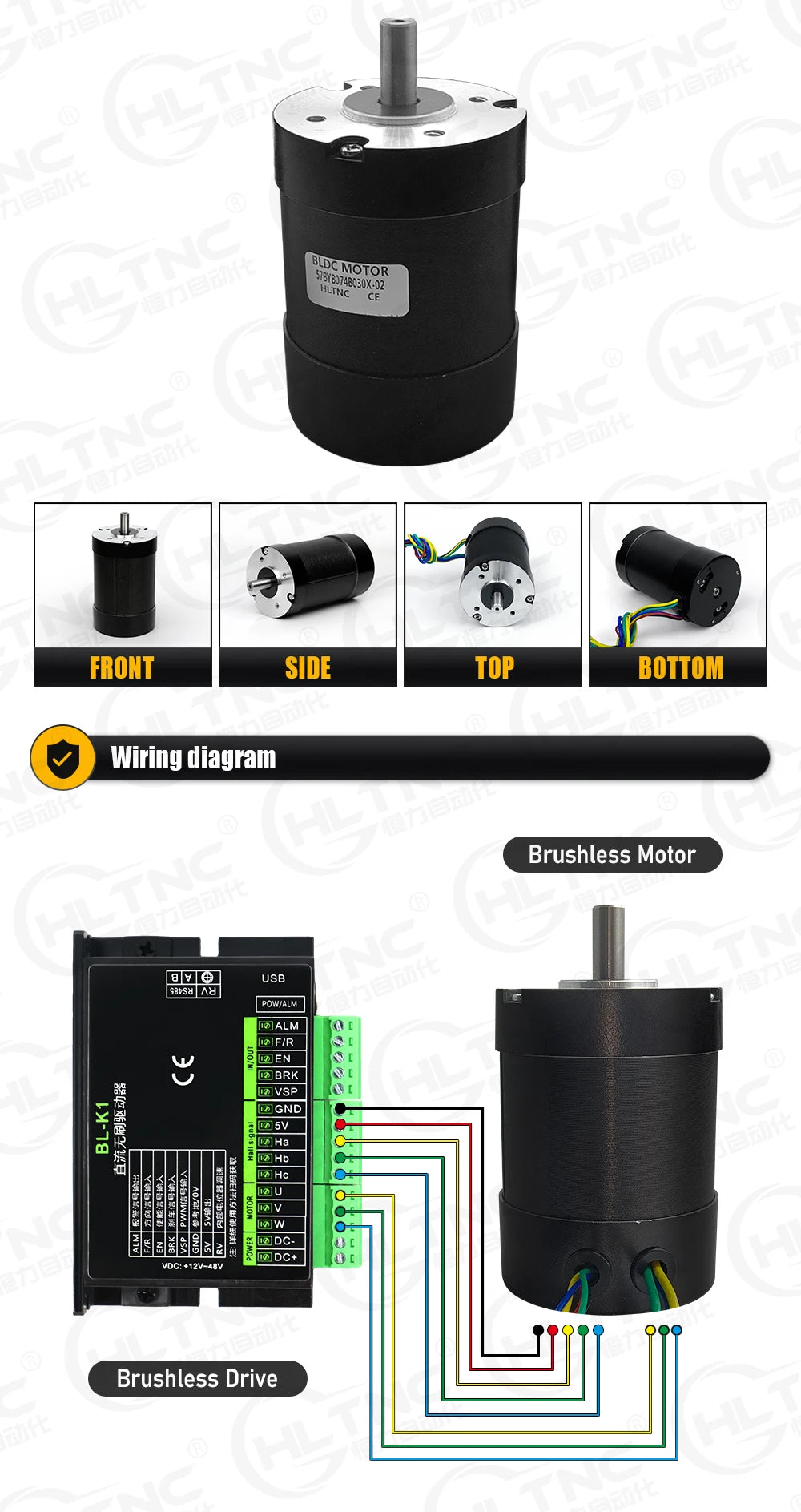

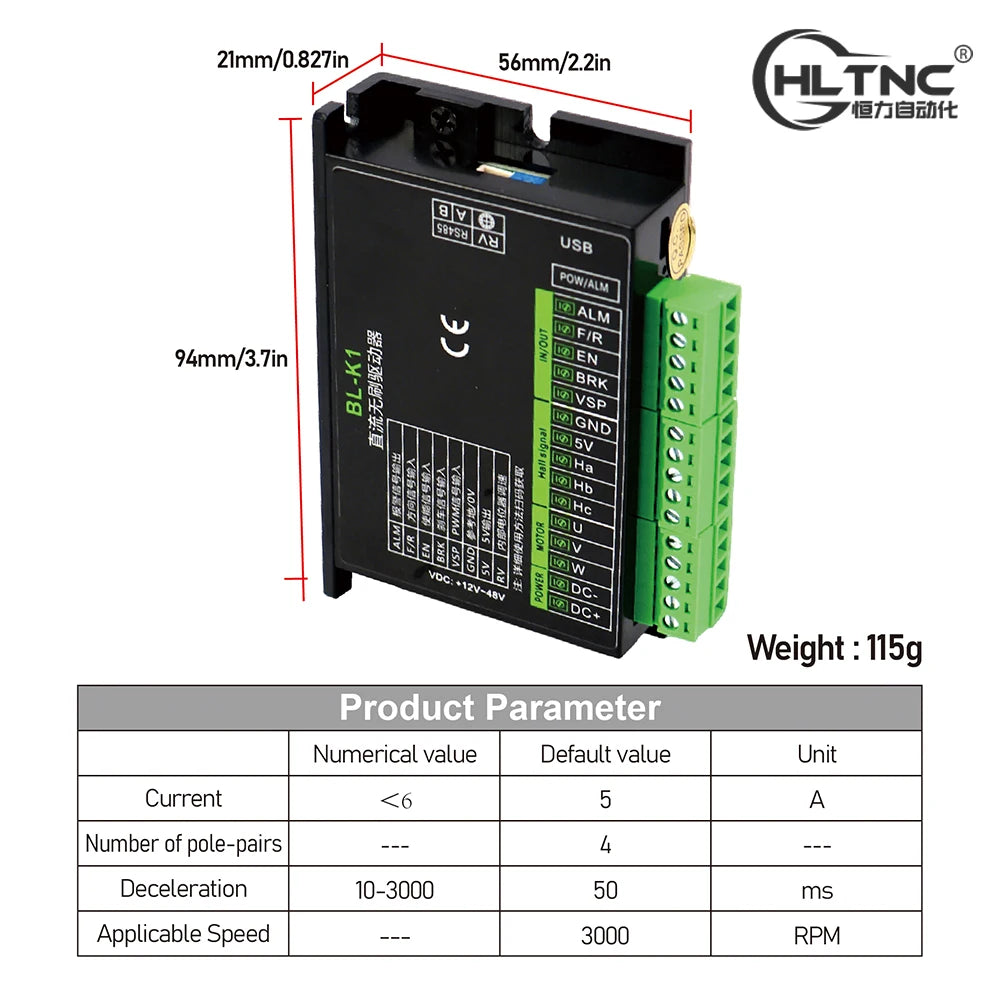

🔌 Wiring Diagram

The wiring is simple and straightforward:

Power Supply: Connect DC+ and DC- to your 12-48V power supply
Motor Connections: Connect U, V, W phases from the driver to the motor
Hall Sensor Connections: Connect Ha, Hb, Hc, 5V and GND from the driver to the motor's hall sensor
Control Signals: Use EN (enable), F/R (forward/reverse), BRK (brake) and VSP (speed control) for external control
RS485 Communication: Connect A and B terminals to your RS485 bus
USB Interface: Use for parameter setting and debugging via computer

🎯 Application Scenarios

This brushless DC motor kit is ideal for:

CNC routers and milling machines
3D printers and laser engravers
Robotics and automation systems
Conveyor belts and material handling equipment
Medical equipment
Laboratory instruments
DIY projects and hobbyist applications
Small electric vehicles and drones

📦 Package Includes

1 × 57BYB Series 100W Brushless DC Motor (3000RPM/5000RPM/10000RPM optional)
1 × BL-K1 Brushless Motor Driver
⚠️ Important Notes
1. Please ensure the power supply voltage is within 12-48VDC range
2. Correctly connect the motor phases and hall sensor wires to avoid damage
3. The driver has over-current, over-voltage and over-temperature protection
4. Please set the correct number of pole pairs in the driver parameters before use
5. For high-speed applications (10000RPM), ensure proper cooling of the motor
6. All products are tested before shipment to ensure quality
❓ Frequently Asked Questions

Q: Can I use a 36V or 48V power supply with this motor?

A: Yes, the driver supports 12-48VDC input. However, the motor is rated for 24VDC. Using higher voltage will increase the maximum speed but may reduce the motor's lifespan.

Q: Does this kit support closed-loop control?

A: Yes, it supports closed-loop control using the built-in hall sensors for accurate speed and position feedback.

Q: Can I control multiple motors using RS485?

A: Yes, you can connect multiple BL-K1 drivers to the same RS485 bus by setting different slave addresses for each driver.

Q: Is there any software available for parameter setting?

A: Yes, we provide free PC software for parameter setting and debugging via the USB interface.
